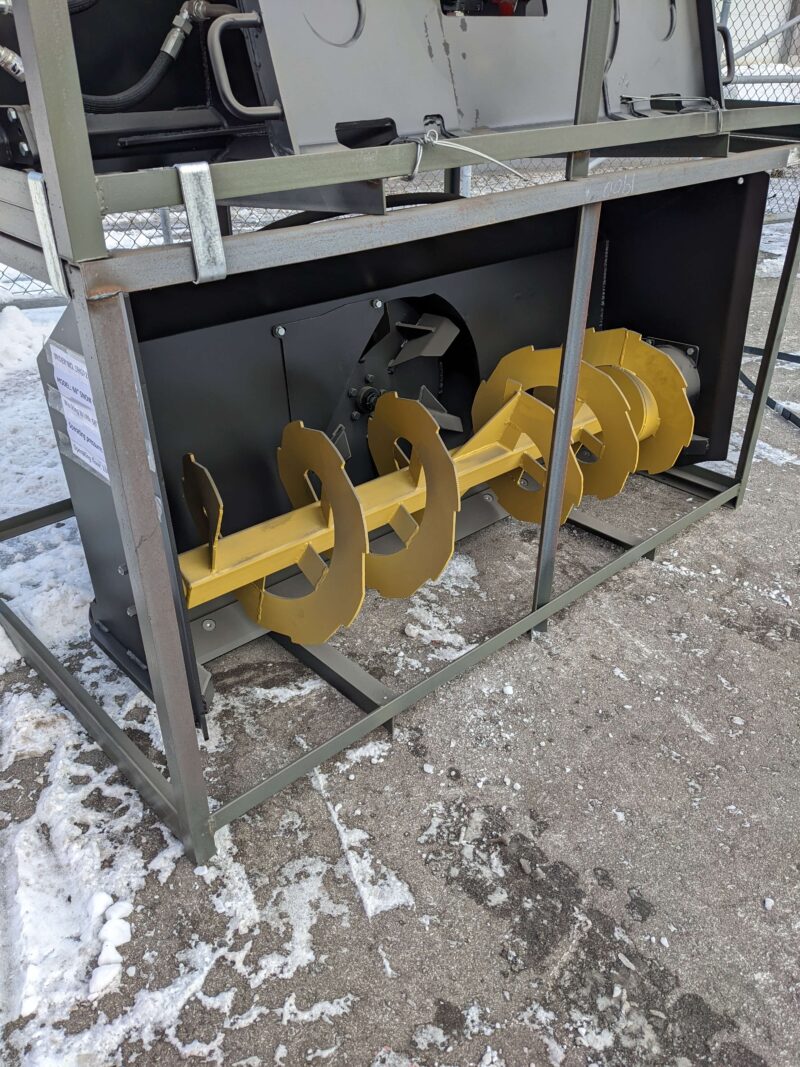

CAEL offers the highest quality heavy-duty skid steer Snow Blower
specifications:
Working Width is 68”
The distance of the snow throw is greater than or equal to 12000mm.
Operating pressure 17- 21Mpa.
Operating flow:100-125L/min.
Product Dimension | 1800mm*1170mm*1540mm/5.91’*3.84’*5.05′ |
Product Weight | 520kg/1144lbs |
Product Material | Q345 Steel |
Hydraulic Motor Power | 15HP~45HP |
Hydraulic Motor Pressure | 20MPa |
Surface Treatment Technology | Plastic Powder Coating |
Working Width | 1600mm/62.99″ |
Working Rotation Speed | 560RPM~1680RPM |
Mowing height | 465mm/18.31″ |
Blowing Distance | 15m/49.21’ |
Blower Machine Diameter | 615mm/24.21″ |
Blower Auger Diameter | 465mm/18.31″ |
MANUAL FOR SNOW BLADE SKID STEER ATTACHMENT
