SPECIFICATIONS

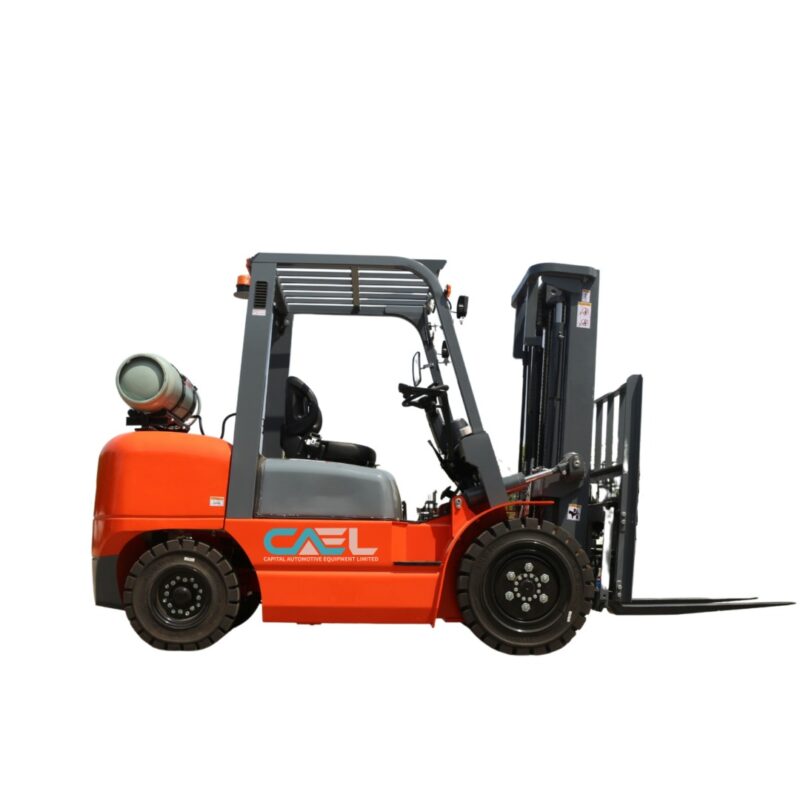

Model: CAEL-3FL

Power type LPG&Gasoline
Rated capacity 3000 kg
Load center 500 mm
Operator type Drive in seat

Height with Mast Retraction 2065 mm
Max.lift height of fork 4000 mm
Height of mast 1898 mm
Free lift height 661 mm
Front overhang 479 mm
Wheel base 1740 mm
Min. ground clearance 135 mm
Overall width 1225 mm
Overall length fork excluded 2695 mm
overhead guard height 2090 mm
The distance between forks 250/1100 mm
Tread(front /rear) 1000/970 mm
Turning radius 2070 mm
Mast tilt angle 6°/6° deg
Fork size 1070X125X45 mm

Speeds
Max.Drive speeds(with/without load) 18/19 km/h
Lifting speeds (with load) 440/480 mm/s
Lowering speeds(with /without full load) 450/550 mm/s
Max. tractive force 20/20 KN
Max.grade ability (with/without full load) 20/20 %

Size
Total weight 4270 kg
Weight Distribution full load (front/ rear) 6543/727 kg
Weight Distribution zero load(front / rear) 1708/2562 kg
Quantity of wheels 2x/2
Type of tyres Pneumatic tyres
Tires Front 28*9-15-15PR
Rear 6.00-10-10PR
Driving Brake Hydraumatic pedal
Parking Brake Mechanical manual

Engine: KUBOTA

Rated output 43.5kw/2600rpm kw/rpm
Displacement 2.5 L
Fuel tank capacity 60 L
Number of speeds for transmission 1-1Power shift transmission
