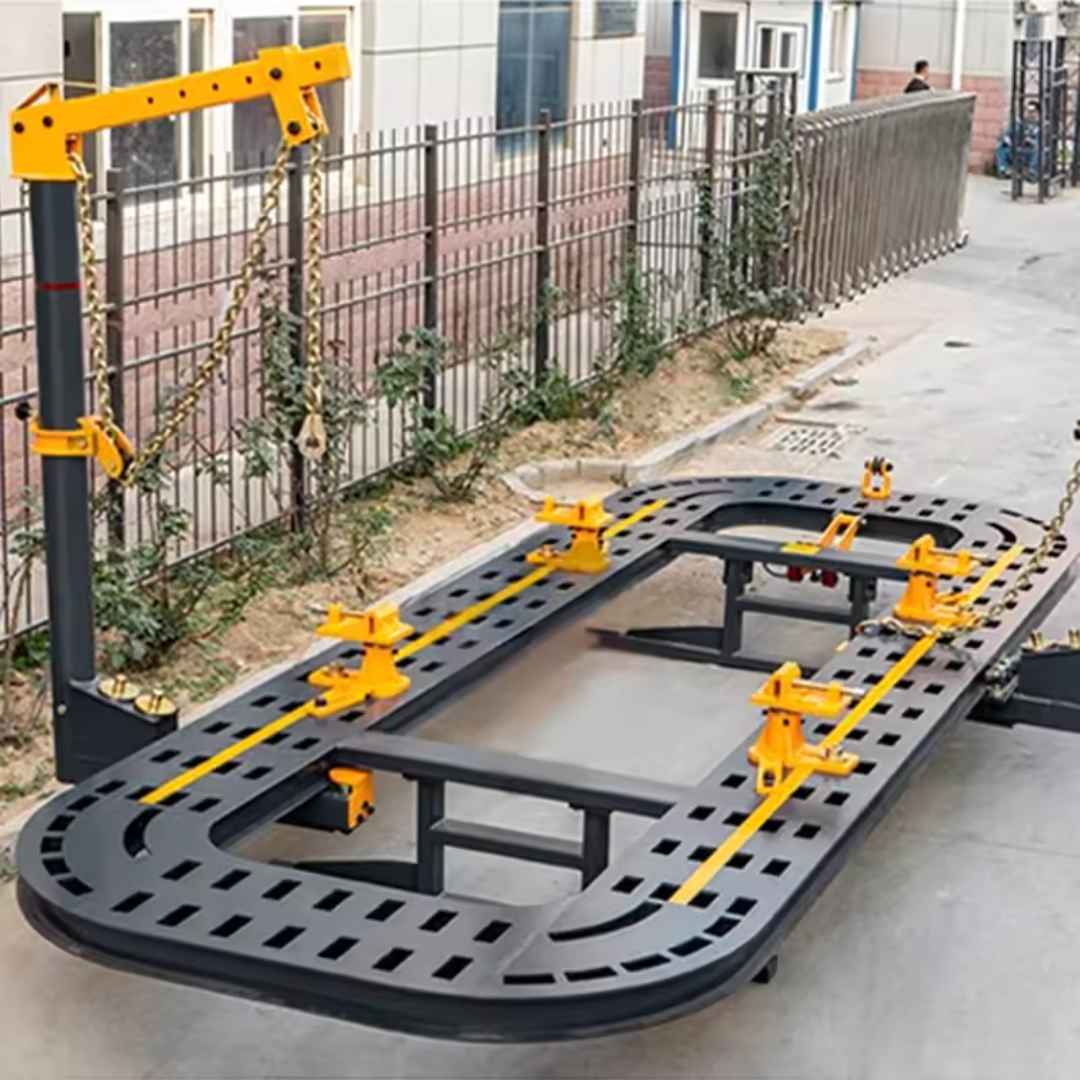

Frame Machine – CAELAD-M5E

  • $14999.00

Designed to accommodate Full-Frame or Uni-Body type vehicles
Hydraulic lift jack operation with 3,500kg (7700 lbs) lifting capacity
Universal anchoring system with adjustable heights
Durable powder coat surface finish
Two towers with 10-ton hydraulics
Electric control cabinet controls tower and deck Complete tool broad

Category:

SPECIFICATIONS:

Maximum Lifting Load : 3,500kgs
Deck Height: 340-1050mm
Deck Length : 5,600mm
Deck Width : 2,200mm
Tower Pulling Force : 98KN
Hydraulic Pressure : 70Mpa
Net/Gross Weight : 1,995kgs/2,000kgs, 920kgs/970kgs
Packing Size : 5,600*2,250*340mm(1PCS) 2,250*1,450*570mm(1PCS)
