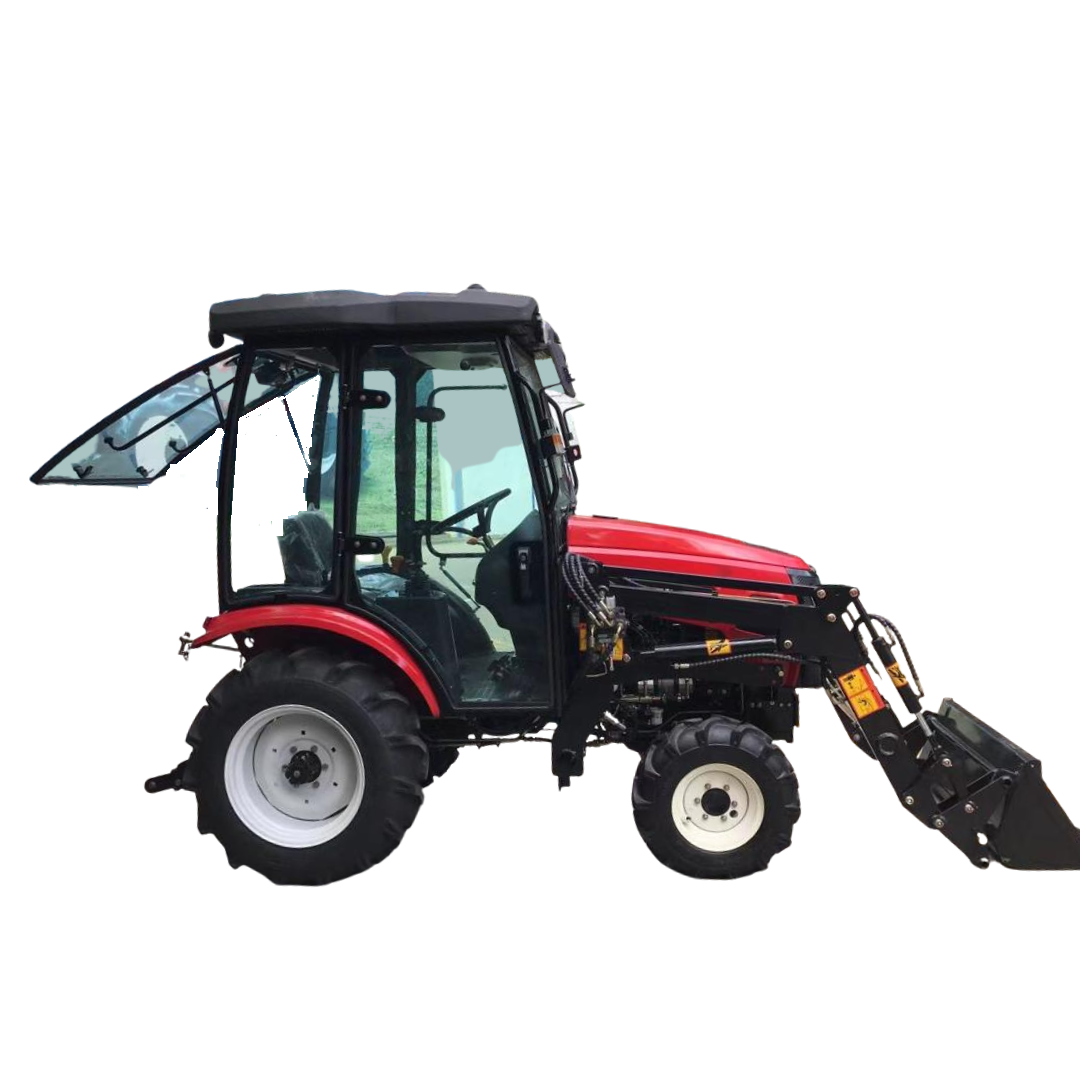

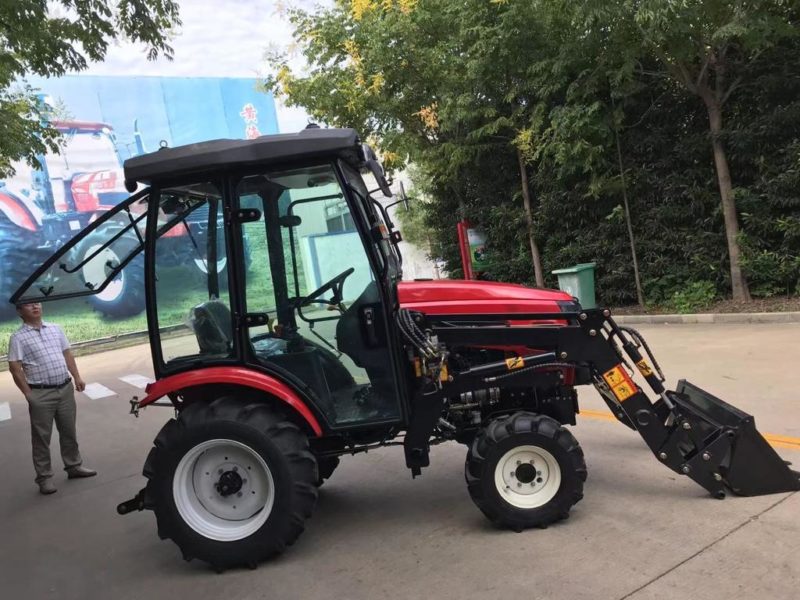

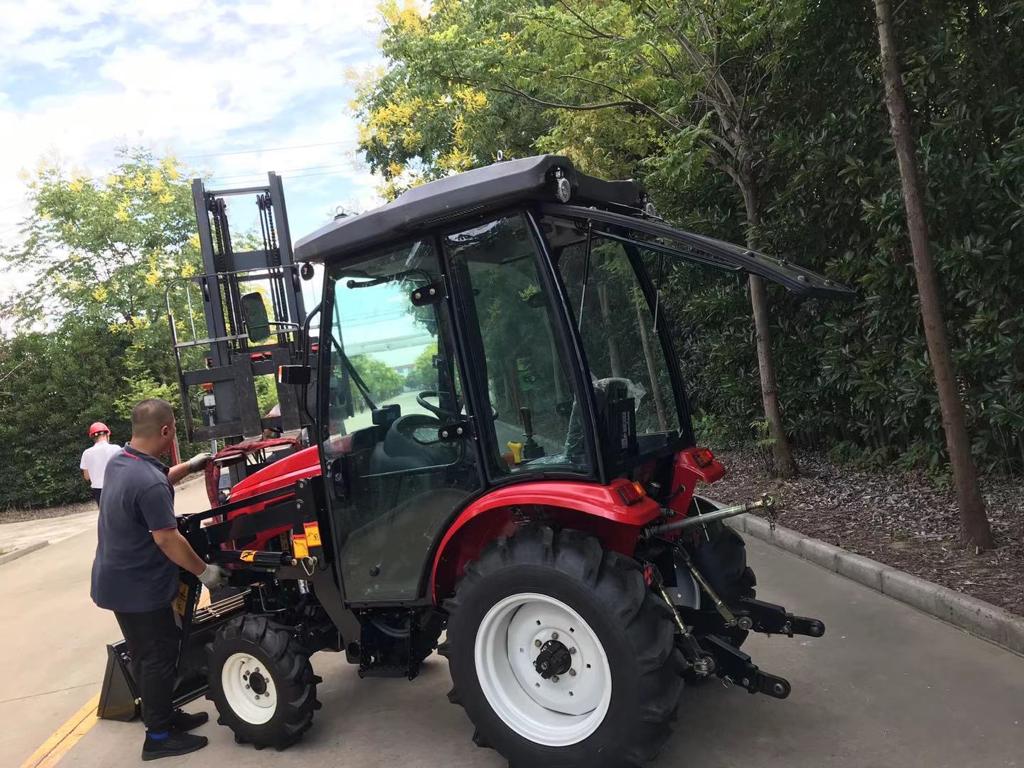

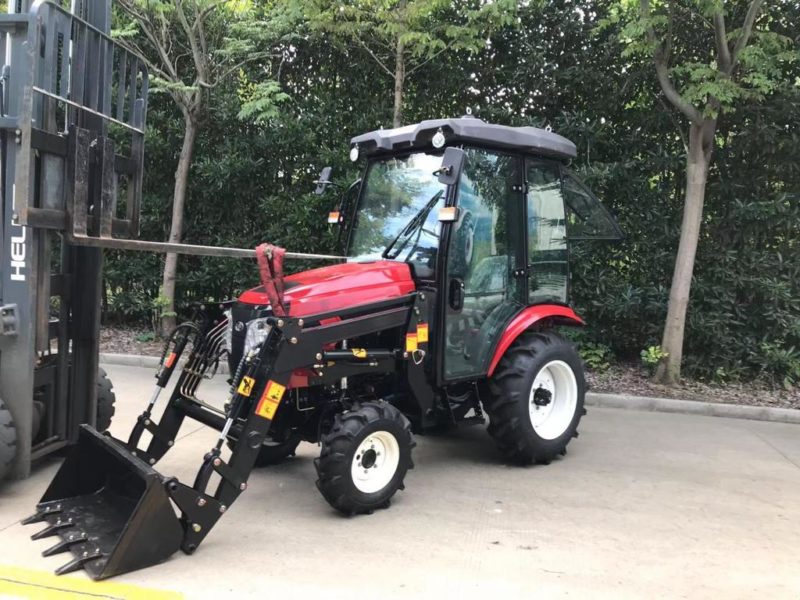

***Tractor Parameters *****
*Drive Type : 4WD
*Overall Dimensions L×W×H(mm): 3180×1285/1450×2290
*Wheel Track (mm) :
– Front : 970/1210
– Rear : 1000/1160
*Wheel Bass(mm) : 1540
*Ground Clearance (mm) : 300
*Rated Traction Force(N): 6620
*Construction Mass(kg) : 1080
*Min.Turning Radius(m) : 3.27
*Theoretical Speed (km/h) :
-Forward(low-grade) : 0~8.2
-Reverse(low-grade) : 0~8.2
– Forward(high grade) : 0~20
– Reverse(high grade) : 0~20
***Engine Specifications***
Model : Perkins 403F-11
Type : 3-Cylinder Vertical, water cooled,4 stroke cycle indirect injection,
Rated Power(kw/hp) : 18.4/25
Rated Speed (rpm) : 2600
Bore×Stroke (mm) : 77 X 81
Total Displacement(L) : 1.131
**** Drive System****
Clutch : Monolithic dry combined with friction
Gear Box : HST+Two gears
Main Drive : A pair of spiral bevel gears
Differential : Two closed planetary wheel
Differential Lock : Tooth type
****Traveling Mechanism****
*Tyre :
– Front : 26×7.5-12 grass tire
– Rear : 11.2-20 grass tire
* Steering Gear : Full Hydraulic Steering
* Brake : Double pedal disc brakes
*** Working Device ***
* Hydraulic System :
– Lifting Capacity at 610mm Behind Lift : 3900
– Point (N) 3-Point Suspension : Category :I
* P.T.O Shaft (Rear) :
– Rotating Speed (rpm) : 540/1000
– Spline Size : 6-Φ35 Rectangular Spline
* P.T.O Shaft (Mid):
– Rotating Speed (rpm): 2000
– Spline Size : 11 teeth involute spline
1 Year Warranty on all parts
**Optional Features**
ATTACHMENTS AVAILABLE:
Cultivator
Disc harrow
Mower
