Features

• Powerful and reliable air compressor designed to run hoses and pneumatic tools such as sanders, sprayers, nail guns, and more in automotive garages, warehouses, and machine shops
• Large 60-gallon vertical air tank driven by a heavy-duty single-phase 230V induction motor operating at 3450 RPM for consistent performance
• CSA-approved 5 HP motor with double cast iron construction, featuring a one-piece cast iron crankcase and full cast iron cylinder body for long-term durability
• Delivers up to 145 PSI maximum air pressure to ensure optimal tool efficiency
• Includes ¼” and ½” NPT connectors for running multiple tools simultaneously
• Built-in air outlet ports allow for easy manual draining to prevent rust and corrosion

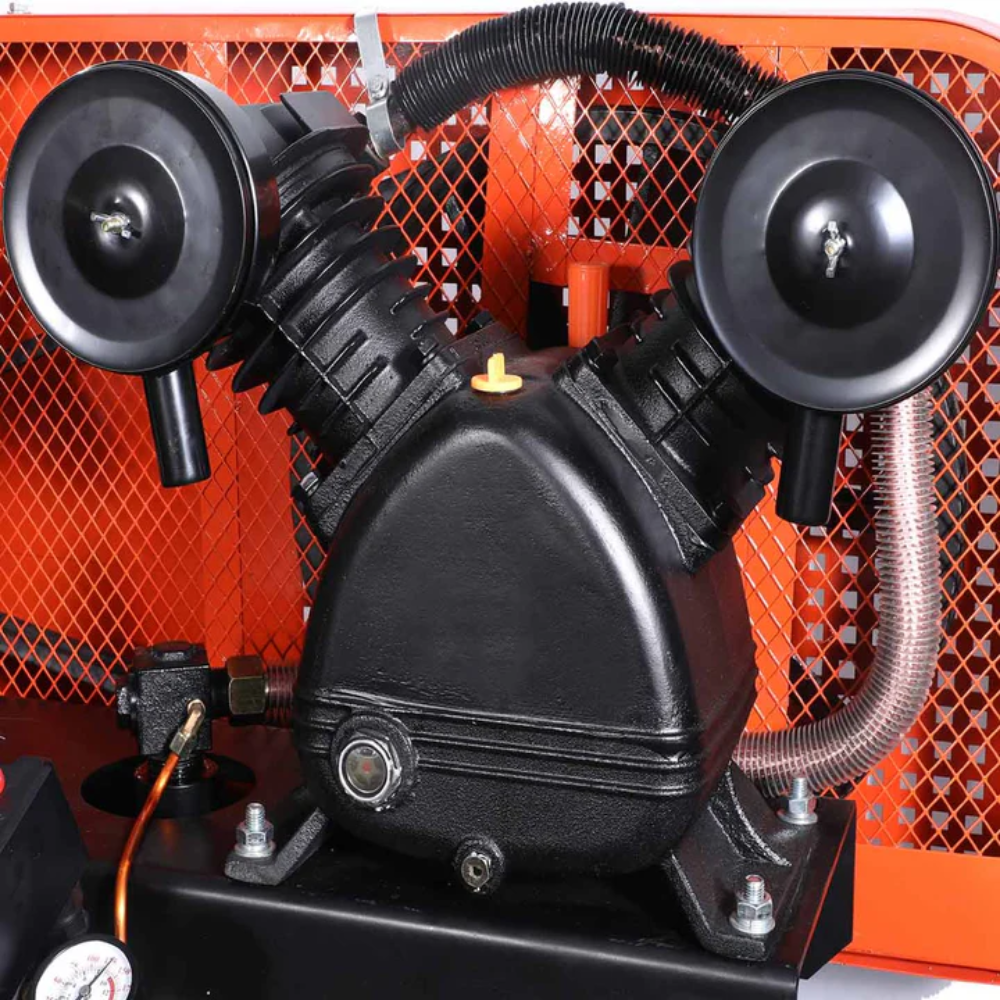

• Heavy-duty oil-lubricated cast iron pump with reinforced crankcase and cylinder body for industrial-grade use
• Finned tube intercooler enhances cooling efficiency, extends valve life, and maintains consistent output

Specifications

• Electric Motor: AC 230V / 60Hz, single phase, 5 HP
• Induction Motor Speed: 3450 RPM
• Compression Type: Single stage
• Maximum Working Pressure: 145 PSI
• Air Delivery:
• 14.4 CFM @ 40 PSI
• 12.4 CFM @ 90 PSI
• Air Tank Capacity: 60-gallon vertical tank
• Tank Fill Time: Less than 5 minutes
• Noise Level: 80 dB
• Connections:
• (1) ¼” NPT quick connector
• (1) ½” NPT valve

Product Description

The CAEL-ACE65 5 HP Stationary Electric Air Compressor features a high-capacity 60-gallon air tank powered by a CSA-approved, oil-lubricated, double cast iron motor. Built with a one-piece cast iron crankcase and full cast iron cylinder body, this compressor is engineered for durability, reliability, and continuous industrial use.

Designed to meet the demands of automotive shops, manufacturing warehouses, and repair garages, it delivers consistent airflow without power drops. Dual ¼” and ½” quick connectors allow operators to run two tools at the same time, while the integrated drain outlet helps protect internal components from moisture and corrosion.

The heavy-duty 230V single-phase induction motor runs at 3450 RPM, ensuring steady output even during extended operation. A finned tube intercooler maximizes cooling efficiency, reduces carbon buildup, extends valve life, and improves overall compressor performance.

Built for tough working environments, this air compressor is a dependable solution for professionals who demand power, efficiency, and longevity.

CAEL also offers a full range of air compressors, including:
CAEL-ACE10, CAEL-ACE25, CAEL-ACE60, CAEL-ACE80, CAEL-ACE85

Shipping Information

• Ships from one of our main North American warehouses
• Order processing time: 2–3 business days
• Estimated delivery time: 10–15 business days, depending on location and accessibility
• Packaged securely in a metal crate shipping box
• Shipping Dimensions: 38” × 22” × 78” (L × W × H)
• Shipping Weight: 455 lb


Warranty

When you invest in CAEL equipment, reliability matters. That’s why every CAEL product includes a 1-year warranty, giving you peace of mind with your purchase.

This warranty covers manufacturing defects in materials and workmanship, ensuring dependable performance across demanding work environments. Beyond warranty coverage, our dedicated customer support team is always available to assist with technical guidance, troubleshooting, and parts support—so you’re supported throughout the life of your machine.
