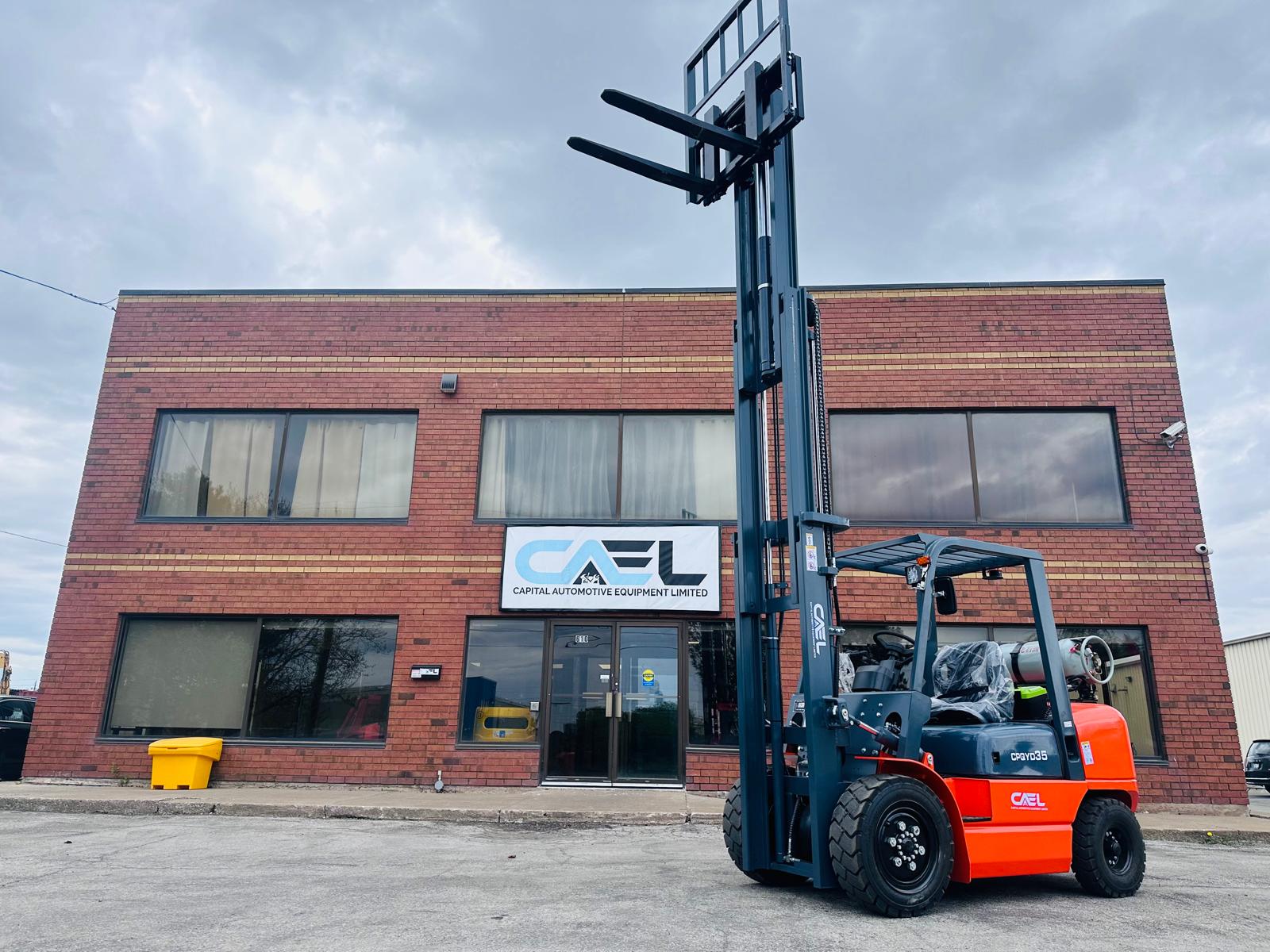

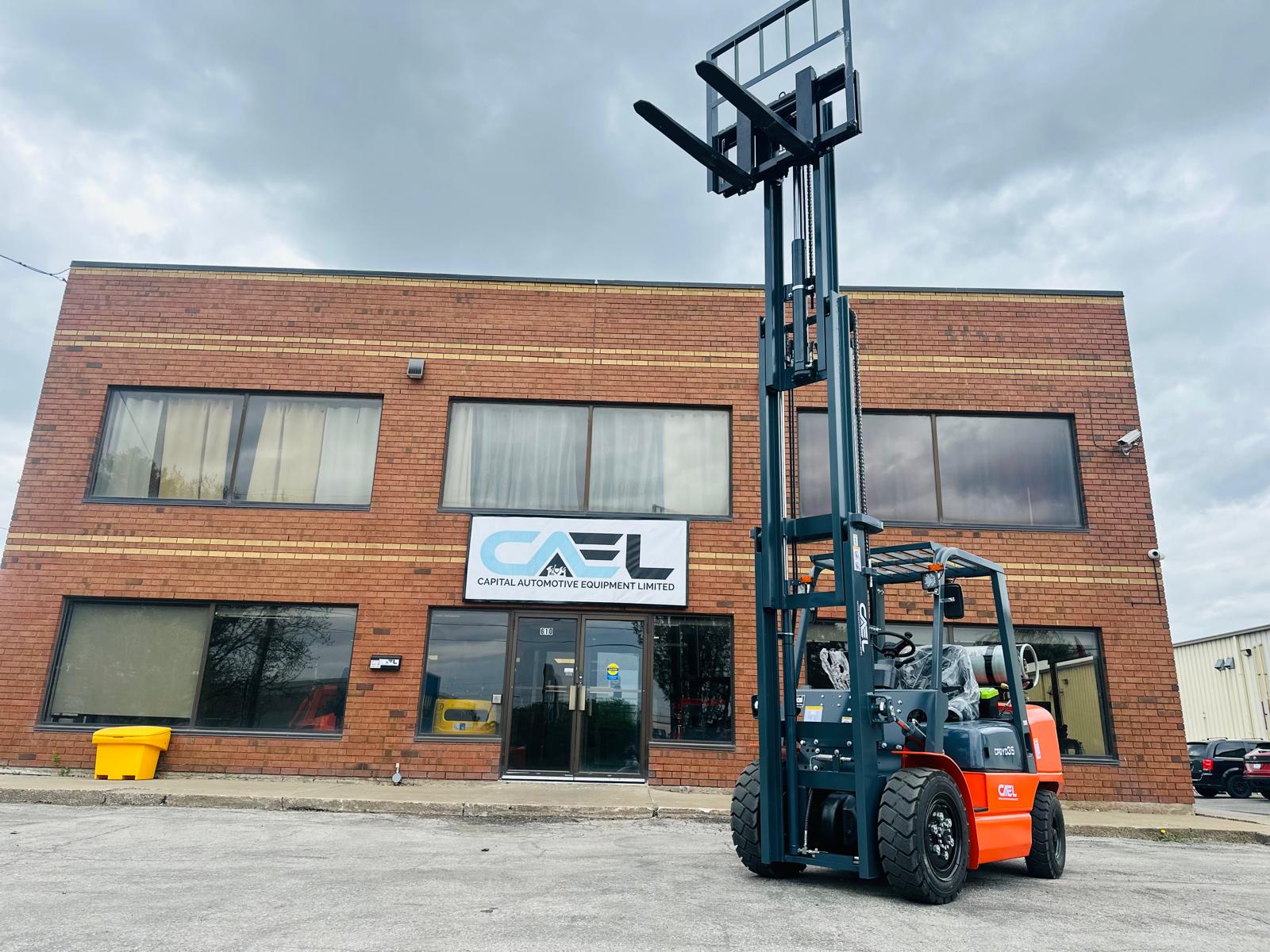

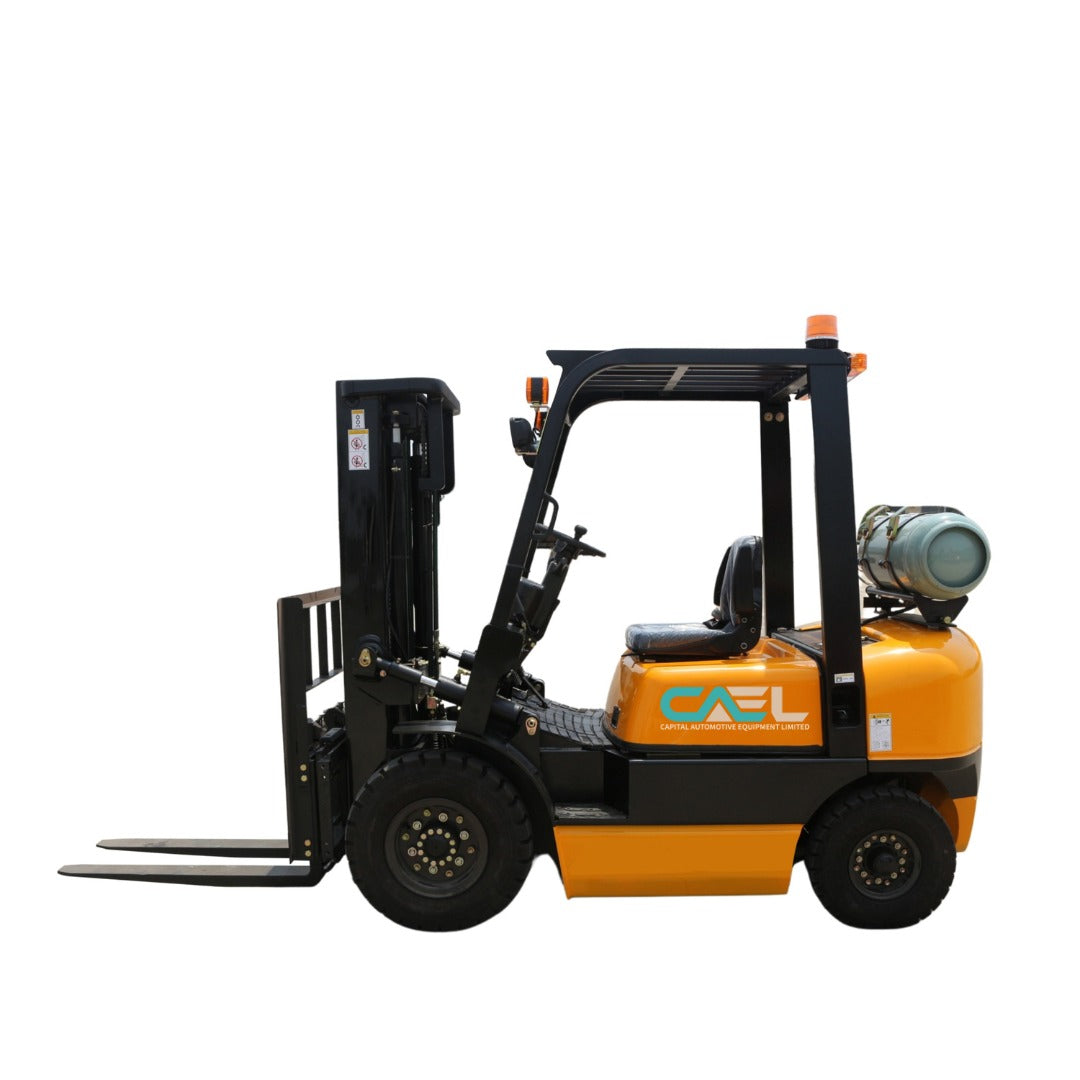

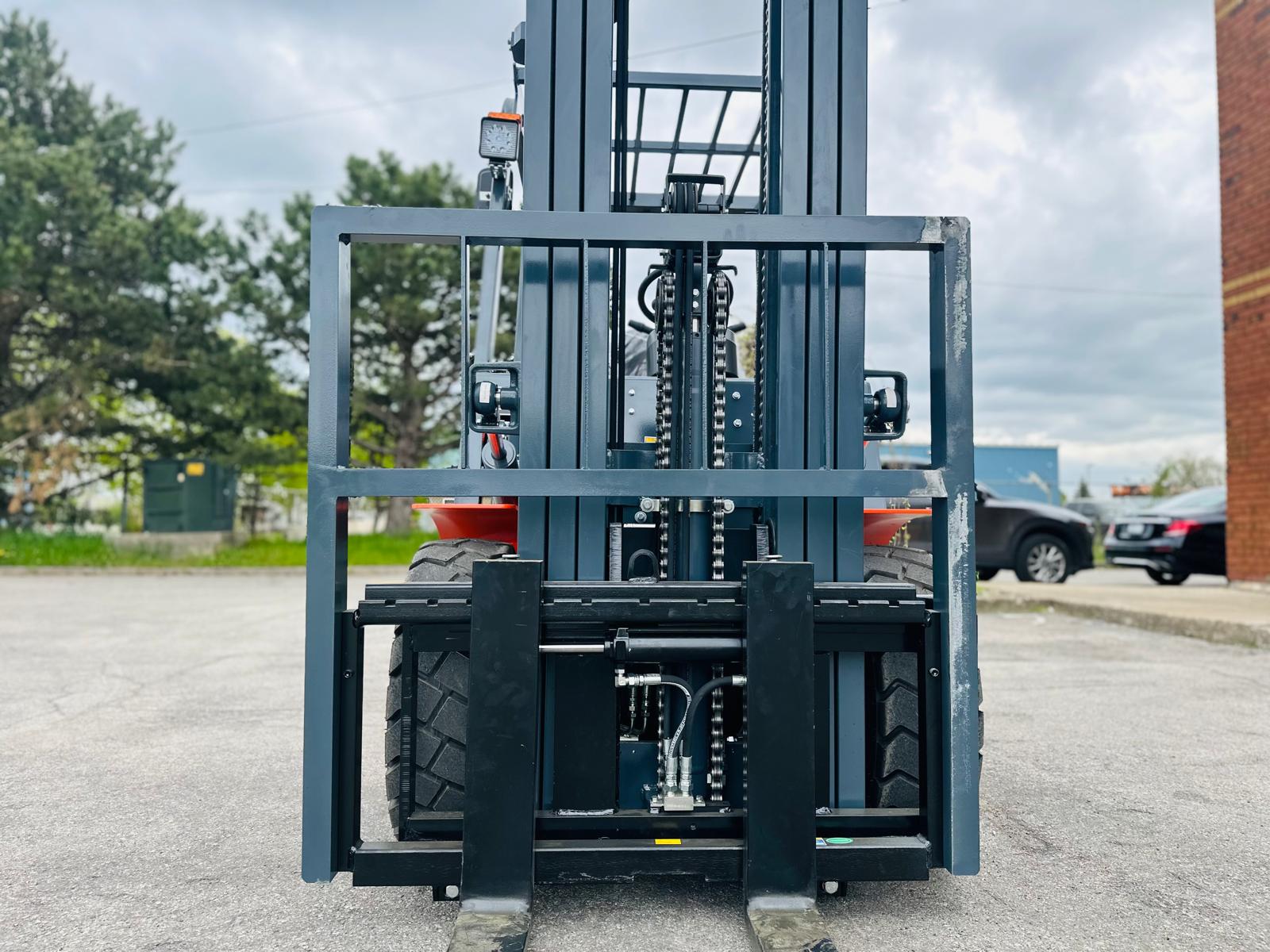

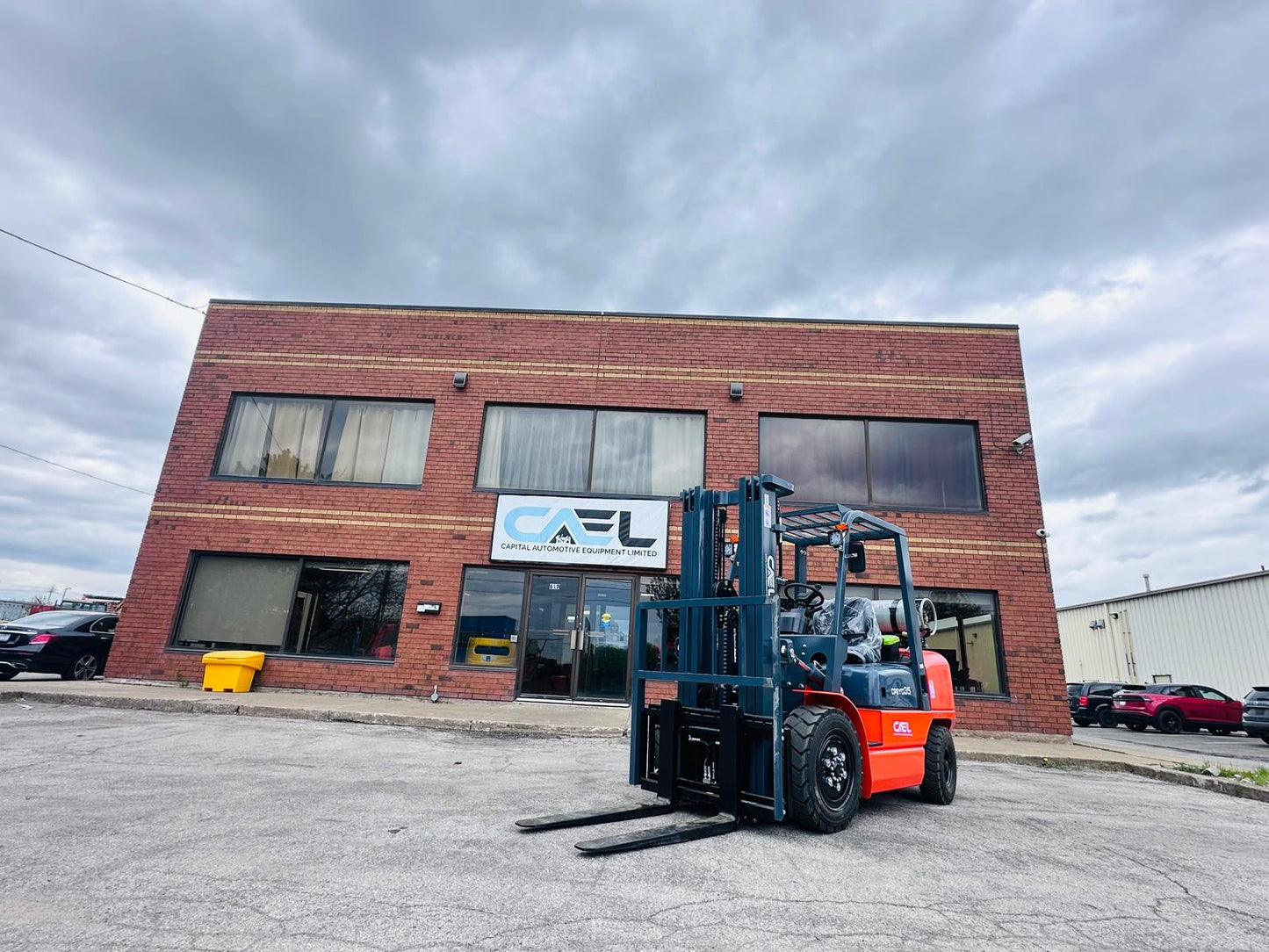

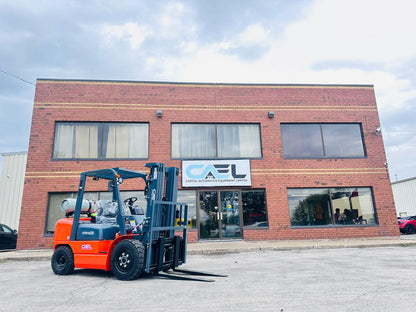

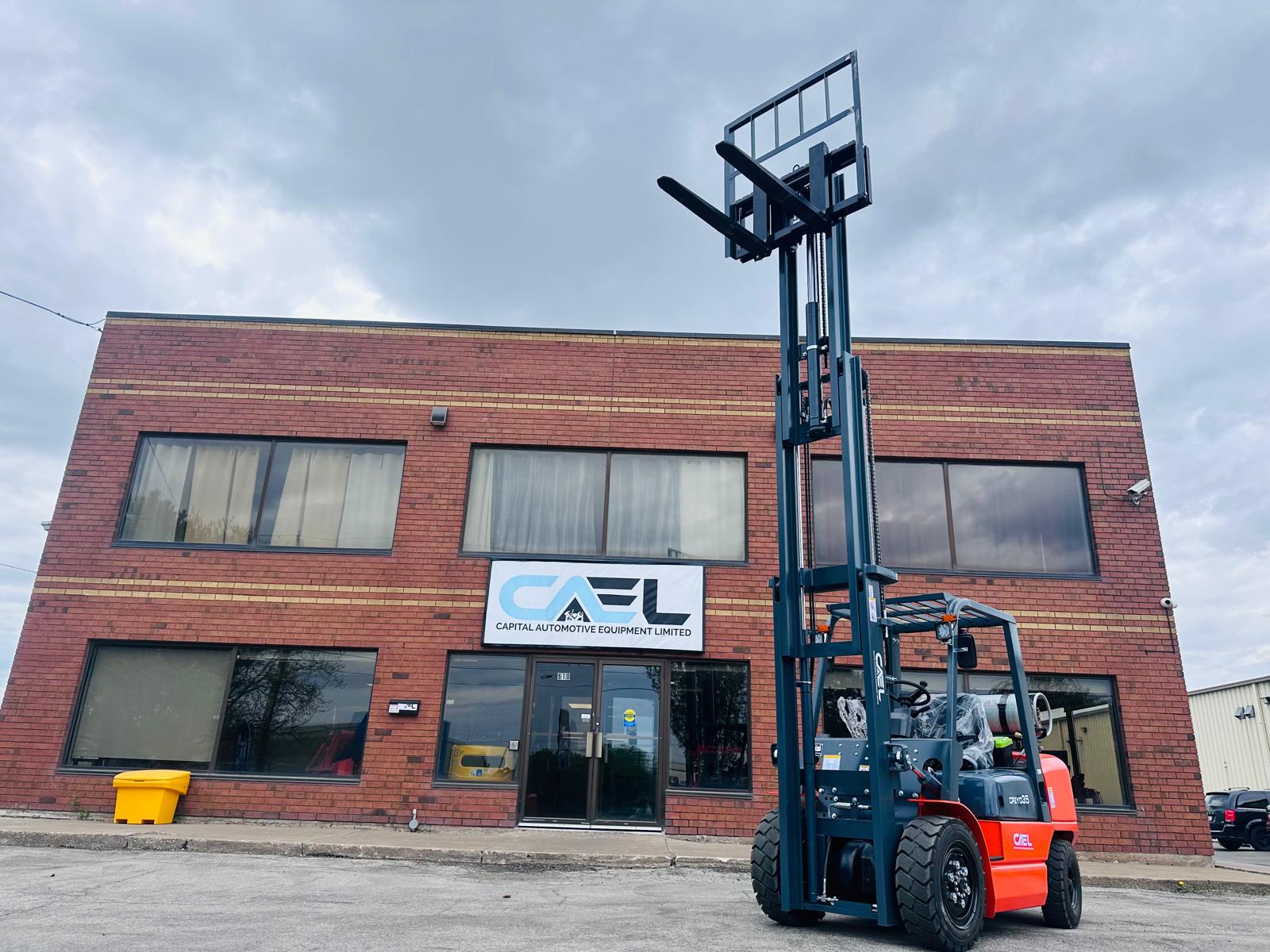

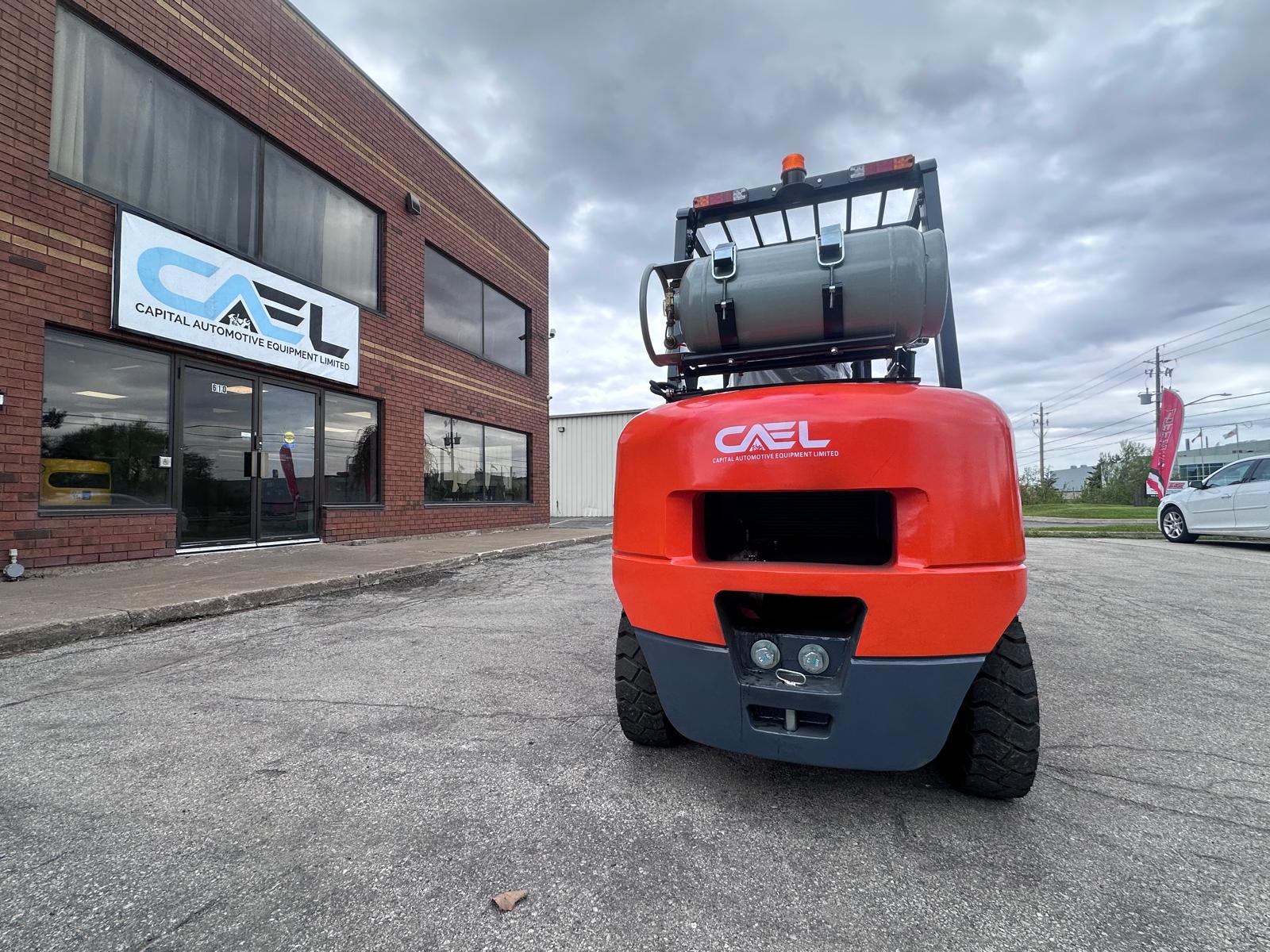

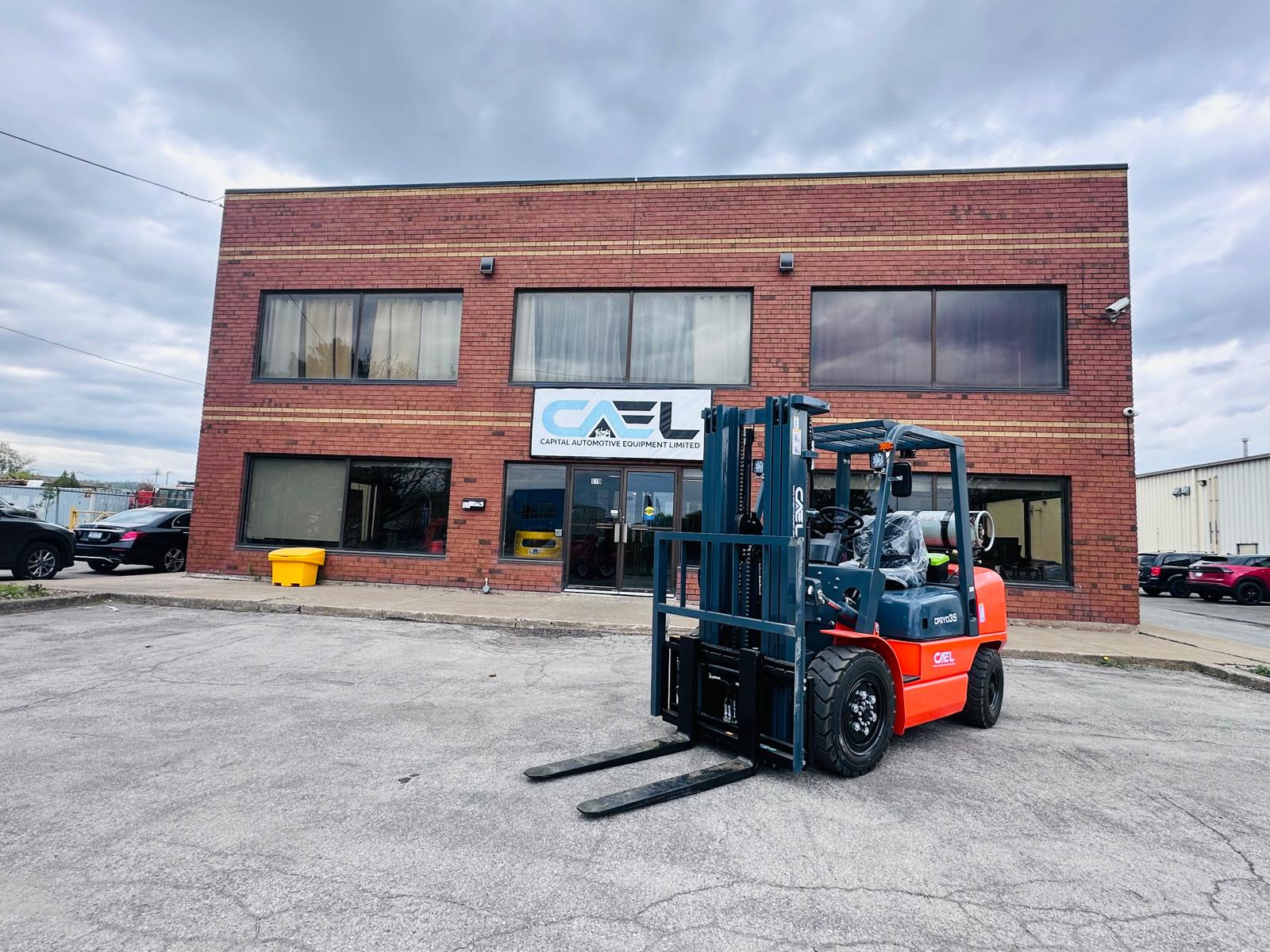

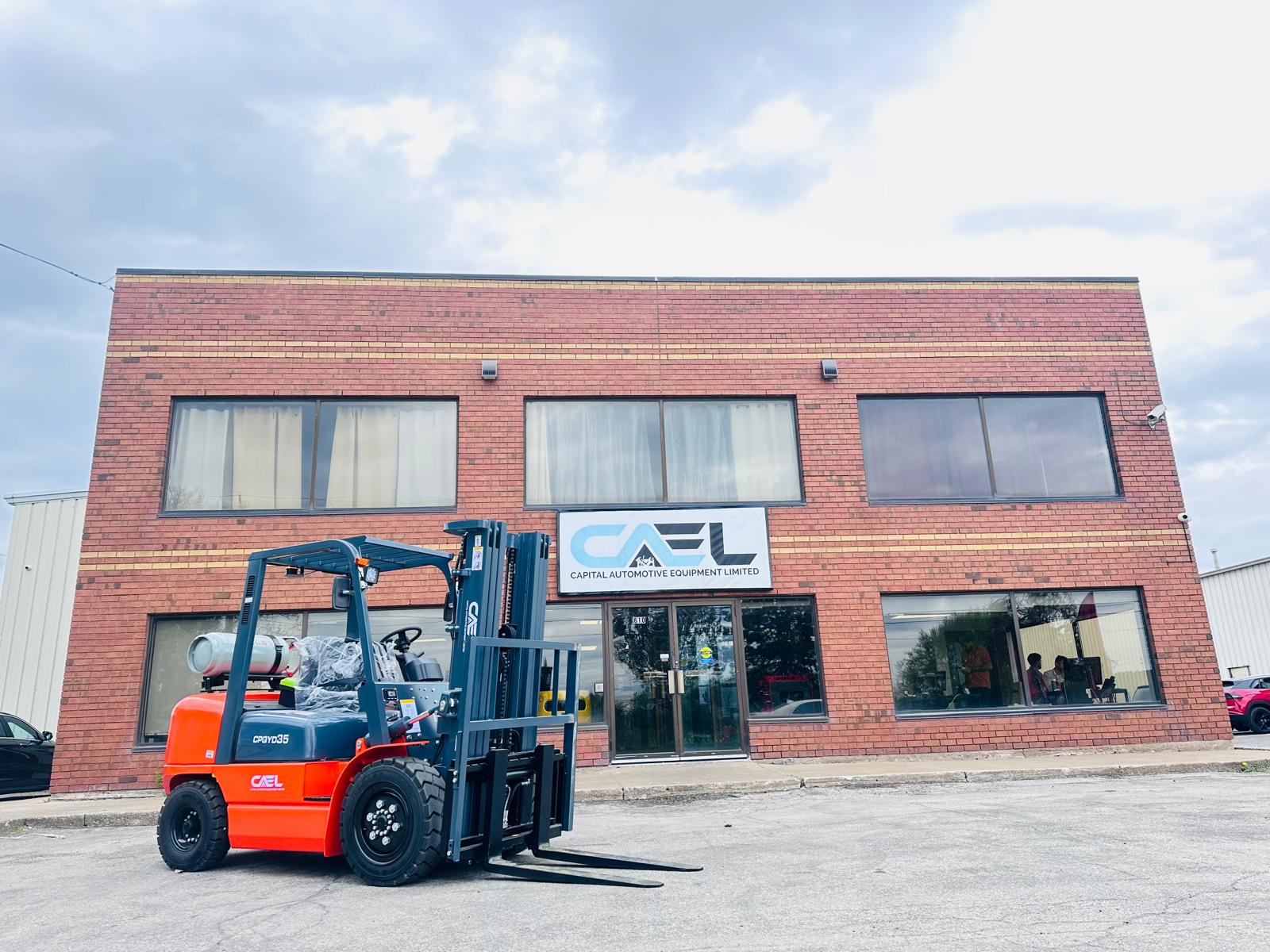

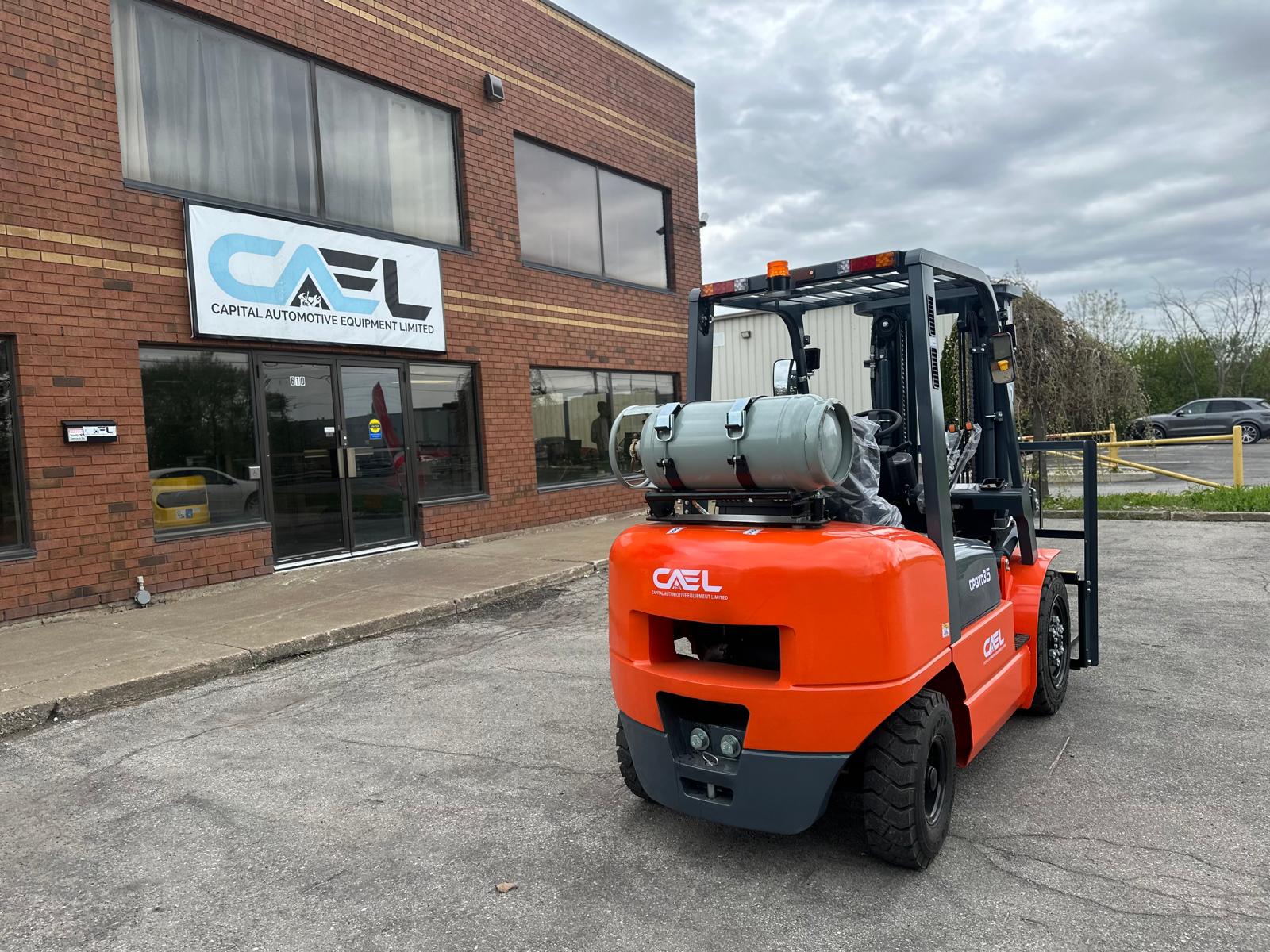

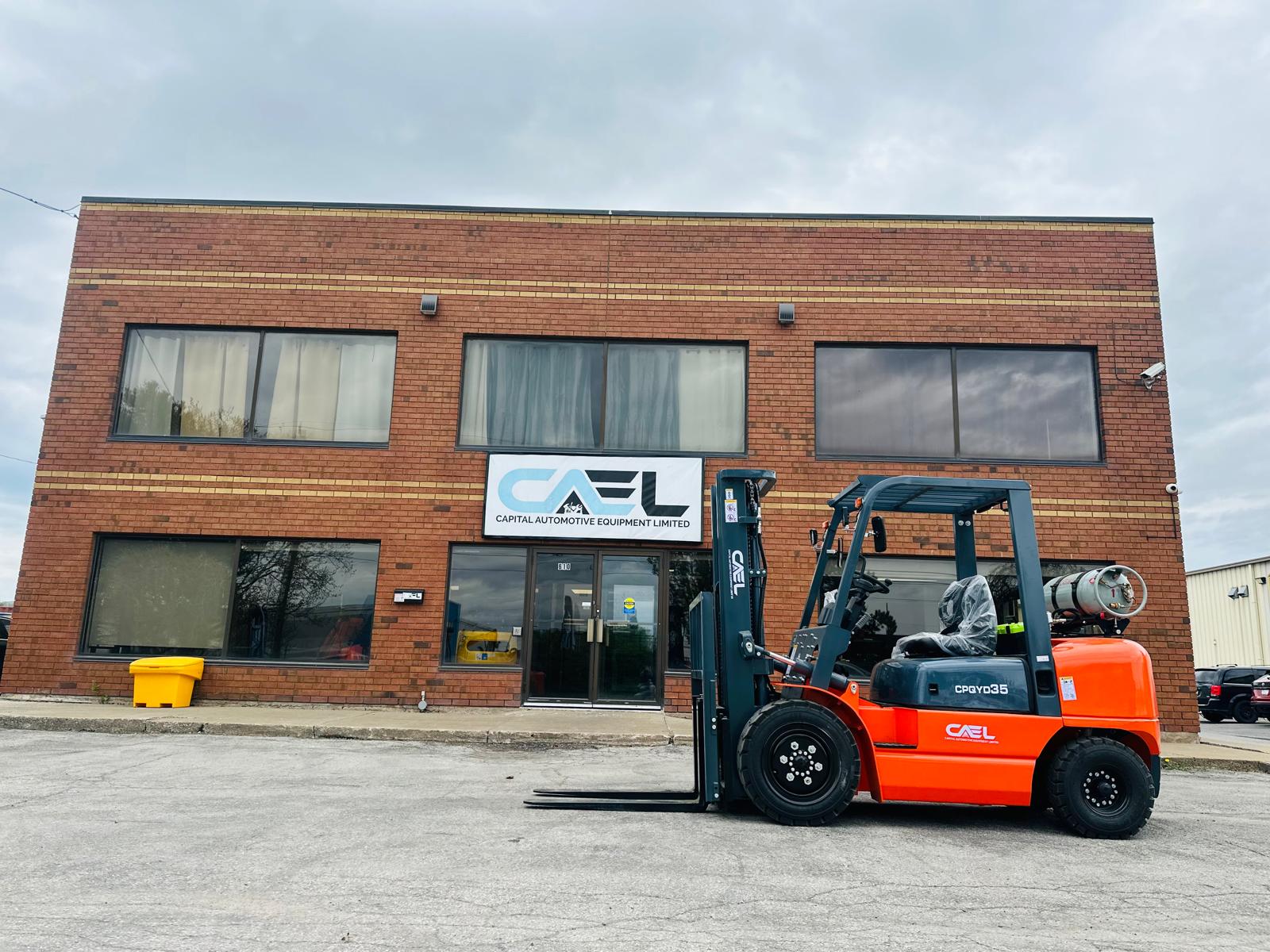

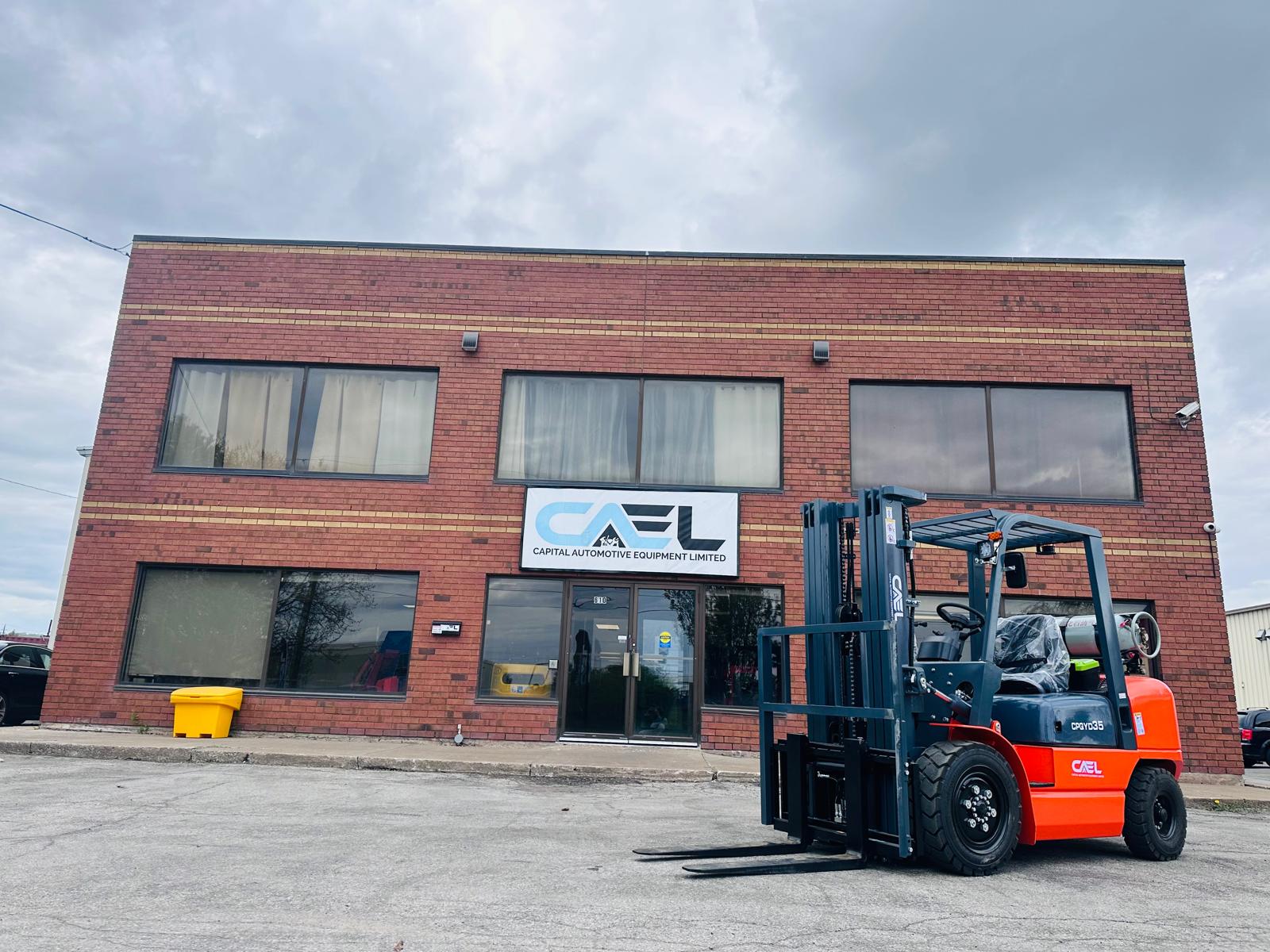

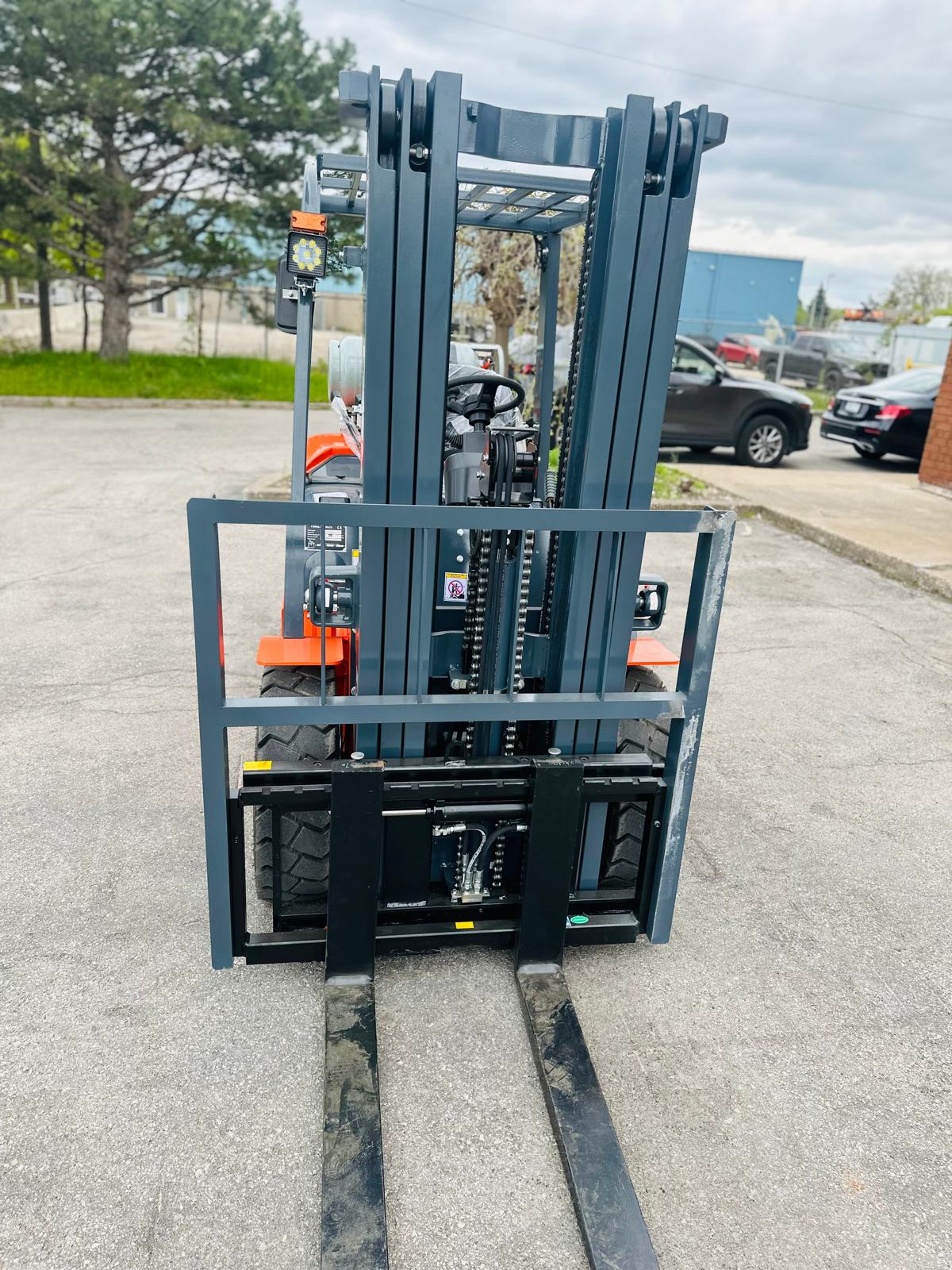

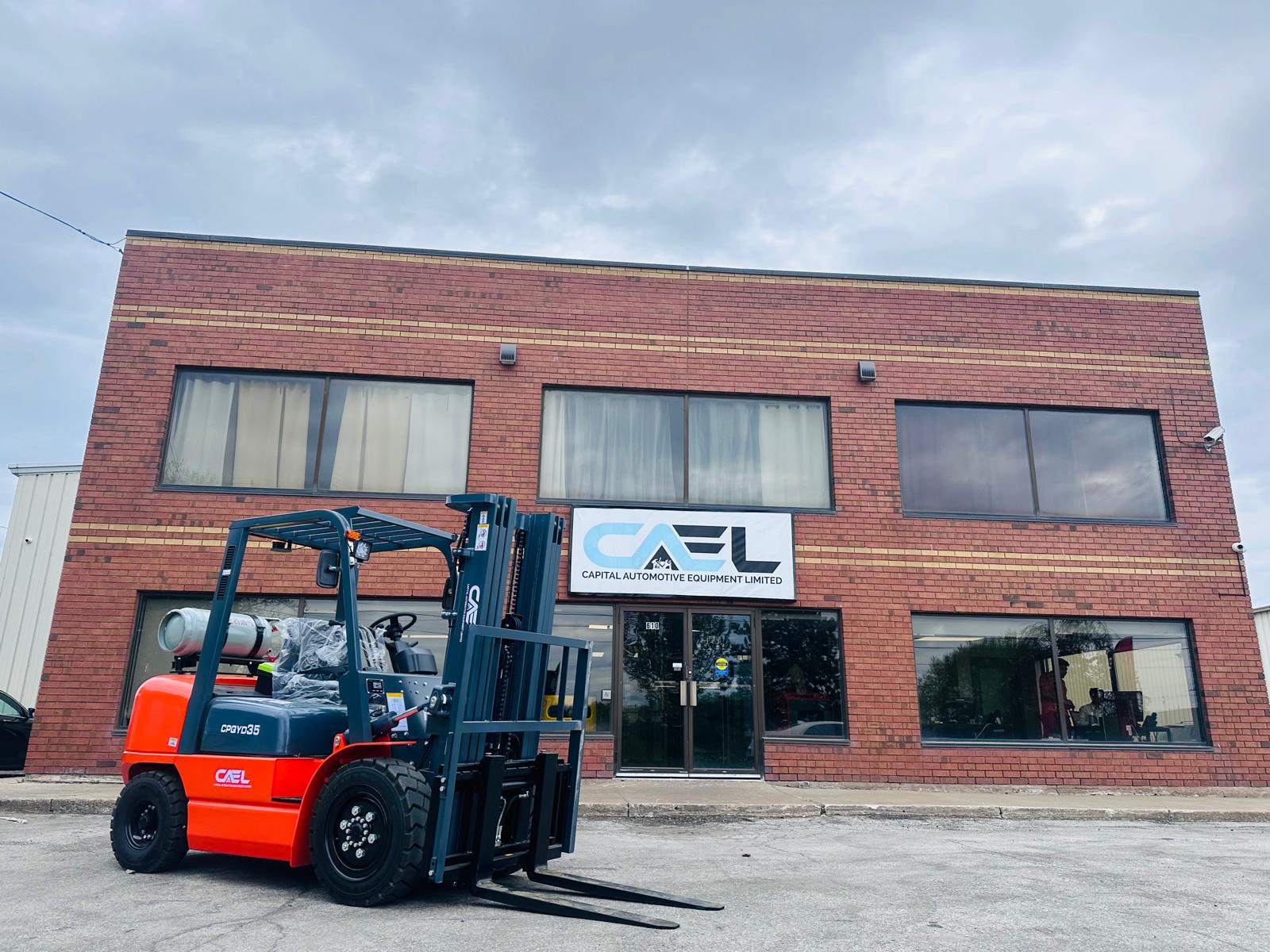

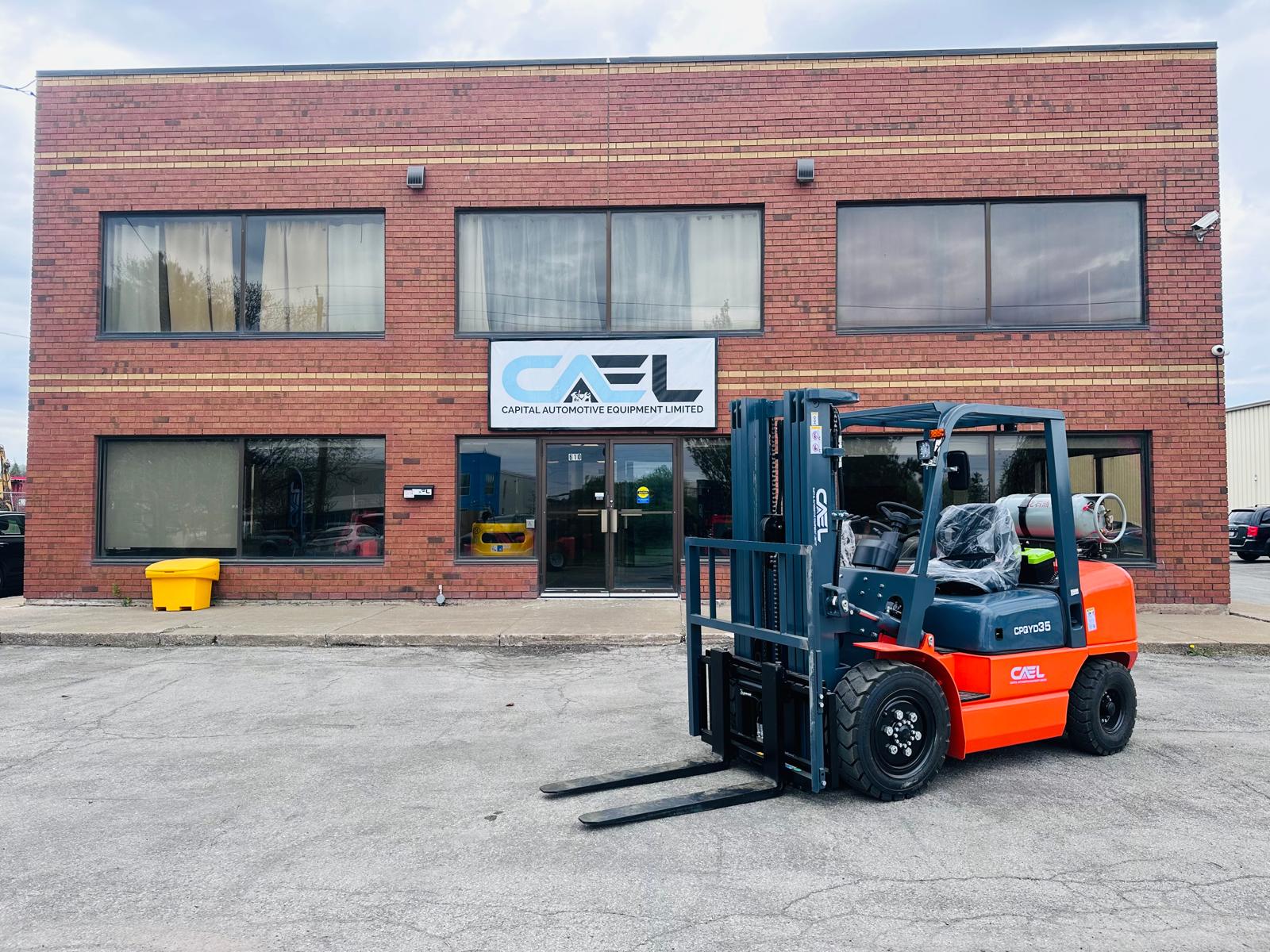

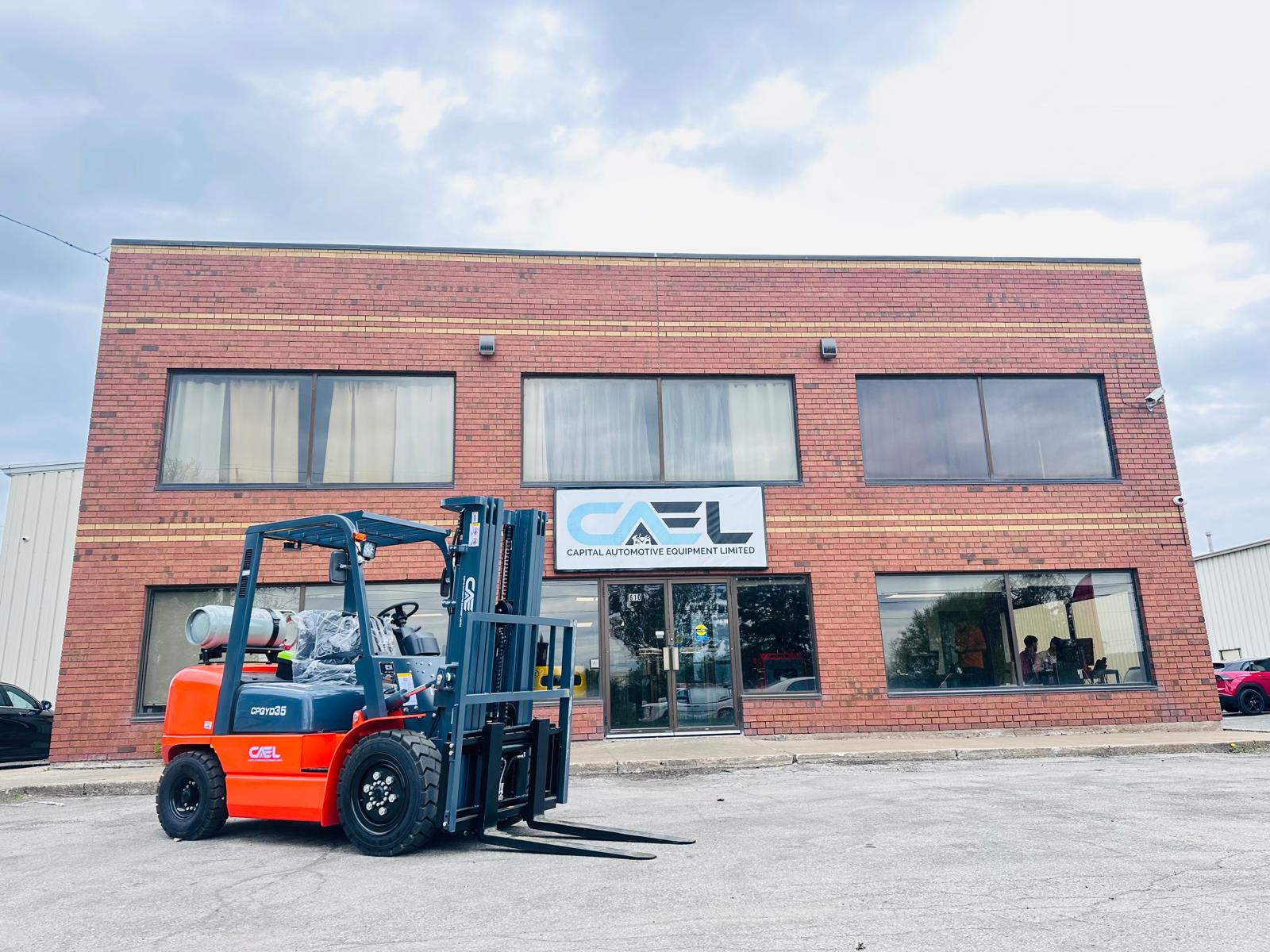

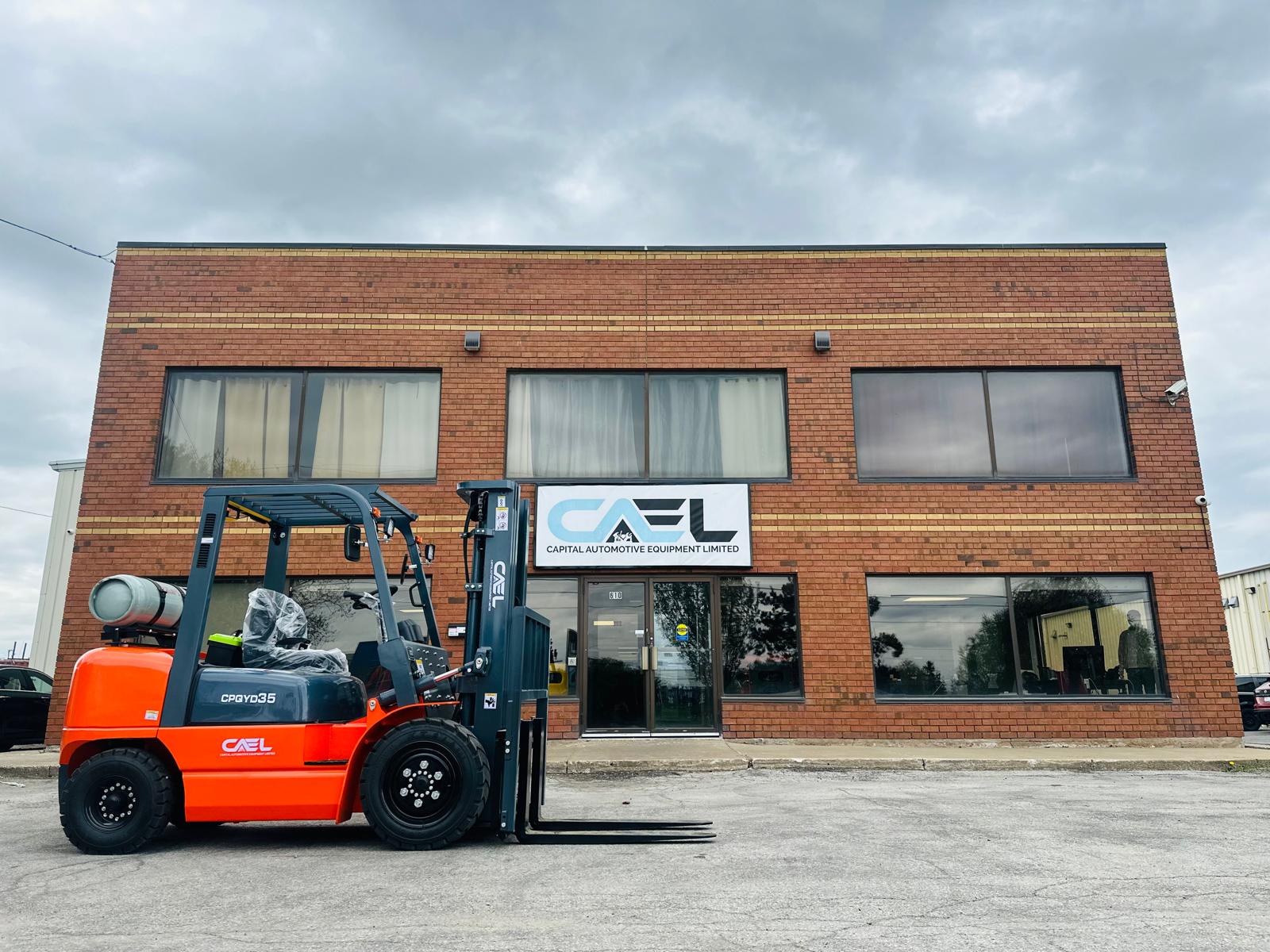

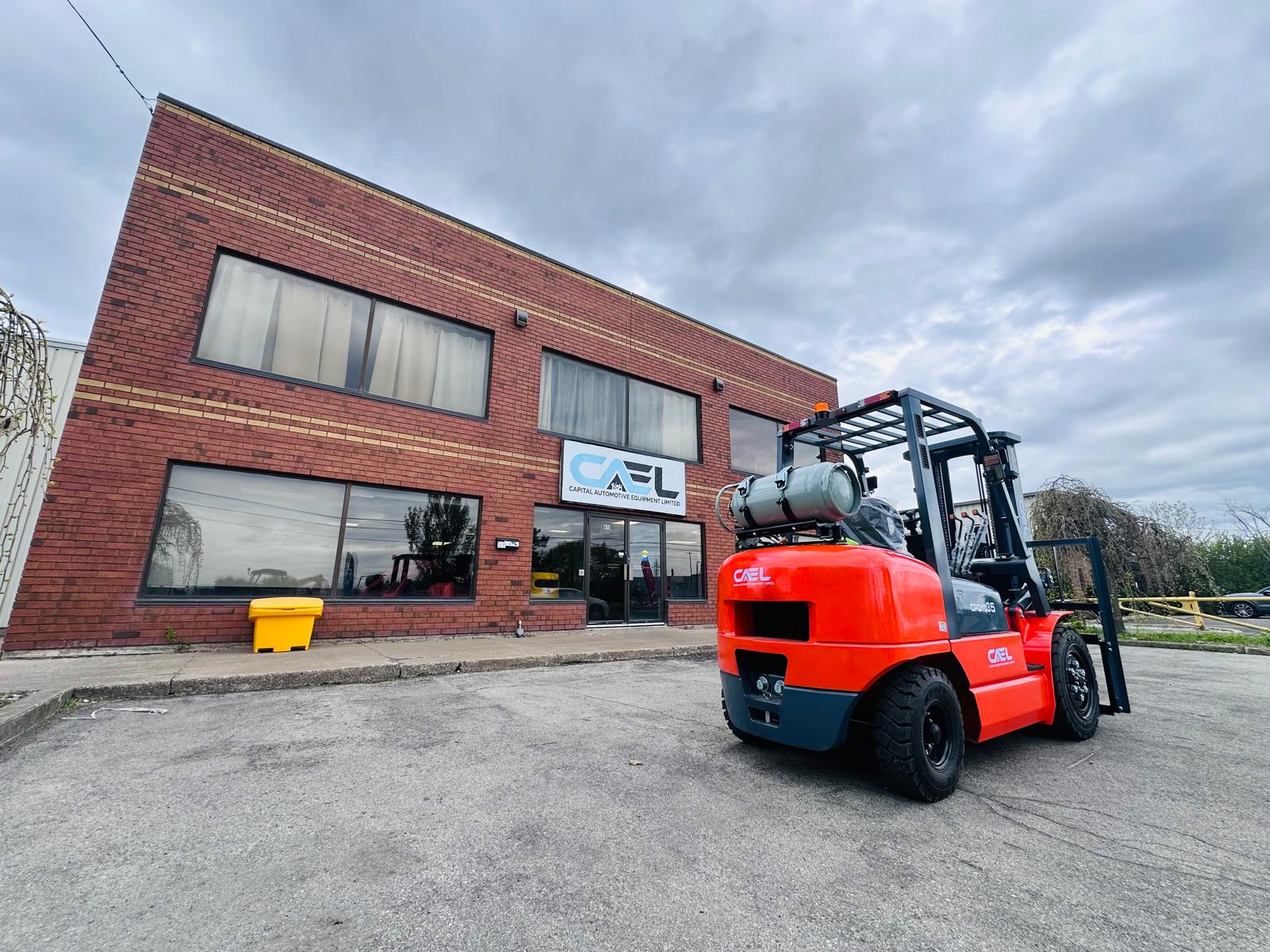

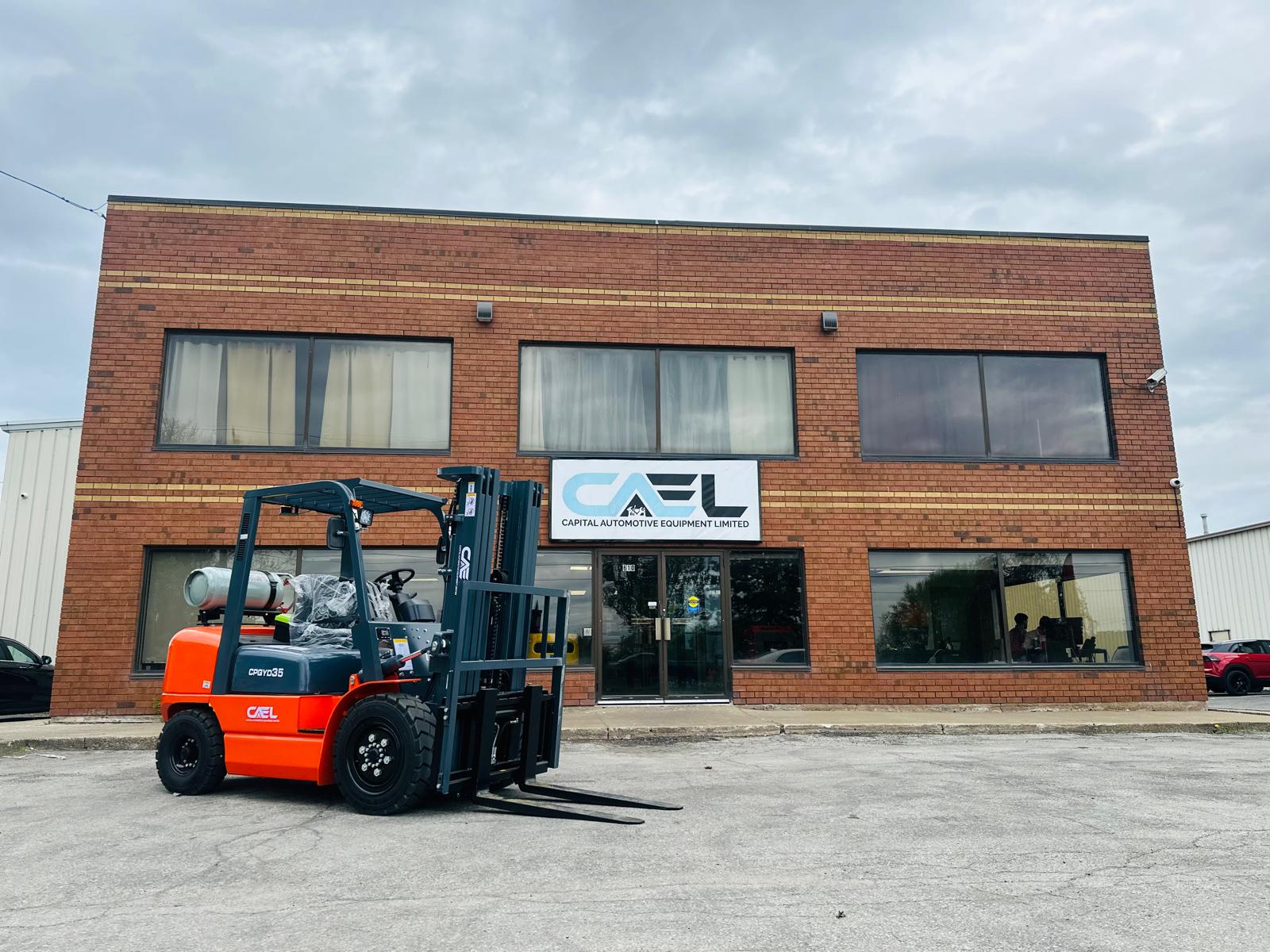

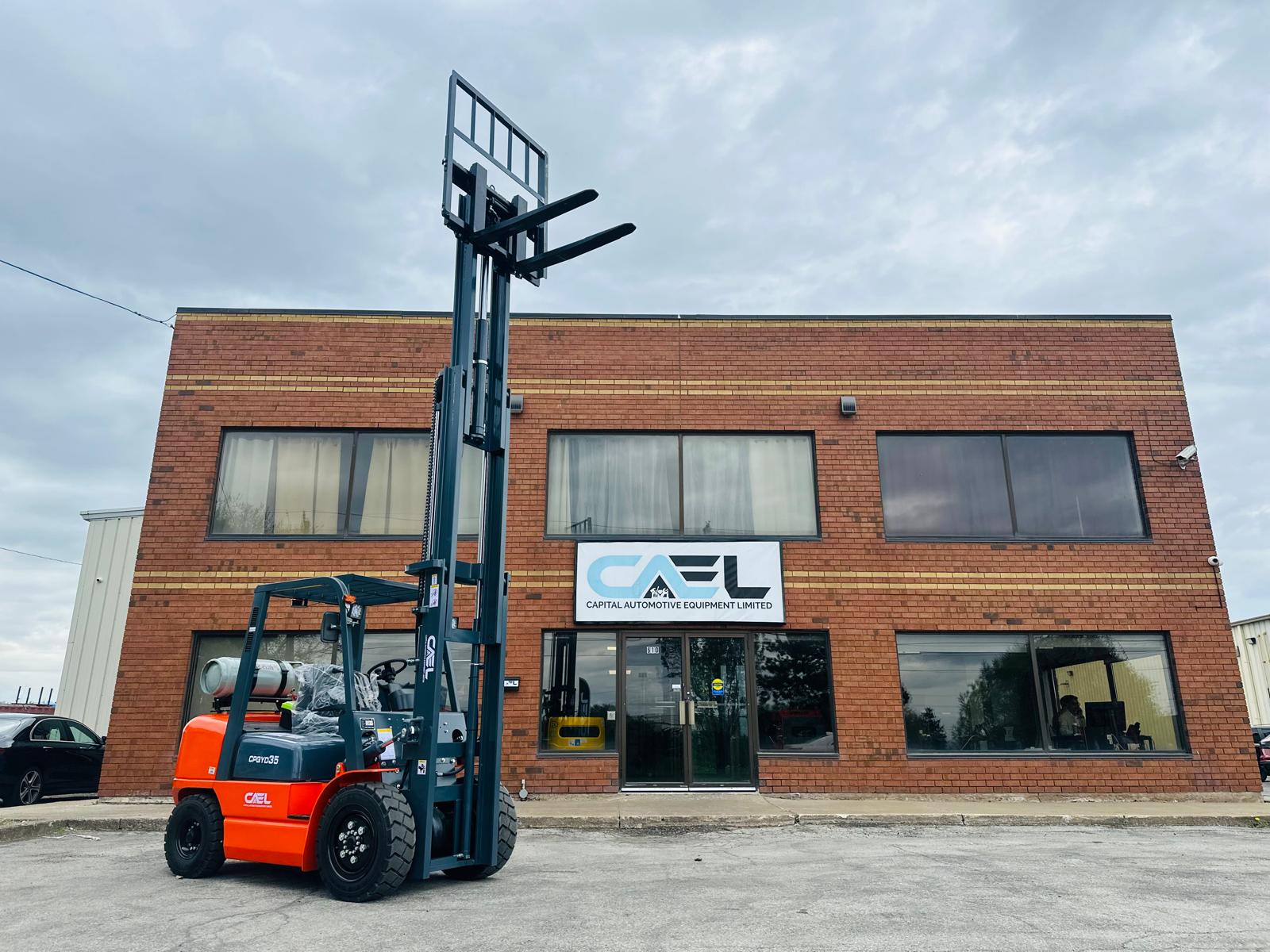

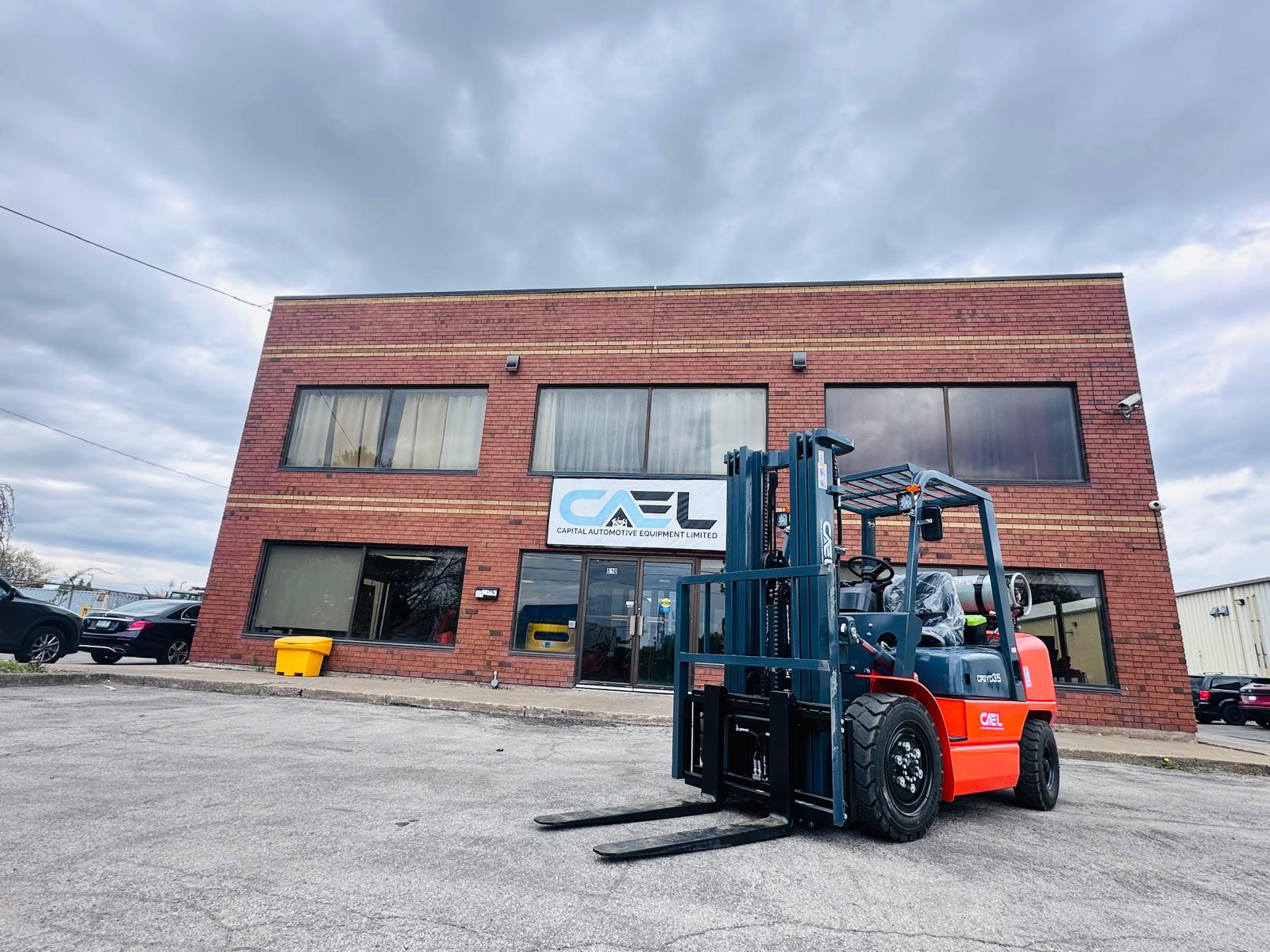

The CAEL 2.5FL is a high-performance dual-fuel forklift designed to deliver efficiency, flexibility, and durability in demanding material handling operations. Powered by LPG and gasoline, this forklift ensures cleaner emissions, reduced operating costs, and consistent performance across indoor and outdoor environments.
Equipped with a reliable Kubota engine, smooth power shift transmission, and an ergonomic drive-in operator cabin, the CAEL 2.5FL is ideal for warehouses, manufacturing facilities, logistics centers, and distribution hubs.
General Specifications
Specification
Details
Model
CAEL 2.5FL
Power Type
LPG & Gasoline
Rated Capacity
2,500 kg (5,512 lbs)
Load Center
500 mm (19.6 in)
Operator Type
Drive-in Seat
Dimensions
Specification
Measurement
Height with Mast Retraction
2,000 mm (78.7 in)

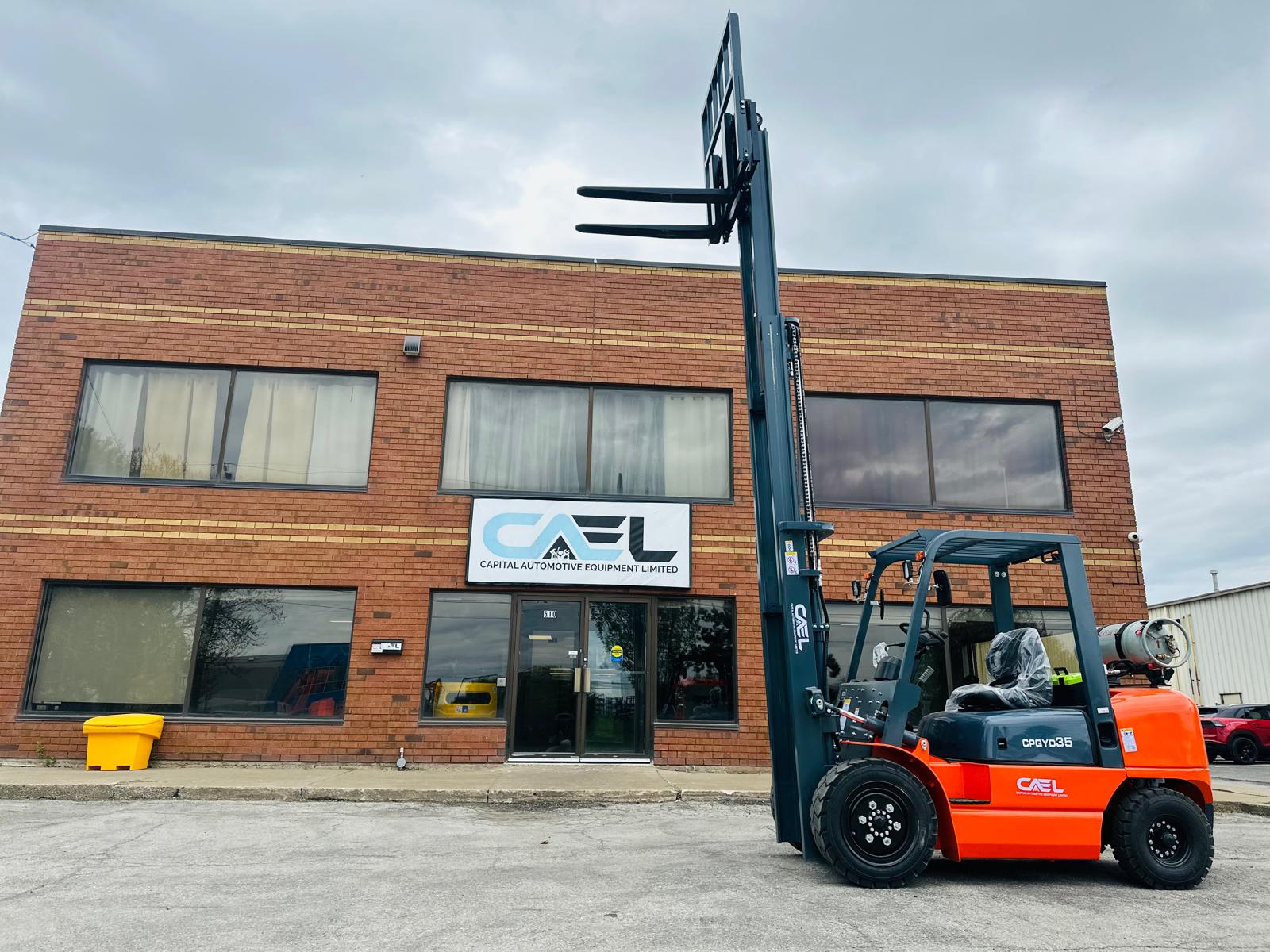

Maximum Lift Height
4,000 mm (157.5 in)
Mast Height
1,830 mm (72.0 in)
Free Lift Height
788 mm (31.0 in)
Front Overhang
477 mm (18.8 in)
Wheelbase
1,600 mm (63.0 in)
Minimum Ground Clearance
110 mm (4.3 in)
Overall Width
1,160 mm (45.7 in)
Overall Length (Without Forks)
2,579 mm (101.5 in)
Overhead Guard Height
2,070 mm (81.5 in)
Distance Between Forks
240–1,038 mm (9.4–40.9 in)
Tread (Front/Rear)
970 / 970 mm (38.2 / 38.2 in)
Turning Radius
2,070 mm (81.5 in)
Mast Tilt Angle (Forward/Backward)
6° / 6°
Fork Size (L × W × T)
1,070 × 120 × 40 mm (42.1 × 4.7 × 1.6 in)
Performance Specifications
Specification
Measurement
Max. Drive Speed (With/Without Load)
17 / 19 km/h
Lifting Speed (With Load)
530 / 550 mm/s
Lowering Speed (With/Without Load)
450 / 550 mm/s
Maximum Tractive Force
10 / 21 kN
Maximum Gradeability (With/Without Load)
18% / 23%
Weight
Specification
Measurement
Total Weight
3,680 kg (8,113 lbs)
Weight Distribution (Full Load – Front/Rear)
5,562 / 618 kg
Weight Distribution (No Load – Front/Rear)
1,420 / 2,208 kg
Wheels and Tyres
Specification
Details
Number of Wheels
2 Front / 2 Rear
Tyre Type
Pneumatic Tyres
Front Tyres
7.00–12–12PR
Rear Tyres
6.00–9–10PR
Braking System
Specification
Details
Service Brake
Hydraulic Pedal
Parking Brake
Mechanical Manual
Engine Specifications
Specification
Details
Engine Brand
Kubota
Rated Output
43.5 kW @ 2600 rpm
Displacement
2.5 L
Fuel Tank Capacity
60 L (15.85 gal)
Transmission
Specification
Details
Type
Power Shift Transmission
Gear Stages (Forward/Reverse)
1 Forward / 1 Reverse
Key Features & Benefits
Dual-Fuel Flexibility: Operates on LPG and gasoline for versatile applications.
Reliable Kubota Engine: Ensures powerful, efficient, and consistent performance.
High Lifting Capability: Handles loads up to 2,500 kg with ease.

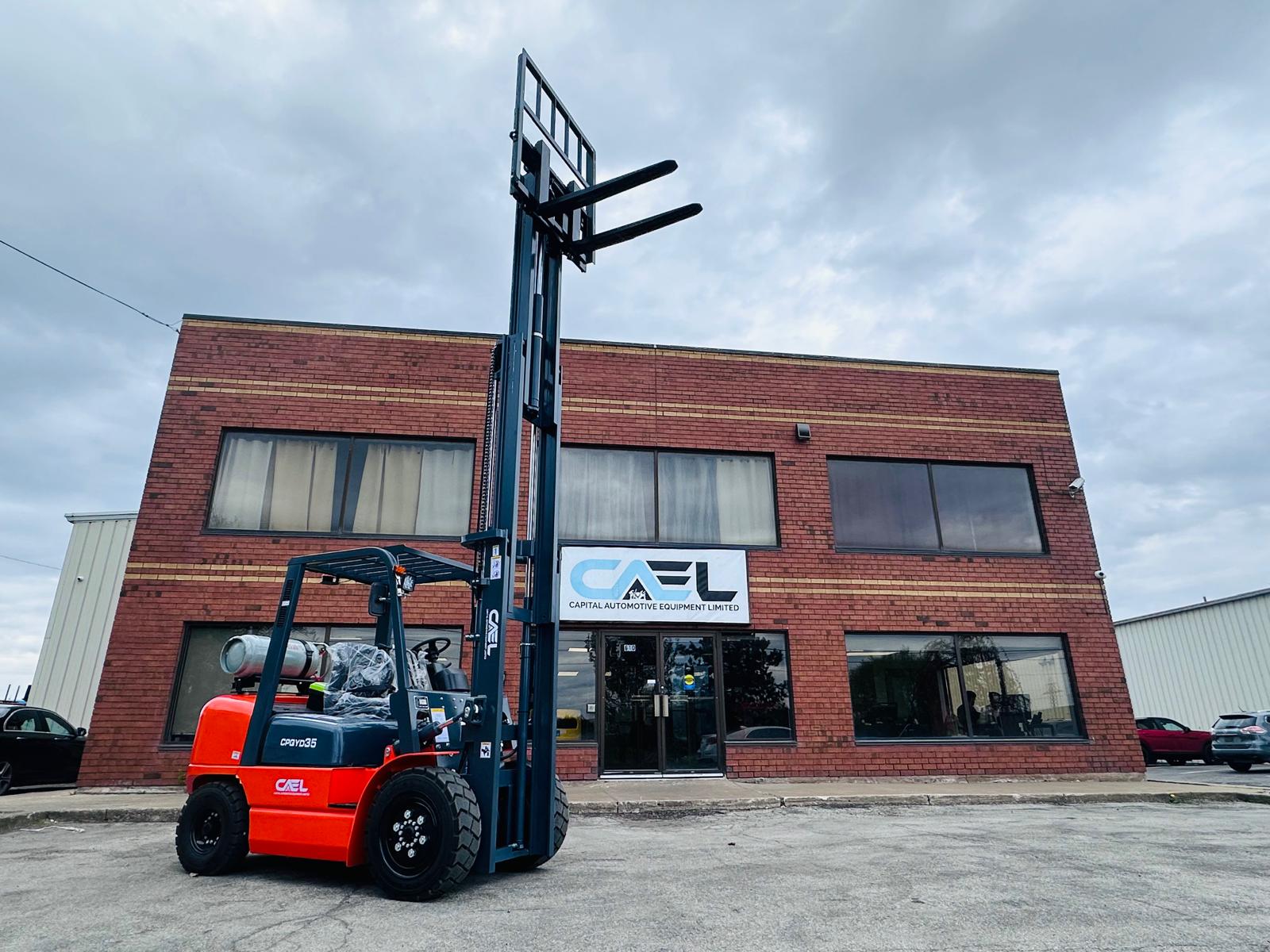

Excellent Lift Height: Reaches up to 4,000 mm for efficient stacking.
Smooth Power Shift Transmission: Enhances operator comfort and productivity.
Compact Turning Radius: Ideal for maneuvering in confined spaces.

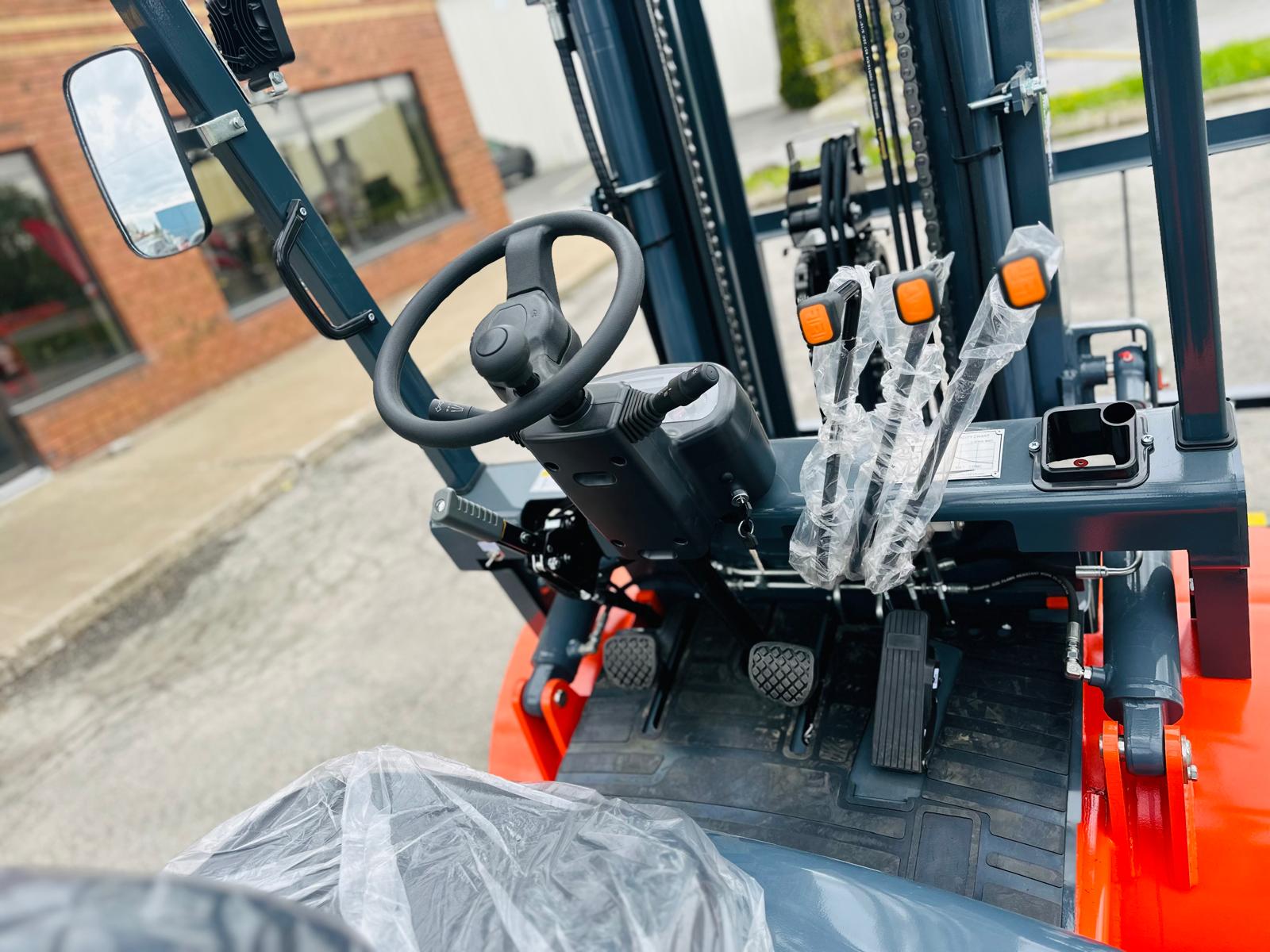

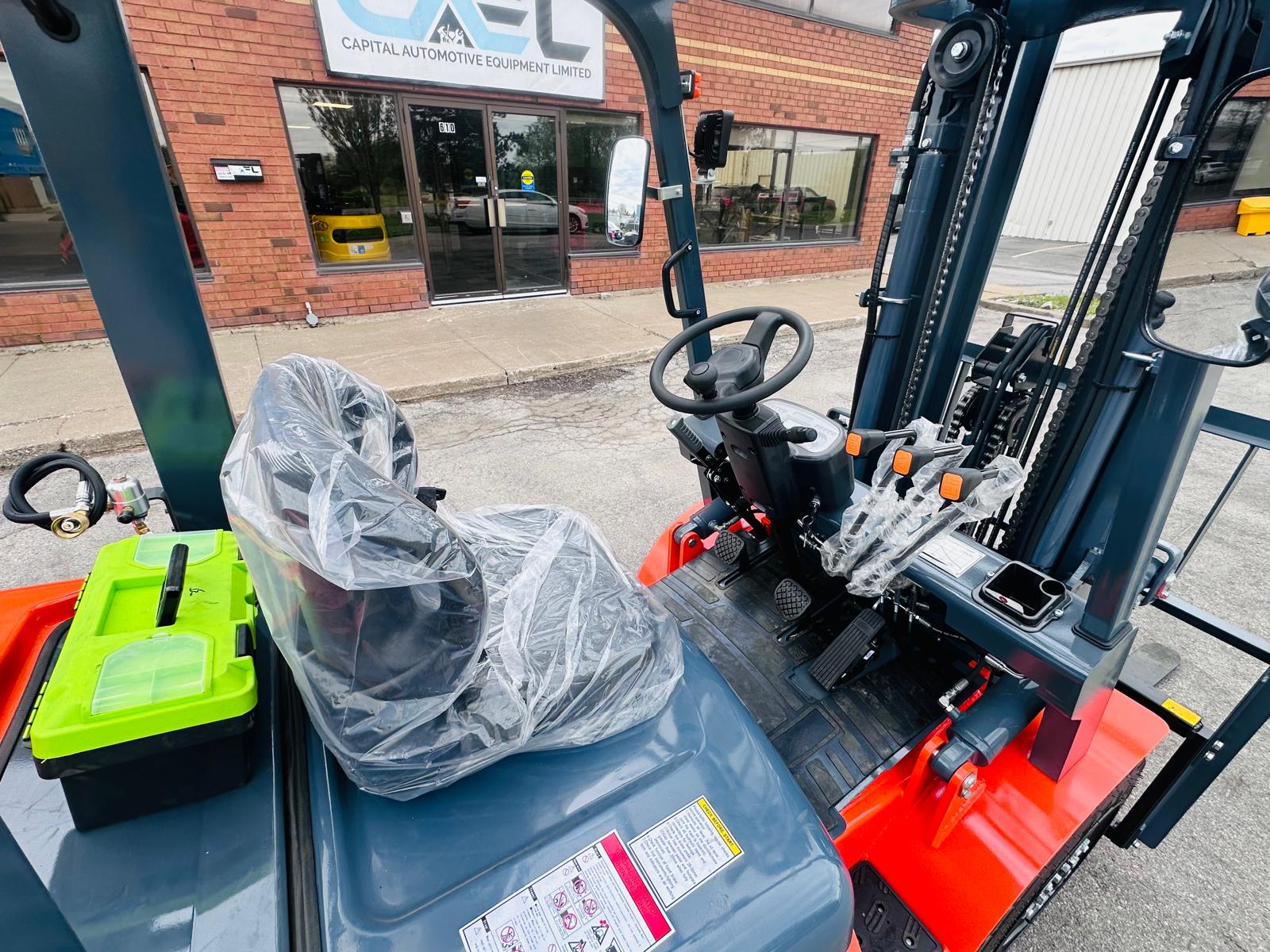

Ergonomic Operator Cabin: Improves safety and reduces fatigue.
Durable Pneumatic Tyres: Suitable for both indoor and outdoor operations.
Robust Construction: Built for long-term reliability and heavy-duty use.
Low Maintenance Costs: Ensures maximum uptime and cost efficiency.
