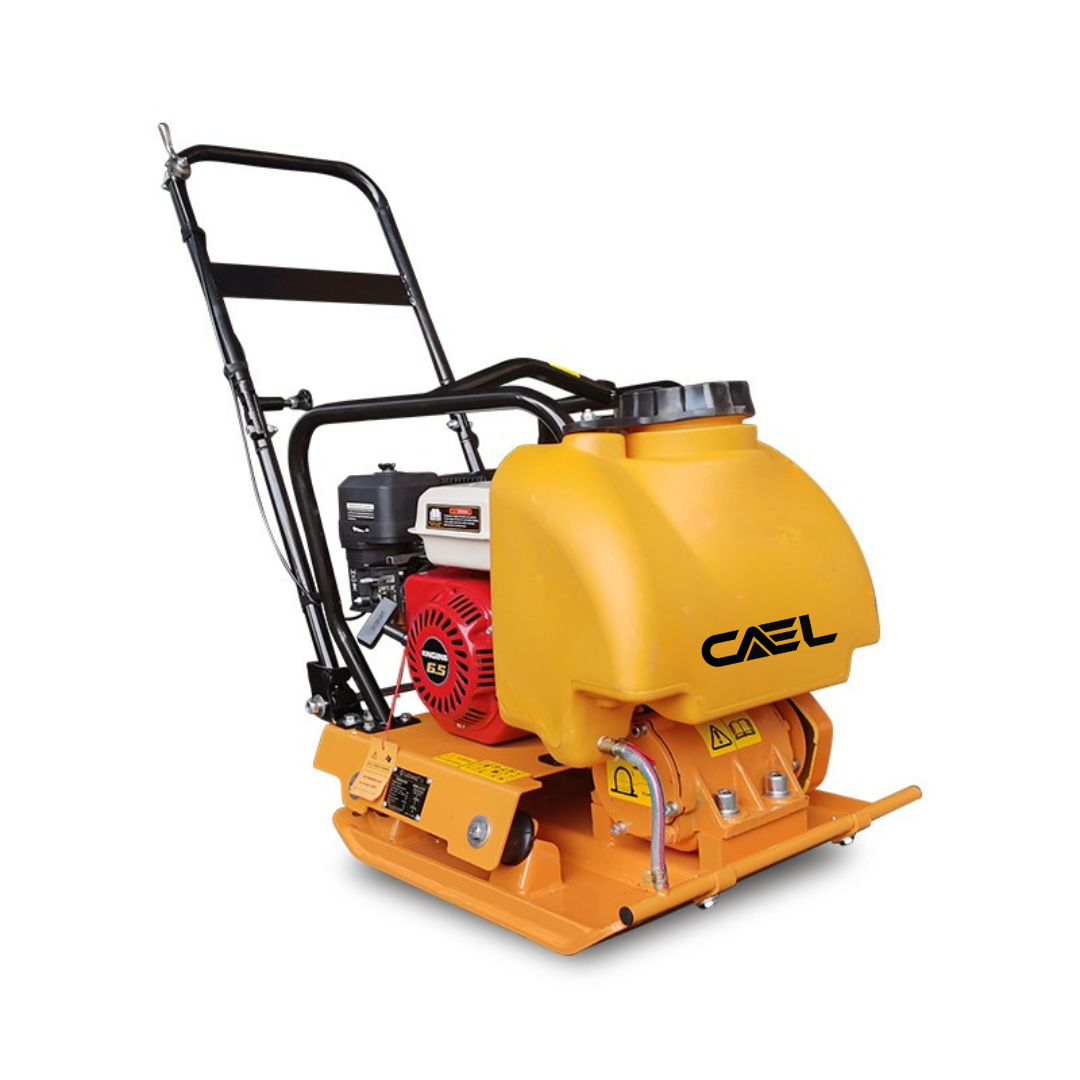

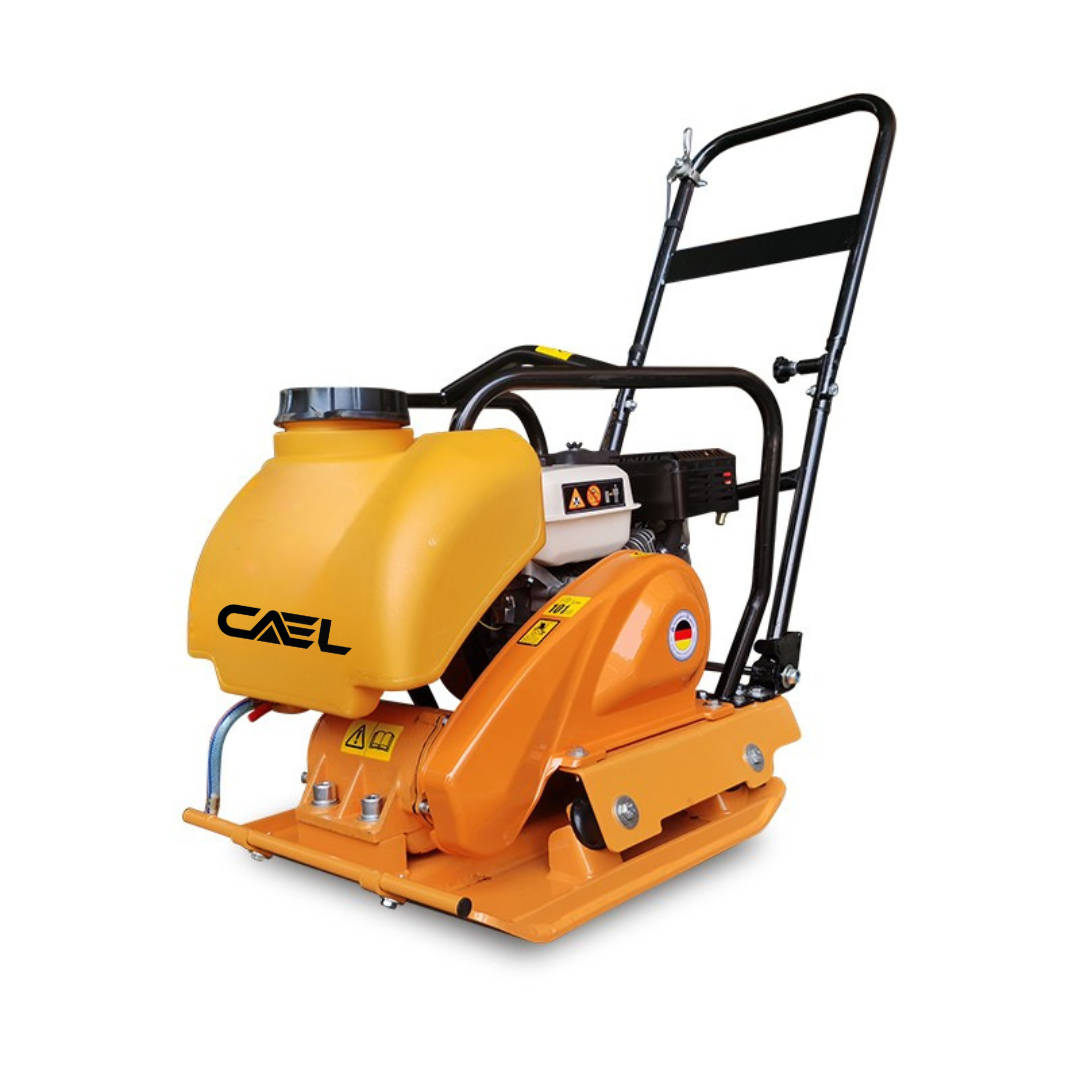

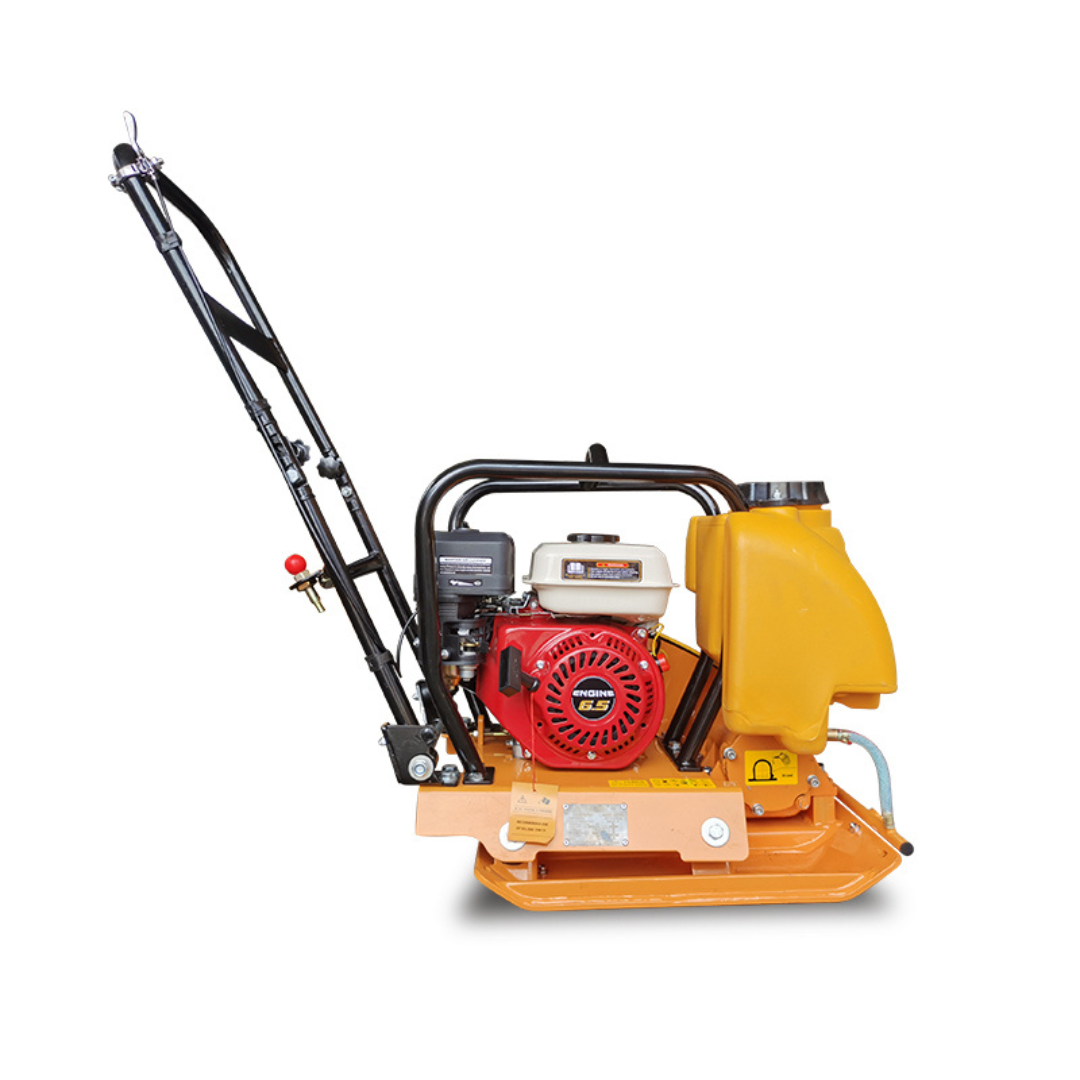

The CAEL Plate Compactor CF90 is a high-performance vibratory compactor designed for efficient soil, gravel, and asphalt compaction. Built for construction and landscaping professionals, it delivers strong, uniform compaction with excellent stability and durability across demanding job sites.

Powered by a dependable Briggs & Stratton 1062 engine, the CF90 ensures smooth operation, easy starting, and long service life.

Key Features

• Plate Size: 510 × 480 mm (20.08 × 18.90 inches) for wider coverage
• Centrifugal Force: 18 kN for strong compaction performance
• Compaction Depth: 300 mm (11.8 inches) for deeper soil stability
• Frequency: 93 Hz for consistent vibration
• Travel Speed: 25 cm/s (9.84 in/s) for efficient operation
• Engine Output: 5.5 HP
• Weight: 88 kg (194 lbs) for easy handling and control

Specifications

• Plate Size: 510 × 480 mm (20.08 × 18.90 inches)
• Frequency: 93 Hz
• Centrifugal Force: 18 kN
• Compaction Depth: 300 mm (11.8 inches)
• Travel Speed: 25 cm/s (9.84 in/s)
• Engine: Briggs & Stratton (Manual Start, CE/ISO Certified)
• Weight: 88 kg (194 lbs)
• Packing Size: 800 × 510 × 680 mm (31.5 × 20.1 × 26.8 inches)

Applications

Soil & gravel compaction • Road work • Pavements • Foundations • Asphalt repair • Landscaping

The CAEL CF90 offers the ideal balance of power, efficiency, and durability, making it a reliable choice for professional compaction work.
