Description

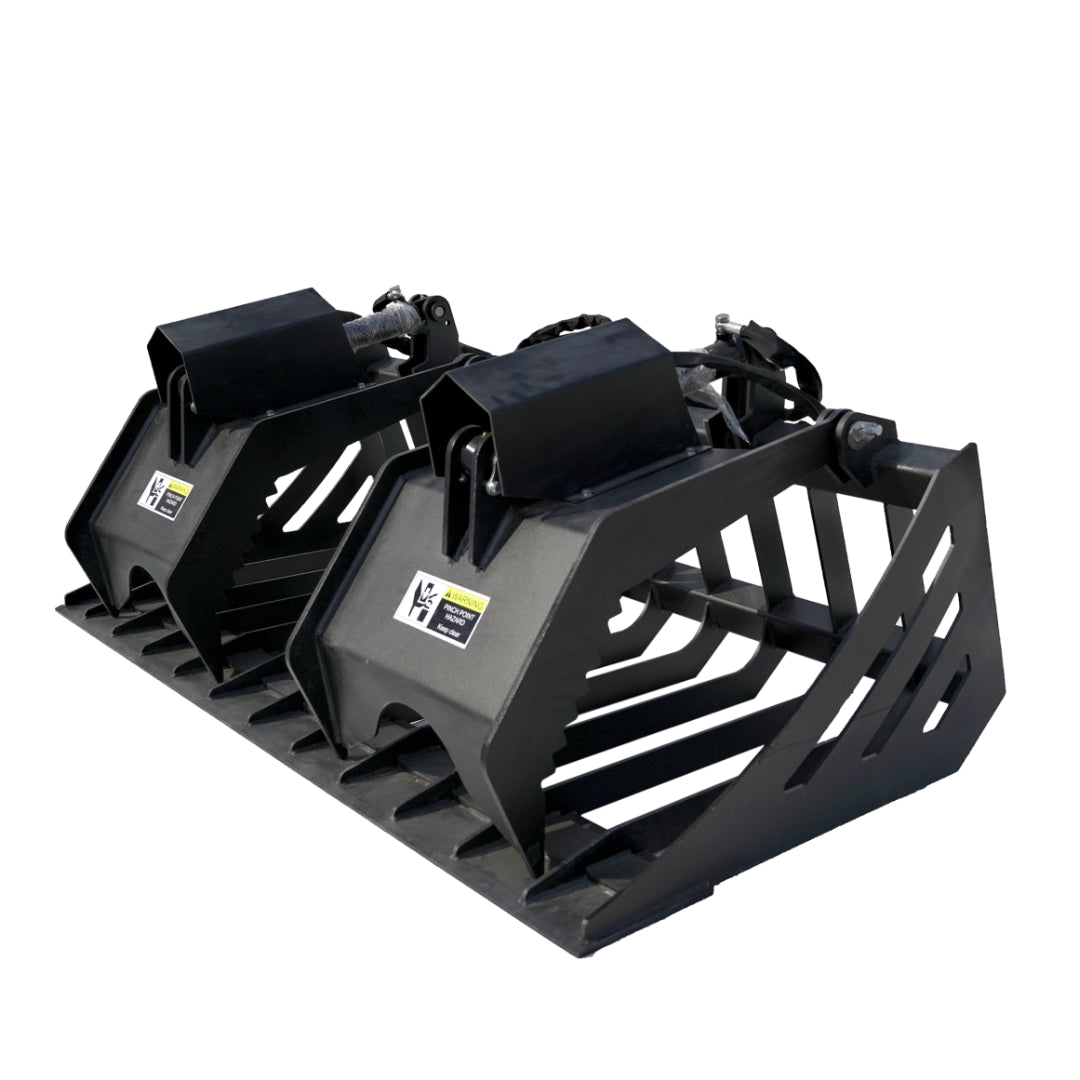

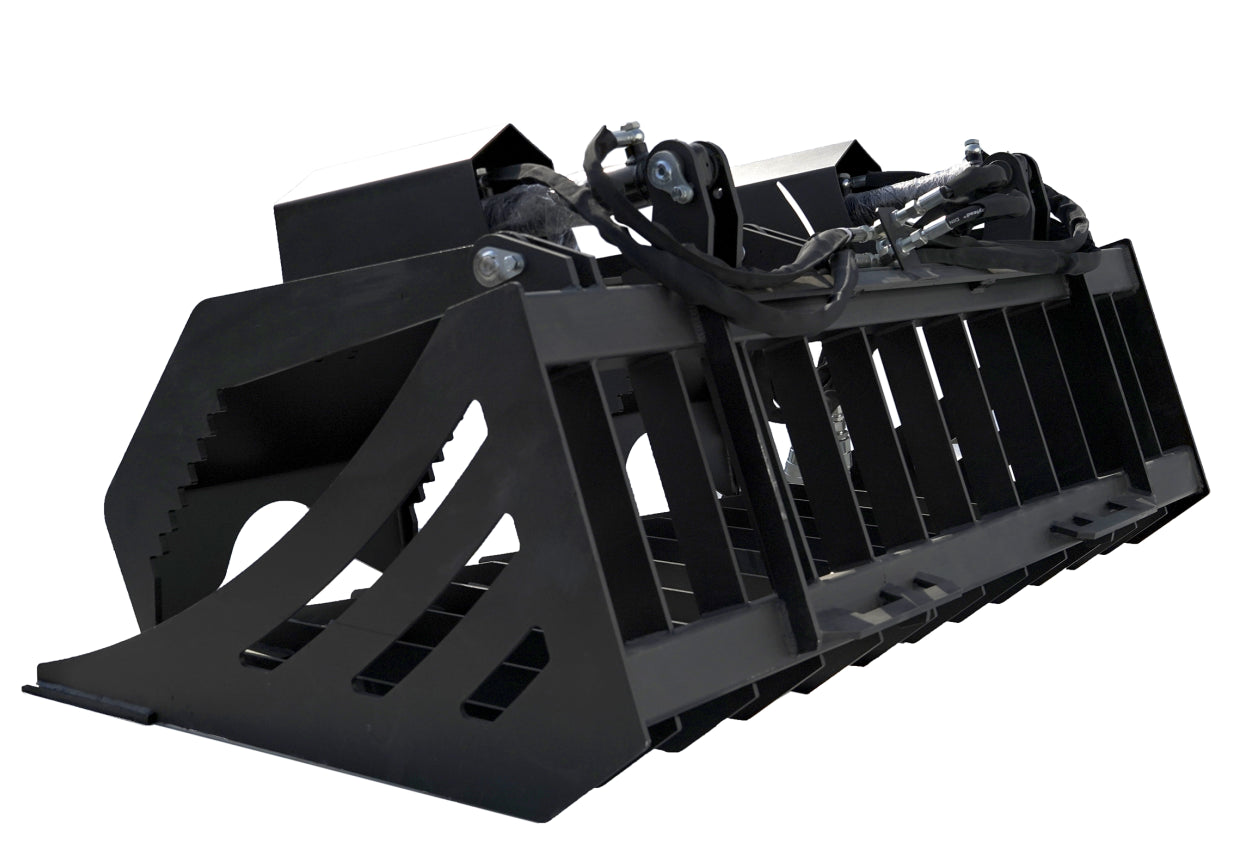

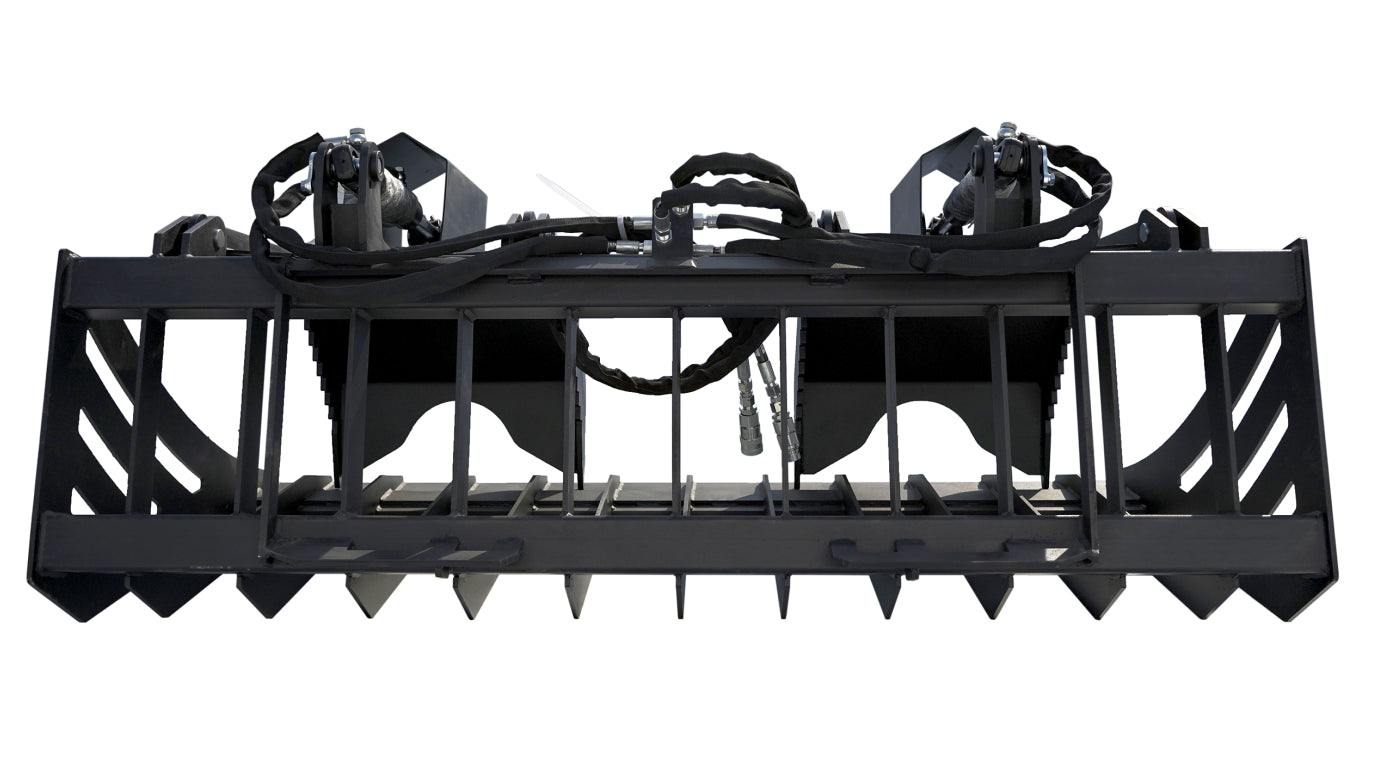

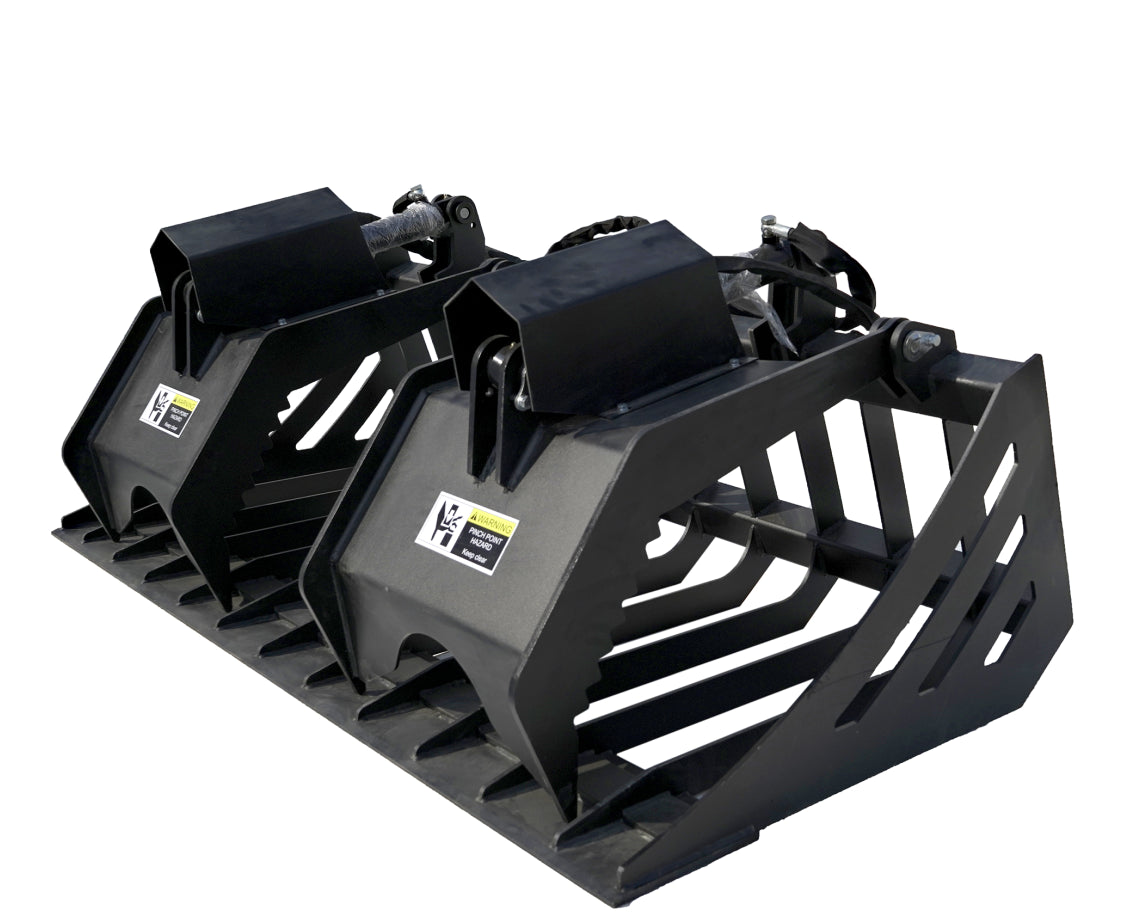

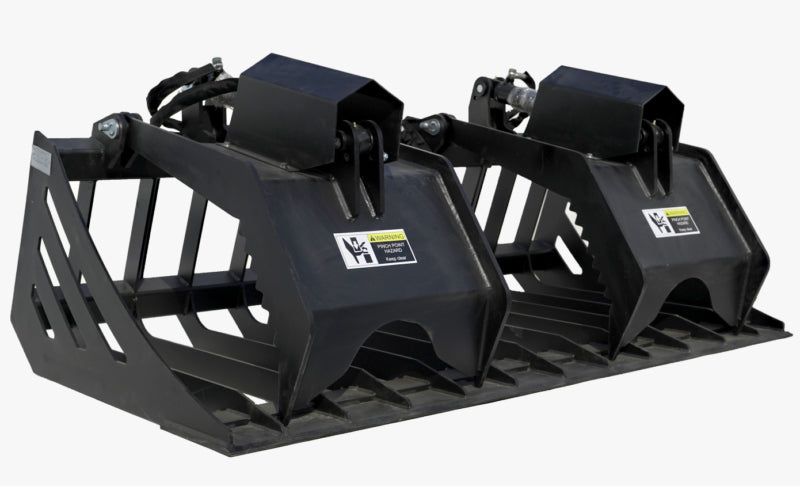

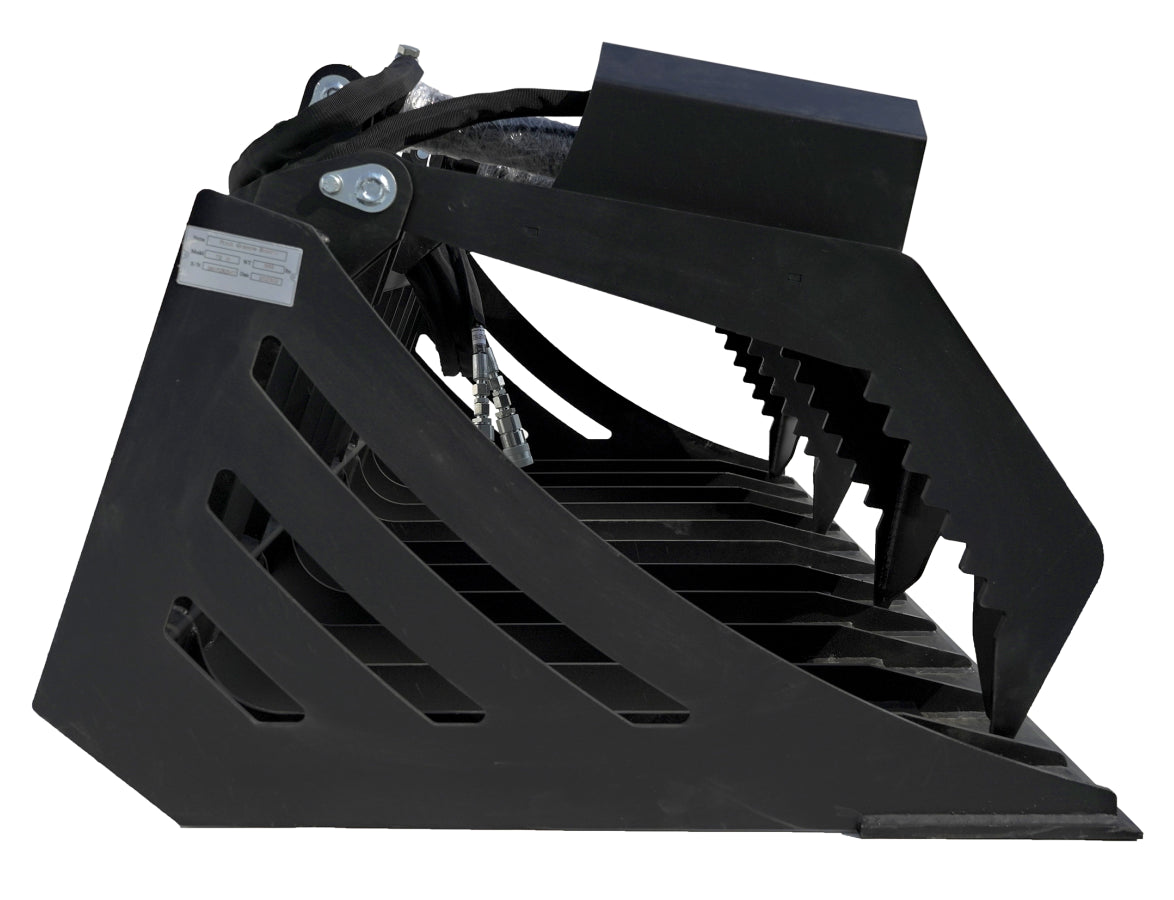

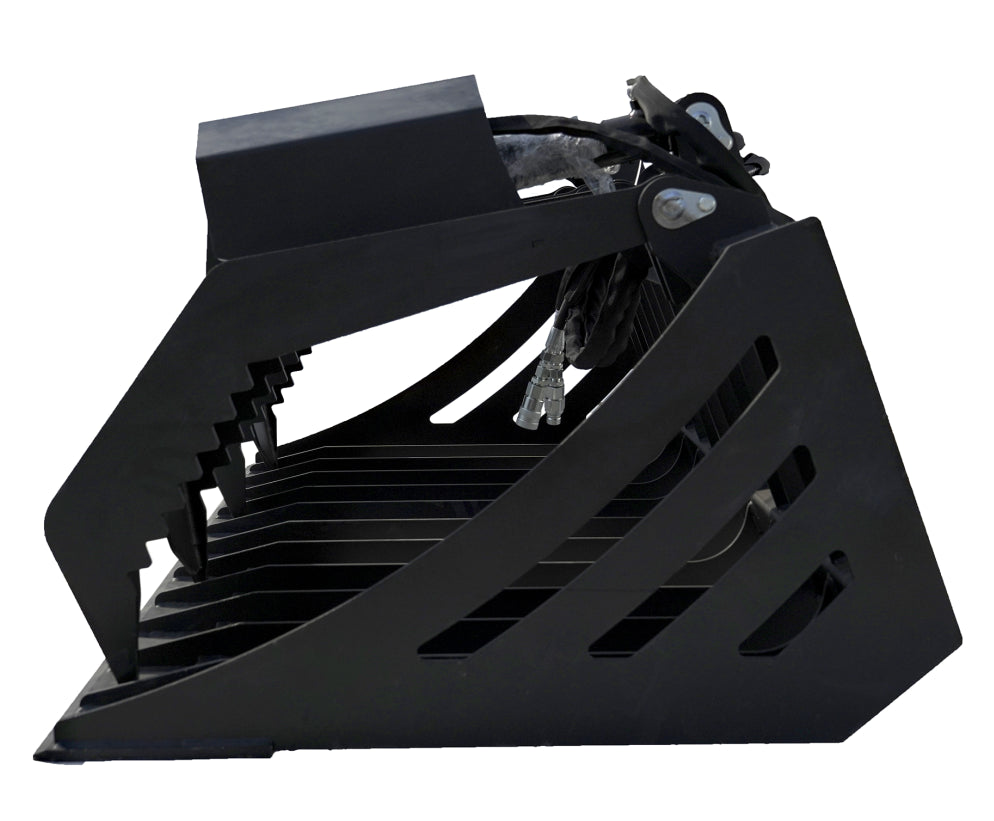

CAEL rock grapple bucket with tines is a must-have attachment for your skid steer loader. Designed for sifting and raking through loose soil, it effortlessly moves rocks aside. The tine spacing allows soil to pass through while retaining larger rocks. Its rugged powder-coated finish ensures resilience on demanding job sites. With a universal skid steer hookup, it easily connects to your existing equipment. Achieve fast and efficient results with the CAEL rock grapple bucket with tines.
Key Features:
Connection: Universal Skid Steer Hookup
Surface: Durable Powder Coated Finish
SPECIFICATIONS
| Product Dimension |
1491mm2020mm 950mm/4.89’6.63’ 3.12′ |
| Product Weight |
600kg/1320lbs |
| Product Material |
Q345 Steel |
| Hydraulic Motor Power |
12.8HP |
| Hydraulic Motor Flow |
50L per min |
| Hydraulic Motor Speed |
72.5 RPM |
| Hydraulic Motor Pressure |
20MPa |
| Surface Treatment Technology |
Plastic Powder Coating |
| Operating Pressure |
20MPa |
| Working Width |
2000mm/78.74″ |
| Number Of Tine |
20 |
| Tine Material |
NM400 Steel |
| Tine Space |
94mm/3.7″ |
| Tine Thickness |
16mm/0.63″ |
PACKAGING SIZE
| Package Size |
Package Weight |
| 2.22m*1.63m*1.1m/87.4″*64.17″*43.31″ |
681kg/1498lbs |
