Description

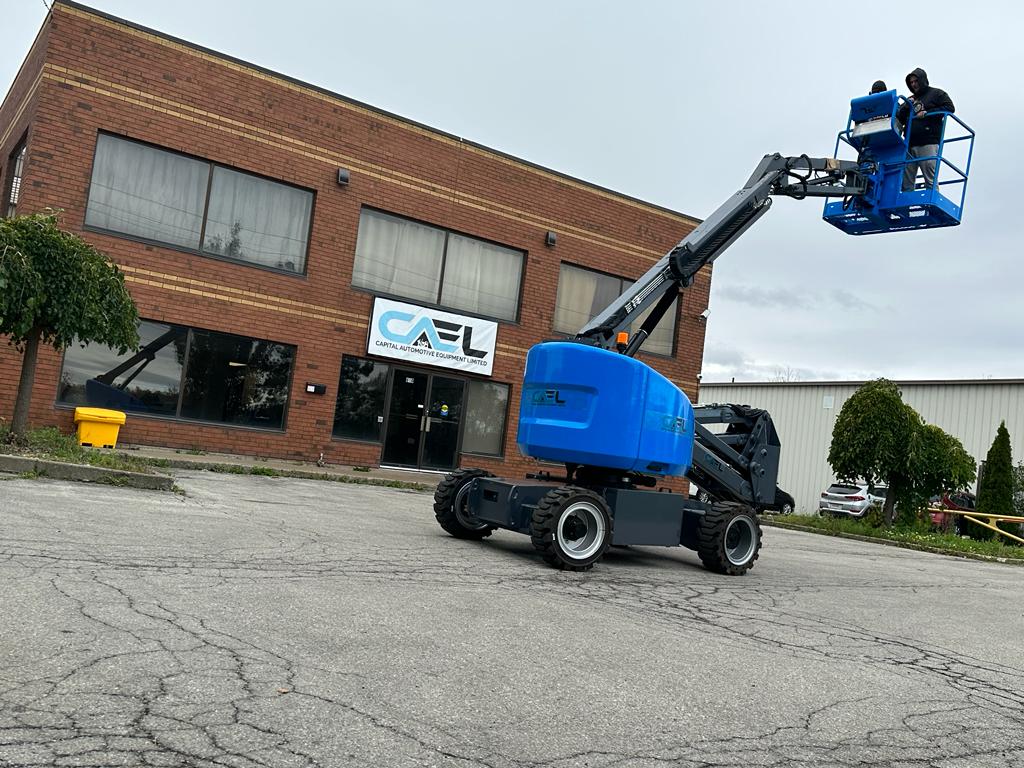

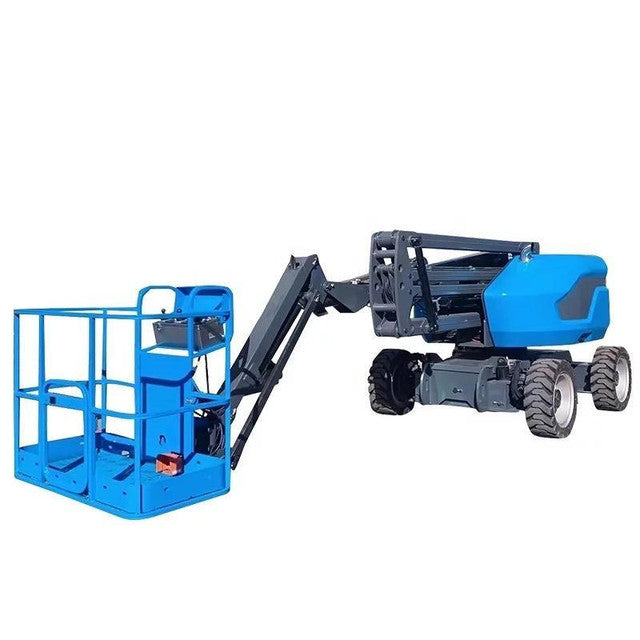

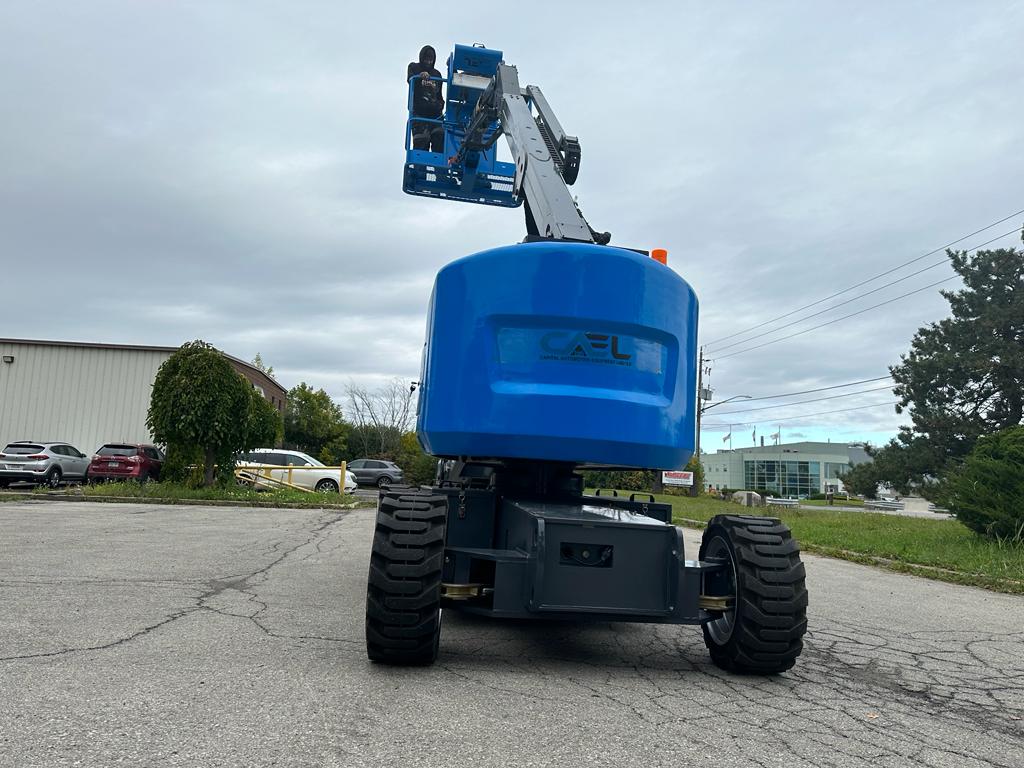

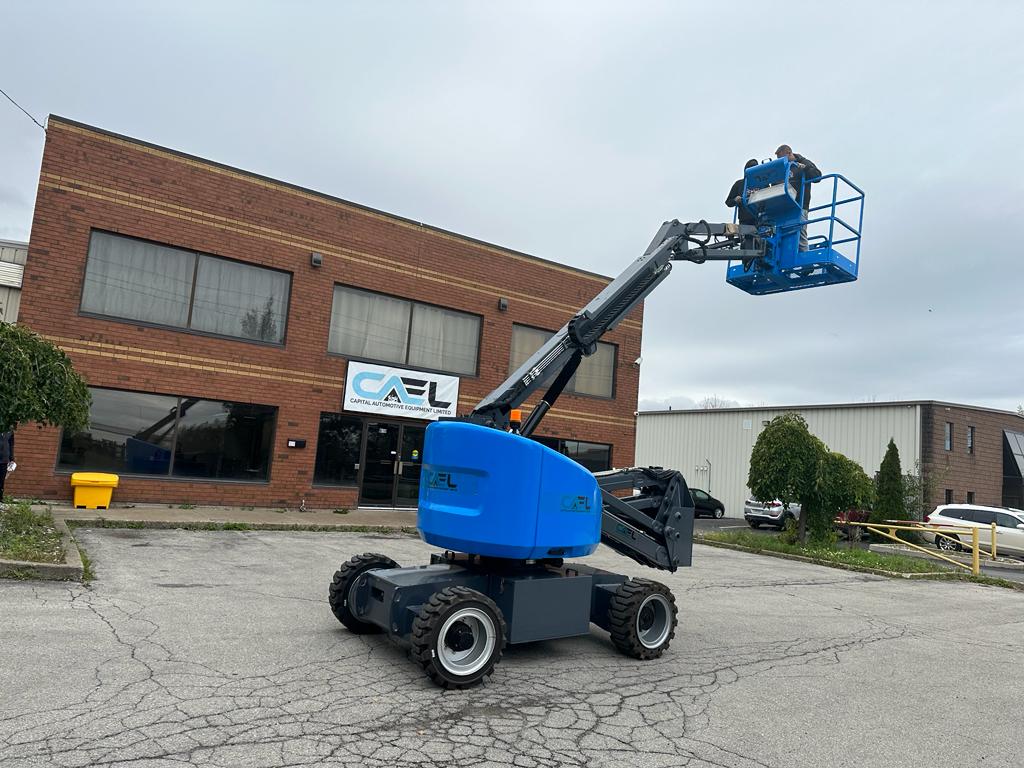

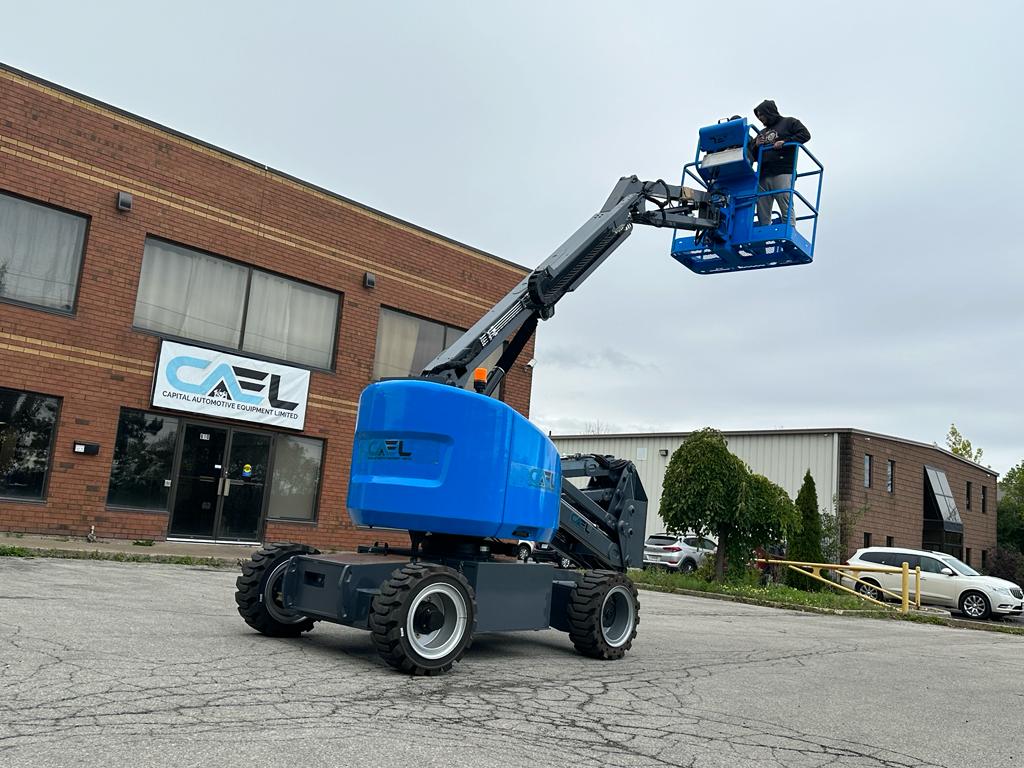

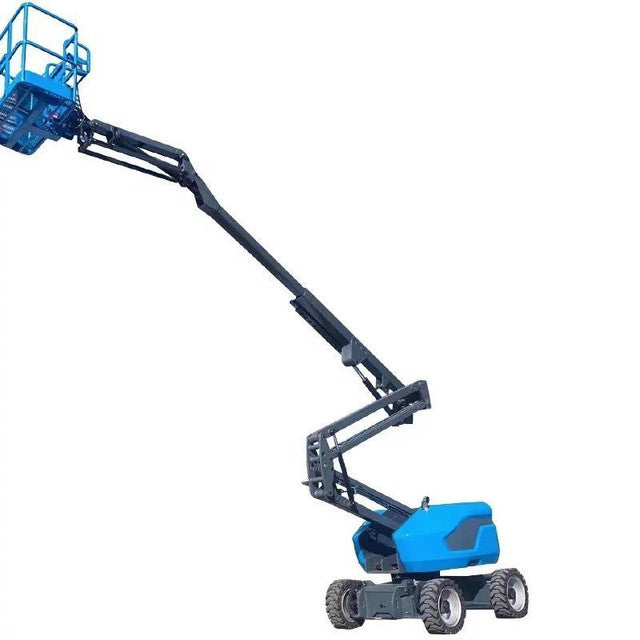

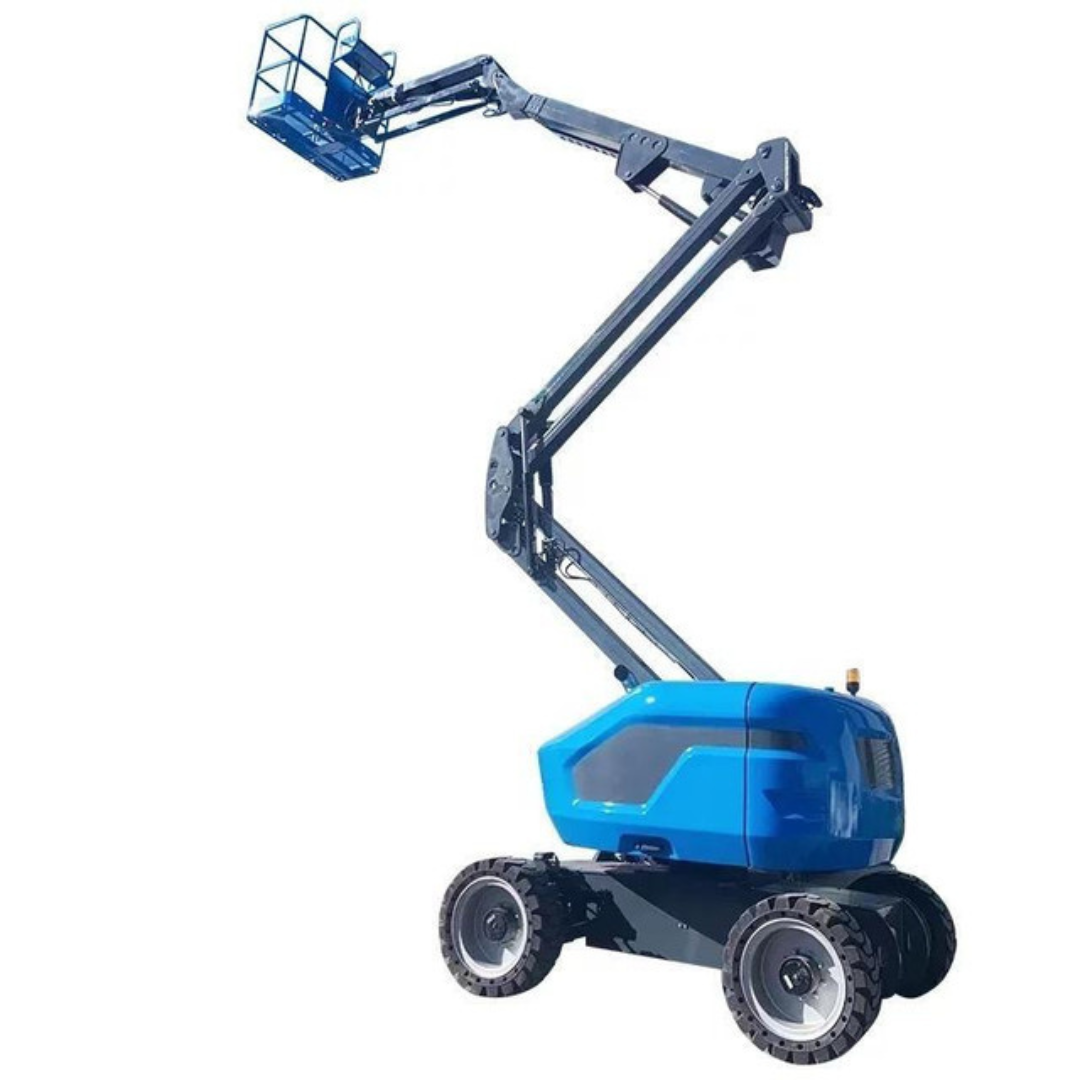

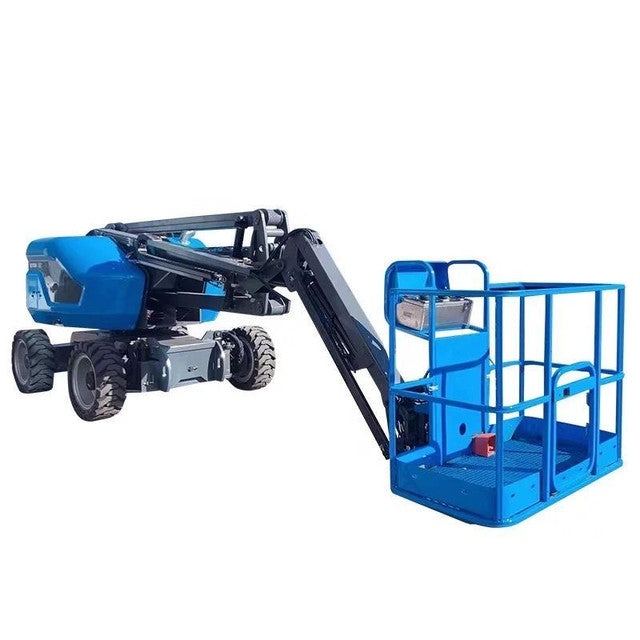

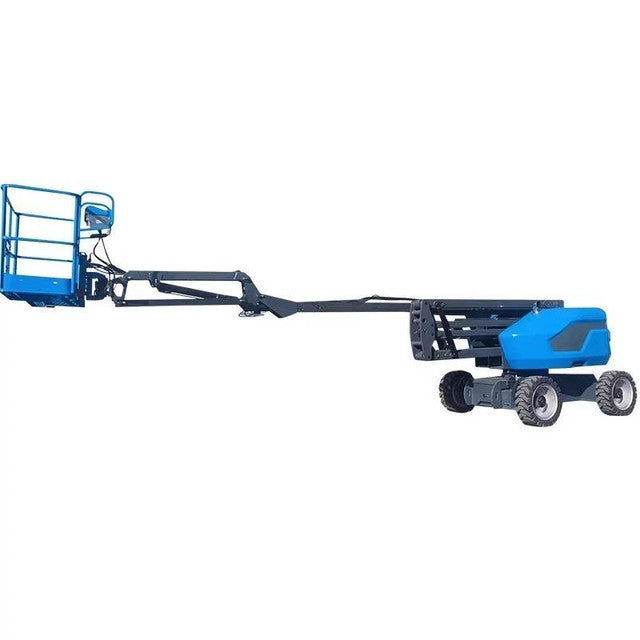

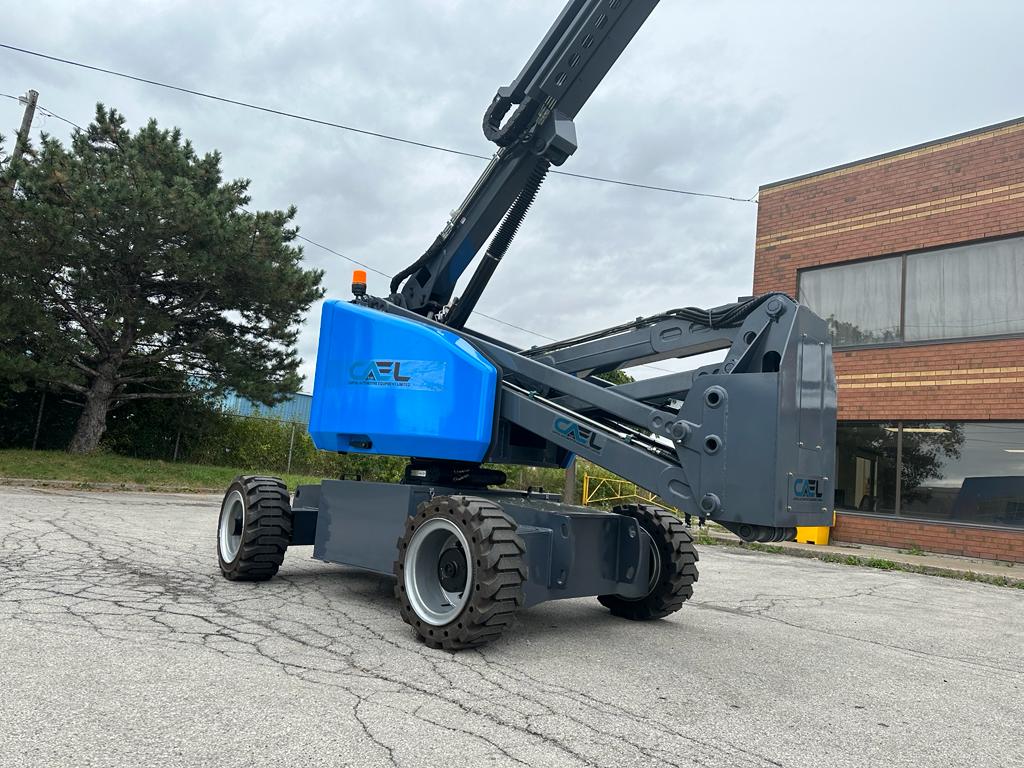

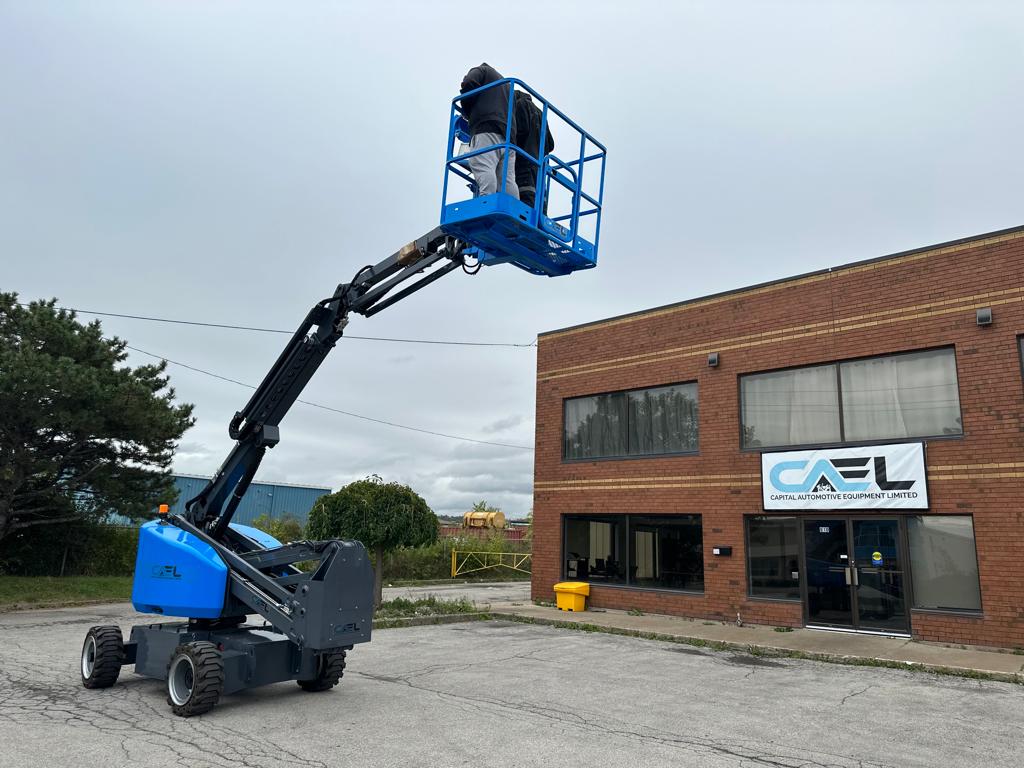

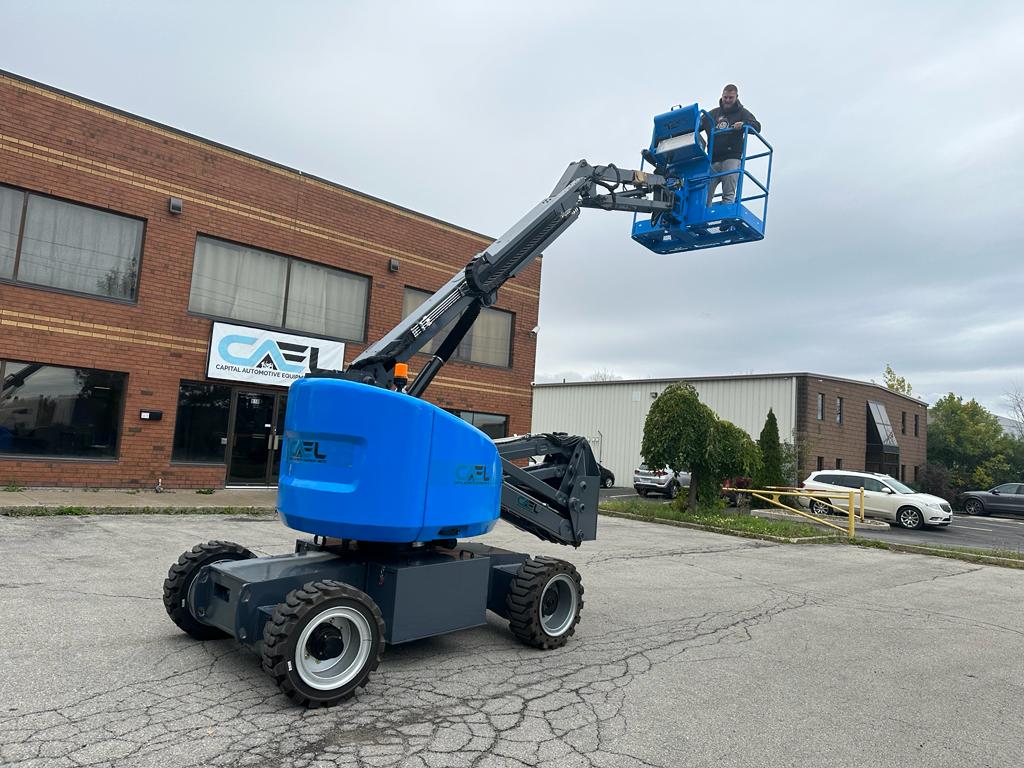

Specifications – 10M Self-Propelled Articulated Boom Lift (Tracked)
-
Maximum Working Height: 10 m (32.8 ft)
-
Maximum Platform Height: 8 m (26.2 ft)
-
Horizontal Outreach: ~3–4 m (9.8–13.1 ft)
-
Lift Capacity: 200–230 kg (440–507 lbs)
-
Platform Dimensions: ~1.2 m × 0.8 m (47 in × 31 in)
-
Rotation: 360° Non-continuous turret rotation
-
Jib Arm Movement: 0° to 130° for flexible positioning
-
Drive System: Self-propelled, dual-speed drive motors
-
Tracks: Heavy-duty rubber tracks for stability on uneven terrain
-
Gradeability: 30–35% for superior off-road performance
-
Power Source: Diesel, electric, or hybrid options available
-
Control System: Fully proportional joystick controls
-
Stowed Dimensions: Approx. 4.5 m (L) × 1.5 m (W) × 2 m (H)
-
Weight: ~3,500–4,500 kg depending on configuration
-
Safety Features: Emergency stop, tilt alarm, overload sensor, platform guardrails, and safety harness anchor points
Disclaimer - specs may differ from content on website, contact us for detailed information
