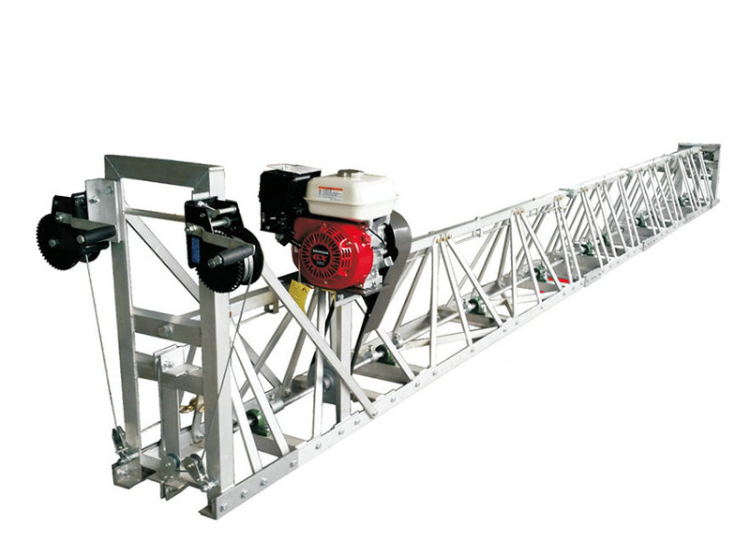

The CAEL GTS-2 Vibratory Truss Screed is a powerful solution for large-scale concrete leveling and finishing. Designed for contractors and industrial flooring projects, it delivers uniform compaction, smooth surfaces, and high productivity on wide concrete slabs.

Powered by the reliable Briggs & Stratton 19N1 engine, the GTS-2 ensures consistent vibration and dependable performance on demanding job sites.

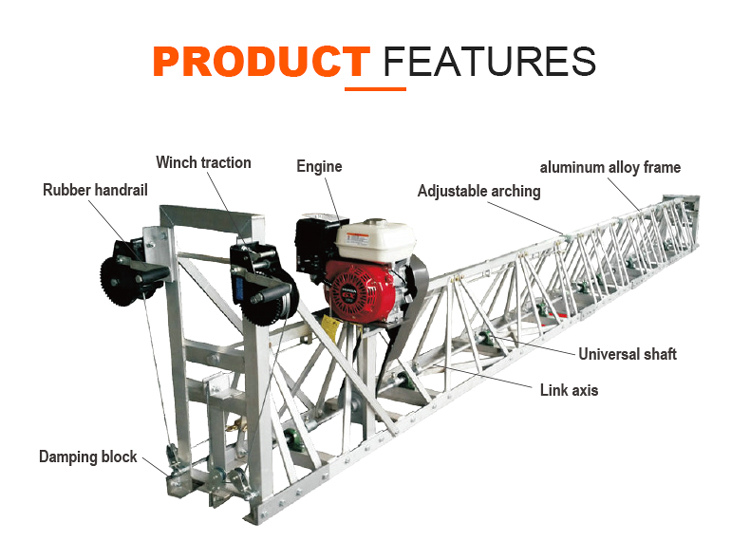

Key Features

• Standard Length: 7 m (22.97 ft)
• Optional Lengths: 4–16 m (13.1–52.5 ft) for flexible applications

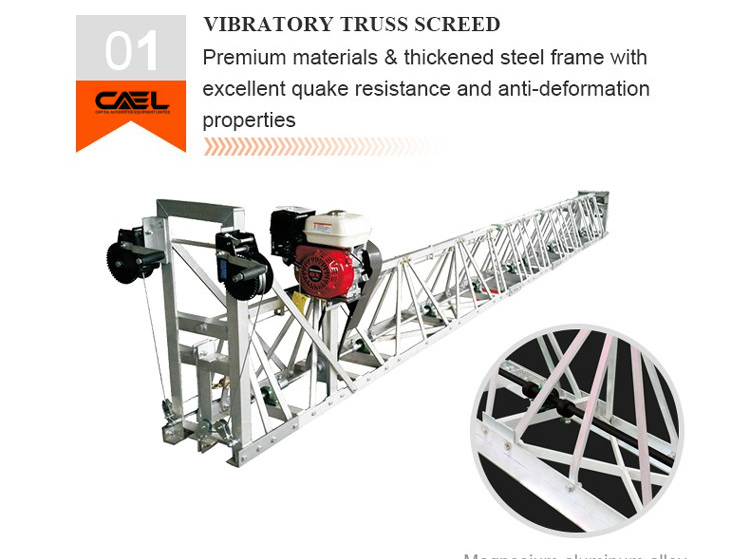

• Truss Material: Lightweight aluminium alloy for durability and stability

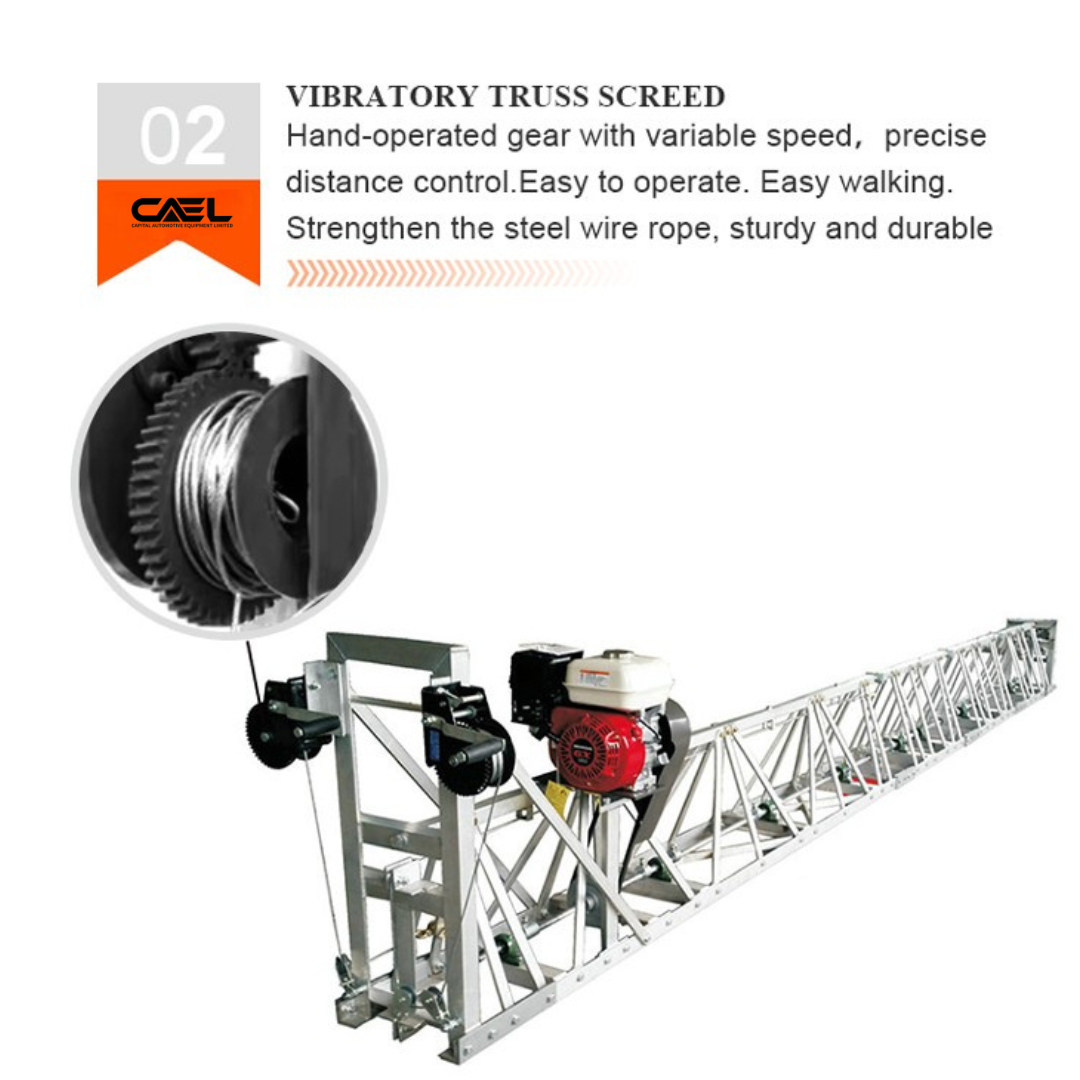

• Drive System: Manual winch control for precise operation
• Travel Speed: 1.2–2.5 m/min (3.9–8.2 ft/min)
• Impact Force: 120 N for effective concrete consolidation
• Modular Sections: 1 m or 2 m (3.28 ft / 6.56 ft) for easy assembly

Specifications

• Model: CAEL GTS-2
• Truss Length: 7 m standard (optional 4–16 m)
• Material: Aluminium Alloy
• Drive: Manual Winches
• Engine: Briggs & Stratton (Manual Start, CE/ISO Certified)
• Travel Speed: 1.2–2.5 m/min (3.9–8.2 ft/min)
• Impact Force: 120 N
• Truss Sections: 1 m or 2 m

Applications

Industrial floors • Warehouses • Commercial slabs • Infrastructure projects

The CAEL GTS-2 offers efficient large-area coverage, consistent vibration, and modular flexibility, making it an ideal choice for professional concrete finishing on large projects.
