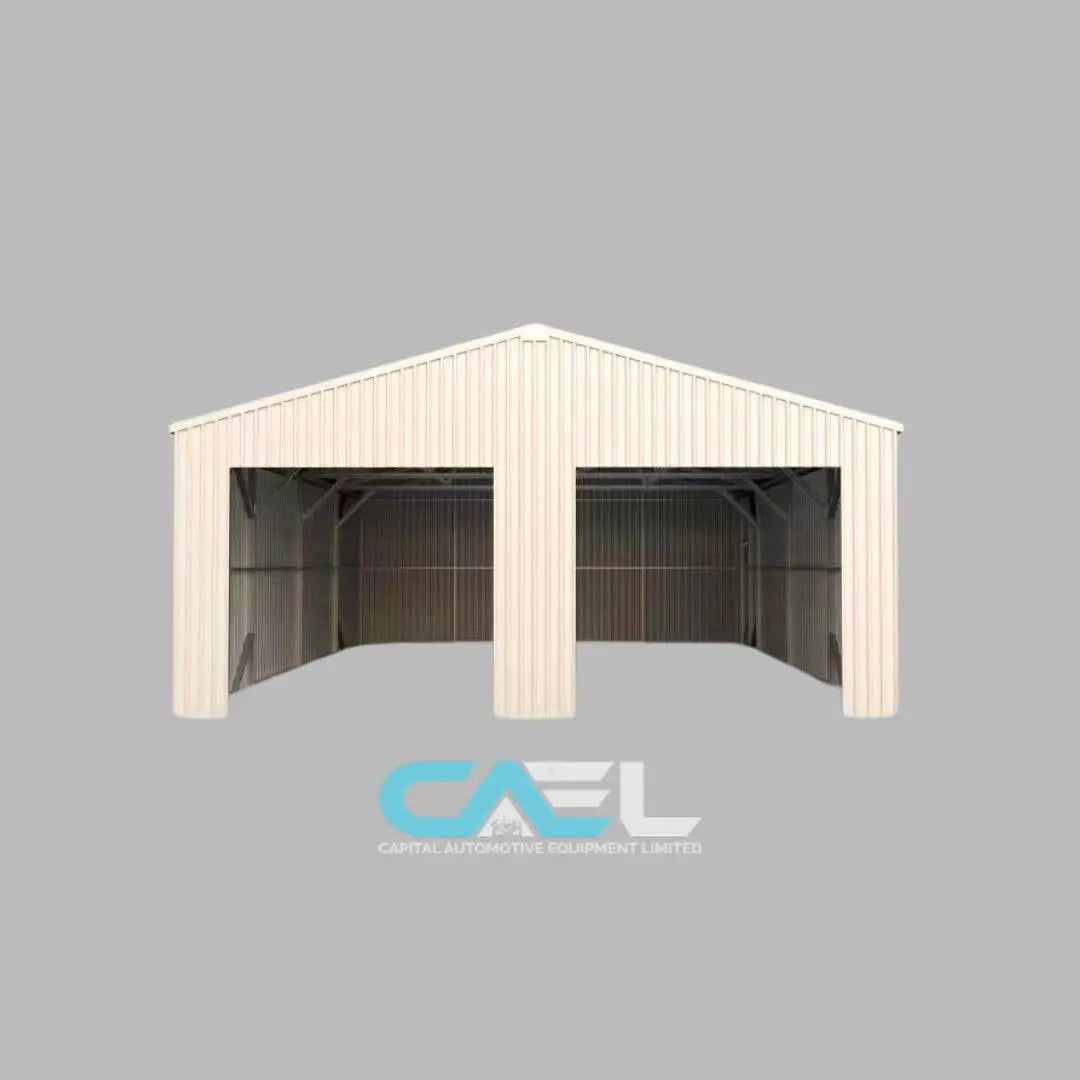

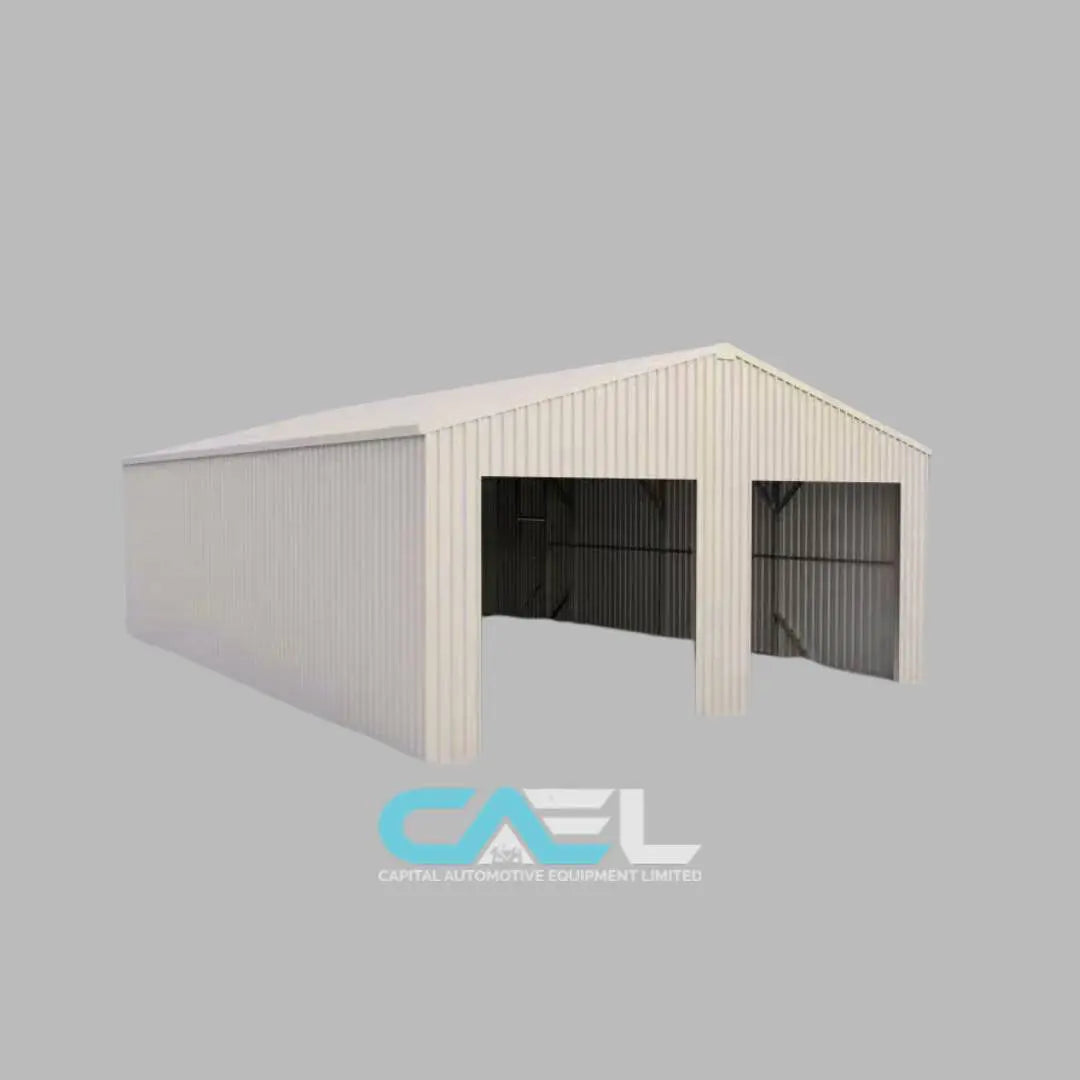

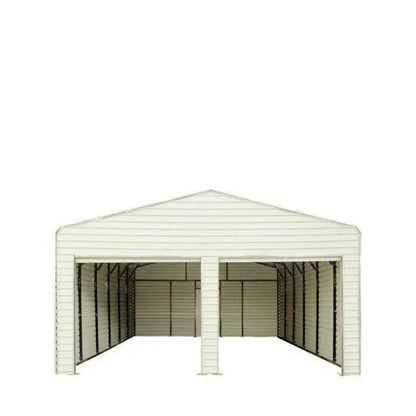

The CAEL Double Garage Metal Shed is a heavy-duty, versatile structure designed for garage use, workshops, and large-capacity storage. Built with a strong 16-gauge steel frame and premium 29-gauge galvanized metal panels, it offers excellent durability, structural integrity, and all-weather protection.

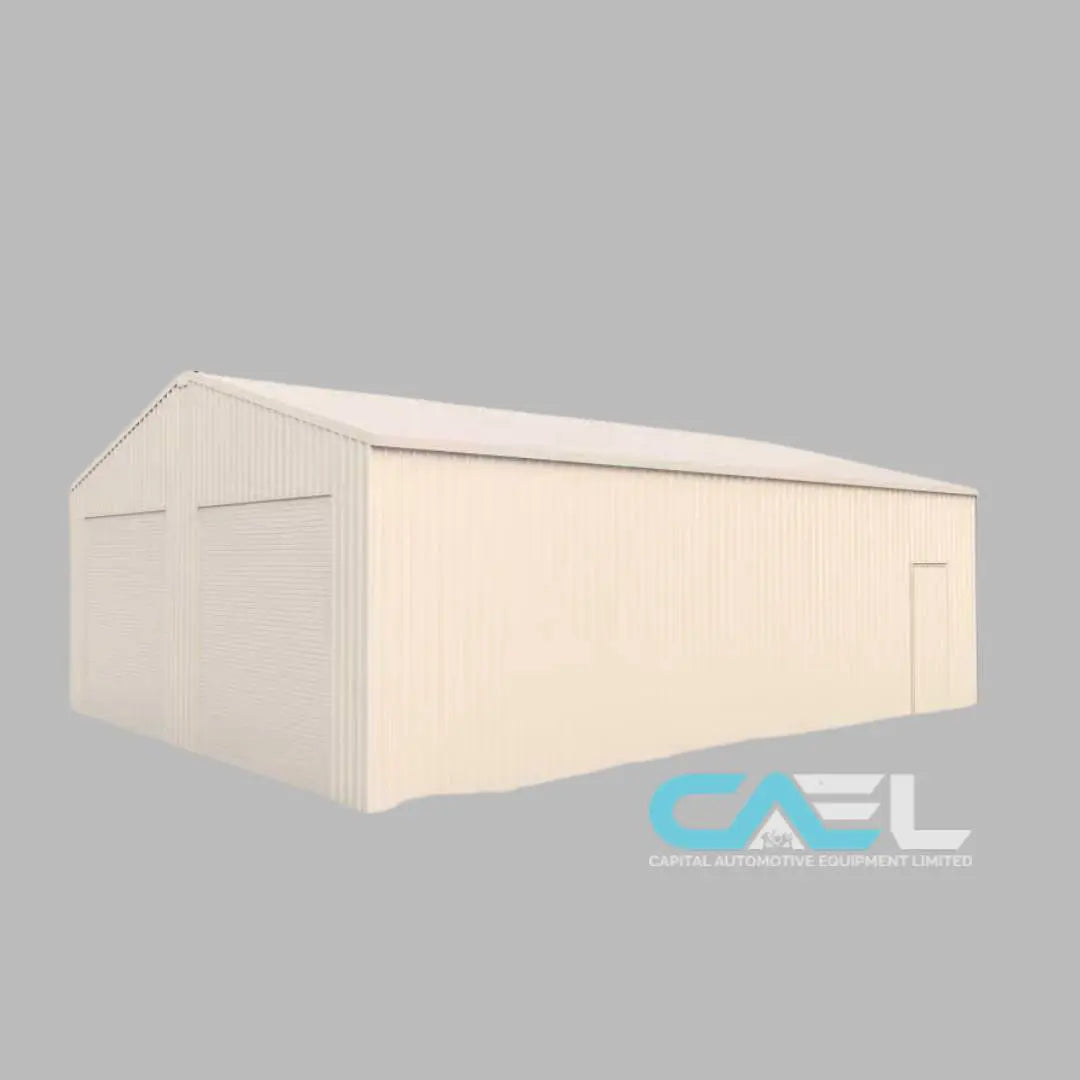

Engineered for practicality, this shed includes a side entry door and two automatic roll-up front doors, allowing smooth access for vehicles, equipment, and tools. Its gable roof design effectively prevents water and snow accumulation, making it ideal for year-round use.
Key Features
Robust Steel Construction: 16-gauge (≈1.5 mm) primary support frame for maximum strength
Corrosion-Resistant Panels: 29-gauge (≈0.36 mm) galvanized corrugated metal sheets

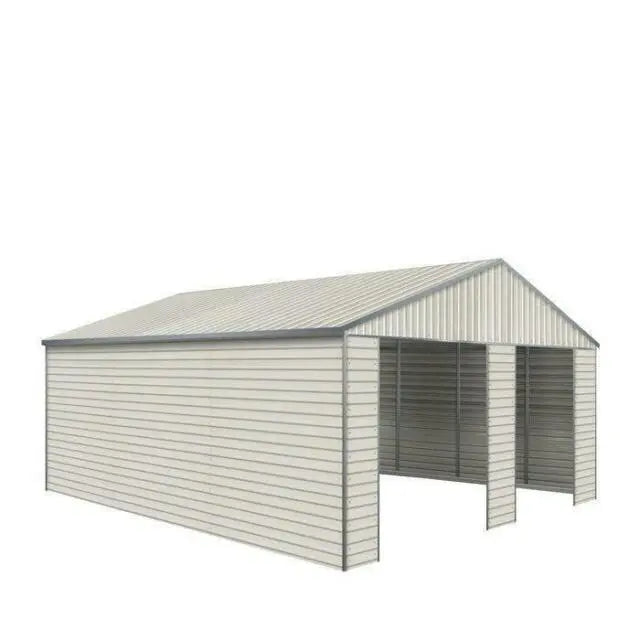

Efficient Roof Design: Gable roof with 4/12 pitch for effective drainage
Reinforced Structure: Additional roof supports, wall bracing, and anchoring system
Convenient Access Points:

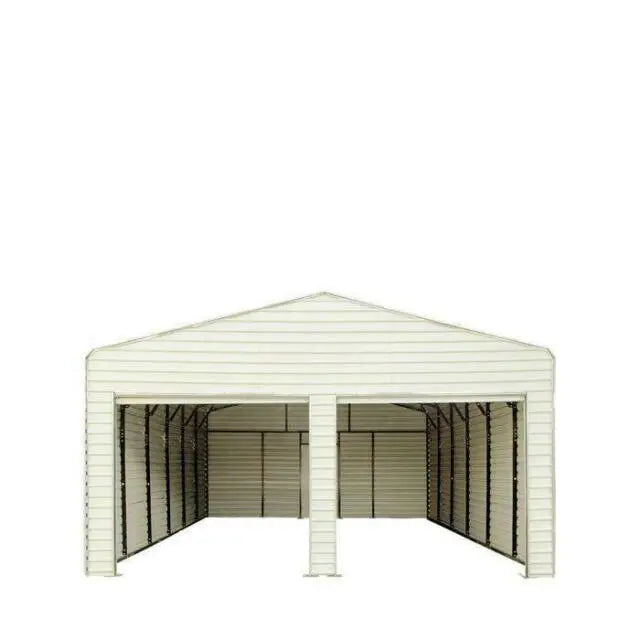

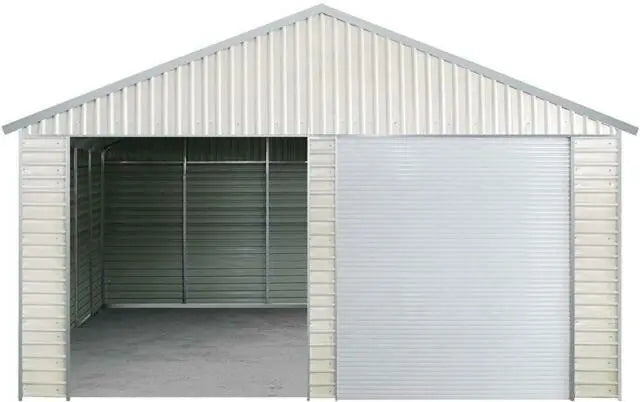

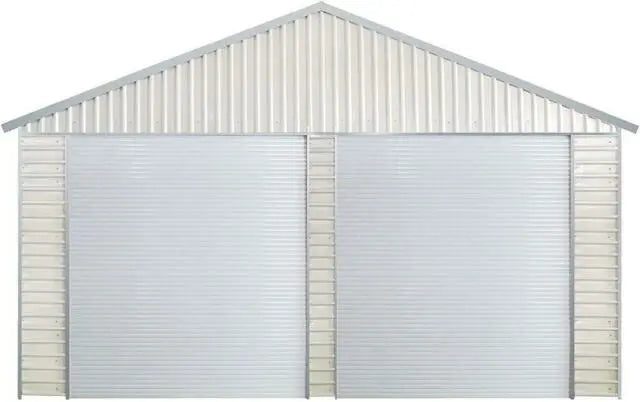

Two automatic roll-up garage doors

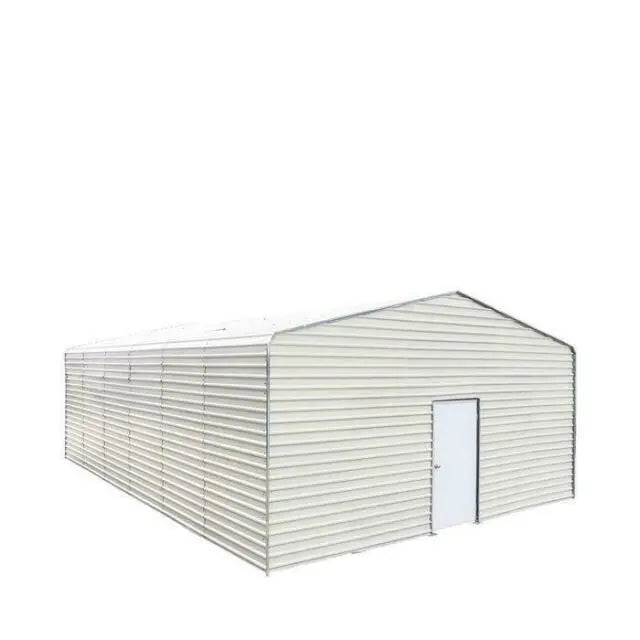

One side entry door, installable on either side
Secure Anchoring System: L-shaped brackets with sleeve anchor bolts included
Easy Assembly: Self-tapping screw-together system
Installation Requirement: 2 skilled persons recommended (2–3 days assembly time)
Specifications
Overall Dimensions
Width: 25 ft (7620 mm)
Length: 50 ft (15,240 mm)
Height: 13 ft (3960 mm approx.)
Floor Area
Approx. 1250 sq. ft. (≈116 sq. meters)
Heights
Peak Ridge Height: 13.5 ft (4115 mm)
Eave Height: 9.7 ft (2950 mm approx.)
Indoor Clearance Height: 9.5 ft (2895 mm approx.)
Doors
Garage Door Opening (Each): 103.5 in (2629 mm) W × 102.4 in (2601 mm) H

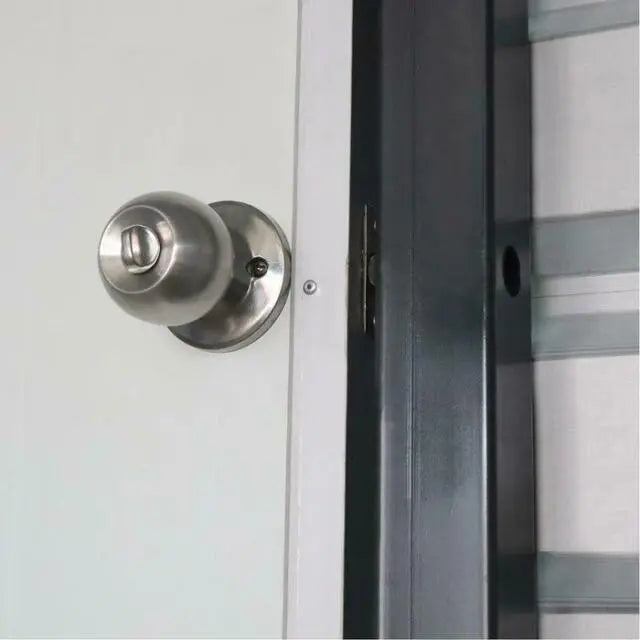

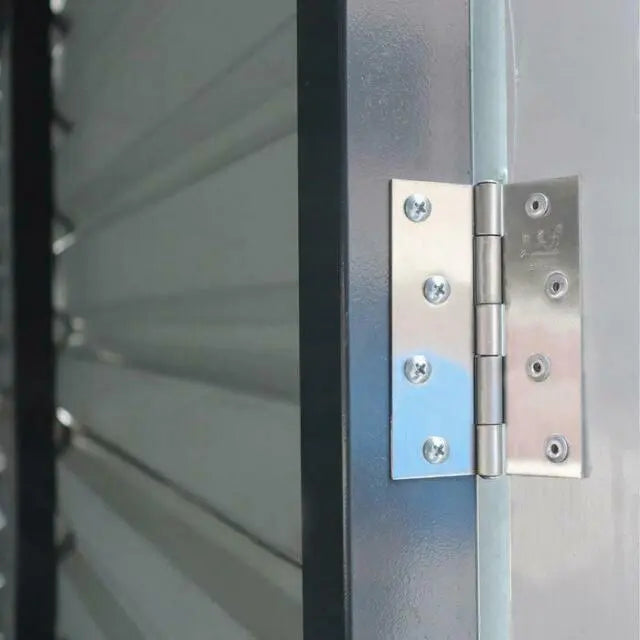

Side Entry Door: 3 ft (914 mm) W × 6.5 ft (1981 mm) H
Structural Details
Roof Pitch: 4/12
Snow Load Rating: Up to 30 PSF (≈1.44 kN/m²)
Wind Rating: Up to 75 MPH (≈120 km/h)
Installation Requirements
Foundation: Concrete slab or equivalent required
Anchoring: L-brackets with sleeve anchor bolts included
