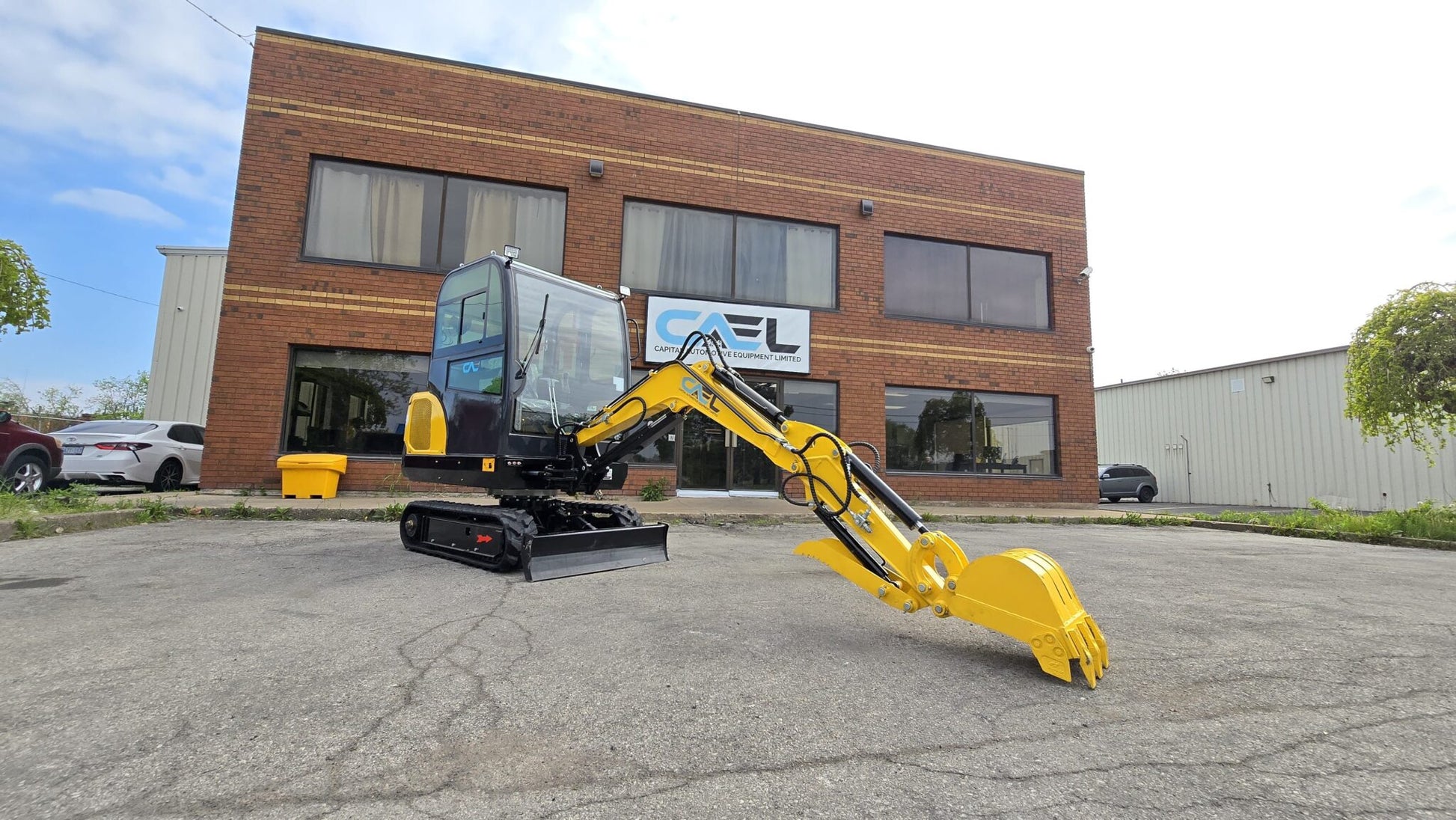

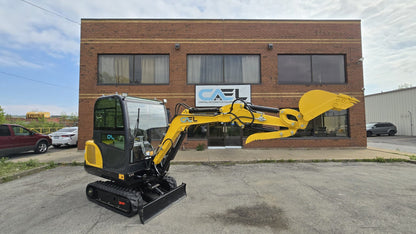

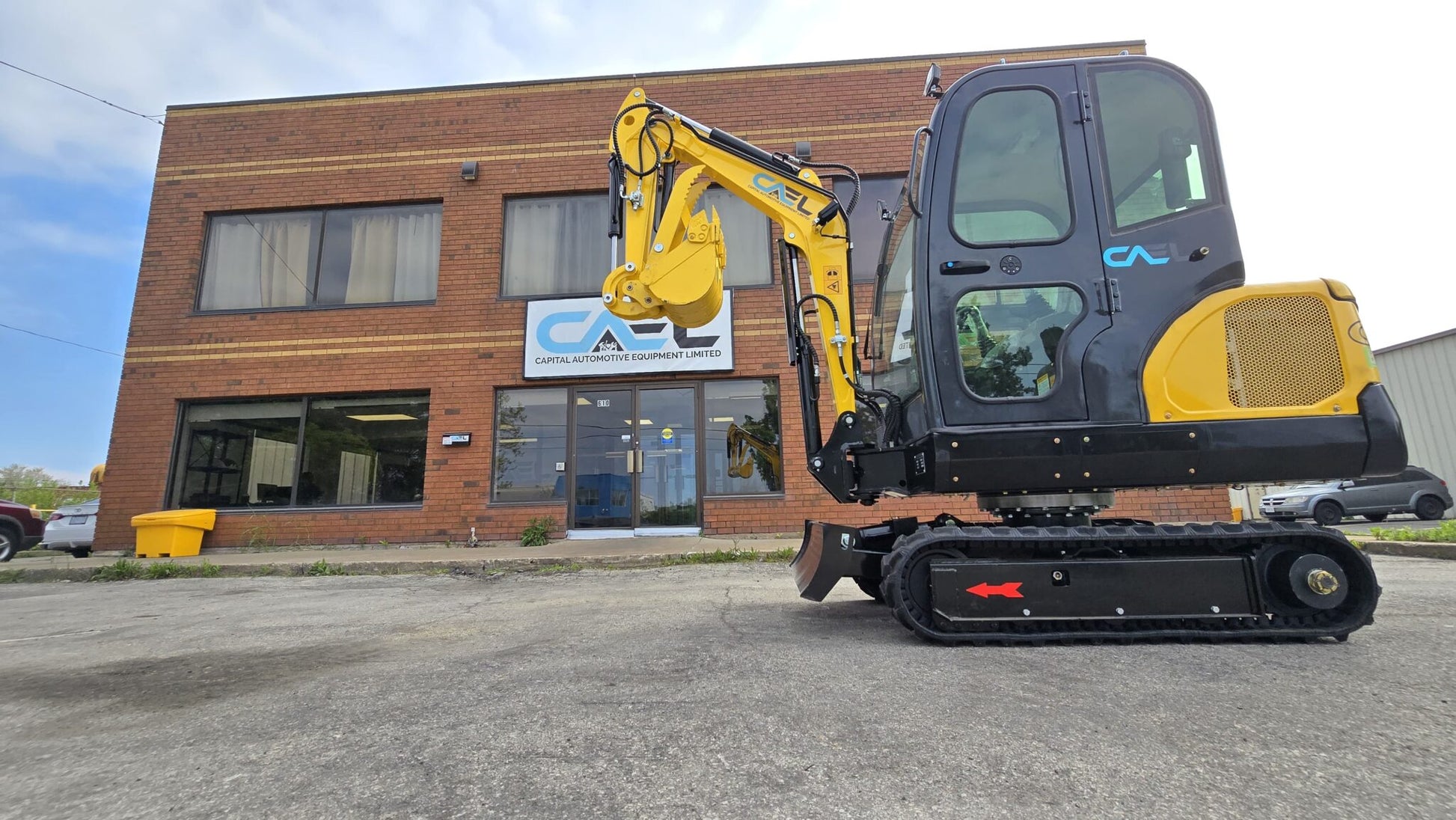

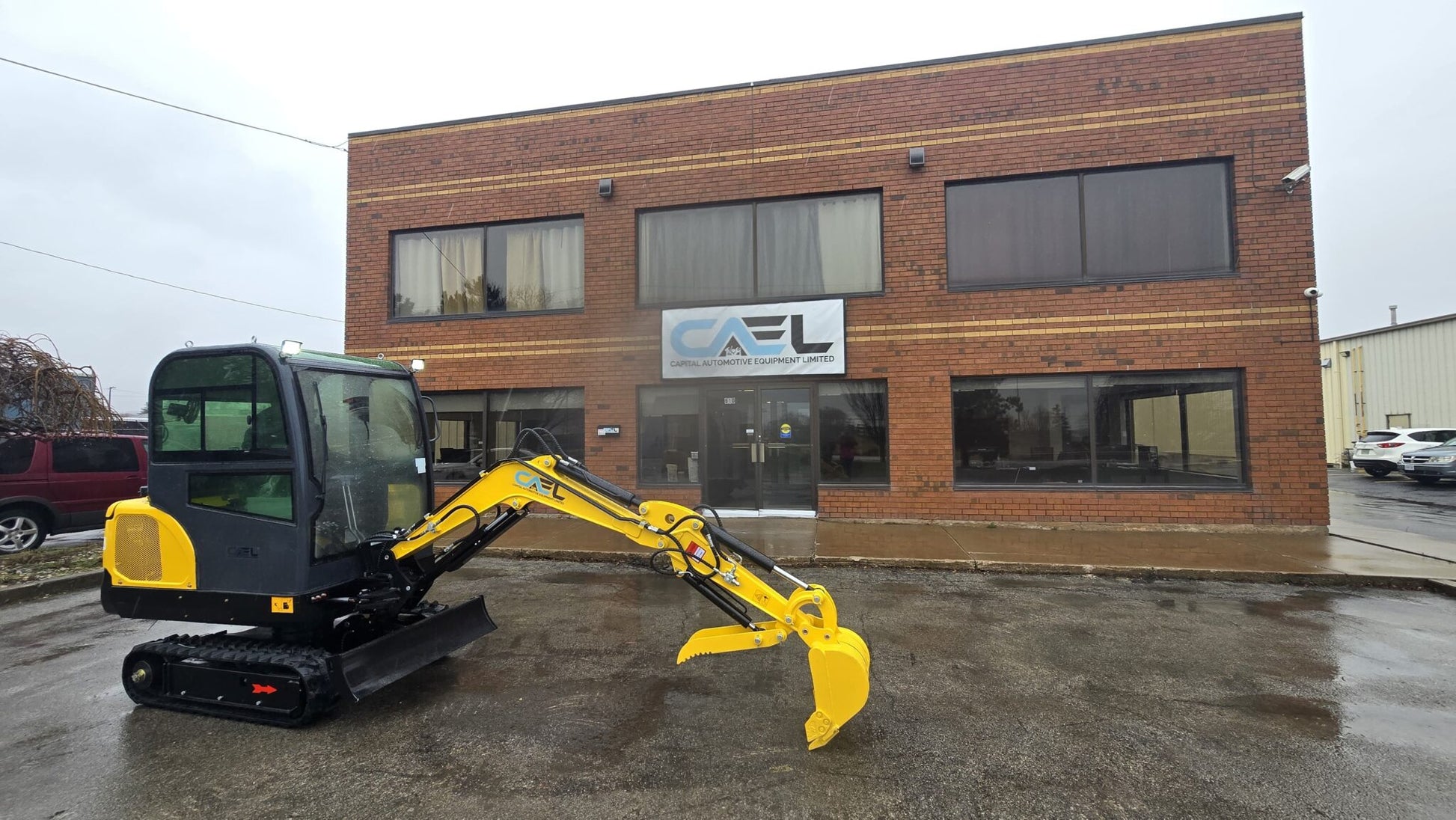

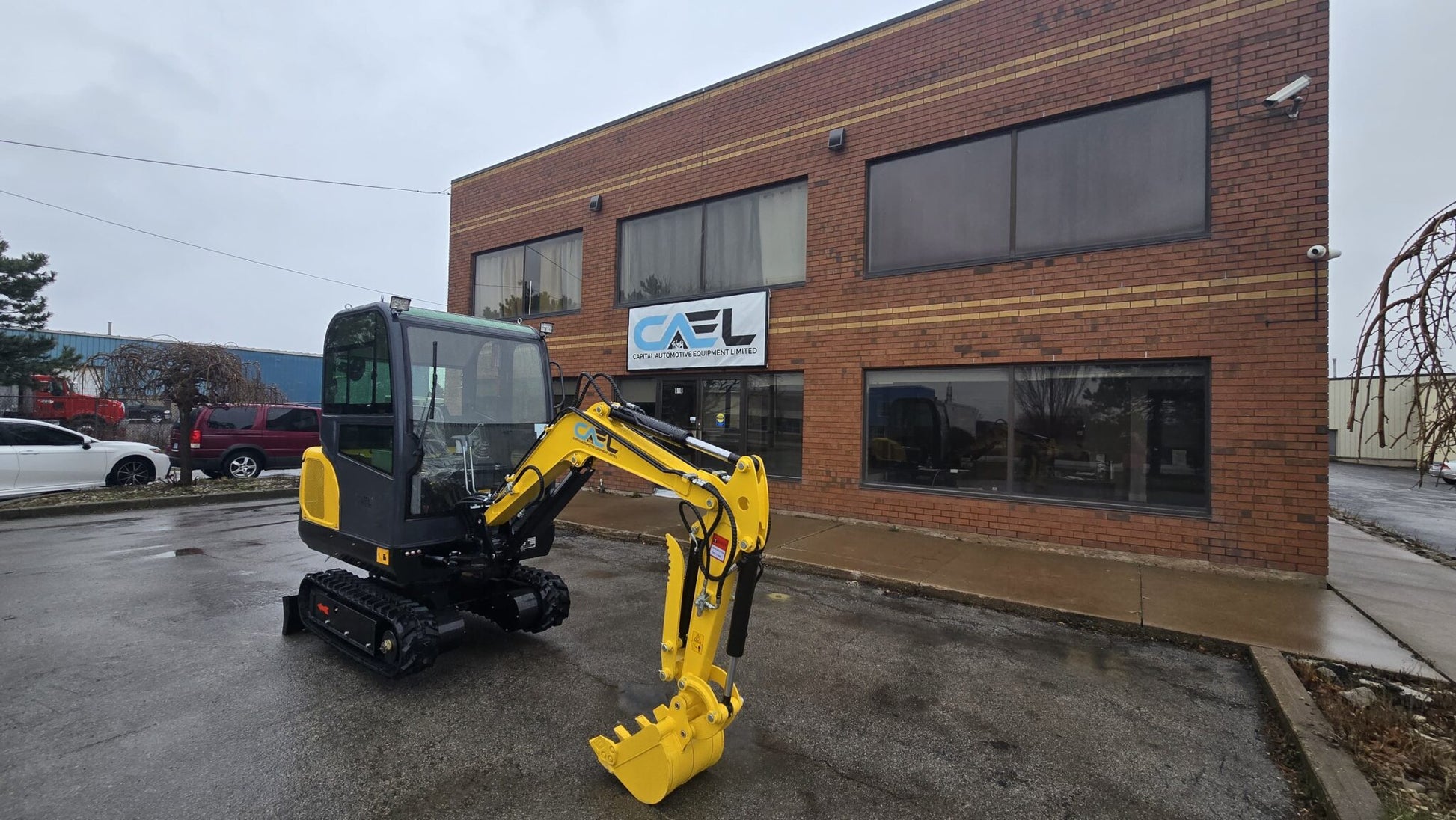

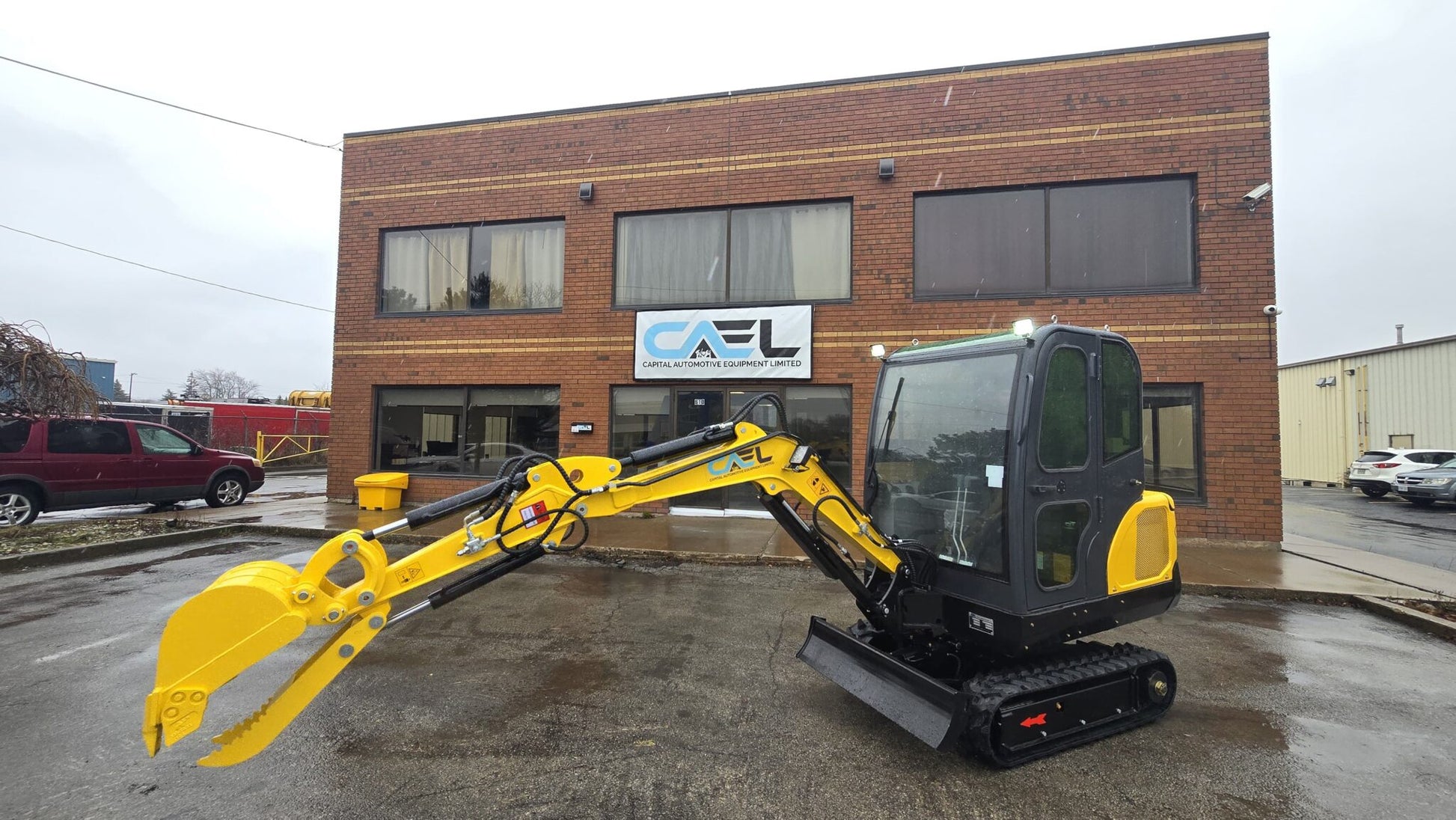

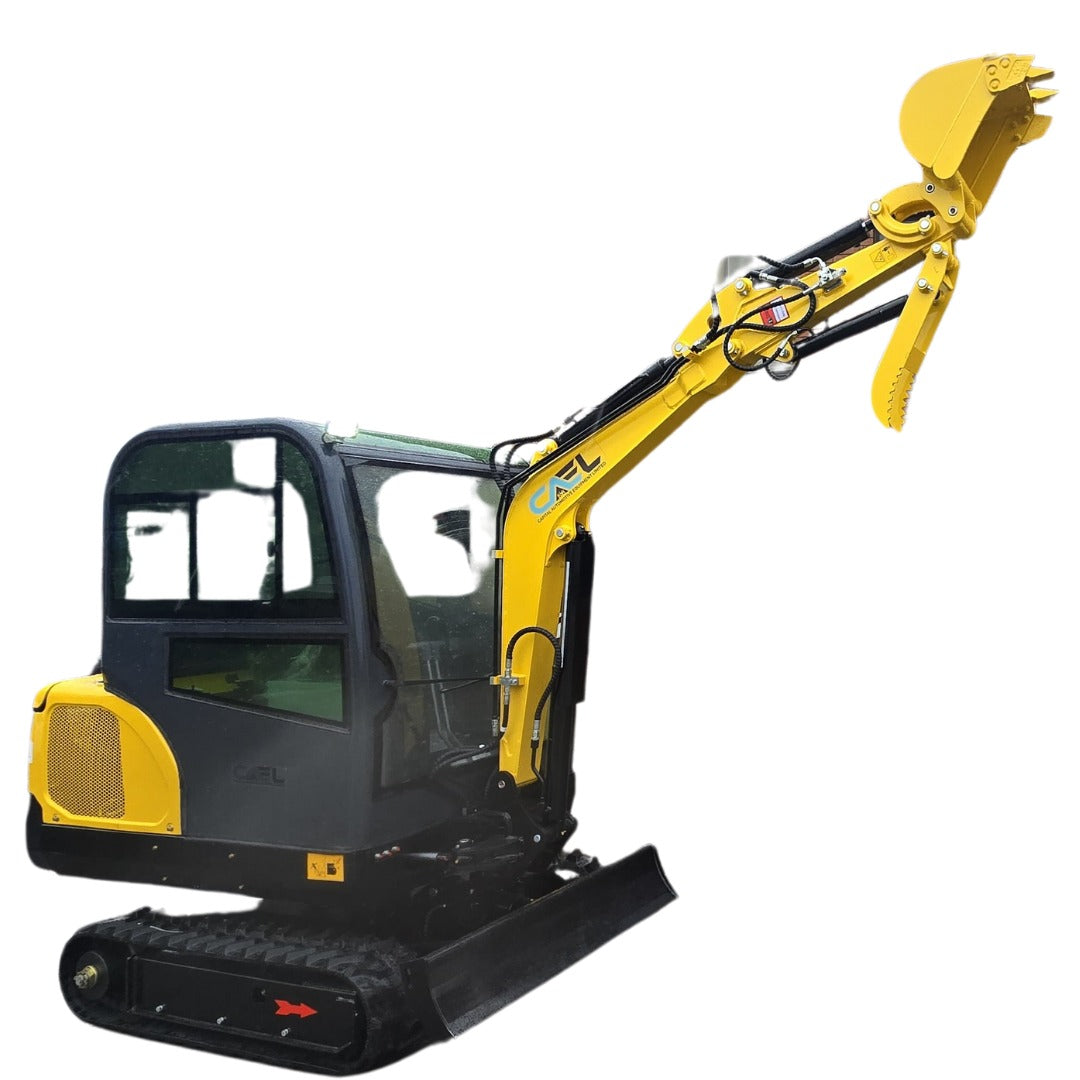

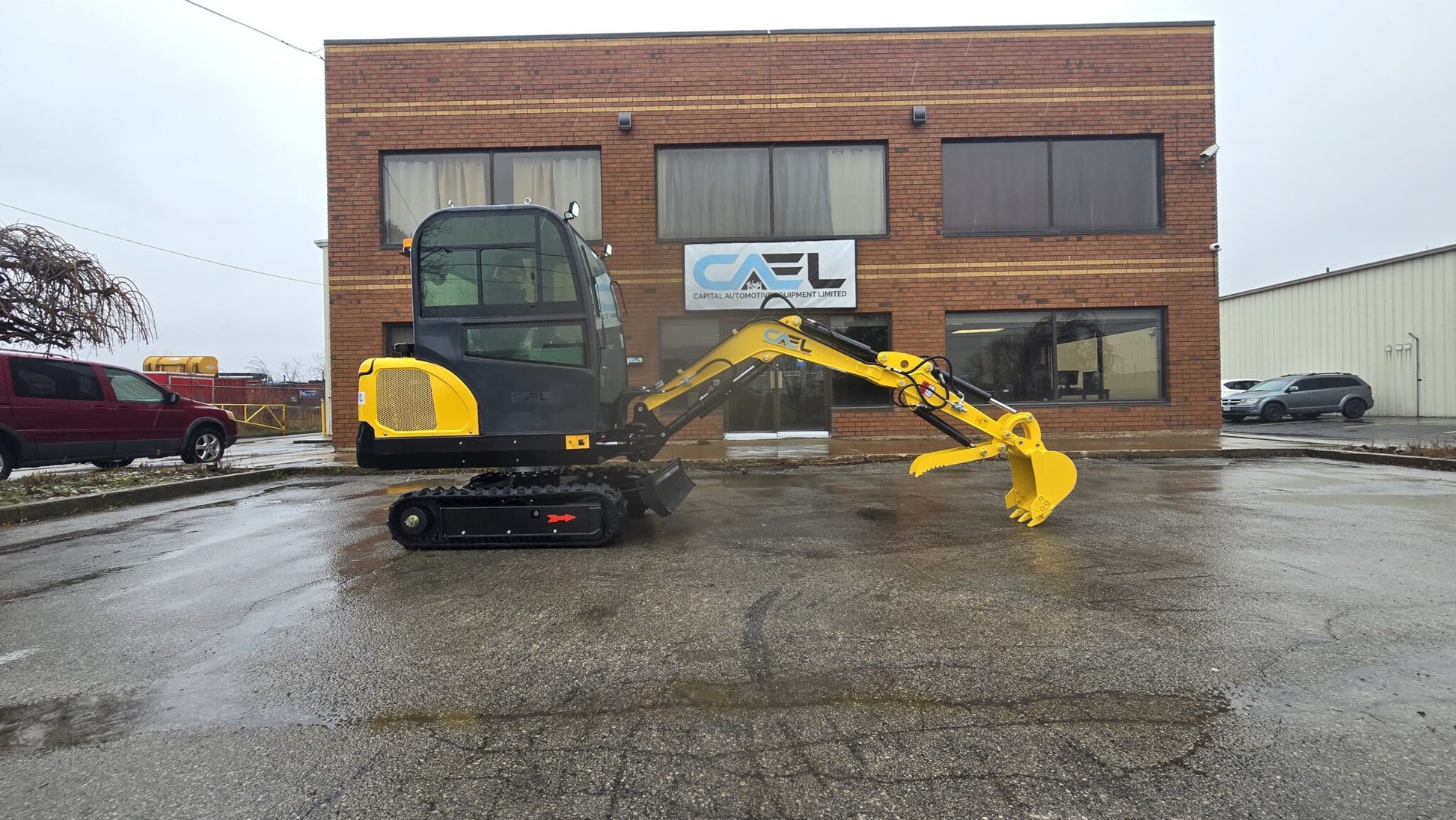

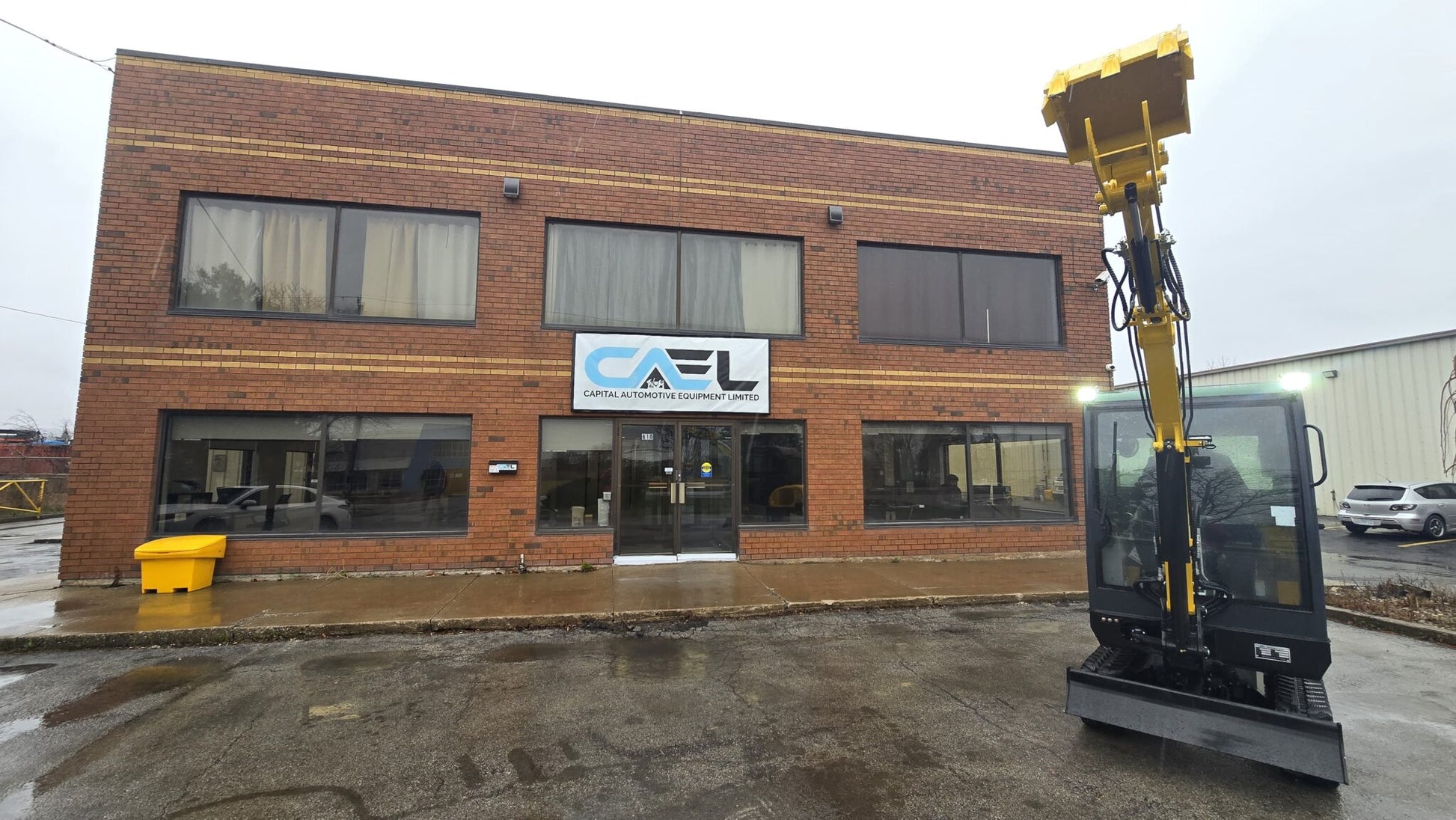

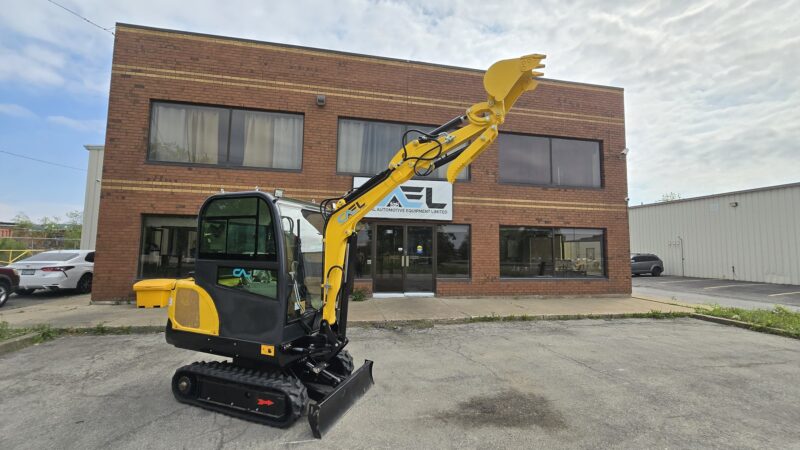

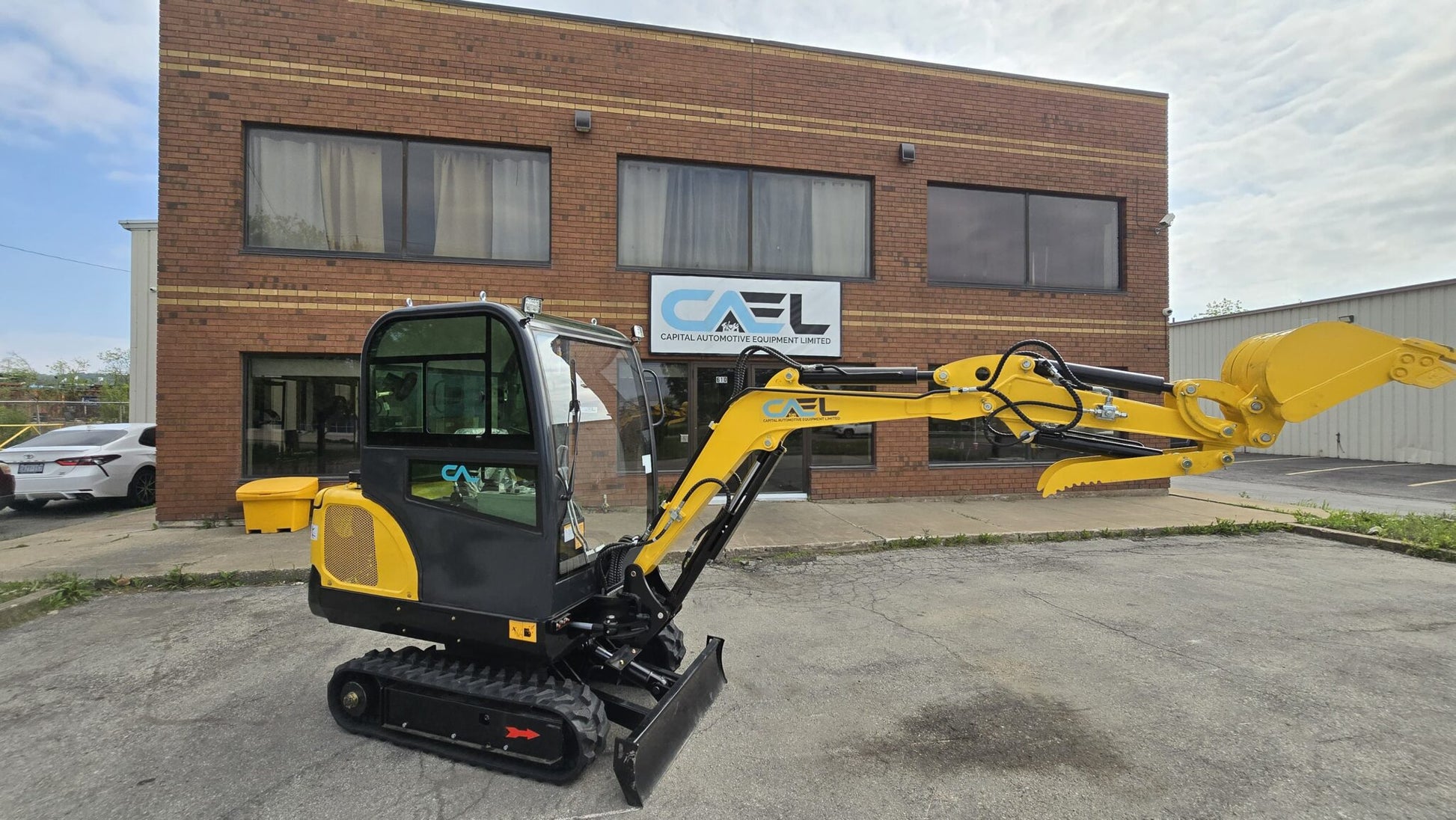

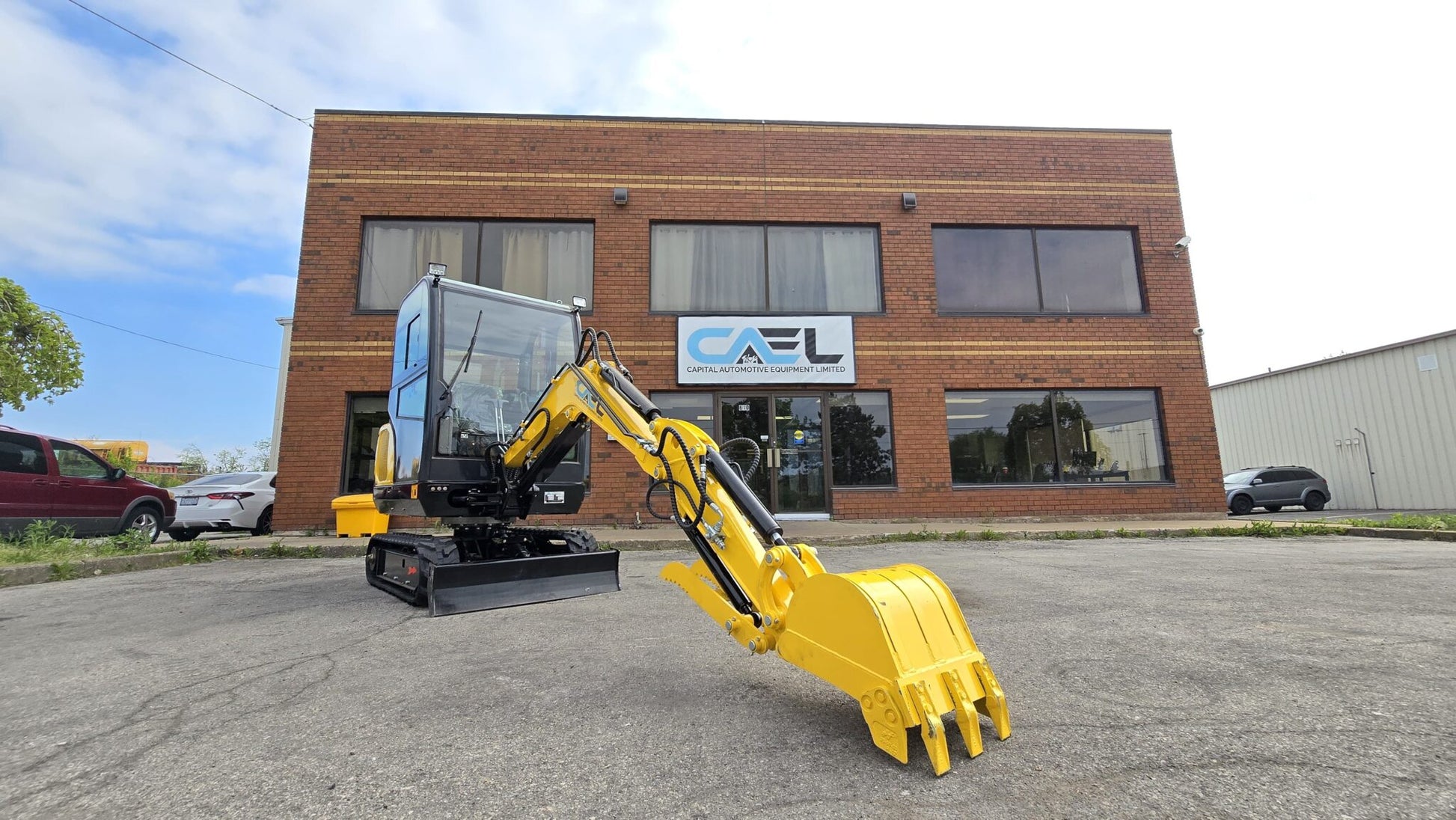

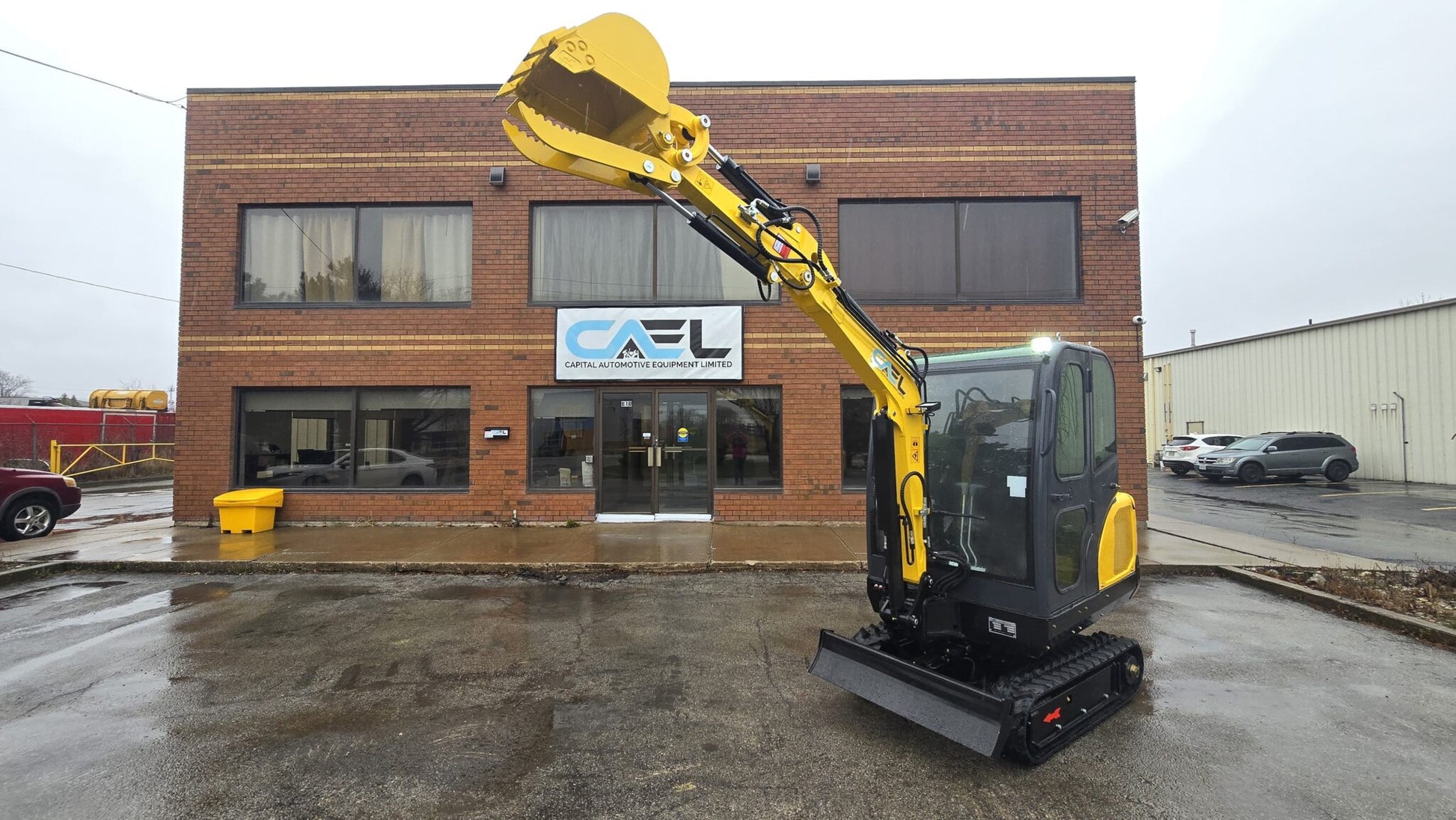

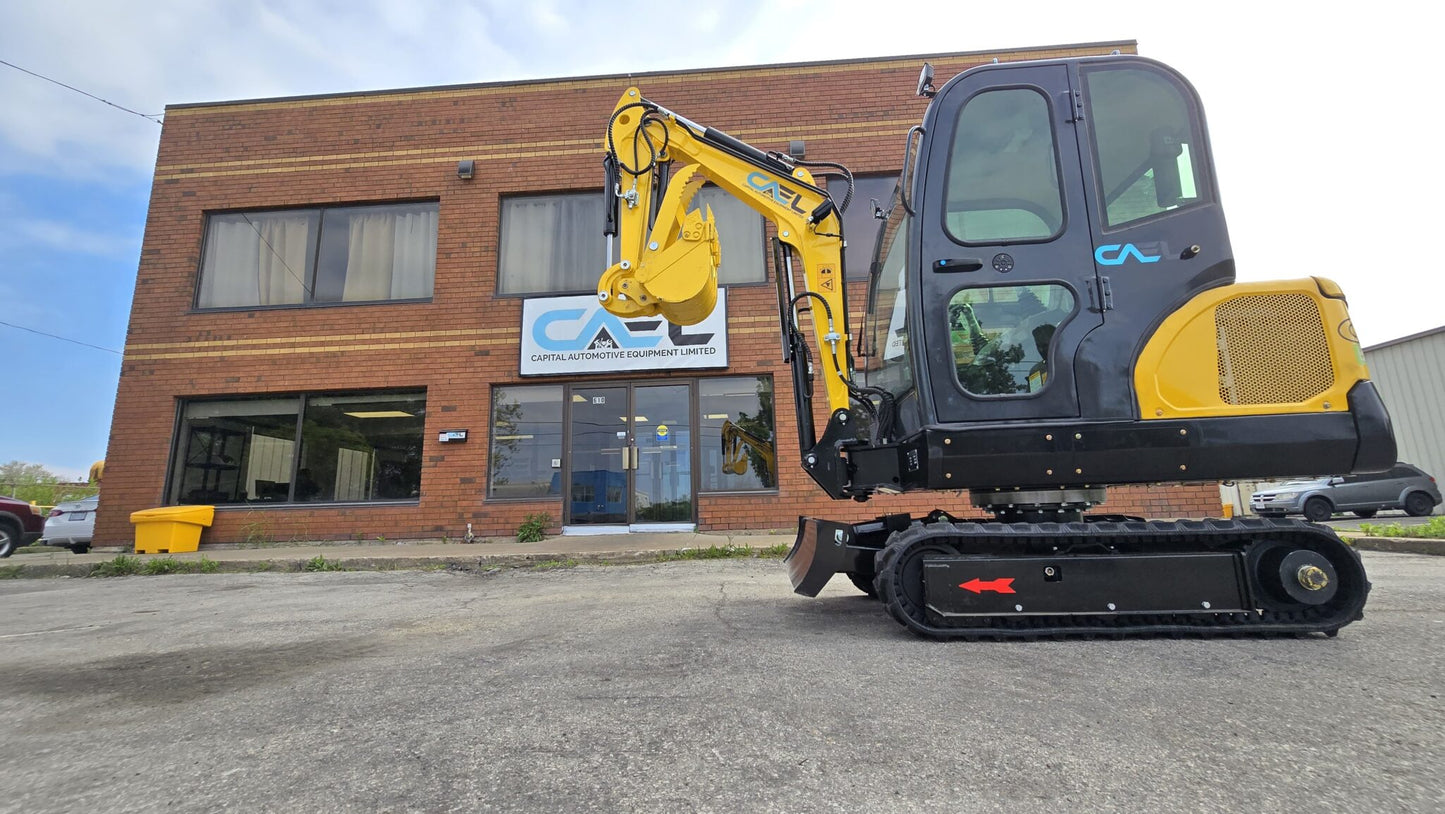

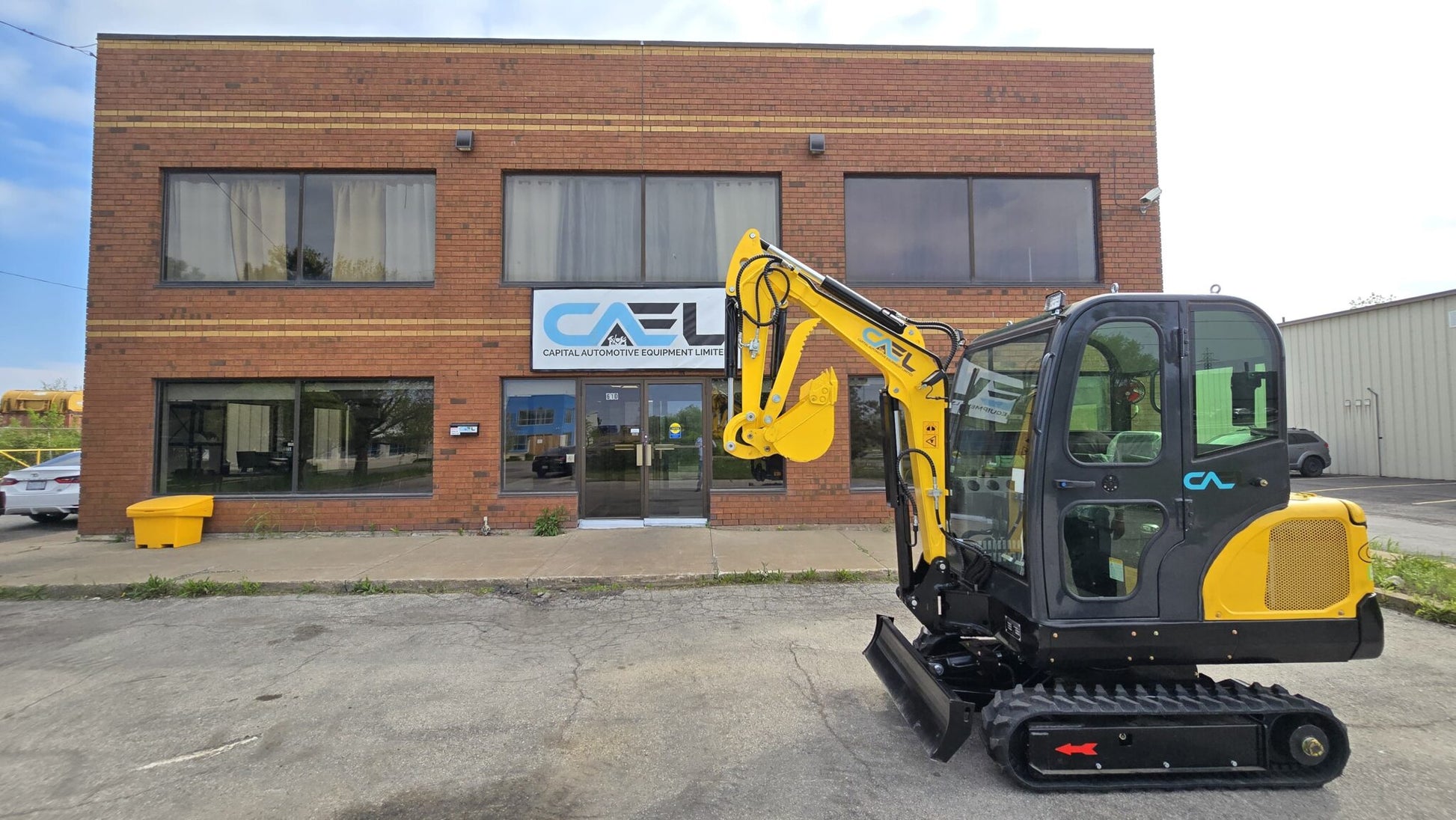

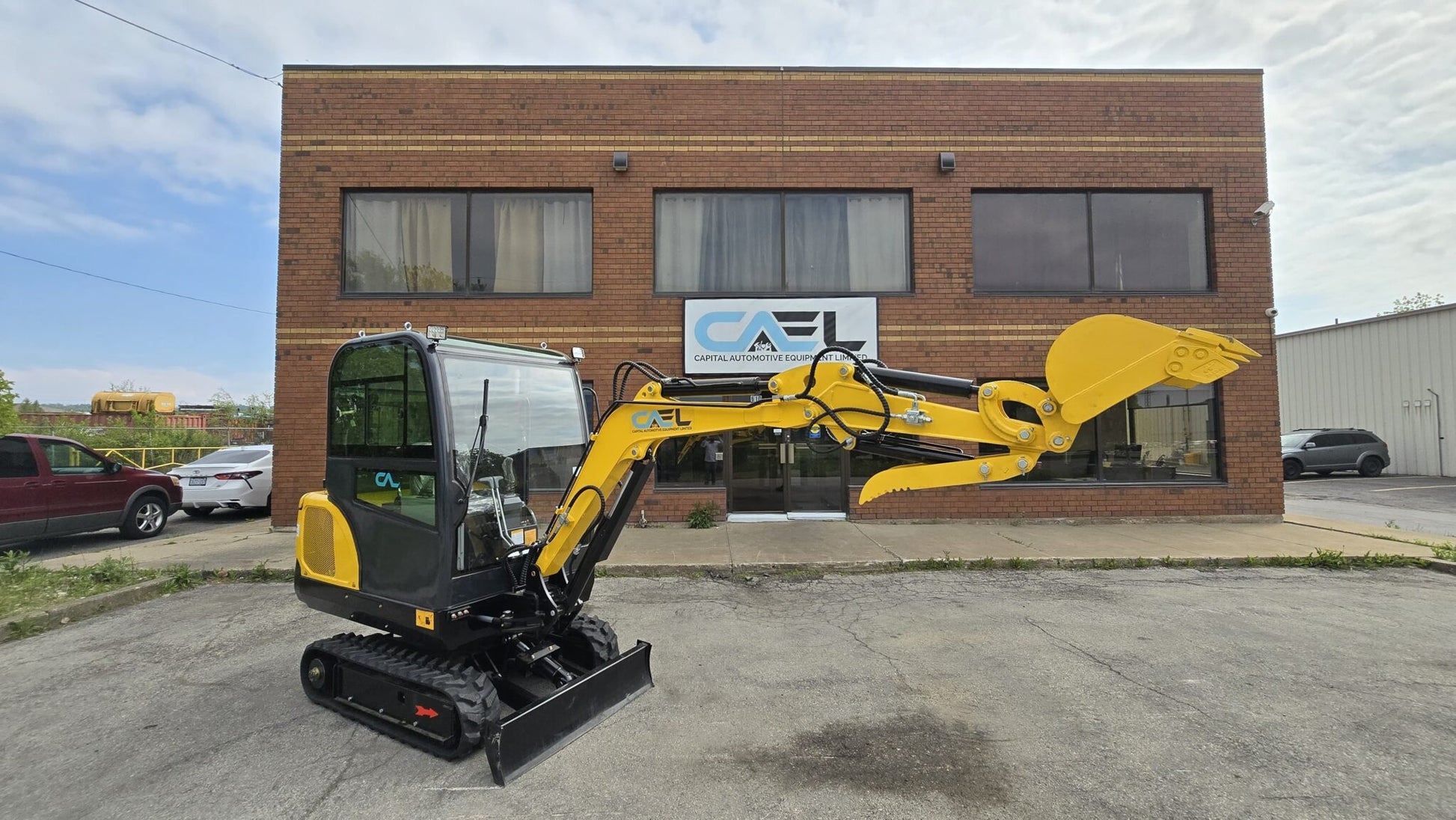

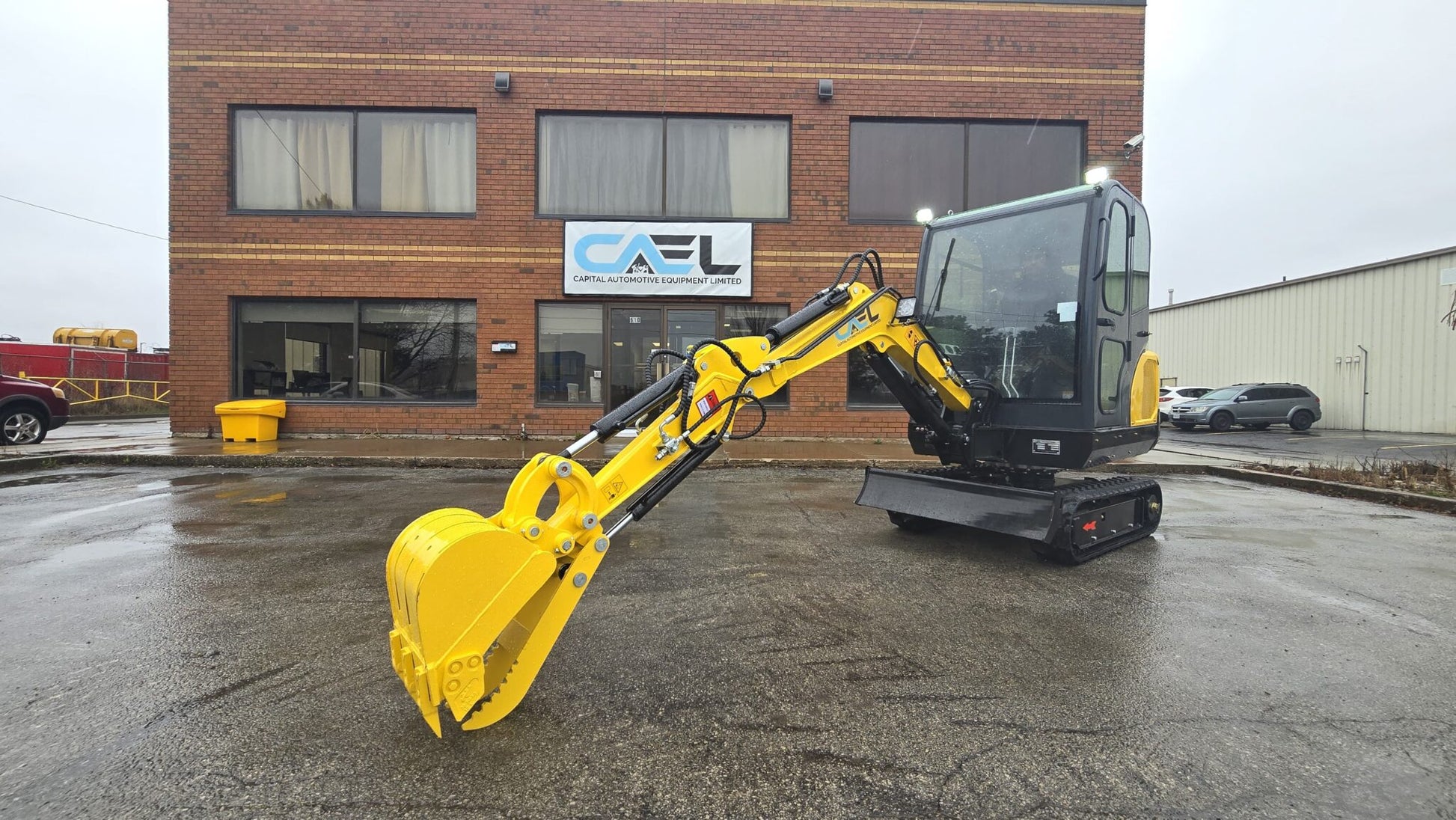

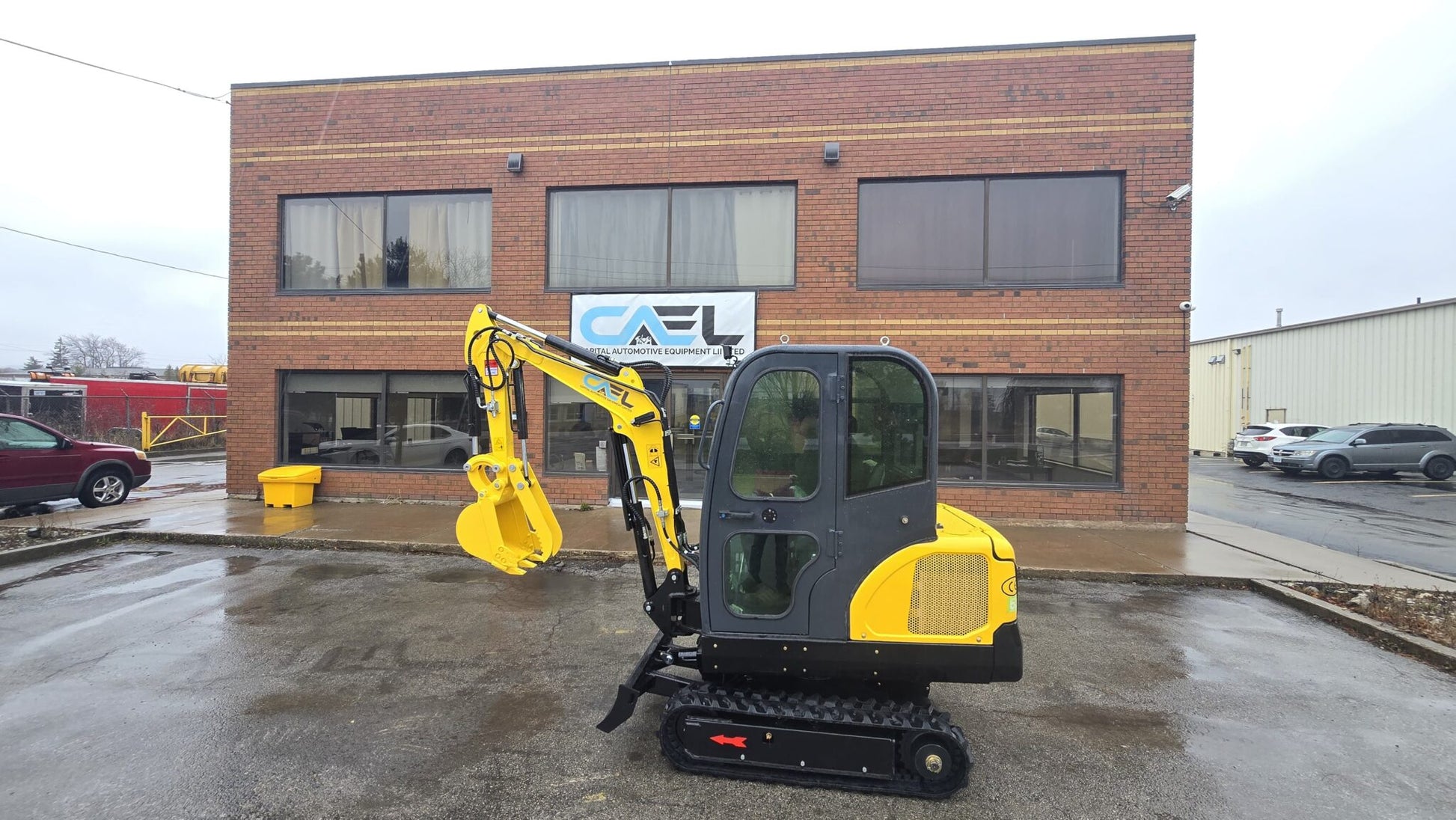

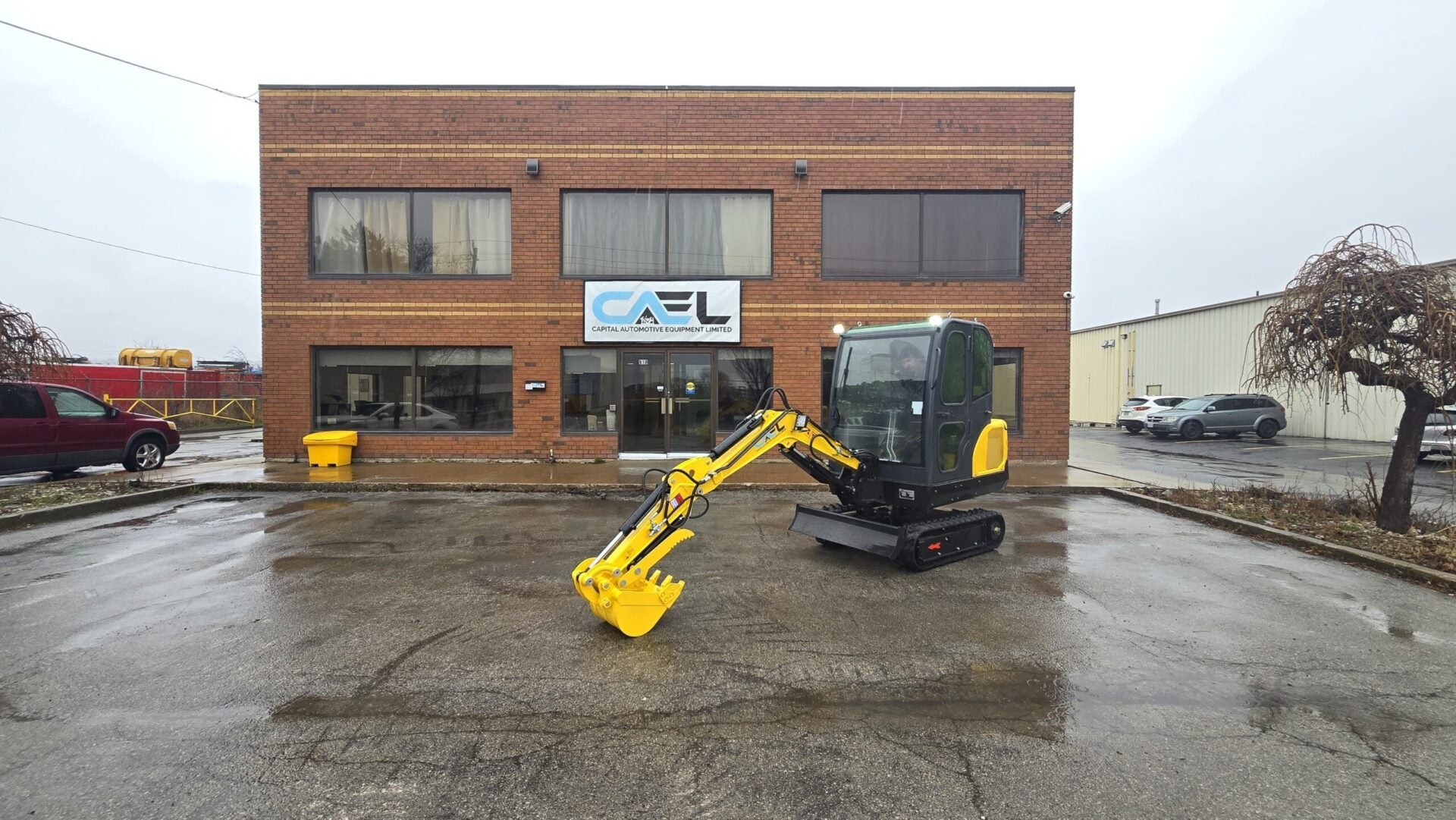

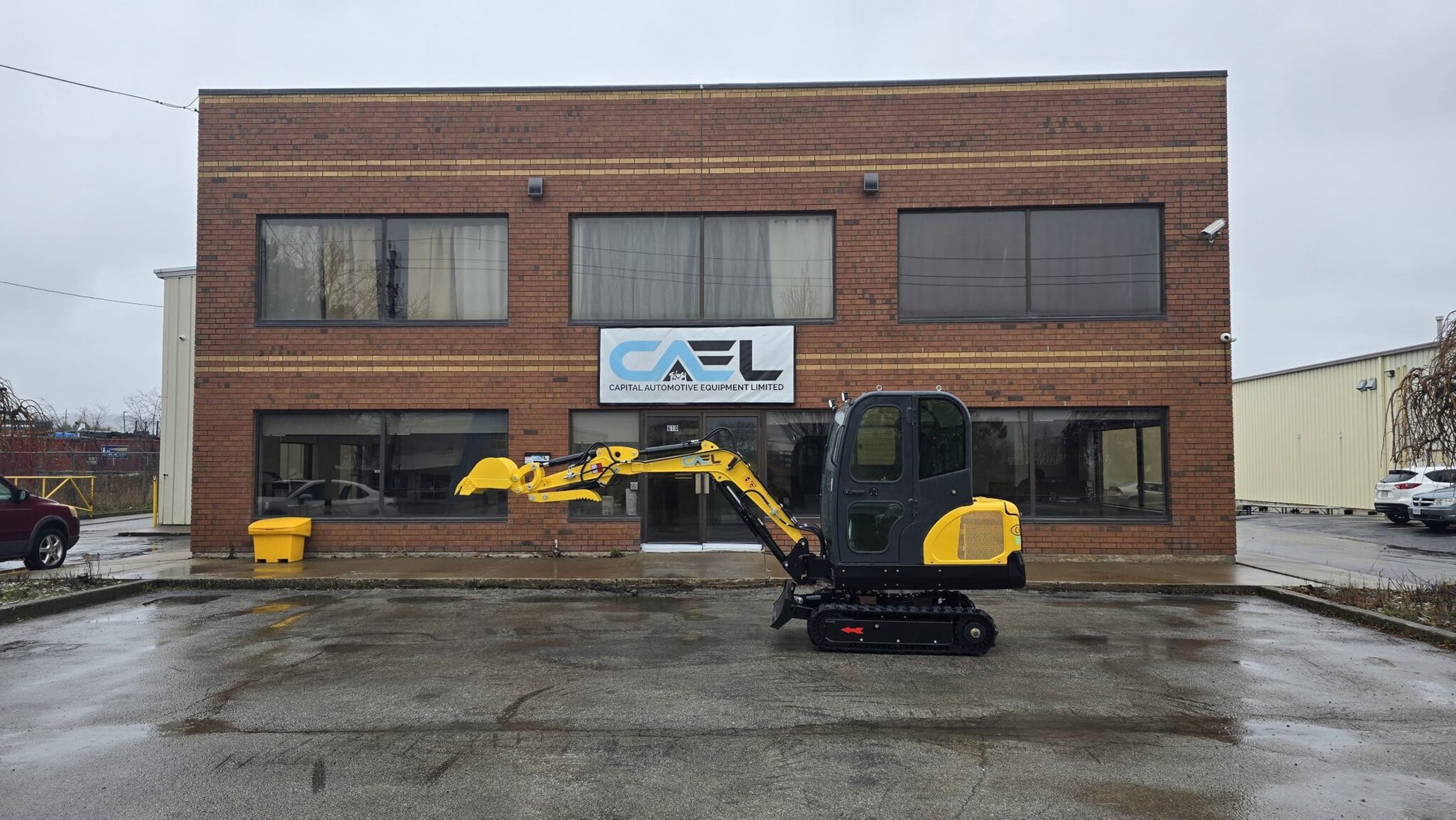

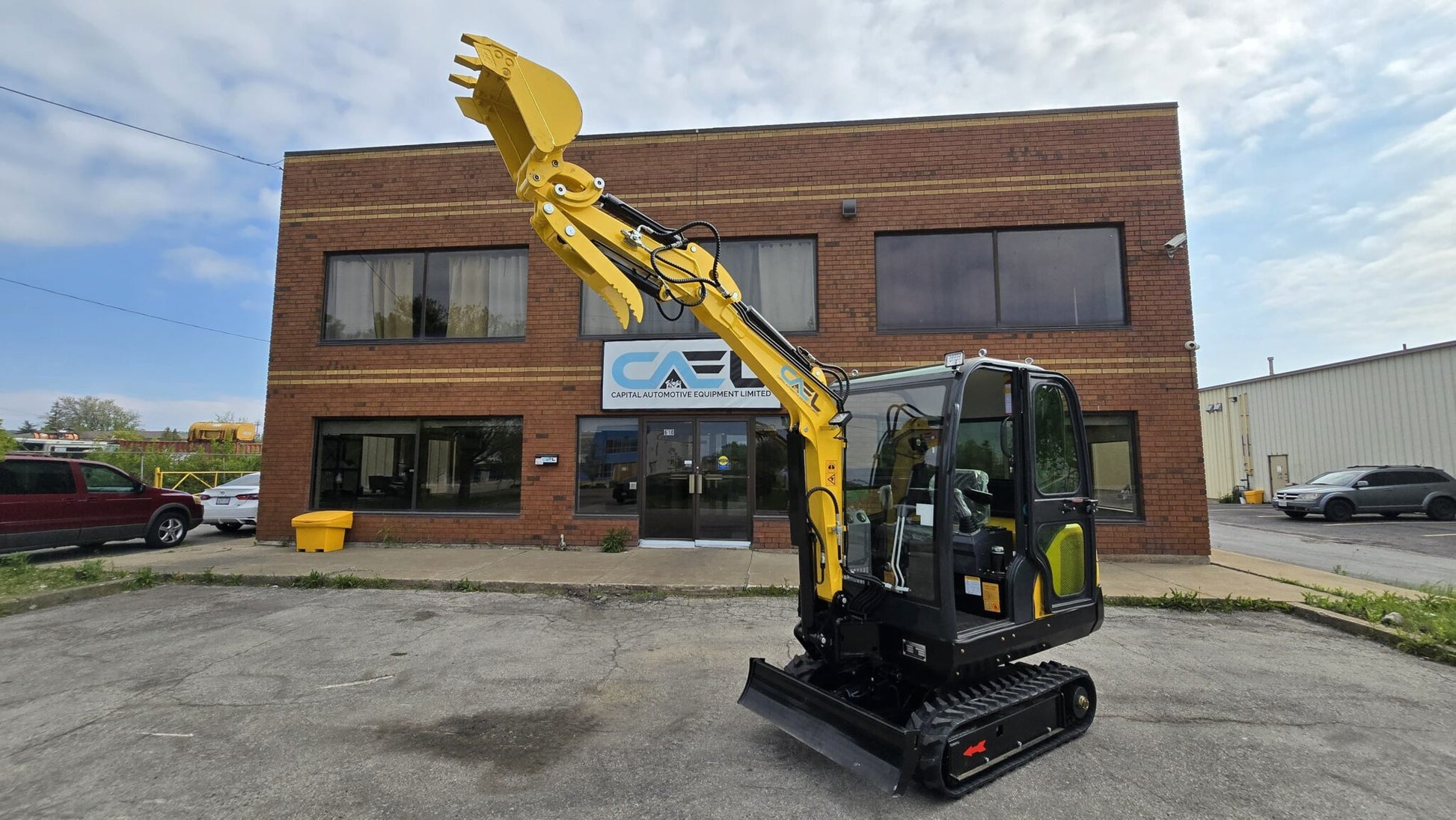

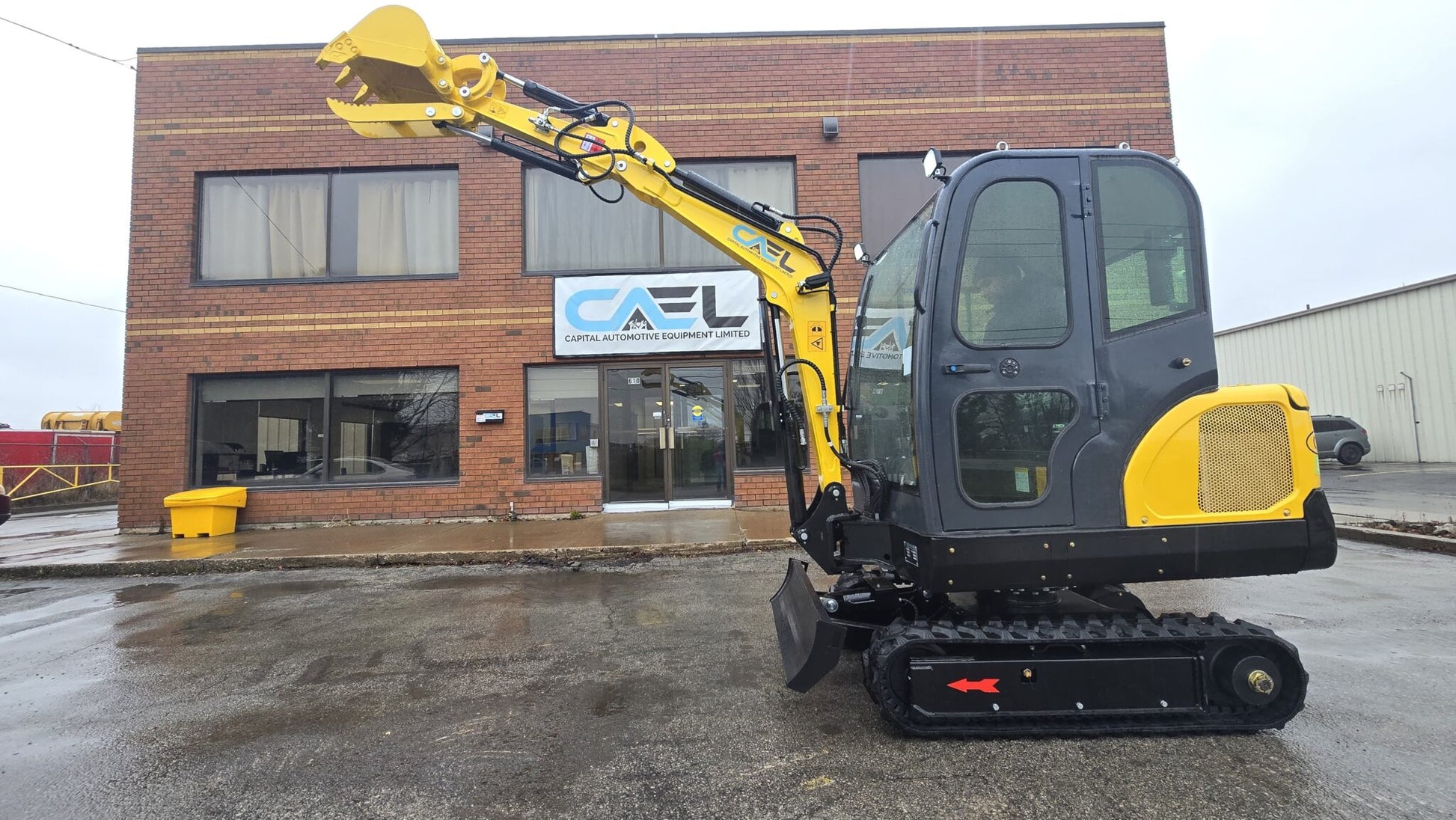

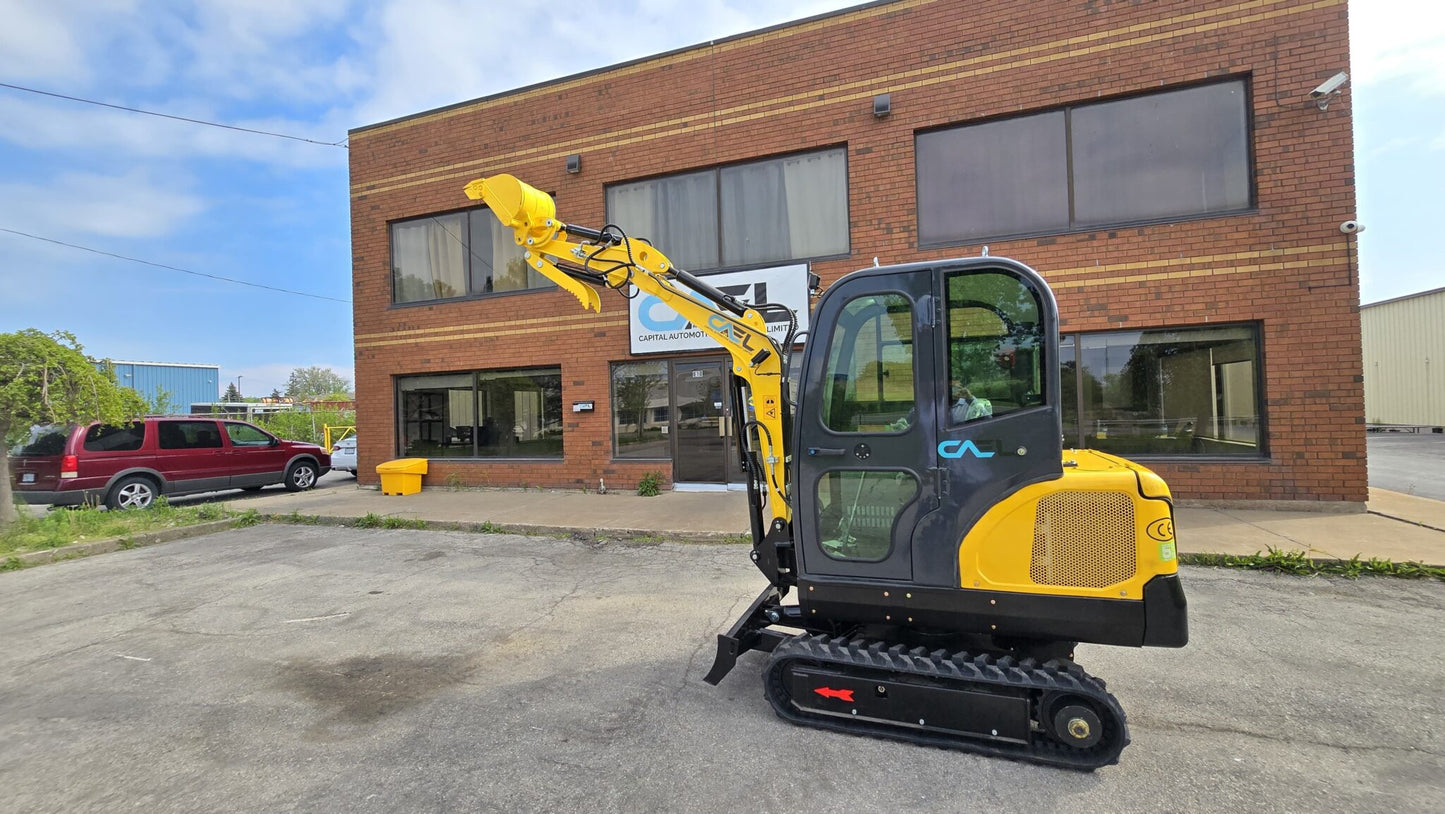

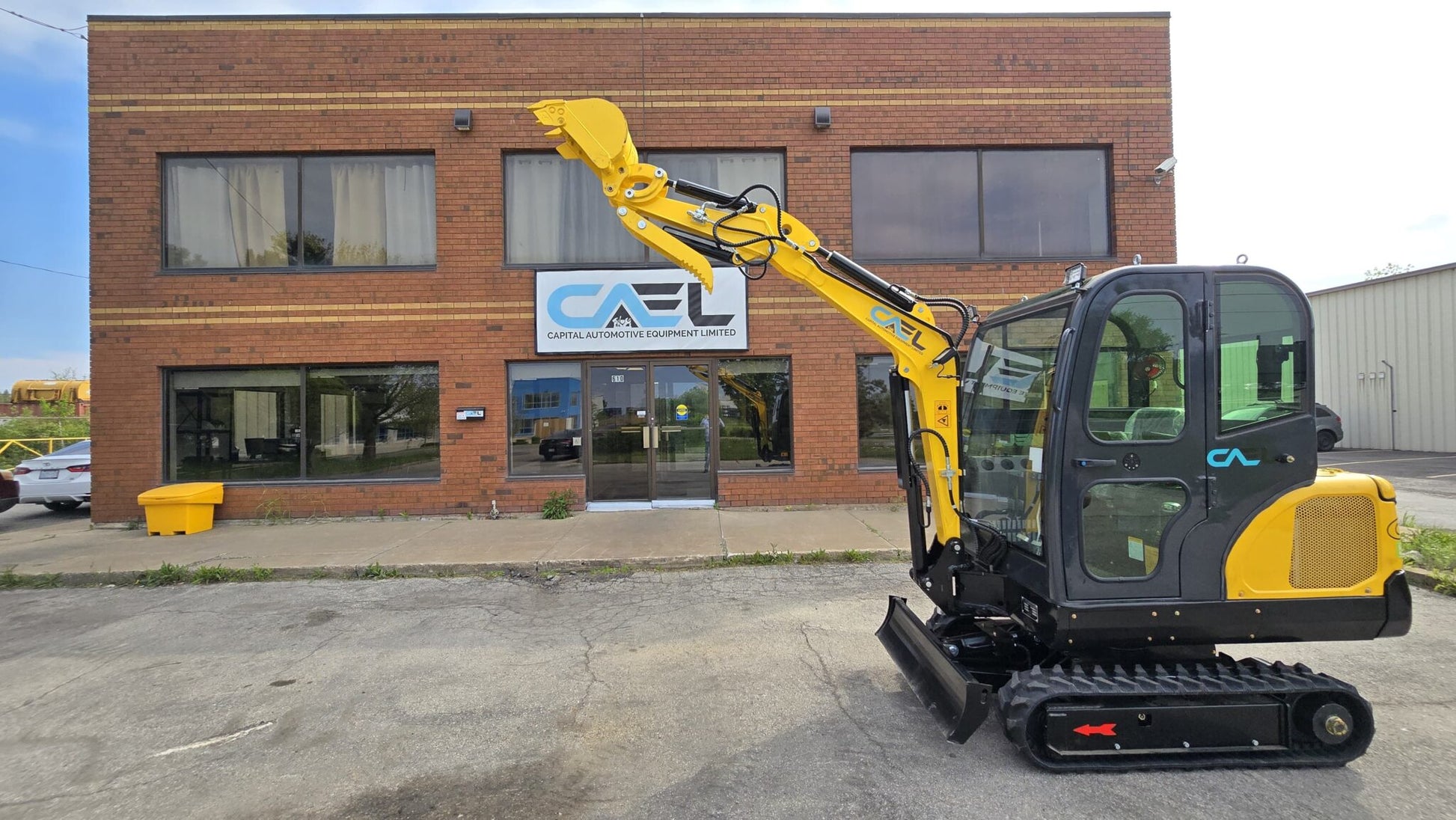

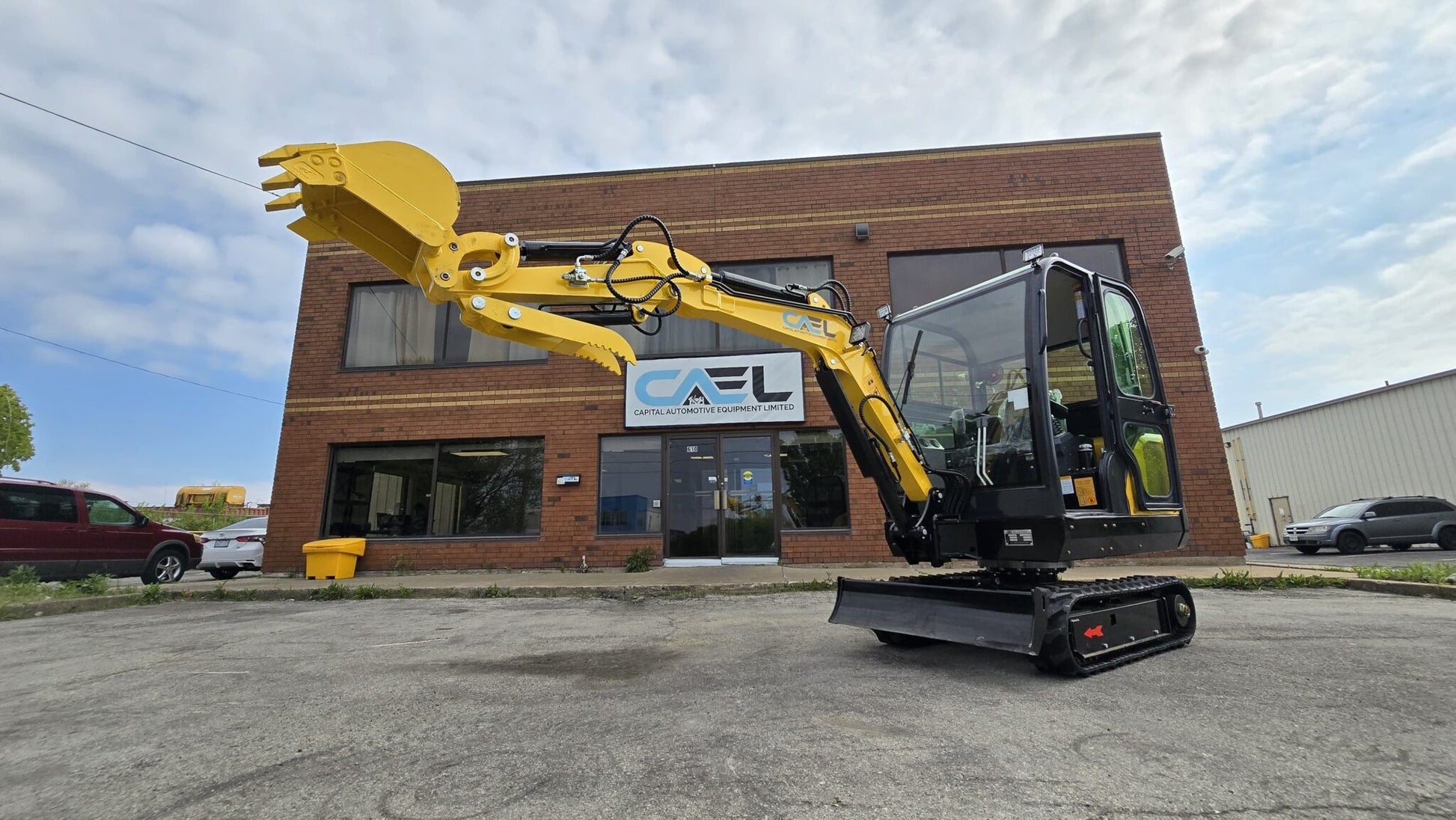

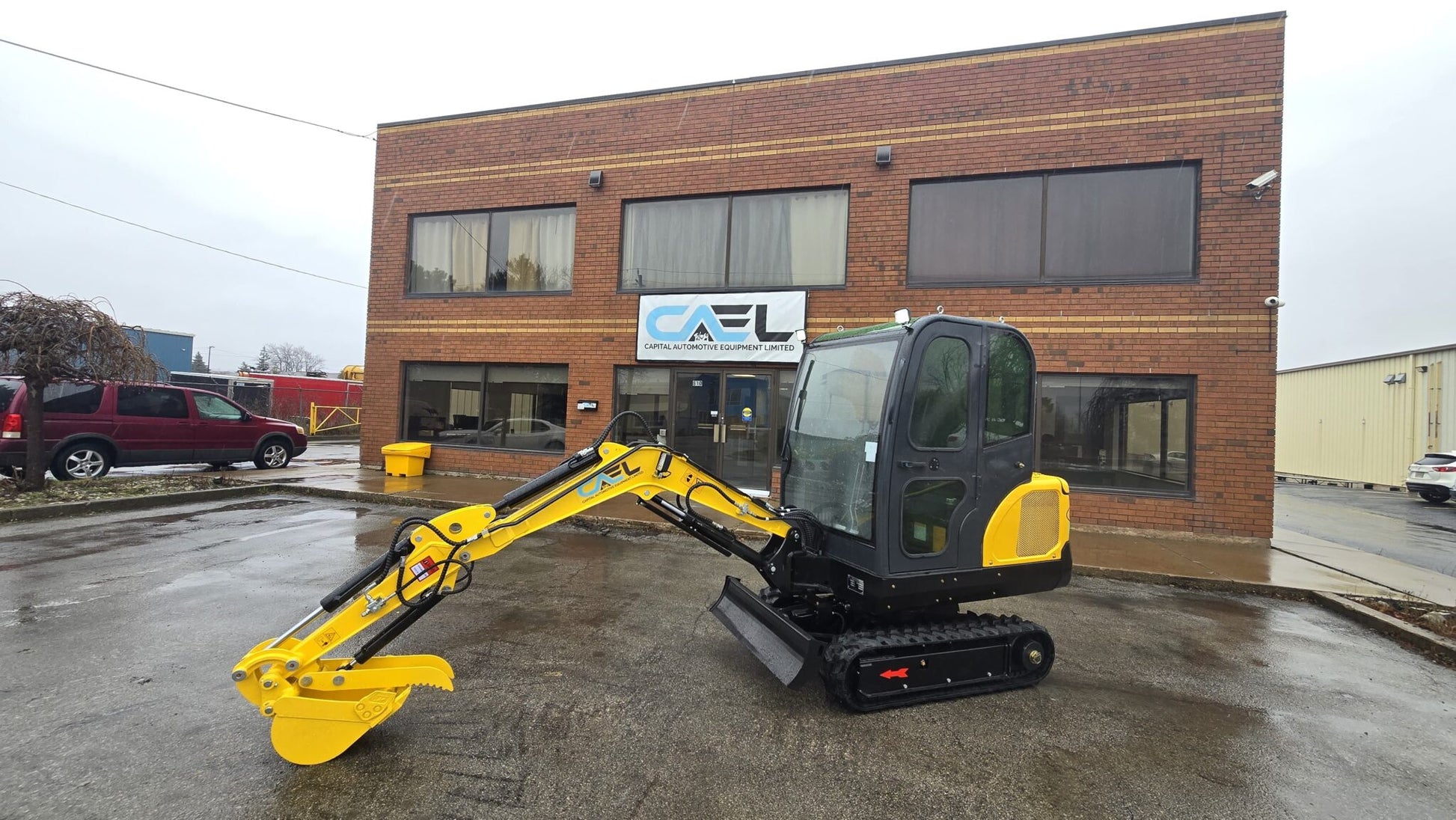

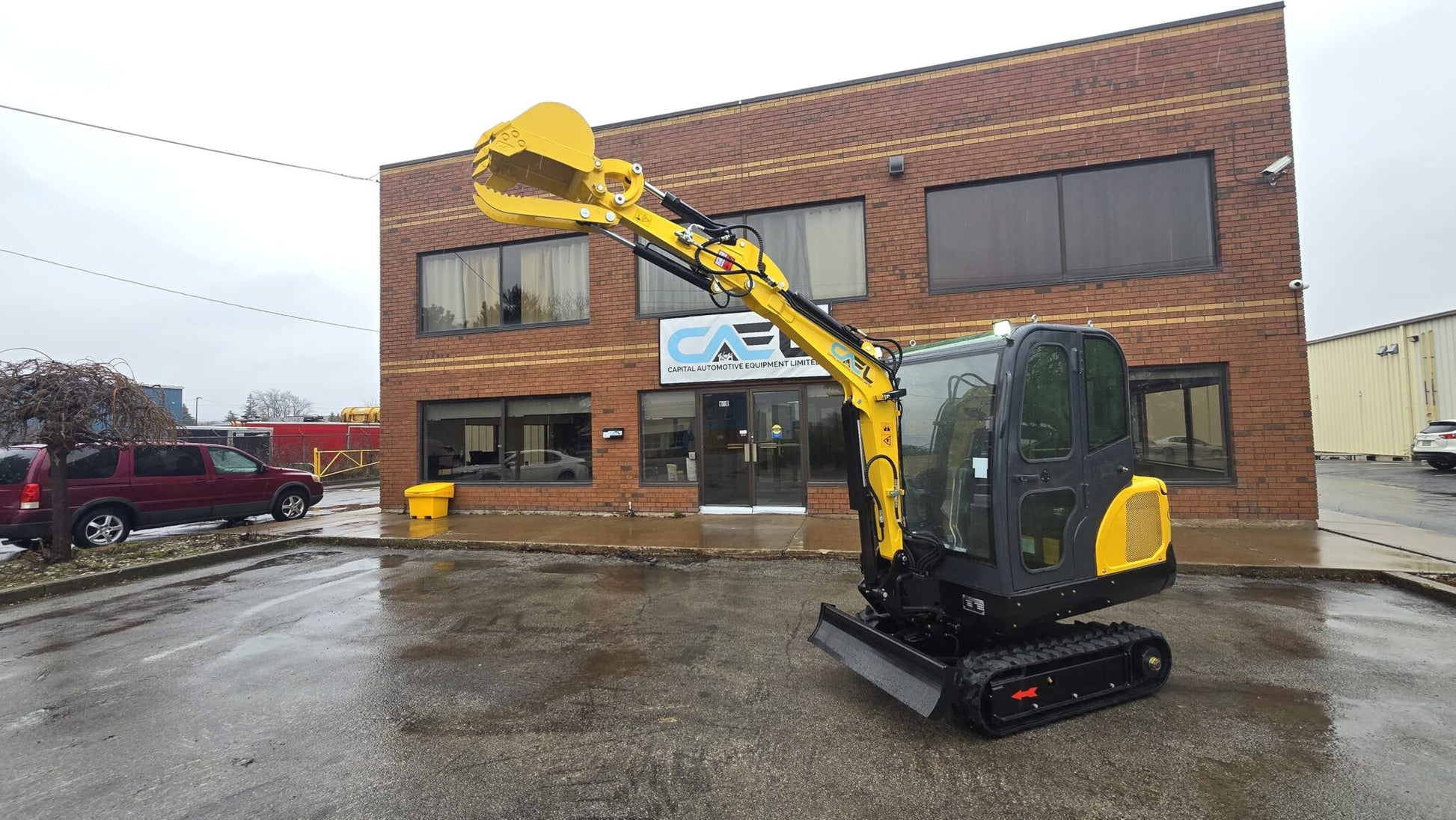

Mini Excavator 2.5T with Kubota engine, Swing boom, AC/Heat and Cab (EX25KB)

Mini Excavator 2.5T with Kubota engine, Swing boom, AC/Heat and Cab (EX25KB)

$24,499.00 CAD
$24,499.00 CAD $24,499.00 CAD
Sale Sold out
Shipping calculated at checkout.

Get quote now

We Accept

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Low Prices
  • Warranty Included
  • Order Tracking





The CAEL 2.5 Ton Compact Excavator is engineered to deliver exceptional performance in confined spaces. Equipped with a reliable Kubota engine and compliant with Tier 5/EPA Tier 4 emission standards, this machine ensures superior fuel efficiency, low emissions, and outstanding productivity. Its robust construction and advanced hydraulic system make it ideal for construction, landscaping, agriculture, and utility applications.

Engine Specifications

Parameter Specification
Emission Standard Tier 5 / EPA Tier 4
Make / Model Kubota
Rated Power 14.1 kW (20 HP) @ 2000 rpm
Number of Cylinders 3
Engine Type Water-Cooled Diesel

Track System

Parameter Specification
Maximum Travel Speed 3.5 km/h (2.17 mph)
Track Shoe Width (Rubber/Steel) 230 mm (9 in)
Number of Track Shoes per Side 38 pcs
Upper Rollers per Side 0
Bottom Rollers per Side 4

Performance Parameters

Parameter Specification
Standard Bucket Capacity 0.06 m³
Swing Speed 10–12 rpm
Maximum Gradeability 35°
Maximum Bucket Digging Force 14 kN
Maximum Arm Digging Force 10 kN
Hydraulic System Pressure 18 MPa
Machine Weight 2,500 kg (5,500 lbs)

Machine Dimensions

Parameter Specification
Overall Dimensions (L × W × H) 3,865 × 1,050 × 2,270 mm (152 × 41 × 89 in)
Track Length on Ground (Wheelbase) 1,230 mm (48.4 in)
Track Gauge 820 mm (32.2 in)
Minimum Ground Clearance 210 mm (8.2 in)
Rear Swing Radius 1,125 mm (44.2 in)

Working Range

Parameter Specification
Maximum Digging Height 3,365 mm (132.4 in)
Maximum Dumping Height 2,385 mm (93.8 in)
Maximum Digging Depth 2,050 mm (80.7 in)
Maximum Vertical Digging Depth 1,725 mm (67.9 in)
Maximum Digging Radius 3,860 mm (144.8 in)
Minimum Swing Radius 1,720 mm (67.7 in)
Maximum Blade Lifting Height 230 mm (9 in)
Maximum Blade Cutting Depth 275 mm (10.8 in)
Boom Swing Angle (Left) 75°
Boom Swing Angle (Right) 45°

Key Features

  • ✔ Reliable and fuel-efficient Kubota Engine
  • ✔ Compliant with Tier 5 / EPA Tier 4 emission standards
  • ✔ Compact design for operation in tight spaces
  • ✔ Smooth and responsive hydraulic controls
  • ✔ Durable undercarriage with rubber or steel track options
  • ✔ High digging performance and stability
  • ✔ Swing boom for enhanced versatility
  • ✔ Low maintenance and operating costs
