Description

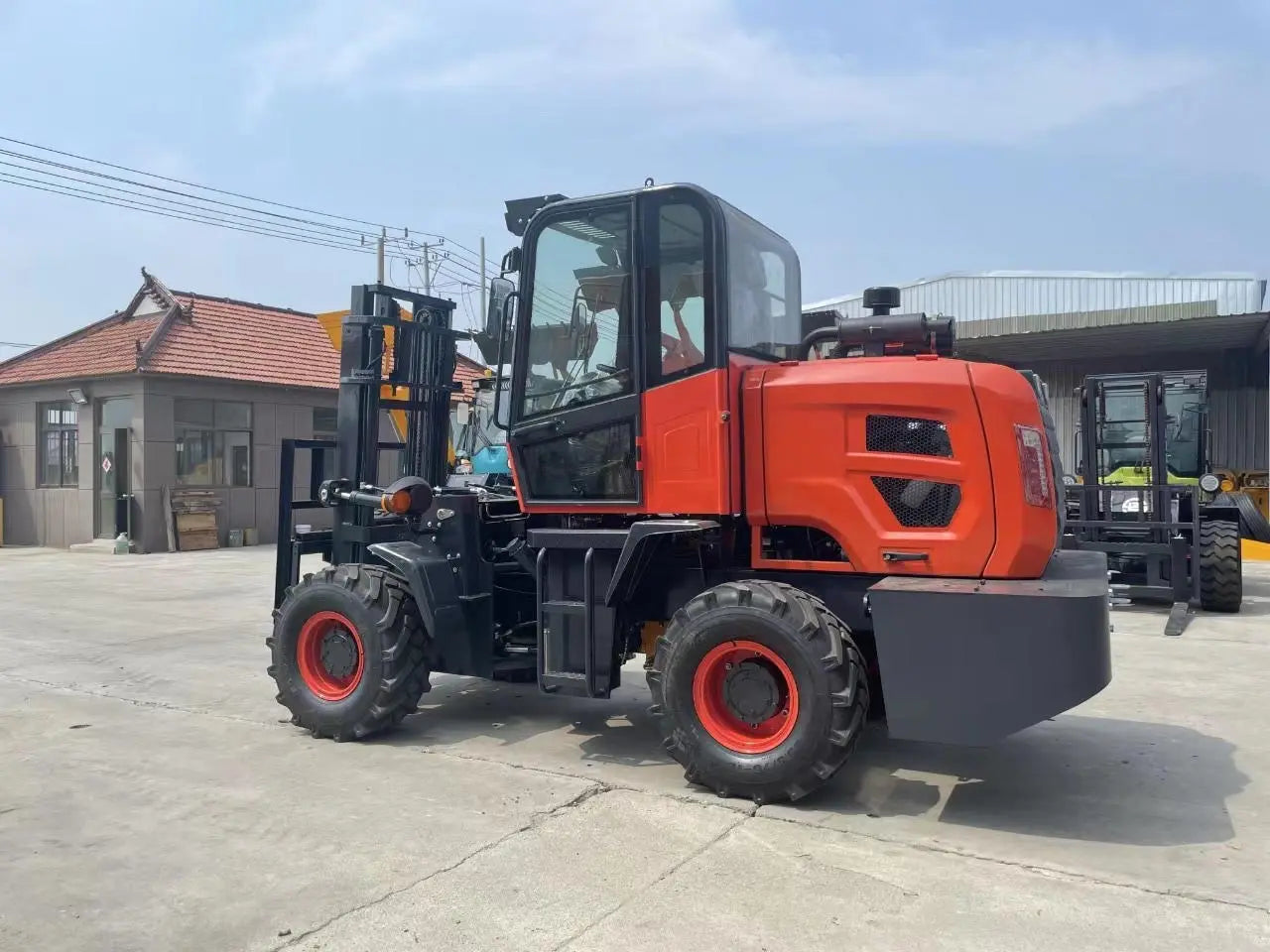

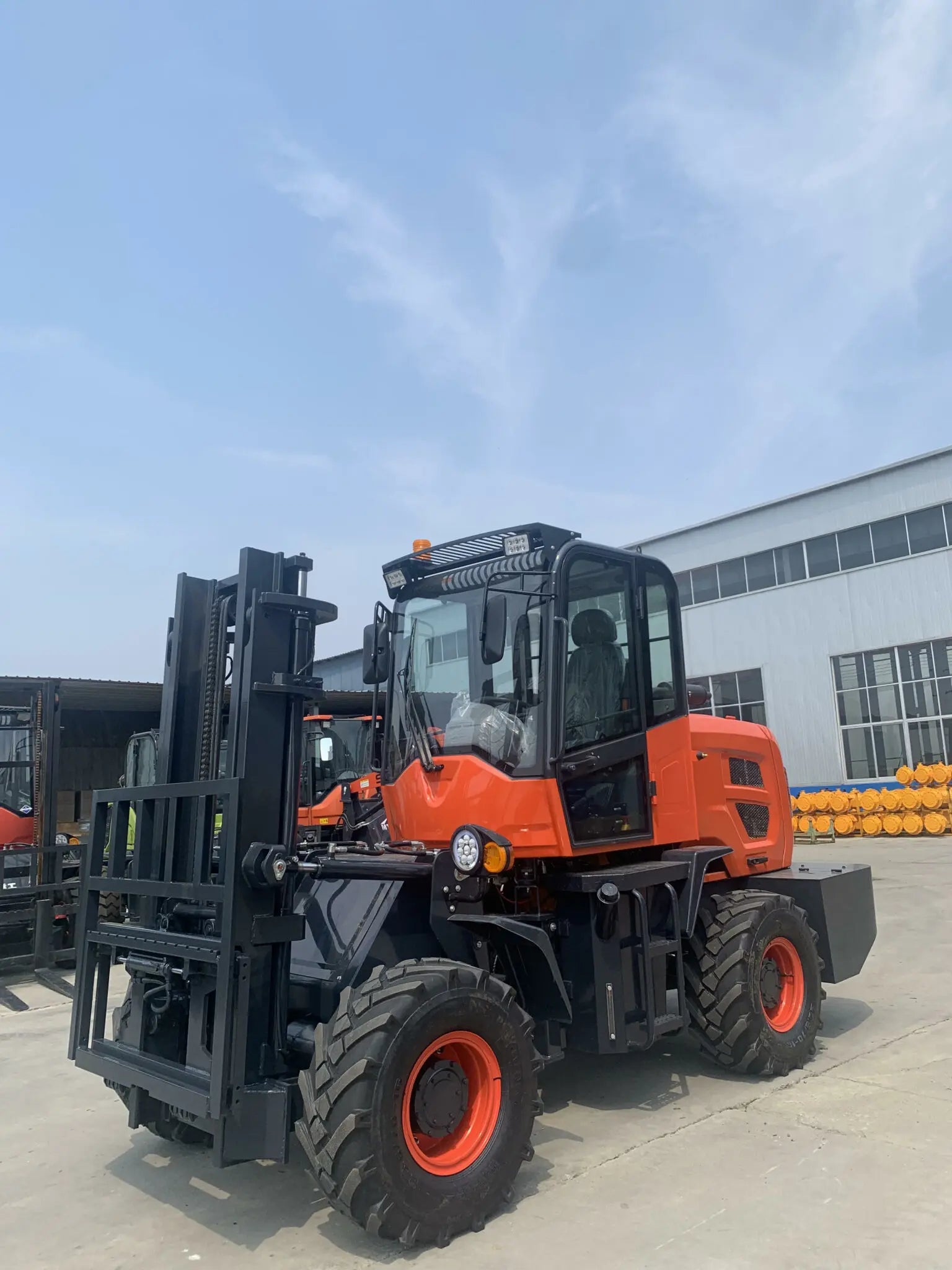

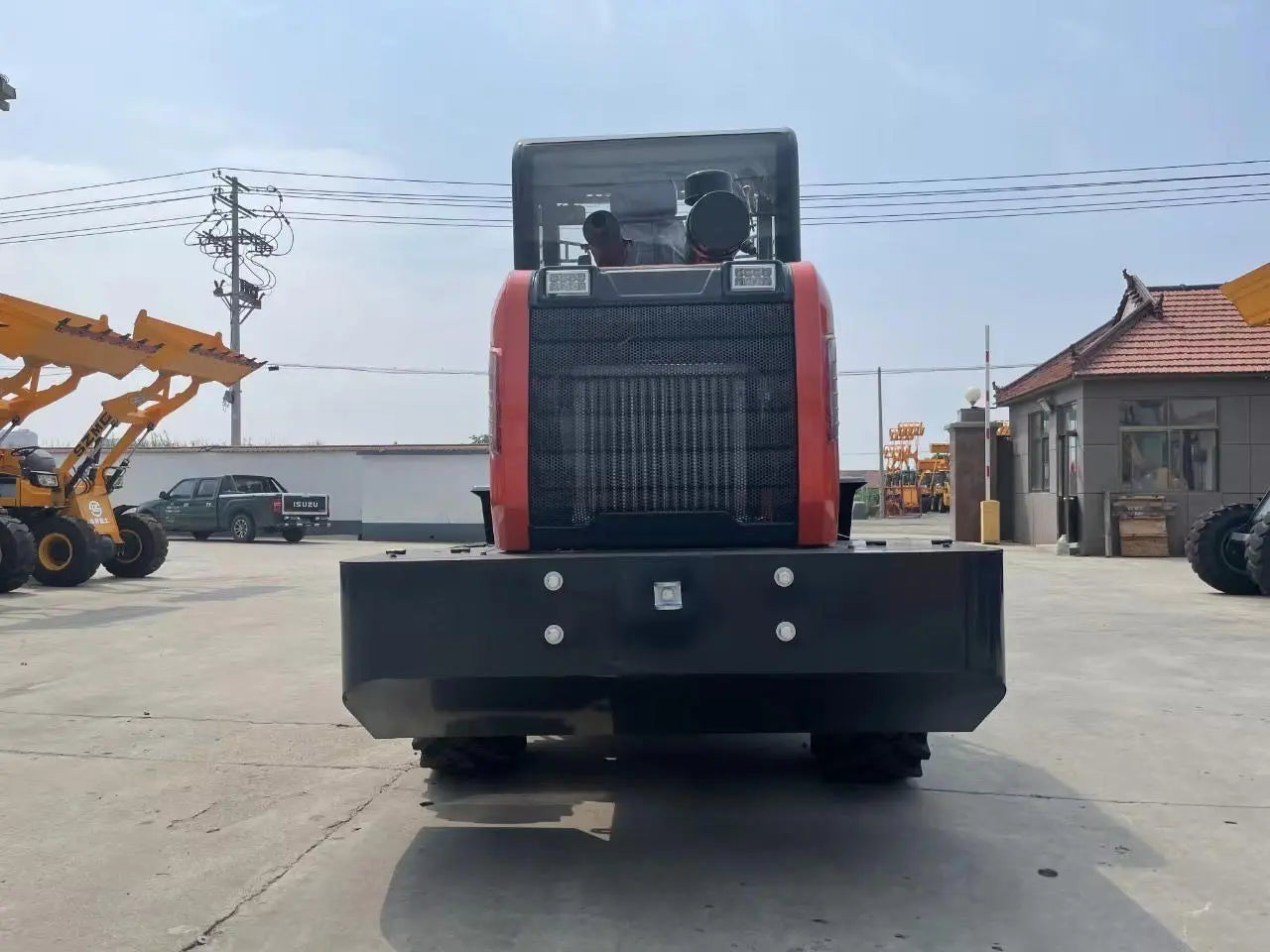

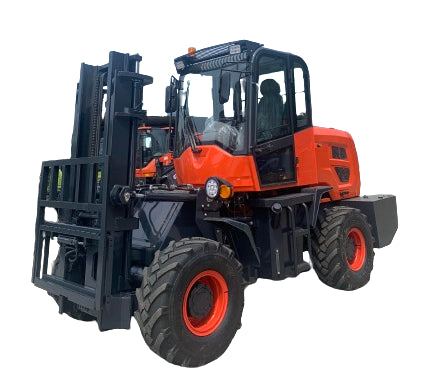

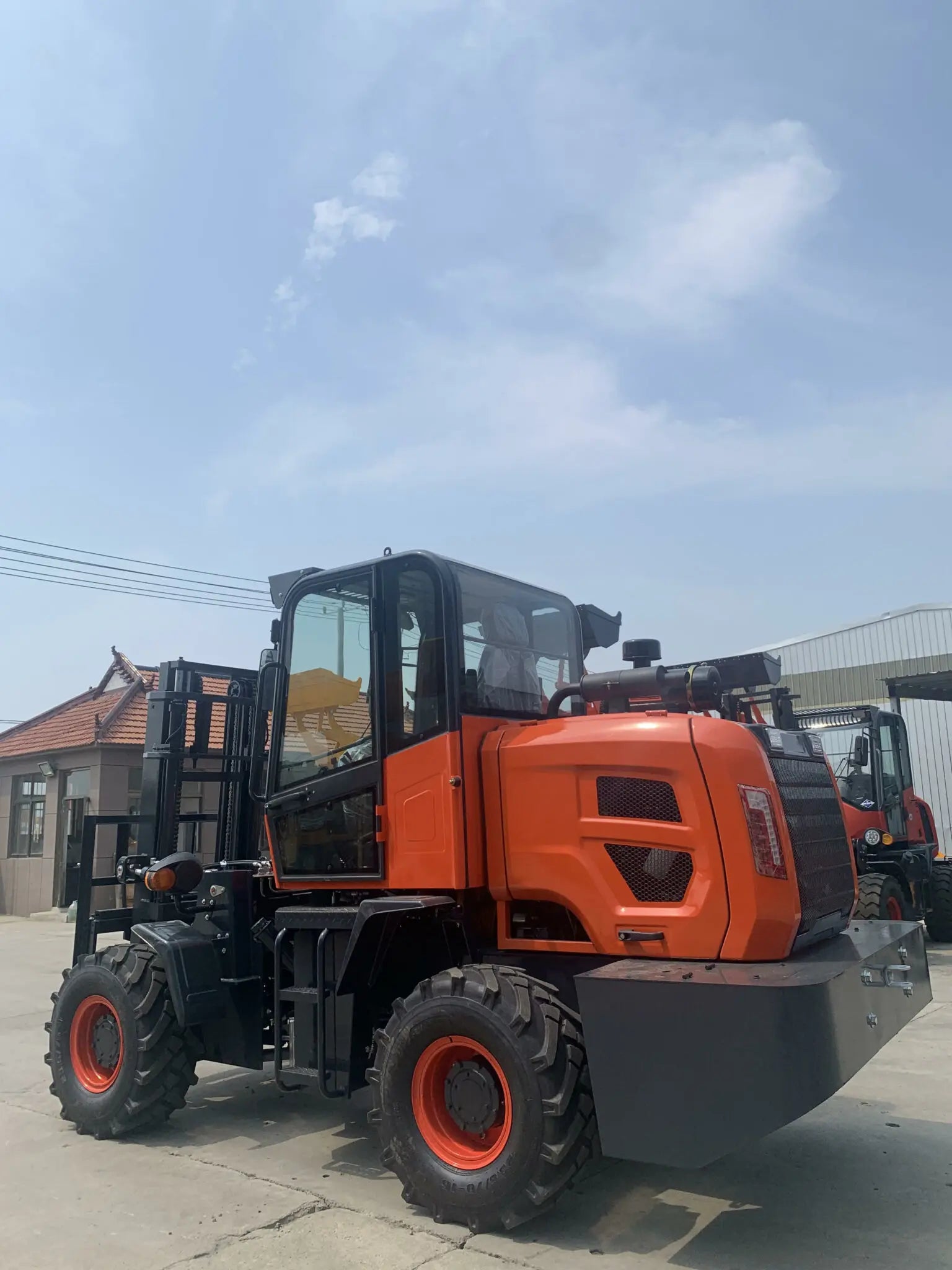

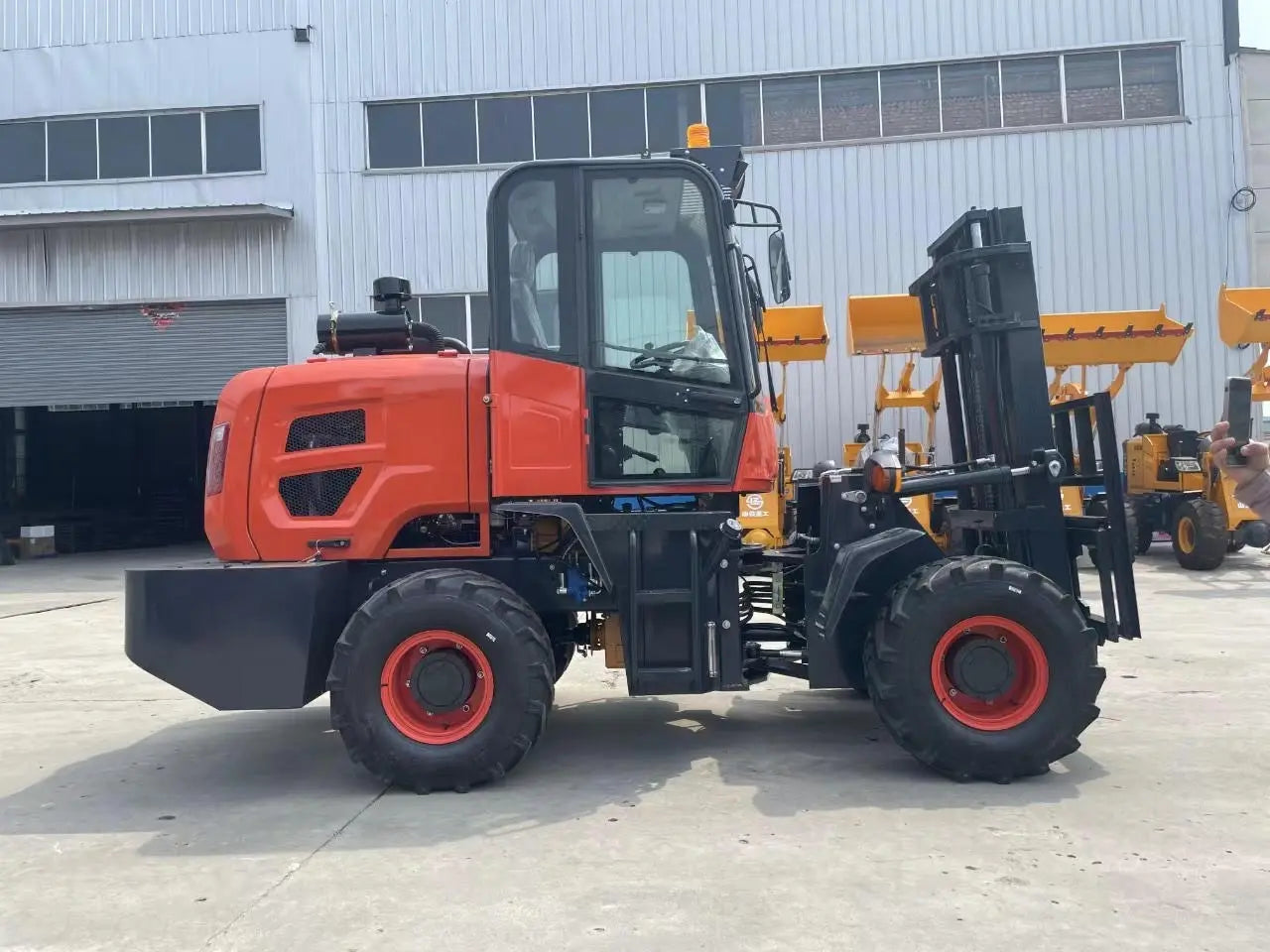

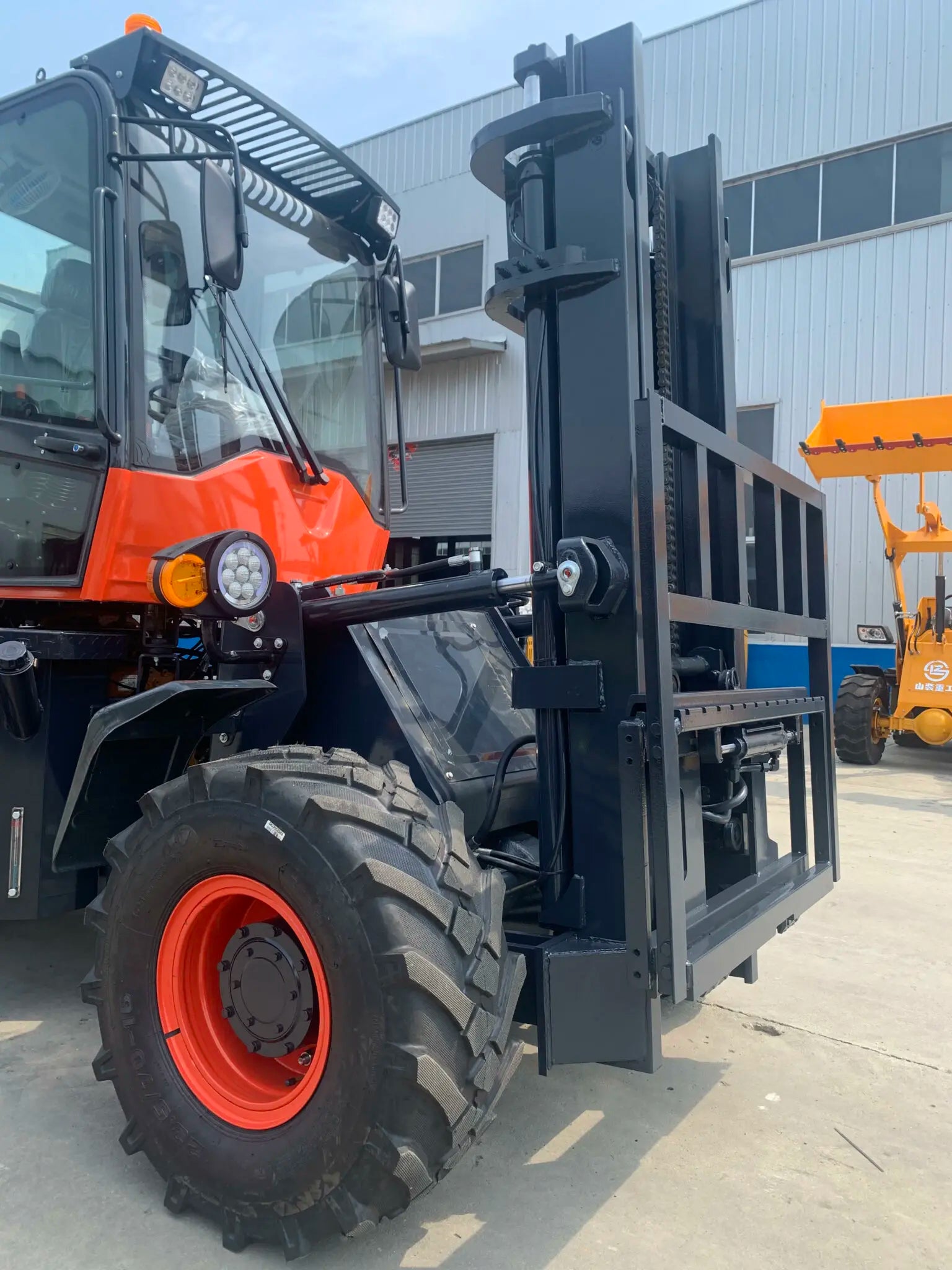

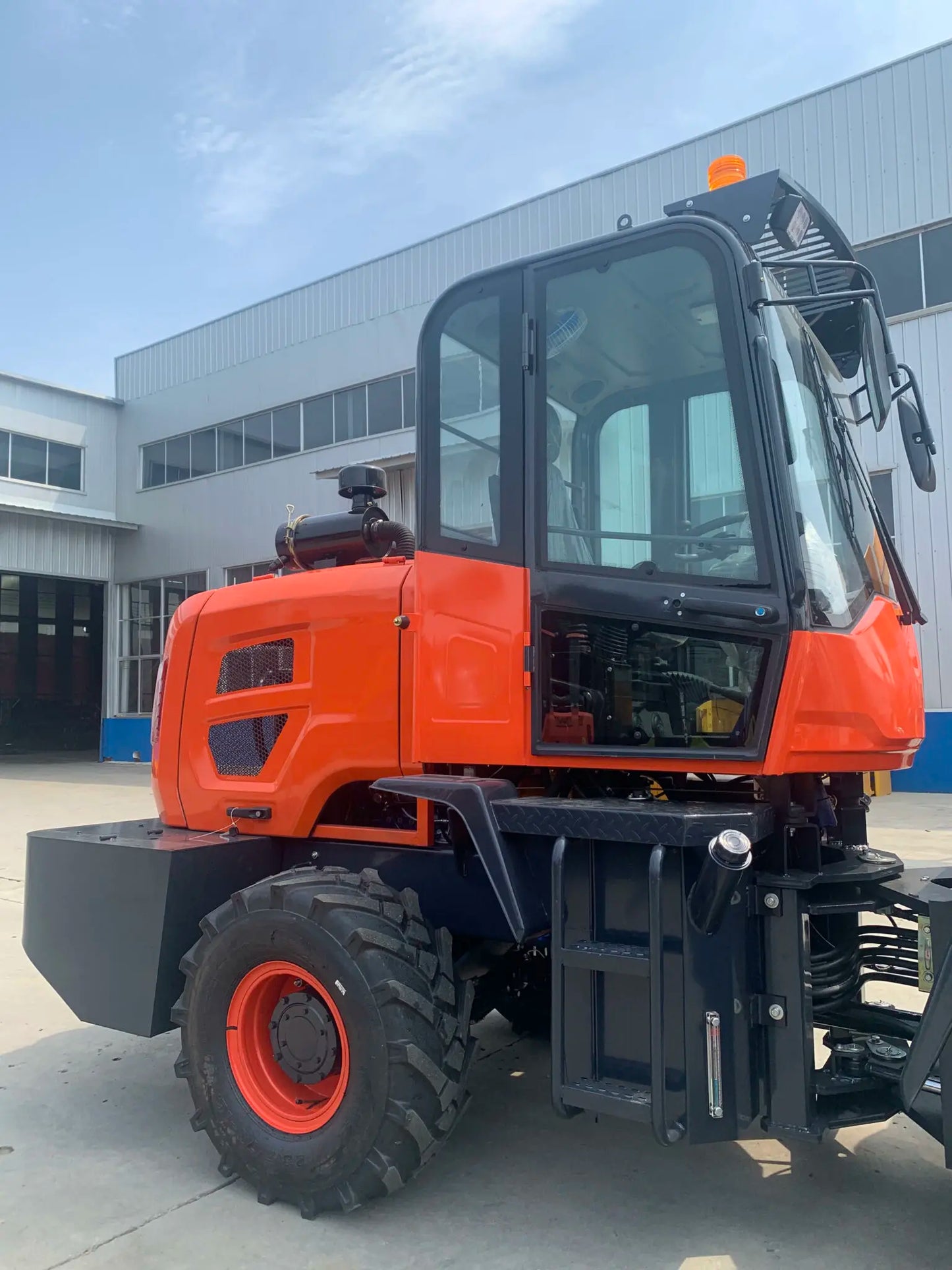

Forklift all terrain 4T
Overall Operating Weight: 5400kg/11905
Transport Dimension(L*W*H): 4700*2000*2850mm/185*78*112in
Wheel Base: 2260mm/88in
Axle Track Width: 1750mm/68in
Min. Turning Radius: 4500mm/177in
Min Ground clearance: 300mm/11in
Max Speed: 35km/hr
Max. Lifting Capacity: 4000kg/8818lbs
Max. Lifting Height: 3000mm/118in
Mast/Fork Length: 1220mm/48in
Mast/Fork Carriage Tilt Forwar: 12°
Mast/Fork Carriage Tilt Backwa: 6°
Max. Lifting Speed: 0.6m/s
Max. Descent Speed: 0.55m/s
Brand: Kohler 2504
Rated Power: 55KW
Emission Standards: EPA
Tyre Model (Front & Rear) : 16/70-20
Axle Model: Customized medium wheel side axle
Drive Model: 4X4 (All-Wheel Drive)
Model: YJ265
Parking Brake: Air brake
Standard configuration: Side shift/Luxury cabin/Air condition
