Powerful Full-Rise Lifting for Professional Workshops

The CAEL Full Rise Scissor Lift is a heavy-duty hydraulic lifting solution designed for automotive repair shops, tire centers, detailing bays, and professional garages that need full-rise lifting performance in a compact footprint. With a strong 7,800 lb (3,500 kg) lifting capacity, this lift is ideal for cars, SUVs, and light-duty trucks.

Its scissor lift design provides excellent under-vehicle access while maximizing workshop space efficiency. Smooth hydraulic lifting action, durable steel construction, and full-rise working height make it perfect for maintenance, brake service, suspension work, inspections, and general repairs.

Key Features & Benefits

• 7,800 lb (3,500 kg) Capacity – Suitable for passenger vehicles, SUVs, and light trucks.
• Full Rise Lifting Height – Provides comfortable standing workspace underneath vehicles.
• Compact Scissor Design – Saves floor space while delivering professional lifting capability.
• Hydraulic Power System – Smooth lifting and lowering operation.
• Heavy-Duty Steel Construction – Built for daily commercial use.
• Low Drive-On Height – Easy loading for low-clearance vehicles.
• 110V Power Supply – Convenient for many shop and garage setups.
• Commercial Workshop Ready – Reliable performance for busy service environments.

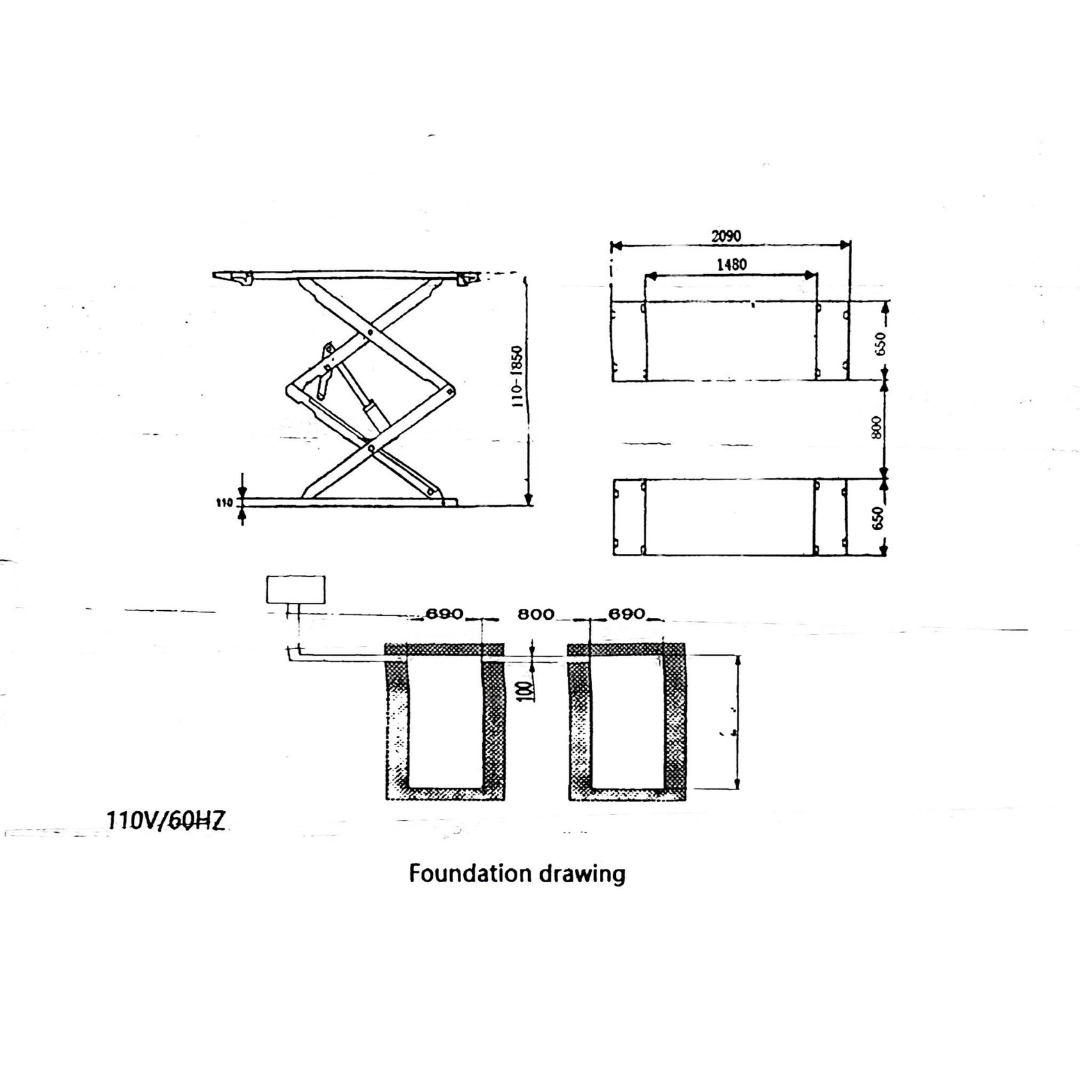

Technical Specifications

• Lifting Capacity: 3,500 kg (7,800 lb)
• Maximum Lifting Height: 1850 mm (73 in / 6 ft 1 in)
• Lifting Time: Approx. 50 seconds
• Platform Length (No Ramp): 1480 mm (58.2 in / 4 ft 10.2 in)
• Platform Length (With Ramp): 2090 mm (82.2 in / 6 ft 10.2 in)
• Platform Width: 690 mm (27.1 in)
• Motor Power: 2.2 kW
• Voltage: 110V
• Rated Oil Pressure: 20 MPa

Perfect For

✔ Brake & suspension service
✔ Tire and wheel work
✔ Oil changes & inspections
✔ Detailing shops
✔ Home garages
✔ Commercial repair bays

Why Choose This Lift?

The CAEL Full Rise Scissor Lift combines strong lifting power, compact design, and dependable hydraulic performance. It’s an excellent choice for workshops needing professional lifting capability without the space requirements of a two-post hoist.

Request a Quote

Contact us today for pricing, stock availability, shipping options, and installation support tailored to your workshop or garage.

CLICK TO DOWNLOAD MANUAL
