Mini Excavator 0.8T with Briggs & Stratton engine (EX08BS1)
Mini Excavator 0.8T with Briggs & Stratton engine (EX08BS1)
Share
Hurry, only 3 left in stock
Couldn't load pickup availability
We Accept
- Low Prices
- Warranty Included
- Order Tracking

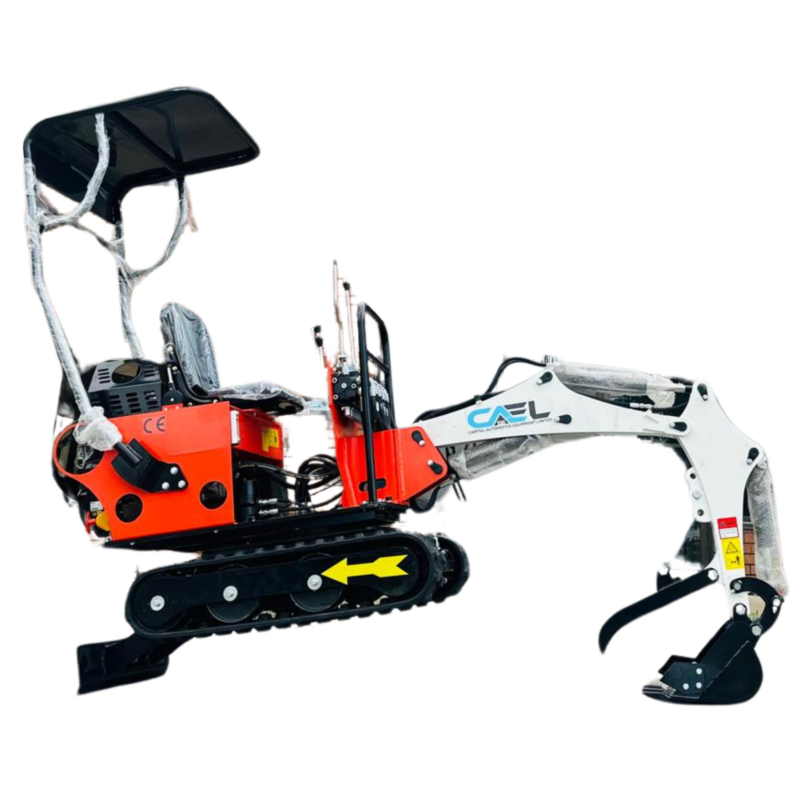

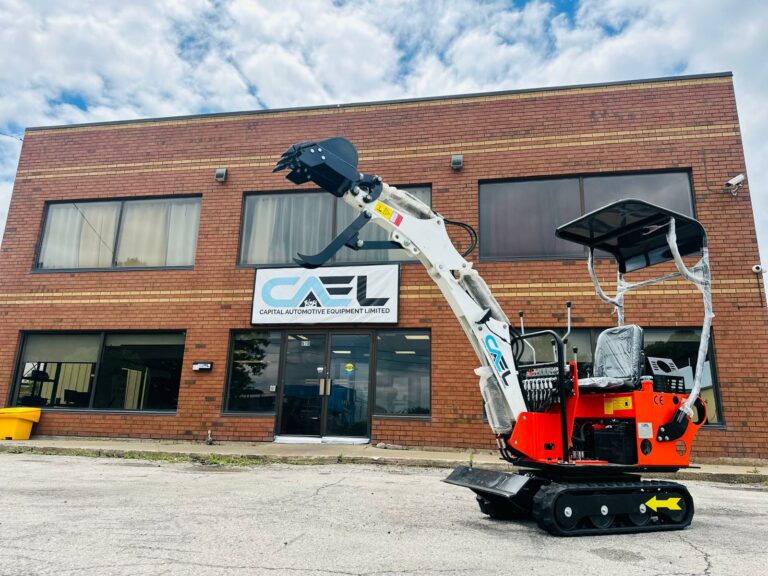

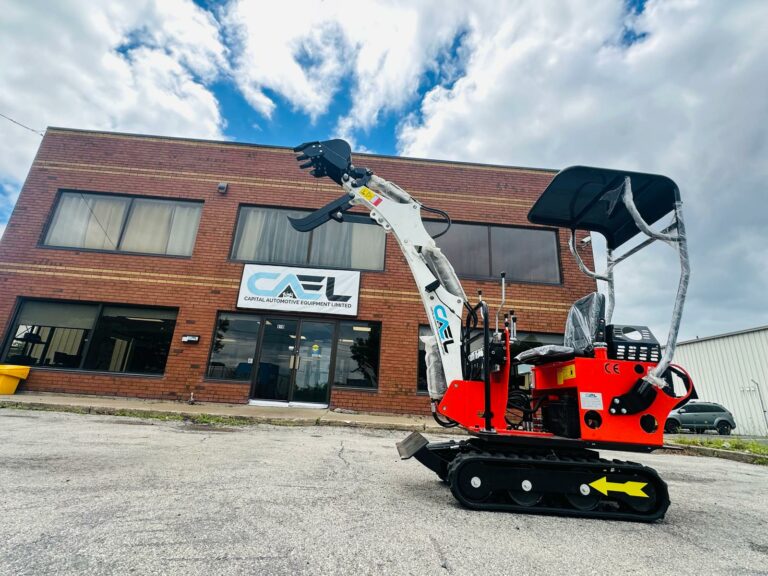

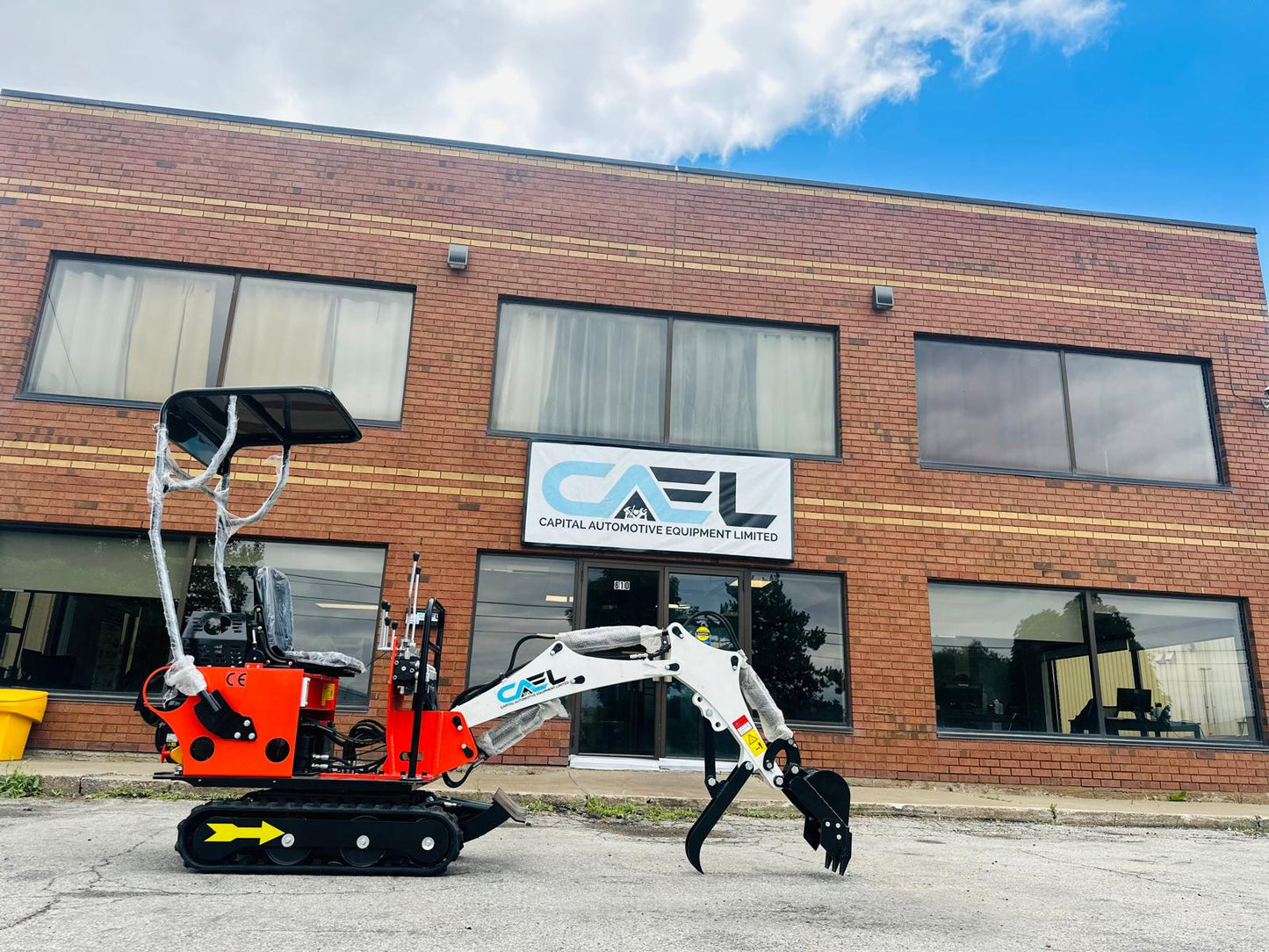

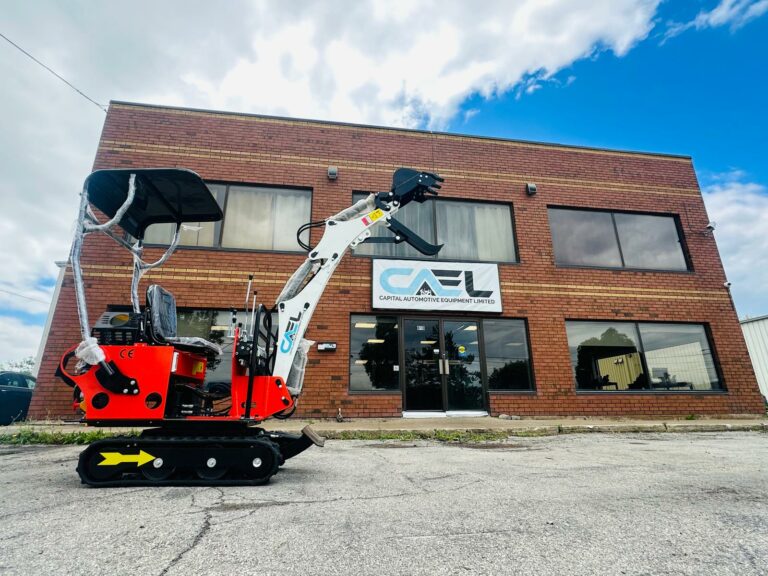

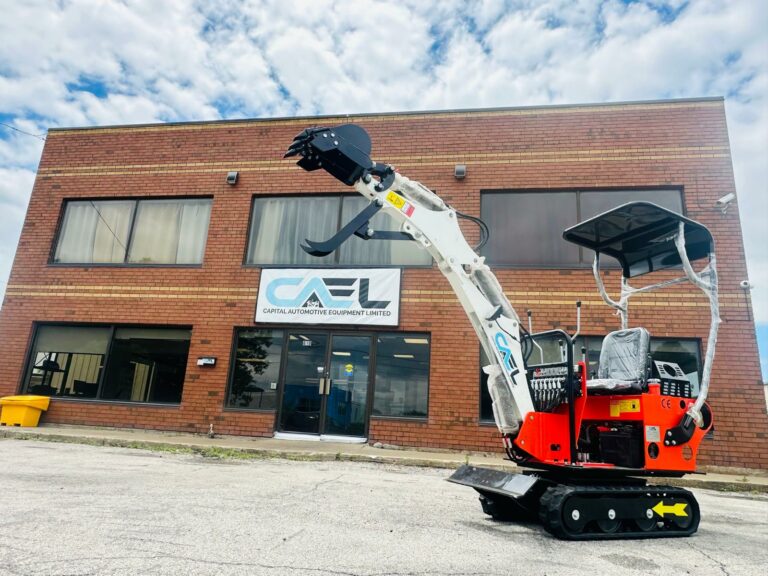

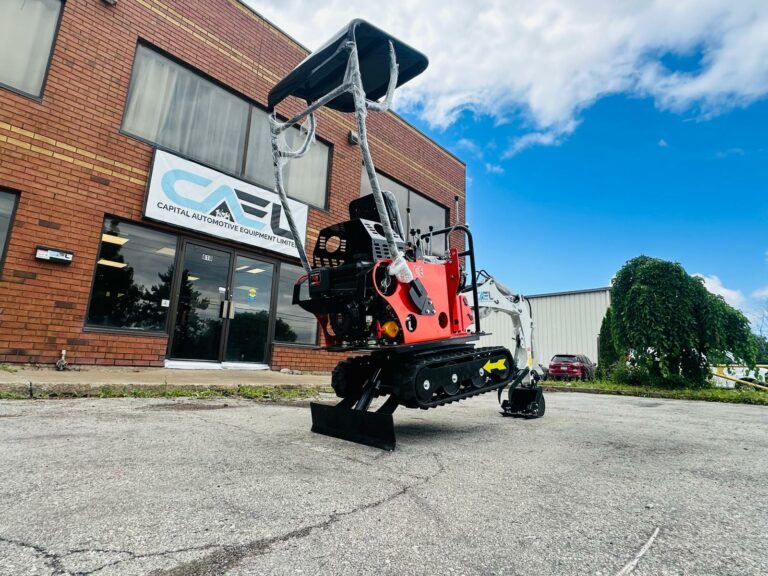

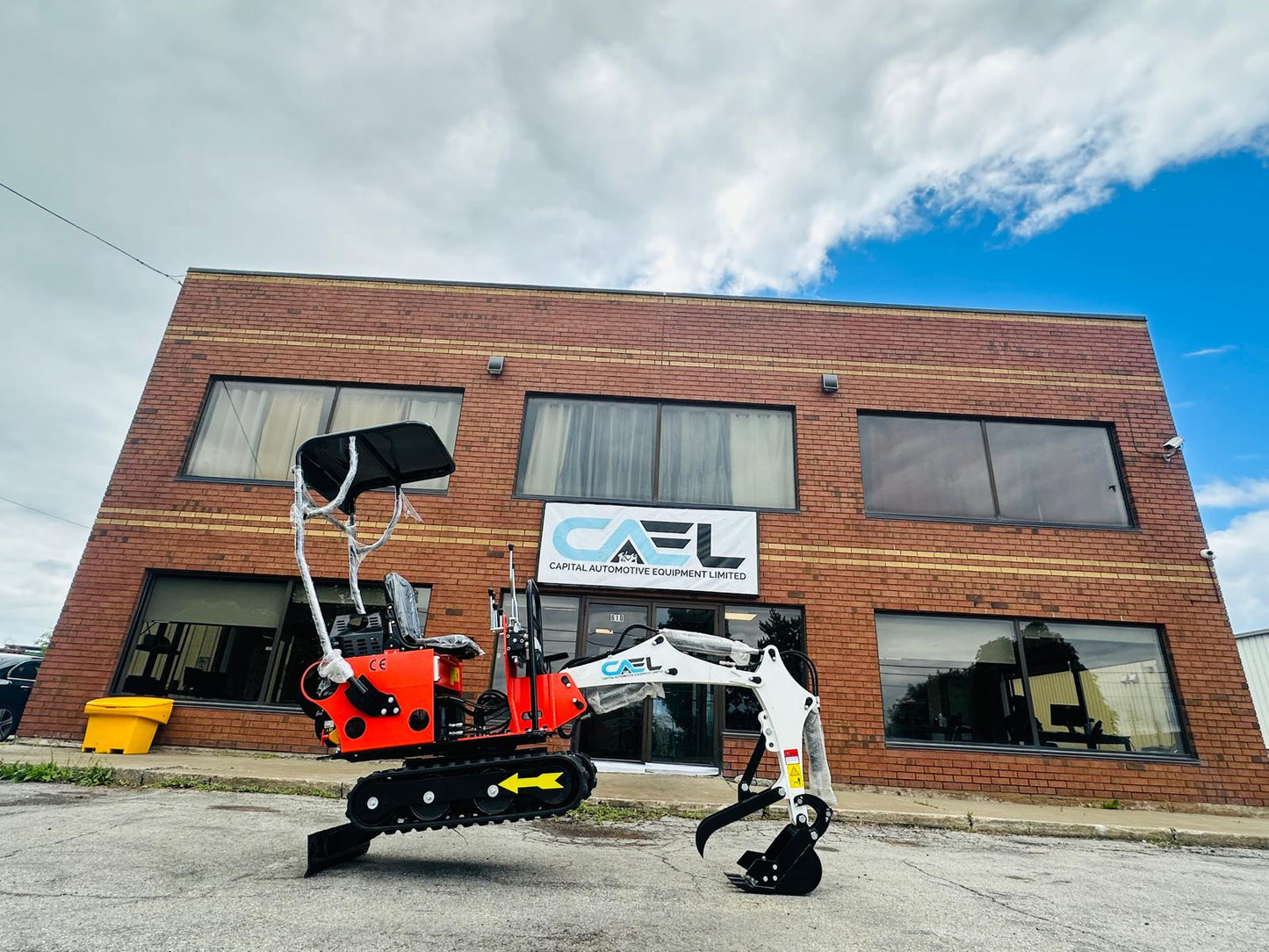

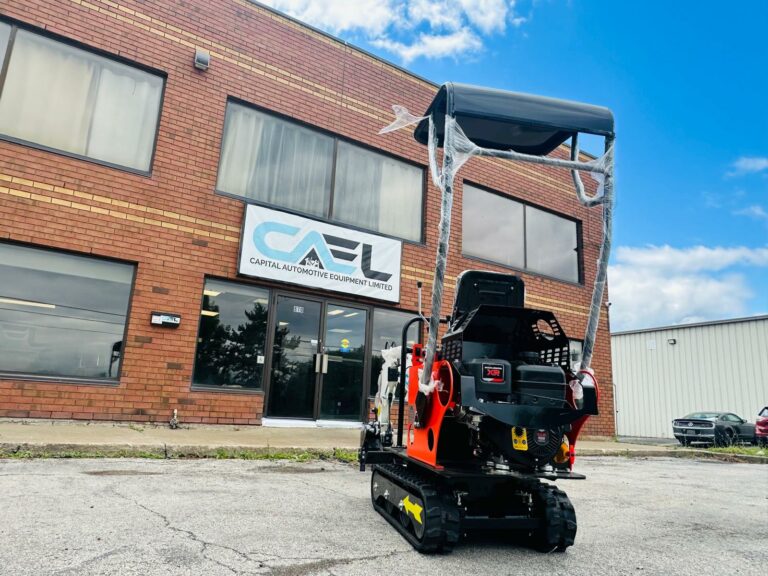

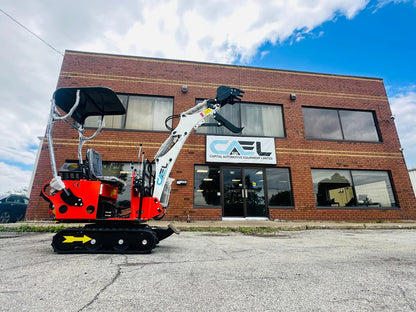

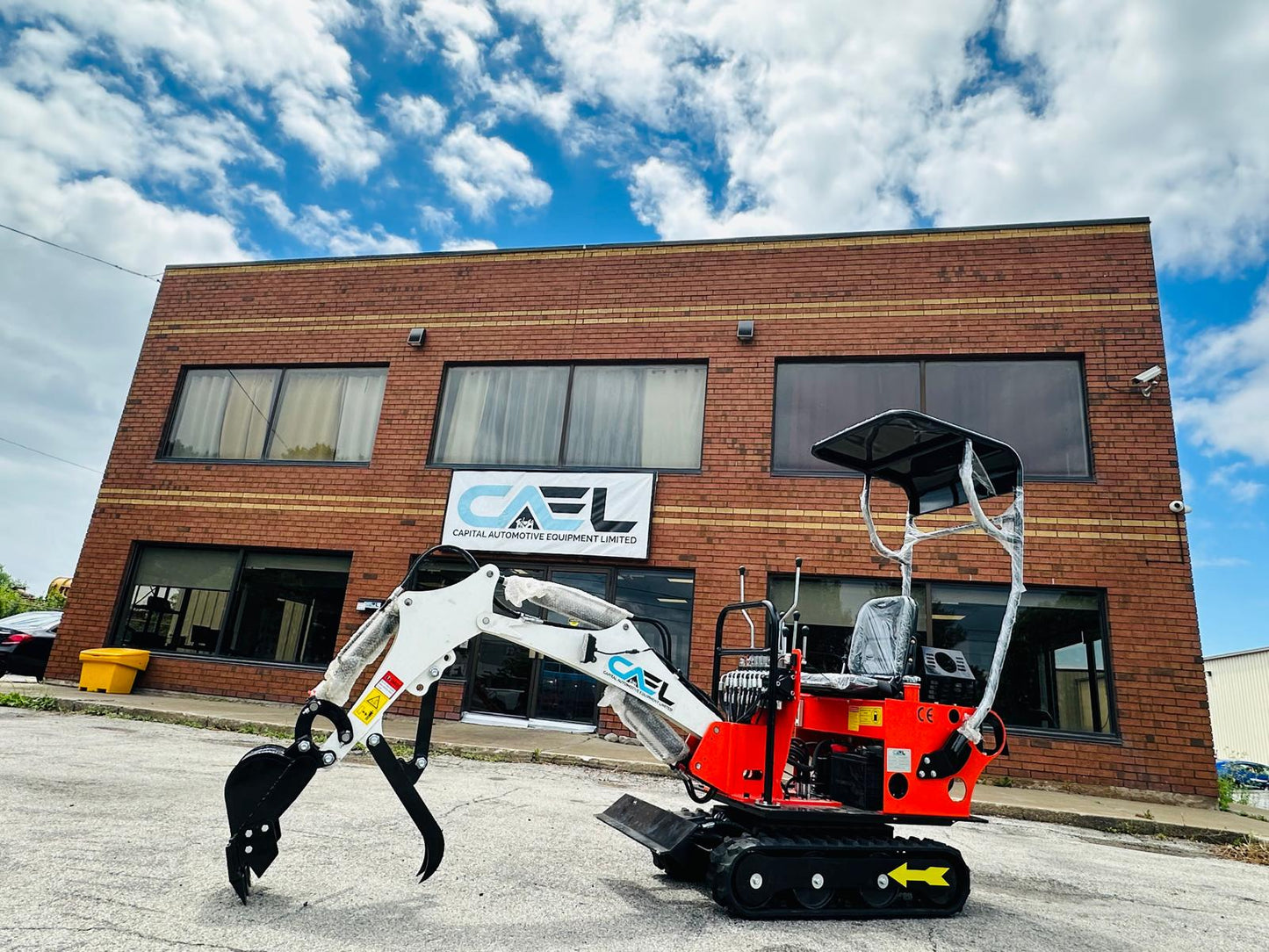

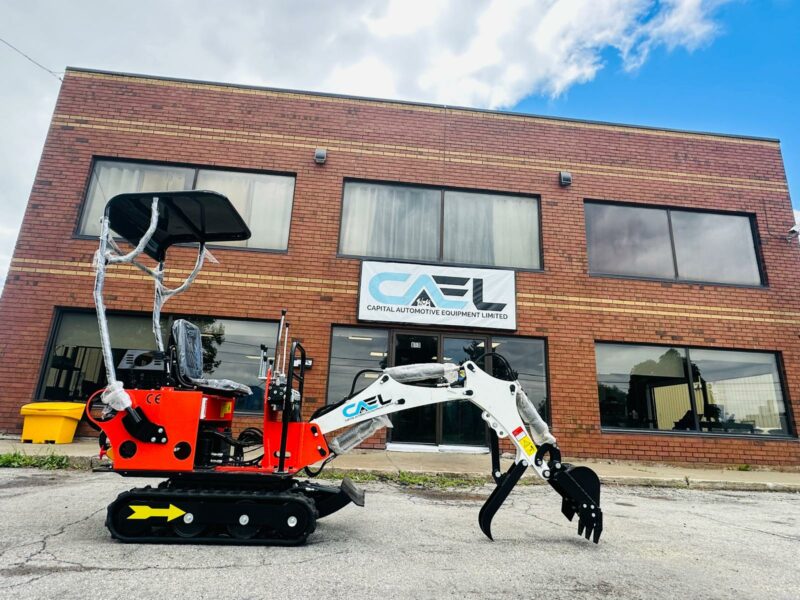

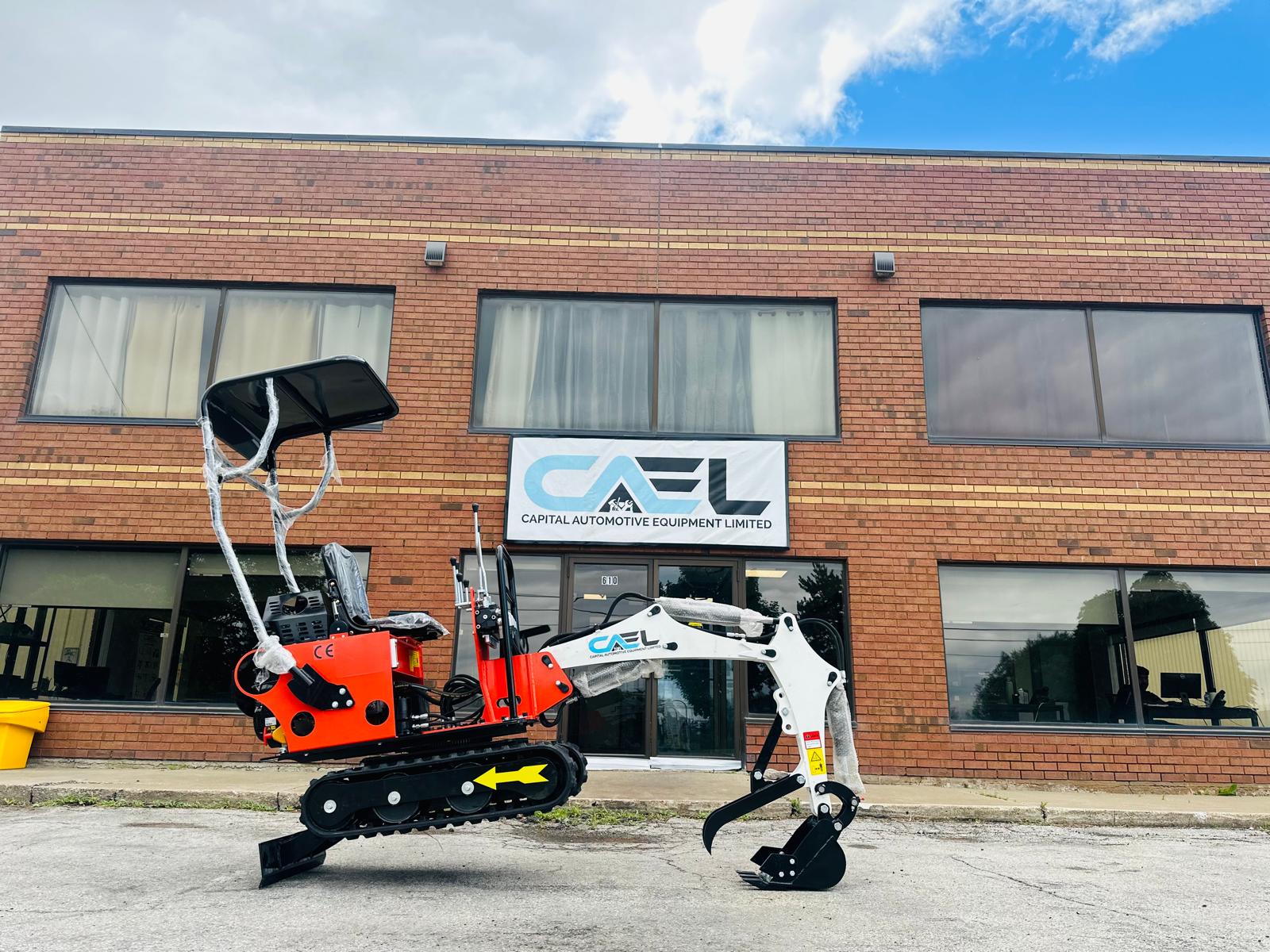

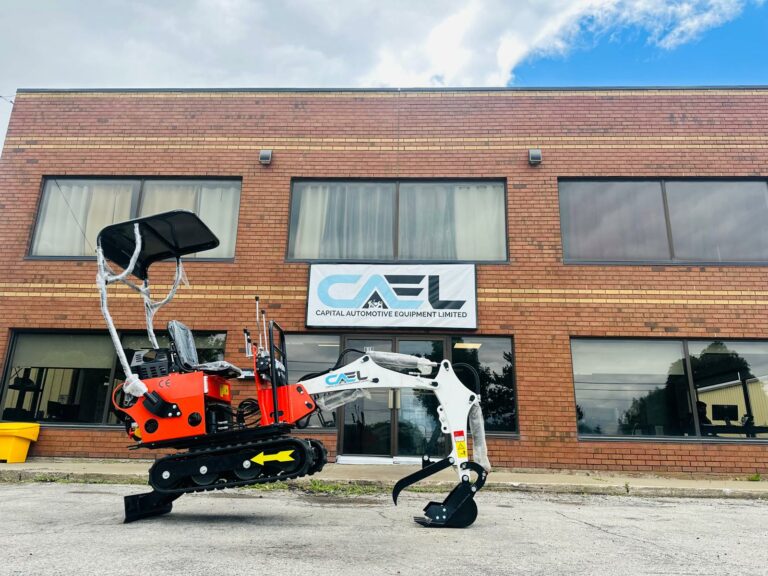

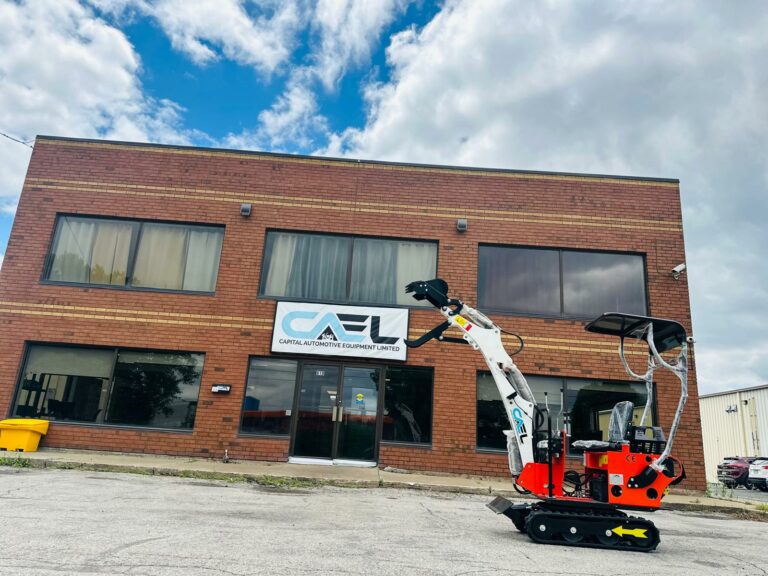

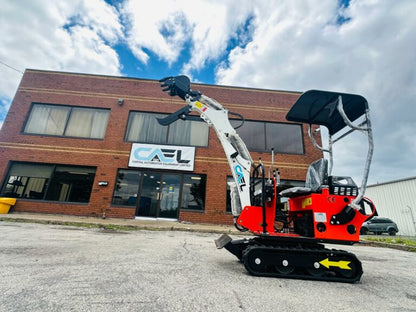

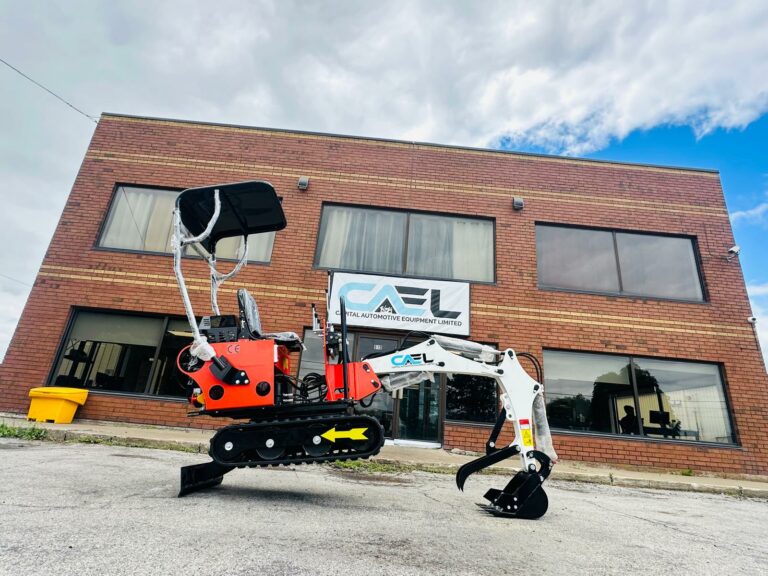

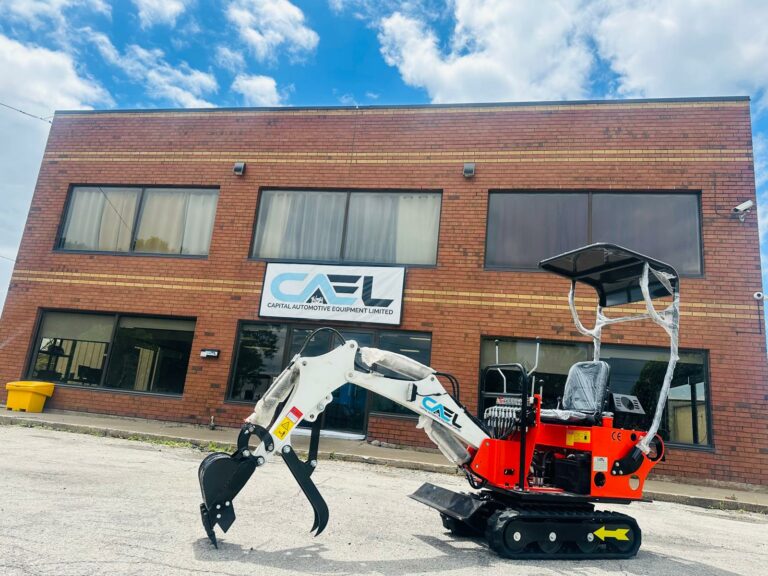

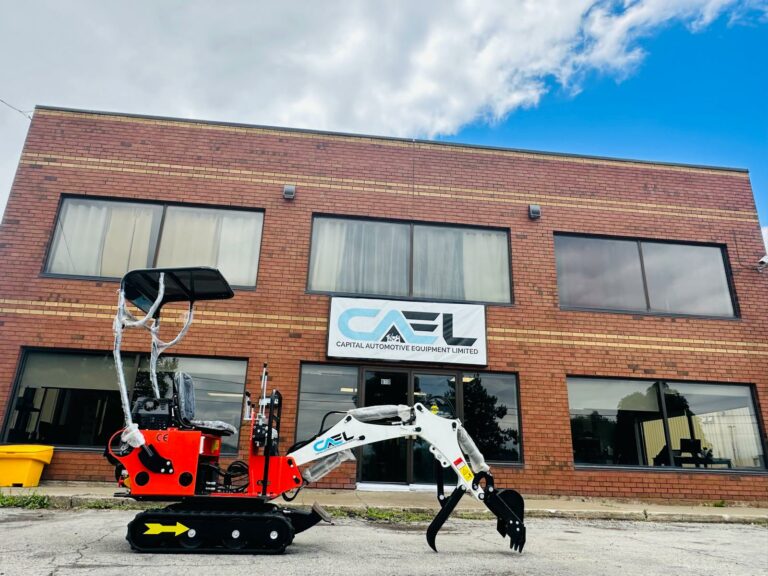

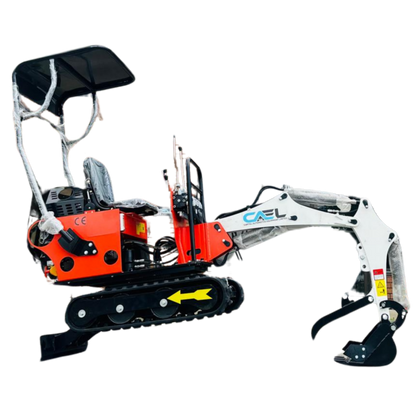

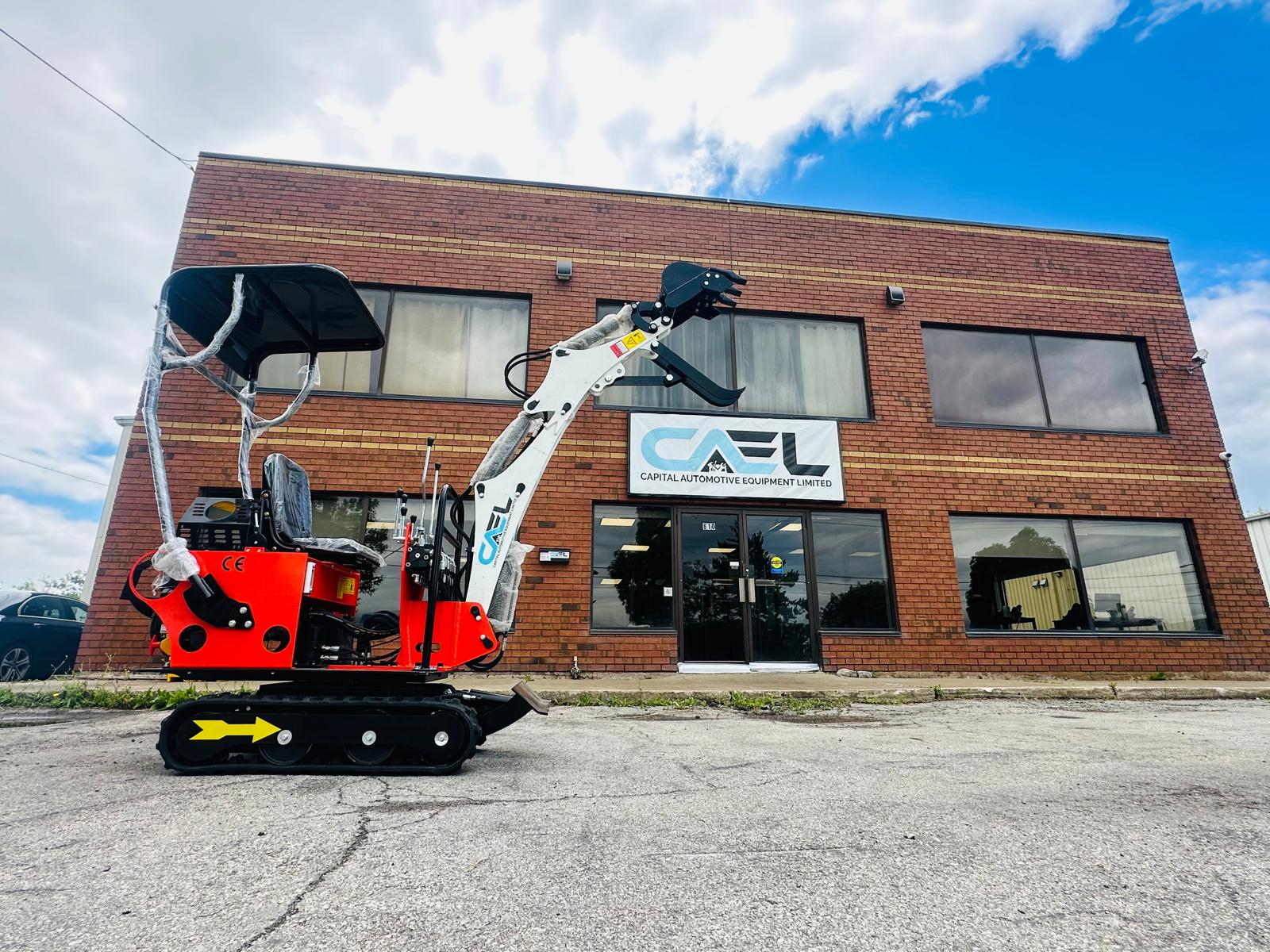

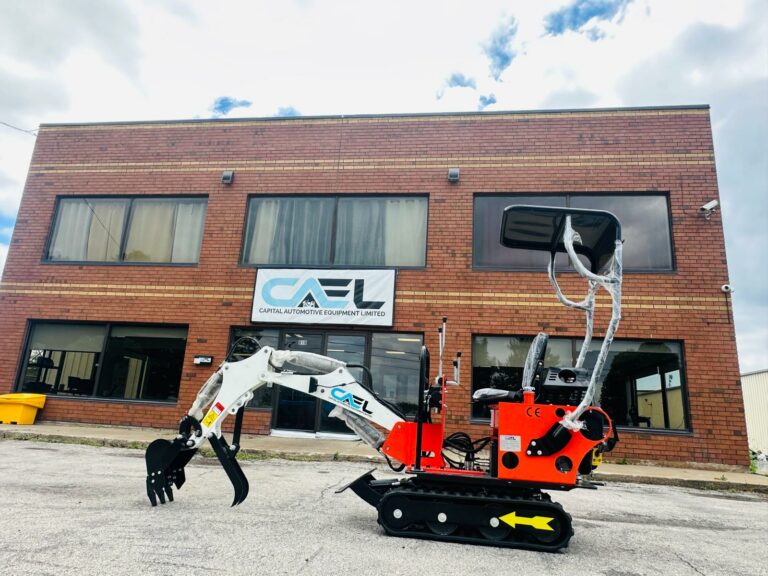

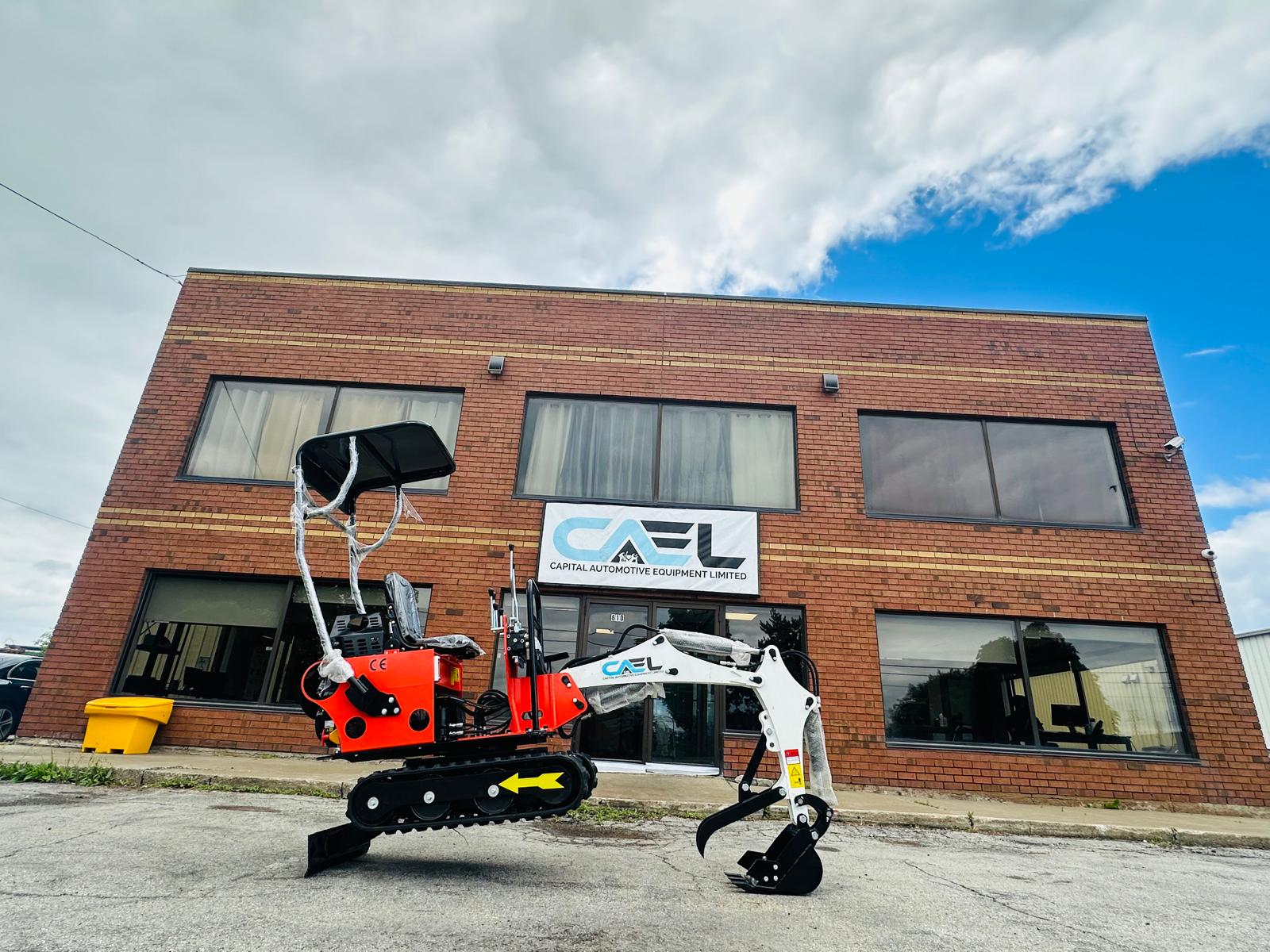

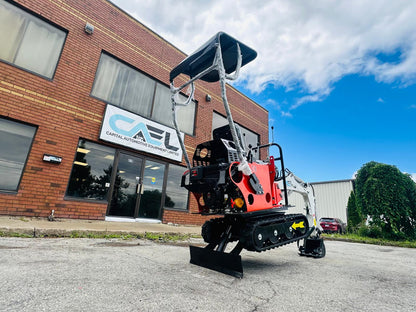

The CAEL EX08BS1 Mini Excavator is designed to deliver exceptional performance, versatility, and value. Manufactured at CAEL’s self-operated factory in China’s renowned construction machinery hub, this compact machine ensures superior quality at highly competitive prices. Equipped with a powerful Briggs & Stratton engine and engineered for efficiency, it is ideal for small-scale construction, landscaping, and agricultural applications.
Company Overview
High Cost-Effectiveness
As a self-operated factory in China’s construction machinery manufacturing base, CAEL benefits from reduced labor and raw material costs—delivering reliable, high-quality equipment at competitive prices.
One-Stop Procurement
CAEL offers a comprehensive range of compact construction machinery, enabling customers to source all their equipment from a single trusted supplier.
Professional Quality and Performance
With years of production expertise, CAEL ensures products meet international standards and certifications such as CE, SGS, TÜV, and ISO, guaranteeing professional-grade performance for small construction projects.
Comprehensive After-Sales Service
Our experienced sales and technical support teams provide consultations, spare parts, and lifetime technical assistance to ensure optimal performance and smooth operations.
Key Features & Benefits

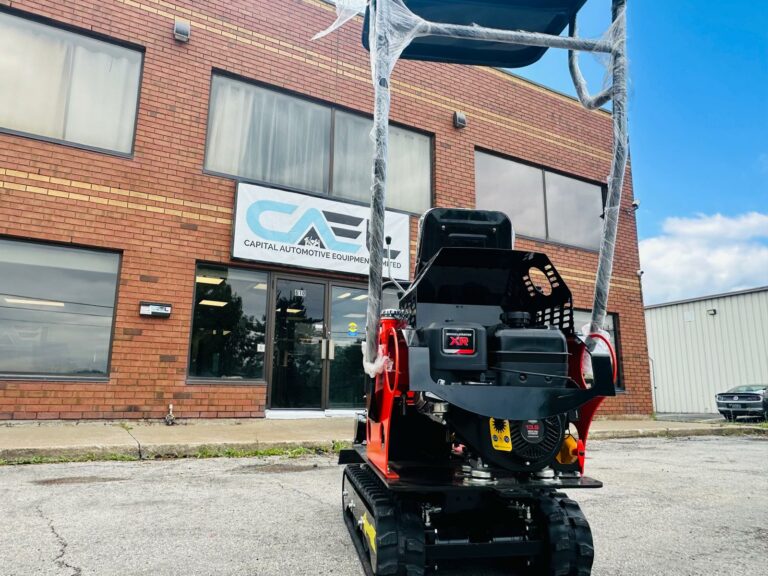

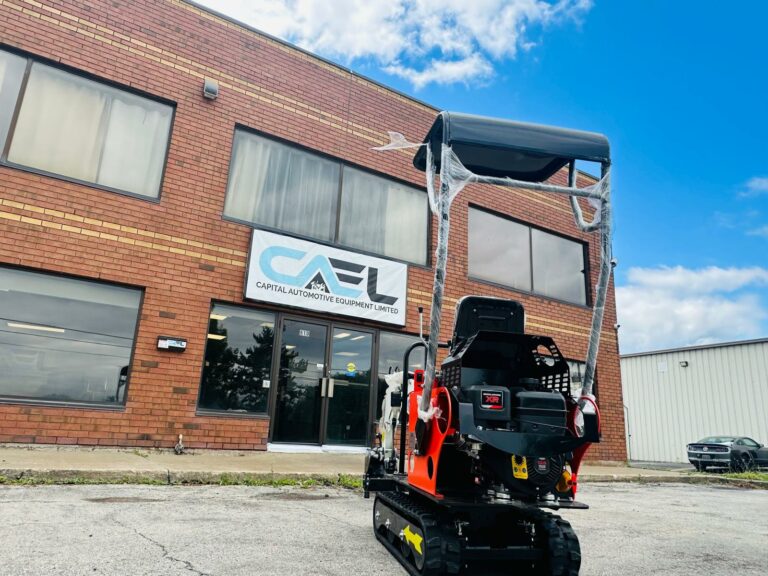

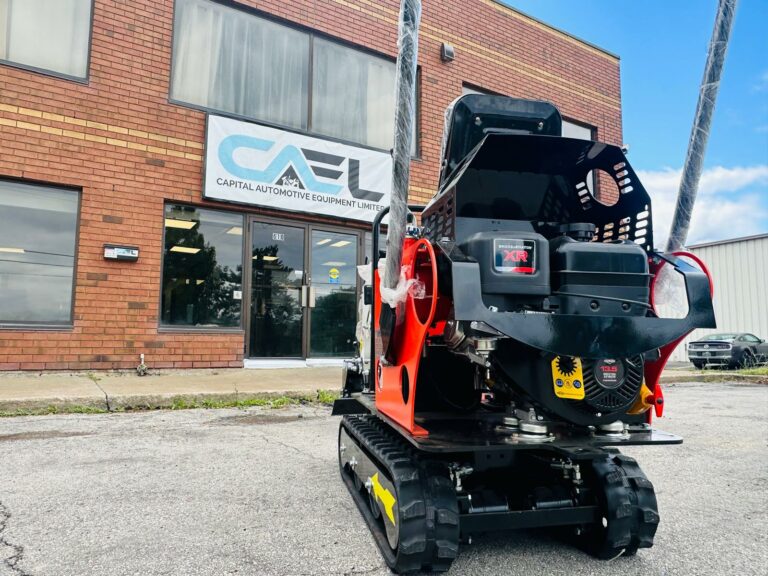

Efficient Briggs & Stratton Engine

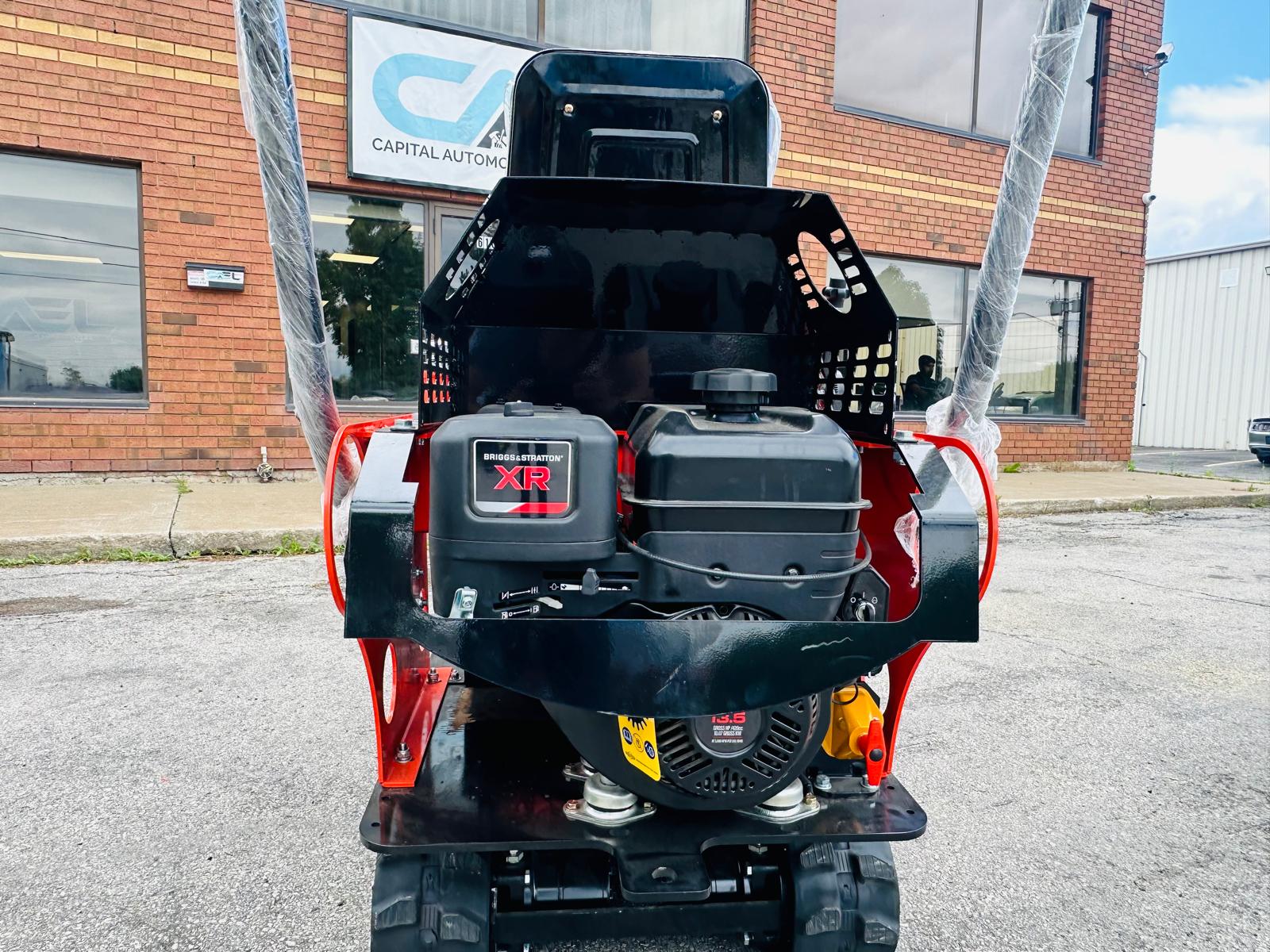

Powered by a premium Briggs & Stratton 13.5 HP engine (7–7.5 kW), the EX08BS1 delivers powerful and fuel-efficient performance with minimal vibration and excellent heat dissipation.

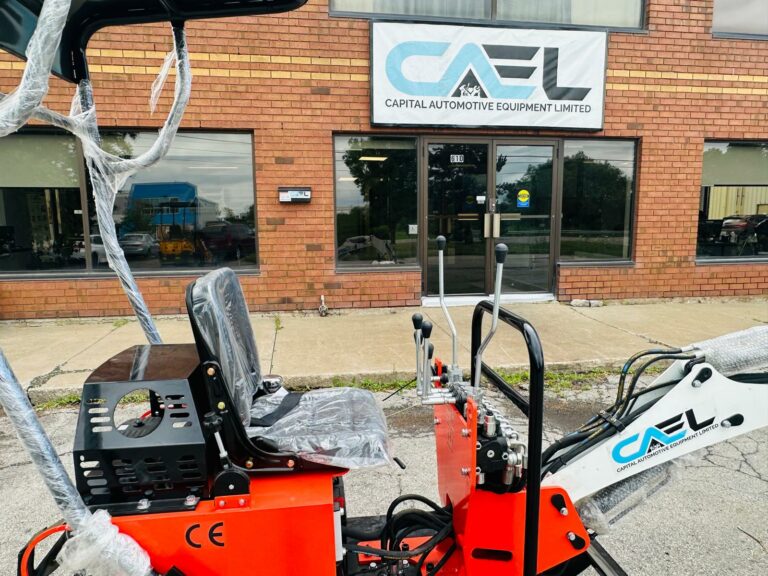

Comfortable, Ergonomic Seat
A safety-focused operator seat with lumbar support reduces fatigue during extended working hours, enhancing comfort and productivity.
Multiple Attachments Available
Expand functionality with versatile attachments:

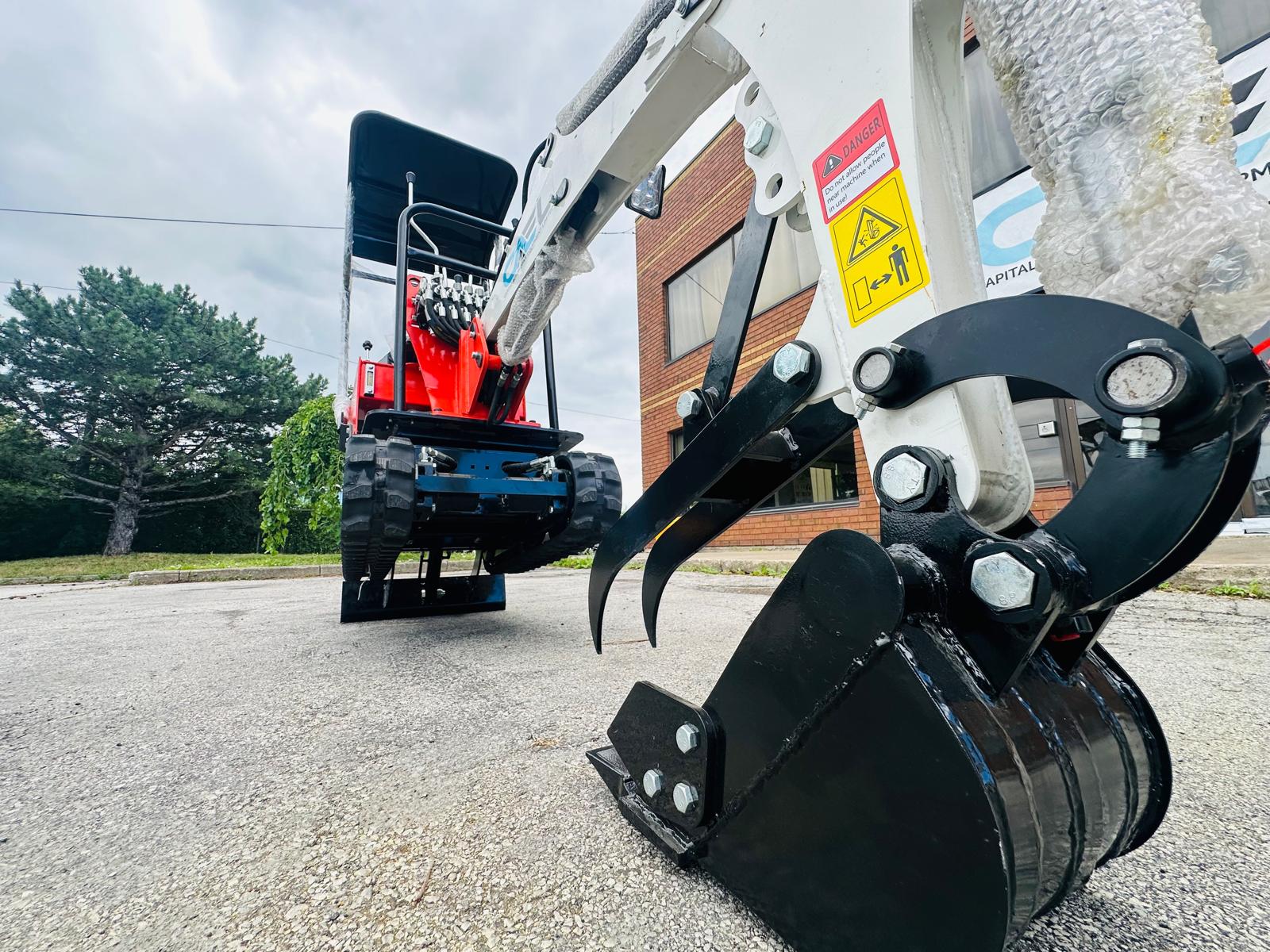

- Bucket and Grapple for material handling
- Auger for fence post drilling
- Ripper for soil loosening
- Hydraulic Hammer for concrete and asphalt
- Rake for roots and debris
- Quick Hitch for rapid attachment changes

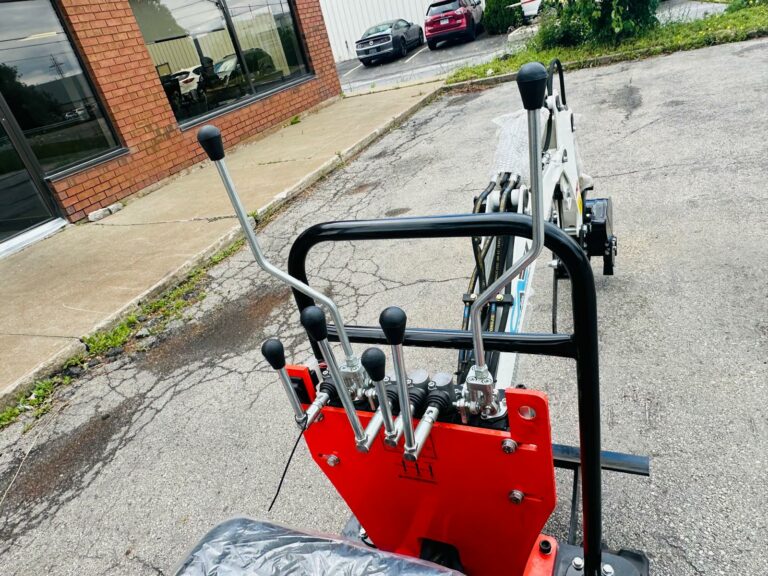

Easy-to-Operate Design
Compact and lightweight, this excavator is perfect for confined areas such as backyards, gardens, narrow driveways, and alleys.

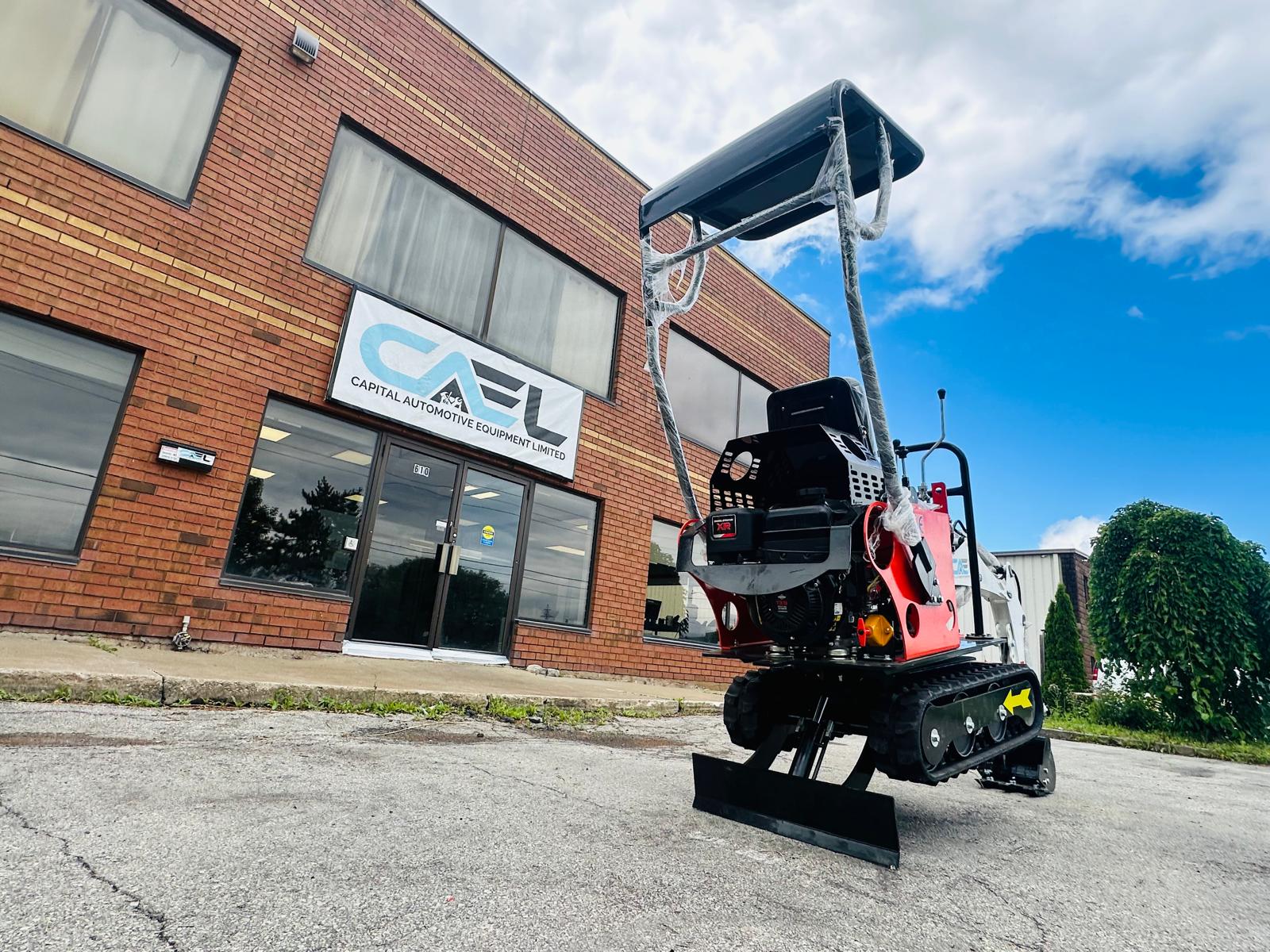

Stable Tracks for All Terrains

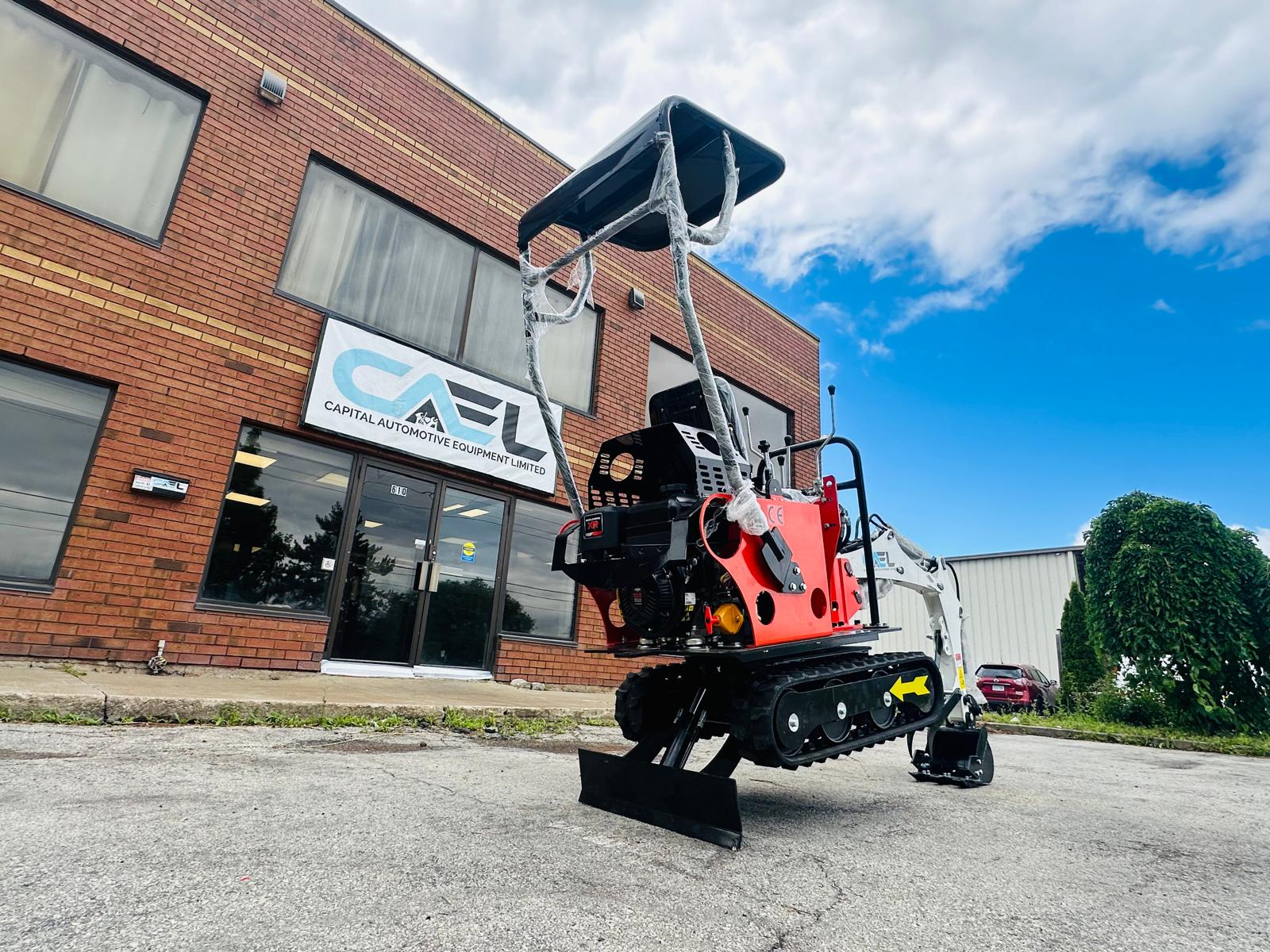

Durable rubber and steel tracks provide superior traction while minimizing surface damage. The adjustable dozer blade enhances stability on uneven terrain.
Wide Range of Applications
Ideal for gardens, farms, greenhouses, municipal projects, trenching, and small-to-medium construction tasks.
Technical Specifications
Performance Parameters
| Specification | Details |
|---|---|
| Rated Power | 7–7.5 kW |
| Engine Model | Briggs & Stratton 13.5 HP |
| Bucket Capacity | 0.025 m³ |
| Operating Weight | 800 kg (1,764 lbs) |
| Maximum Digging Force | 7.5 kN |
| Pump Type | Single Gear Pump |
| Set Working Pressure | 14 MPa |
| Swing Speed | 12 rpm |
| Travel Speed | 2.2 km/h |
| Gradeability | 30° |
| Ground Pressure | 19 kPa |
Working Range
| Specification | Details |
|---|---|
| Maximum Digging Distance | 2,450 mm (96.5 in) |
| Maximum Digging Depth | 1,200 mm (47.2 in) |
| Maximum Digging Height | 2,350 mm (92.5 in) |
| Maximum Dumping Height | 1,600 mm (63.0 in) |
| Minimum Swing Radius | 1,100 mm (43.3 in) |
| Maximum Dozer Blade Lift | 120 mm (4.7 in) |
| Maximum Dozer Blade Digging Depth | 200 mm (7.9 in) |
Dimensions
| Specification | Details |
|---|---|
| Total Length | 2,430 mm (95.7 in) |
| Total Width | 720–780 mm (28.3–30.7 in) |
| Total Height | 1,300 mm (51.2 in) |
| Minimum Ground Clearance | 80 mm (3.15 in) |
| Track Ground Length | 1,140 mm (44.9 in) |
| Track Width | 150 mm (5.9 in) |
Attachments Available
- Standard Bucket
- Narrow Bucket
- Grapple
- Hydraulic Hammer
- Auger
- Ripper
- Rake
- Quick Hitch
- Thumb Clip
- Trailer
Warranty & Support
- 🛡️ Comprehensive After-Sales Support
- 🔧 Lifetime Technical Assistance
- 📦 Spare Parts Availability Worldwide
