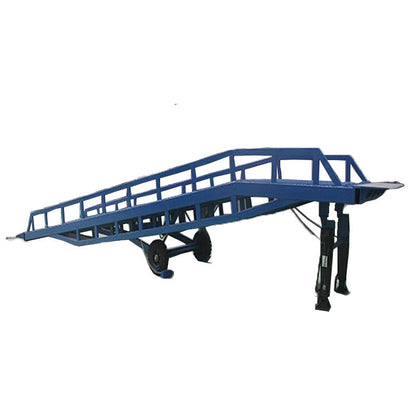

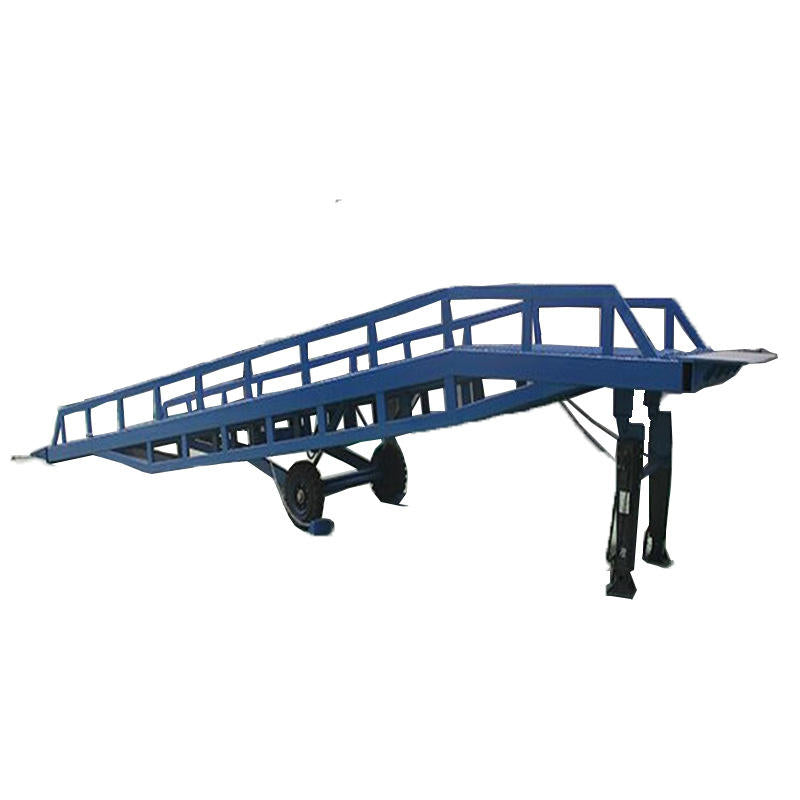

The CAEL MCR-10 Mobile Dock Ramp is a heavy-duty, cost-effective solution designed to streamline container loading and unloading operations. Built for efficiency and ease of use, it enables forklifts to move directly between ground level and truck containers—significantly reducing manual labor and improving operational productivity.

Designed for single-operator use, this ramp is widely used in factories, warehouses, logistics centers, and distribution hubs, making it an essential tool for modern material handling.

Key Specifications

• Model: MCR-10
• Loading Capacity:
  10 Tons (10,000 kg / 22,000 lbs)
• Height Adjustment Range:
  35.4" – 70.8" (900 – 1800 mm)
• Working Angle:
  < 13°
• Overall Dimensions (L × W × H):
  35.4 ft × 6.8 ft × 4.5 ft (10.8 × 2.1 × 1.4 m)
• Total Weight:
  6,100 lbs (2,800 kg)

Product Features

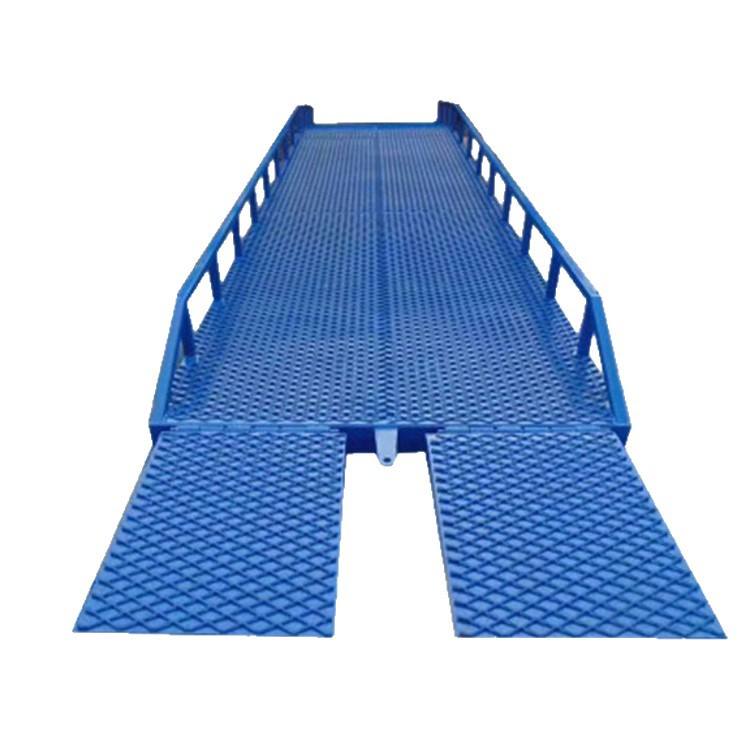

• Heavy-Duty Platform Construction
  • Base made from 4 mm thick steel plate
  • Covered with 8 mm rhombic (diamond-pattern) anti-slip steel mesh for enhanced grip
• Robust Structural Frame
  Constructed with high-strength rectangular steel tubes for maximum durability and stability
• Advanced Hydraulic System
  • Equipped with 2 hydraulic cylinders
  • Features NOK (Japan) seal rings for long-lasting performance
• Solid Rubber Tires
  Designed for durability, stability, and long service life under heavy loads

Safety Features

• Anti-Slip Surface
  Ensures safe forklift movement during loading and unloading
• Hydraulic Overload Protection System
  Prevents lifting when the load exceeds rated capacity
• Explosion-Proof Valve
  Protects against sudden platform drop in case of hydraulic failure
• Full-Range Telescopic Toe Guards
  Enhances operator safety during operation

Performance & Application

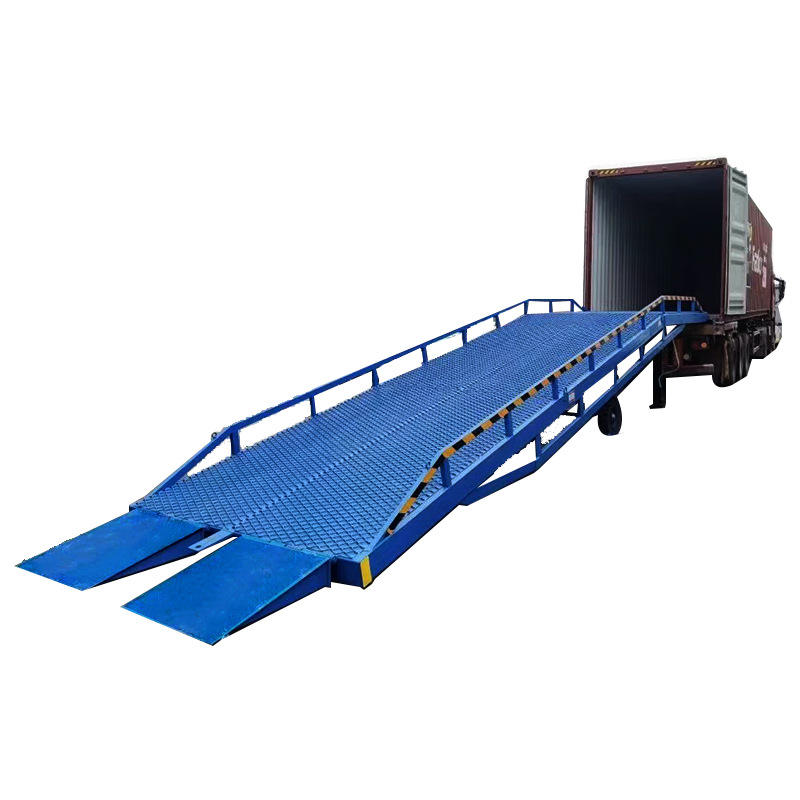

The adjustable height allows the ramp to match different truck and container heights, ensuring smooth and efficient cargo transfer. Its mobile design and easy operation make it ideal for improving workflow efficiency and reducing labor costs.

Built for Industrial Reliability

The CAEL MCR-10 Mobile Dock Ramp combines rugged construction, advanced safety mechanisms, and user-friendly operation to deliver dependable performance in demanding industrial environments. It is the perfect solution for businesses seeking efficient, safe, and cost-effective loading operations.
