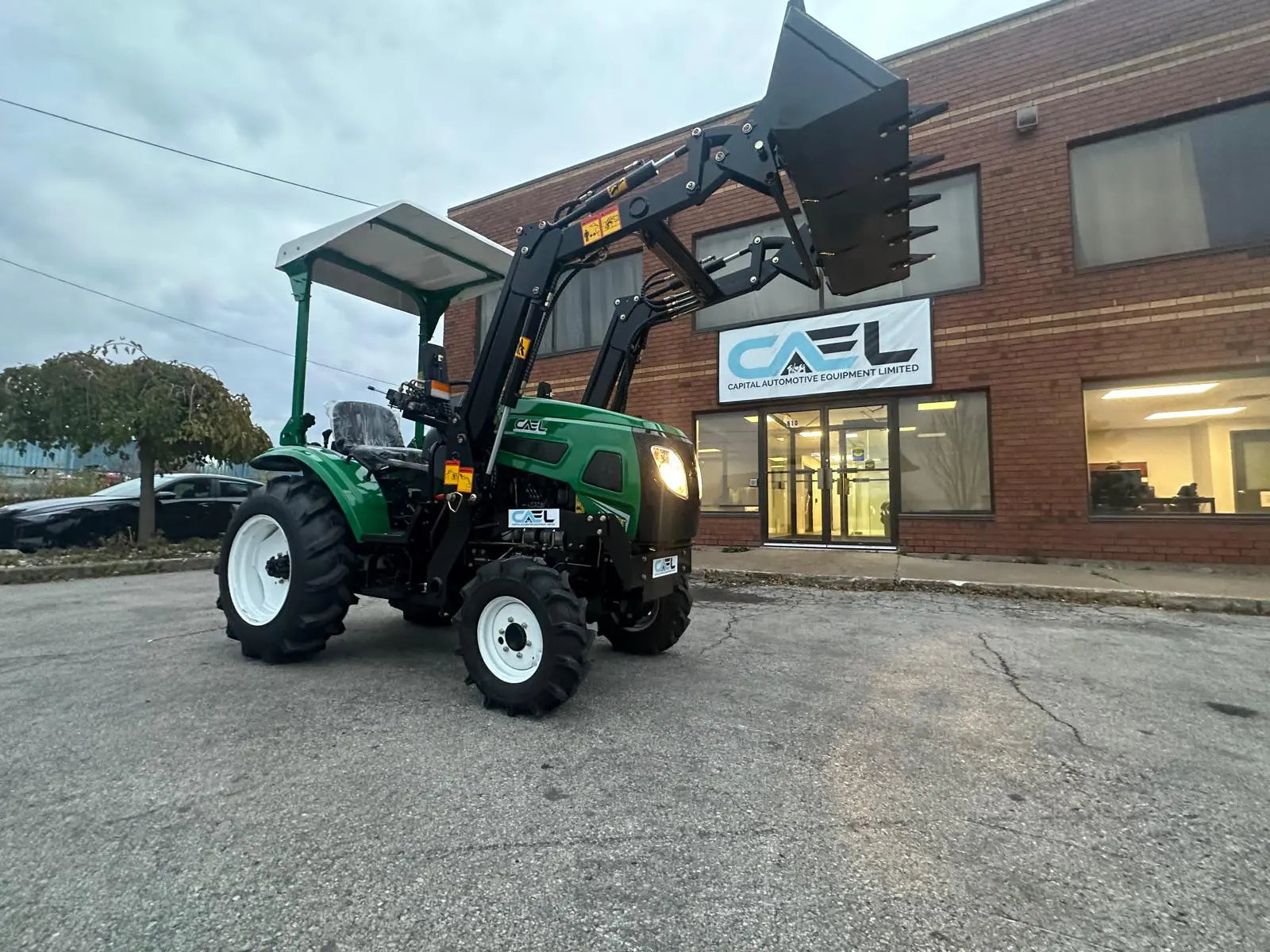

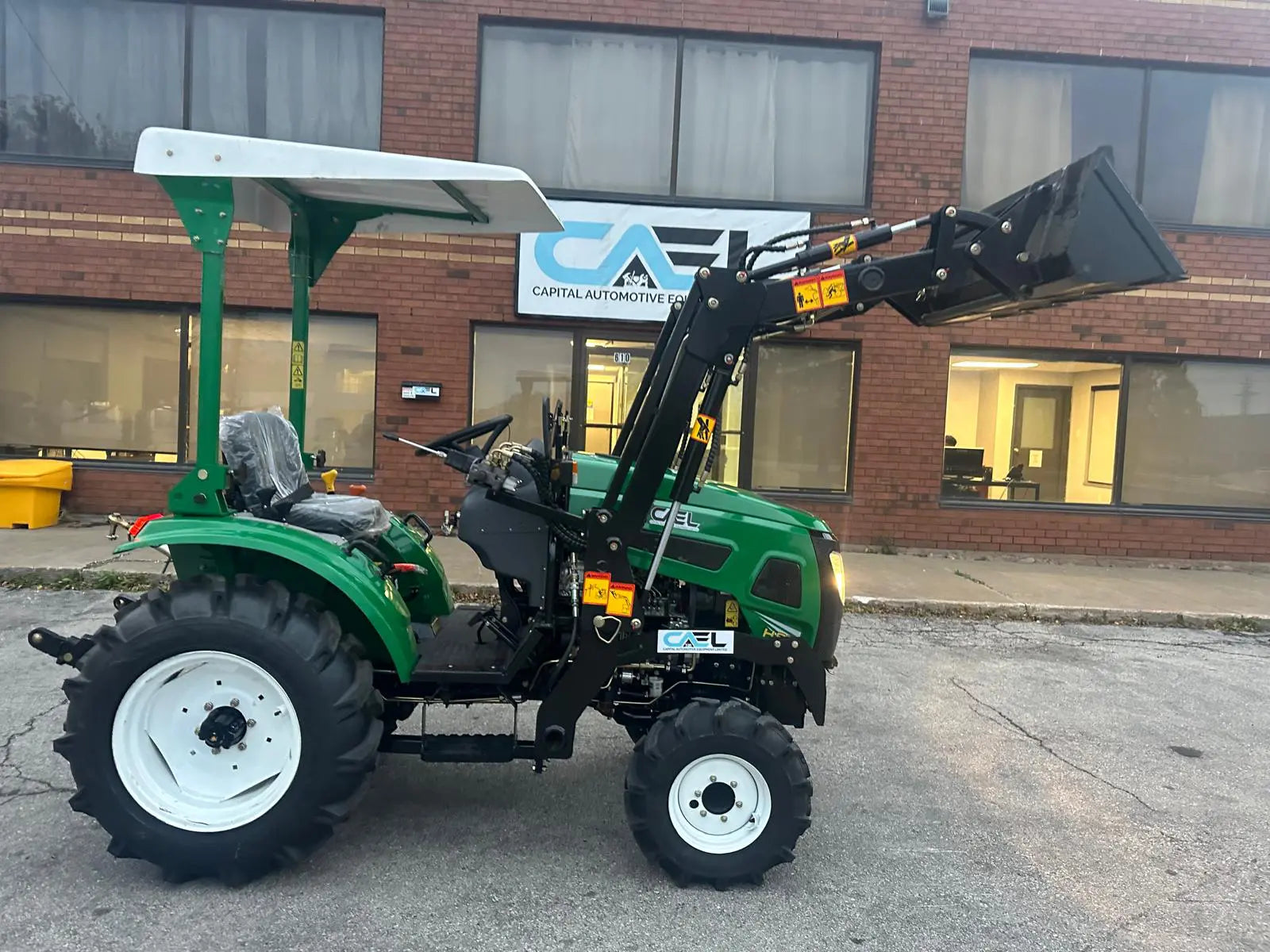

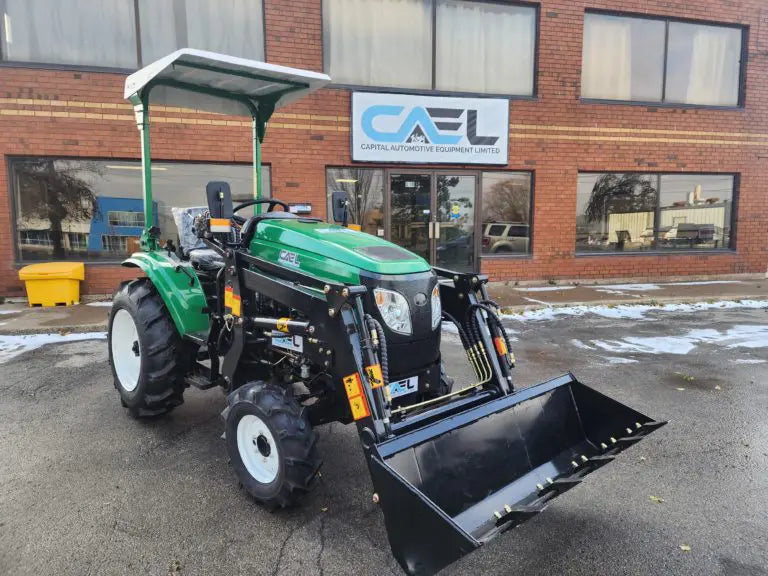

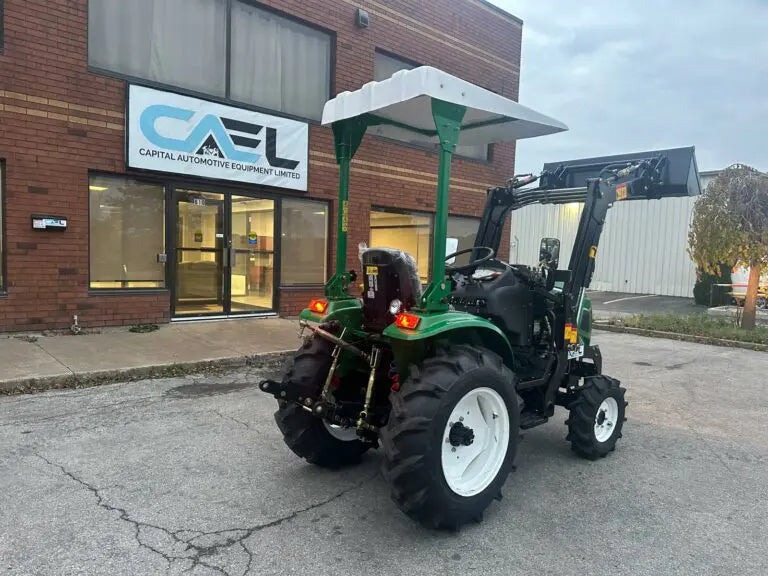

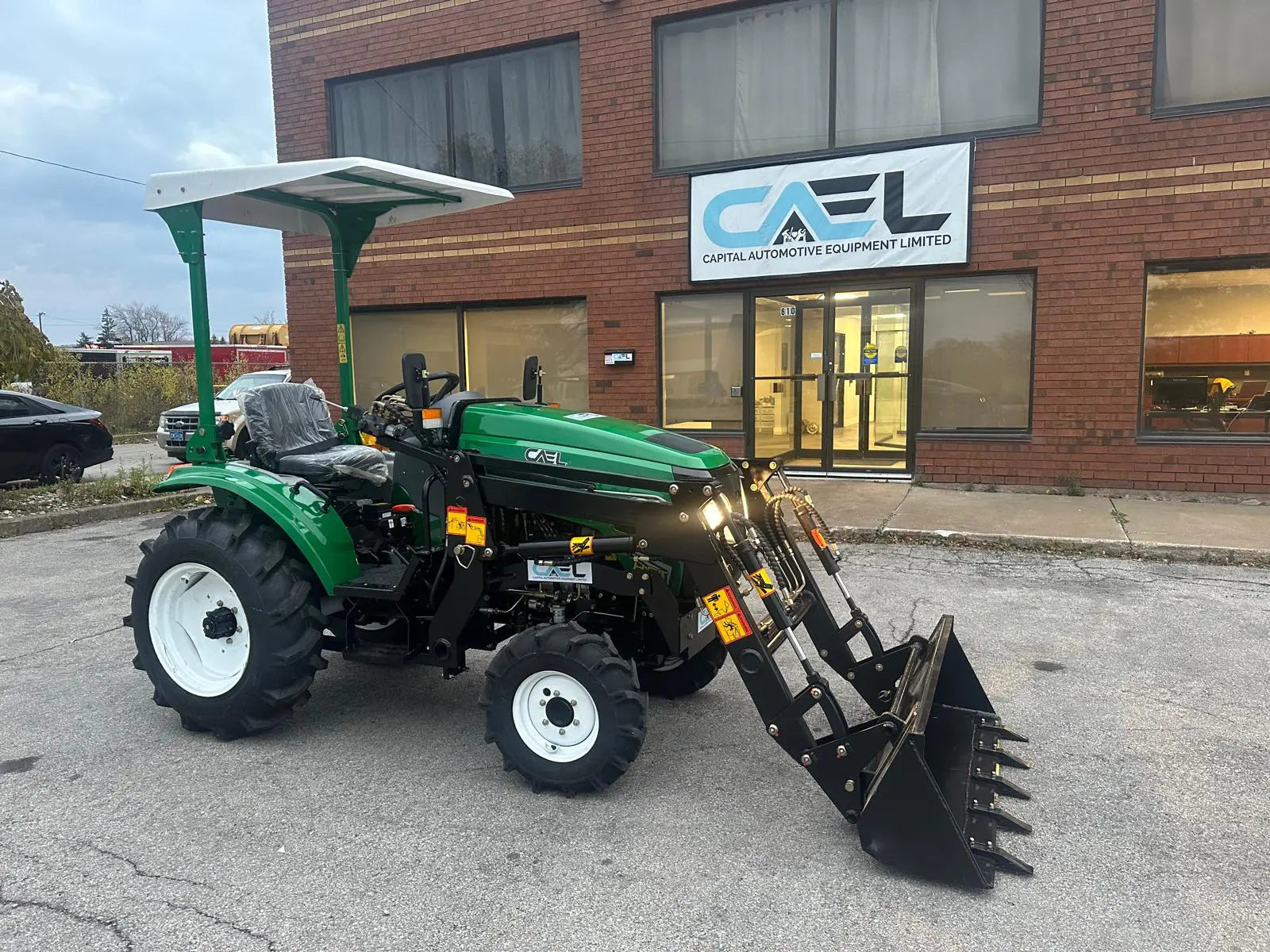

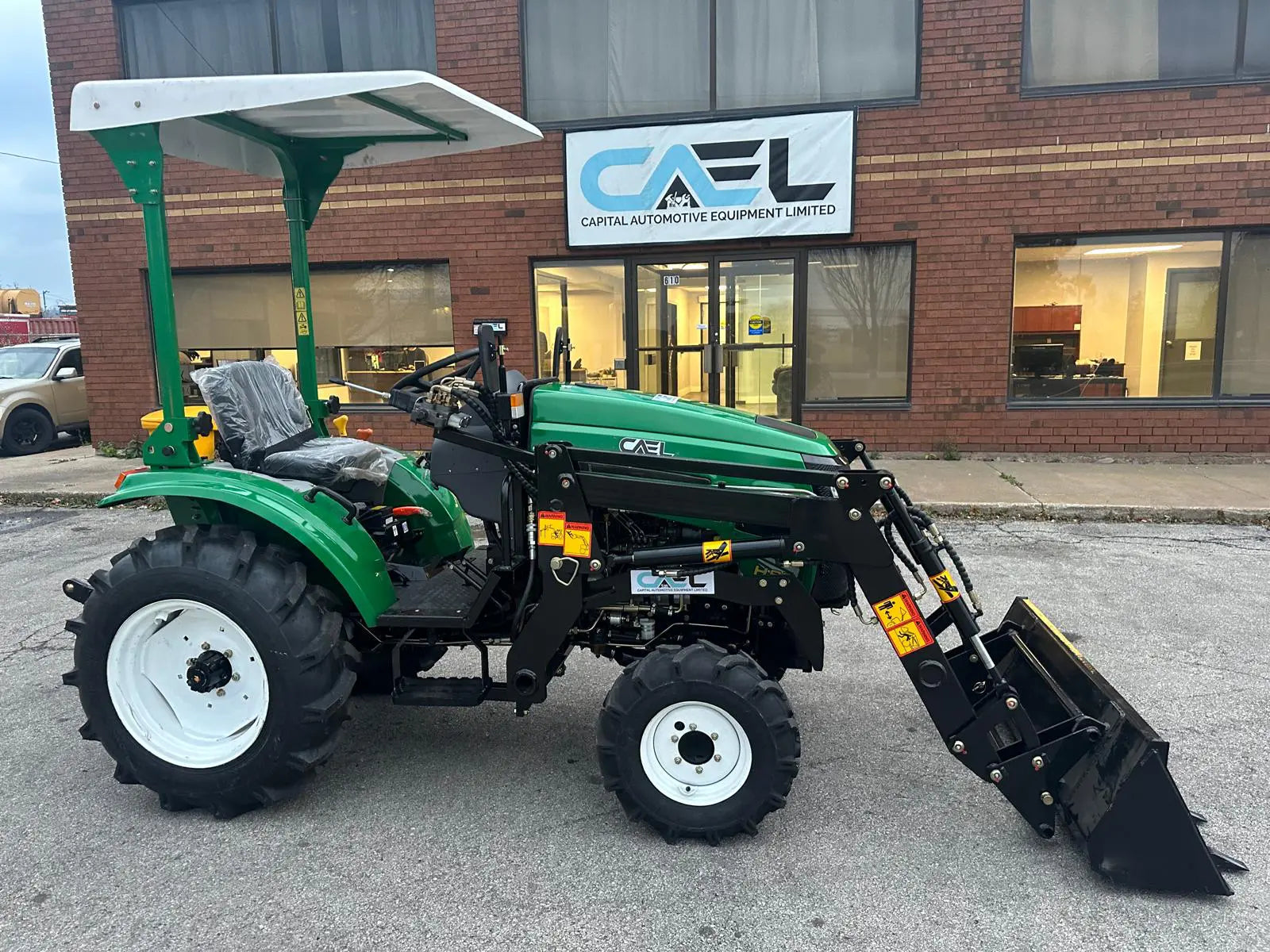

Tractor and Loader with Perkins Engines

Tractor and Loader with Perkins Engines

$18,999.00 CAD
$18,999.00 CAD $18,999.00 CAD
Sale Sold out
Shipping calculated at checkout.

Hurry, only 3 left in stock

Get quote now

We Accept

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Low Prices
  • Warranty Included
  • Order Tracking

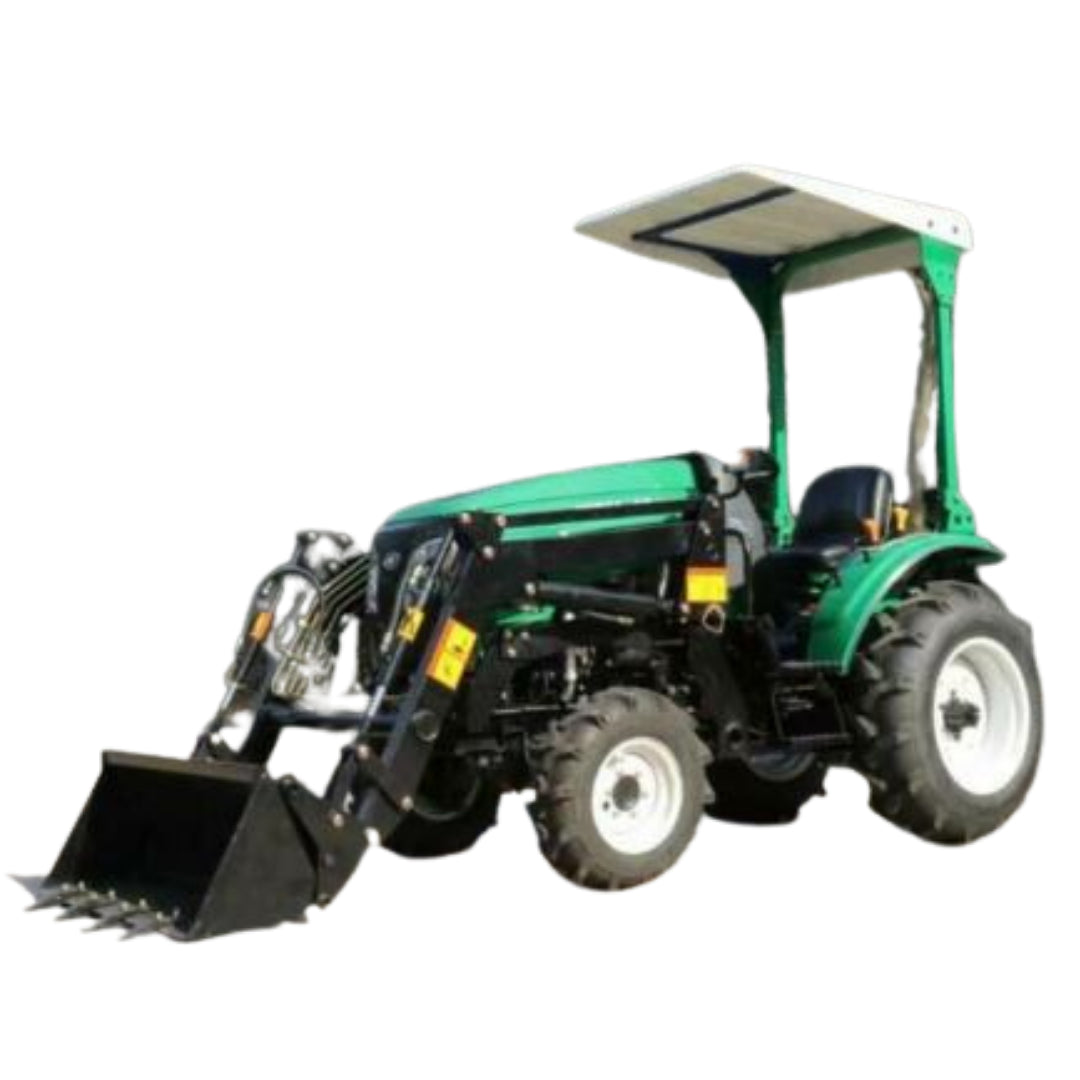

Engineered for performance, reliability, and versatility, this compact 4WD tractor is ideal for agriculture, landscaping, turf management, and light construction applications. Powered by the renowned Perkins 403F-11 engine, it delivers superior efficiency, smooth operation, and exceptional durability. Designed with advanced hydraulic systems and hydrostatic transmission, it ensures optimal productivity and operator comfort.

Tractor Specifications

Parameter Specification
Drive Type 4WD
Overall Dimensions with Loader (L × W × H) 3658 × 1524 × 2286 mm (144 × 60 × 90 in) — 12 × 5 × 7.5 ft
Overall Weight 1270 kg (2,800 lbs)
Wheel Track – Front 970 / 1210 mm (38.19 / 47.64 in)
Wheel Track – Rear 1000 / 1160 mm (39.37 / 45.67 in)
Wheelbase 1540 mm (60.63 in)
Ground Clearance 300 mm (11.81 in)
Rated Traction Force 6620 N
Construction Mass 1080 kg (2,381 lbs)
Minimum Turning Radius 3.27 m (10.73 ft)

Theoretical Speed

Mode Speed
Forward (Low Range) 0–8.2 km/h (0–5.10 mph)
Reverse (Low Range) 0–8.2 km/h (0–5.10 mph)
Forward (High Range) 0–20 km/h (0–12.43 mph)
Reverse (High Range) 0–20 km/h (0–12.43 mph)

Engine Specifications

Parameter Specification
Engine Model Perkins 403F-11
Type 3-Cylinder Vertical, Water-Cooled, 4-Stroke, Indirect Injection
Rated Power 18.4 kW / 25 HP
Rated Speed 2600 rpm
Bore × Stroke 77 × 81 mm (3.03 × 3.19 in)
Total Displacement 1.131 L (69.0 cu in)

Drive System

Component Specification
Clutch Monolithic Dry Friction Clutch
Gearbox Hydrostatic Transmission (HST) with Two Gears
Main Drive Spiral Bevel Gear Drive
Differential Dual Closed Planetary
Differential Lock Tooth Type

Traveling Mechanism

Component Specification
Front Tyres 26 × 7.5–12 Grass Tires
Rear Tyres 11.2–20 Grass Tires
Steering System Full Hydraulic Steering
Braking System Double Pedal Disc Brakes

Working Device & Hydraulics

Component Specification
Hydraulic Lifting Capacity (at 610 mm behind lift point) 3900 N (876.9 lbf)
Three-Point Hitch Category I

Power Take-Off (PTO)

Rear PTO

Parameter Specification
Rotational Speed 540 / 1000 rpm
Spline Size 6-Φ35 Rectangular Spline

Mid PTO

Parameter Specification
Rotational Speed 2000 rpm
Spline Size 11-Teeth Involute Spline

Attachments Available

  • Cultivator
  • Disc Harrow
  • Mower

Warranty

✅ 1-Year Warranty on All Parts

Key Features

  • Powerful and fuel-efficient Perkins Engine
  • Reliable 4WD system for superior traction
  • Smooth Hydrostatic Transmission (HST) for effortless control
  • Precision Full Hydraulic Steering
  • Durable and compact design for multi-purpose applications
  • Compatible with a wide range of agricultural attachments
  • Ideal for farms, orchards, landscaping, and turf maintenance
