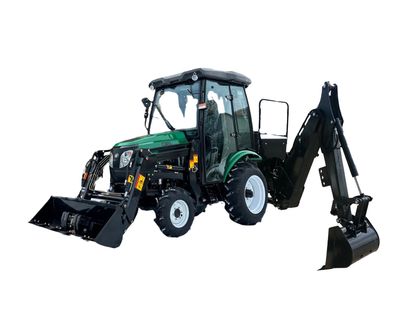

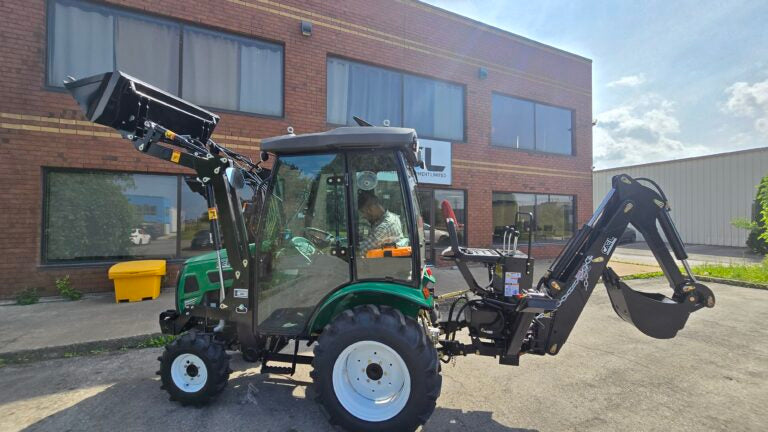

Tractor with Cab, Loader and Backhoe

Tractor with Cab, Loader and Backhoe

$24,999.00 CAD
$24,999.00 CAD $24,999.00 CAD
Sale Sold out
Shipping calculated at checkout.

Get quote now

We Accept

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Low Prices
  • Warranty Included
  • Order Tracking

Engineered for efficiency, durability, and versatility, this compact 4WD tractor is designed to meet the demanding needs of modern agriculture, landscaping, orchards, and turf management. Powered by the reliable Perkins 403F-11 engine and equipped with advanced hydrostatic transmission, it ensures smooth operation, superior maneuverability, and consistent performance across diverse terrains.

Tractor Specifications

Parameter Specification
Drive Type 4WD
Overall Dimensions (L × W × H) 3180 × 1285/1450 × 2290 mm (125.20 × 50.59/57.09 × 90.16 in)
Wheel Track – Front 970 / 1210 mm (38.19 / 47.64 in)
Wheel Track – Rear 1000 / 1160 mm (39.37 / 45.67 in)
Wheelbase 1540 mm (60.63 in)
Ground Clearance 300 mm (11.81 in)
Rated Traction Force 6620 N (1,488 lbf)
Construction Mass 1080 kg (2,381 lbs)
Minimum Turning Radius 3.27 m (10.73 ft)

Theoretical Speed

Mode Speed
Forward (Low Range) 0–8.2 km/h (0–5.10 mph)
Reverse (Low Range) 0–8.2 km/h (0–5.10 mph)
Forward (High Range) 0–20 km/h (0–12.43 mph)
Reverse (High Range) 0–20 km/h (0–12.43 mph)

Engine Specifications

Parameter Specification
Model Perkins 403F-11
Type 3-Cylinder Vertical, Water-Cooled, 4-Stroke, Indirect Injection
Rated Power 18.4 kW / 25 HP
Rated Speed 2600 rpm
Bore × Stroke 77 × 81 mm (3.03 × 3.19 in)
Total Displacement 1.131 L (69.0 cu in)

Drive System

Component Specification
Clutch Monolithic Dry Friction Clutch
Gearbox Hydrostatic Transmission (HST) with Two Gears
Main Drive Spiral Bevel Gears
Differential Dual Closed Planetary Wheels
Differential Lock Tooth Type

Traveling Mechanism

Component Specification
Front Tyres 26 × 7.5–12 Grass Tires
Rear Tyres 11.2–20 Grass Tires
Steering System Full Hydraulic Steering
Braking System Double Pedal Disc Brakes

Working Device & Hydraulics

Component Specification
Hydraulic Lifting Capacity (at 610 mm behind lift point) 3900 N (876.9 lbf)
Three-Point Hitch Category I

Power Take-Off (PTO)

Rear PTO

Parameter Specification
Rotational Speed 540 / 1000 rpm
Spline Size 6-Φ35 Rectangular Spline

Mid PTO

Parameter Specification
Rotational Speed 2000 rpm
Spline Size 11-Teeth Involute Spline

Attachments Available

  • Cultivator
  • Disc Harrow
  • Mower

Warranty

1-Year Warranty on All Parts

Key Features

  • ✔ Powerful and fuel-efficient Perkins Engine
  • ✔ Robust 4WD System for superior traction and stability
  • ✔ Smooth and responsive Hydrostatic Transmission (HST)
  • ✔ Precision Full Hydraulic Steering for effortless maneuverability
  • ✔ Compact design ideal for orchards, vineyards, and small farms
  • ✔ Durable construction ensuring long-term reliability
  • ✔ Compatible with a wide range of agricultural attachments

Tractor-CAEL-245-Operation-manual_(1)

View full details
