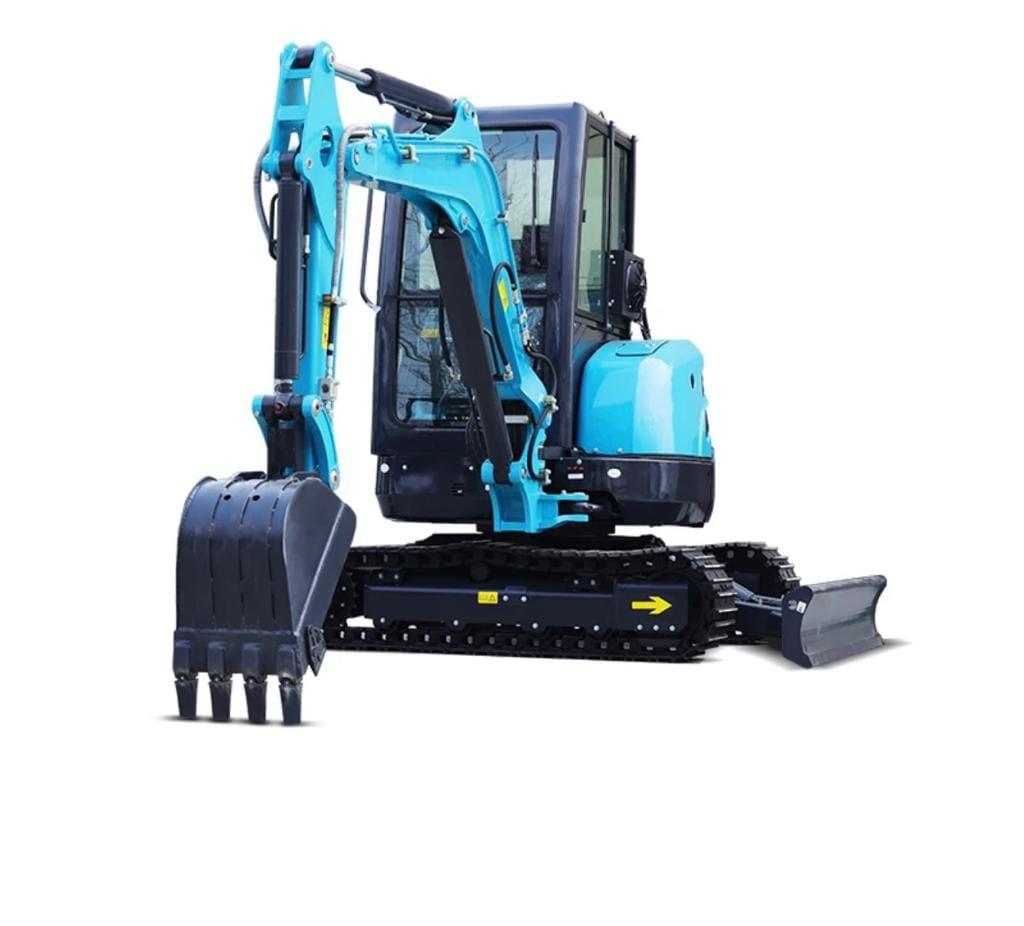

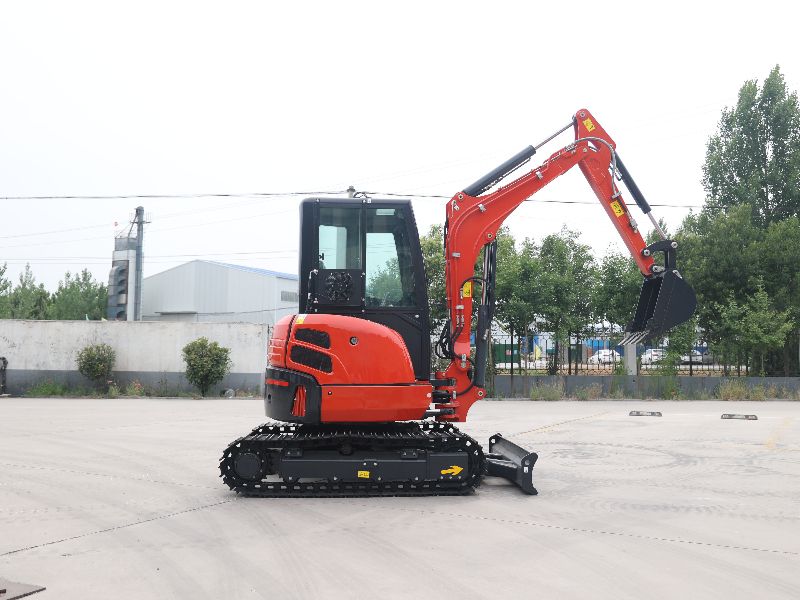

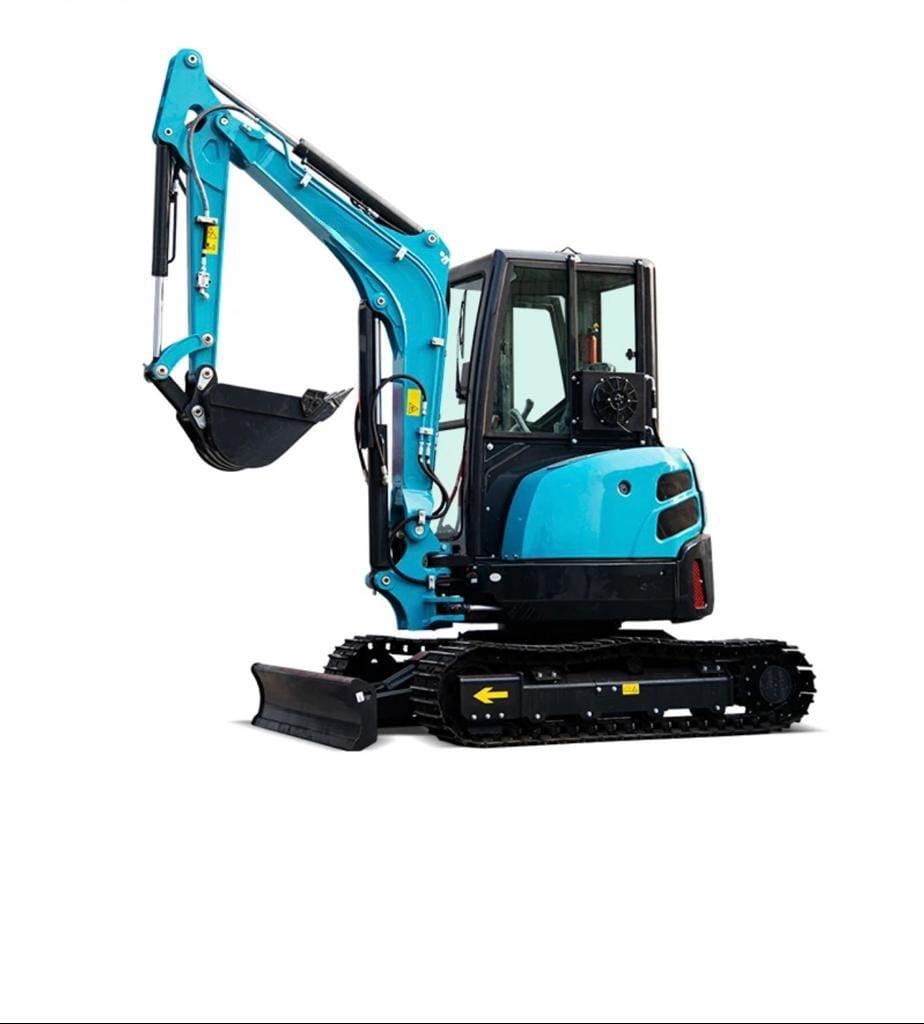

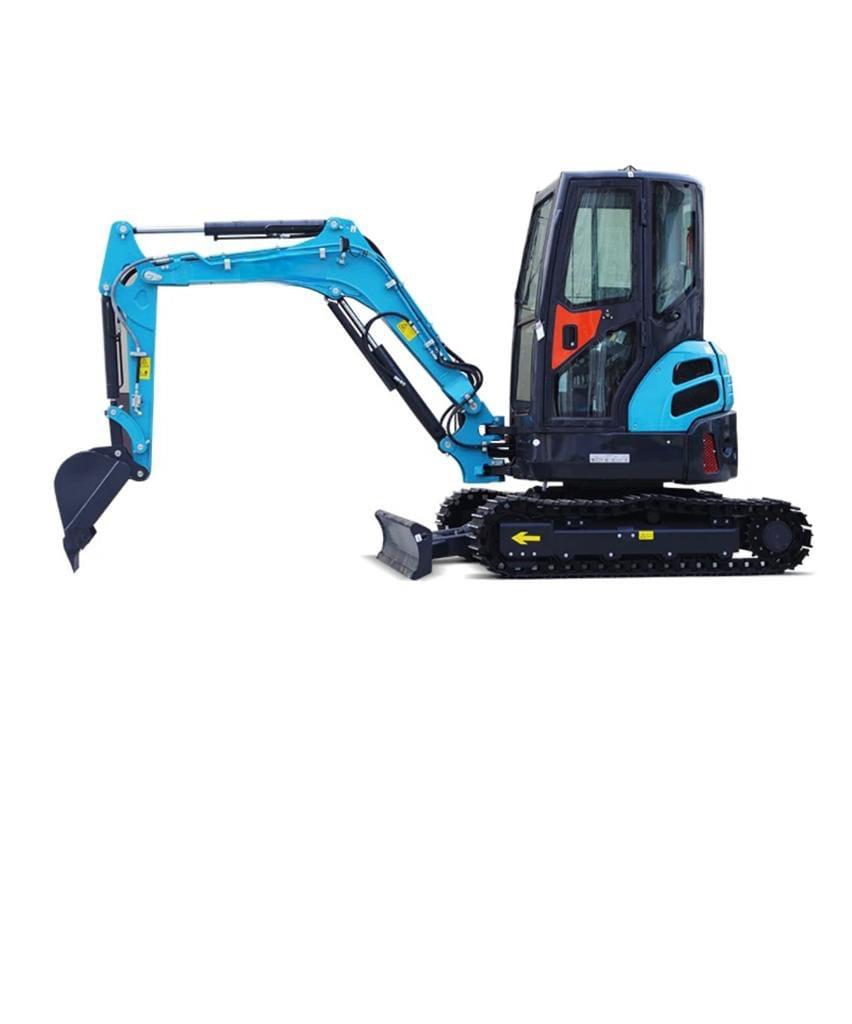

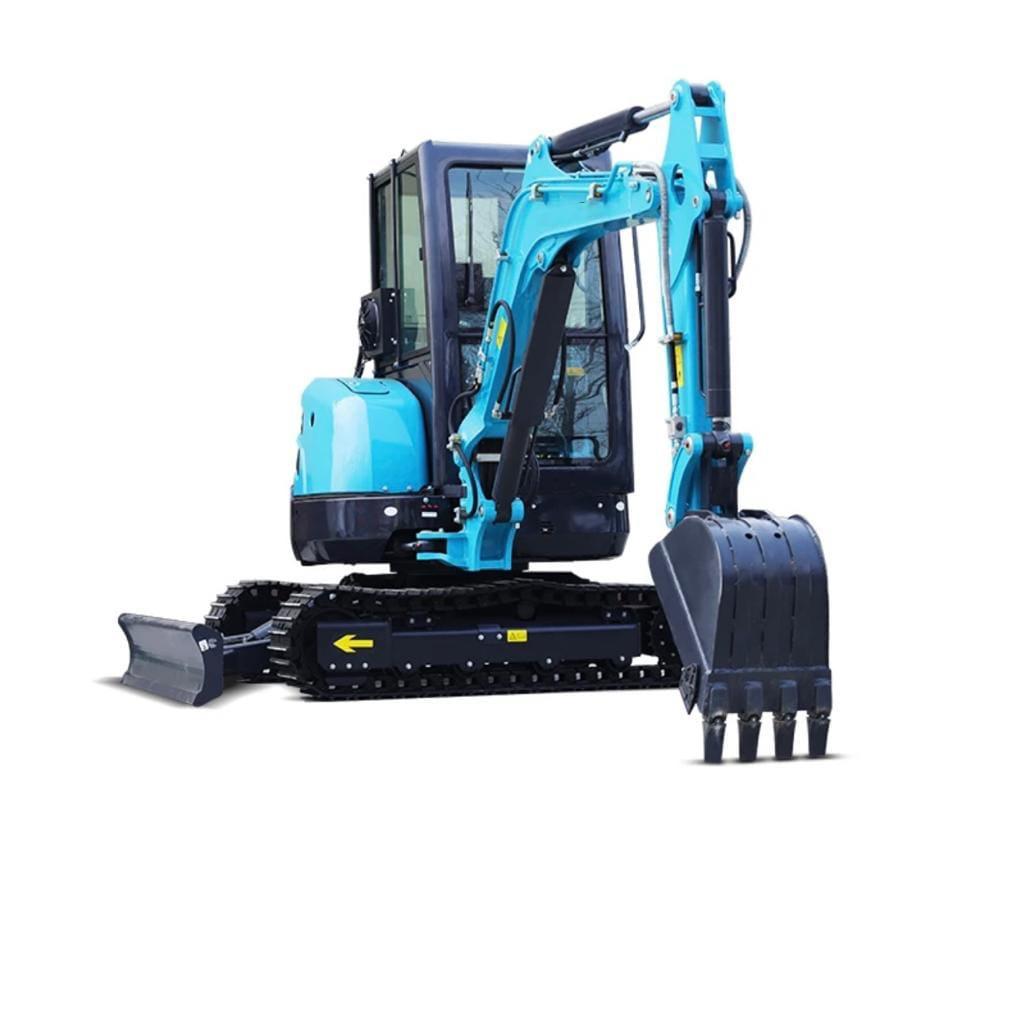

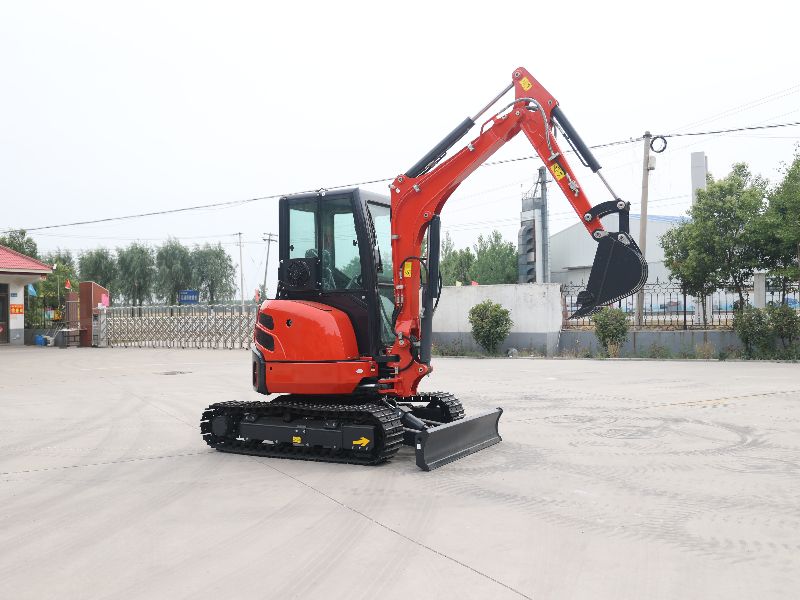

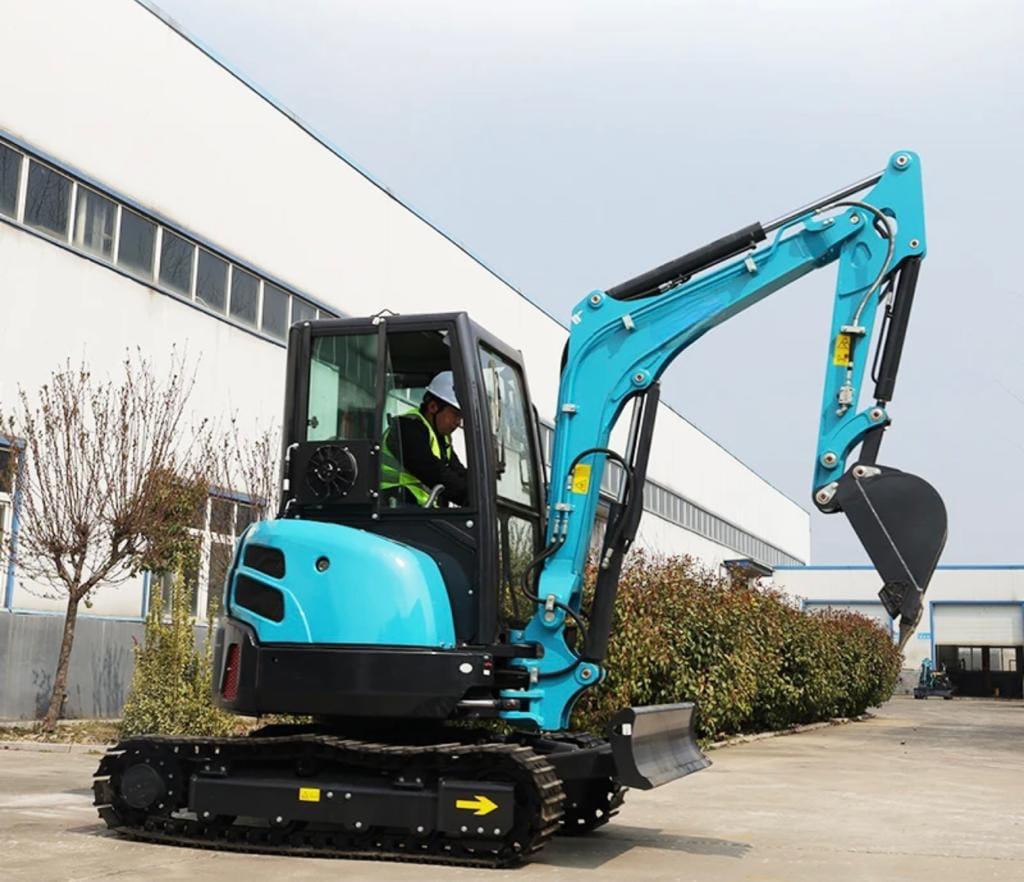

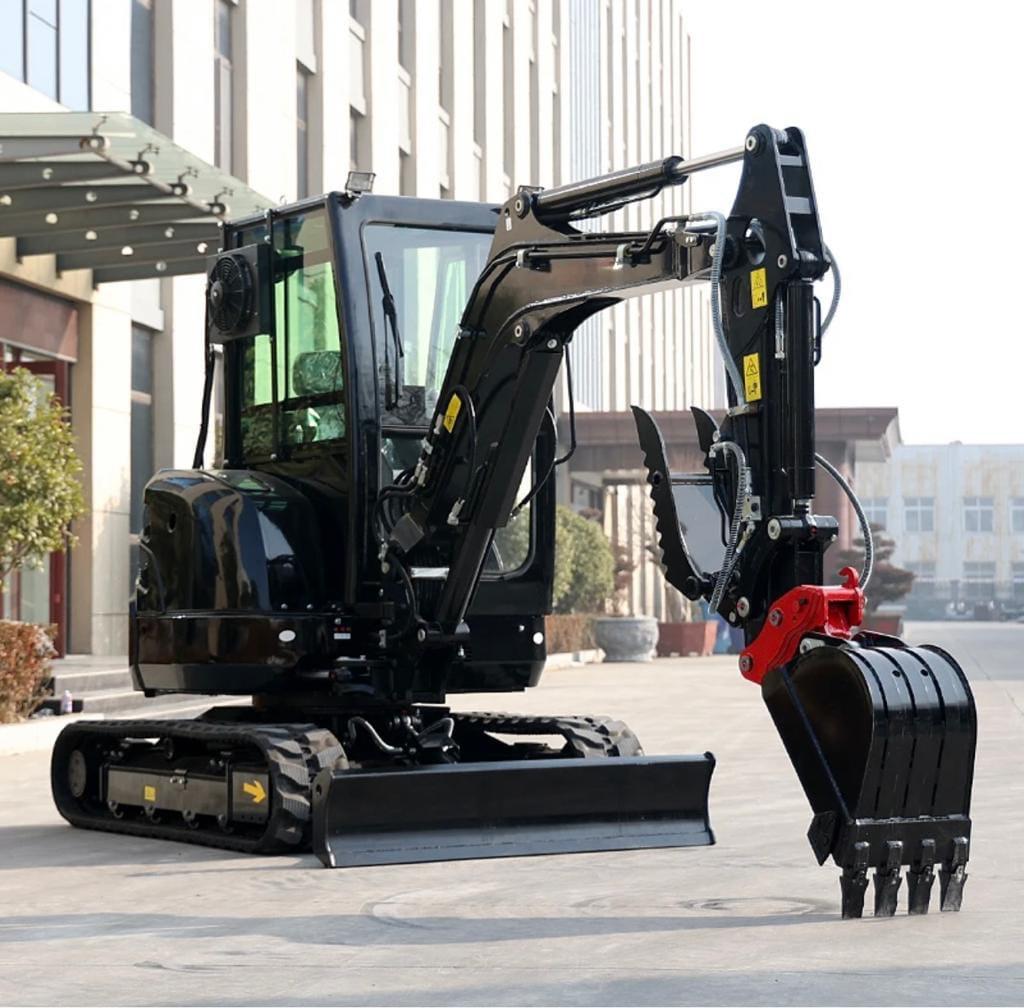

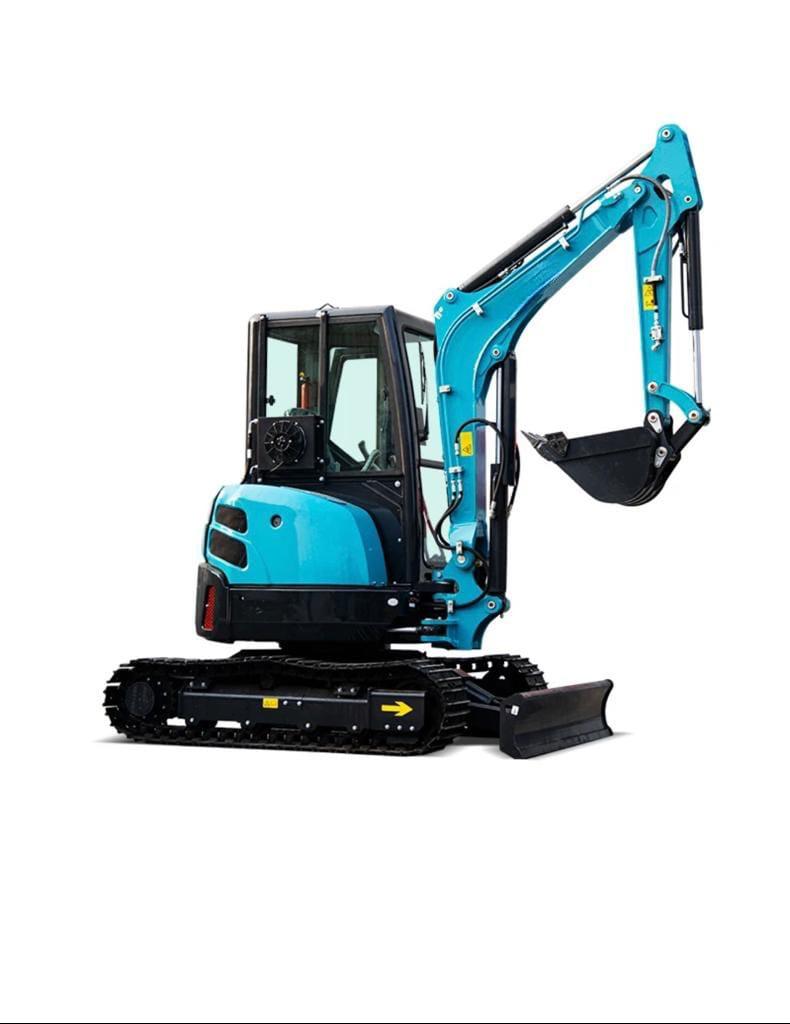

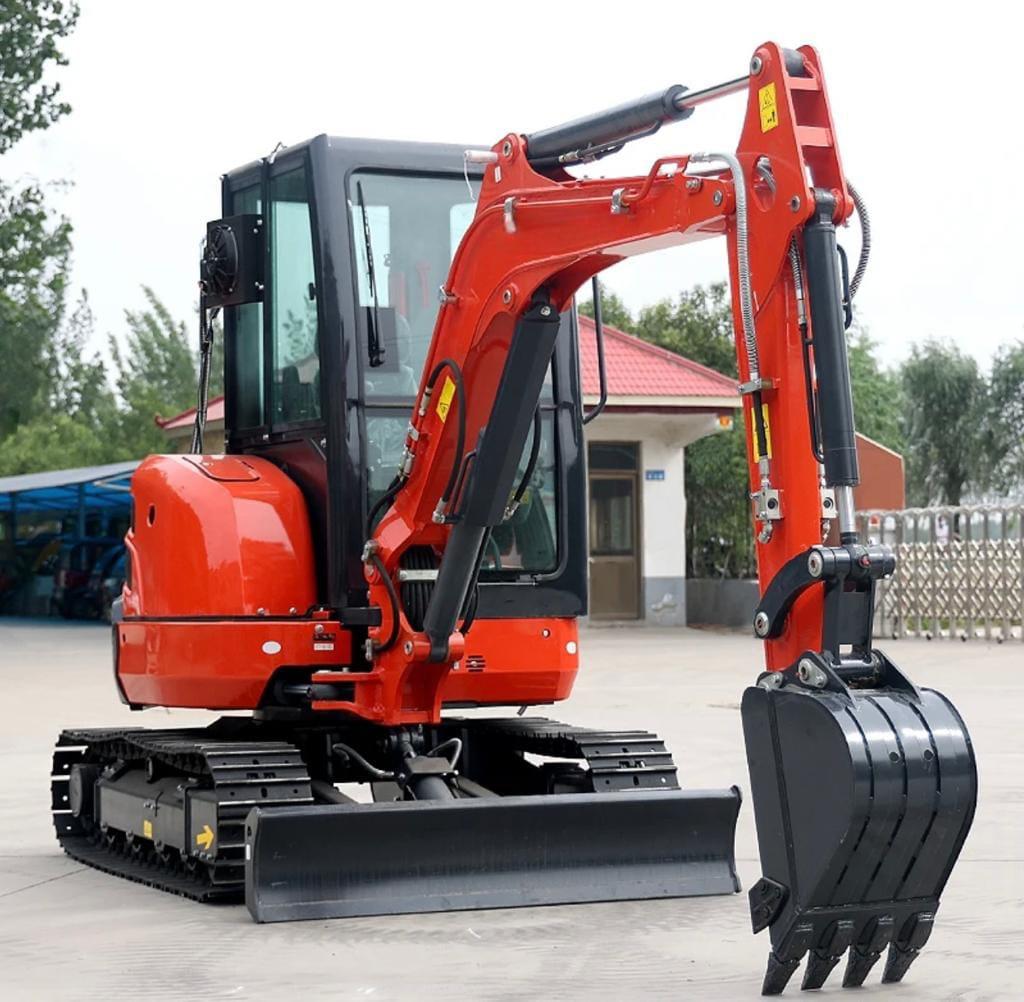

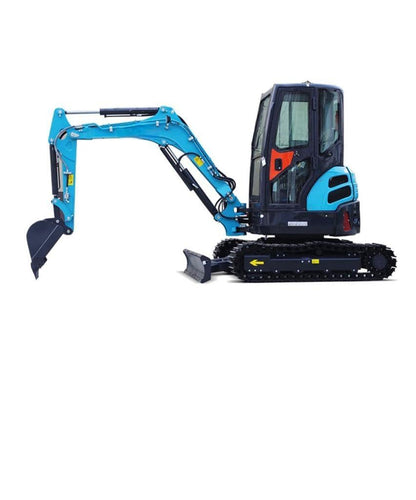

Zero Turn Excavator 3.5 Ton With Swing Boom, AC and Hydraulic Thumb (EX35ZT)

Name: Zero Turn Excavator 3.5 Ton With Swing Boom, AC and Hydraulic Thumb (EX35ZT)
Brand: My Store
Price: 35999.00 CAD
Availability: InStock

$35,999.00 CAD

$35,999.00 CAD ~~$35,999.00 CAD~~

Sale Sold out

Shipping calculated at checkout.

Hurry, only 3 left in stock

Quantity

Get quote now

We Accept

Low Prices
Warranty Included
Order Tracking

Presenting the revolutionary CAEL 3.5 Ton Zero Turn Excavator, engineered to deliver unmatched precision, efficiency, and versatility. Featuring a swing boom, air-conditioned cabin, and hydraulic thumb, this compact powerhouse is designed for superior performance in confined spaces and demanding job sites. With its zero-tail swing design, it ensures maximum maneuverability without compromising power.

Key Features

✅ Zero Tail Swing for operation in tight spaces
✅ Swing Boom for enhanced flexibility and precision
✅ Hydraulic Thumb for improved material handling

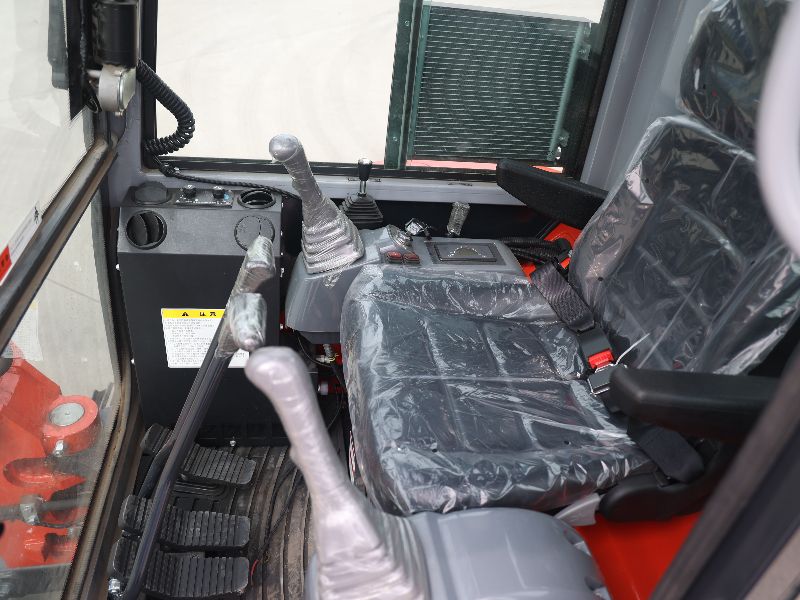

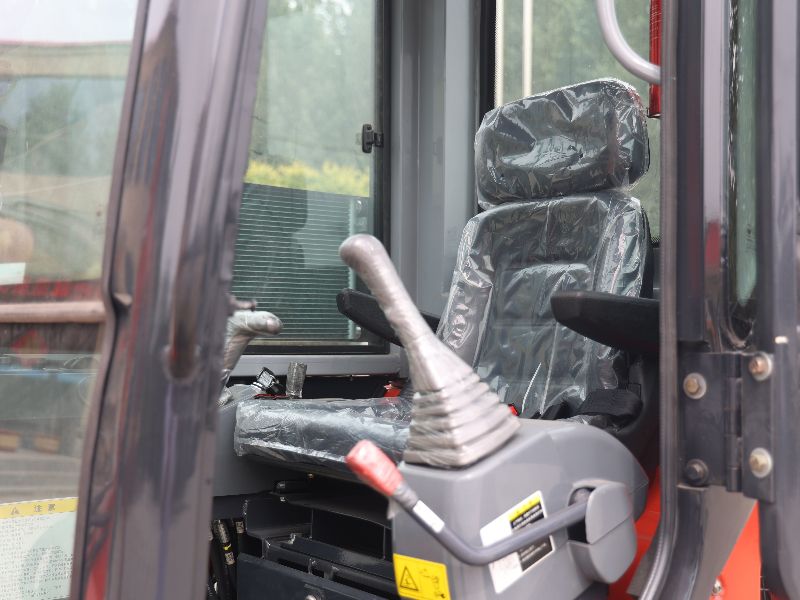

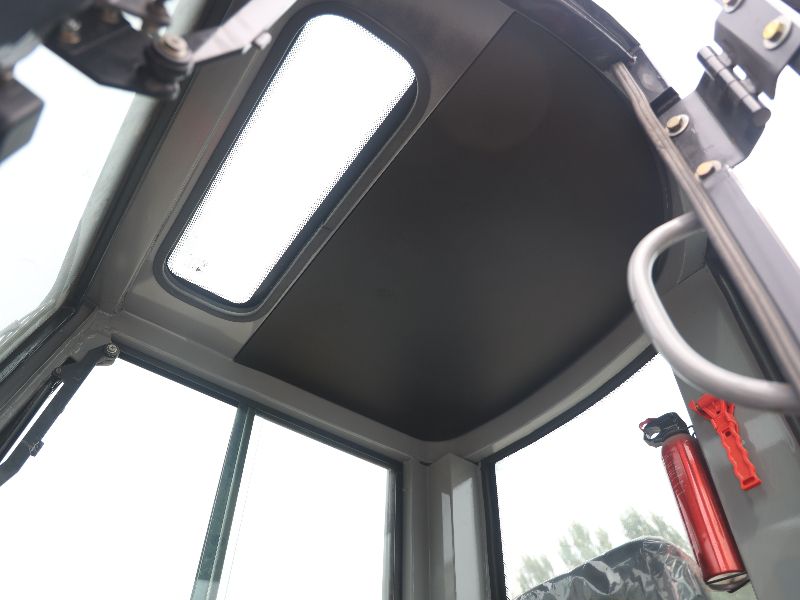

✅ Air-Conditioned Cabin for operator comfort
✅ Powerful and Reliable Engine Options
✅ Advanced Hydraulic System for smooth performance
✅ Durable Undercarriage for stability and longevity
✅ Ideal for urban construction and landscaping projects

General Parameters

Parameter	Specification
Operating Weight	3,515 kg (7,750 lbs)
Bucket Capacity	0.09 m³
Bucket Width	520 / 470 mm (20.47 / 18.50 in)
Ground Pressure	28 kPa
Fuel Tank Capacity	40 L

Engine Specifications

Parameter	Specification
Engine Options	Kubota V1505 / Yanmar 3TNV88F
Rated Power	18.5 kW (24.8 HP)
Engine Type	4-Cylinder, 4-Stroke, Water-Cooled Diesel
Bucket Excavating Force (ISO)	26.5 kN

Machine Dimensions

Parameter	Specification
Overall Dimensions (L × W × H)	4,485 × 1,550 × 2,440 mm (176.57 × 61.02 × 96.06 in)
Track Length	2,100 mm (82.68 in)
Track Width	300 mm (11.81 in)
Track Center Distance	2,100 mm (82.68 in)
Minimum Ground Clearance	290 mm (11.42 in)
Bulldozer Blade Height	335 mm (13.19 in)

Performance Specifications

Parameter	Specification
Maximum Excavating Height	4,600 mm (181.10 in)
Maximum Dumping Height	3,175 mm (125.00 in)
Maximum Digging Depth	2,880 mm (113.39 in)
Maximum Vertical Wall Digging Depth	2,305 mm (90.75 in)
Maximum Excavation Reach	4,965 mm (195.47 in)
Maximum Ground-Level Reach	4,845 mm (190.75 in)
Minimum Front Swing Radius	2,035 mm (80.12 in)
Minimum Rear Swing Radius	790 mm (31.10 in)
Maximum Blade Lift Height	360 mm (14.17 in)
Maximum Blade Cutting Depth	340 mm (13.39 in)
Bucket Digging Force (ISO)	26.5 kN
