Features
- High-performance stationary air compressor ideal for powering hoses and pneumatic tools such as sanders, sprayers, nail guns, and more in automotive garages, warehouses, and machine shops
- Equipped with a large 80-gallon vertical air tank, powered by a heavy-duty single-phase 230V induction motor operating at 3450 RPM for consistent airflow
- CSA-approved 7.5 HP motor with double cast iron construction, featuring a one-piece cast iron crankcase and full cast iron cylinder body for superior durability
- Delivers up to 175 PSI maximum working pressure for demanding applications and optimal tool performance
- Includes ¼” and ½” NPT connectors to support simultaneous operation of multiple tools
- Air outlet ports allow for easy manual draining to help prevent rust and corrosion
- Heavy-duty oil-lubricated cast iron pump designed with a reinforced crankcase and full cast iron cylinder body for long-term industrial use
Specifications
- Electric Motor: AC 230V / 60Hz, single phase, 7.5 HP
- Induction Motor Speed: 3450 RPM
- Compression Type: 2-stage
- Maximum Working Pressure: 175 PSI
- Air Delivery:
- 17.5 CFM @ 40 PSI
- 15 CFM @ 90 PSI
- Air Tank Capacity: 80-gallon vertical tank
- Tank Fill Time: Less than 6 minutes
- Noise Level: 80 dB
- Connections:
- (1) ¼” NPT quick connector
- (1) ½” NPT valve
Product Description

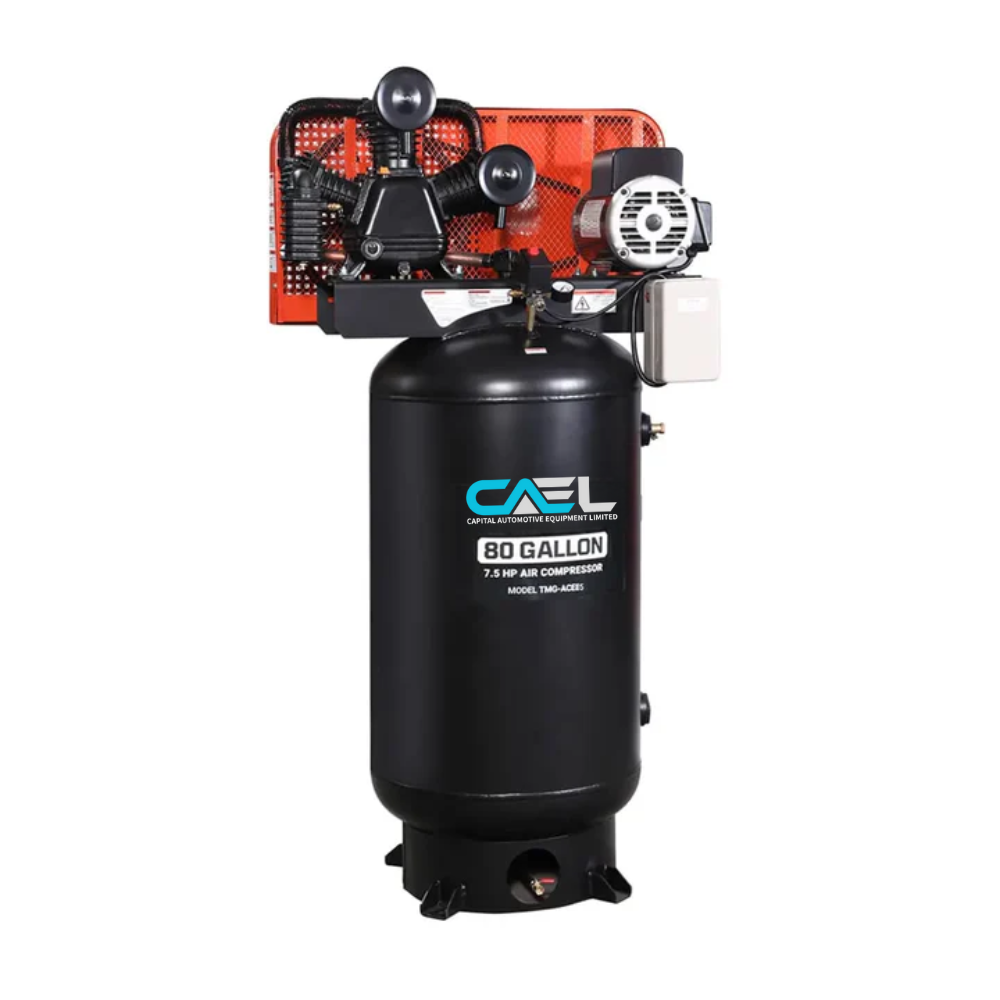

The CAEL-ACE85 7.5 HP 2-Stage Stationary Electric Air Compressor is built for heavy-duty performance and long-lasting reliability. Featuring a high-capacity 80-gallon air tank, this compressor is powered by a CSA-approved, oil-lubricated, double cast iron motor with a one-piece cast iron crankcase and full cast iron cylinder body.
Designed for professional environments such as automotive workshops, manufacturing facilities, and repair garages, it delivers consistent airflow without power fluctuations. Dual ¼” and ½” quick connectors allow operators to run two tools simultaneously, while the integrated drain outlet enables easy moisture removal to protect against internal corrosion.
The robust 230V single-phase induction motor, operating at 3450 RPM, ensures steady output during continuous operation. A finned tube intercooler enhances cooling efficiency, prolongs valve life, reduces carbon buildup, and improves overall compressor performance. Built to withstand demanding industrial conditions, this air compressor is a dependable solution for high-output applications.
CAEL also offers a full range of air compressors, including:
CAEL-ACE10, CAEL-ACE25, CAEL-ACE60, CAEL-ACE65, CAEL-ACE80
Shipping Information
- Ships from one of our primary warehouses in North America
- Order processing time: 2–3 business days
- Estimated delivery time: 10–15 business days, depending on location and accessibility
- Securely packed in a metal crate shipping box
- Shipping Dimensions: 40” × 26” × 77” (L × W × H)
- Shipping Weight: 575 lb
Warranty
When you choose CAEL equipment, you’re investing in reliability you can trust. Every CAEL product includes a 1-year warranty, providing confidence and peace of mind with every purchase.
This warranty covers manufacturing defects in materials and workmanship, ensuring consistent performance across demanding work environments. Beyond warranty coverage, our dedicated customer support team is committed to assisting you throughout the life of your machine—whether you need technical guidance, troubleshooting, or parts support.
