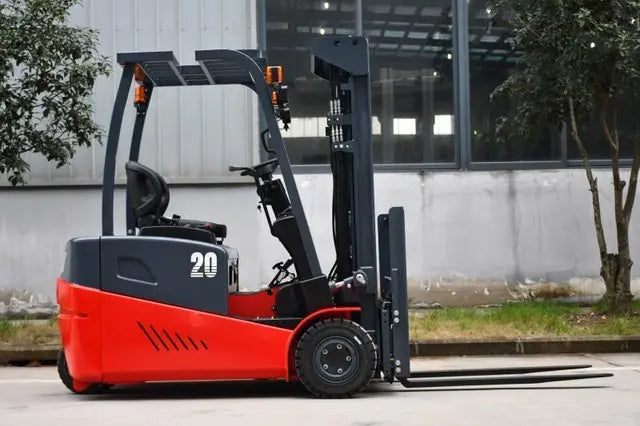

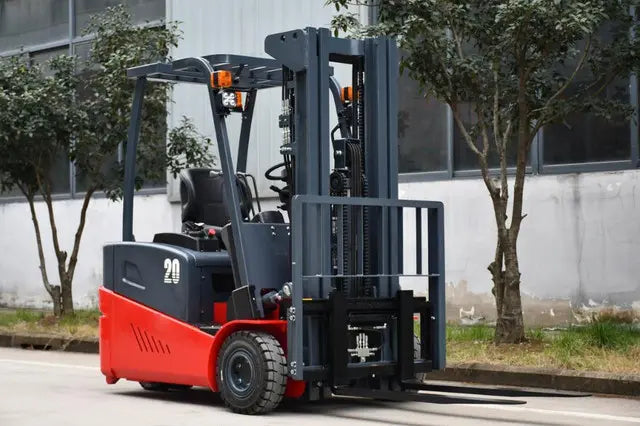

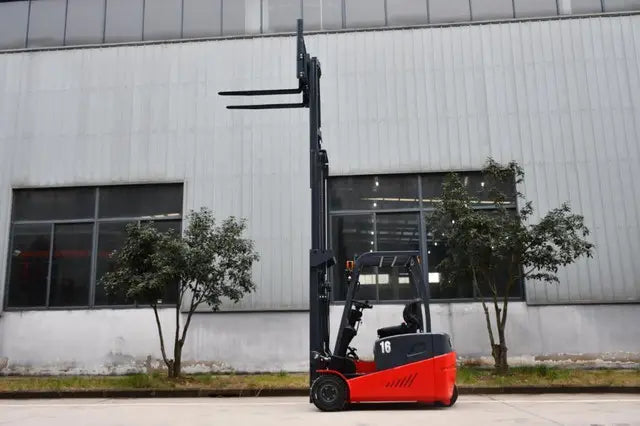

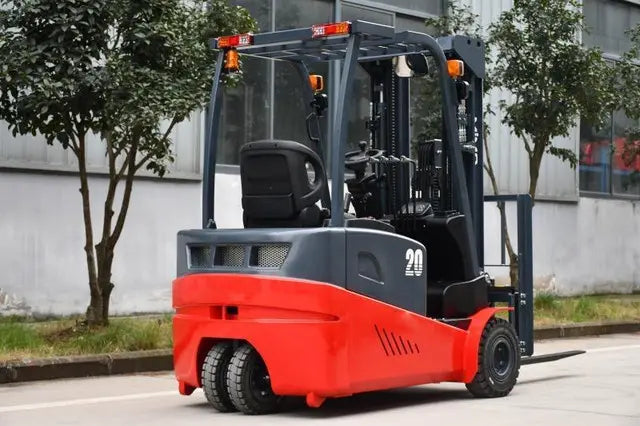

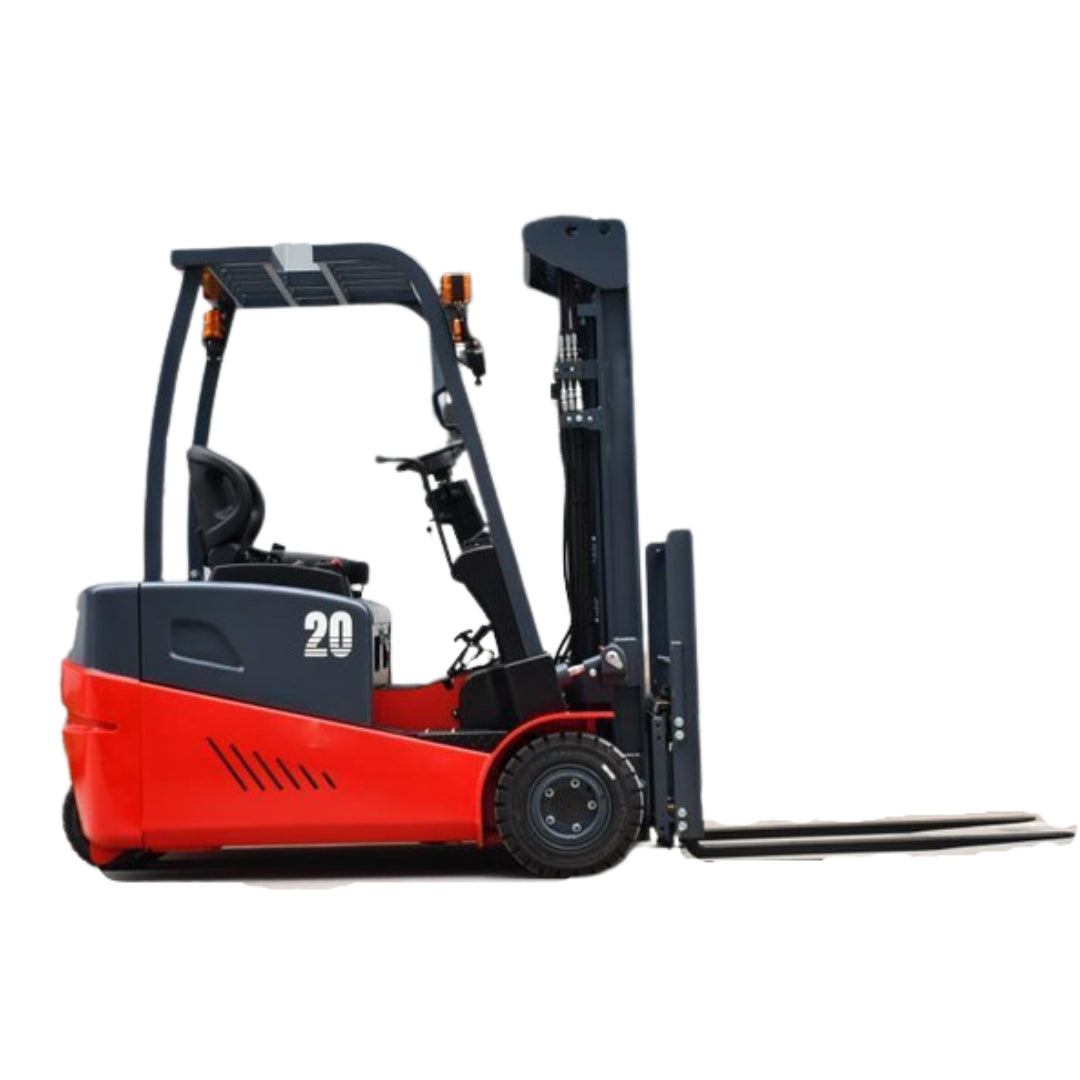

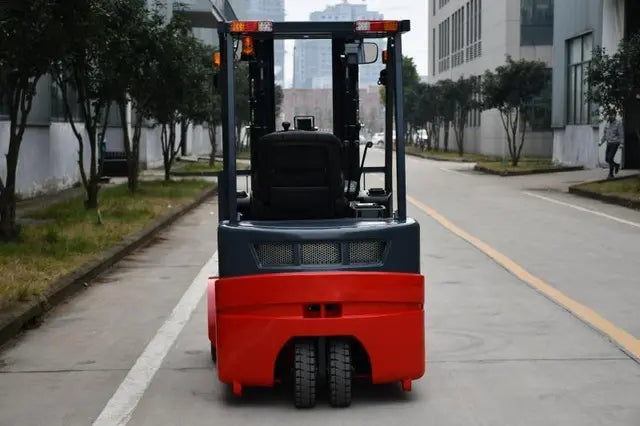

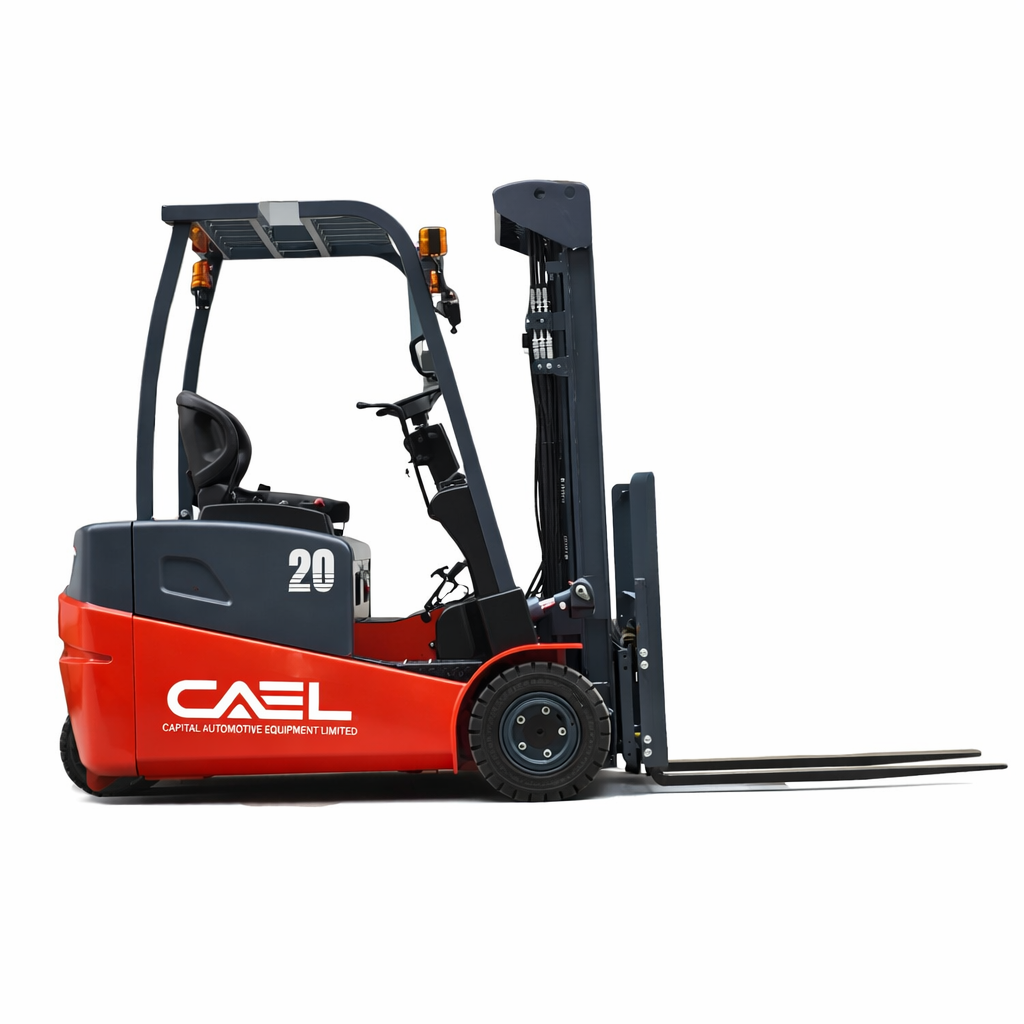

The CAEL 1.5T Three-Wheel Counterbalance Electric Forklift is designed to deliver exceptional maneuverability, precision, and efficiency in confined workspaces. Engineered with an advanced AC motor and a reliable Curtis controller, this forklift ensures smooth acceleration, superior control, and energy-efficient performance.
Its compact design and tight turning radius make it an ideal solution for warehouses, logistics centers, retail environments, and manufacturing facilities. Equipped with a duplex mast and a side shifter, it enhances productivity by enabling precise load positioning and efficient stacking.
Key Specifications
General Information
| Specification | Details |
|---|---|
| Brand | CAEL |
| Type | Three-Wheel Counterbalance Electric Forklift |
| Load Capacity | 1,500 kg (3,300 lbs) |
| Load Center | 500 mm (19.6 in) |
| Motor Type | AC Motor |
| Controller | Curtis Controller |
| Tyres | Solid Tyres |
| Attachment | Side Shifter |
| Steering Type | Hydraulic Power Steering |
| Battery | 48V / 260Ah |
Mast & Lifting Specifications
| Specification | Measurement |
|---|---|
| Mast Type | Standard Duplex Mast |
| Lifting Height | 3,500 mm (138 in) |
| Maximum Lifting Height | 3,000 mm (118 in) |
| Free Lift Height | 150 mm (6 in) |
| Fork Positioner Range | 200–950 mm (7.8–37.4 in) |
Dimensions
| Specification | Measurement |
|---|---|
| Overall Dimensions (L × W × H) | 2,700 × 980 × 2,100 mm (106 × 38.5 × 82.6 in) |
| Wheelbase | 1,250 mm (49 in) |
| Front Wheelbase | 850 mm (33.4 in) |
| Driving Wheelbase | 190 mm (7.4 in) |
| Ground Clearance | 10 mm (0.39 in) |
| Minimum Turning Radius | 1,600 mm (63 in) |
Aisle Requirements
| Parameter | Measurement |
|---|---|
| Aisle Width with 1000 × 1200 mm Pallet | 3,250 mm (128 in) |
| Aisle Width with 800 × 1200 mm Pallet | 3,150 mm (124 in) |
Performance
| Specification | Measurement |
|---|---|
| Travel Speed (Loaded/Unloaded) | 8 / 10 km/h |
| Lifting Speed (Loaded/Unloaded) | 240 / 450 mm/s |
| Maximum Gradeability (Loaded/Unloaded) | 15% / 20% |
Wheel Configuration
| Specification | Details |
|---|---|
| Front Wheels | 2 |
| Driving Wheels | 2 |
Key Features & Benefits
- Compact Three-Wheel Design: Exceptional maneuverability in tight spaces.
- Efficient AC Motor: Ensures smooth, powerful, and energy-saving performance.
- Curtis Controller: Provides precise control and enhanced operational safety.
- Side Shifter: Enables accurate and efficient load positioning.
- Zero Emissions: Ideal for indoor and environmentally sensitive environments.
- Tight Turning Radius: Perfect for narrow aisles and congested warehouses.
- Solid Tyres: Durable and maintenance-free for long-term reliability.
- Ergonomic Operation: Enhances operator comfort and productivity.
- High-Capacity Battery: 48V/260Ah battery ensures extended working hours.
- Low Operating Costs: Reduced maintenance and energy consumption.
