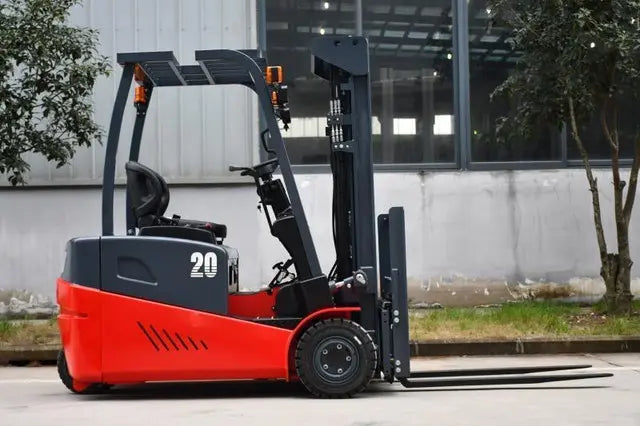

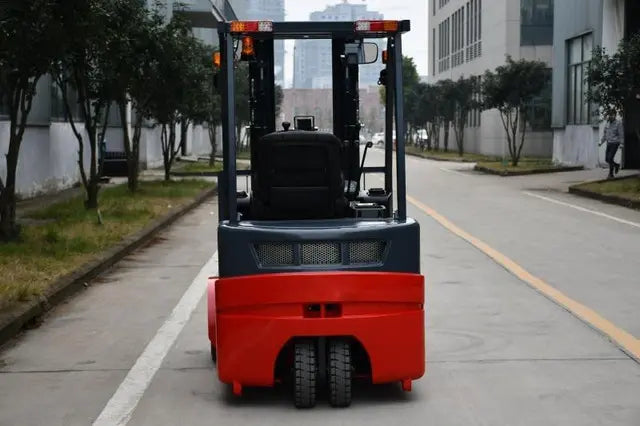

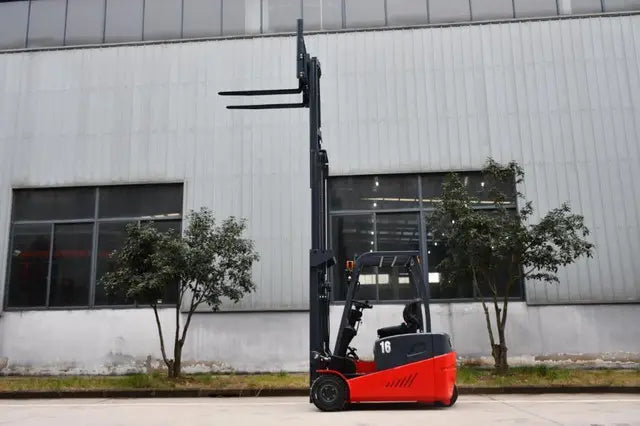

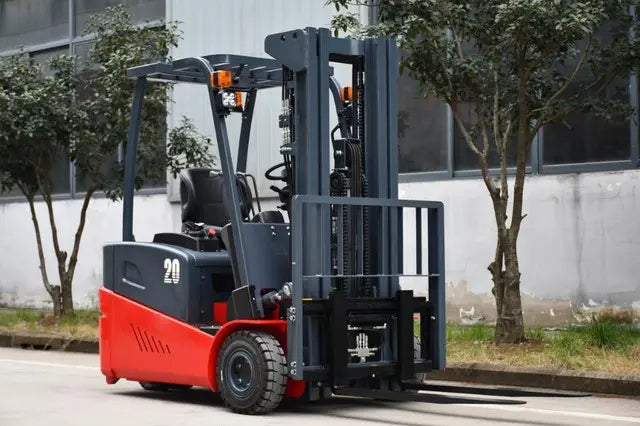

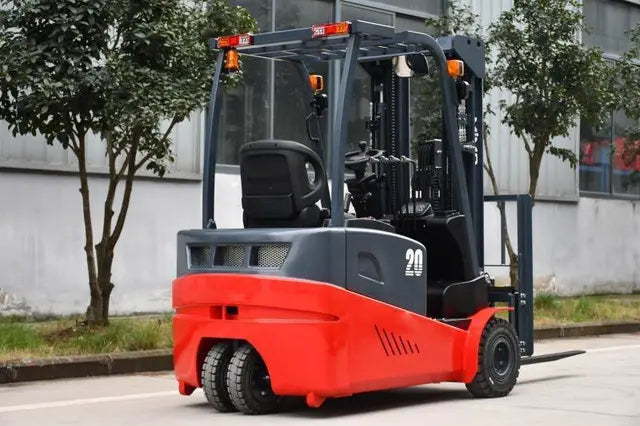

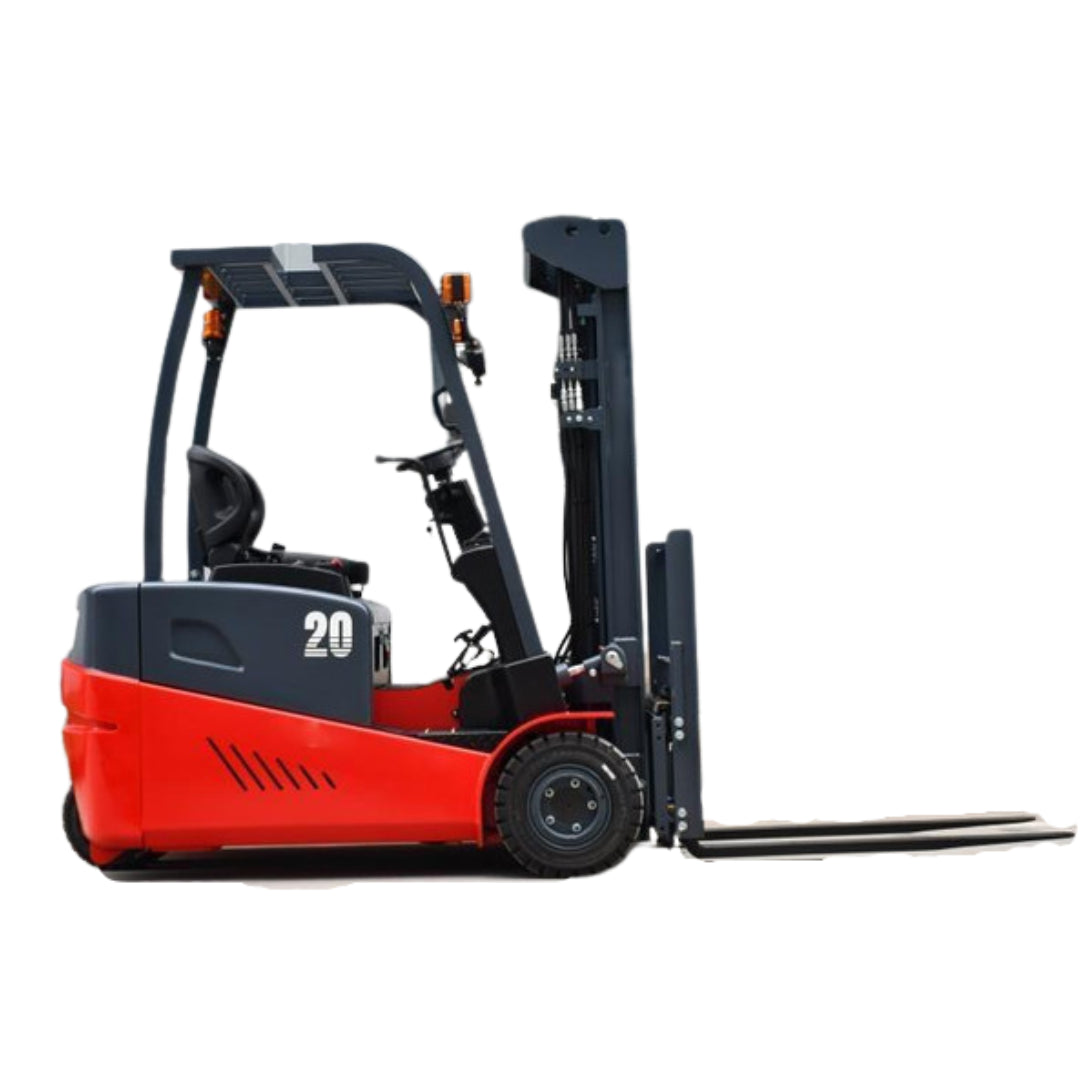

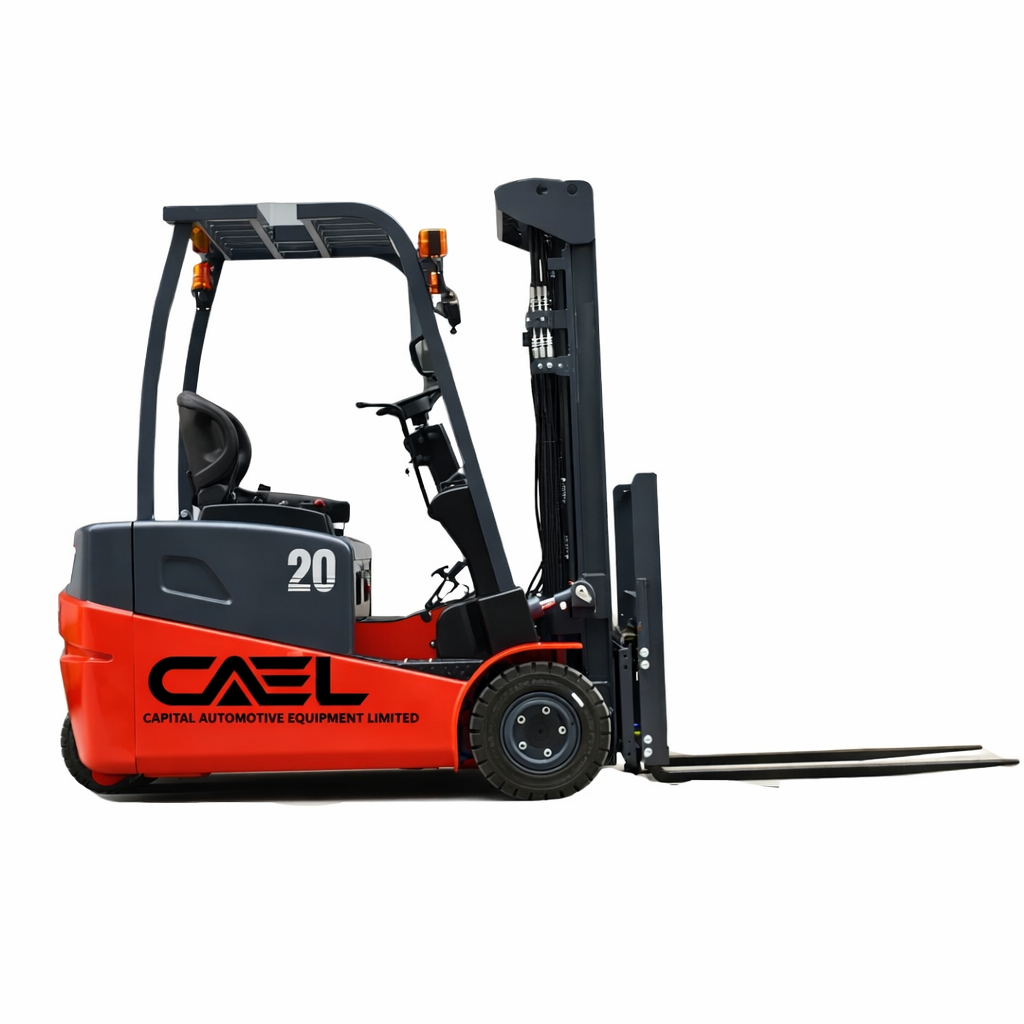

The CAEL 2T Three-Wheel Counterbalance Electric Forklift is a versatile and energy-efficient material handling solution engineered for narrow aisles and indoor operations. Designed with advanced AC technology and a Curtis controller, this electric forklift delivers superior maneuverability, smooth performance, and exceptional reliability. Its compact design makes it ideal for warehouses, retail spaces, logistics centers, and manufacturing facilities.
Key Specifications
| Specification | Details |
|---|---|
| Brand | CAEL |
| Type | Three-Wheel Counterbalance Electric Forklift |
| Load Capacity | 2,000 kg (4,400 lbs) |
| Load Center | 500 mm (19.6 in) |
| Motor Type | AC Motor |
| Controller | Curtis Controller |
| Tyres | Solid Tyres |
| Attachment | Side Shifter |
| Steering Type | Hydraulic Power Steering |
| Battery | 48V / 260Ah |
Dimensions & Performance
| Parameter | Measurement |
|---|---|
| Lifting Height | 3,500 mm (137.7 in) |
| Standard Mast | Duplex Mast |
| Maximum Lifting Height | 3,000 mm (118 in) |
| Free Lift Height | 150 mm (5.9 in) |
| Fork Positioner Range | 200–950 mm (7.8–37.4 in) |
| Wheelbase | 1,250 mm (49 in) |
| Front Wheelbase | 850 mm (33.4 in) |
| Driving Wheelbase | 190 mm (7.4 in) |
| Overall Dimensions (L × W × H) | 2,700 × 980 × 2,100 mm (106 × 38.5 × 82.6 in) |
| Ground Clearance | 10 mm (0.39 in) |
| Minimum Turning Radius | 1,600 mm (63 in) |
Aisle Requirements
| Parameter | Measurement |
|---|---|
| Aisle Width with 1000 × 1200 mm Pallet | 3,250 mm (128 in) |
| Aisle Width with 800 × 1200 mm Pallet | 3,150 mm (124 in) |
Performance Metrics
| Parameter | Measurement |
|---|---|
| Travel Speed (Loaded/Unloaded) | 8 / 10 km/h |
| Lifting Speed (Loaded/Unloaded) | 240 / 450 mm/s |
| Maximum Gradeability (Loaded/Unloaded) | 15% / 20% |
Key Features & Benefits
- Compact Three-Wheel Design: Ensures excellent maneuverability in confined spaces.
- Efficient AC Motor: Provides smooth acceleration and energy-efficient operation.
- Curtis Controller: Delivers precise control, reliability, and enhanced safety.
- Side Shifter: Enables accurate load positioning and improved productivity.
- Solid Tyres: Offer durability and puncture-proof performance.
- Hydraulic Power Steering: Ensures effortless and comfortable handling.
- High-Capacity Battery: The 48V/260Ah battery supports extended operating hours.
- Tight Turning Radius: Ideal for narrow aisles and indoor warehouse operations.
- Eco-Friendly Operation: Zero emissions and low noise for indoor use.
- Ergonomic Design: Enhances operator comfort and efficiency.
