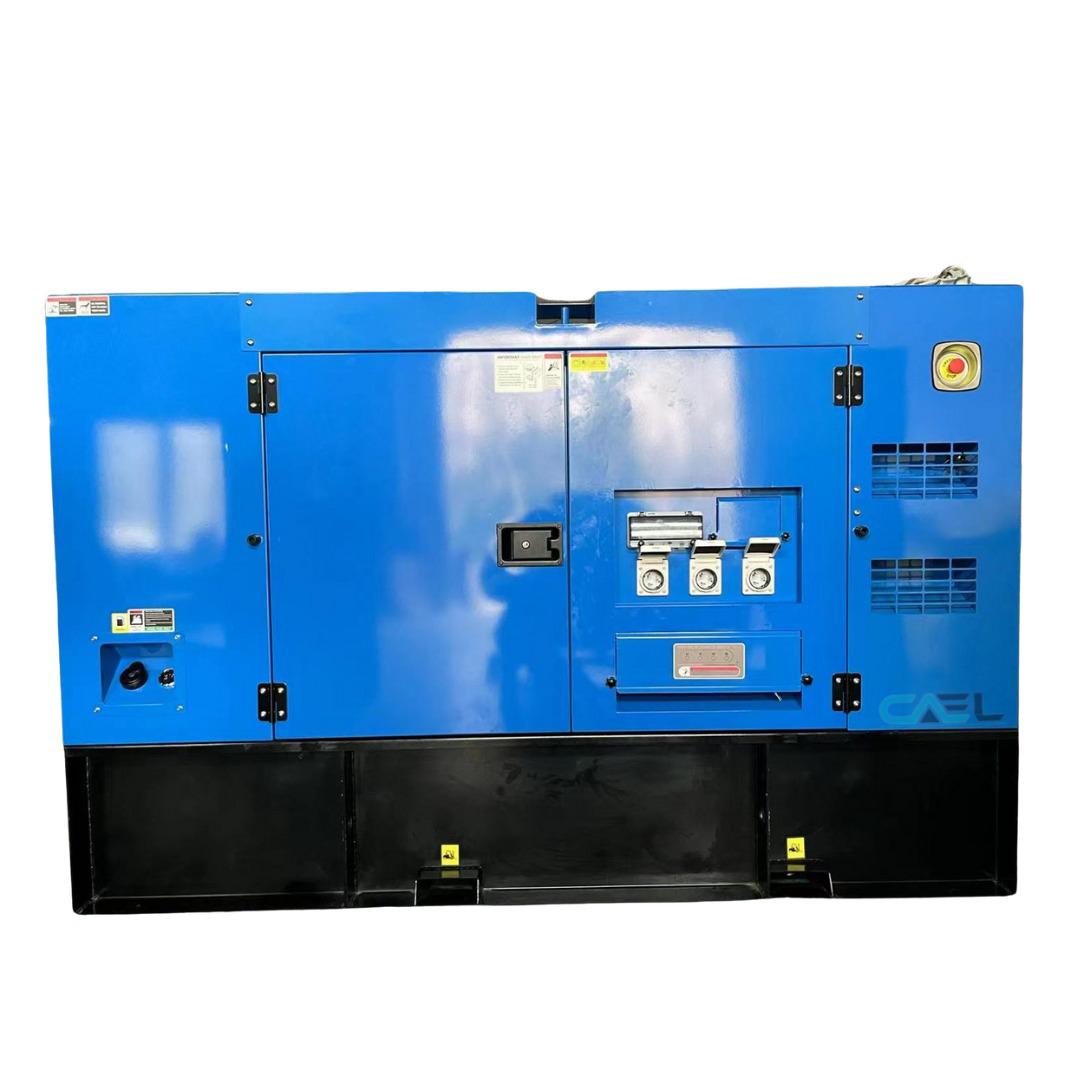

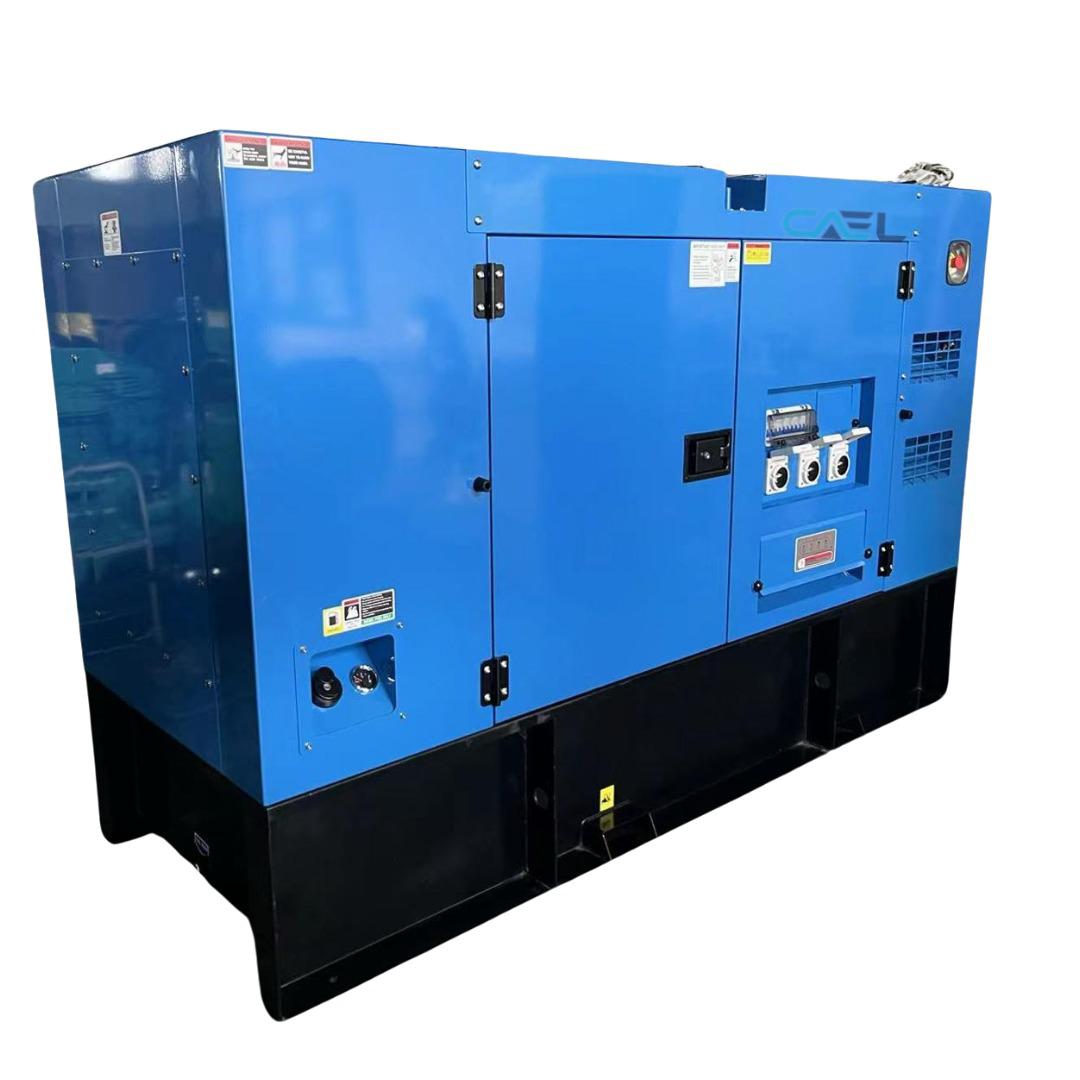

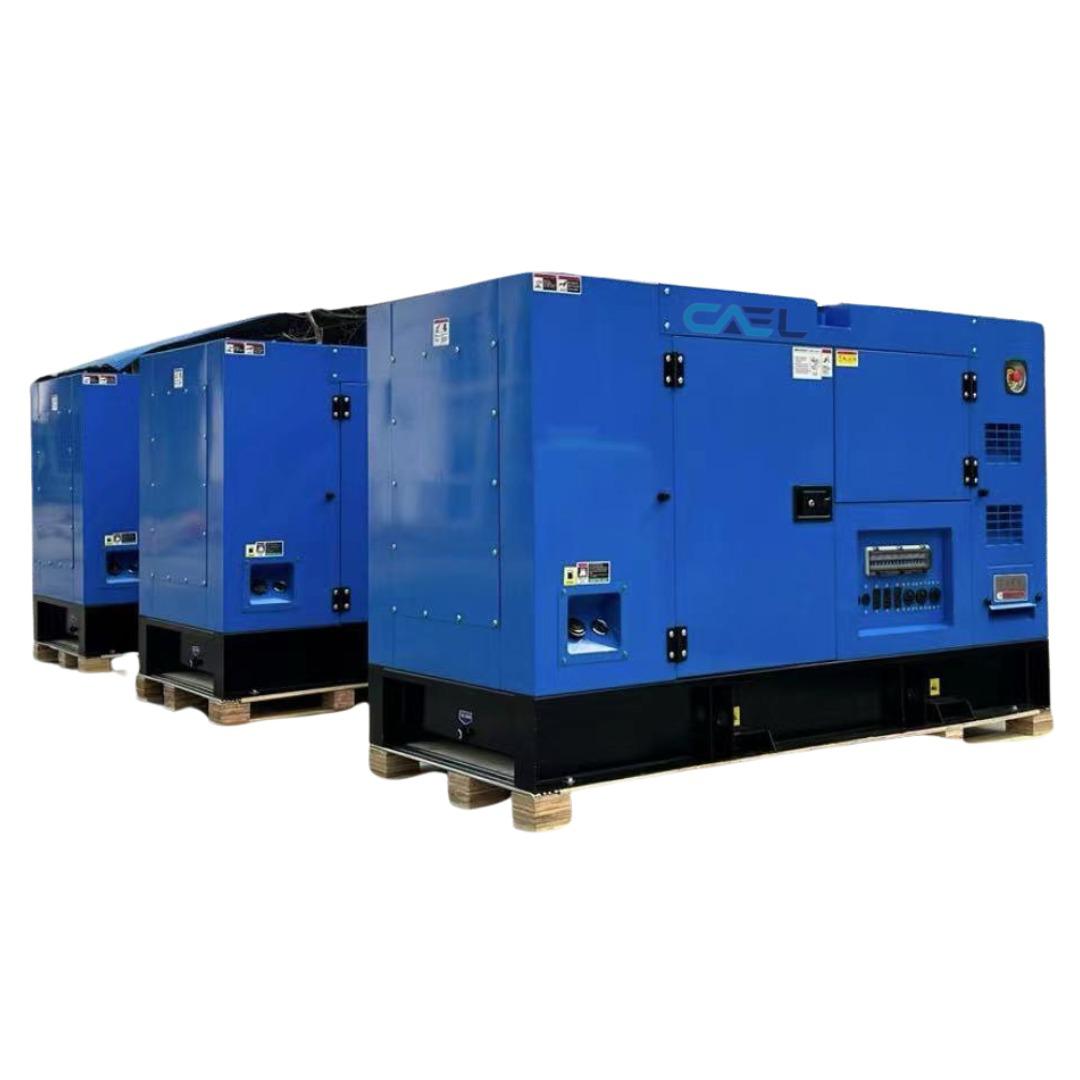

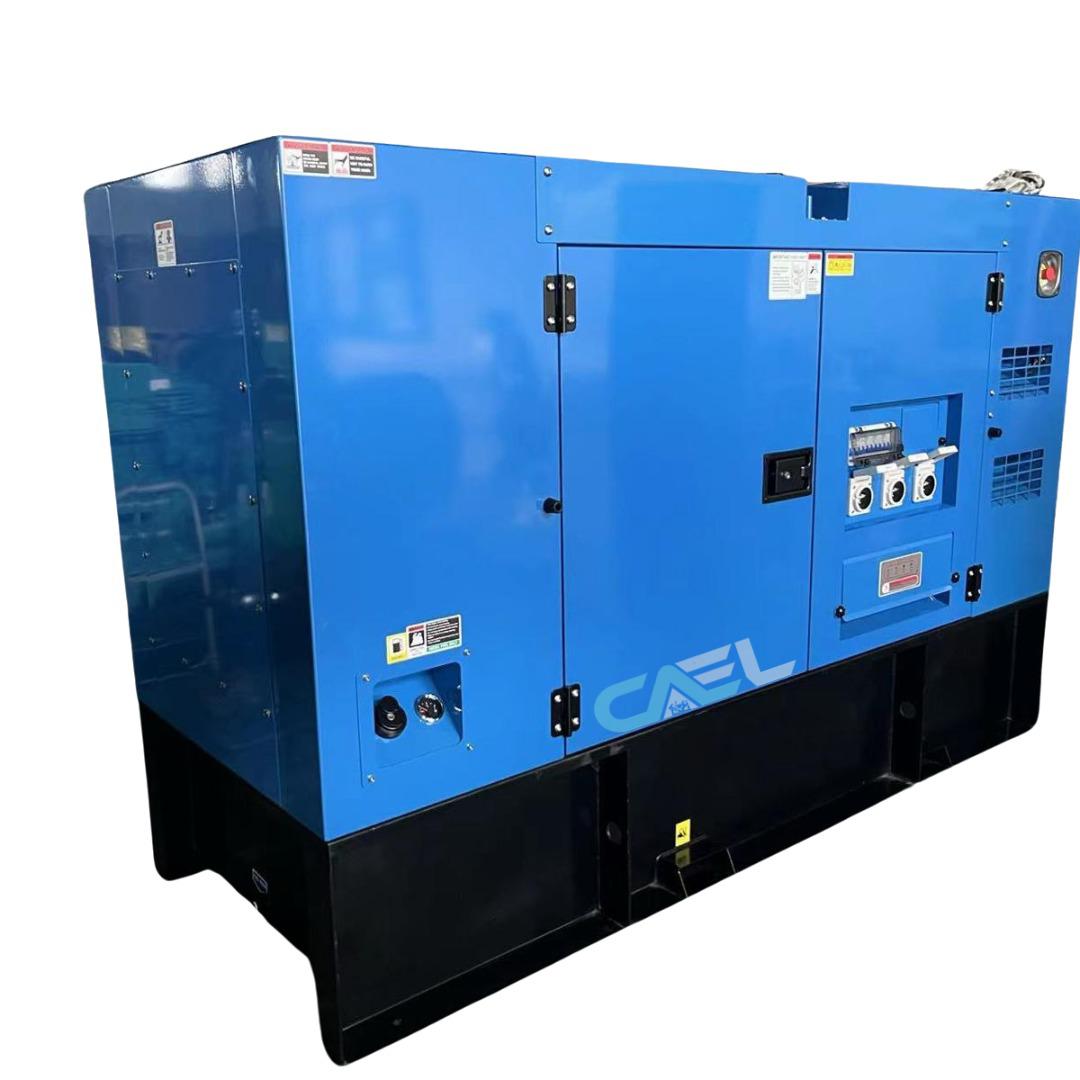

The CAEL 80KW / 100KVA Diesel Generator is a powerful and dependable solution designed for prime and standby power applications. Powered by the globally trusted Perkins 1104-EFFTAG turbocharged engine and paired with a CSA-approved Stamford alternator, this generator delivers stable output, excellent fuel efficiency, and long-term durability.

Engineered for industrial and commercial environments, it features a soundproof weatherproof enclosure, advanced control system, and flexible voltage configurations—ensuring reliable performance even in demanding conditions.

⭐ Key Features

• High-Performance Perkins Engine
  Turbocharged engine delivering strong, fuel-efficient performance
• Premium Stamford Alternator (CSA Approved)
  Brushless design ensures stable voltage and high efficiency
• Flexible Voltage Options
  Supports: 120/240V, 208/420V, 480/277V, 600/347V
• Advanced WiFi Remote Monitoring
  Real-time tracking of generator performance and system status
• Silent Weatherproof Enclosure
  Low-noise operation with protection from harsh environments
• Cold Start Protection System
  Built-in oil and coolant heater for reliable startup
• Electronic Speed Governor
  Maintains stable frequency under varying loads

📐 General Specifications

• Model: 80KW / 100KVA Diesel Generator
• Power Output: 80 kW / 100 kVA
• Frequency / Speed: 60 Hz / 1800 RPM
• Phase: 3 Phase
• Power Factor: 0.8
• Dimensions (L × W × H):
  2,800 × 1,050 × 1,600 mm
  (110 × 41 × 63 in)

⚙️ Engine Specifications (Perkins 1104-EFFTAG)

• Type: 4-Cylinder Inline, Turbocharged
• Displacement: 4.4 L
• Bore × Stroke: 105 × 127 mm
• Cooling System: Liquid-Cooled
• Fuel System: Direct Injection
• Power Output Range:
  • Mechanical: 78–120 kWm
  • Electrical: 80–125 kVA (64–100 kWe)
• Typical Output (60 Hz):
  • Prime: 72–90.9 kWe
  • Standby: 80–100 kWe
• Emission Compliance:
  EU Stage IIIA / U.S. EPA Tier 3

⚡ Alternator Specifications (Stamford)

• Type: Brushless, Single Bearing
• Efficiency: ~90%
• Voltage Regulation: ≤ ±1%
• Voltage Adjustment Range: ≥ 5%
• Insulation Class: H
• Protection Rating: IP23

🔧 Control & Safety System

Digital Monitoring Includes:

• Voltage, frequency, engine speed
• Battery status and running hours

Protection & Alerts:

• Overspeed / Underspeed
• Low oil pressure
• High temperature
• Emergency stop
• Failure to start

Automatic Shutdown:

• Low oil pressure
• High engine temperature
• Overspeed / Underspeed
• Failed start attempts

🛠️ Included Features

• Advanced WiFi Remote Controller
• Brushless Stamford Alternator
• Oil & Coolant Heater
• Silent Soundproof Canopy
• Electronic Speed Governor
• Base Fuel Tank
• 12V DC Electric Start System
• Maintenance-Free Batteries
• Industrial Silencer

⚡ Performance Modes

• Prime Power: Continuous operation with 10% overload capacity
• Standby Power: Reliable backup during outages

🧪 Quality & Compliance

• Tested at 50%, 75%, 100%, and 110% load levels
• Complies with ISO8528 / GB2820 standards

🛡️ Warranty

• 1 Year or 1000 Hours

Applications

• Industrial facilities
• Commercial buildings
• Construction sites
• Hospitals & data centers
• Backup and emergency power systems

Why Choose CAEL Generators?

• Trusted Perkins engine technology
• High-efficiency alternator performance
• Advanced monitoring and protection
• Durable and weather-resistant design
• Reliable power for critical operations
