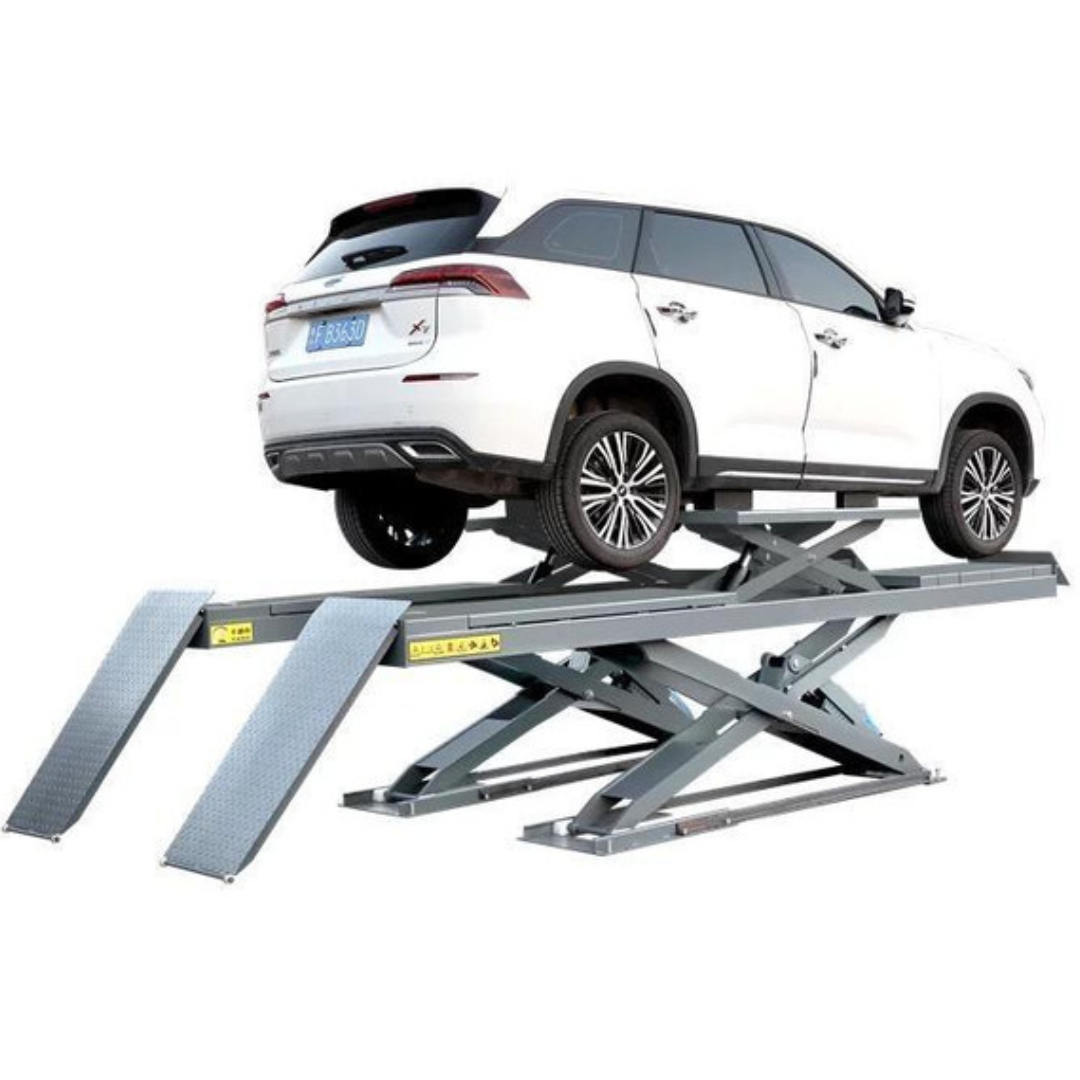

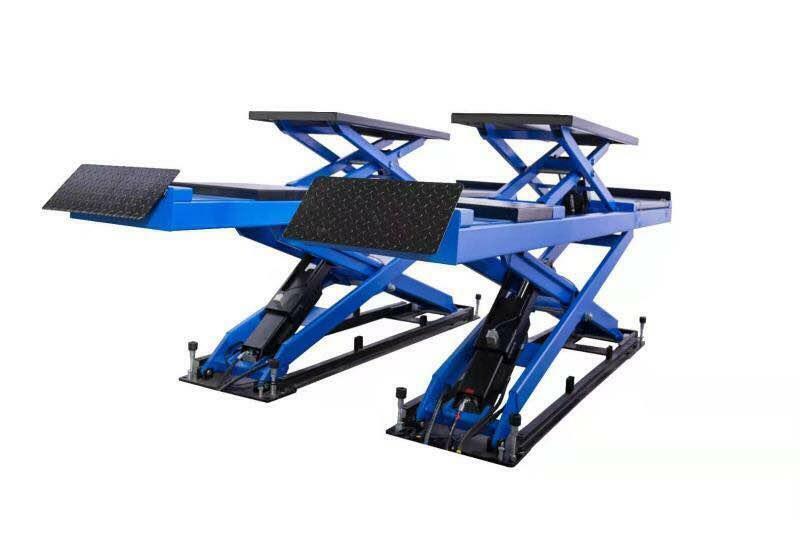

Description
Features:
- In ground installation or above ground installation with optional drive on ramp
- Long sliding plate and adjustable turntable positions accommodate deferent kinds of wheelbases
- Pneumatic safety locking system
- The great planeness of runways is perfect for high accurate wheel aligning
- Extensible 2nd lifting platform
- Self lubricated bushing and bearing
| Capacity |
PRICE (Taxes not incl.) |
| 12000LBS |
$ 11,699 |

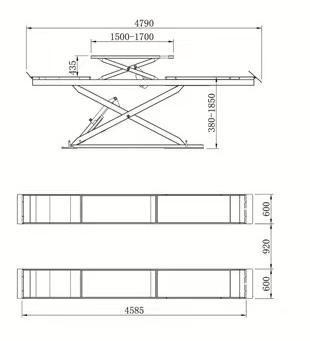

SPECIFICATIONS:
Model: LST-JS450 (12000LBS)
| Max.lifting capacity |
|
| Lifting height |
73 in |
| Min height |
15 in |
| Jack length |
59-67 in |
| Jack |
17 in |
| Lifting time |
60s |
| Platform length |
188.5 in |
| Platform width |
23.6 in |
| Motor power |
220v-2.2kw |
| Rated oil pressure |
20Mpa |
| Air pressure |
0.6-0.8Mpa |
With 1 year warranty for all the parts*
