Description
The CAEL 3.0T Tipper Dumper is powered by a 41 kW Kohler 1903 engine and features a 4WD drivetrain with Isuzu AWD axles for excellent traction. With a 3000 kg rated load and a 1.7 m³ bucket capacity, it delivers strong performance in tight spaces. The dumper’s automatic transmission, joystick controls, and quick lifting (5s) and lowering (4.5s) times make it easy to operate.
Weighing 3600 kg and measuring 4500×1700×2700 mm, it offers great maneuverability. Safety features include a protective brake tube sleeve and centralized refueling nozzle. Optional upgrades like air conditioning and cabin heating enhance comfort, while its ergonomic design and fuel-efficient engine ensure efficient, low-maintenance operation.

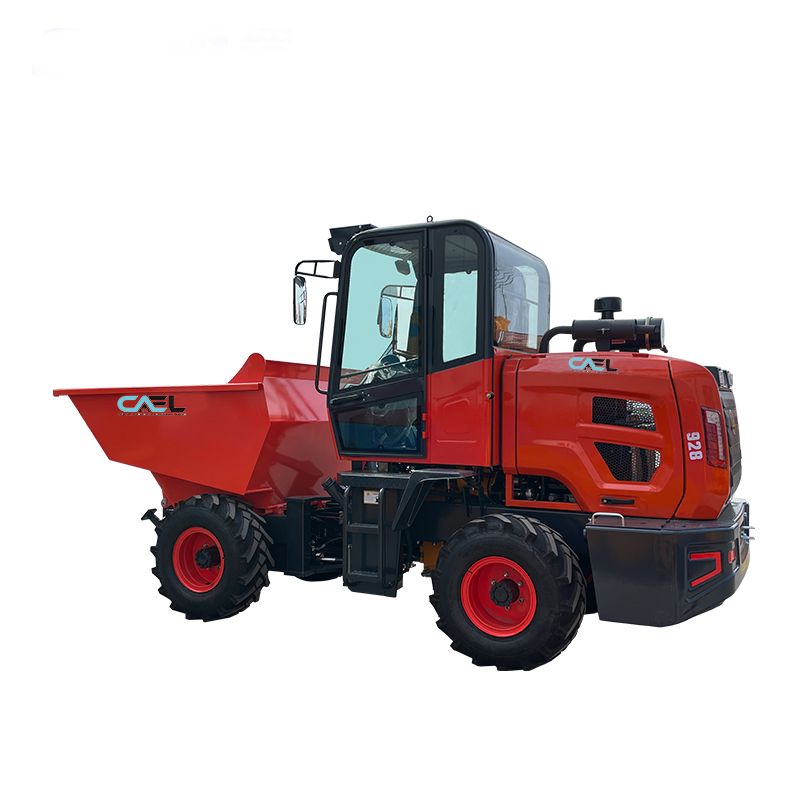

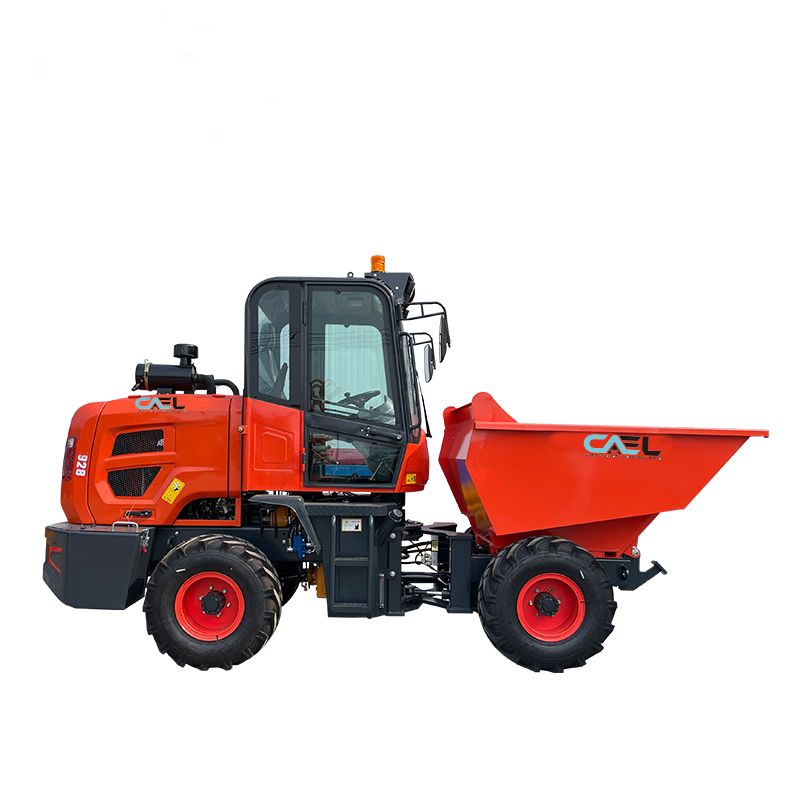

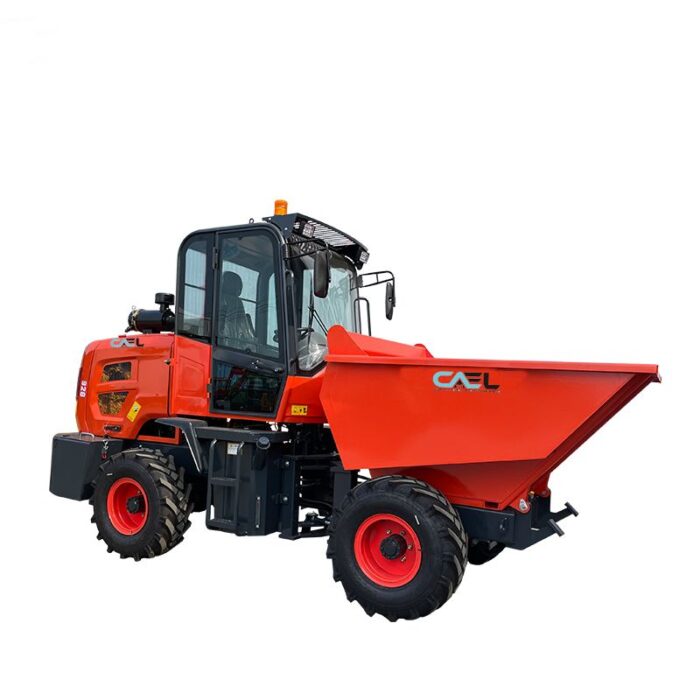

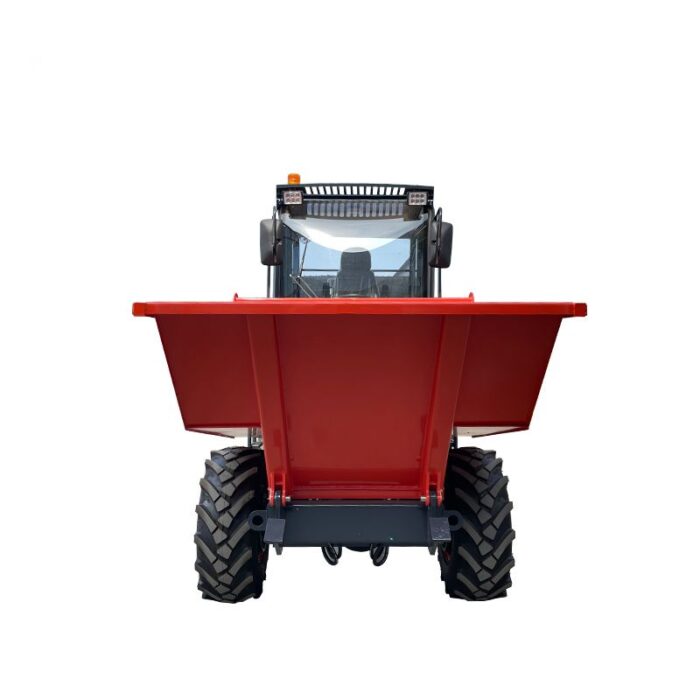

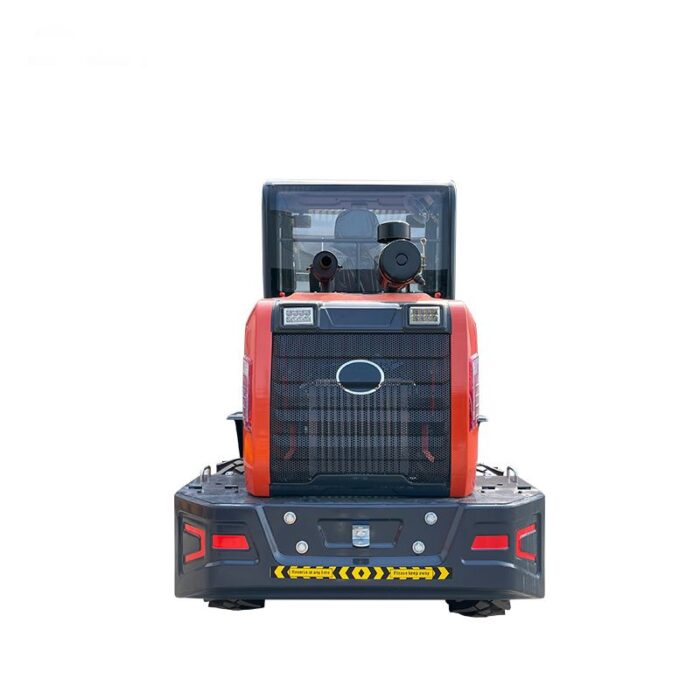

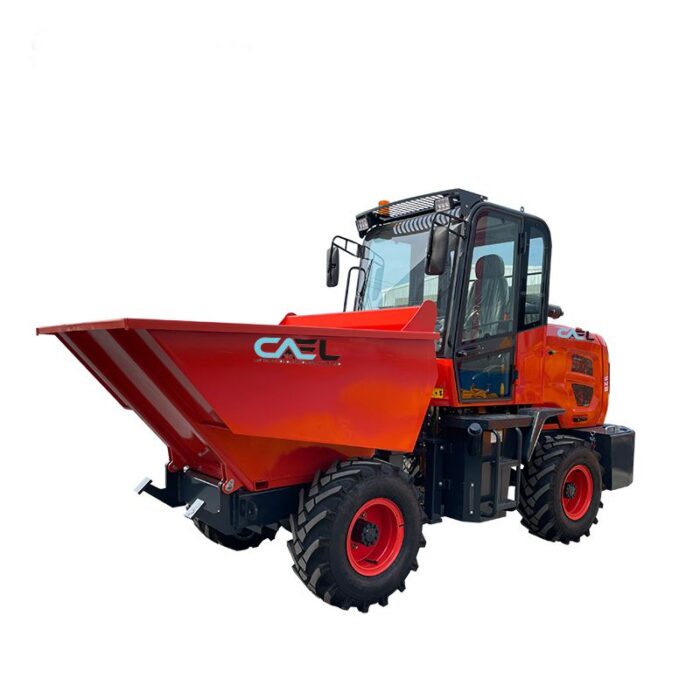

CAEL 3.0T Tipper dumper
Specifications
Engine Performance
Model : Kolher 1903
Power(Kw): 41
Weight(kgs) : 230
Number of Cylinder : 3
General Machine Performance
Operating Weight(kgs) : 3600
Machine Size L×W×H(mm) : 4500*1700*2700
Wheel Base(mm) : 1250
Wheel Track(mm) : 2100
Tire Size : 20.5/70-16
Driving type: 4WD
Bucket Performance
Rated Load(kgs): 3000
Bucket Capacity Range(m³): 1.7
Bucket Width(mm): 1500
Parking Brake: Hand brake
Transmission Performance
Transmission Type: Automatic
Axle: AWD,Isuzu
Gear Shift : F1/R1, H/L
Control Lever : 1
Control type: Joystick
Lifting Time: 5s
Lowering Time: 4.5s
Optional Configuration: A/C, Cabin heater, etc.
