CAEL 32ft 10″ Telescopic handler forklift truck
CAEL 32ft 10″ Telescopic handler forklift truck
Share
Regular price
$73,499.00 CAD
Sale price
$73,499.00 CAD
Regular price
$73,499.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Hurry, only 3 left in stock
Couldn't load pickup availability
We Accept
- Low Prices
- Warranty Included
- Order Tracking

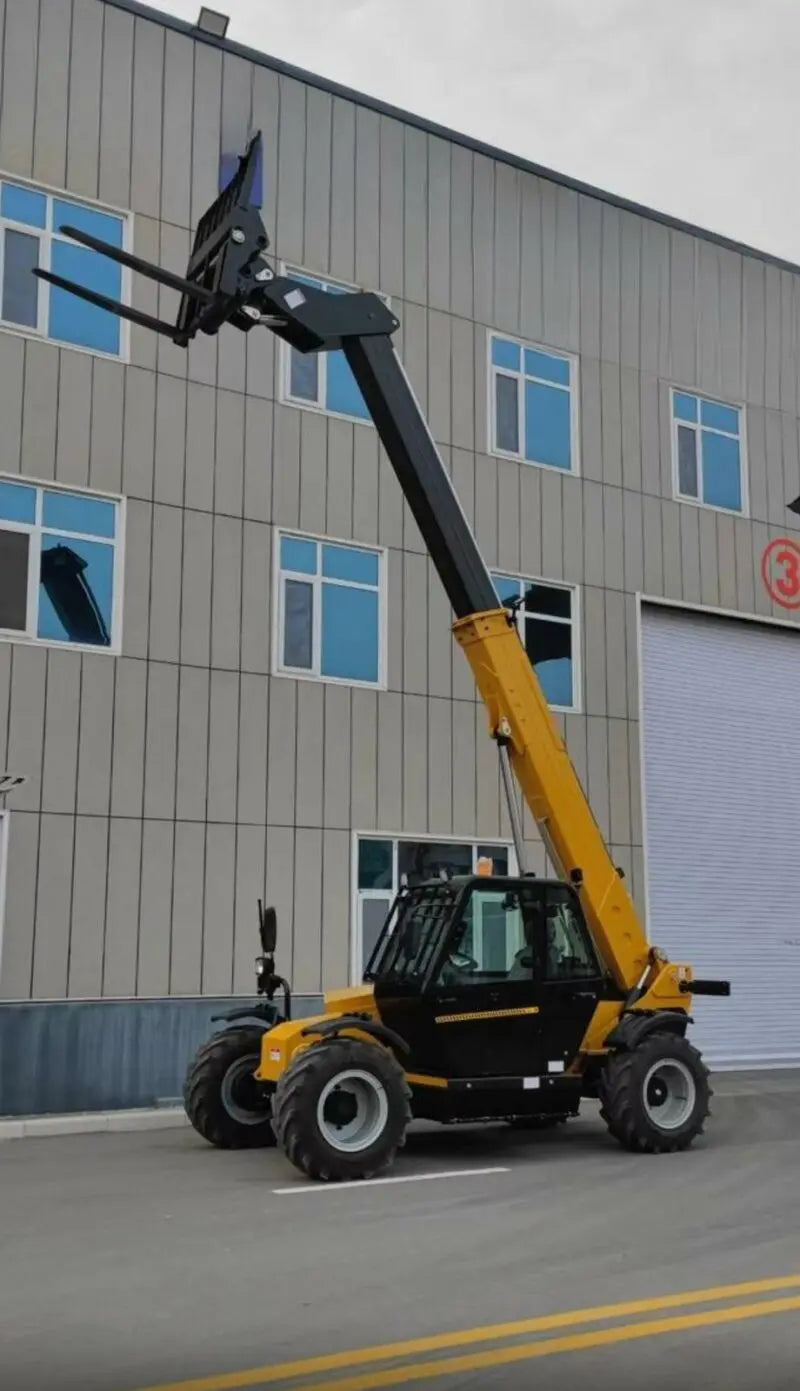

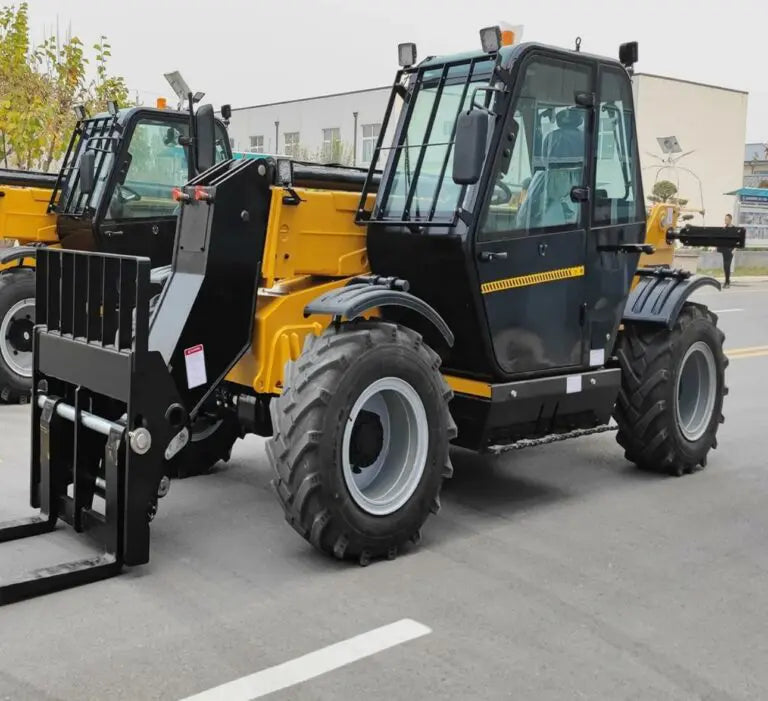

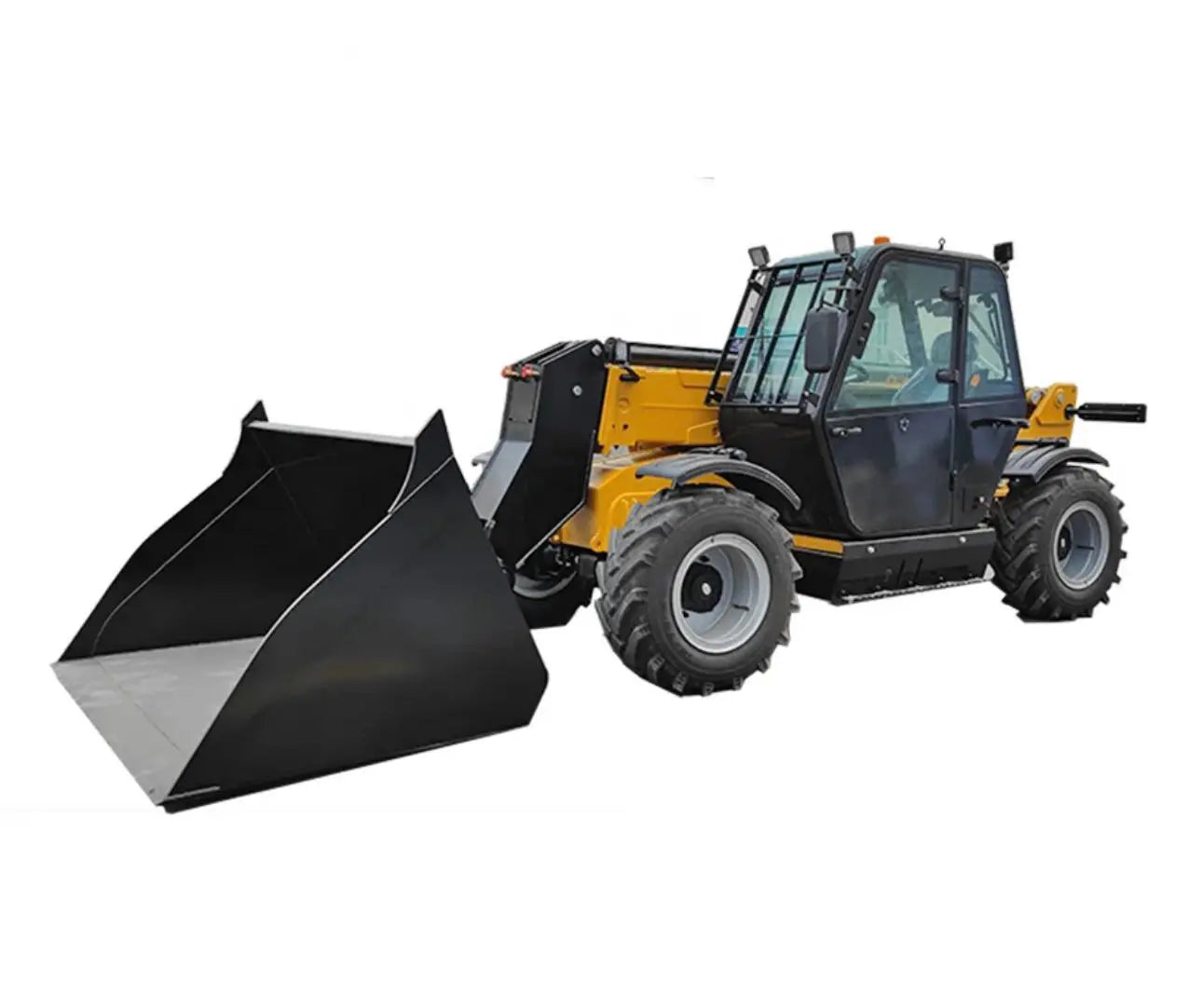

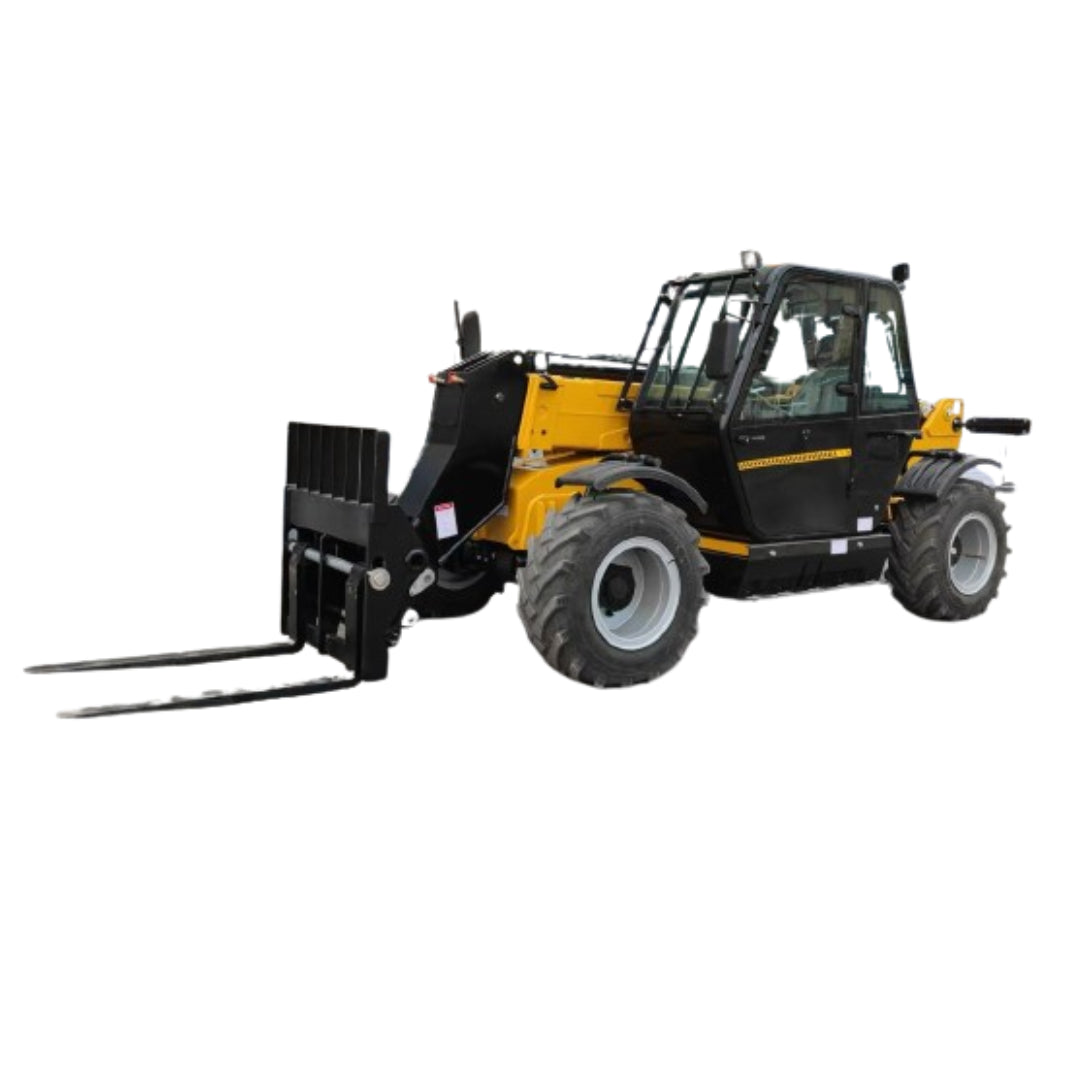

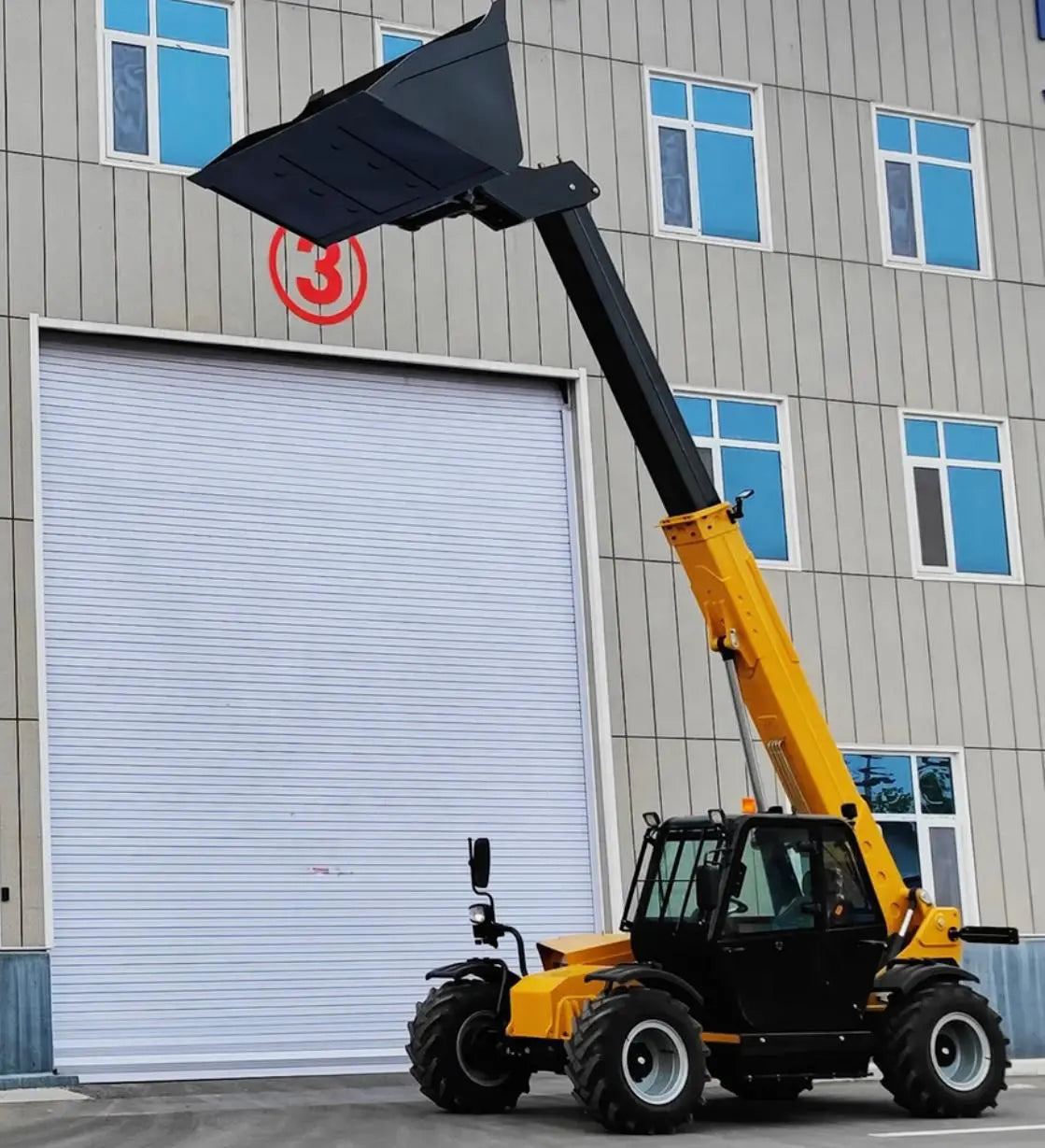

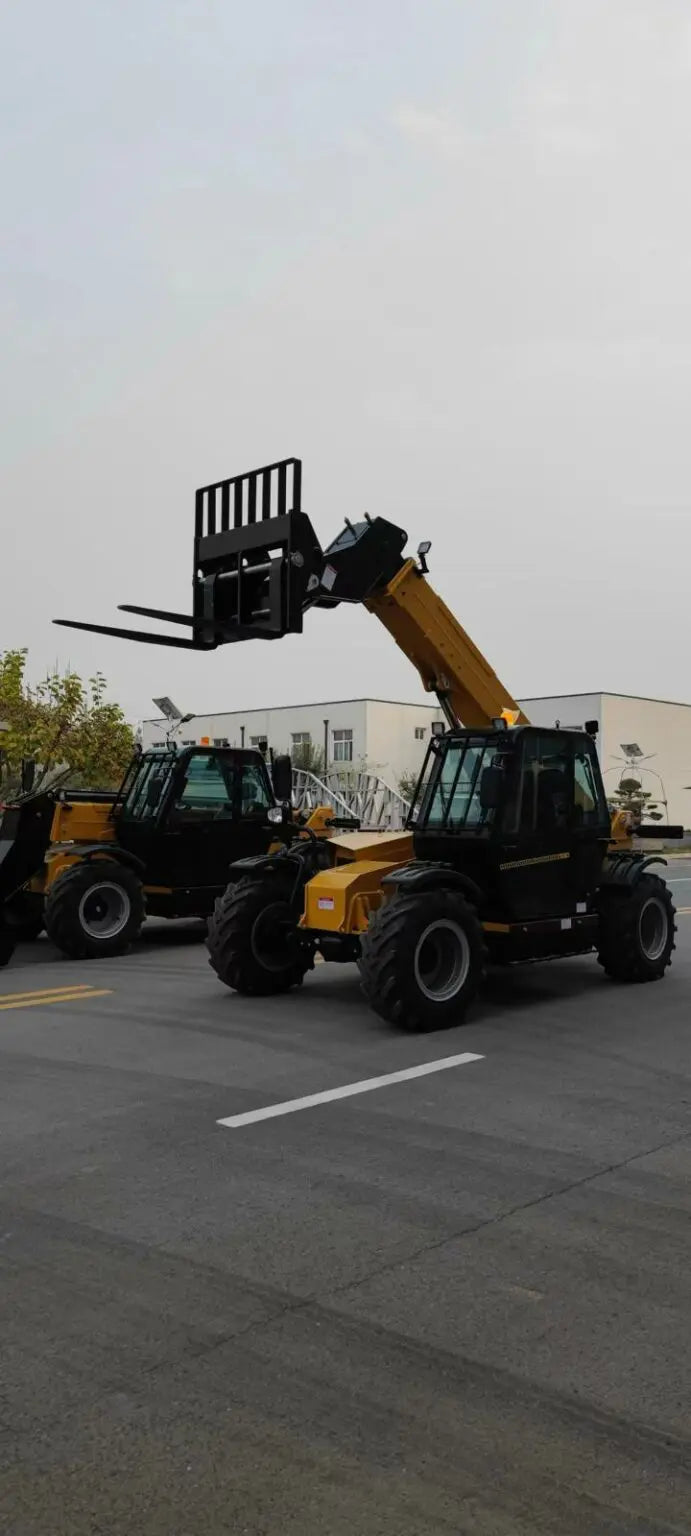

The CAEL 32-TH Telehandler is a powerful and versatile all-terrain lifting solution designed for demanding material handling applications. Built to perform efficiently in narrow spaces, slippery conditions, and rugged terrains, this machine offers exceptional stability, maneuverability, and productivity.
Equipped with a reliable Cummins EPA Tier-4 diesel engine, four-wheel steering, and a luxury air-conditioned cabin, the CAEL 32-TH ensures superior performance, operator comfort, and safety. Whether used in agriculture, construction, logistics, or industrial operations, this telehandler delivers dependable results in every environment.
Price
💲 $73,499 + Tax
Key Highlights
- Maximum Lift Height: 32 ft 10 in (10,000 mm)
- Maximum Load Capacity: 3,000 kg (6,614 lbs)
- Cummins EPA Tier-4 Diesel Engine
- 4×4 All-Terrain Drive
- Four-Wheel Steering with Crab Mode
- Luxury Cabin with Air Conditioning
- Overload Warning and Limitation System
- 1220 mm Floating Fork for Precise Handling
General Specifications
| Specification | Details |
|---|---|
| Model | CAEL 32-TH |
| Manufacturer | CAEL |
| Machine Type | Telescopic Handler |
| Drive Type | 4×4 All-Wheel Drive |
| Steering Modes | 2WS, 4WS, Crab Steering |
| Cabin | Enclosed Luxury Cabin with Air Conditioning |
| Machine Weight | 9,500 kg (20,944 lbs) |
Engine Specifications
| Specification | Details |
|---|---|
| Engine Brand | Cummins |
| Engine Type | Four-Stroke Diesel |
| Emission Standard | EPA Tier-4 |
| Rated Power | 76.7 kW (≈103 HP) |
| Displacement | 3.76 L |
Performance Specifications
| Specification | Measurement |
|---|---|
| Maximum Lifting Capacity | 3,000 kg (6,614 lbs) |
| Capacity at Maximum Reach | 2,500 kg (5,512 lbs) |
| Capacity at Full Boom Extension | 500 kg (1,102 lbs) |
| Maximum Lifting Height | 10,000 mm (32 ft 10 in) |
| Maximum Horizontal Boom Extension | 5,900 mm (19.36 ft) |
| Maximum Travel Speed | 40 km/h (24.9 mph) |
| Gradeability | 30% |
Axles, Steering & Braking
| Specification | Details |
|---|---|
| Driving Model | 4×4 All-Wheel Drive |
| Steering Modes | 2WS, 4WS, Crab Steering |
| Front Axle | Rigid |
| Rear Axle | Oscillating |
| Service Brake | Air-Assisted Disc Brakes on Four Wheels with Double Hydraulic System |
| Parking Brake | Negative Parking Brake |
| Tyres | 405/70-20 |
Dimensions
| Parameter | Measurement |
|---|---|
| Length (Without Forks) | 17.3 ft (5.27 m) |
| Width | 7.05 ft (2.15 m) |
| Height | 7.5 ft (2.29 m) |
| Wheelbase | 9.6 ft (2.93 m) |
| Tyre Distance | 5.7 ft (1.74 m) |
| Cabin Width | 2.9 ft (0.88 m) |
| Ground Clearance | 1.2 ft (0.37 m) |
| Front Tyres to Rear Chassis | 13.2 ft (4.02 m) |
| Standard Fork Length | 1,220 mm (48 in) |
Key Benefits
- All-Terrain Capability: Performs reliably on rough and uneven surfaces.
- Superior Maneuverability: Multiple steering modes for tight job sites.
- Exceptional Reach and Power: Ideal for heavy lifting and high stacking.
- Enhanced Operator Comfort: Luxury cabin with air conditioning.
- Advanced Safety Systems: Equipped with overload protection and robust braking.
- Versatile Attachments: Adaptable to a wide range of applications.
- Fuel-Efficient Cummins Engine: Ensures reliability and reduced operating costs.
- High Productivity: Designed for continuous, heavy-duty performance.
