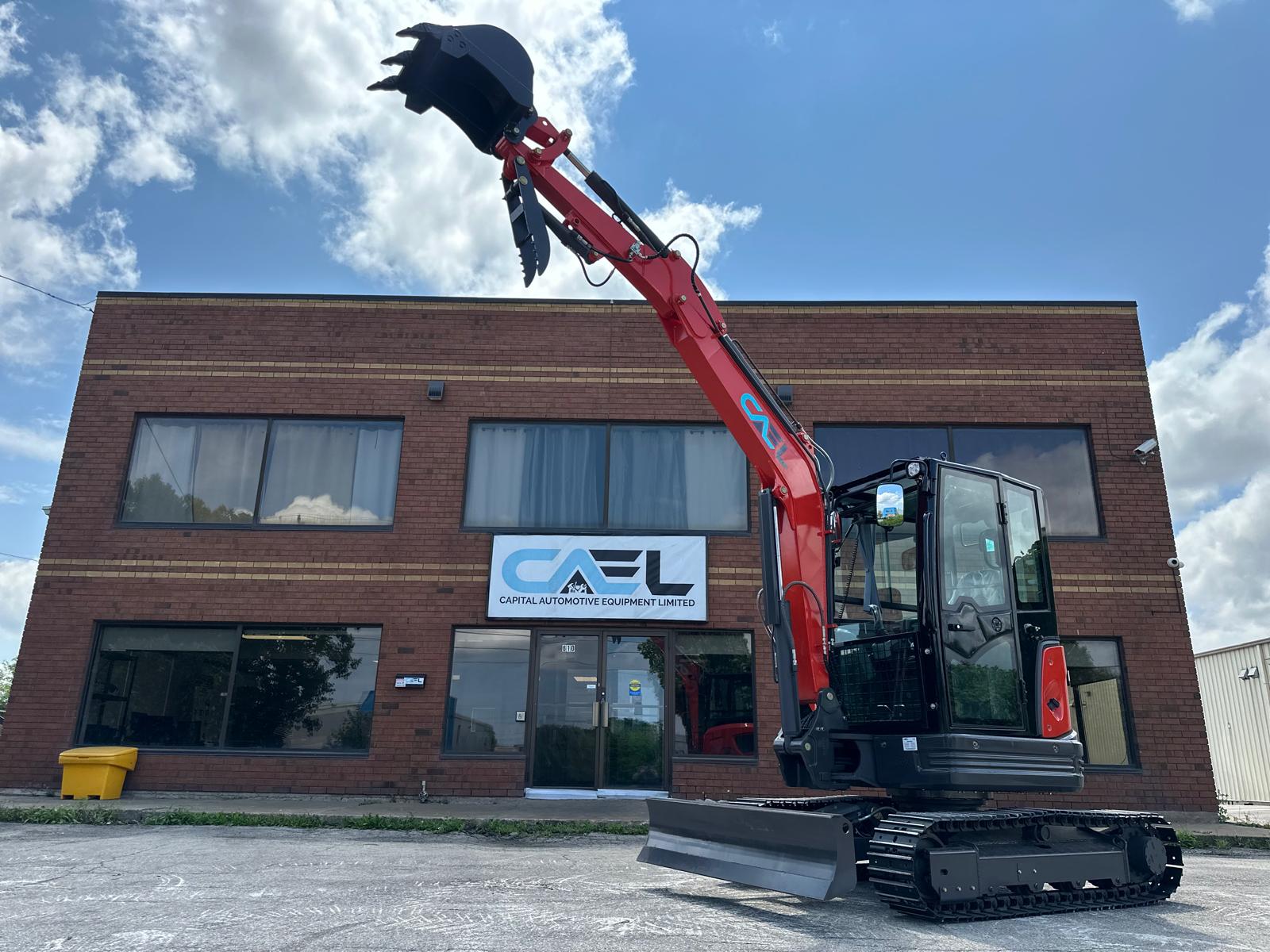

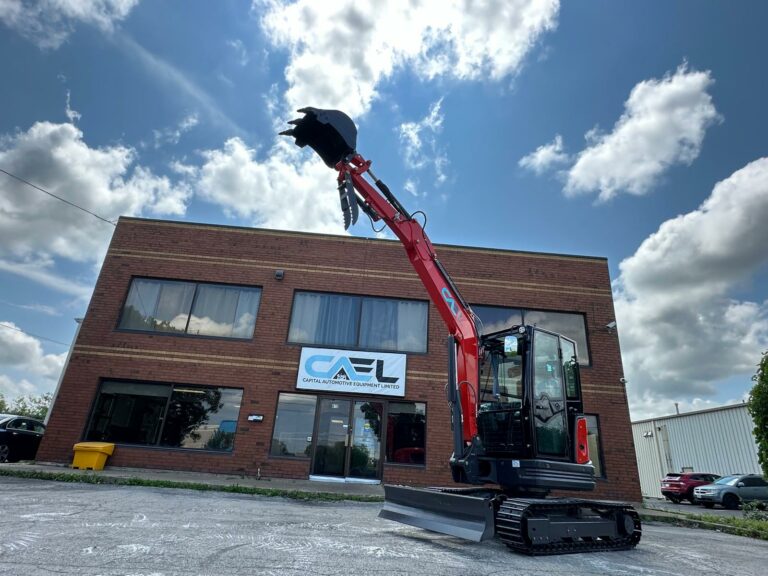

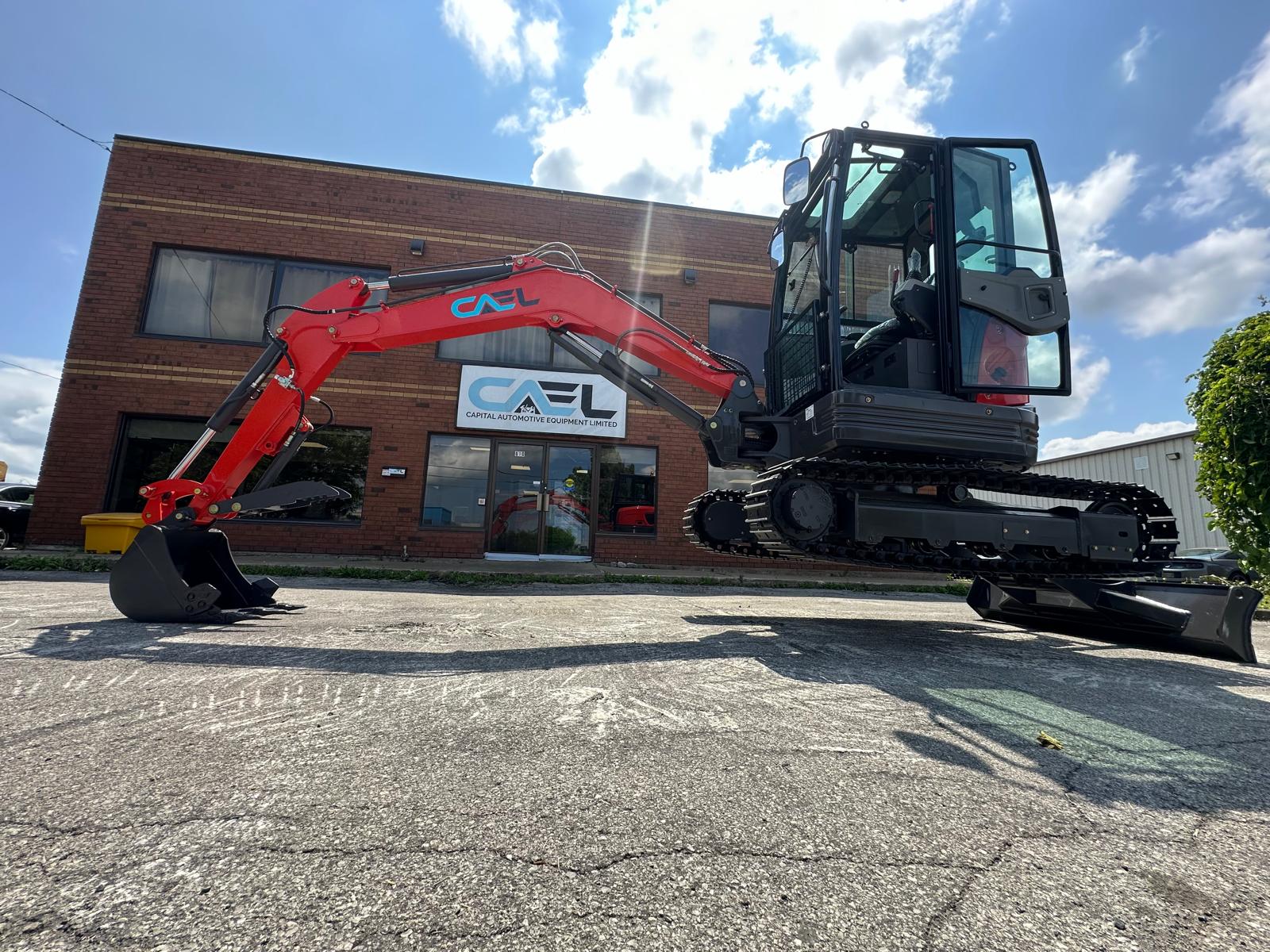

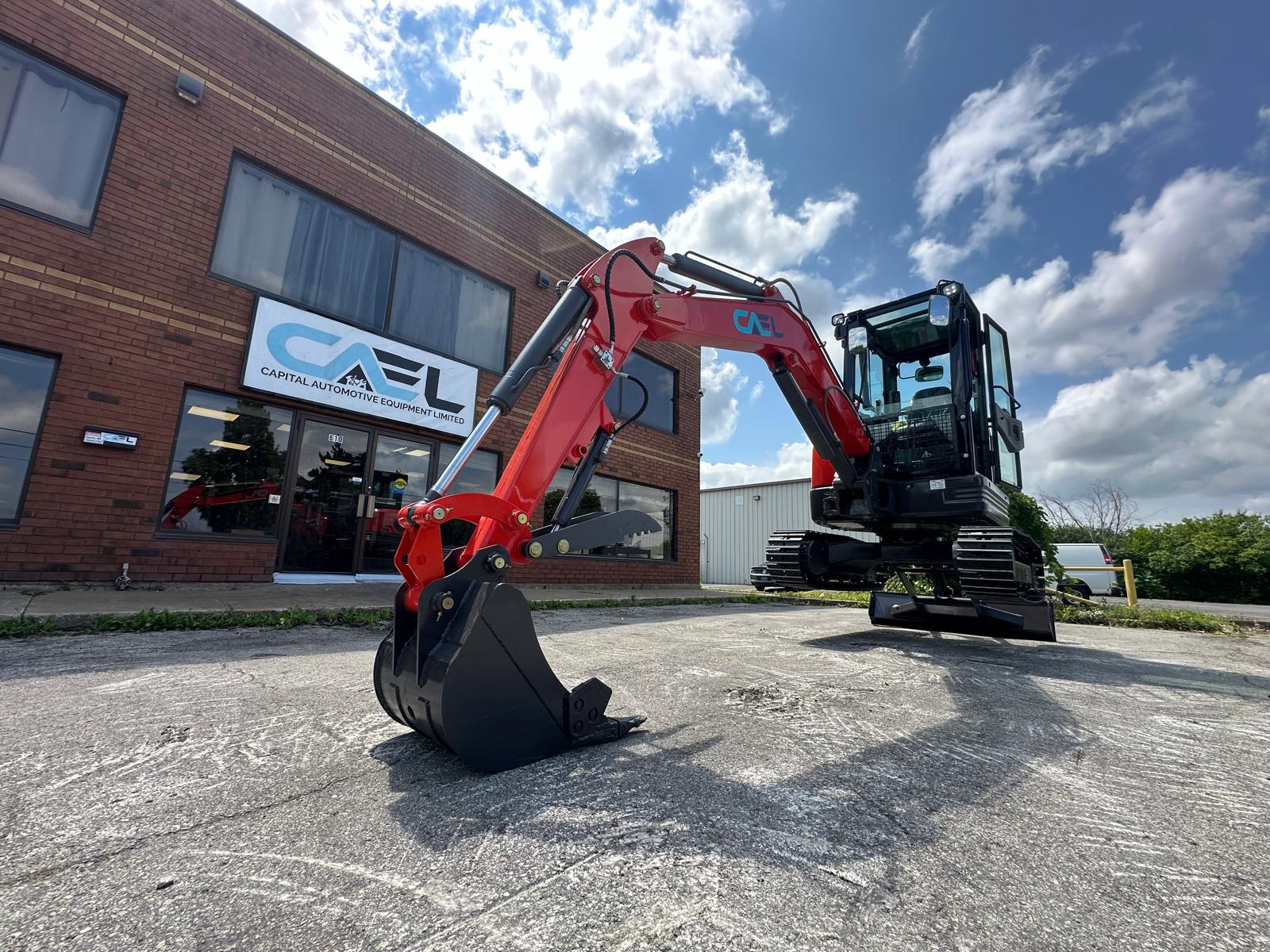

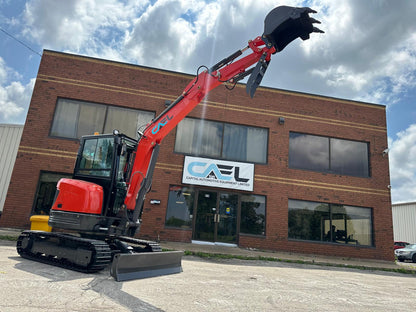

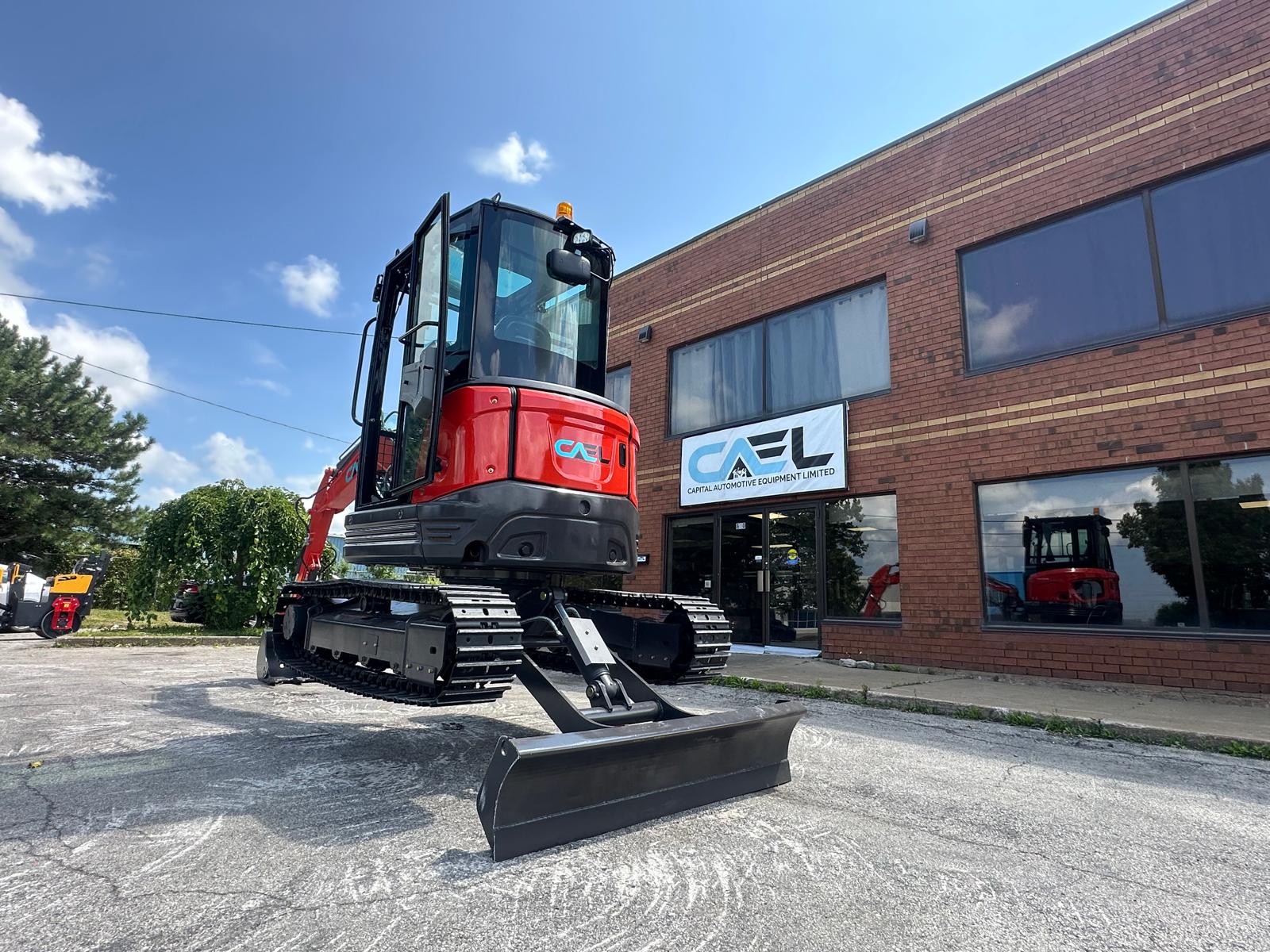

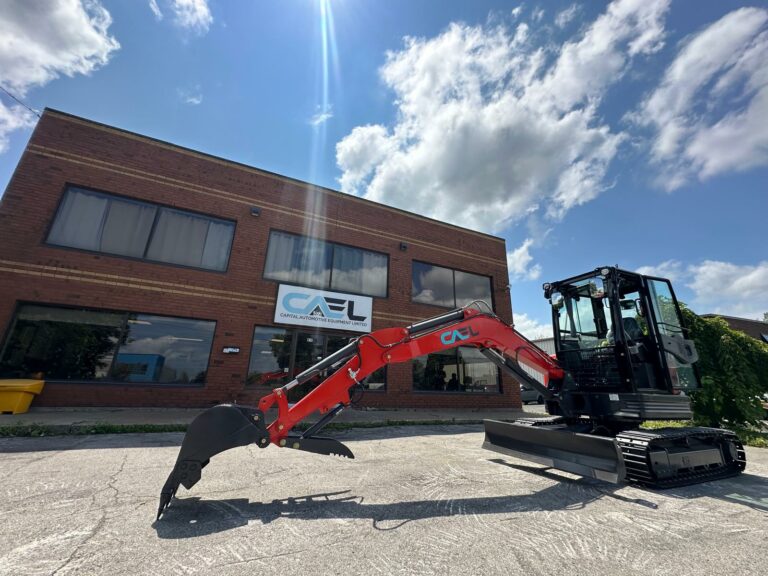

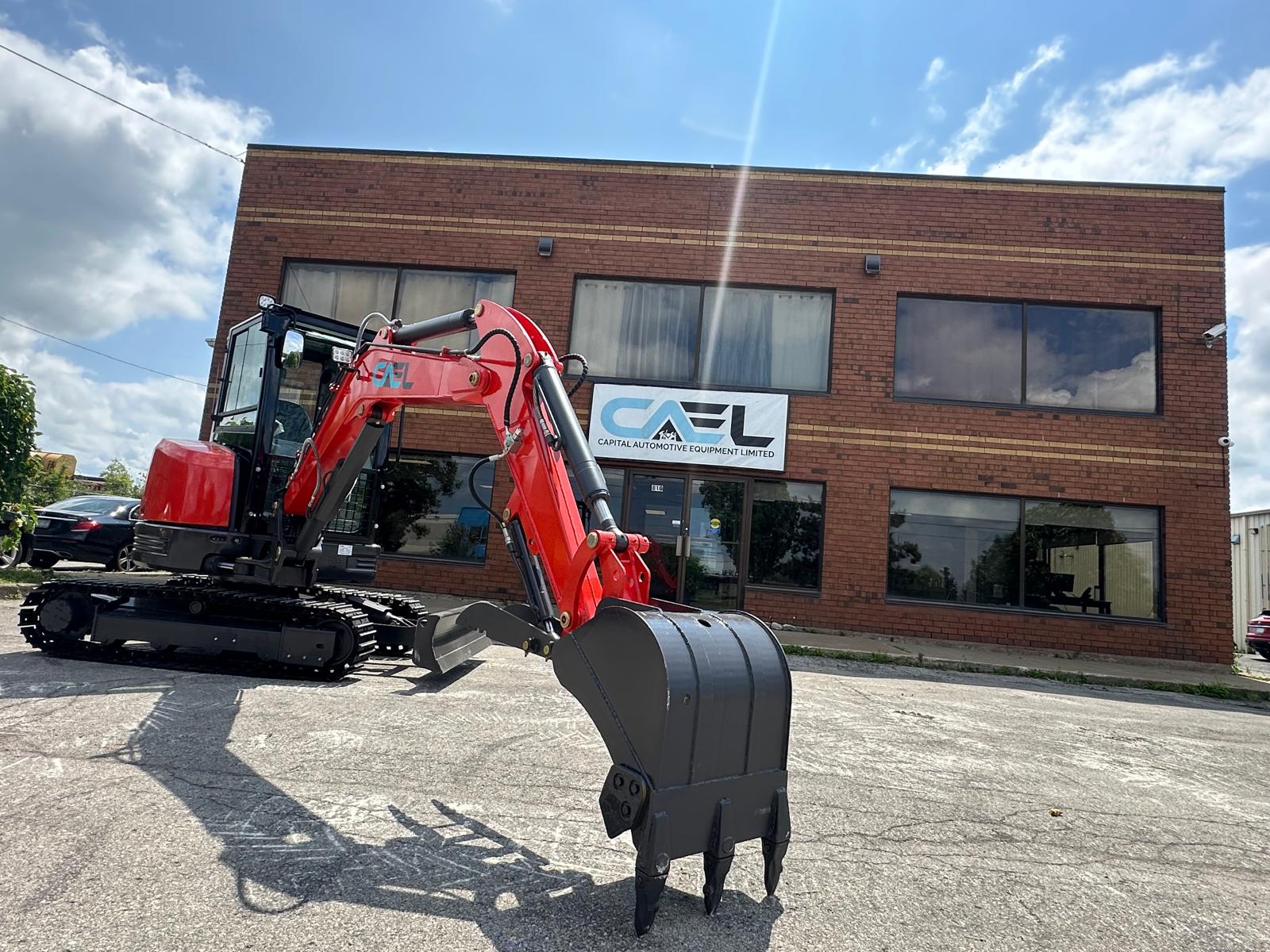

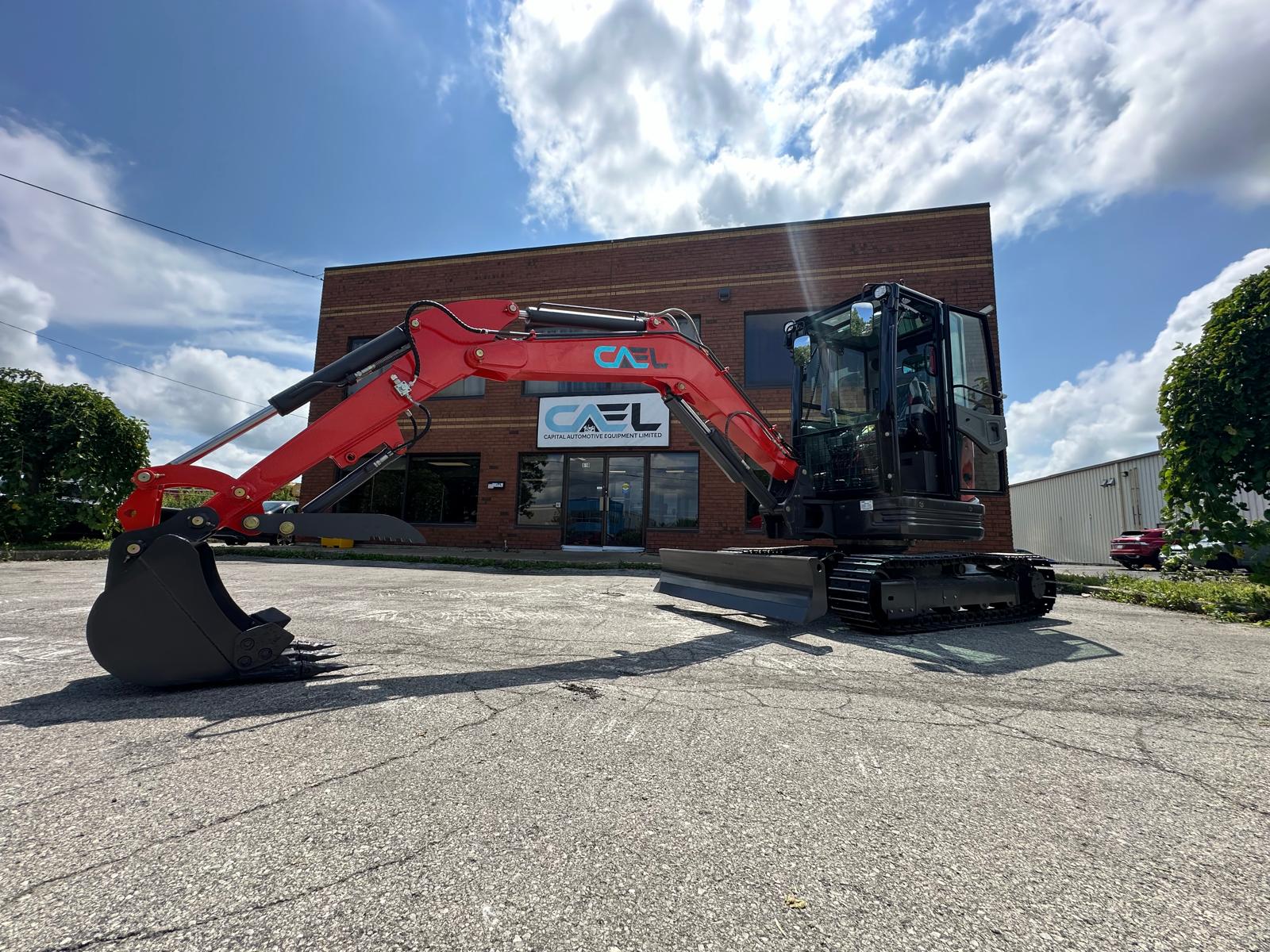

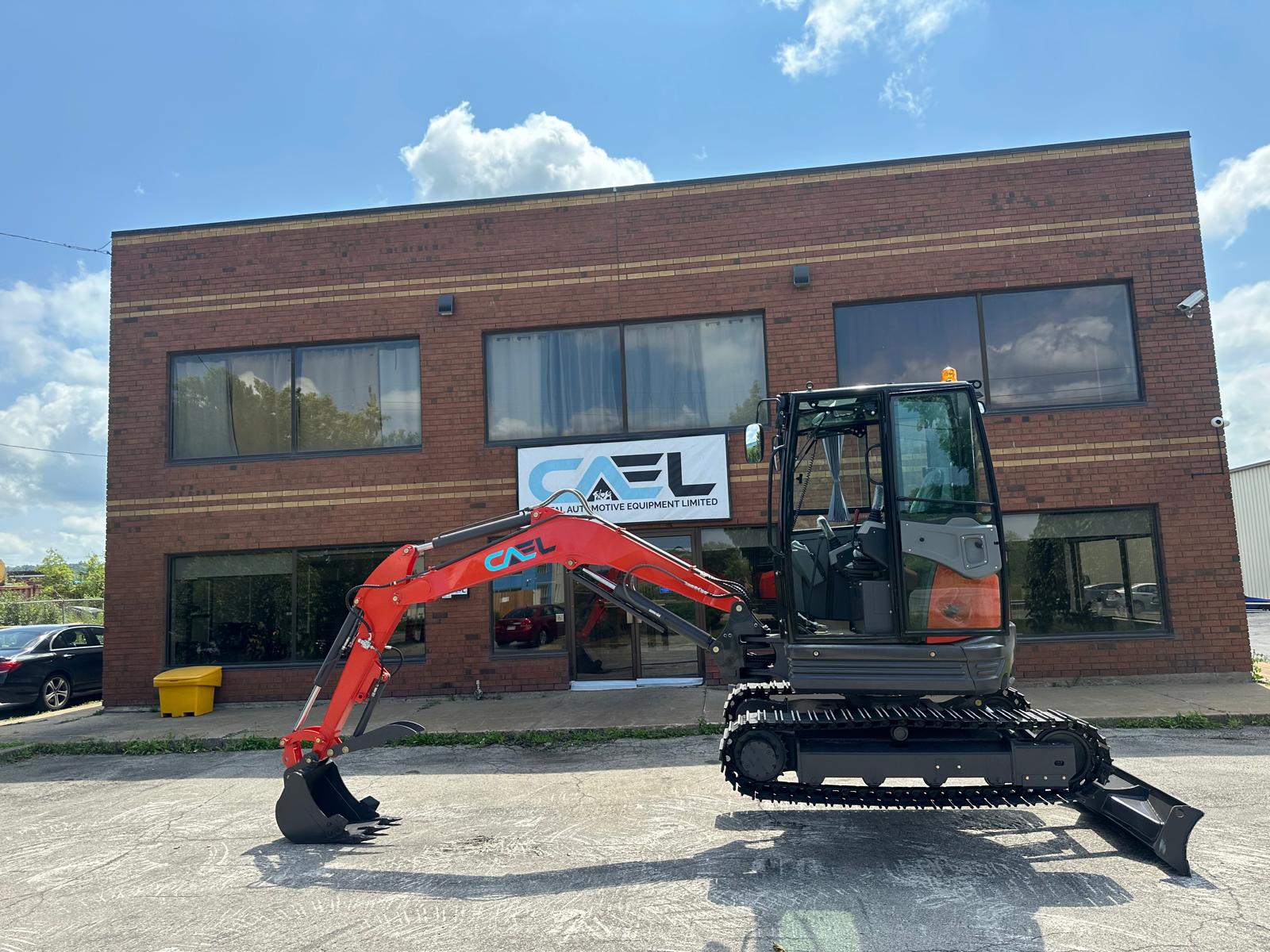

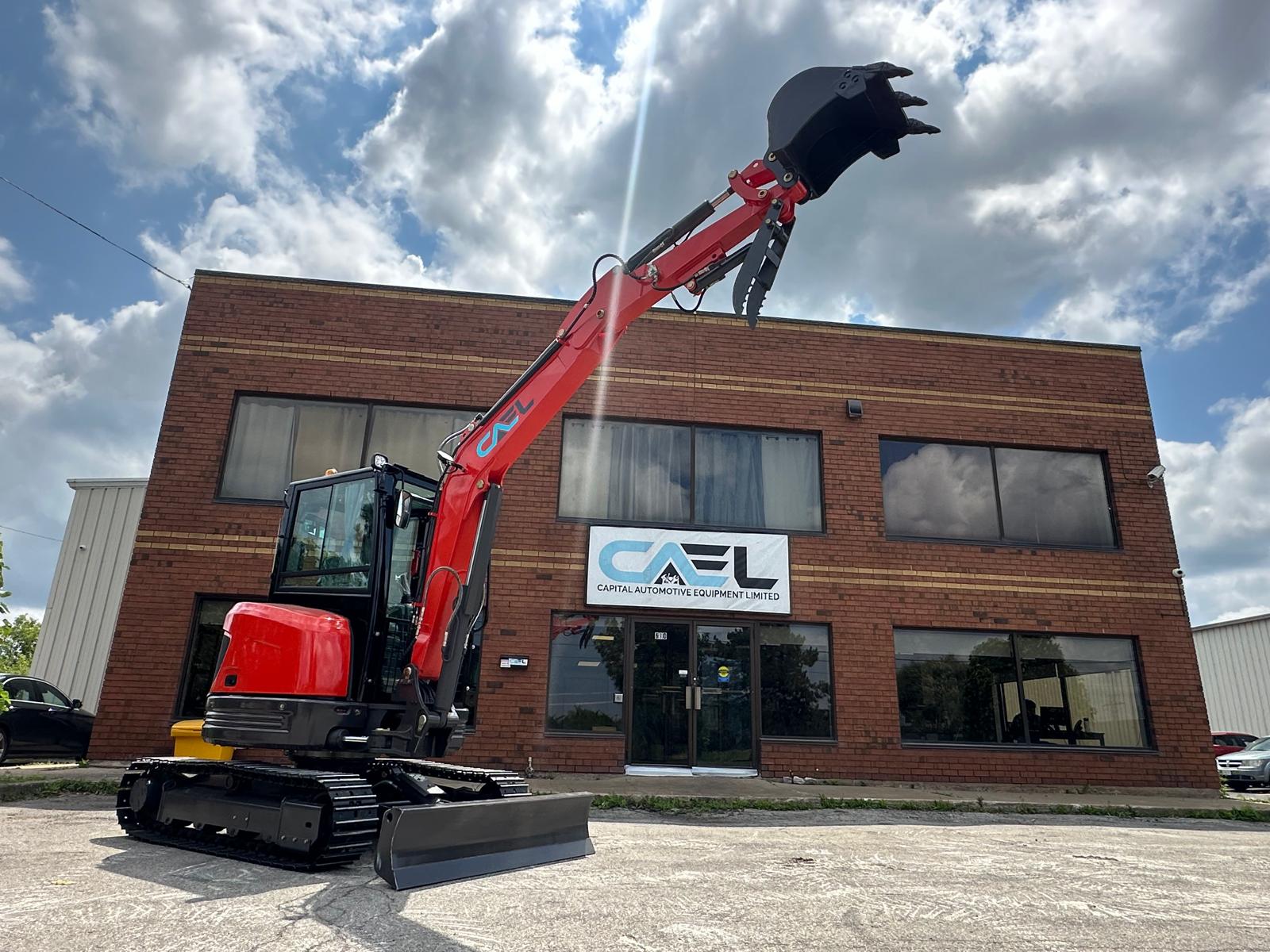

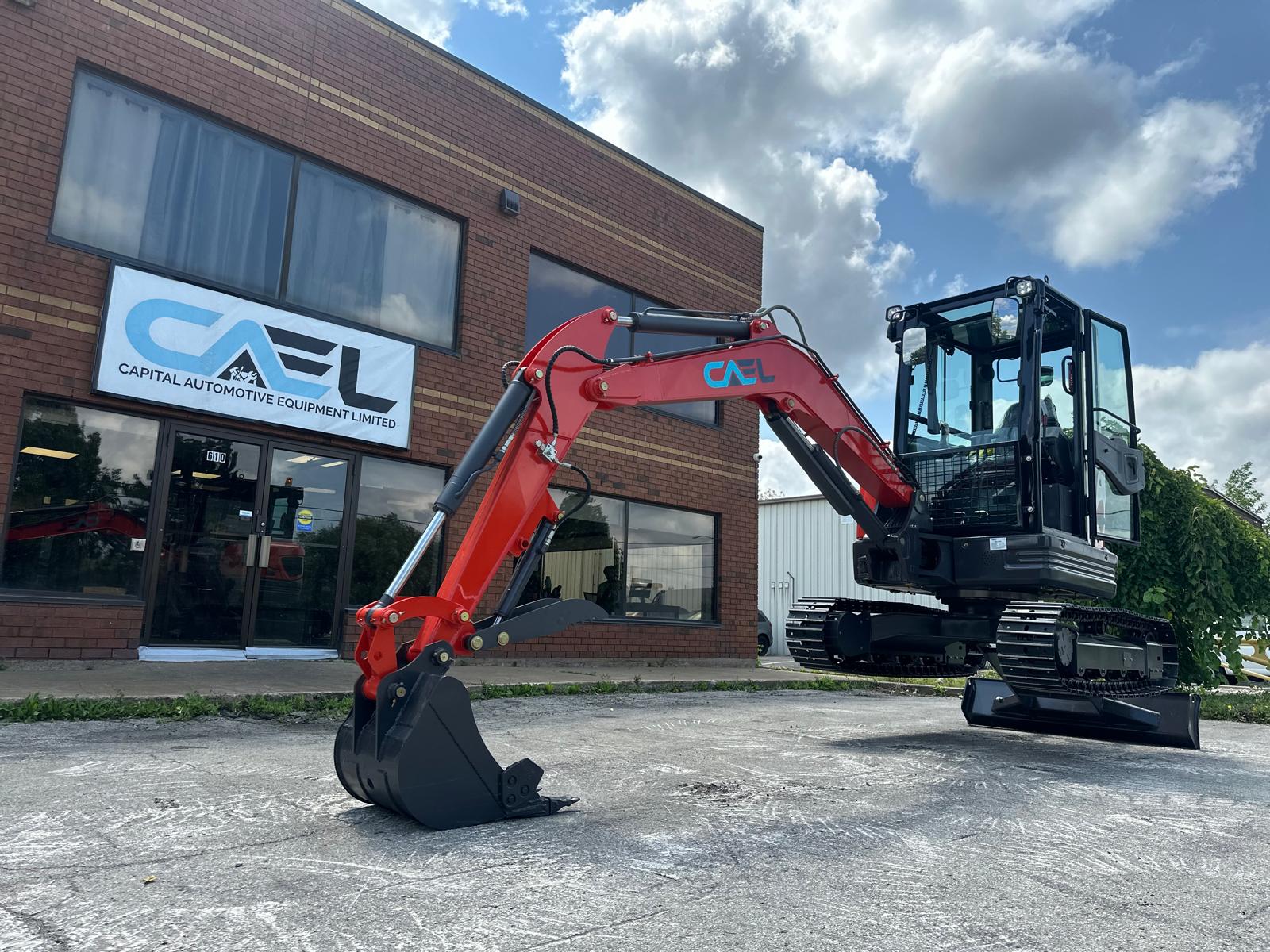

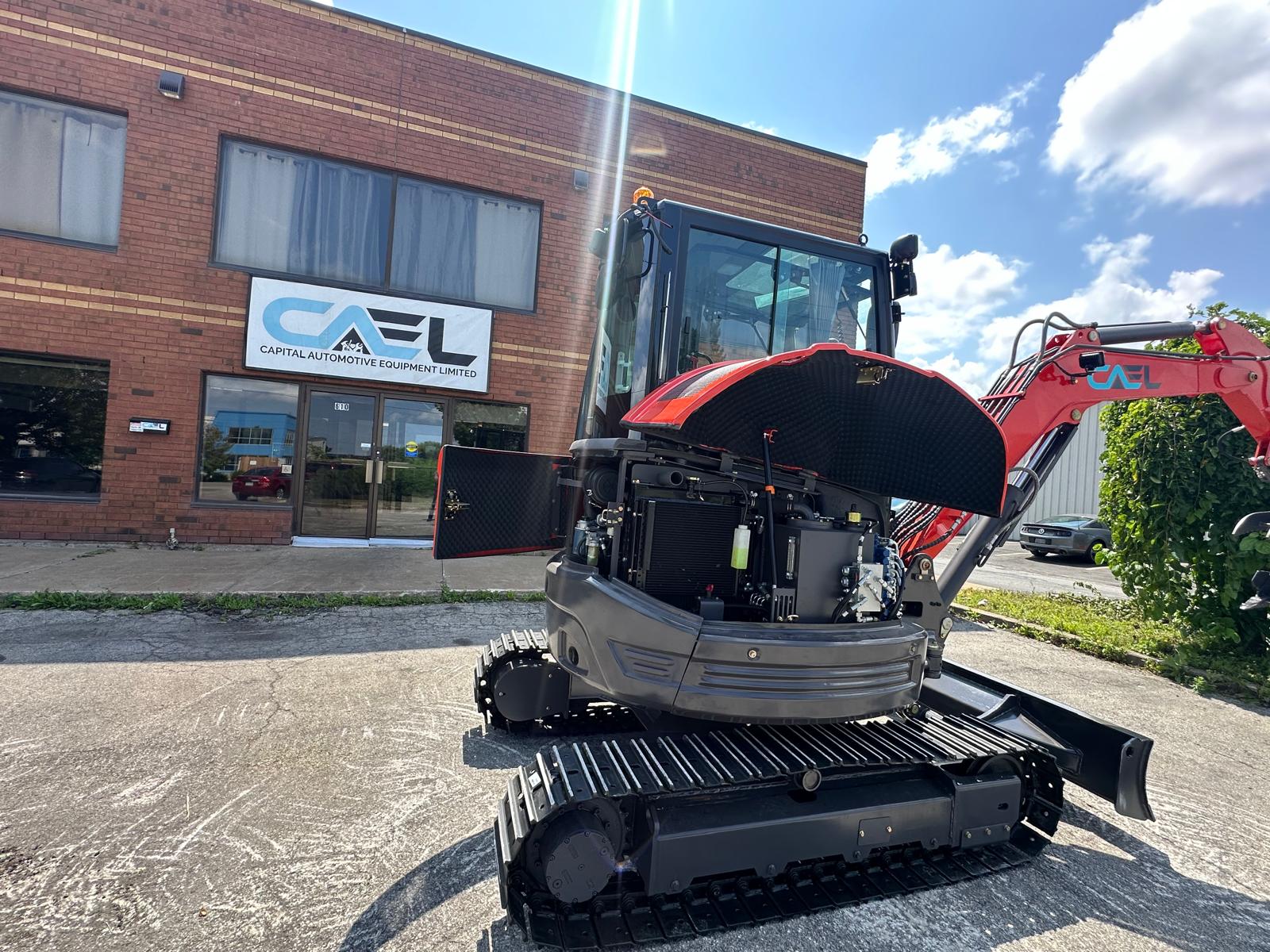

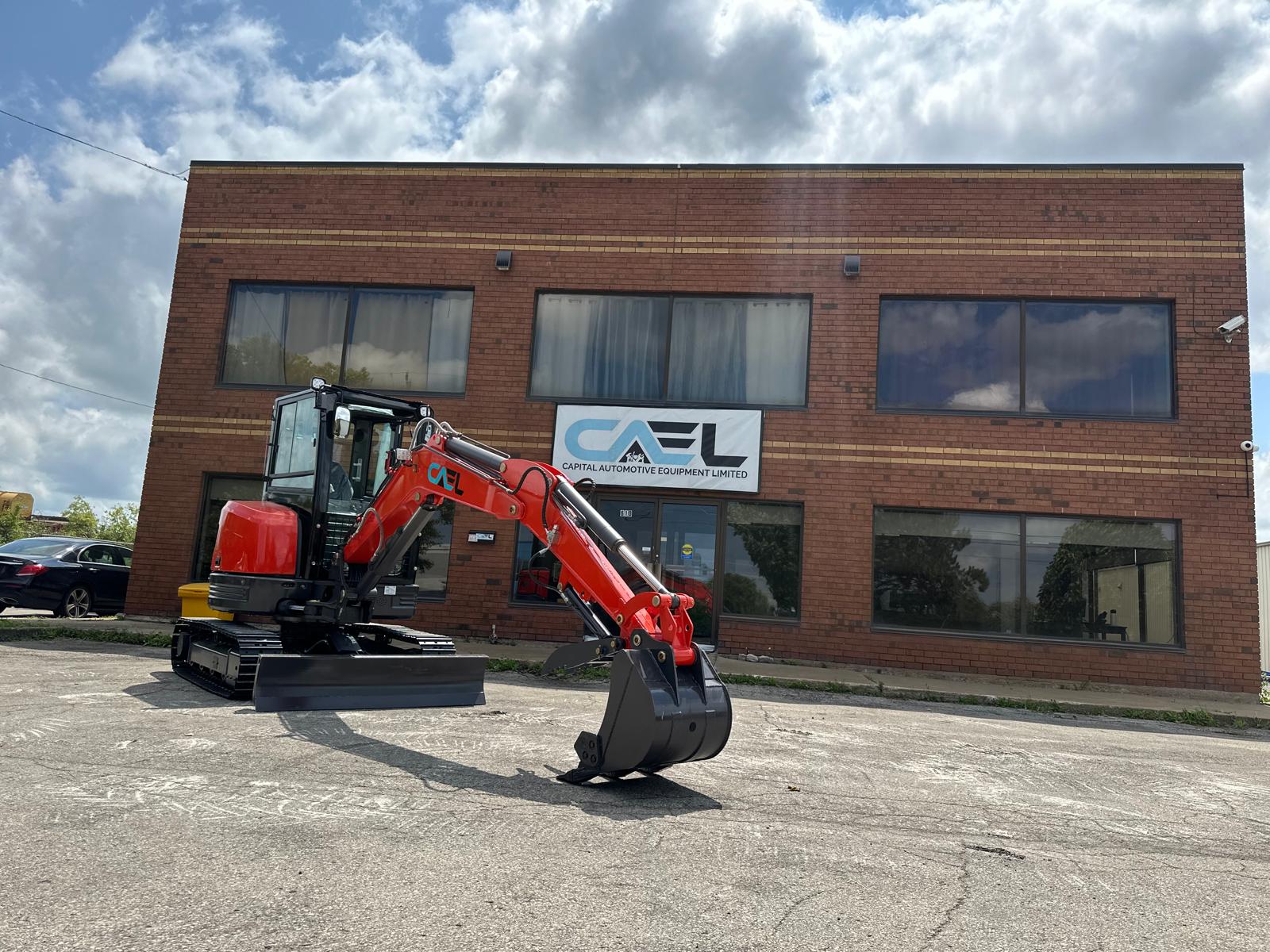

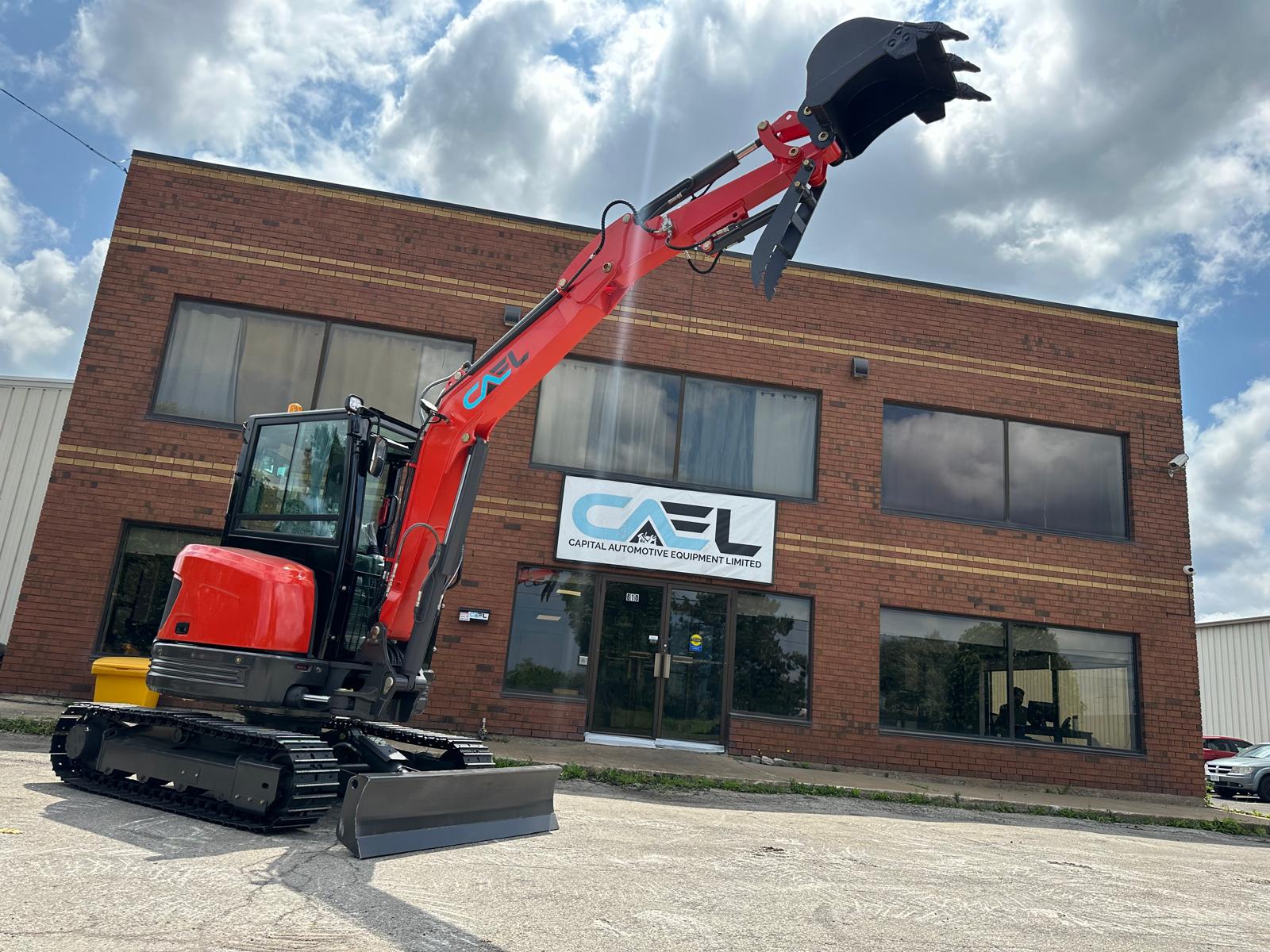

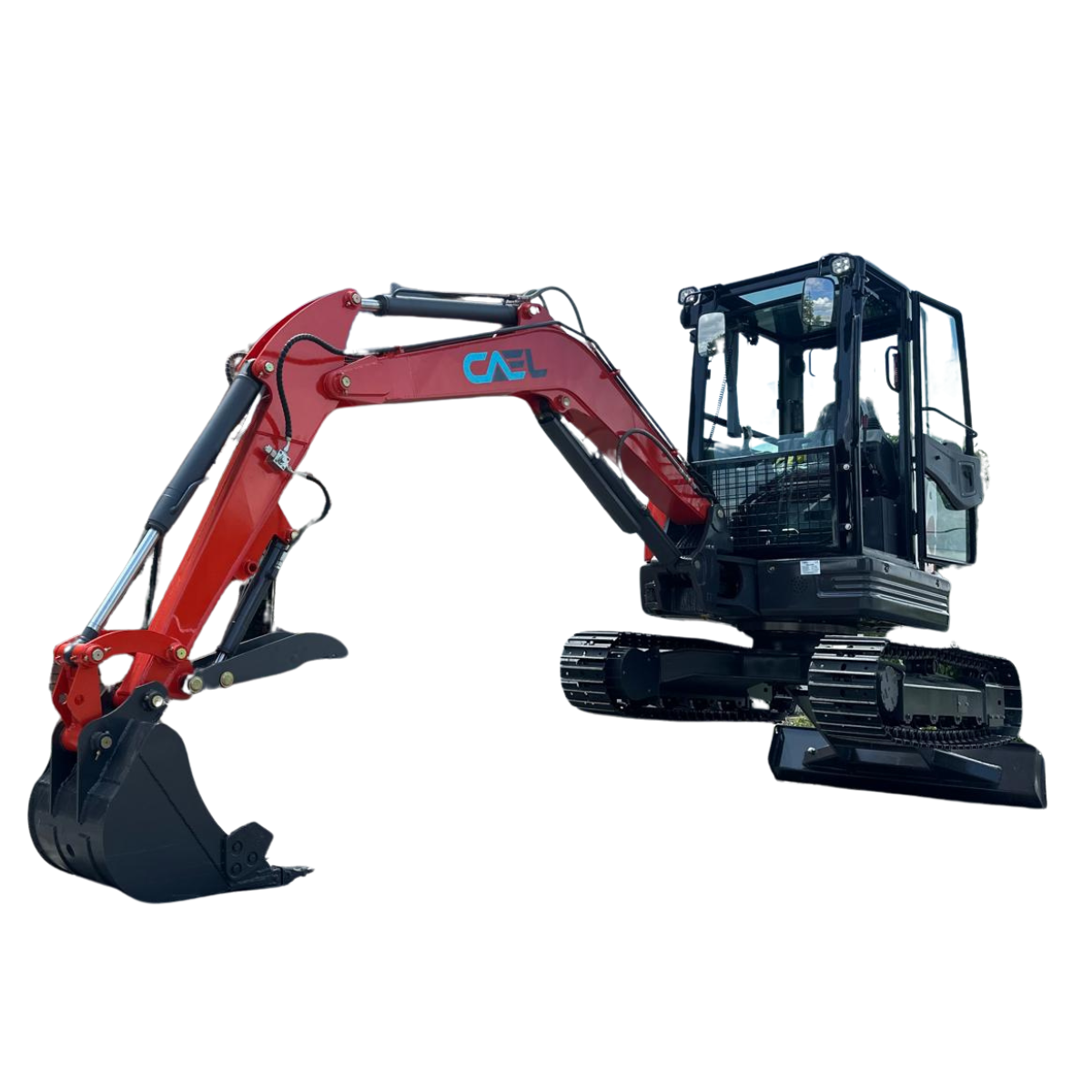

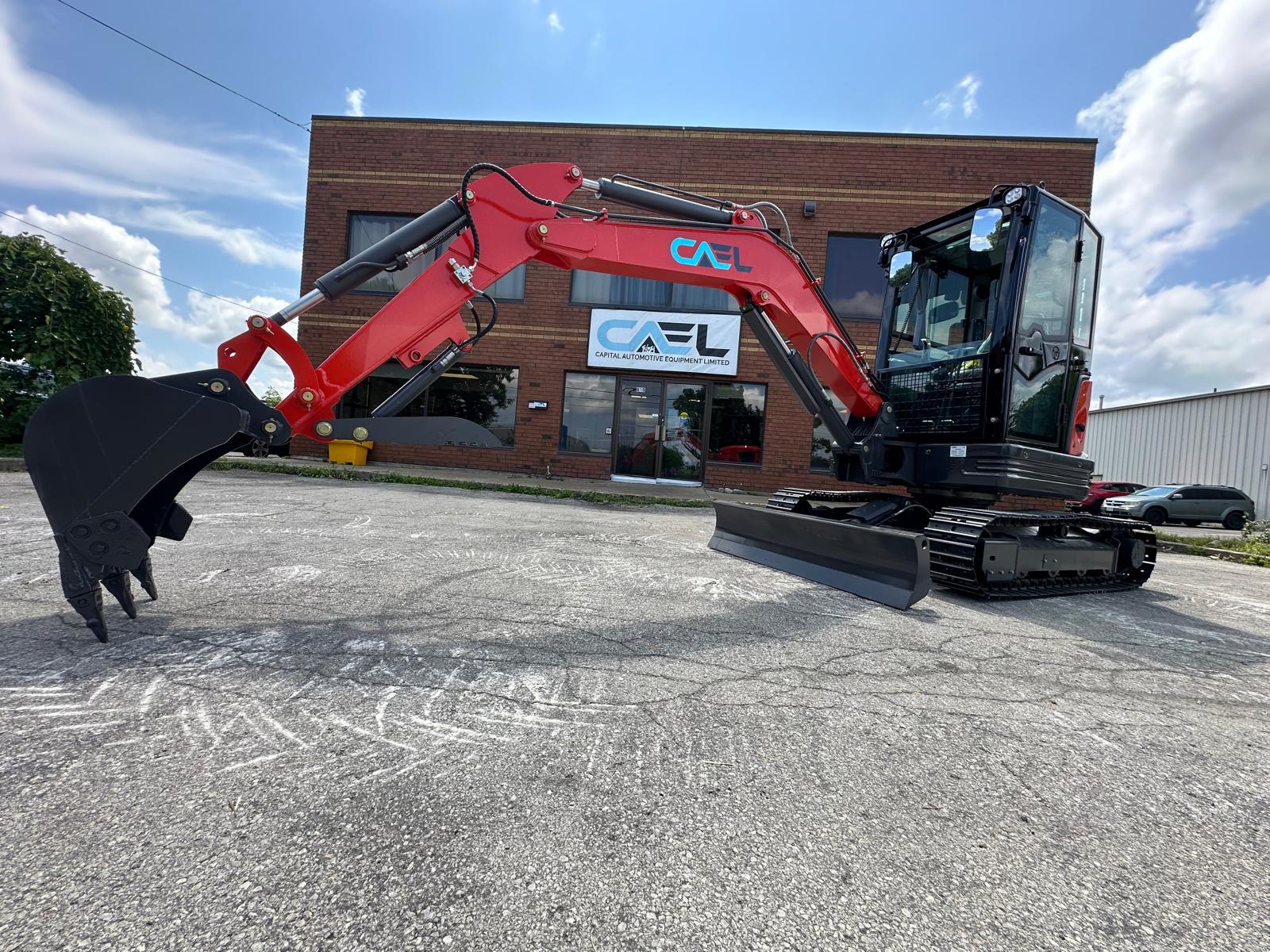

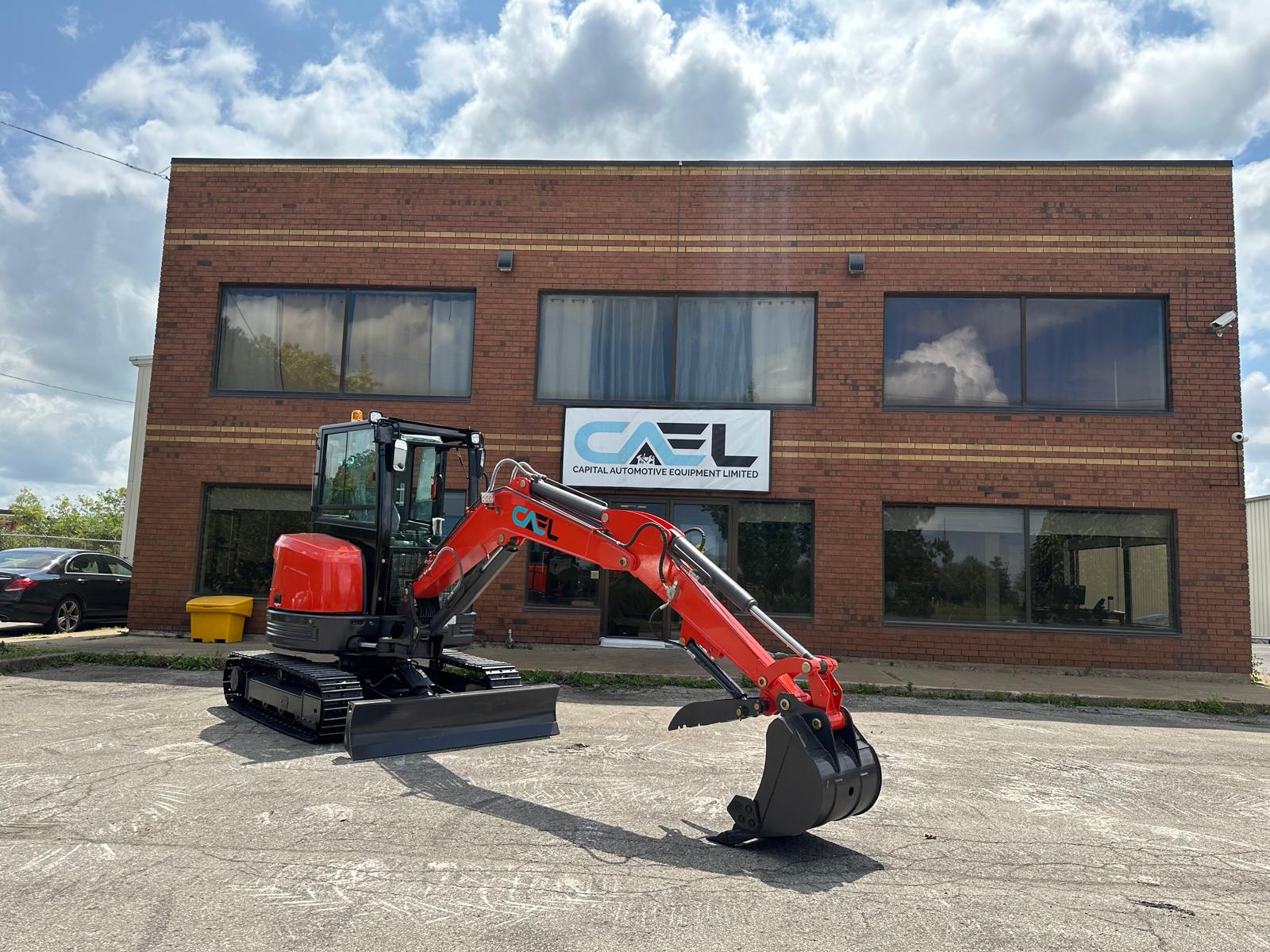

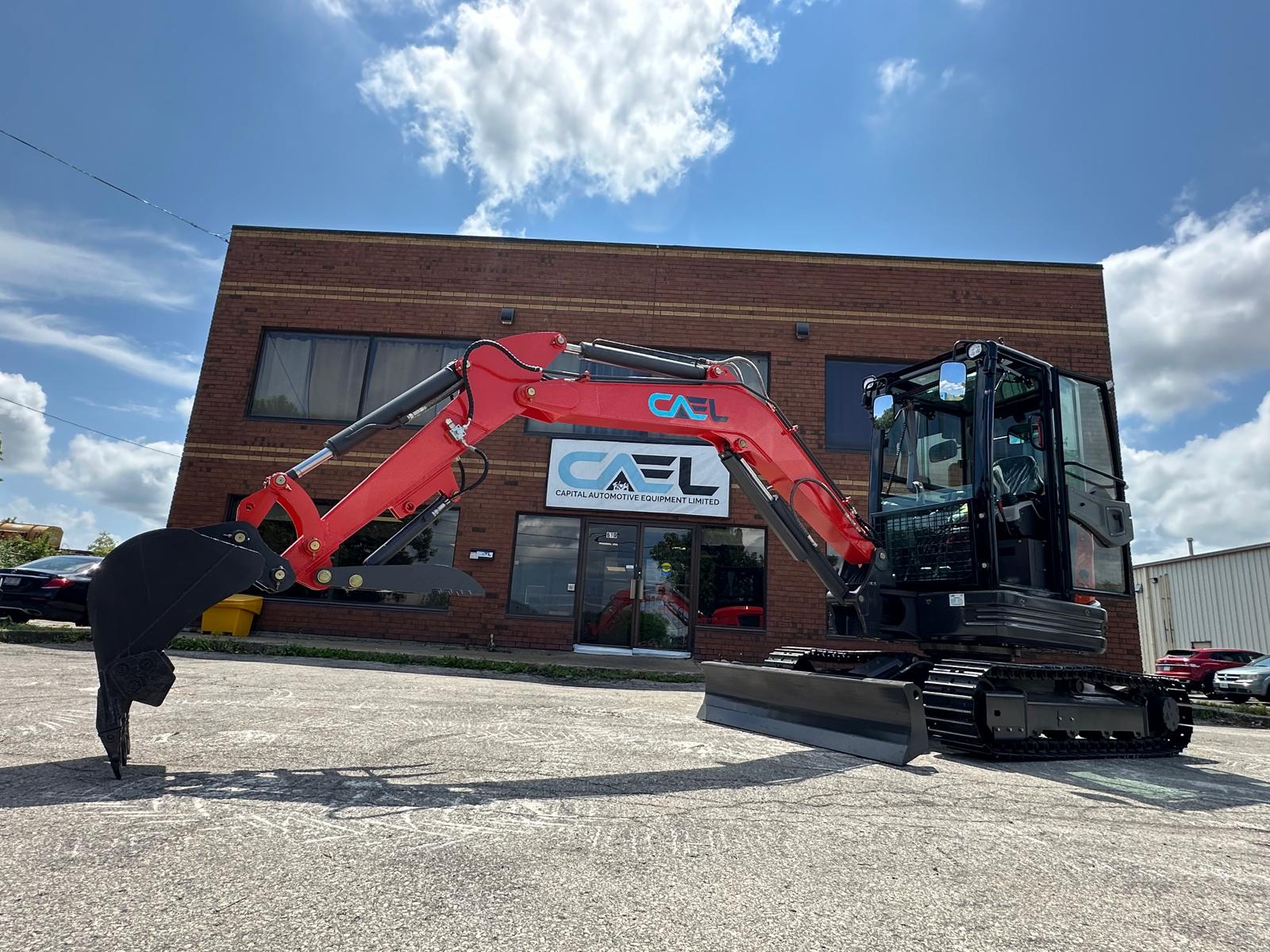

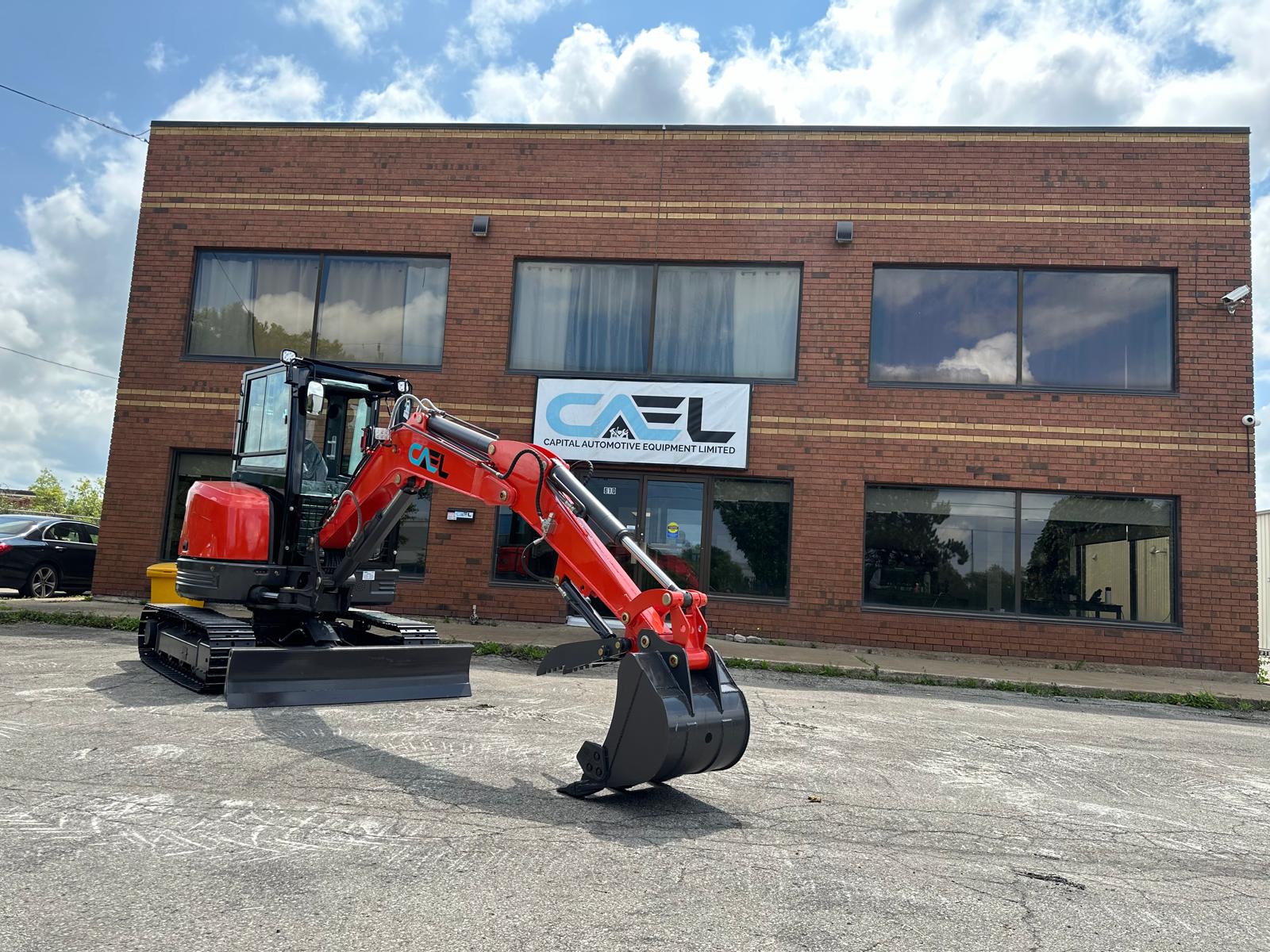

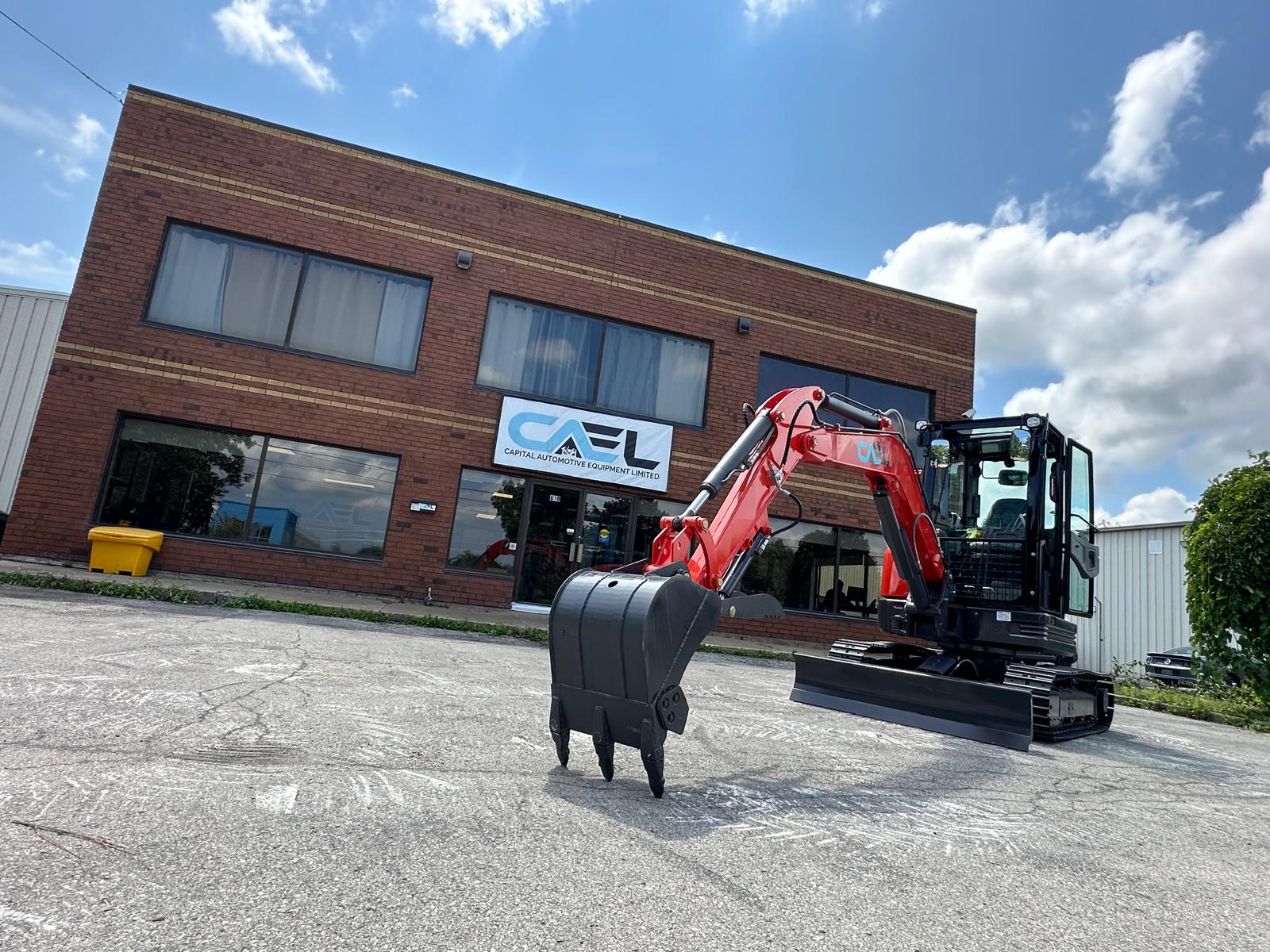

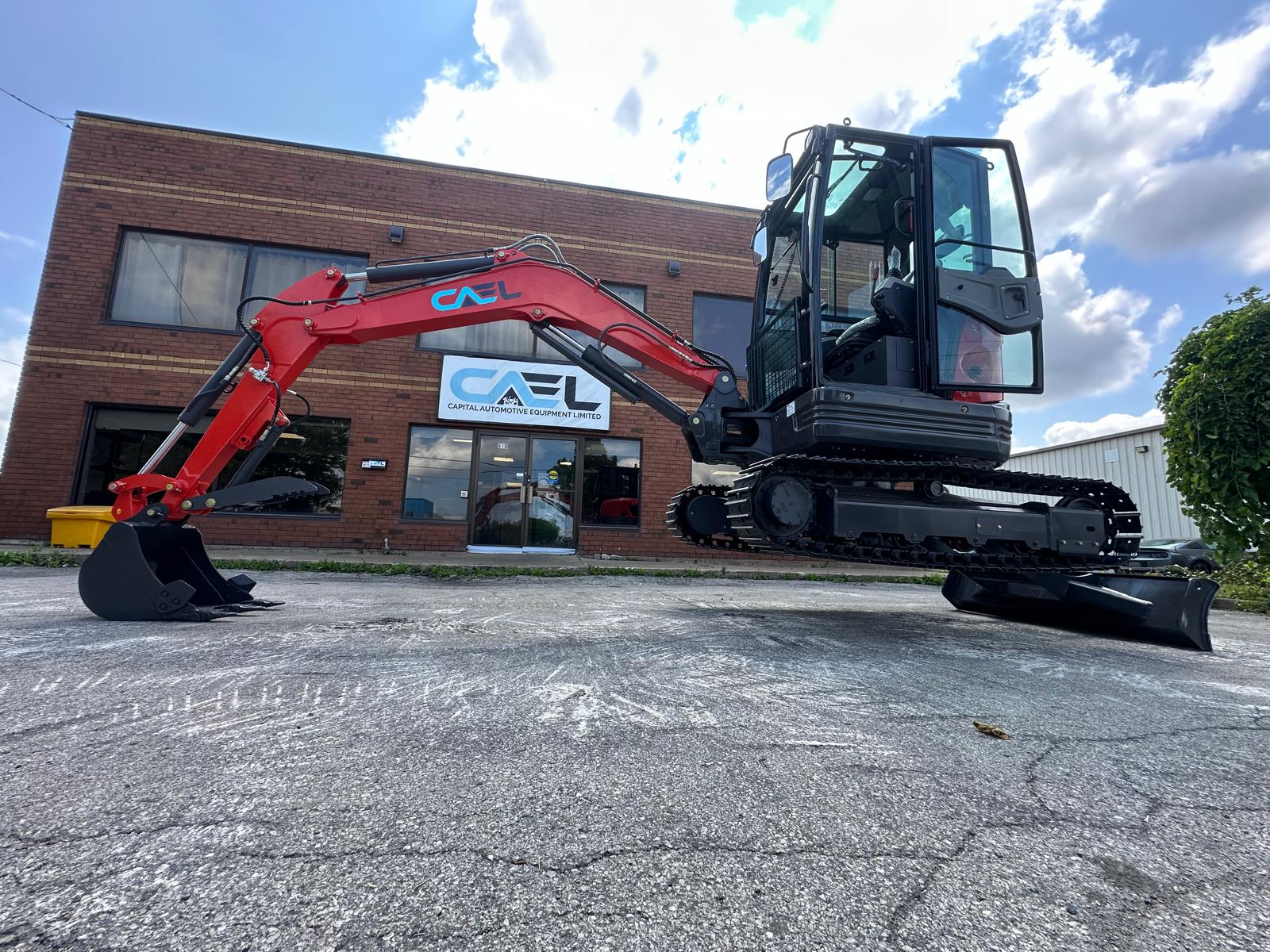

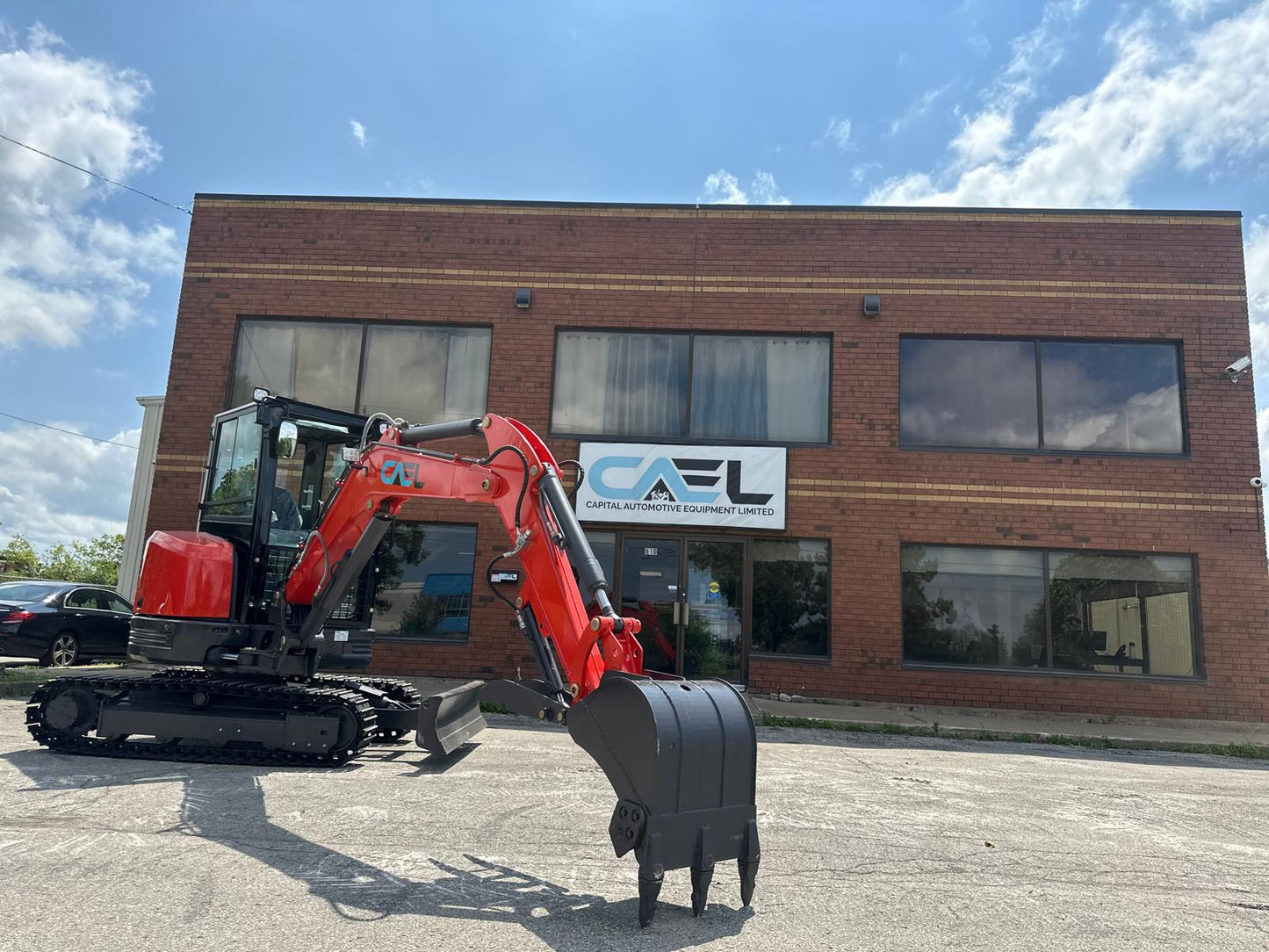

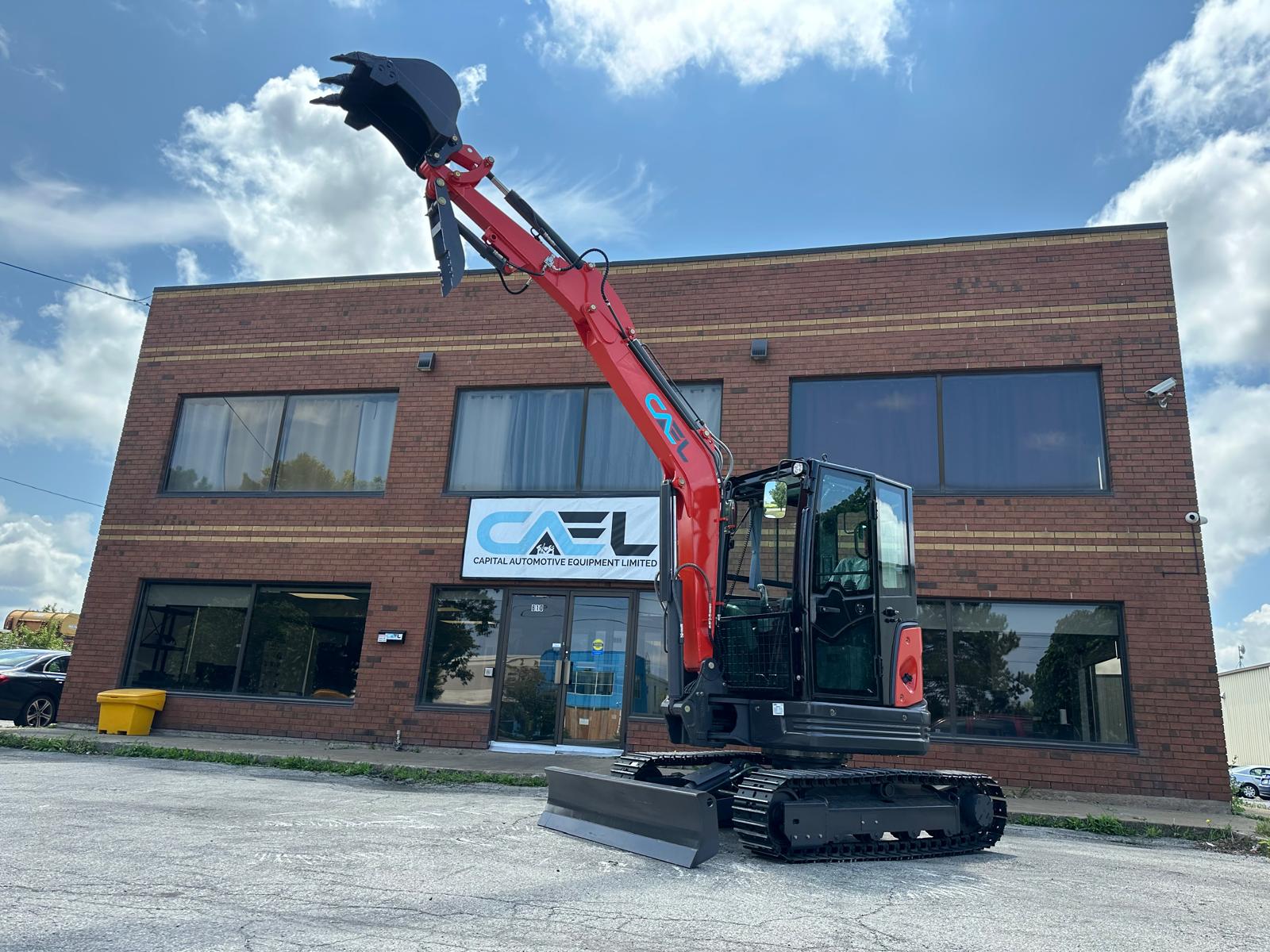

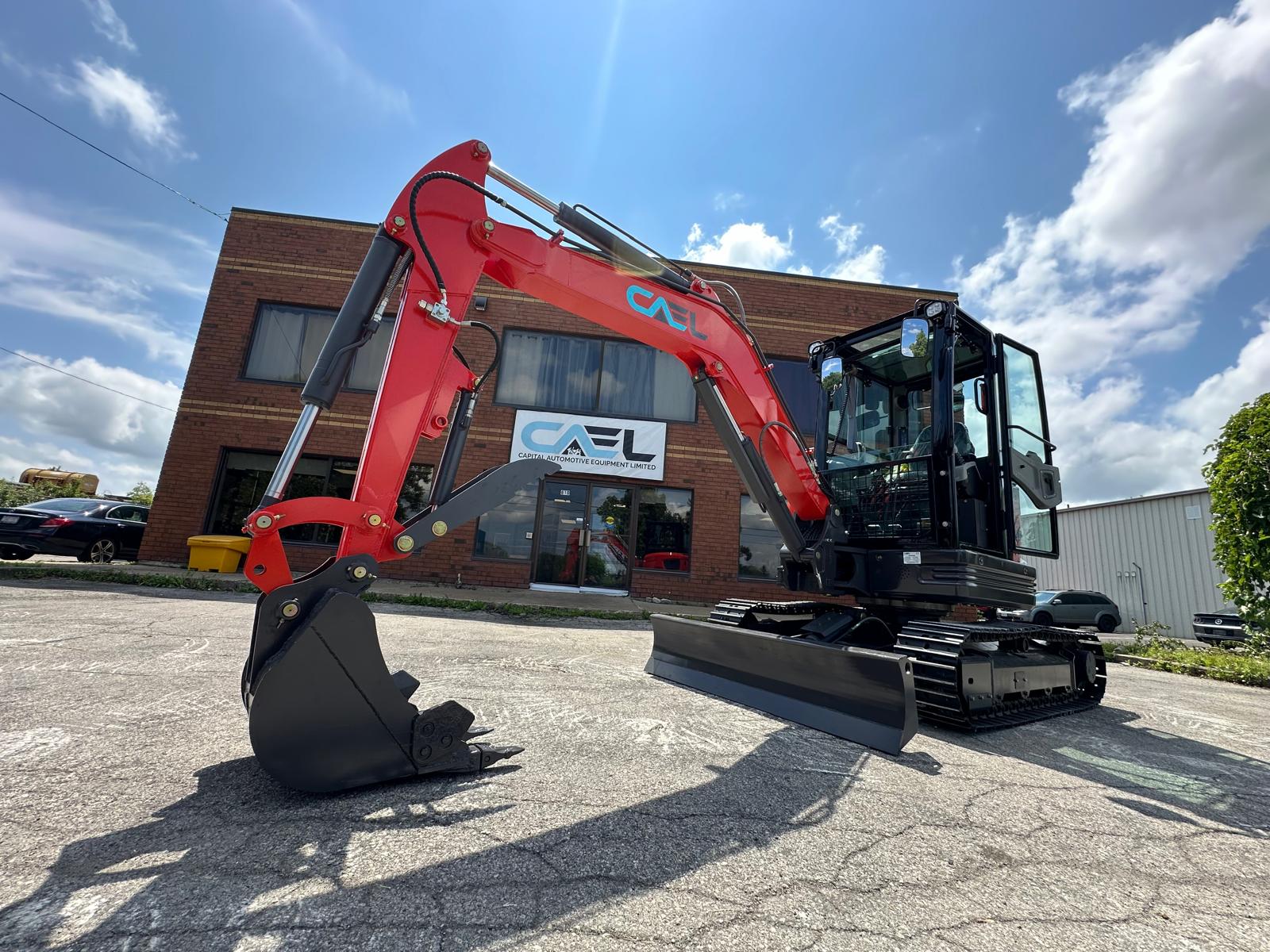

The CAEL-4ZT Compact Excavator is designed to deliver exceptional performance, efficiency, and durability for construction, landscaping, and utility projects. Powered by the dependable Kubota D1703 engine, this robust 4-ton machine offers outstanding digging power, smooth hydraulic control, and superior maneuverability. Its compact design ensures optimal productivity in both confined and open job sites.
General Specifications
Parameter
Metric
Imperial
Model
CAEL-4ZT
—
Operating Weight
4,000 kg
8,818 lbs
Bucket Capacity
0.11 m³
3.88 ft³
Overall Dimensions (L × W × H)
4,945 × 1,700 × 2,585 mm
194.7 × 66.9 × 101.8 in
Track Width
300 mm
11.8 in
Wheelbase (Track Ground Distance)
1,750 mm
68.9 in
Minimum Ground Clearance
270 mm
10.6 in
Counterweight Ground Clearance
595 mm
23.4 in
Performance Specifications
Parameter
Metric
Imperial
Maximum Digging Depth
3,071 mm
120.9 in
Maximum Digging Height
3,505 mm
11.5 ft
Maximum Dumping Height
3,382 mm
133.1 in
Swing Speed
12 rpm
12 rpm
Travel Speed (High/Low)
3–5 km/h
1.86–3.11 mph

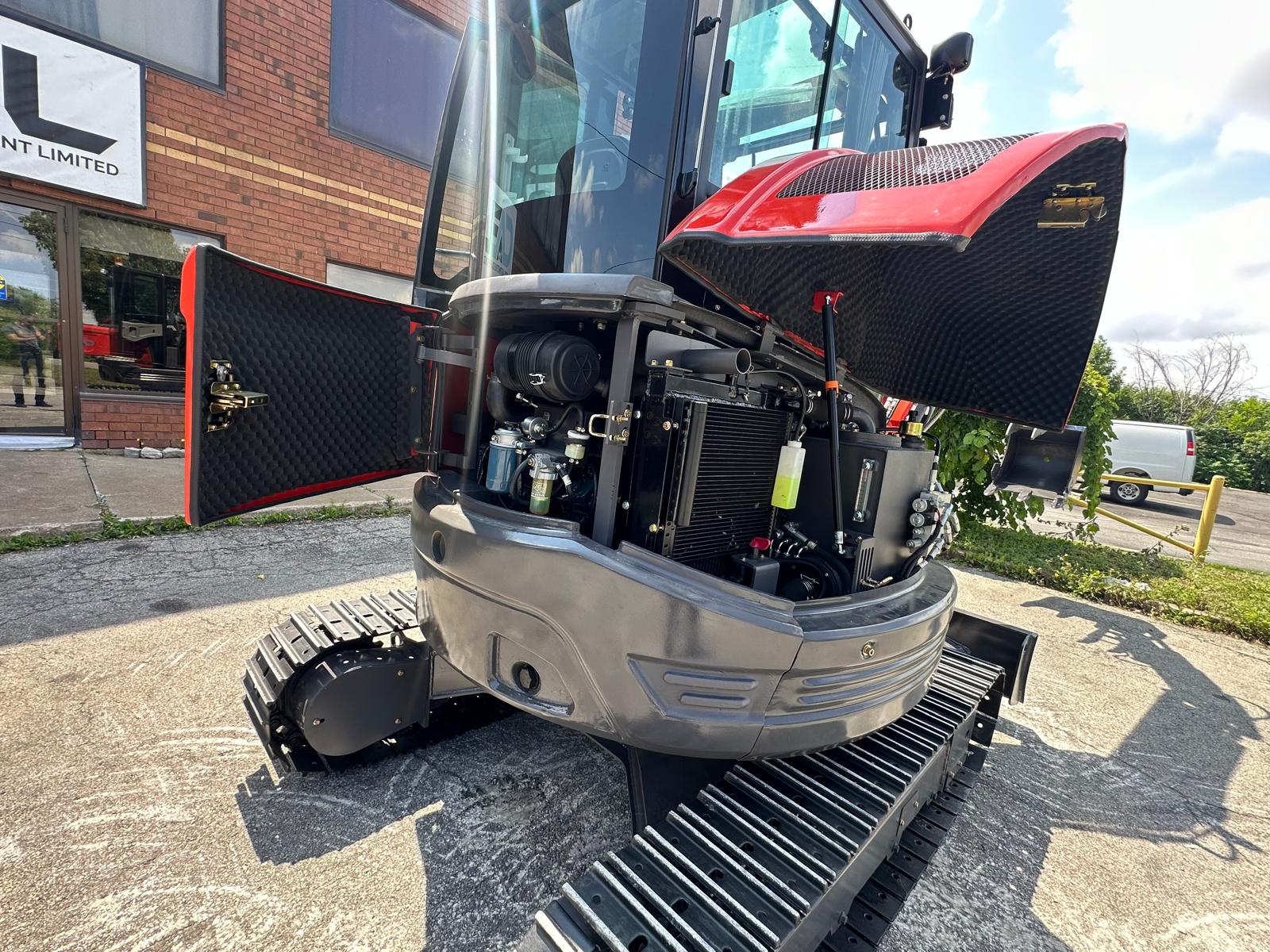

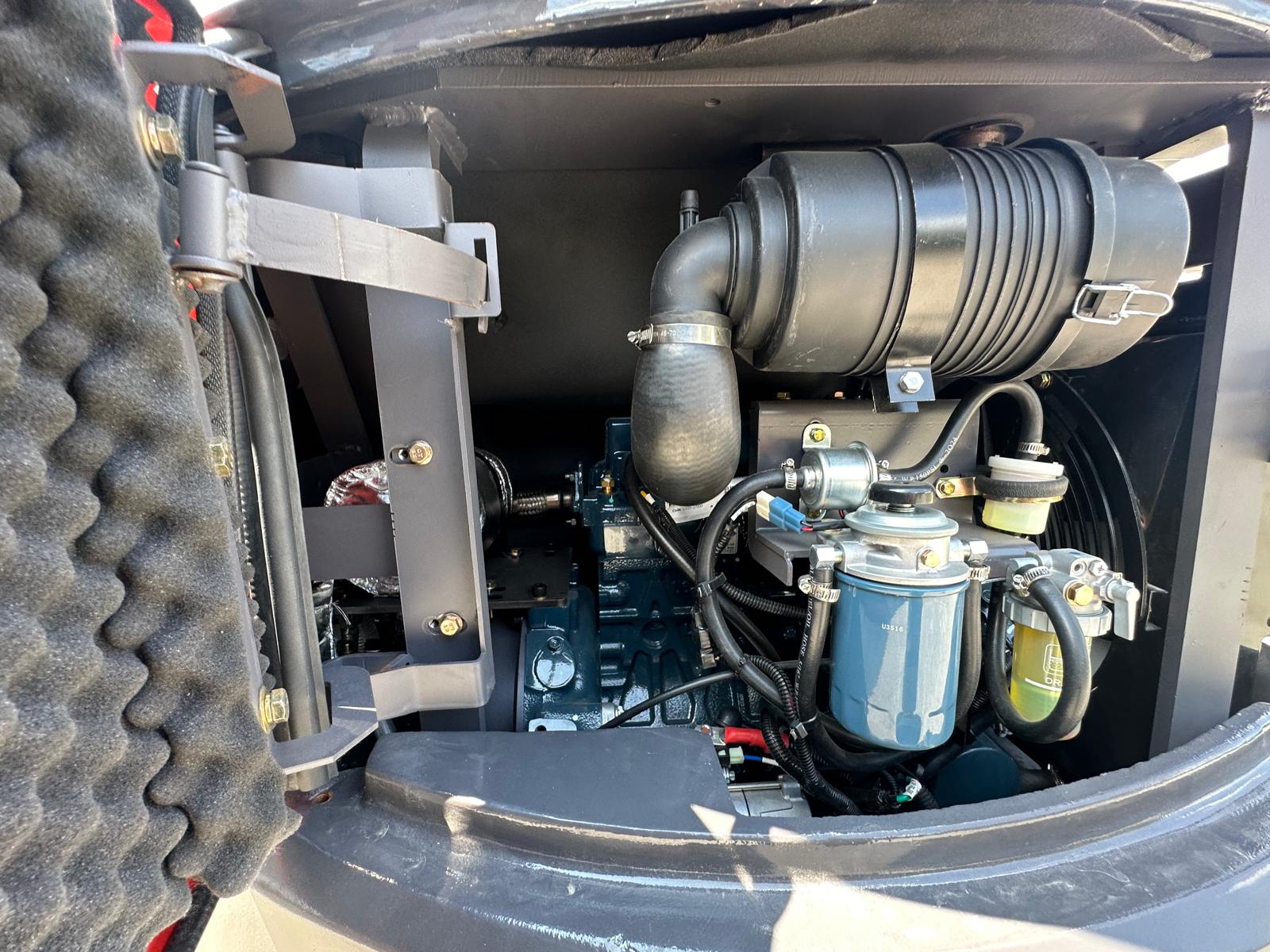

Engine Specifications
Parameter
Specification

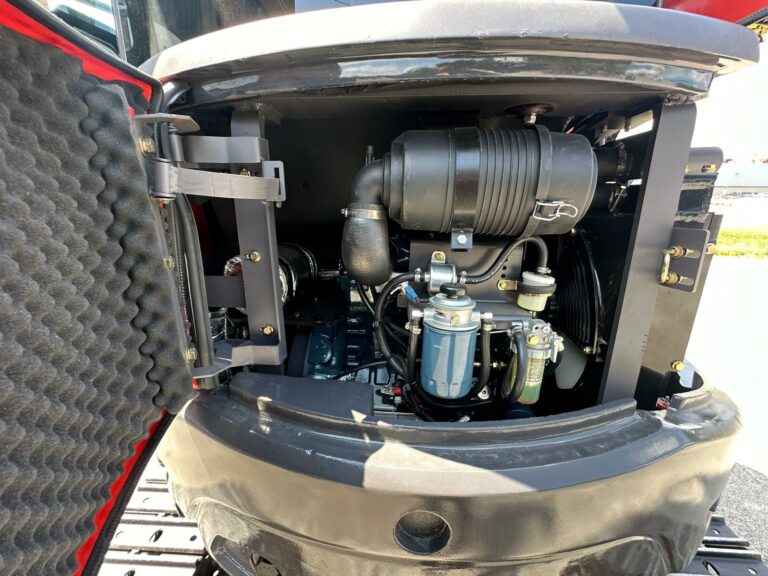

Engine Model
Kubota D1703
Rated Power
18.5 kW (25 HP)
Cooling System
Water-Cooled Diesel
Fuel Tank Capacity
40 L
Hydraulic Oil Capacity
41 L
Key Features
✔ Reliable Kubota D1703 Engine for superior efficiency and durability
✔ Advanced hydraulic system for smooth and precise operation
✔ Compact yet powerful 4-ton design for versatile applications
✔ High digging performance and excellent reach
✔ Durable undercarriage for enhanced stability and longevity
✔ Ergonomic operator controls for maximum comfort and productivity
✔ Fuel-efficient with low maintenance requirements
