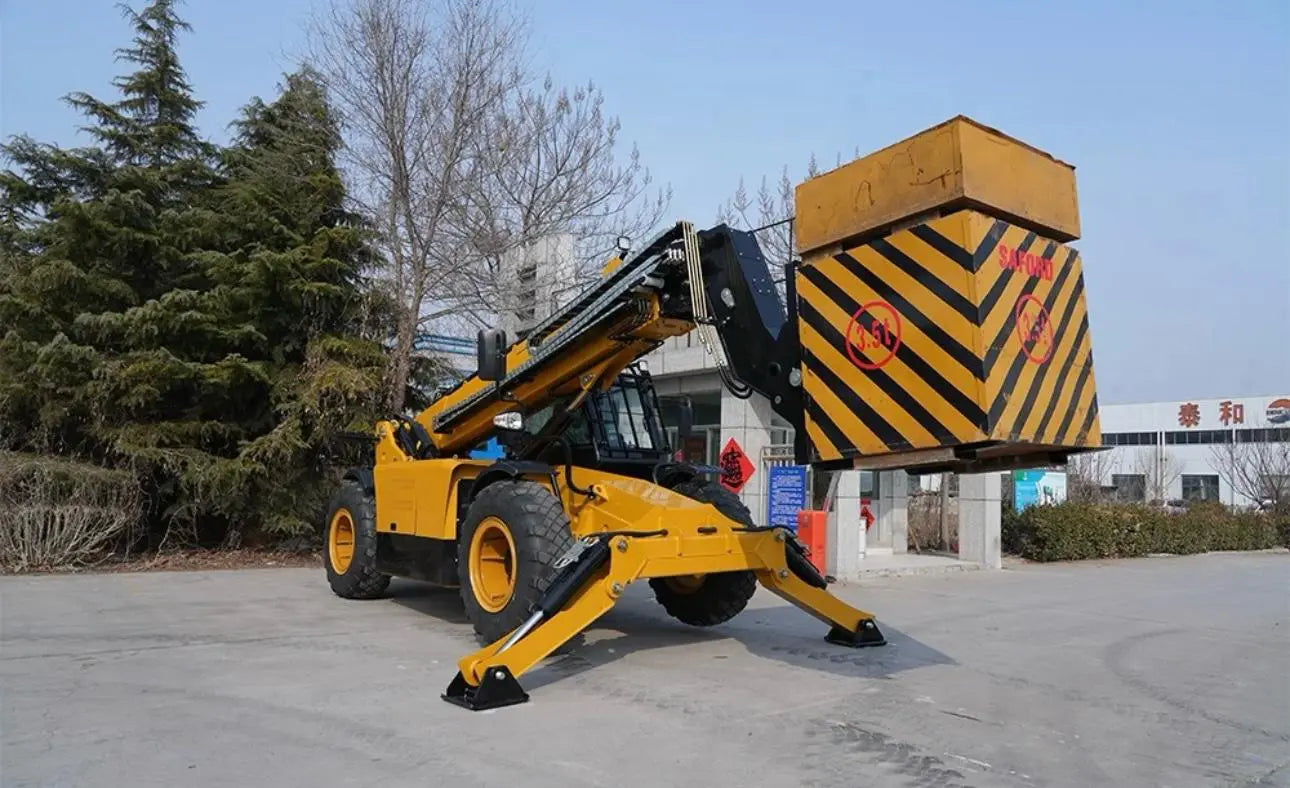

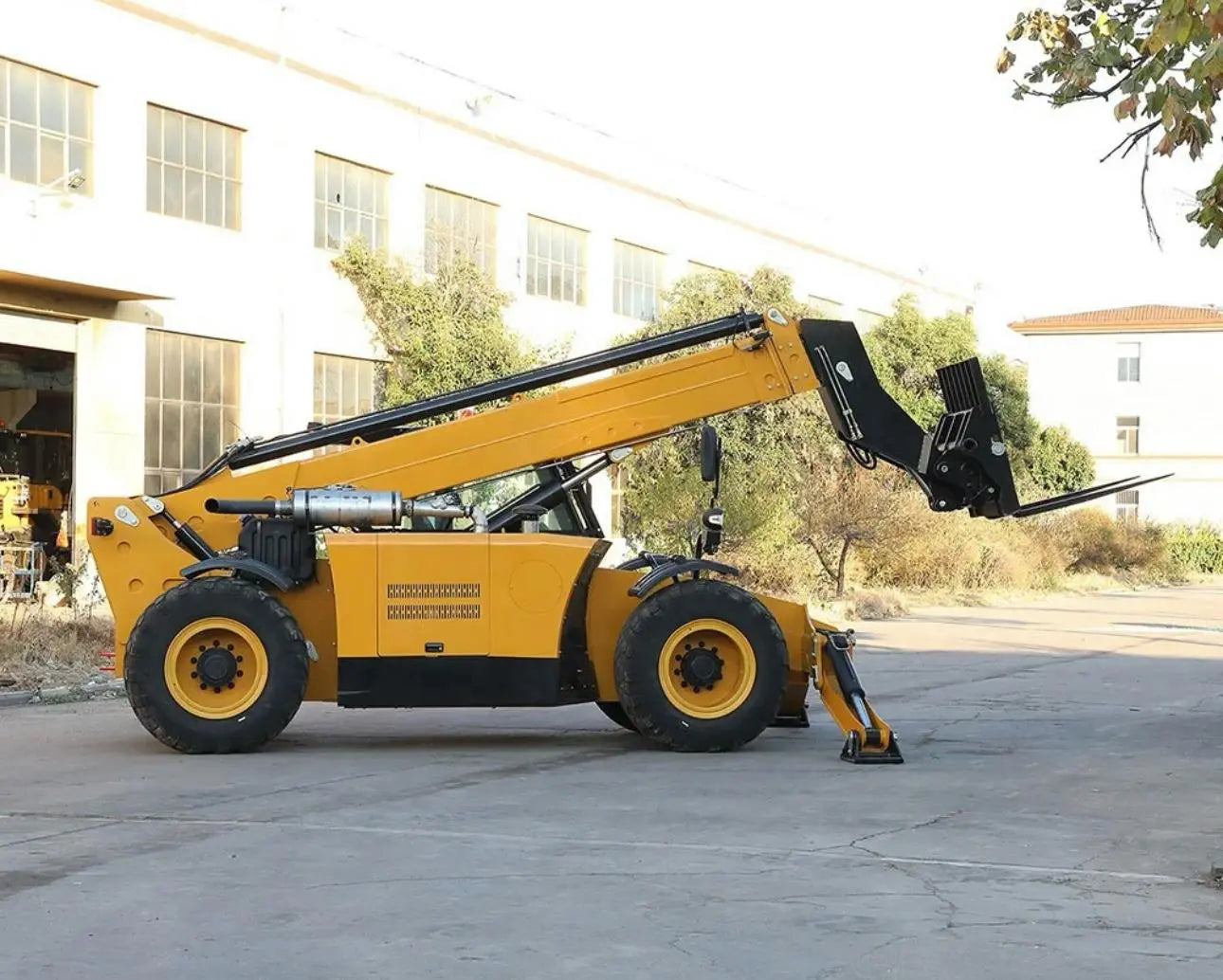

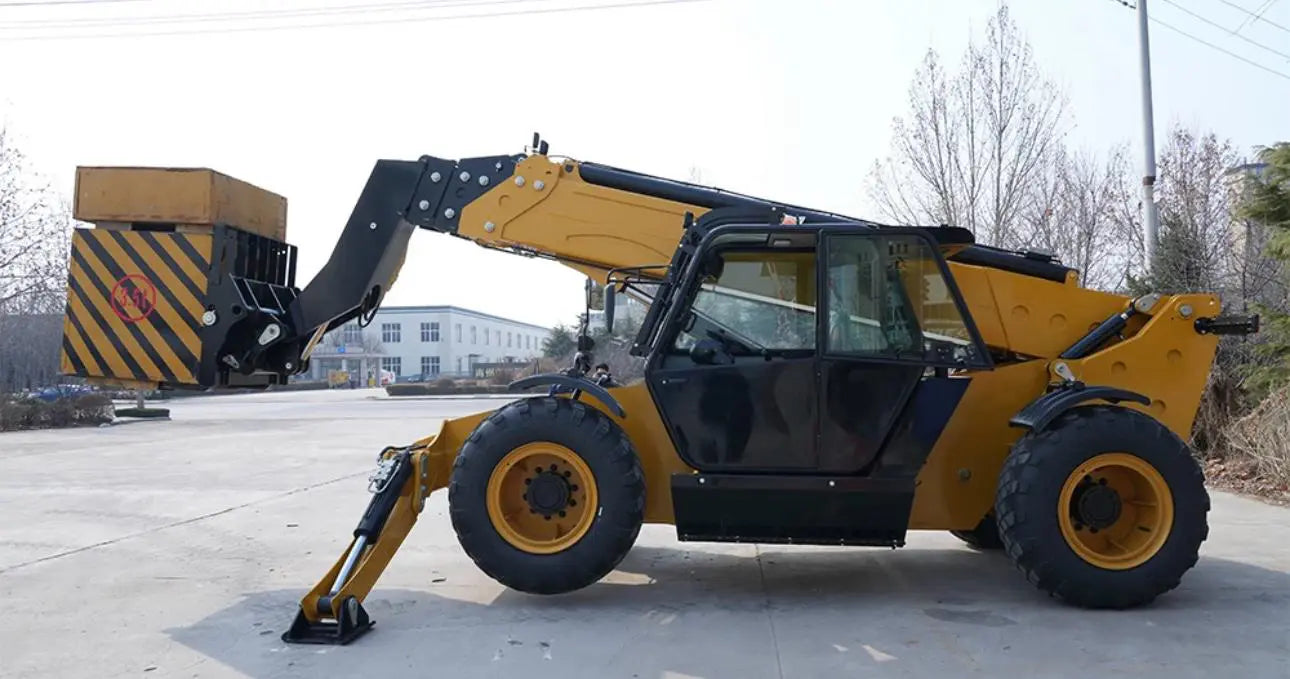

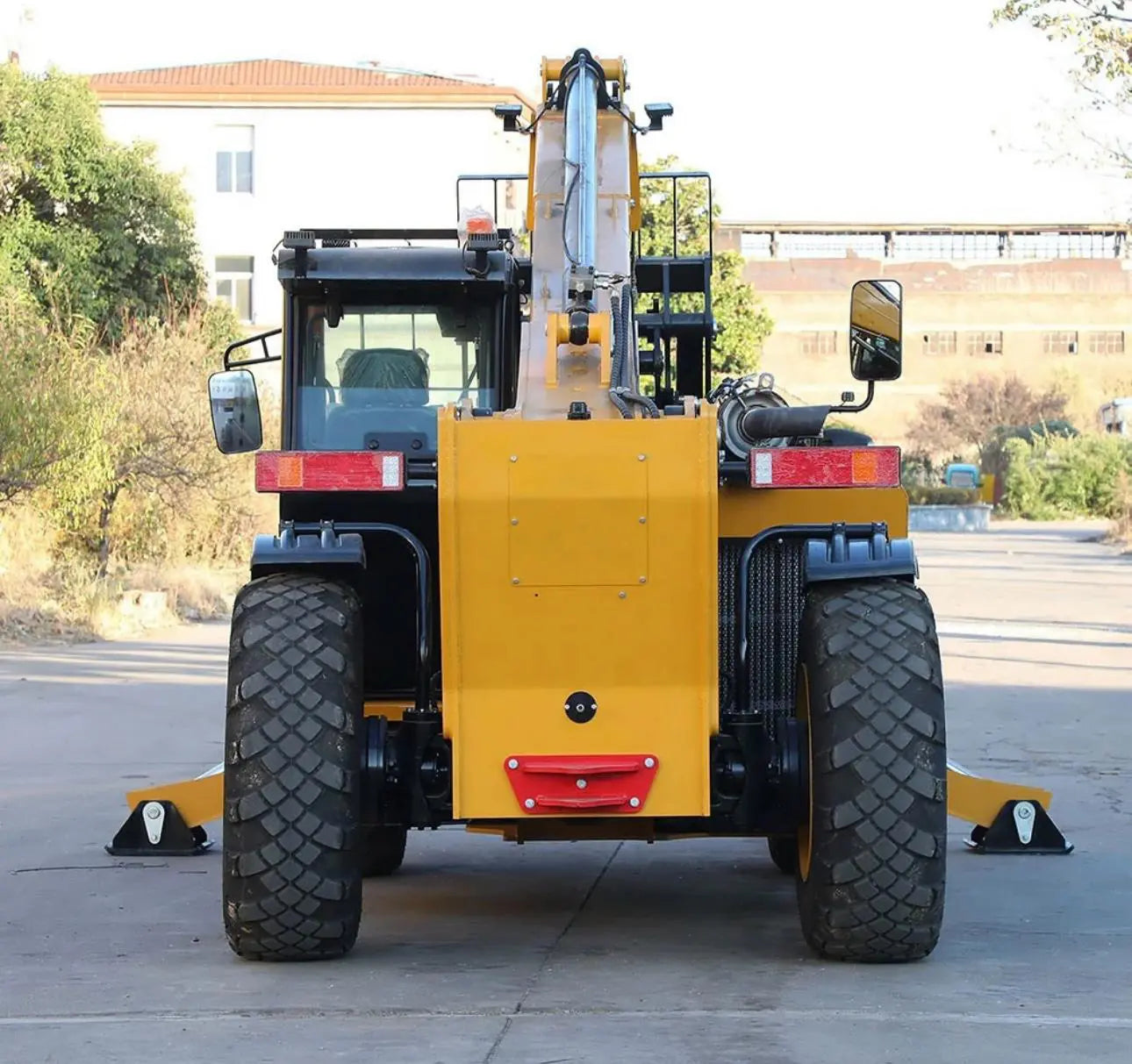

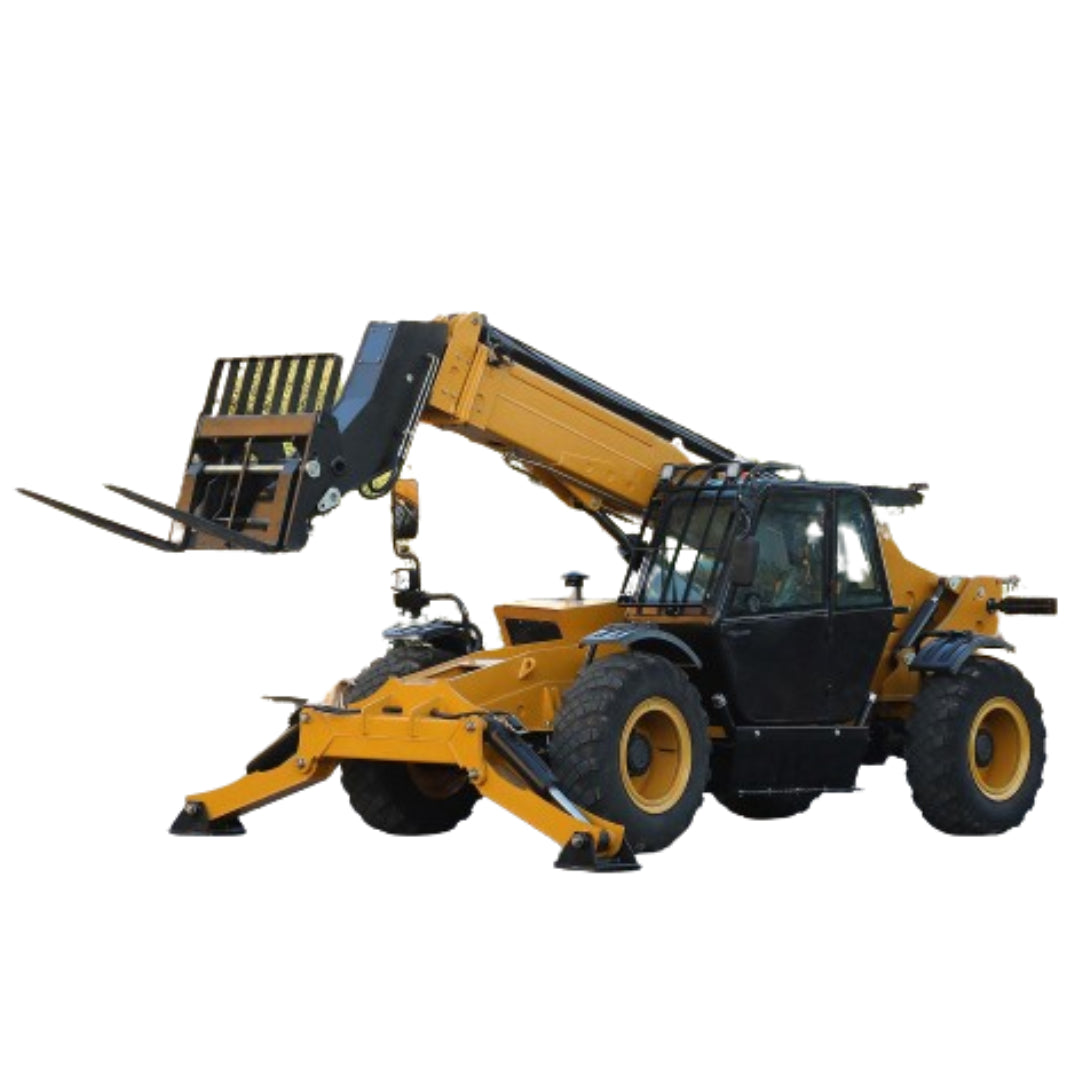

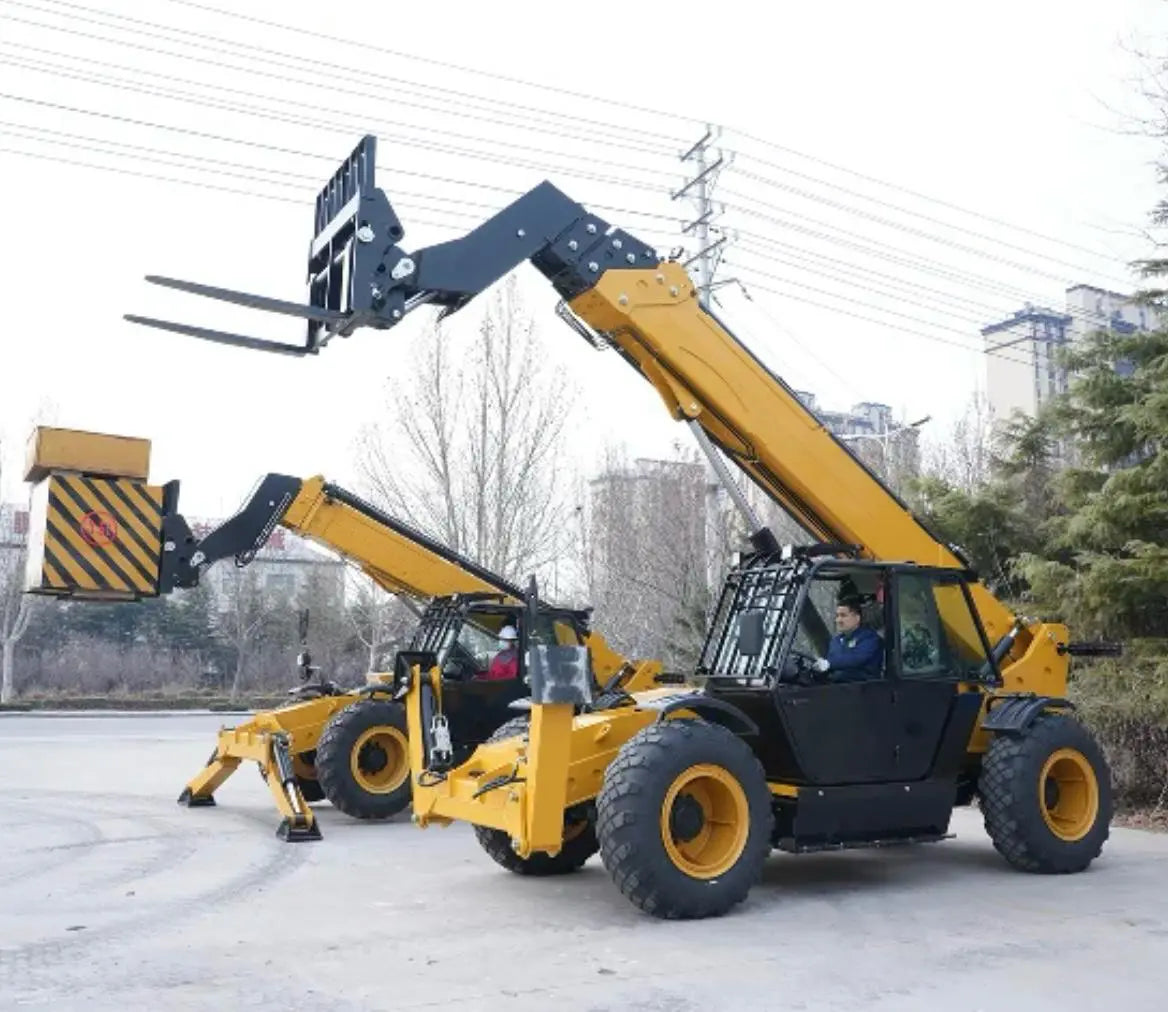

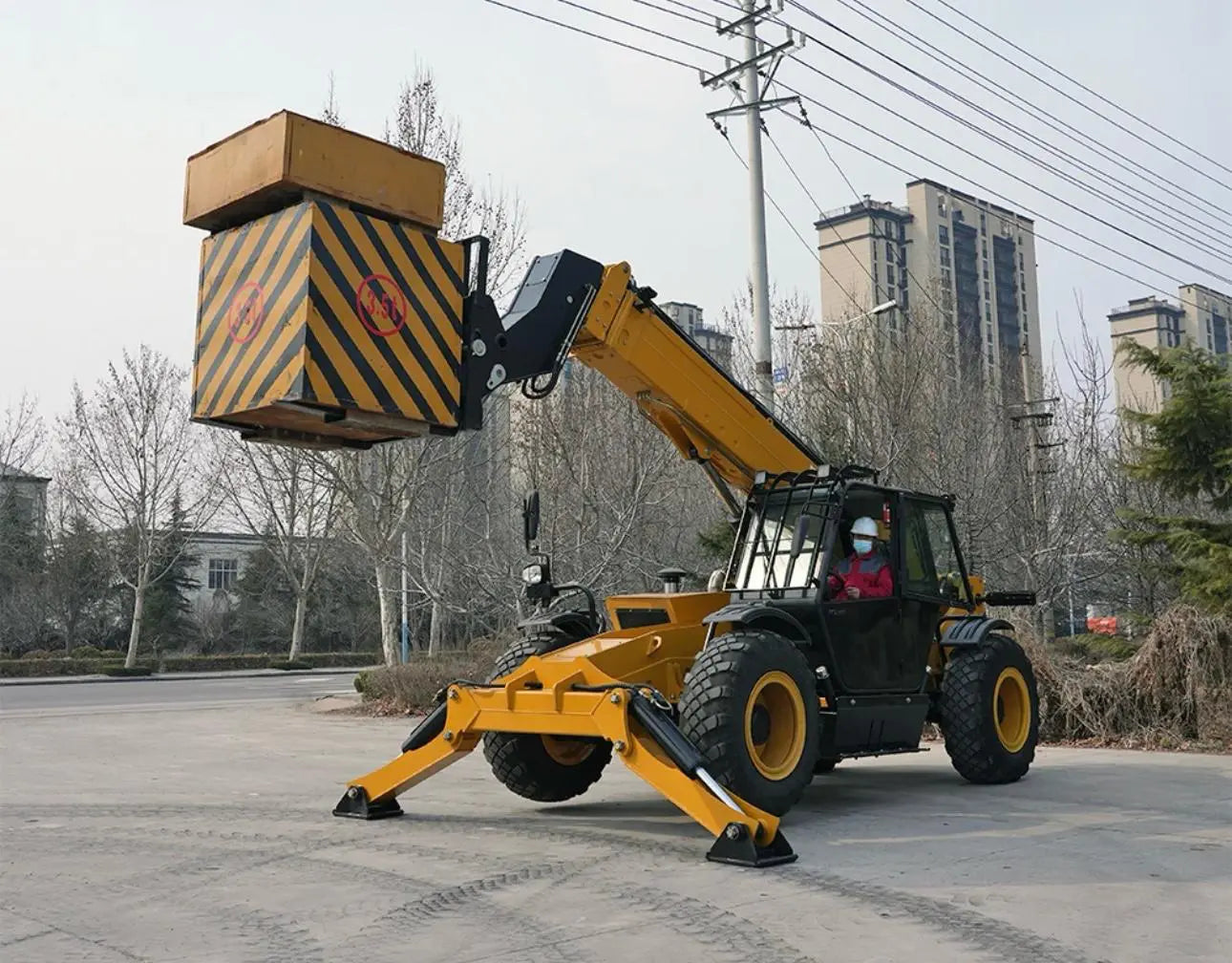

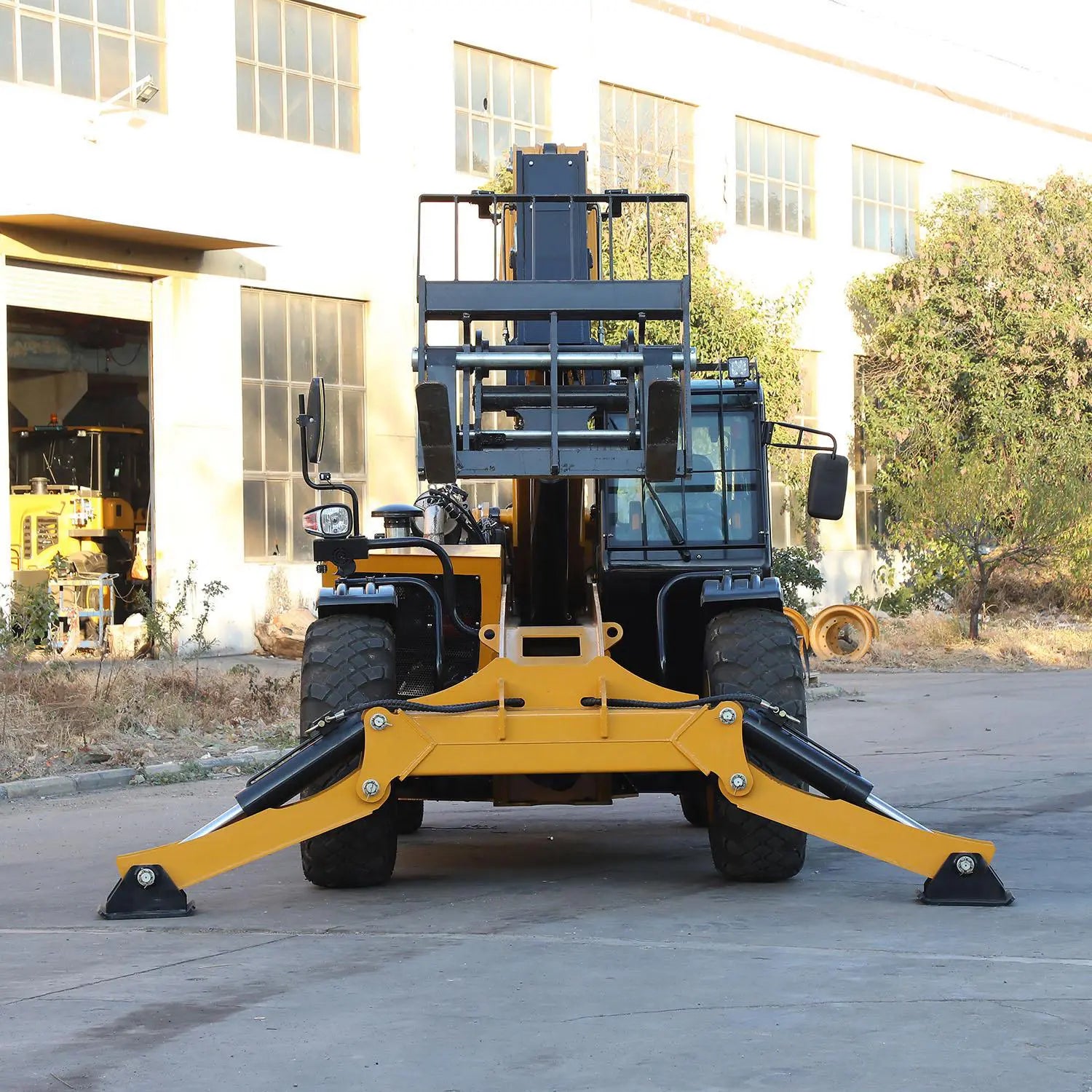

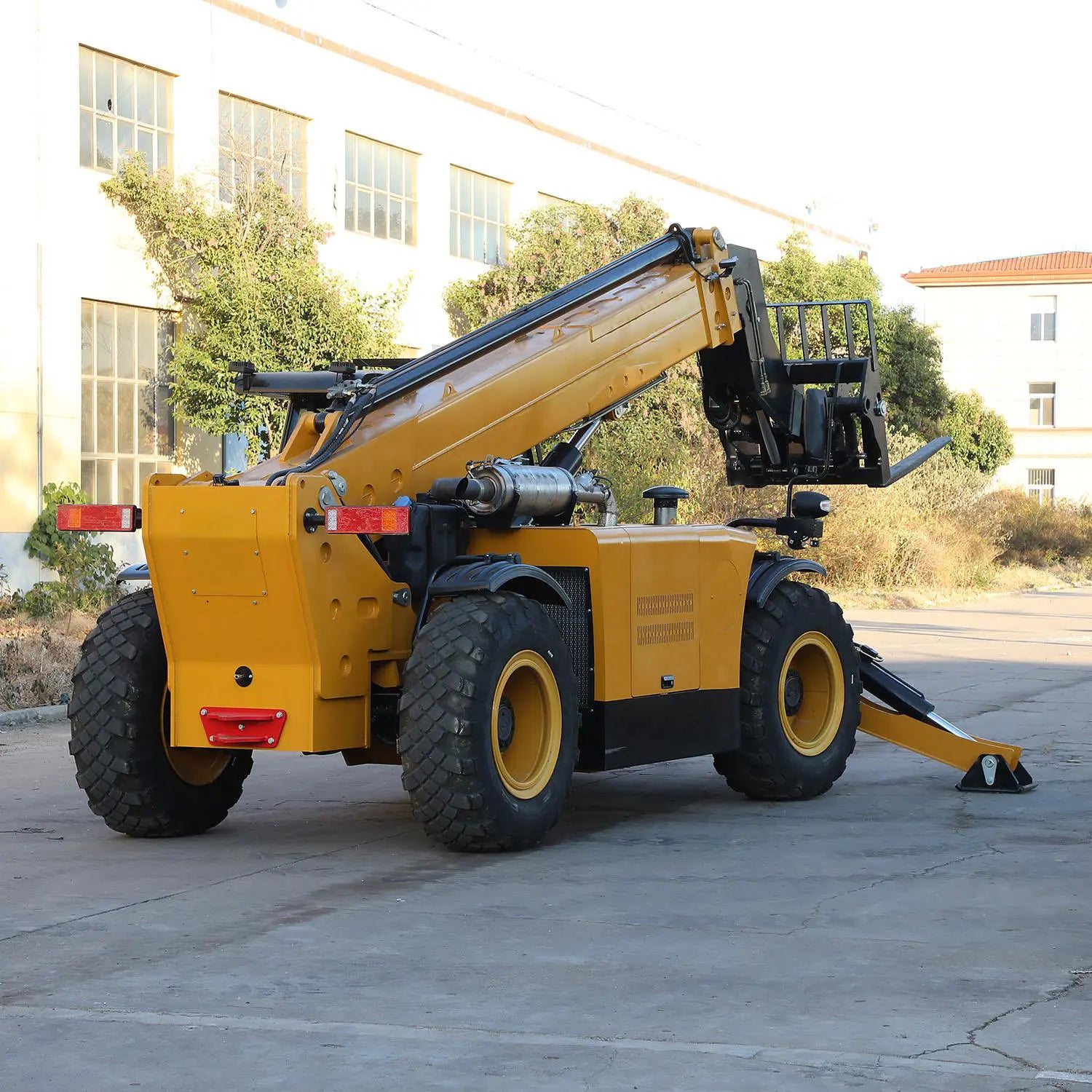

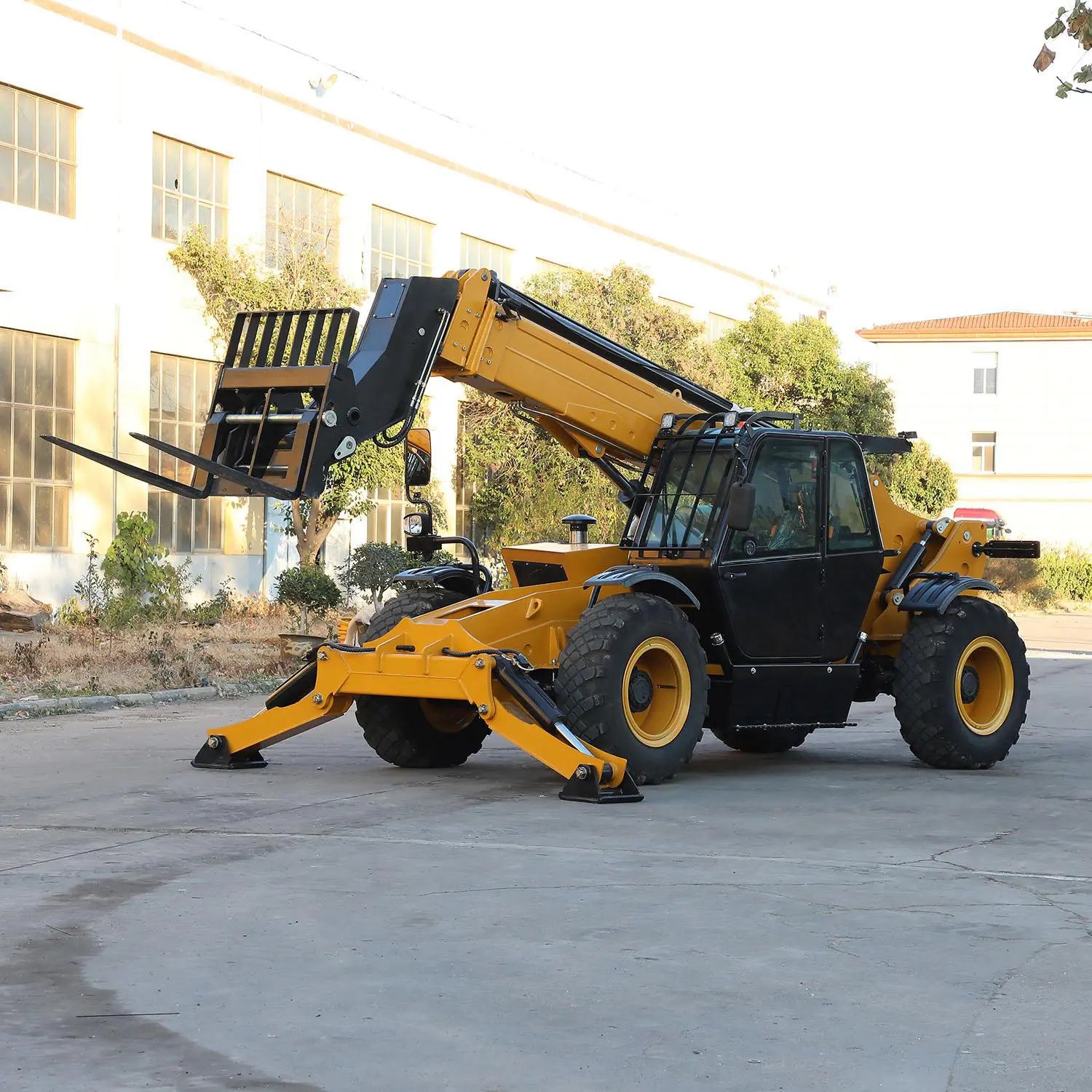

BRAND NEW CAEL telehandler 4×4 All Terrain with Diesel Cummins Engine 45.11 FT designed to be operated on narrow spaces, slippery ground and can handle with heavy workloads.
Its compact dimensions, incredible maneuverability, unparalleled build quality and all-day operator comfort are just the ideal
machine you are looking for.
As a purpose-built machine to the exact needs of agricultural operators. You can therefore also expect maximum productivity,
efficiency , safety and serviceability
Model :
Telehandler ( 45FT11” ) : 4ton loading, Cummins EPA Tier-4 engine 98kw,Luxury cabin
with Aircon,4 wheel steering,1220mm floating fork, Over loading warning system.
Specifications
Manufacturer: CAEL
Model: Cummins 4BT3.9-C125
Rated power: 92kw/123HP
Type: Four stroke, diesel engine
Displacement: 3910L
Performance
Max. lifting capacity: 4500kg
Max. lifting capacity at max reach.: 3200kg
Capacity at max. boom extension: 1500kg
Max. lifting height: 45 ft
Max. horizontal boom extension: 11.31 ft
Gradeability: 30%
Max. speed: 40km/h
Differential-Axles
Driving model: 4WS, Crab steering, 2WS Rigid
Front axle: Rigid
Rear axle: Oscillating
Moving brake: Service air brake(disc) on the 4 wheels with double hydraulic system
Parking brake: Negative parking brake
Tires 405/70-24
Dimensions
Length (without fork) D: 20 ft
Height F: 8.1 ft
Width H: 7.5 ft
Shaft distance B1: 10.3 ft
Tire distance G: 6.2 ft
Cabin width E: 2.9 ft
Ground clearance A: 1.2 ft
Front tires to Rear chassis C: 15 ft
Standard fork length
Option
Overloading warning & Limitation
Titable chassis(+-6)
Sideshift
Fork positioner
Raisable cabin
Big bucket for bulk cargo
Normal bucket for construction Working platform(Fordable working platform, swing working platform etc…)
Attachments(Hook,grapple,auger Mixing bucket,tilted fork,4in1 bucket,winch,baler,manipulator
