BRAND NEW CAEL telehandler 4×4 All Terrain with Diesel Cummins Engine 59FT was designed to be operated on narrow spaces, slippery ground and can handle with heavy workloads.
Its compact dimensions, incredible maneuverability, unparalleled build quality and all-day operator comfort are just the ideal
machine you are looking for.
As a purpose-built machine to the exact needs of agricultural operators. You can therefore also expect maximum productivity,
efficiency , safety and serviceability.
-Telehandler (59FT) : 4ton loading,Cummins EPA Tier-4 engine 98kw,Luxury cabin
with Aircon,4 wheel steering,1220mm floating fork,Overloading warning system)
Attachment Available ( Optional )

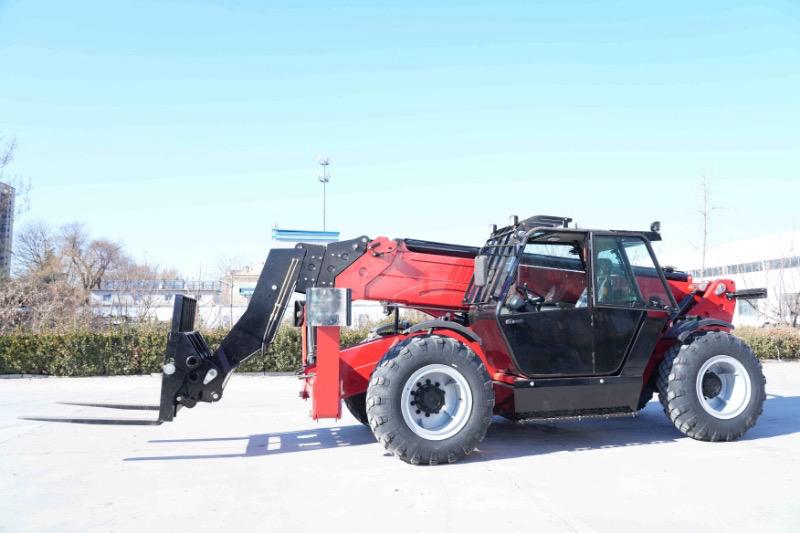

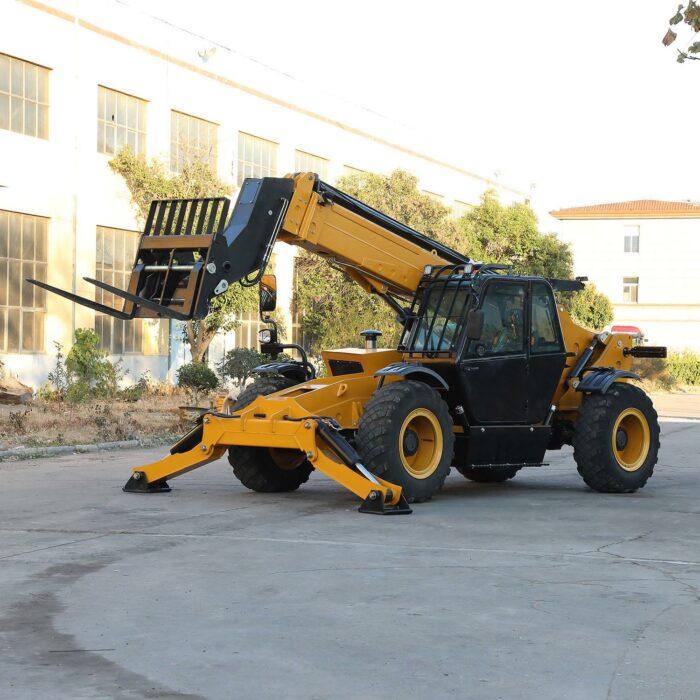

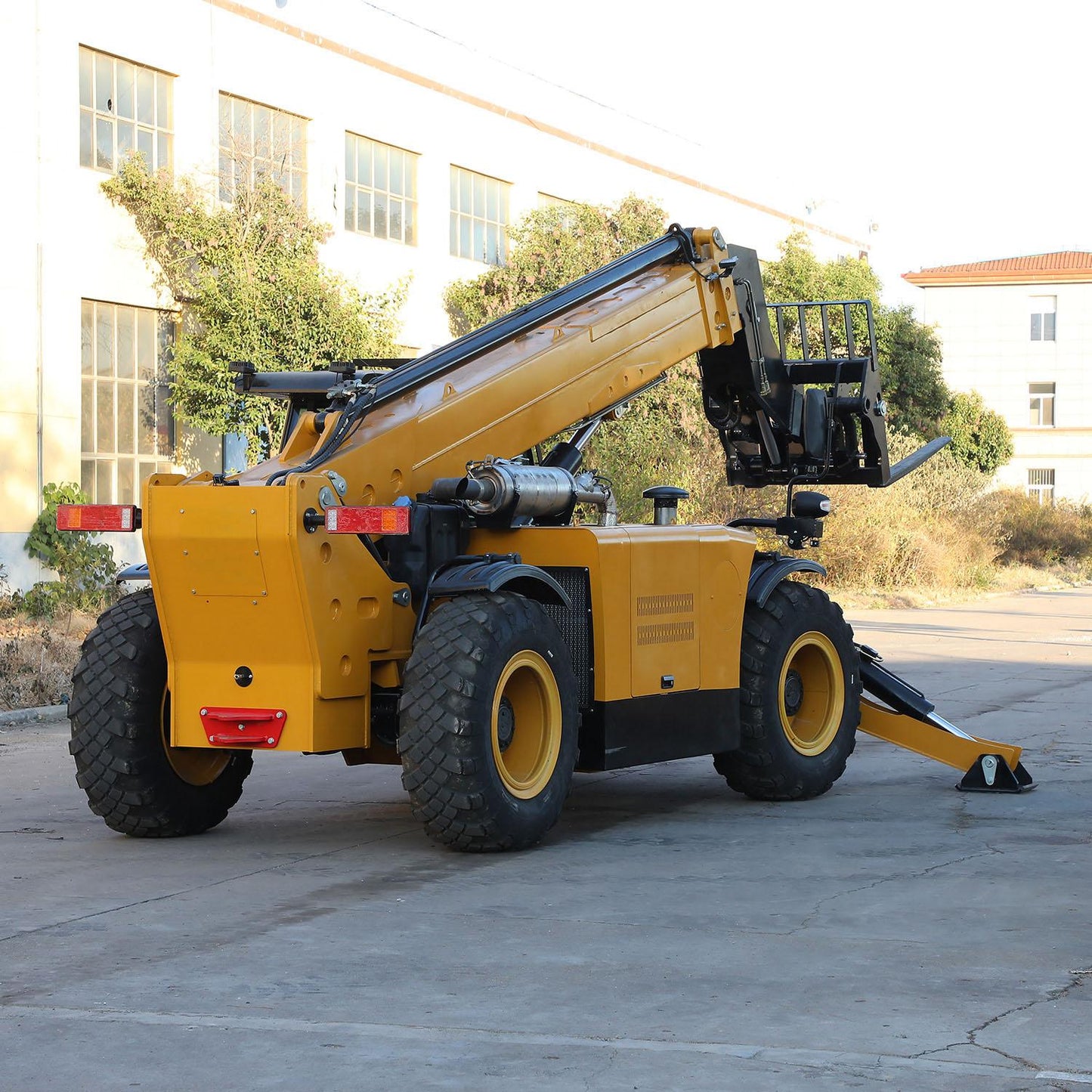

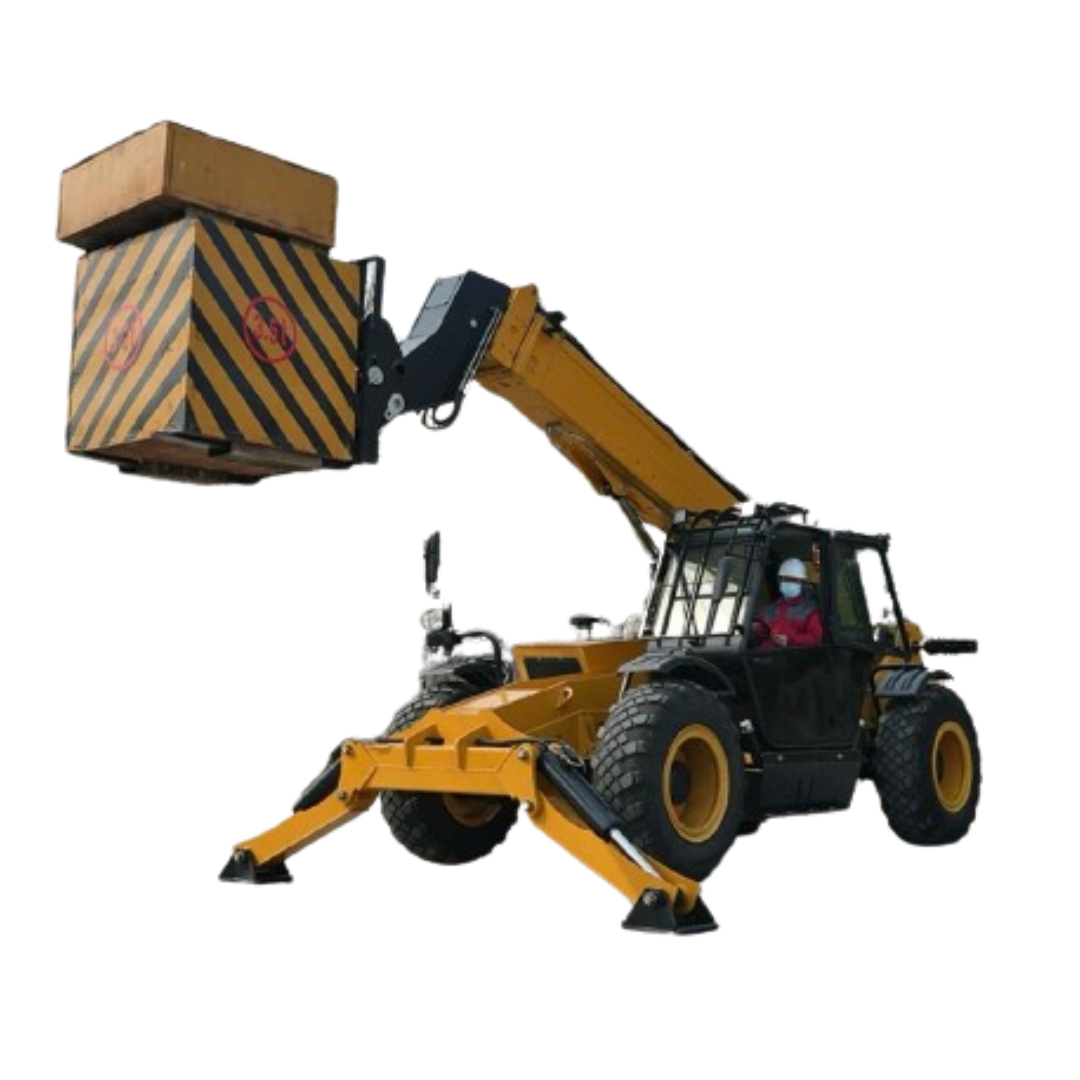

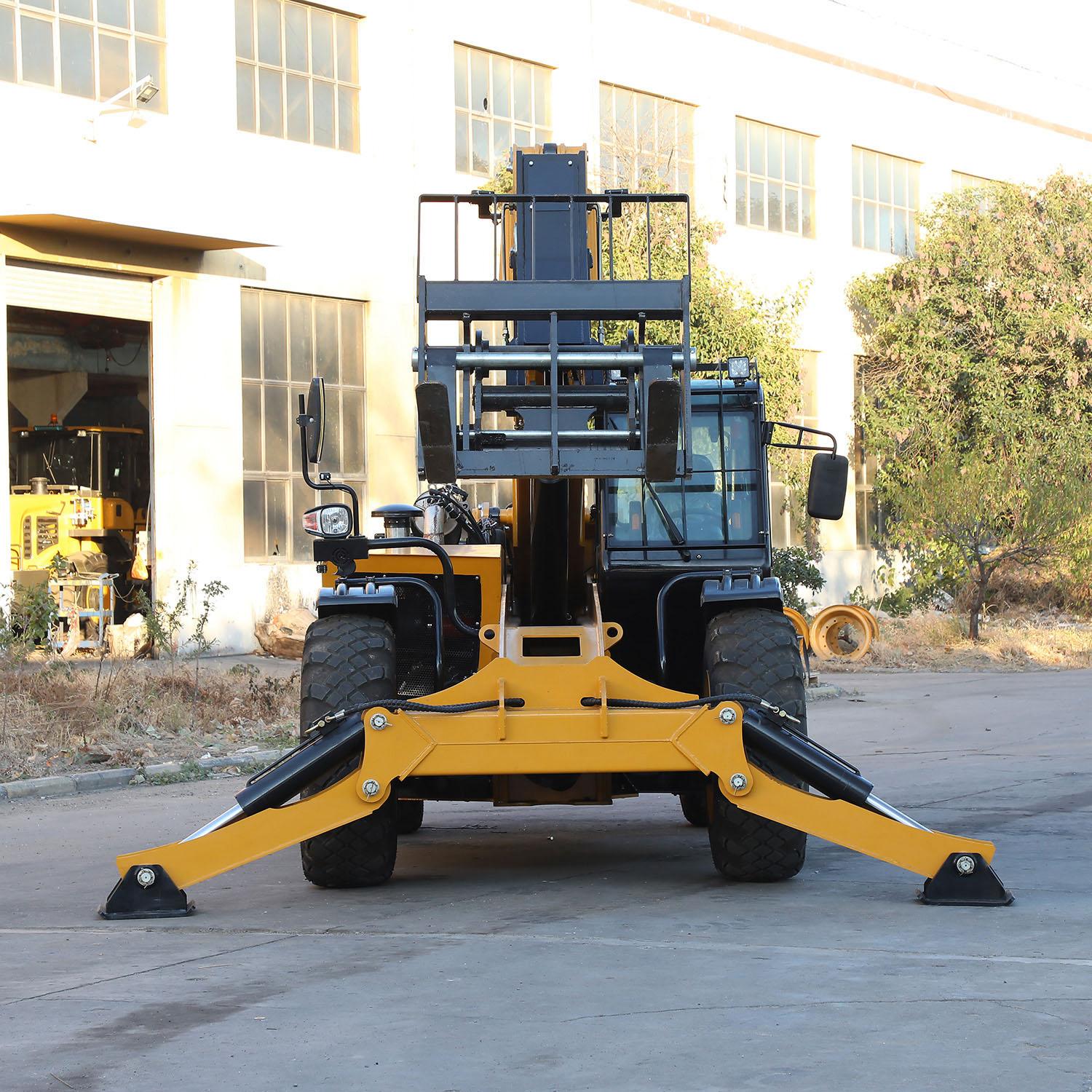

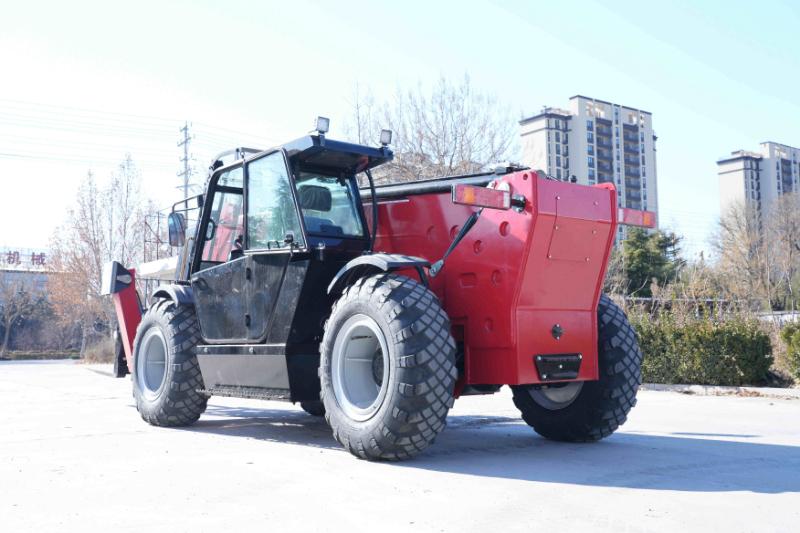

CAEL 59 ft Telescopic handler forklift truck
Model: CAEL 59-TH
Manufacturer: CAEL
Engine: Cummins 4BT3.9-C125
Rated power: 92kw/123HP
Type: Four stroke, diesel engine
Displacement: 3910L
Performance:
Max. lifting capacity:4000kg
Max. lifting capacity at max.
Reach: 2500kg
Capacity atmax. boom extension | 850kg
Max. lifting height: 57 ft
Max. horizontal boom extension: 4.2 ft
Gradeability: 30%
Max. speed: 40km/h
Differential-Axles
Driving model: 4WS, Crab steering, 2WS
Front axle: Rigid
Rear axle:Oscillating
Moving brake: Service air brake(disc) on the4 wheels
with double hydraulic system
Parking brake: Negative parking brake
Tires:405/70-24
Dimensions
Length (without fork) D:20 ft
Height F: 8.1 ft
Width H: 7.5 ft
Shaft distance B1: 10.3 ft
Tire distance G: 6.2 ft
Cabin width E: 2.9 ft
Ground clearance A: 1.2 ft
Front tires to Rear chassis C: 15 ft
Standard fork length
Option
Overloading warning & Limitation
Titable chassis(+-6)
Sideshift
Fork positioner
Raisable cabin
Bigbucket for bulk cargo
Normal bucket for construction
Working platform(Fordable
working platform,swing working
platform etc…)
attachments(Hook,grapple.auger
Mixing bucket,tilted fork,4in1
bucket,winch,baler,manipulator
