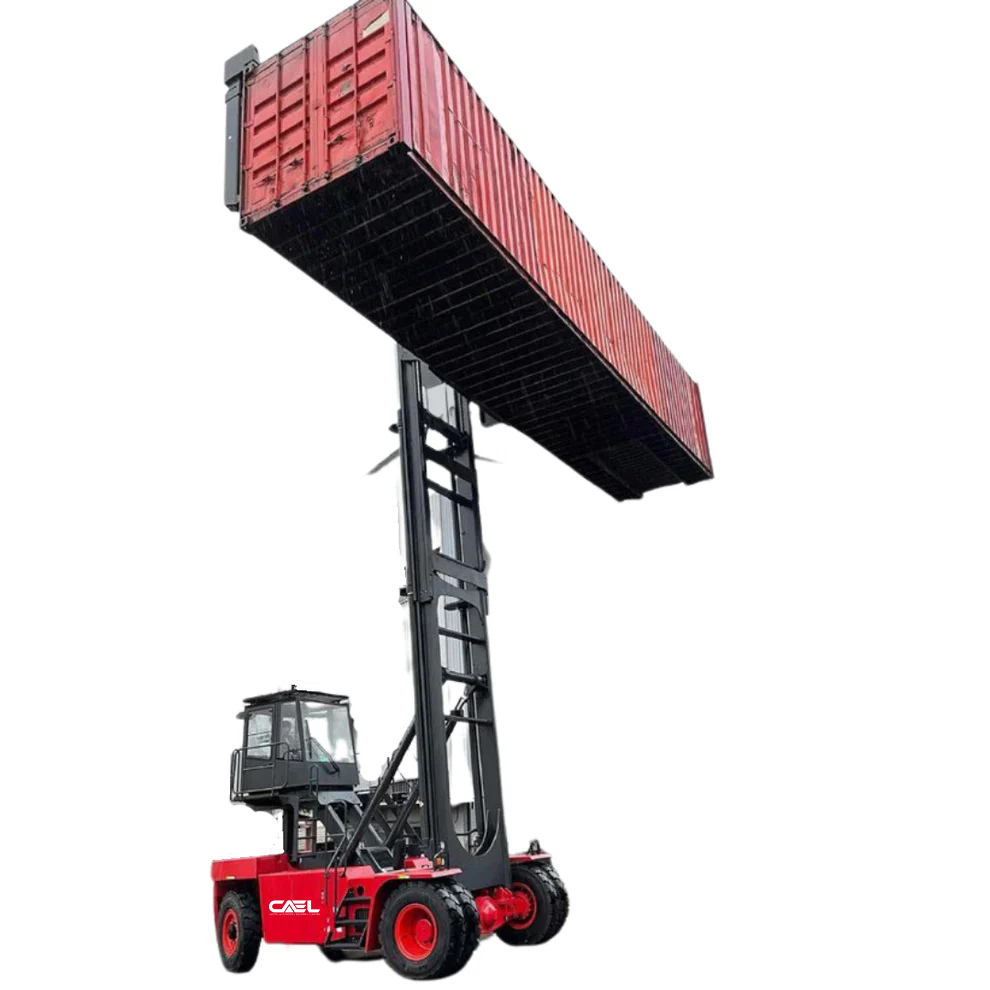

CAEL 9 Ton Empty Container Forklift Stacker FCS-90

CAEL 9 Ton Empty Container Forklift Stacker FCS-90

$420,000.00 CAD
$420,000.00 CAD $420,000.00 CAD
Sale Sold out
Shipping calculated at checkout.

Get quote now

We Accept

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
  • Low Prices
  • Warranty Included
  • Order Tracking

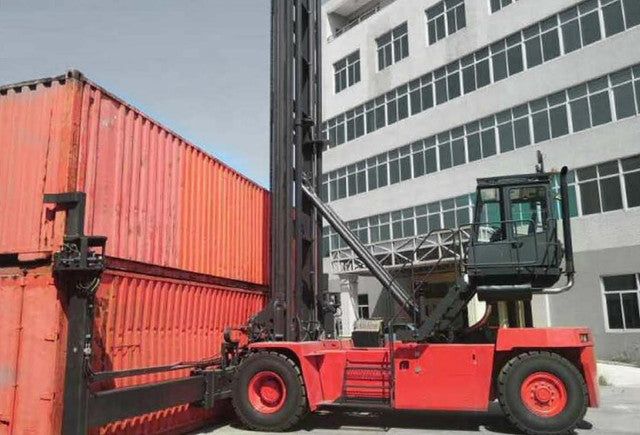

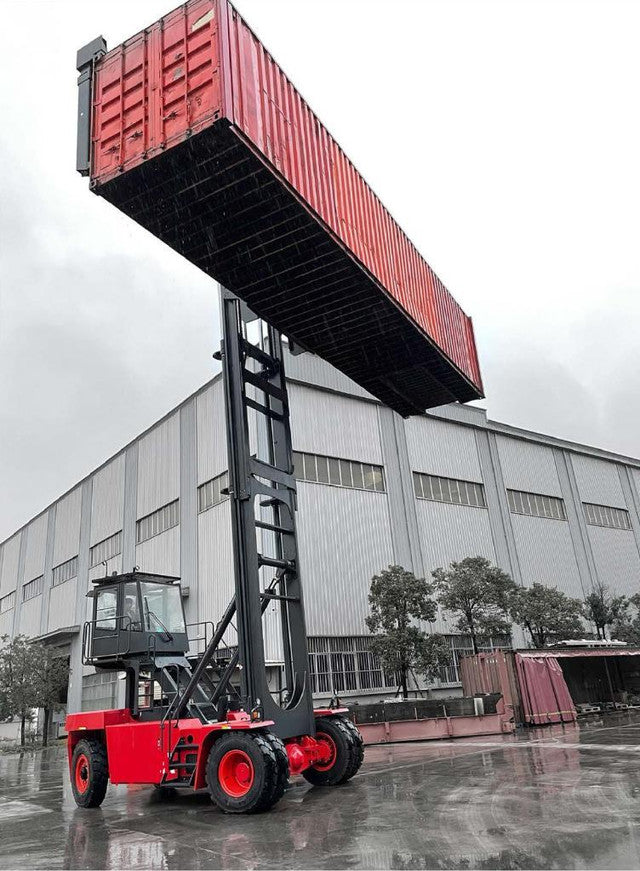

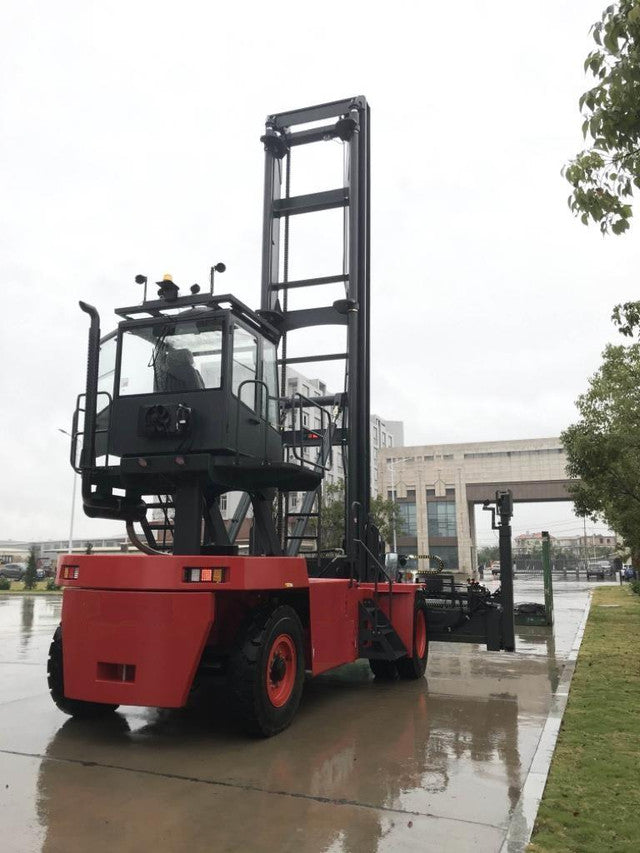

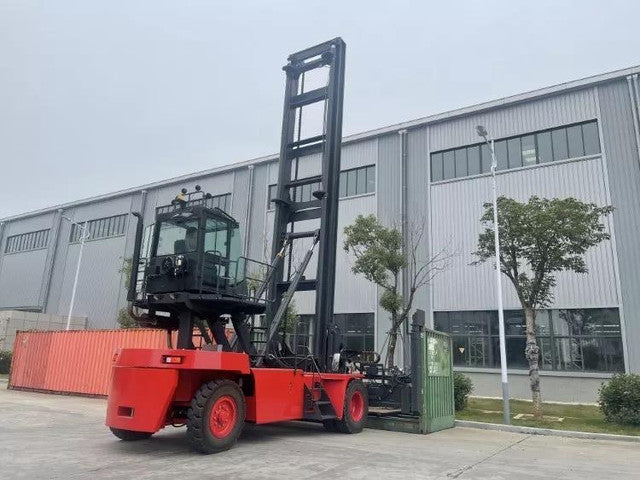

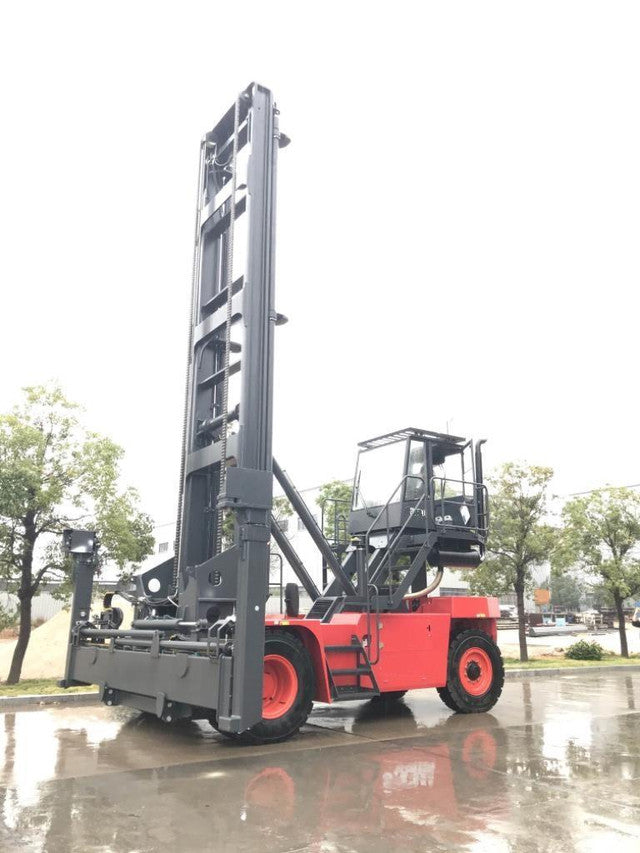

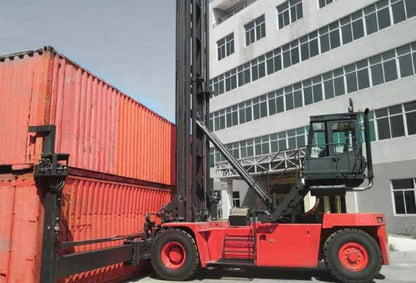

The CAEL CAEL90/7 Reach Stacker is engineered for efficient and reliable container handling in ports, rail yards, and logistics terminals. Designed with premium global components—including a Cummins engine, Kessler driving axle, and Dana transmission—this machine delivers exceptional lifting capacity, operational efficiency, and durability in demanding environments.

General Specifications

Parameter Metric Imperial
Manufacturer CAEL —
Model CAEL90/7 —
Rated Lifting Capacity 9,000 kg 19,841 lbs
Load Centre Distance 1,220 mm 48 in
Height of Bottom of Spreader 2,205 mm 86.8 in
Stacking Capacity (Standard Height) 7 Containers —
Stacking Capacity (Ultra Height) 6 Containers —
Overall Weight 40,000 kg 88,000 lbs
Equipment Utilization Rate 95% —

Engine Specifications

Parameter Details
Engine Model Cummins QSL9T4F
Rated Power 194 kW @ 2200 rpm
Maximum Torque 1132 N·m @ 1500 rpm
Emission Standard Tier 4
System Voltage 24V

Transmission and Axles

Component Specification
Transmission DANA
Driving Axle KESSLER
Gears (Forward/Reverse) 3 / 3
Service Brake Wet Multi-Disc Brake
Parking Brake Spring Brake with Hydraulic Release
Tire Inflation Pressure 1.05 MPa

Performance Parameters

Parameter Metric Imperial
Hoisting Speed (Empty/Load) 600 / 550 mm/s 23.6 / 21.7 in/s
Descending Speed (Empty/Load) 550 / 600 mm/s 21.7 / 23.6 in/s
Maximum Travel Speed (No Load) 28 km/h 17.4 mph
Maximum Travel Speed (Rated Load) 26 km/h 16.2 mph
Maximum Gradeability 30% —
Minimum Gradeability 22% —
Minimum Turning Radius 6,000 mm 236 in
Side Shift Distance of Spreader ±600 mm ±23.6 in
Gantry Angle (Front/Rear) 2° / 4° —

Dimensions

Parameter Metric Imperial
Wheelbase 4,550 mm 179.1 in
Width of Front Axle 3,280 mm 129 in
Cab Height 4,735 mm 186.4 in
Minimum Ground Clearance 330 mm 13 in
Aisle Width (20’/40’ Containers) 9,955 / 14,585 mm 392 / 574 in

Overall Dimensions (L × W × H):
6,900 × 6,085 × 12,215 mm
(Approximate; subject to confirmation based on configuration.)

Hydraulic System

Parameter Specification
Working Pressure 23 MPa
Hydraulic Oil Chevron Rando HD46
Hydraulic Tank Capacity 900 L
Maximum Operating Temperature ≤ 70°C

Hydraulic Cylinders

Cylinder Rod Diameter Bore Diameter Stroke
Steering Cylinder 100 mm (4 in) 140 mm 380 mm
Oscillating Cylinder 100 mm 160 mm 295 mm
Lifting Cylinder 100 mm 125 mm 8,250 mm

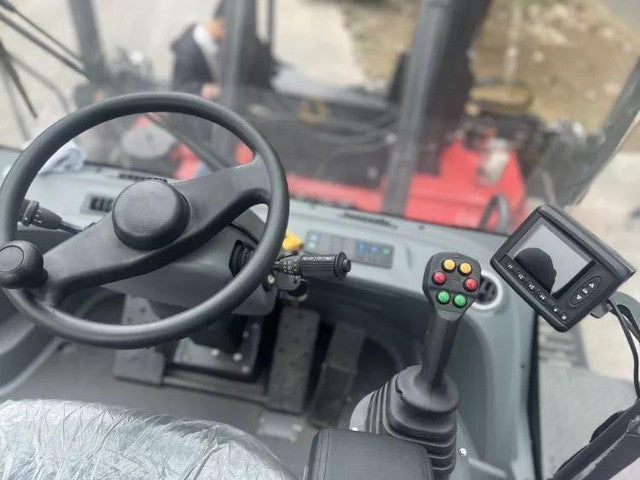

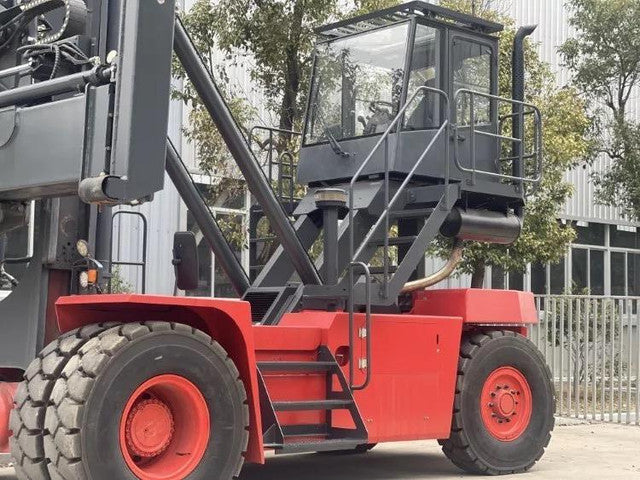

Operator Cab

Parameter Specification
Cab Noise Level ≤ 72 dB
Cab Temperature Range 18–25°C
Design Ergonomic with enhanced visibility

Key Features

  • Cummins Tier 4 Engine for superior power and efficiency
  • Dana Transmission for smooth and reliable performance
  • Kessler Driving Axle for heavy-duty operations
  • Advanced Hydraulic System for precision handling
  • High Stacking Capability for optimized yard efficiency
  • Ergonomic Operator Cab for comfort and safety
  • ISO Container Handling for 20 ft and 40 ft containers
  • Durable and Reliable for port and logistics operations
