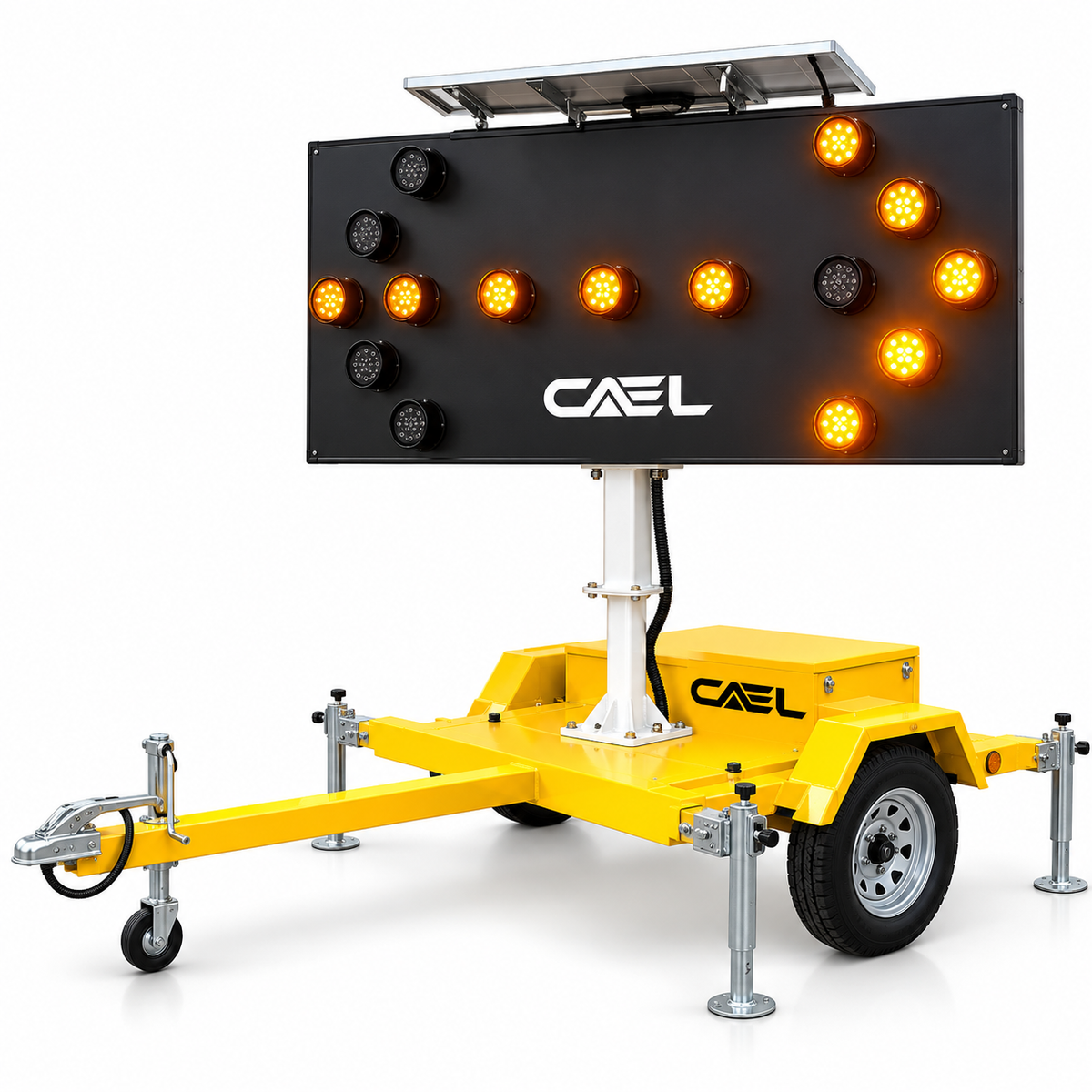

CAEL Mobile LED Arrow Board Trailer
Product Overview
The CAEL Mobile LED Arrow Board Trailer is a portable traffic management and road safety solution designed to improve visibility, guide motorists, and communicate traffic directions in work zones and outdoor environments. Built with a durable trailer structure, a high-visibility LED arrow panel, and a solar-assisted power system, it offers flexible deployment for highway maintenance, construction projects, traffic control, and emergency situations.
Its adjustable display positioning, automatic dimming photocell, and extended stabilizing legs make it a practical solution for temporary traffic management and roadside safety applications.
Key Features
-
Hydraulic Height Adjustment: Hydraulic lifting system with a braking mechanism for secure panel positioning.
-
Extended Stabilizing Legs: Designed to provide stability when the trailer is deployed.
-
Automatic LED Dimming: Photocell-based brightness adjustment for changing ambient light conditions.
-
Additional Wheel Provision: Provision for an extra wheel and tyre.
-
Weather-Protected Battery Compartment: IP55-rated battery compartment, as specified.
-
Rear Warning Lights: Two rear warning lights for enhanced visibility.
-
Solar-Assisted Power: Solar panel and deep-cycle battery configuration for off-grid operation.
-
Multiple Display Modes: Four-function controller for flexible arrow and traffic-signal display patterns.
-
Remote Signal Control: Remote control functionality for supported display signals.
-
Rear Lamp Control: Rear lamp switching capability.
Applications
-
Highway and road construction zones
-
Road maintenance and repair projects
-
Traffic diversion and lane guidance
-
Municipal and public road safety operations
-
Emergency roadside assistance
-
Infrastructure and civil engineering projects
-
Temporary traffic management at events
-
Industrial sites and restricted-access areas
Technical Specifications
1. Arrow Panel
| Parameter | Specification |
|---|---|
| Panel Size | 2400 × 1200 mm |
| Panel Material | Aluminium |
| Surface Coating | Black powder coating |
| LED Light Configuration | 15 LEDs (25 front, 2 rear, as stated in the supplied specification) |
| Display Type | LED directional arrow board |
2. Trailer Specifications
| Parameter | Specification |
|---|---|
| Trailer Length | 2200 mm |
| Length Including Drawbar | 2850 mm |
| Width Including Fender | 1940 mm |
| Operating Height | 3450 mm |
| Travelling Height | 2400 mm |
| Trailer Jack Rating | 3000 lb |
| Drawbar Jack Rating | 2000 lb |
| Coupler Rating | 2000 kg |
3. Power System
| Parameter | Specification |
|---|---|
| Operating Voltage | DC 12V |
| Solar Panel | 75W |
| Battery | 200Ah deep-cycle battery |
| Solar Charge Controller | 10A MPPT |
4. Controller and Display Functions
-
Four-function display modes
-
Remote control for supported signals
-
Rear lamp ON/OFF control
-
Directional arrow display operation
Why Choose CAEL?
CAEL delivers practical, mobility-focused equipment designed to support safer and more efficient road operations. The Mobile LED Arrow Board Trailer combines a high-visibility directional display, adjustable positioning, a robust trailer platform, and solar-assisted power to support temporary traffic control in a wide range of environments.
CAEL – Reliable Visibility. Smarter Traffic Safety.
Note: Please verify the LED count, jack ratings, coupler capacity, IP55 rating, and final dimensions against the approved CAEL product datasheet before publishing. The supplied LED specification appears inconsistent: “15 LEDs” does not match “25 front, 2 rear.”
