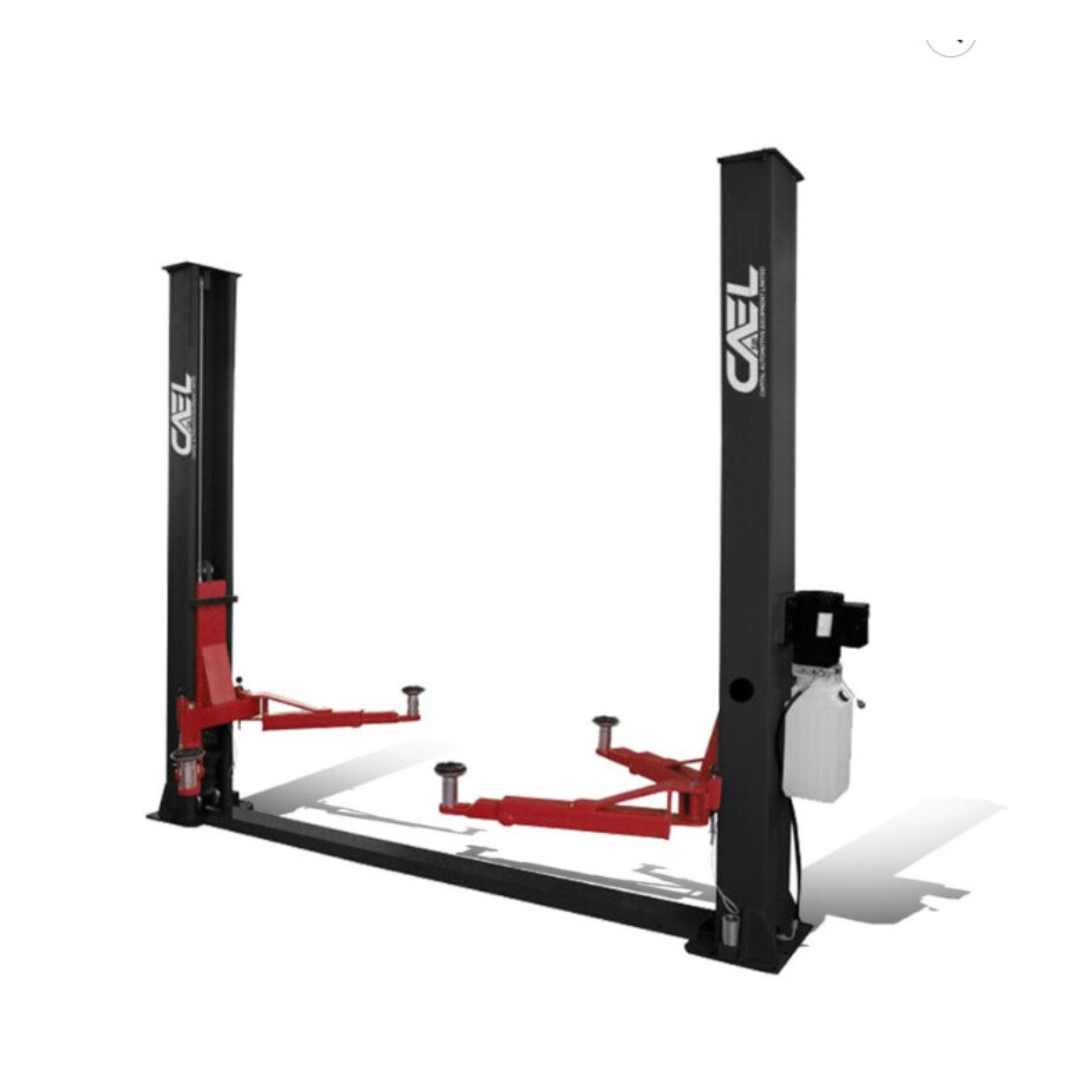

Two-Post Base Plate Lift – Model N, 12000 lbs Capacity(CAEL-HP12N)

Name: Two-Post Base Plate Lift – Model N, 12000 lbs Capacity(CAEL-HP12N)
Brand: My Store
Price: 3499.00 CAD
Availability: InStock

$3,499.00 CAD

Sale Sold out

Shipping calculated at checkout.

Hurry, only 3 left in stock

Quantity

Get quote now

We Accept

Low Prices
Warranty Included
Order Tracking

Heavy-Duty 12,000 lb Lifting Performance for Trucks, Vans & SUVs

The CAEL HP12 Two-Post Clear Floor Hoist is engineered for professional automotive workshops that require superior lifting capacity for heavier vehicles including trucks, cargo vans, SUVs, and commercial fleet vehicles. With a powerful 12,000 lb (5,443 kg) lifting capacity, the HP12 is built for demanding daily operations where strength, safety, and efficiency matter most.

Its clear floor design provides unobstructed access between the columns, allowing technicians to move tools and equipment freely while improving workflow. Symmetrical lifting arms provide excellent reach and stable vehicle positioning across a wide range of vehicle sizes.

Built with advanced safety systems, synchronized hydraulics, and industrial-grade construction, the HP12 delivers the reliable performance serious service facilities depend on.

Key Features

12,000 lb (5,443 kg) Lifting Capacity – Ideal for trucks, vans, SUVs, and heavier service vehicles.
Clear Floor Design – Open workspace with no floor plate obstruction.
ETL & CSA Certified – Meets recognized North American safety and quality standards.
Dual-Side Lock Release – Easy manual lock release from both sides.
Collision Prevention Switch – Helps prevent roof-to-ceiling contact.
Mechanical Safety Latches – Reliable dual-side locking protection.
Door Anti-Crush Rubber Guards – Helps protect vehicle doors during operation.
Synchronized Hydraulic Cylinders – Smooth, balanced lifting action.
Cable Leveling System – Even load distribution for stable lifting.
Wear-Resistant Rubber Pads – Secure lifting contact points.
Durable Powder-Coated Finish – Corrosion-resistant industrial coating.
Standard Voltage: 220V

Technical Specifications

Model: HP12
Capacity: 12,000 lb (5,443 kg)
Overall Width (Top): 3640 mm (143.3 in / 11 ft 11 in)
Inside Width Between Posts: 3290 mm (129.5 in / 10 ft 9.5 in)
Drive-Through Clearance (Lower): 2988 mm (117.6 in / 9 ft 9.6 in)
Overall Base Width: 3800 mm (149.6 in / 12 ft 5.6 in)
Overall Height: 2832 mm (111.5 in / 9 ft 3.5 in)
Post Depth: 285 mm (11.2 in)
Base Plate Length: 661 mm (26.0 in)
Arm Pad Height: 160 mm (6.3 in)
Short Arm Length: 820 mm (32.3 in / 2 ft 8.3 in)
Long Arm Length: 1550 mm (61.0 in / 5 ft 1.0 in)
Maximum Arm Span: 3800 mm (149.6 in / 12 ft 5.6 in)
Power Supply: 220V Standard

Built for Commercial Productivity

The CAEL HP12 is an excellent solution for busy repair facilities, fleet maintenance centers, and commercial garages that need extra lifting strength without compromising technician efficiency. Its rugged build and spacious clear floor layout make it ideal for high-volume professional use.
