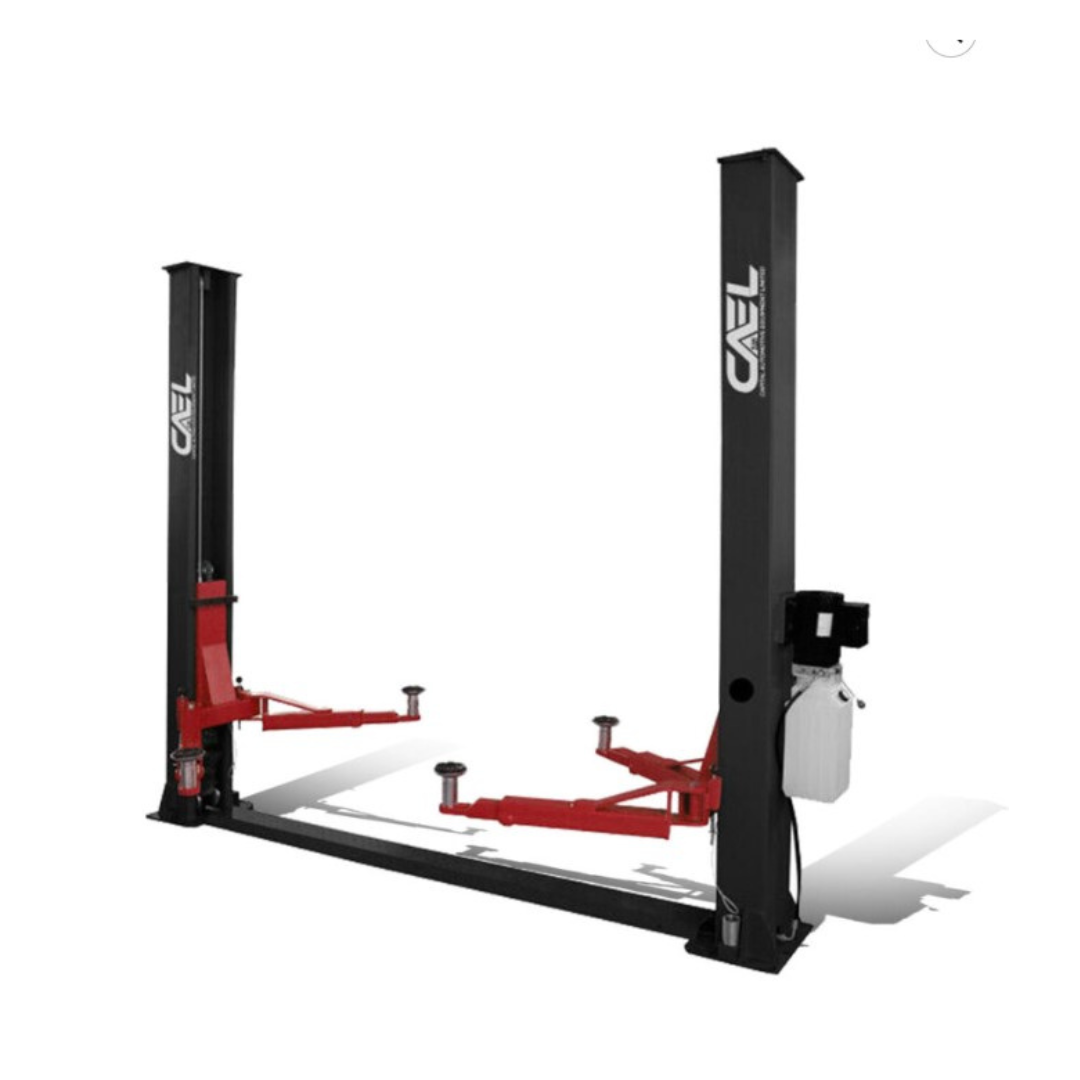

The CAEL HP14 Two-Post Clear Floor Hoist is built for professional automotive service centers, fleet maintenance facilities, and commercial garages that require higher lifting capacity for larger trucks, cargo vans, SUVs, and heavy-duty vehicles. With a powerful 14,000 lb (6,350 kg) lifting capacity, the HP14 is engineered for demanding environments where strength, safety, and efficiency are critical.
Its clear floor design creates an open working area between the posts, allowing technicians to move freely with tools and equipment while improving workflow. Symmetrical lifting arms provide excellent reach and balanced vehicle support for a wide range of vehicle sizes.
Constructed with advanced safety systems, synchronized hydraulic cylinders, and industrial-grade components, the HP14 delivers dependable performance for daily commercial use.
Key Features
14,000 lb (6,350 kg) Lifting Capacity – Ideal for trucks, fleet vans, SUVs, and heavy service vehicles.
Clear Floor Design – No floor plate obstruction for safer movement and cleaner workspace.
ETL & CSA Certified – Meets recognized North American safety and quality standards.
Dual-Side Lock Release – Easy safety lock release from either side.
Collision Prevention Switch – Helps prevent roof contact with ceiling.
Mechanical Safety Latches – Reliable dual-side locking system for operator protection.
Door Anti-Crush Rubber Guards – Helps protect vehicle doors during lifting.
Synchronized Hydraulic Cylinders – Smooth and even lifting performance.
Cable Leveling System – Stable and balanced load distribution.
Overall Width (Top): 3640 mm (143.3 in / 11 ft 11 in)
Inside Width Between Posts: 3290 mm (129.5 in / 10 ft 9.5 in)
Drive-Through Clearance: 2988 mm (117.6 in / 9 ft 9.6 in)
Overall Base Width: 3800 mm (149.6 in / 12 ft 5.6 in)
Overall Height: 2832 mm (111.5 in / 9 ft 3.5 in)
Post Depth: 285 mm (11.2 in)
Base Plate Length: 661 mm (26.0 in)
Arm Pad Height: 160 mm (6.3 in)
Short Arm Length: 820 mm (32.3 in / 2 ft 8.3 in)
Long Arm Length: 1550 mm (61.0 in / 5 ft 1.0 in)
Maximum Arm Span: 3800 mm (149.6 in / 12 ft 5.6 in)
Power Supply: 220V Standard
Built for Heavy-Duty Productivity
The CAEL HP14 is an ideal solution for high-volume repair facilities and fleet operations requiring stronger lifting capability with professional-grade reliability. Its rugged construction and spacious clear floor layout help technicians work faster, safer, and more efficiently.
