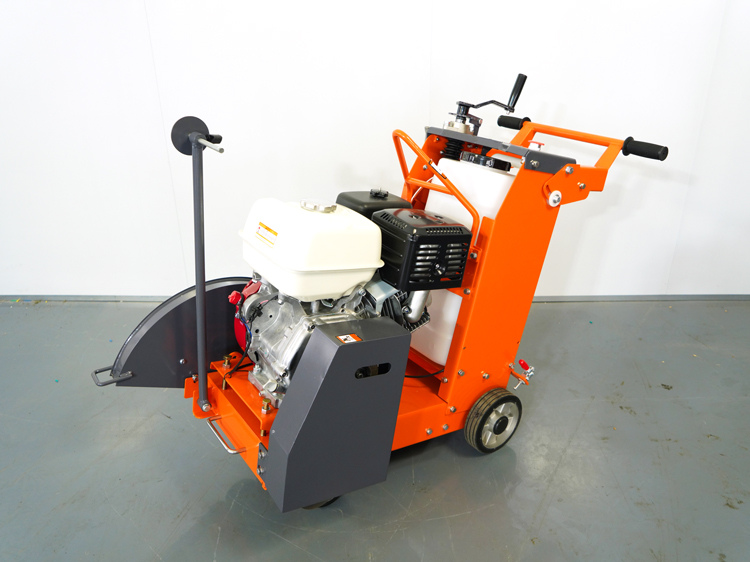

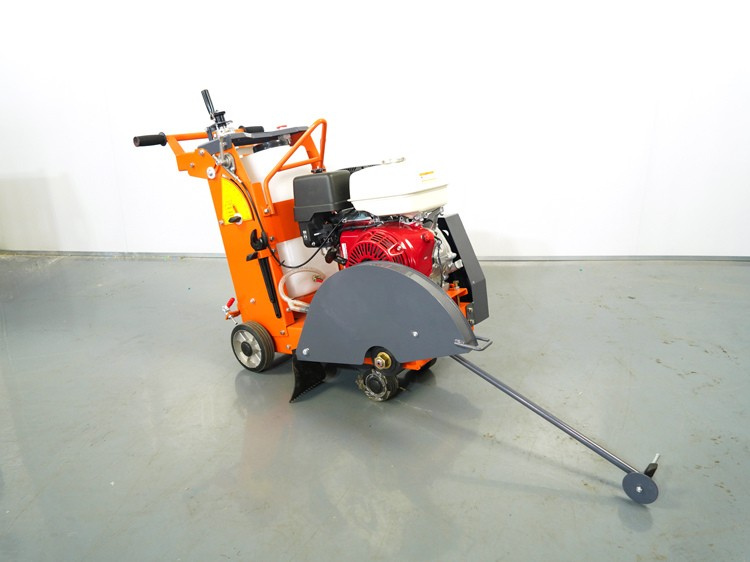

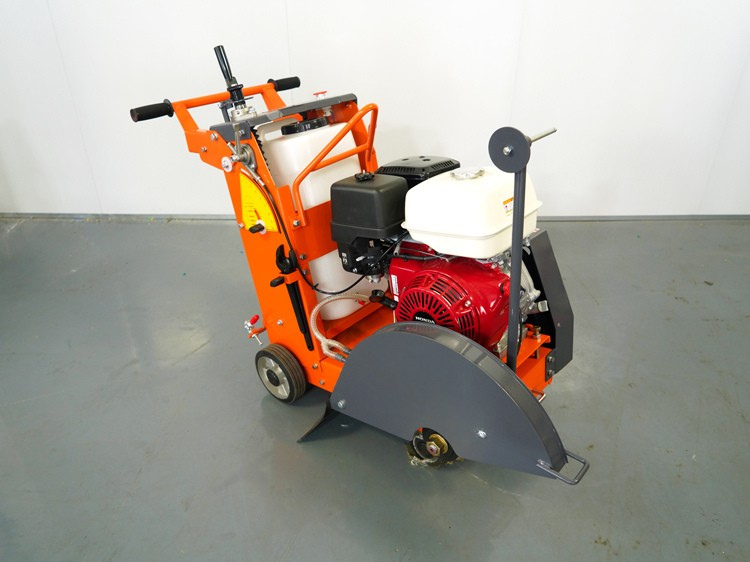

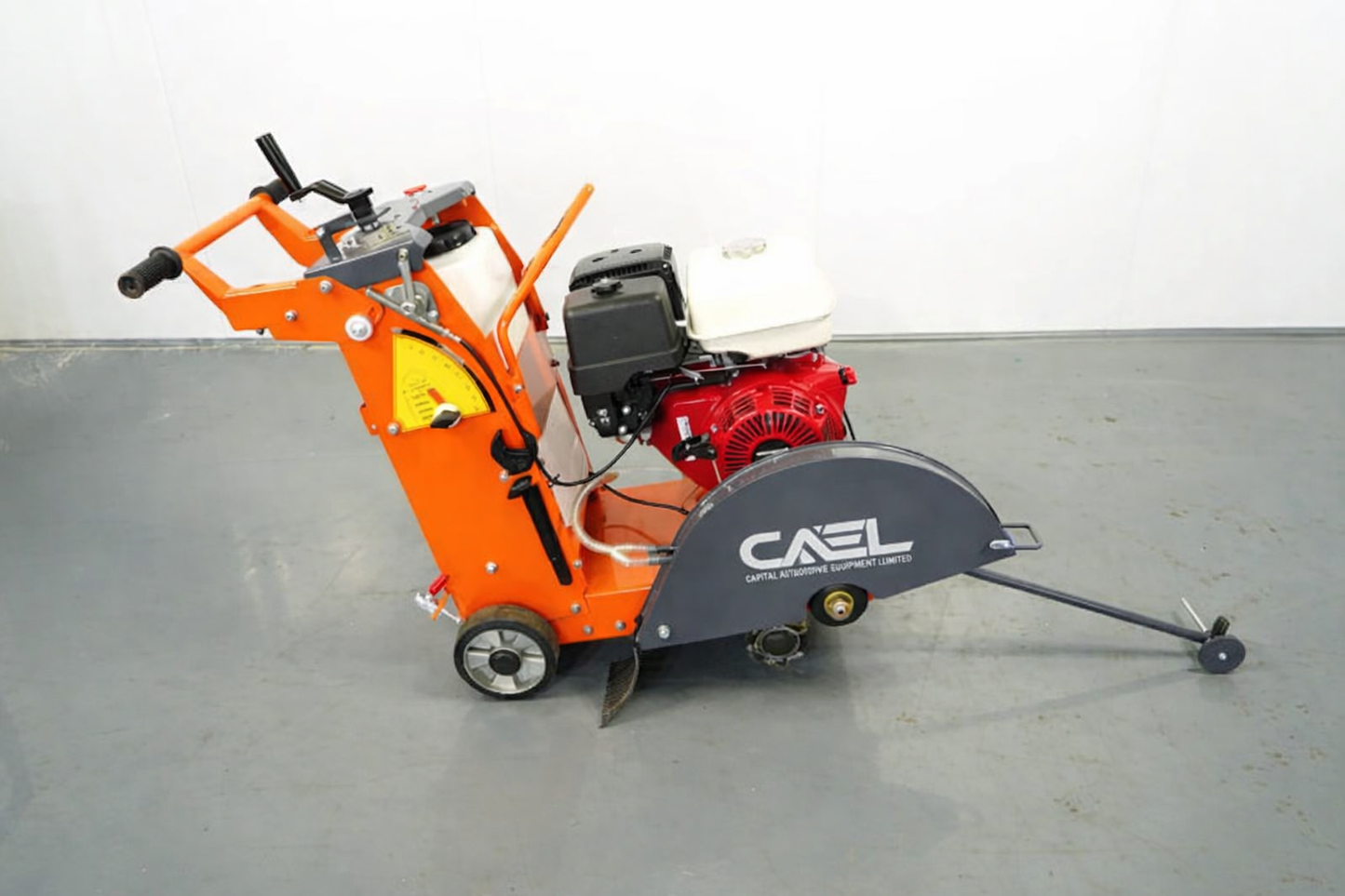

The CAEL GFS480 Concrete Cutter (Floor Saw) is a powerful, professional-grade machine designed for deep and precise cutting of concrete and asphalt. Built for contractors and infrastructure projects, it delivers high cutting capacity, strong engine performance, and reliable operation on demanding job sites.

Powered by the robust Briggs & Stratton 25T2 engine, the GFS480 ensures consistent blade speed, smooth cutting, and long service life.

Key Features

• Blade Size: 400 mm (15.75 inches) for heavy-duty cutting
• Max Cutting Depth: 180 mm (7.09 inches)
• Blade Speed: 2820 RPM for smooth, accurate cuts
• Water Tank: 35 L (9.25 gallons) with gravity-fed cooling
• Depth Control: Easy handle rotation adjustment
• Drive Type: Manual push for better control
• Engine Output: 13–15 HP
• Weight: 98 kg (216 lbs) for stability during operation

Specifications

• Model: CAEL GFS480
• Blade Diameter: 400 mm (15.75 inches)
• Blade Aperture: 25.4 / 50 mm (1.0 / 1.97 inches)
• Max Cutting Depth: 180 mm (7.09 inches)
• Blade Speed: 2820 RPM
• Water Tank Capacity: 35 L (9.25 gallons)
• Engine: Briggs & Stratton (Manual Start, CE/ISO Certified)
• Weight: 98 kg (216 lbs)
• Dimensions: 900 × 610 × 1000 mm (35.4 × 24.0 × 39.4 inches)

Applications

Road cutting • Concrete slabs • Expansion joints • Asphalt cutting • Infrastructure work

The CAEL GFS480 delivers deep cutting power, durability, and efficiency, making it an ideal choice for heavy-duty and professional cutting applications.
