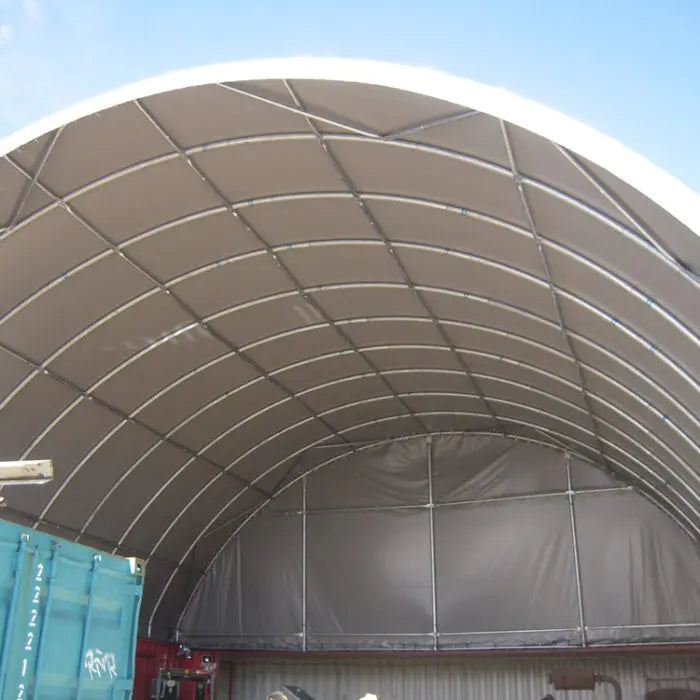

The CAEL Container Shelter is a compact yet heavy-duty structure designed for durability and versatility. Built with a galvanized steel frame and high-quality PE/PVC fabric options, it provides reliable protection for a wide range of applications.
Certified to meet CSA and TÜV snow load standards and featuring SGS-certified fabric, this shelter is built for performance in demanding conditions.
Note: Front and back panels are not included.
Key Features

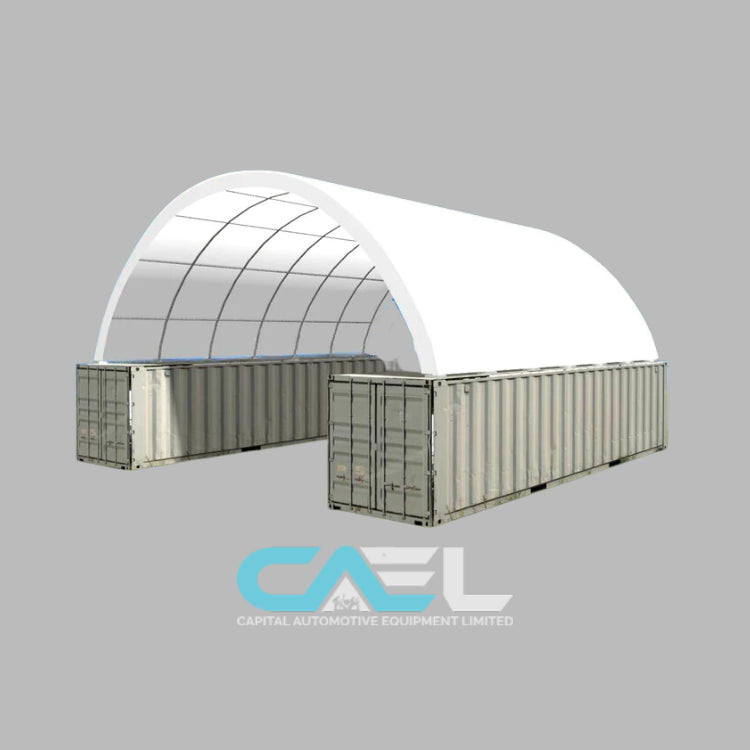

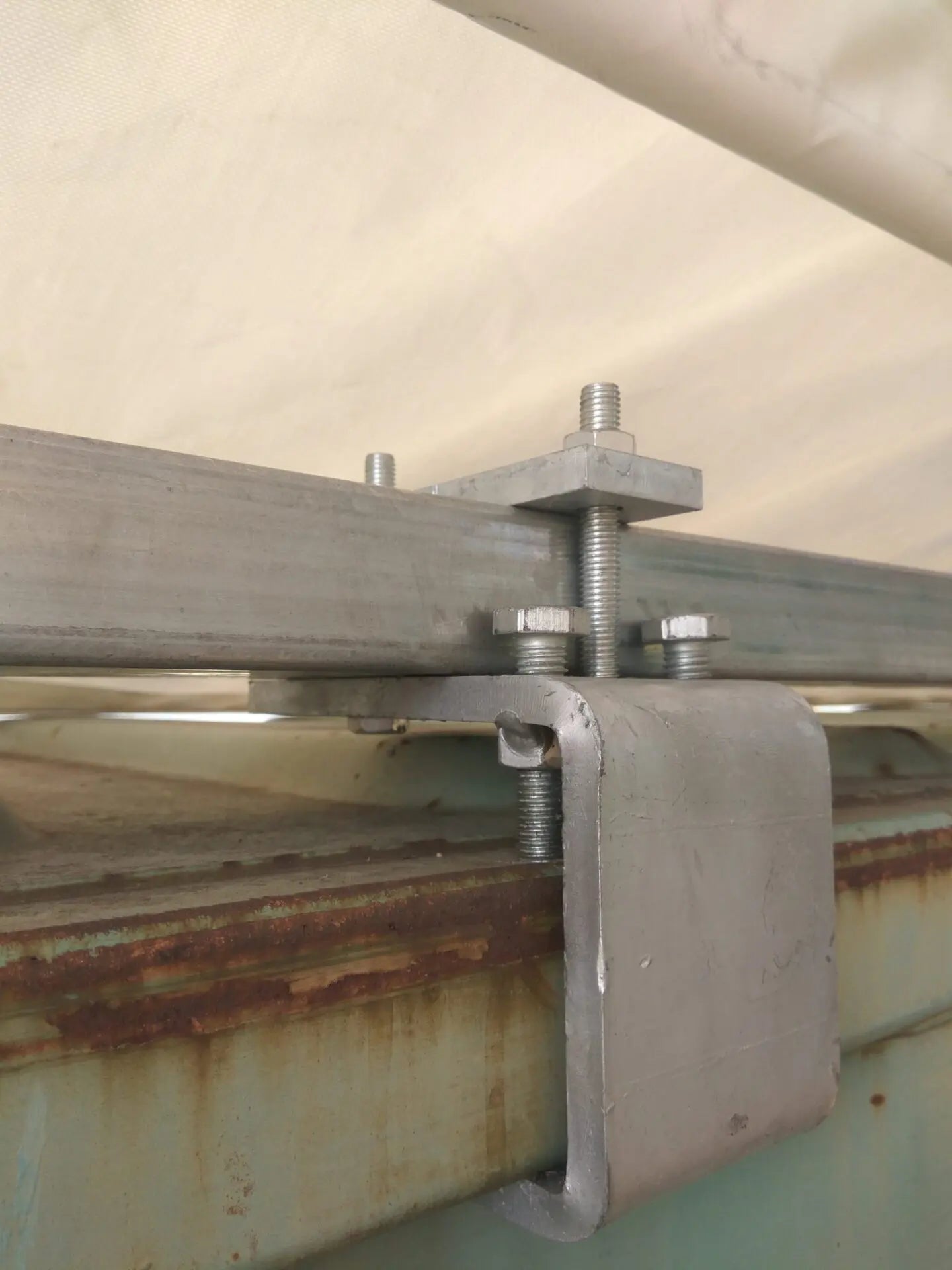

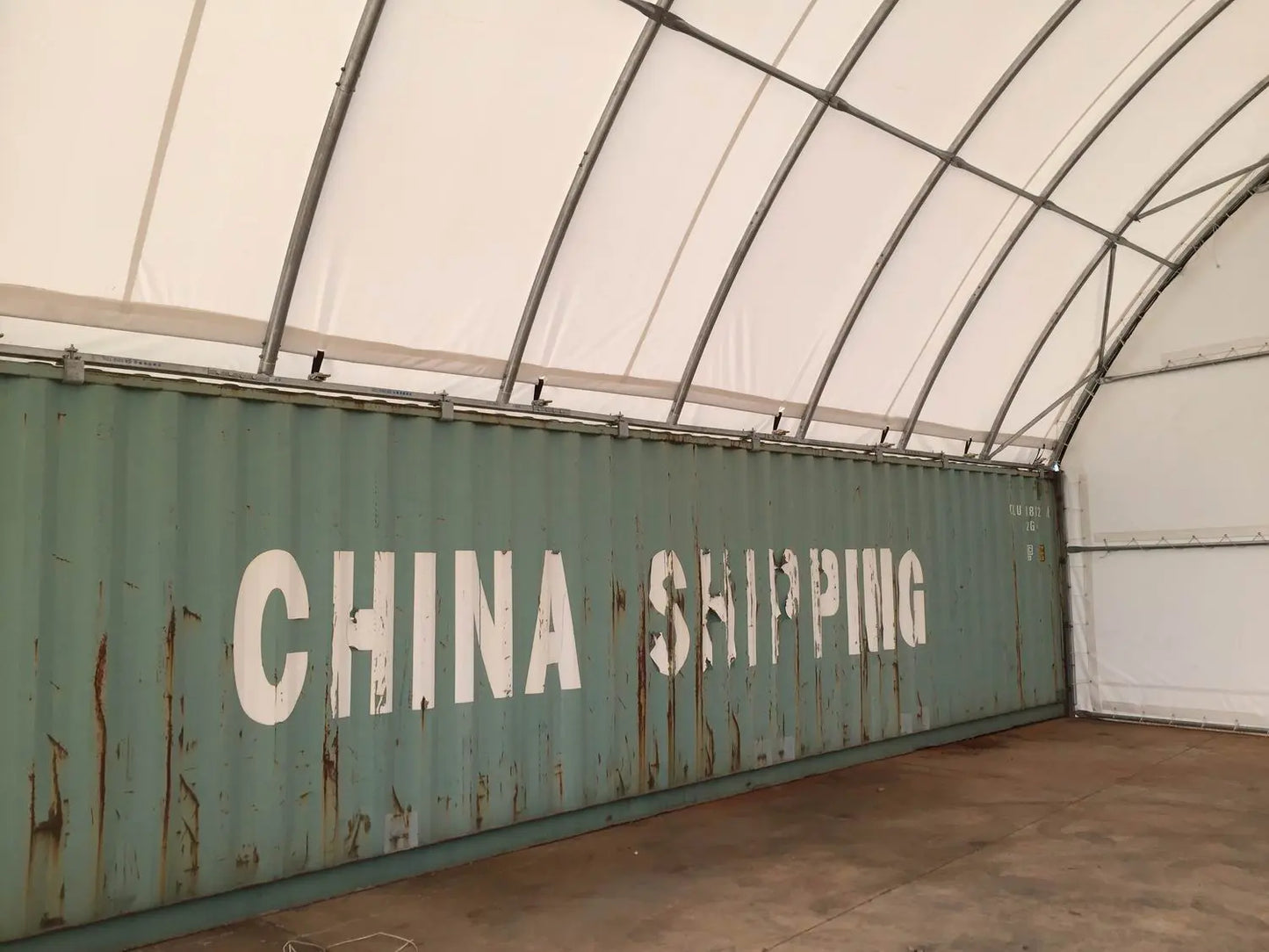

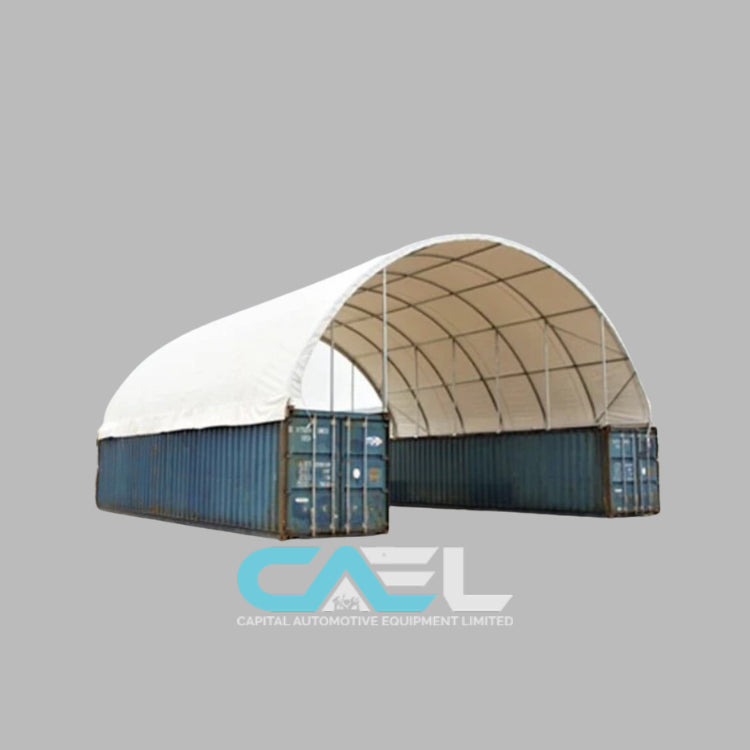

Container-Mounted Design Installs between shipping containers for a stable and secure setup

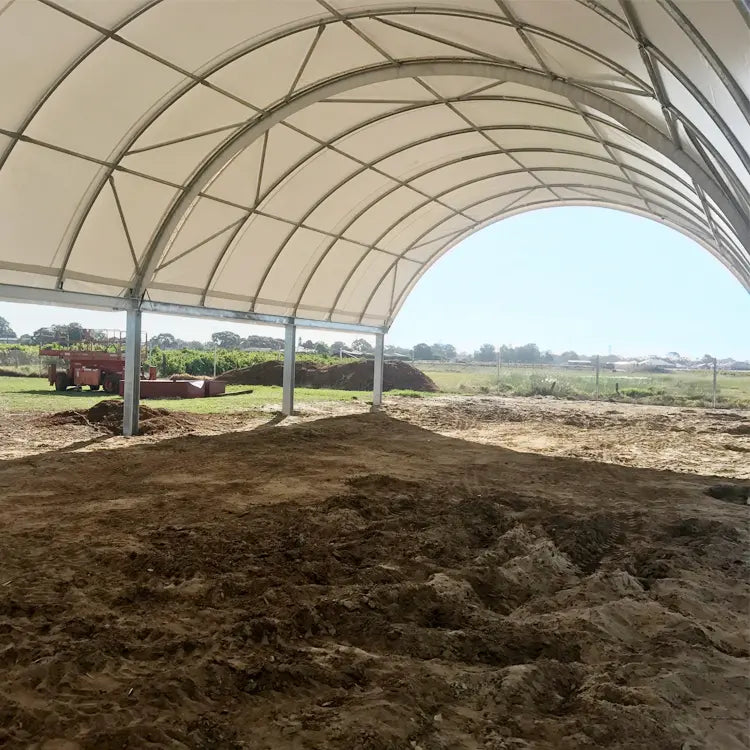

Pole-Free Interior Maximizes usable space for storage and operations
Durable Steel Frame Constructed with commercial-grade galvanized steel tubing for strength and corrosion resistance
Weatherproof Fabric Covers (PE / PVC Options)
100% Waterproof
UV Resistant
Fire Retardant
Certified Quality
CSA & TÜV Snow Load Certified
SGS-Certified Fabric
Versatile Applications Ideal for:
Warehousing
Farming & agriculture
Equipment storage
Vehicle storage & car lots
Workshops & job sites
Livestock shelter
Events & temporary structures
Technical Specifications
Dimensions:
Width: 20 ft (6,096 mm)
Length: 40 ft (12,192 mm)

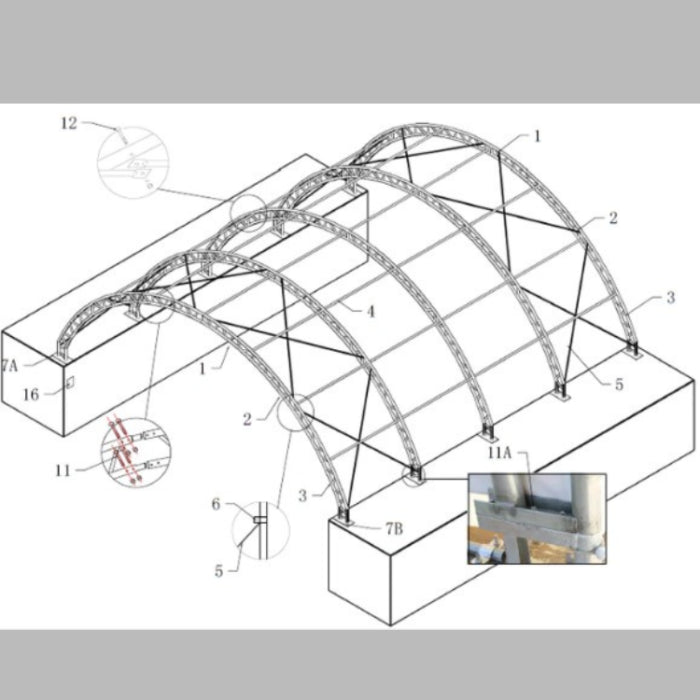

Frame:
Material: Galvanized Steel
Main Arch Tube Diameter: 1.8 in (45 mm)
Main Arch Tube Thickness: 0.06 in (1.5 mm)
Arch Spacing: 5 ft (1,500 mm)
Purlins:
Diameter: 1.26 in (32 mm)
Thickness: 0.05 in (1.2 mm)
Cover Material Options:
PE 300g
PVC 450g / 650g / 900g
Fabric Options & Lifespan
PE 300g: Lightweight, short-term use
PVC 450g: 5–9 years
PVC 650g: 6–10 years
PVC 900g: 8–14 years
Performance & Usage
Designed for all-season use, this shelter performs well under wind, snow, and varying environmental conditions when properly installed and maintained. It is backed by comprehensive liability coverage for added assurance.
Maintenance Guidelines
Keep roof fabric properly tensioned to prevent sagging
Re-tighten after installation and during seasonal temperature changes
Cold weather may stiffen fabric; warm weather may loosen it
Remove snow accumulation promptly to prevent structural stress
Conduct semi-annual inspections to maintain stability
Warranty & Installation
Warranty covers parts failure only
Excludes damage caused by high winds or heavy snow loads
Proper installation is critical for structural integrity
Failure to follow installation guidelines may result in structural issues
