At CAEL, we focus on innovation in product development and manufacturing high-quality equipment built for performance, durability, and customer satisfaction.

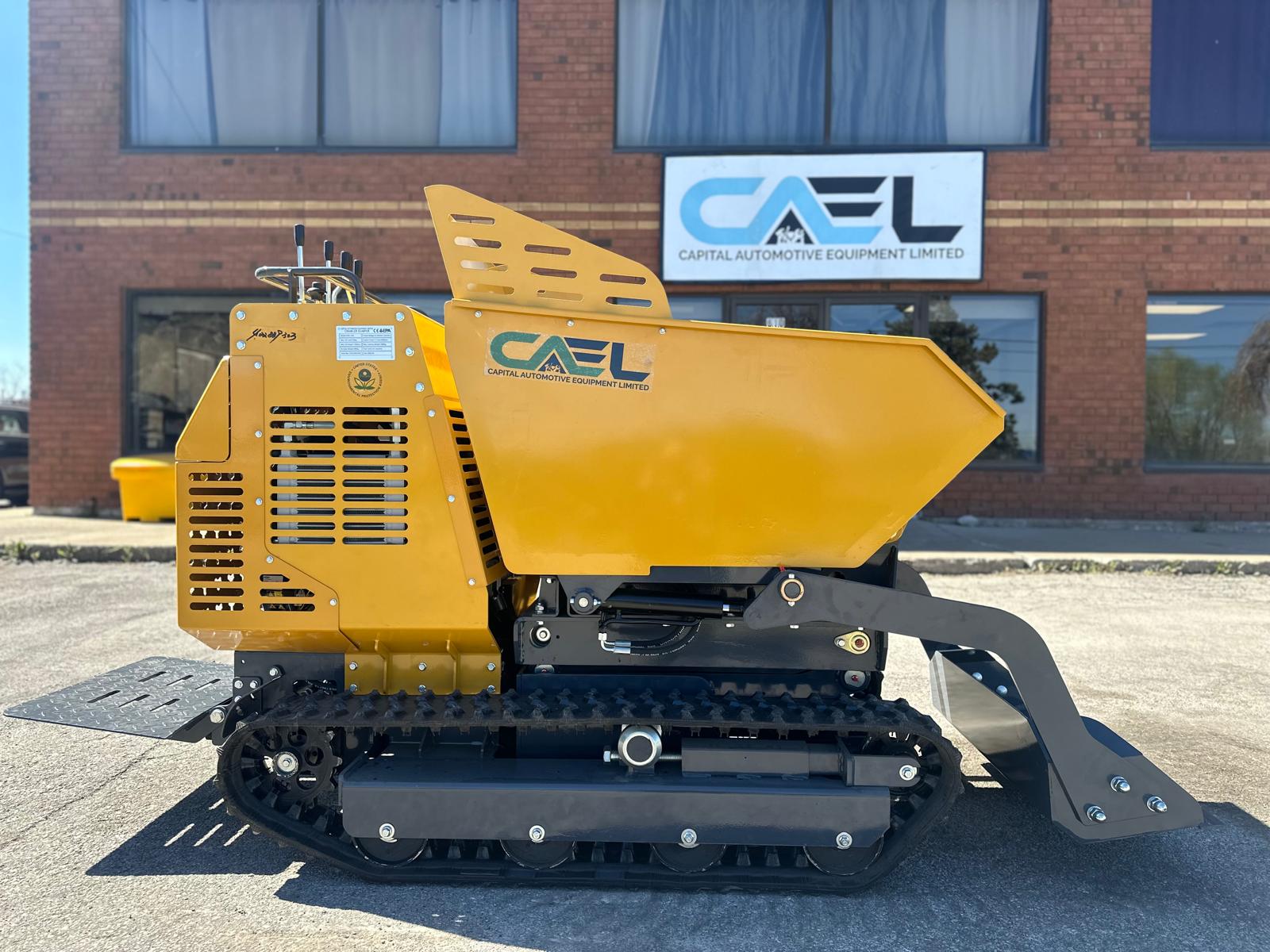

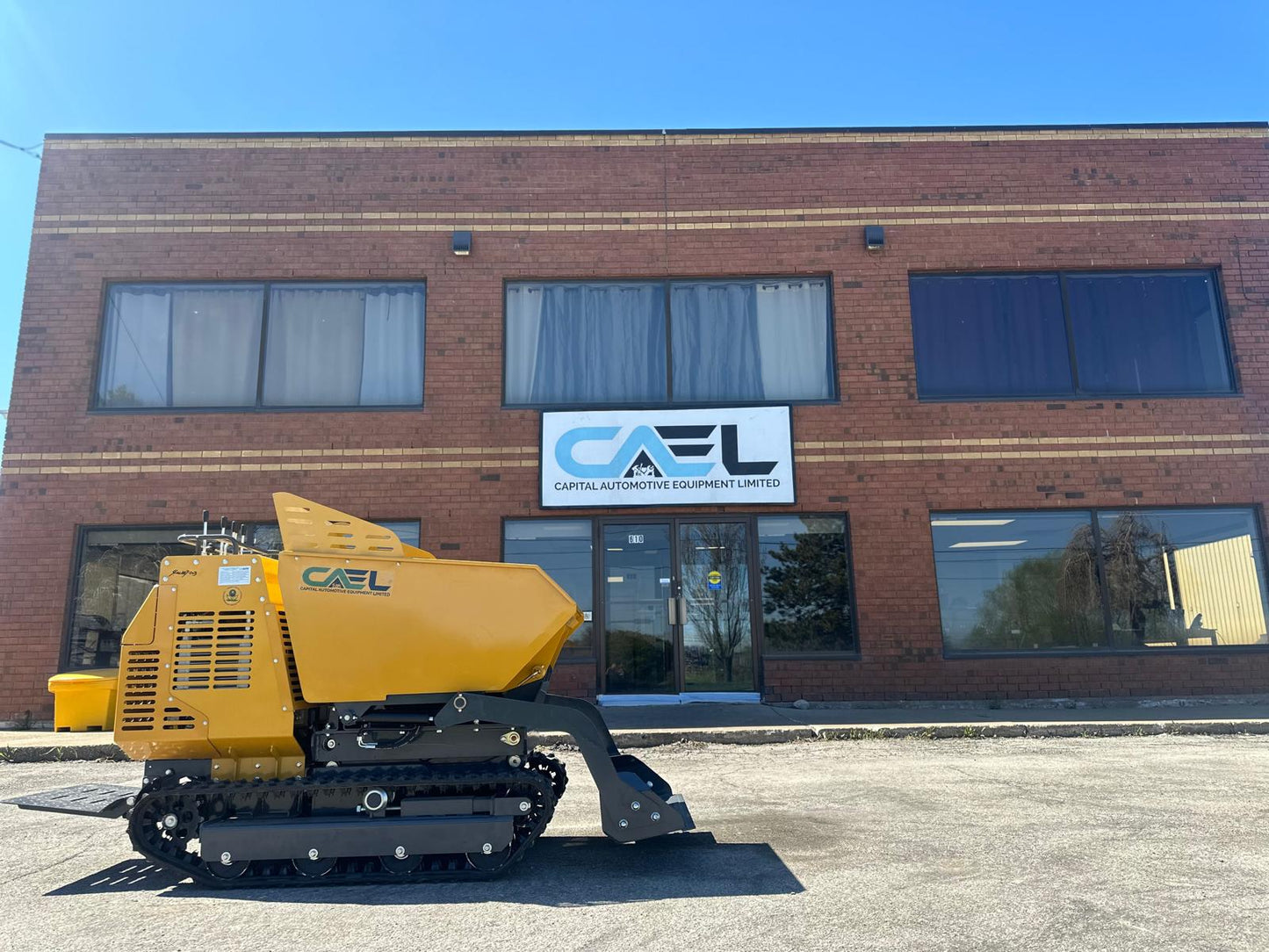

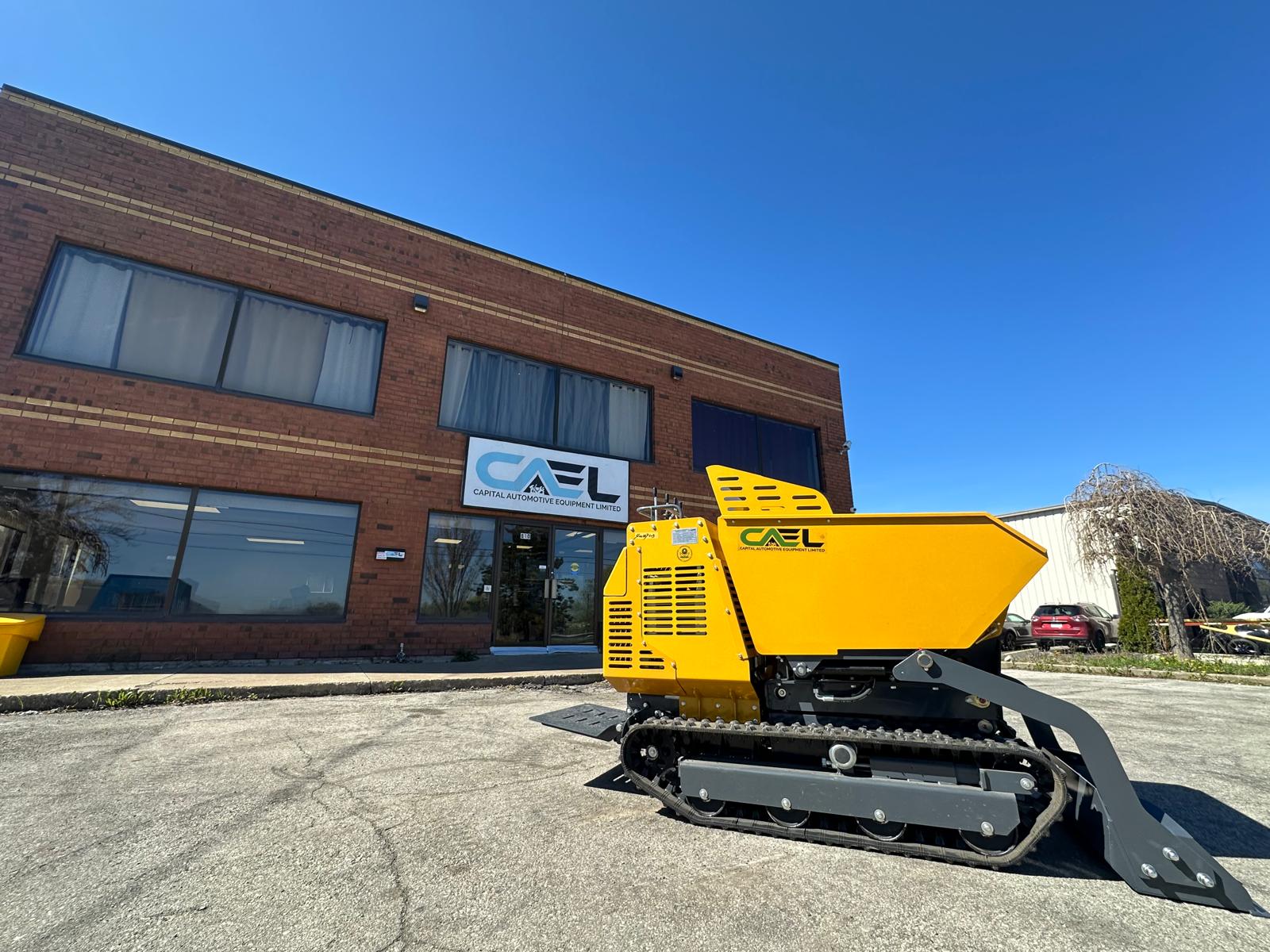

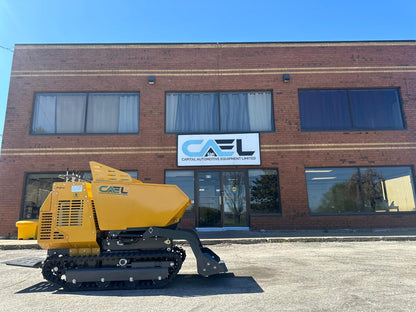

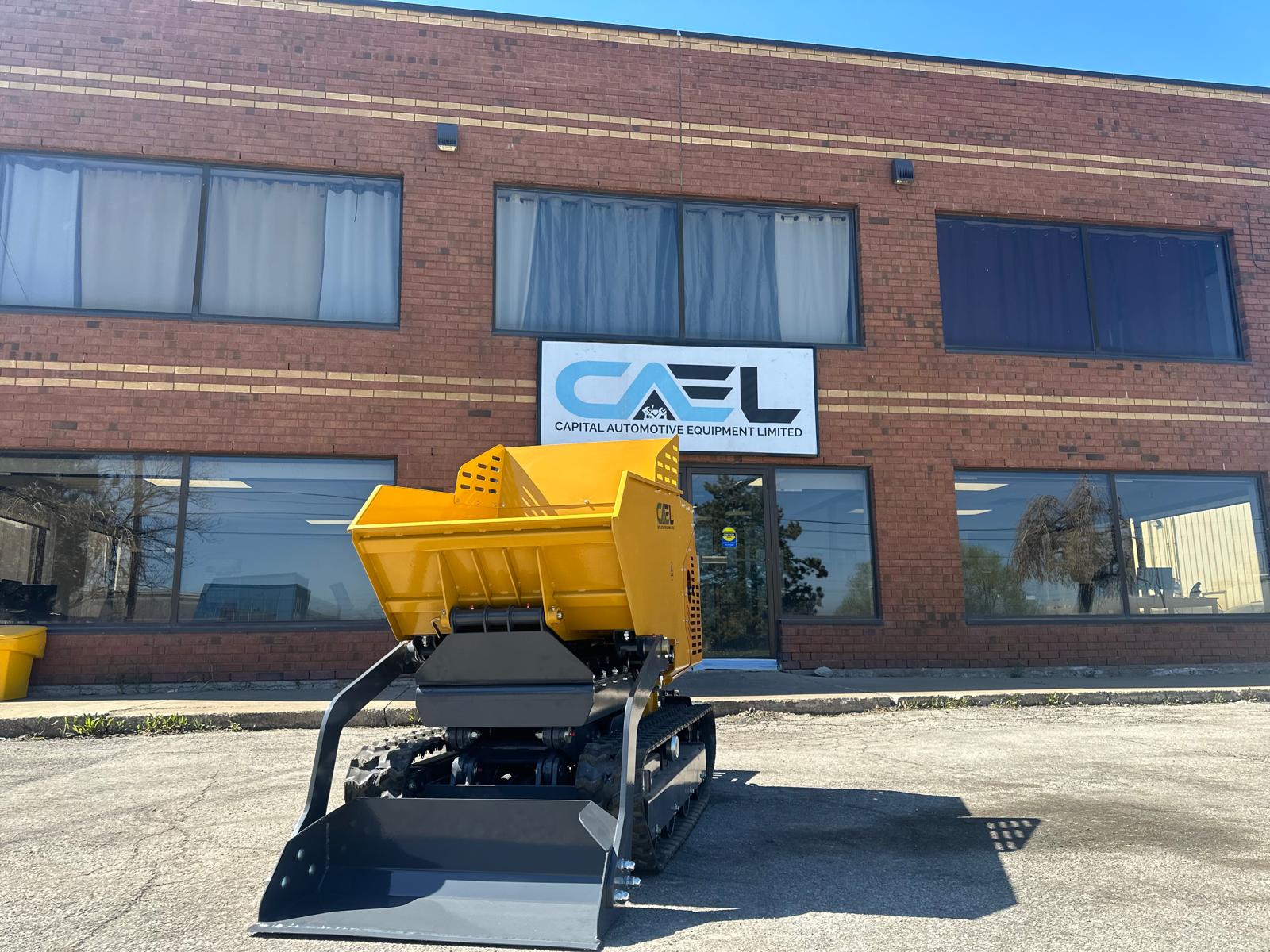

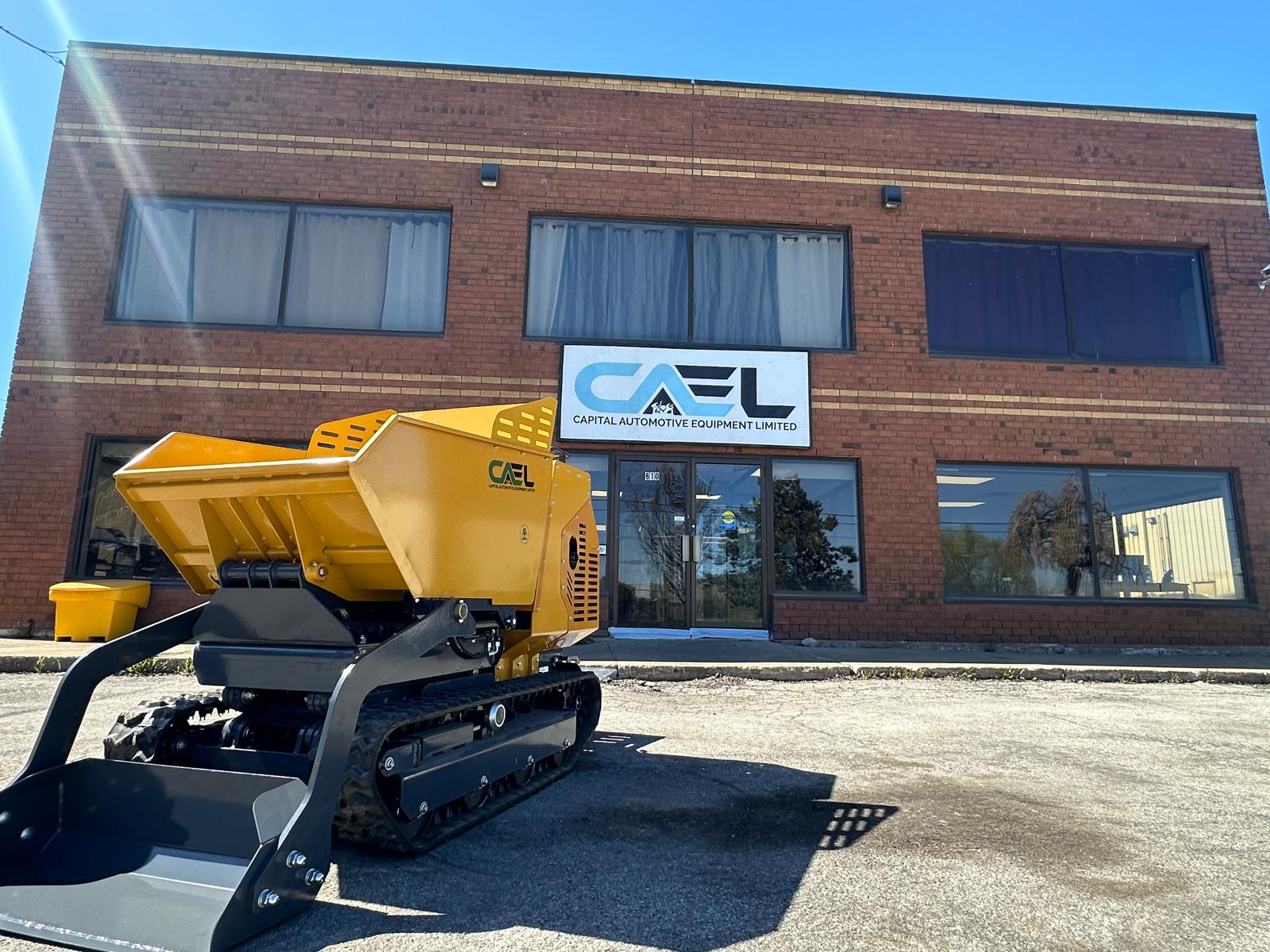

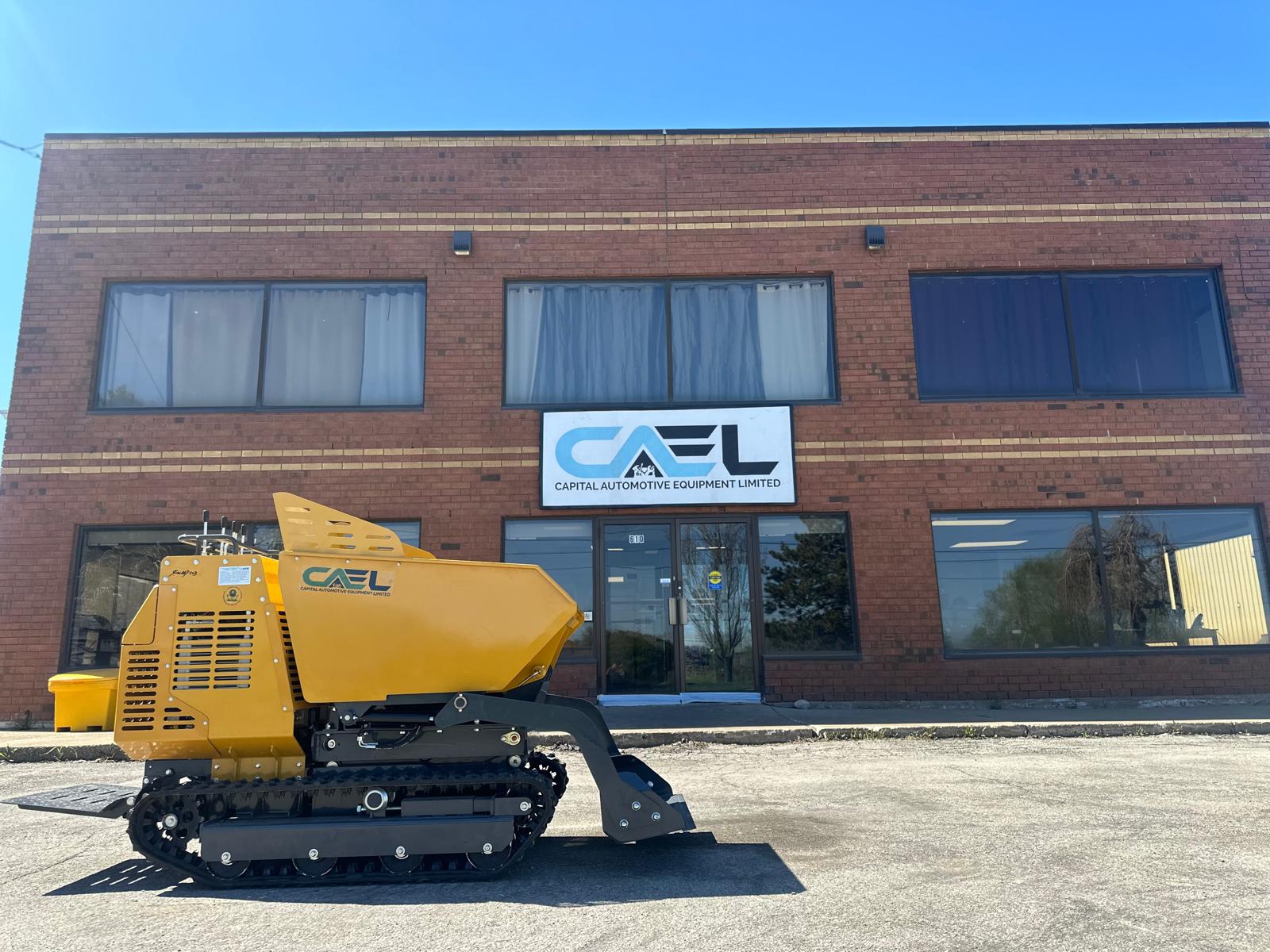

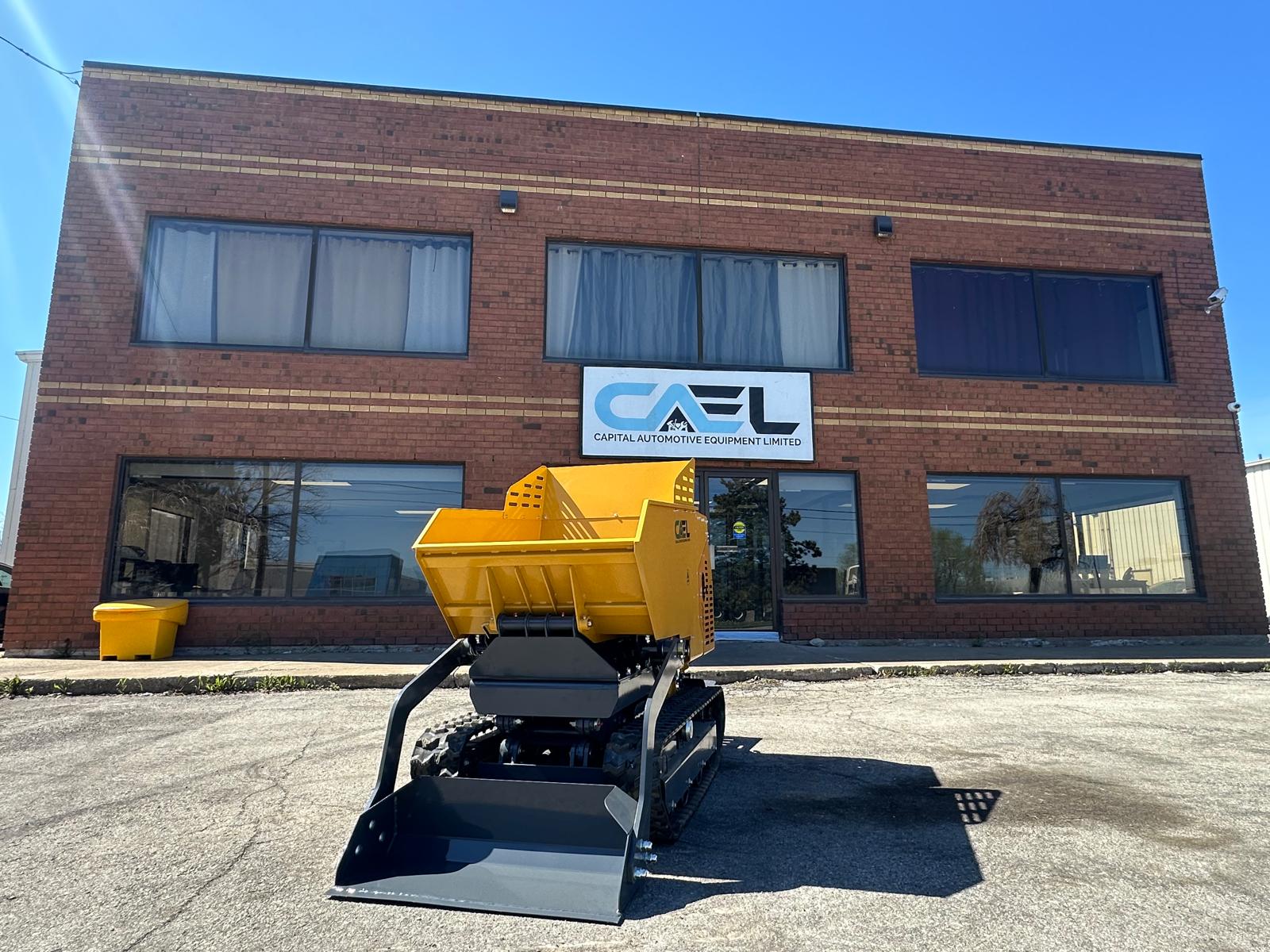

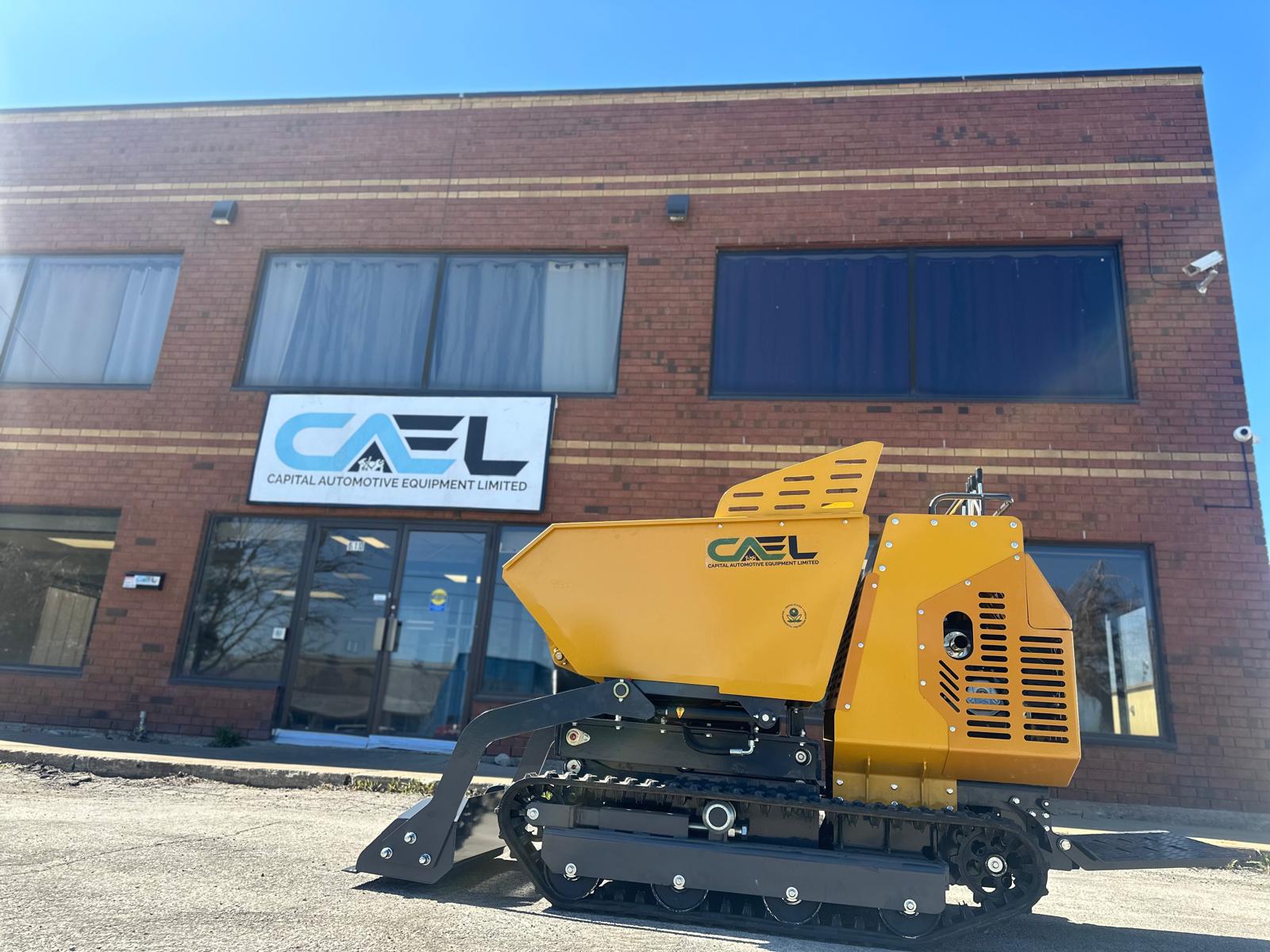

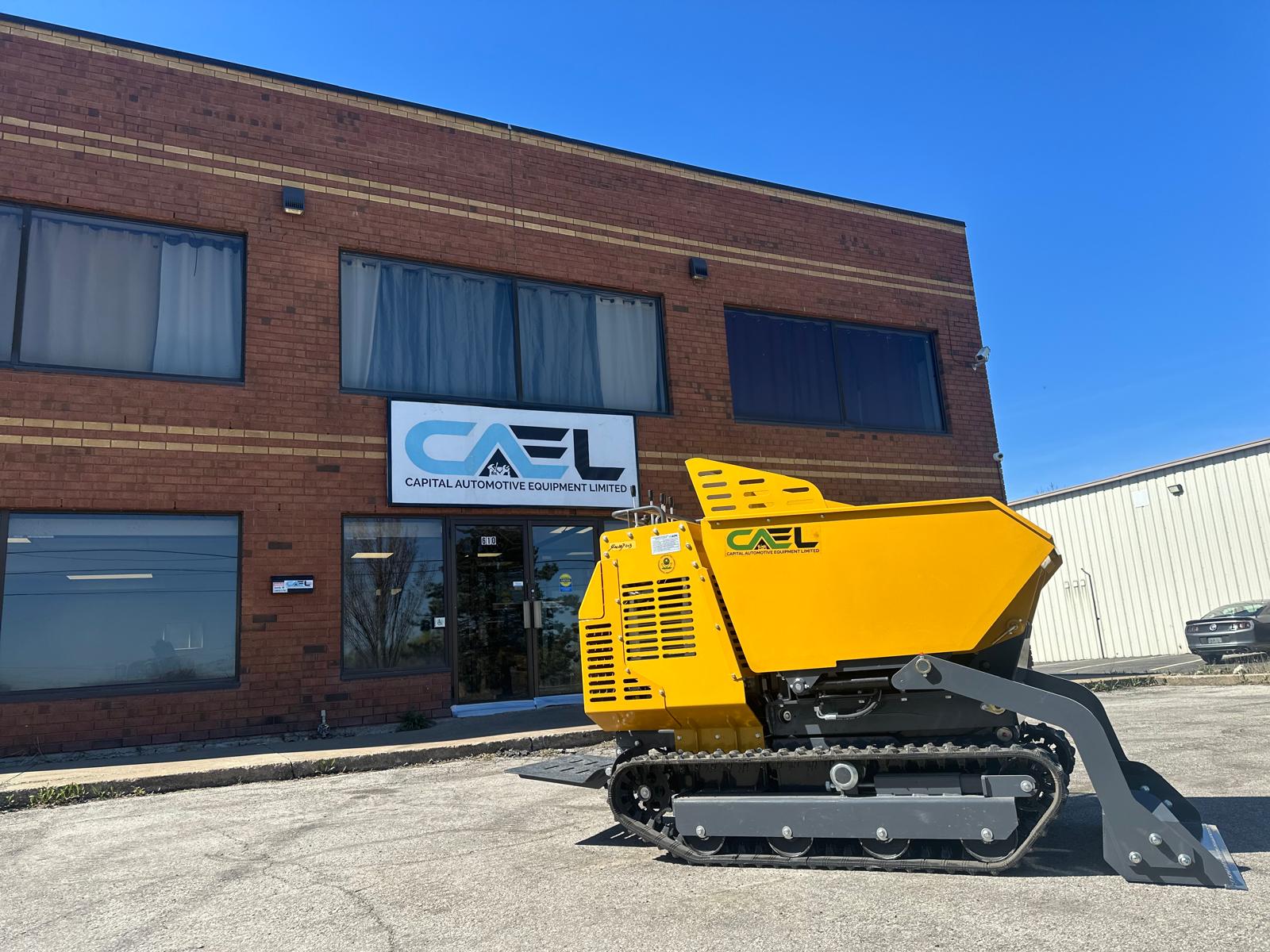

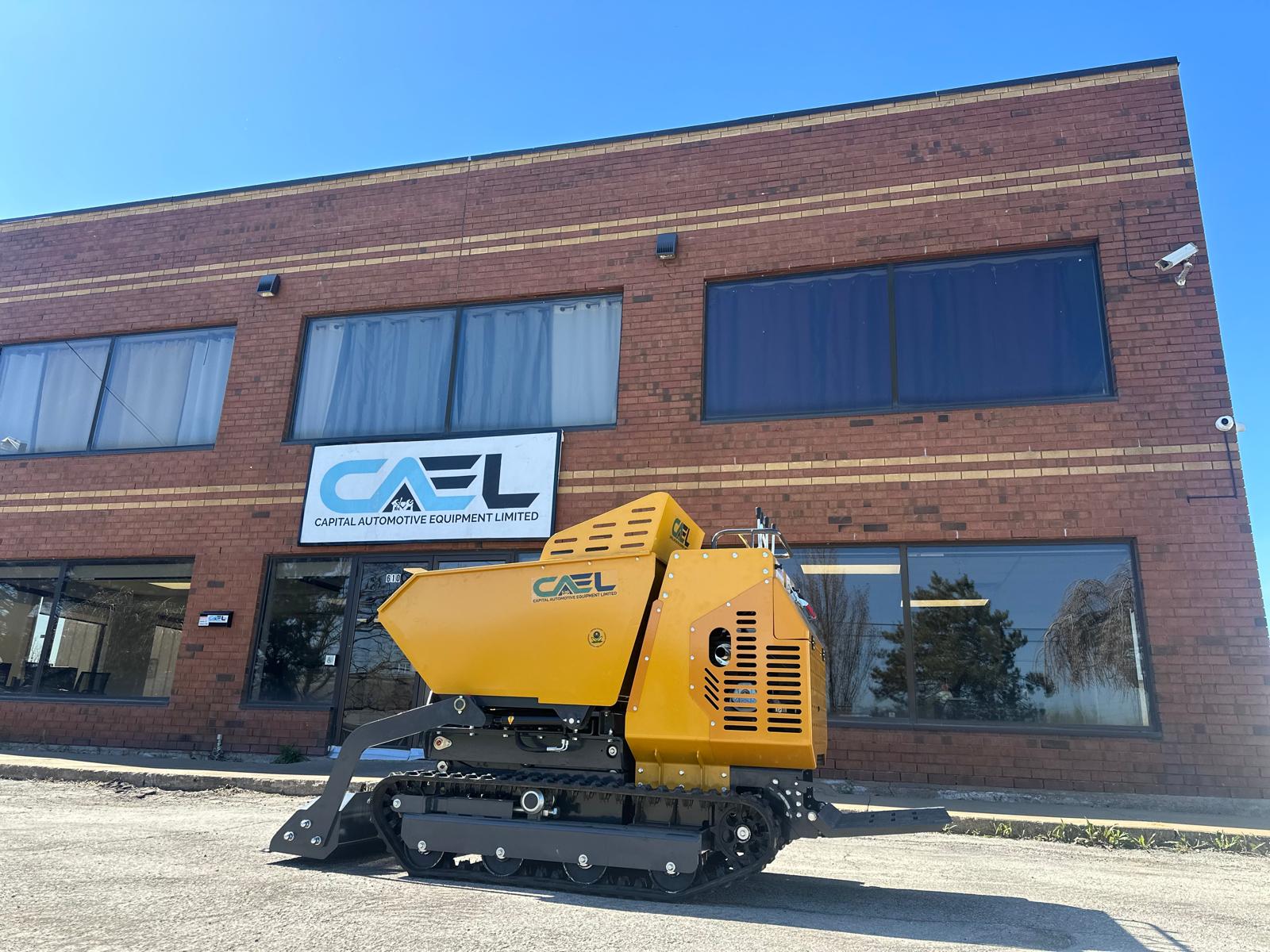

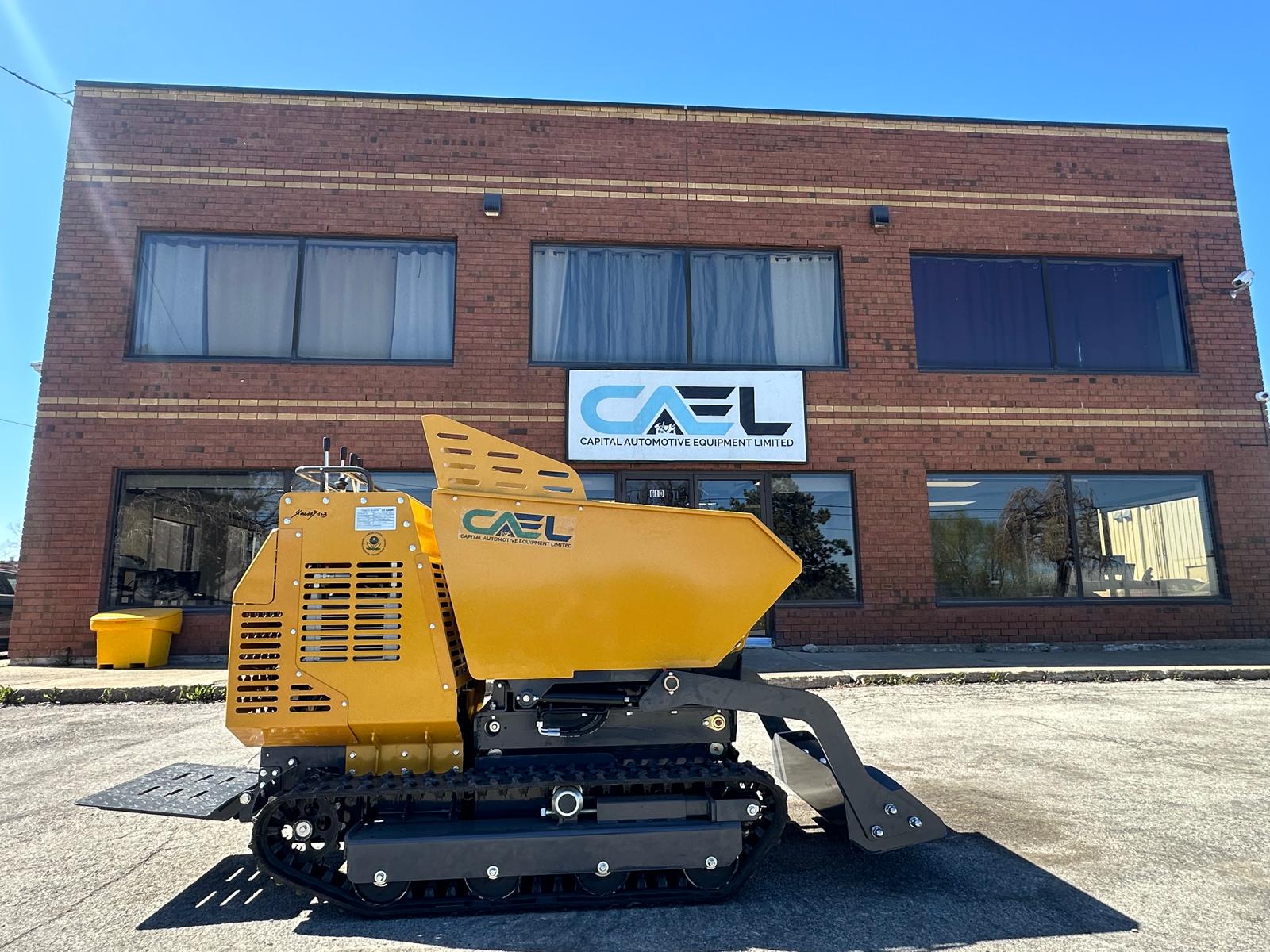

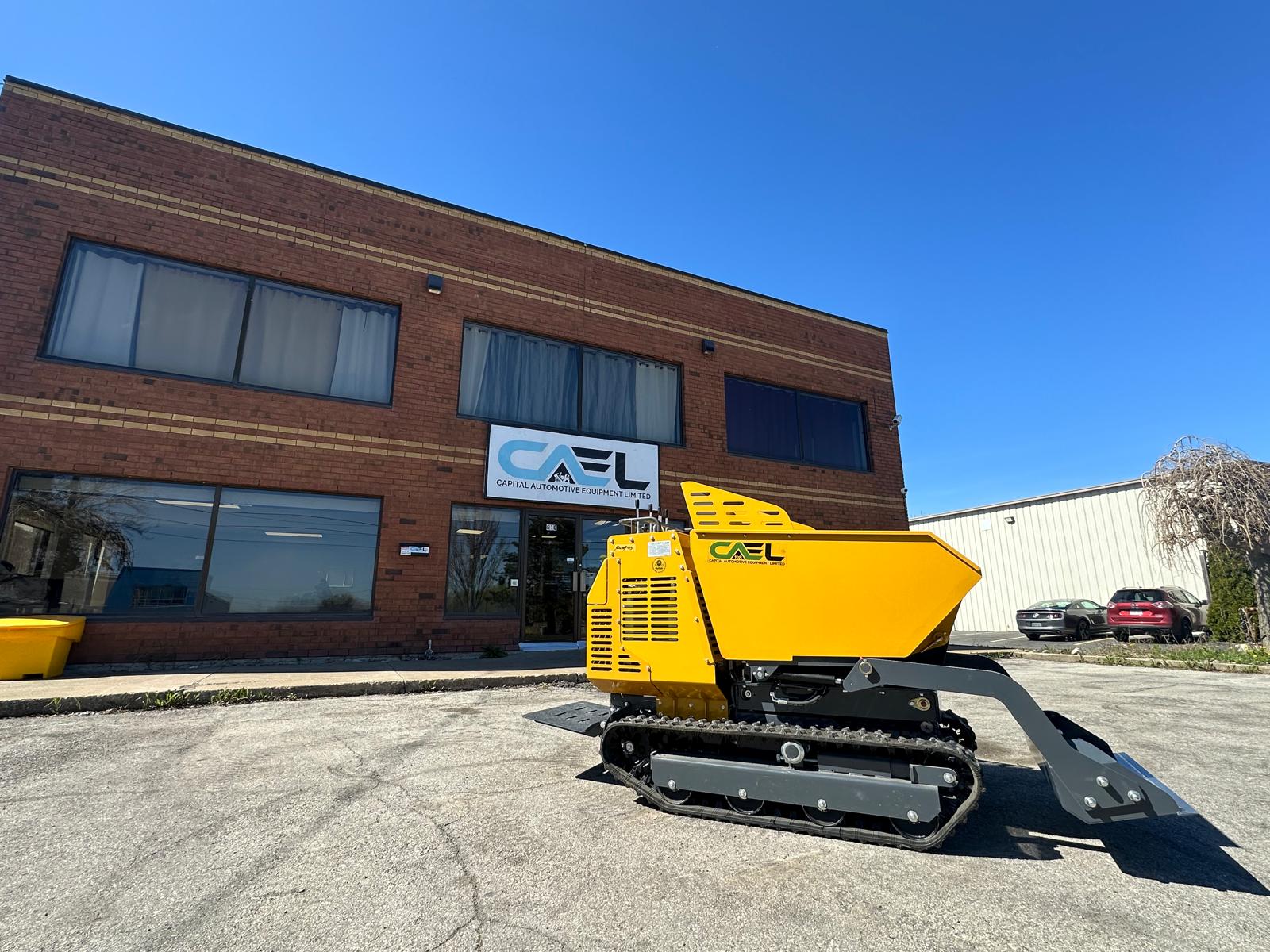

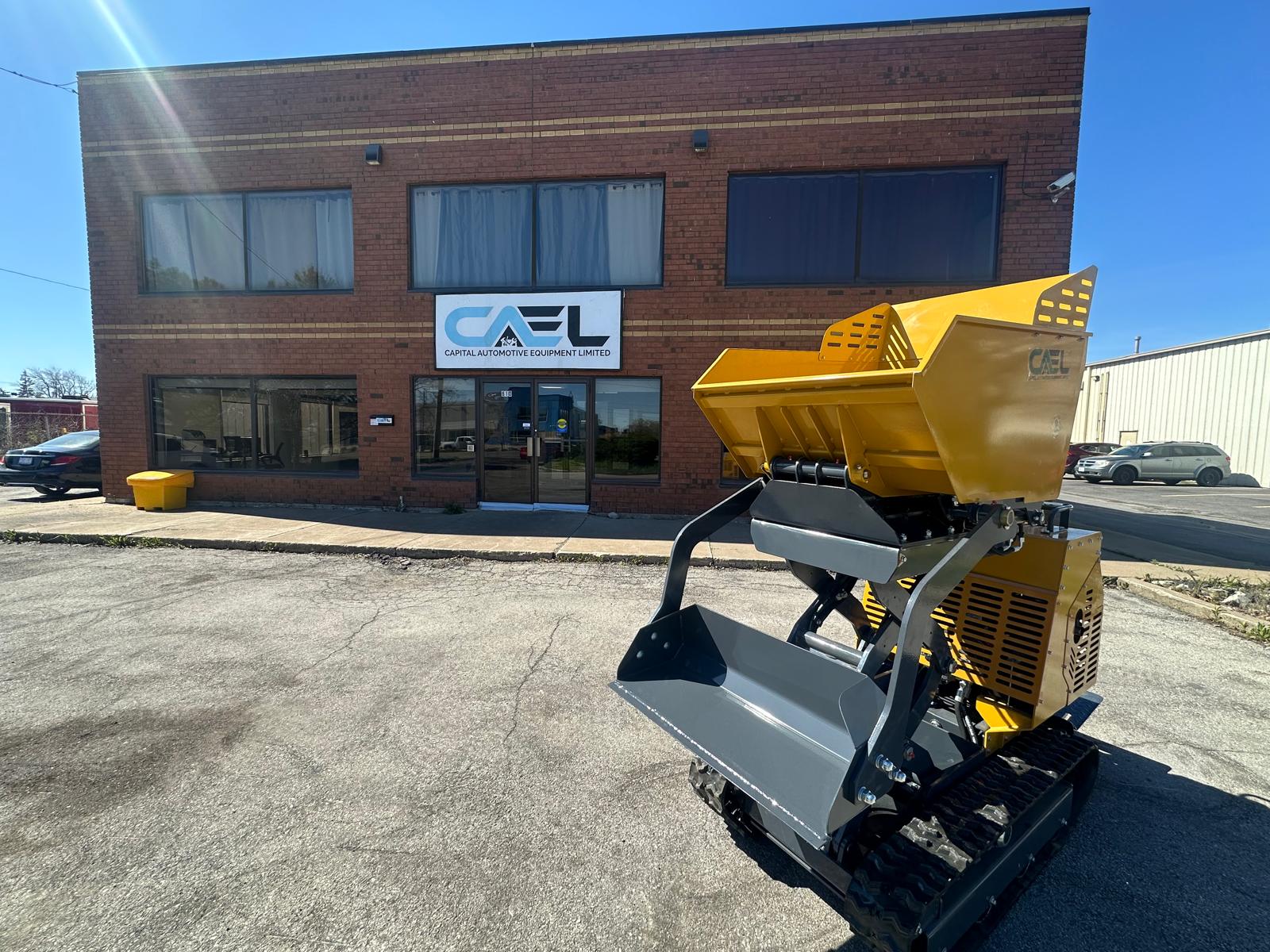

The CAEL Dumper-BS 2200 lbs is a powerful tracked dumper designed for construction sites, farms, landscaping companies, contractors, industrial yards, and heavy-duty material transport.
Powered by a dependable Briggs & Stratton 420cc engine, this dumper combines strong payload capacity, hydraulic tipping, lifting discharge ability, and crawler traction for efficient hauling in demanding environments.
Key Features & Benefits
Strong 2200 lbs Payload Capacity
Max horizontal transport load: 1000 kg / 2200 lbs
Hydraulic Tipping System
Fast unloading with hydraulic tipper

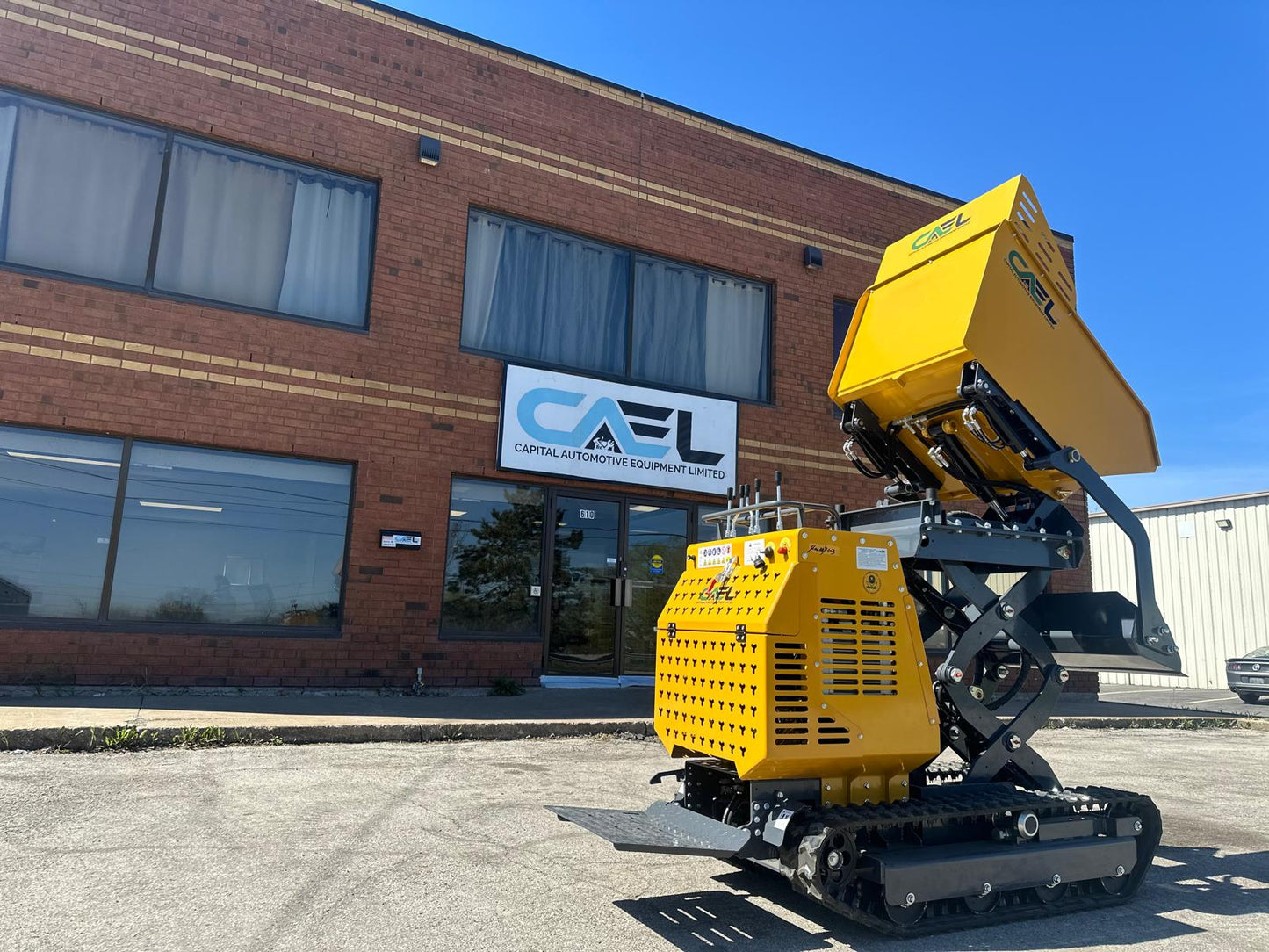

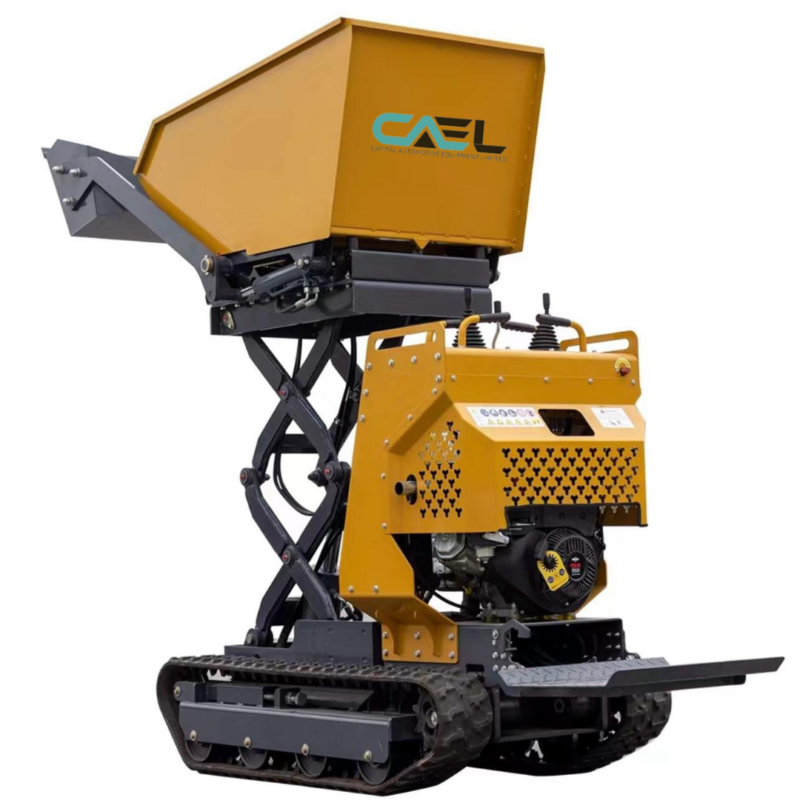

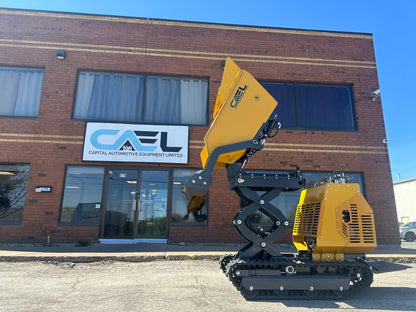

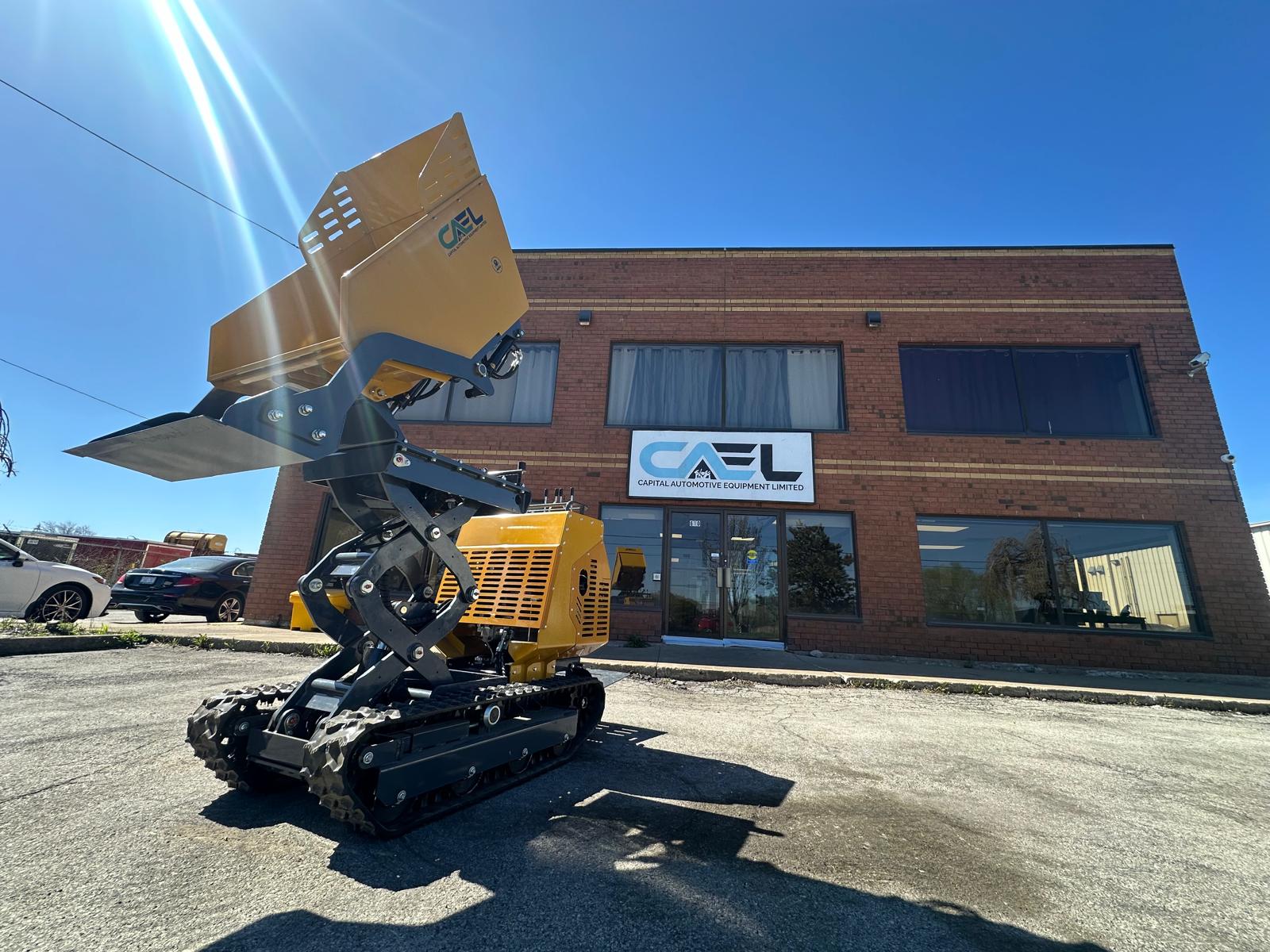

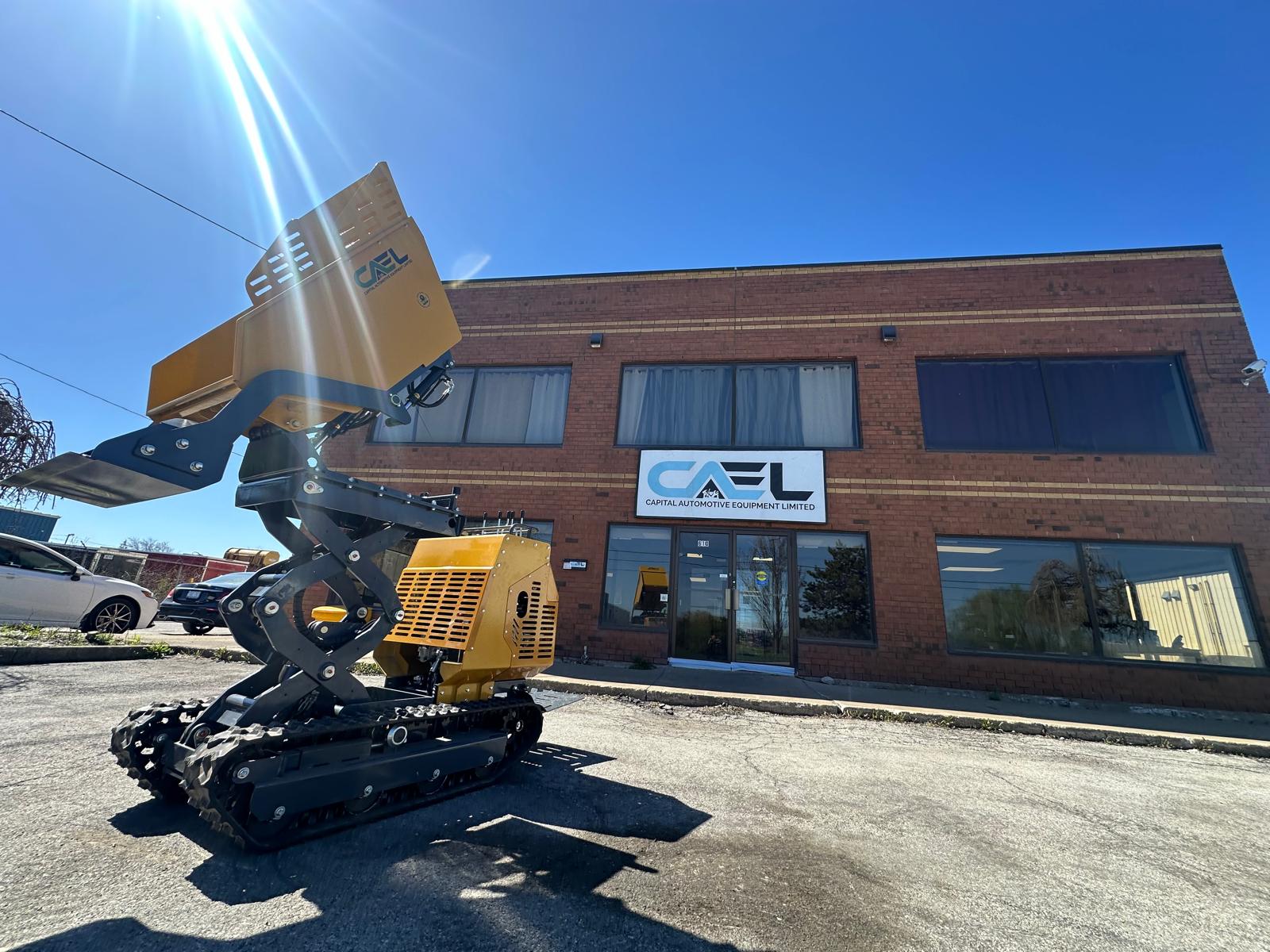

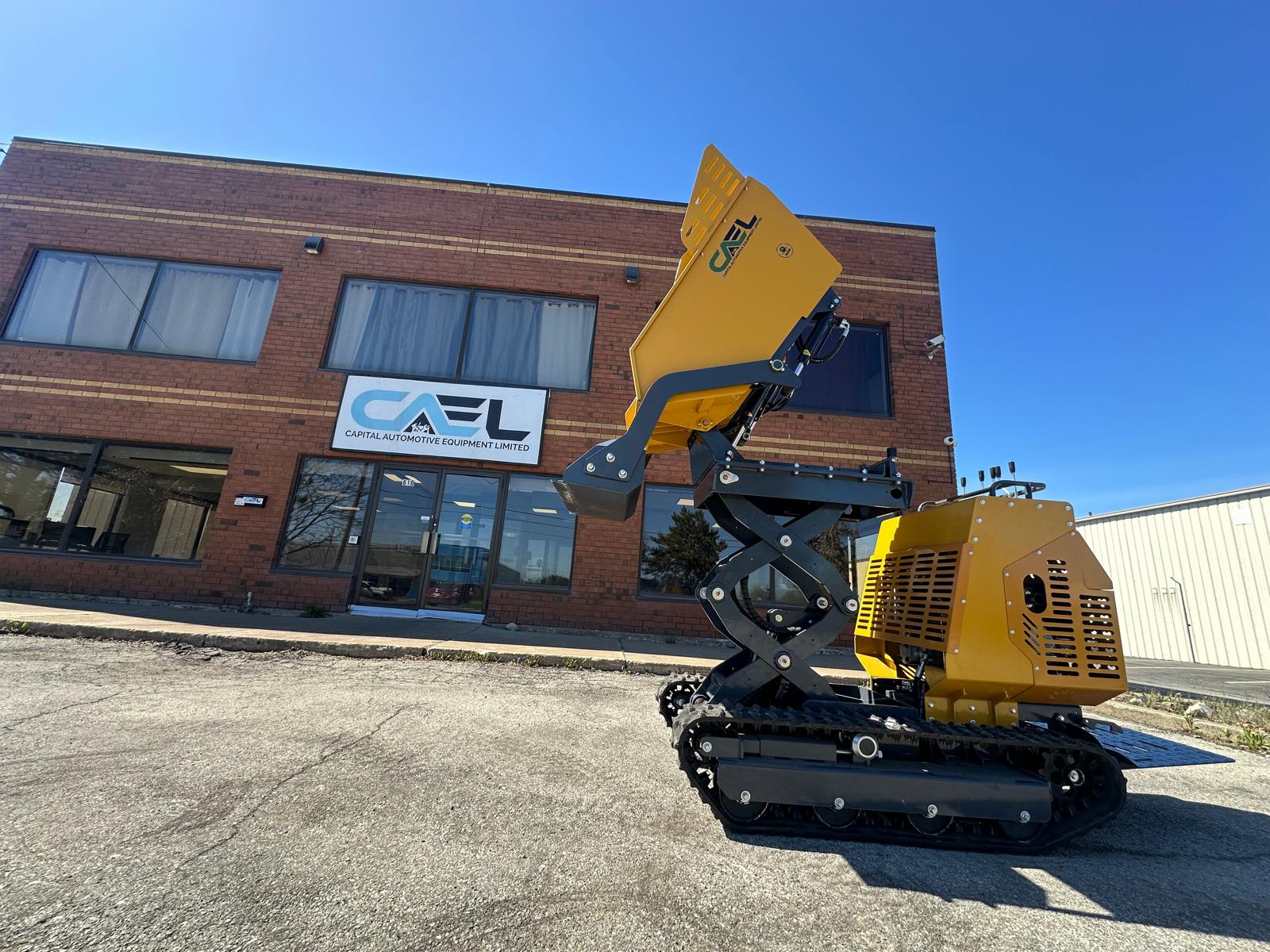

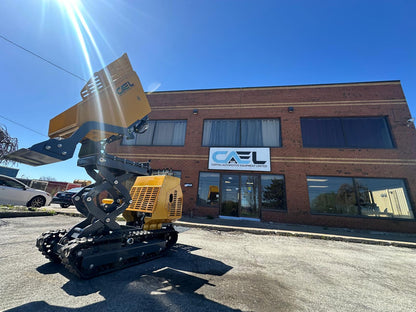

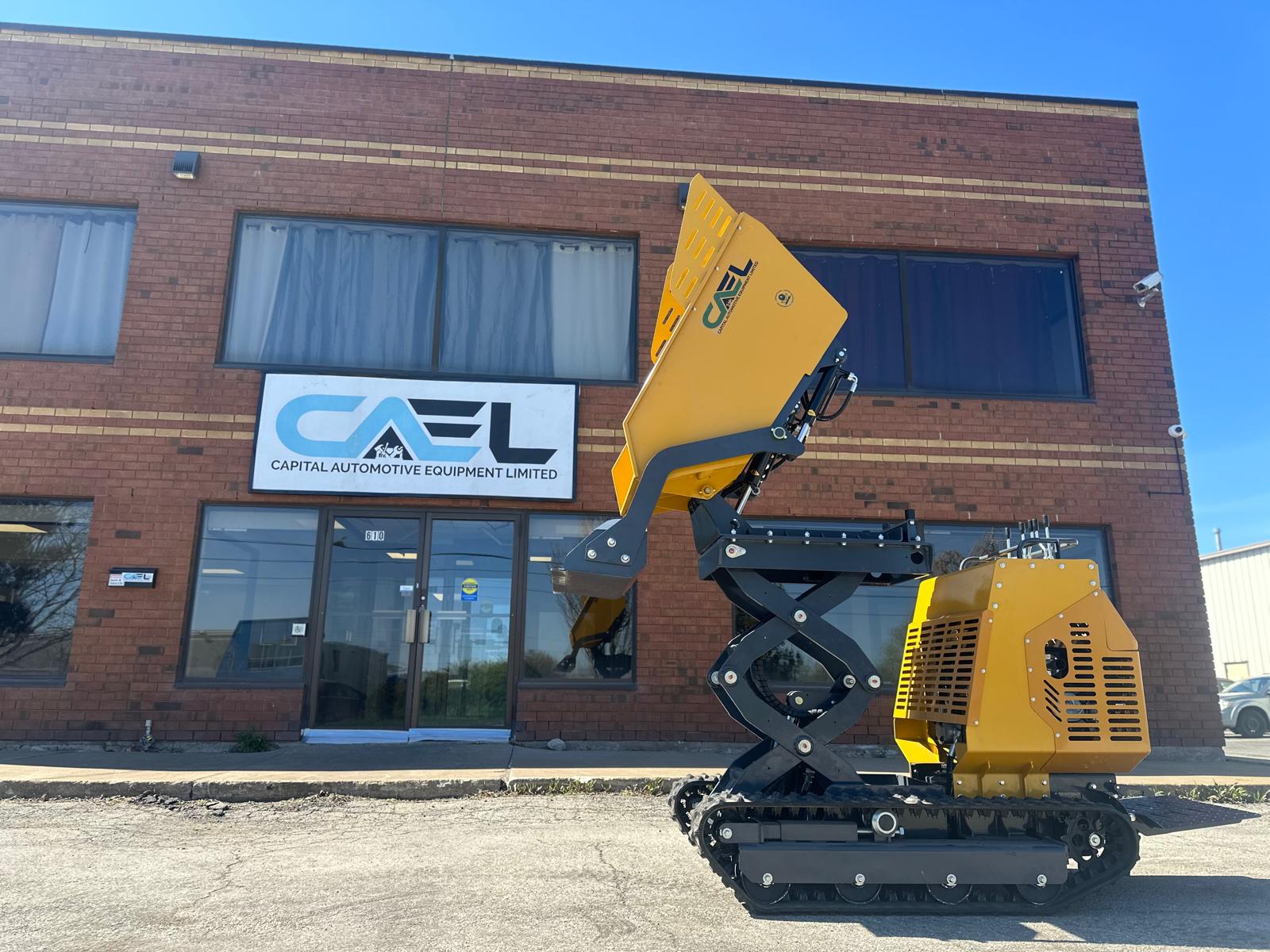

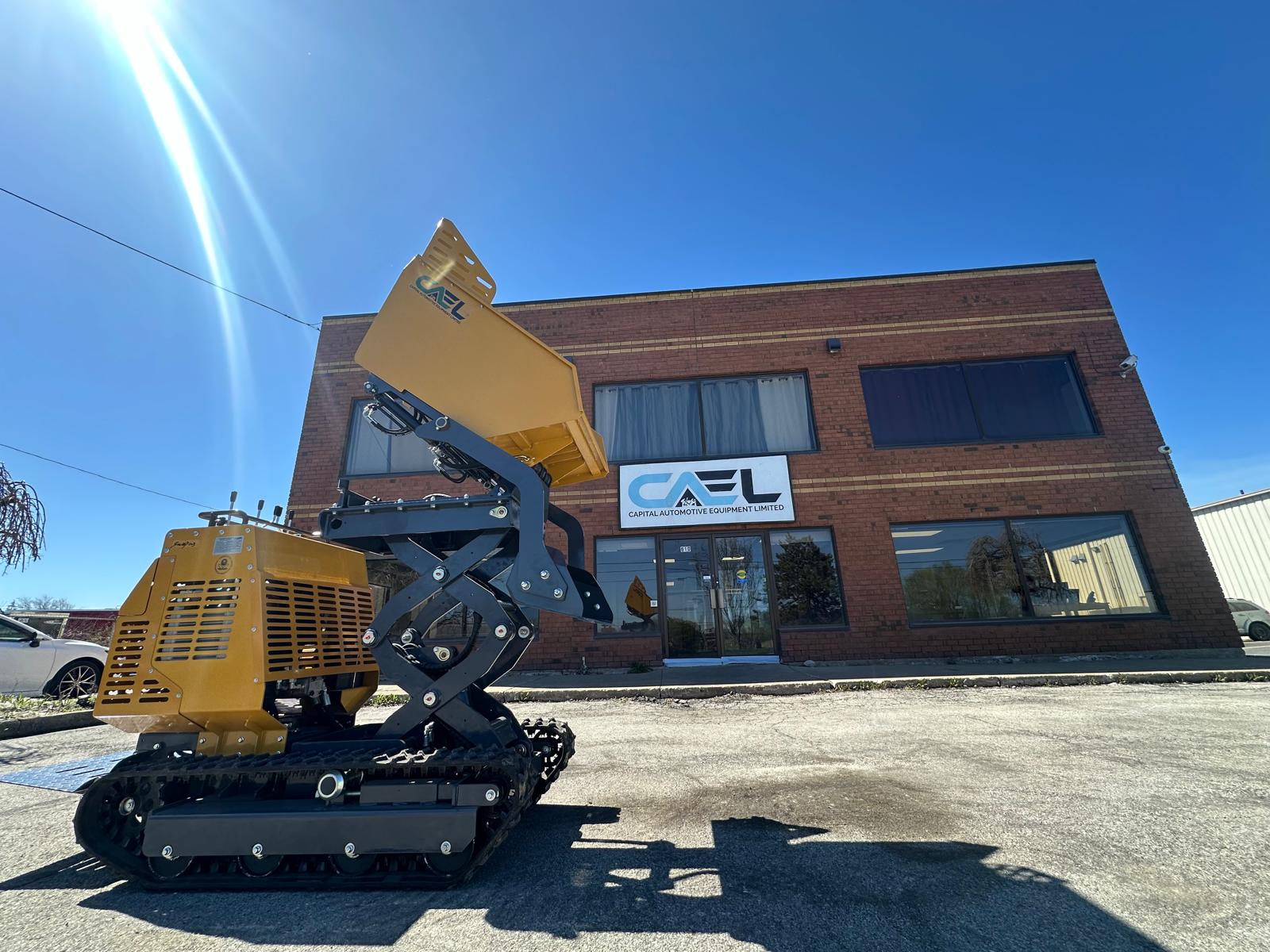

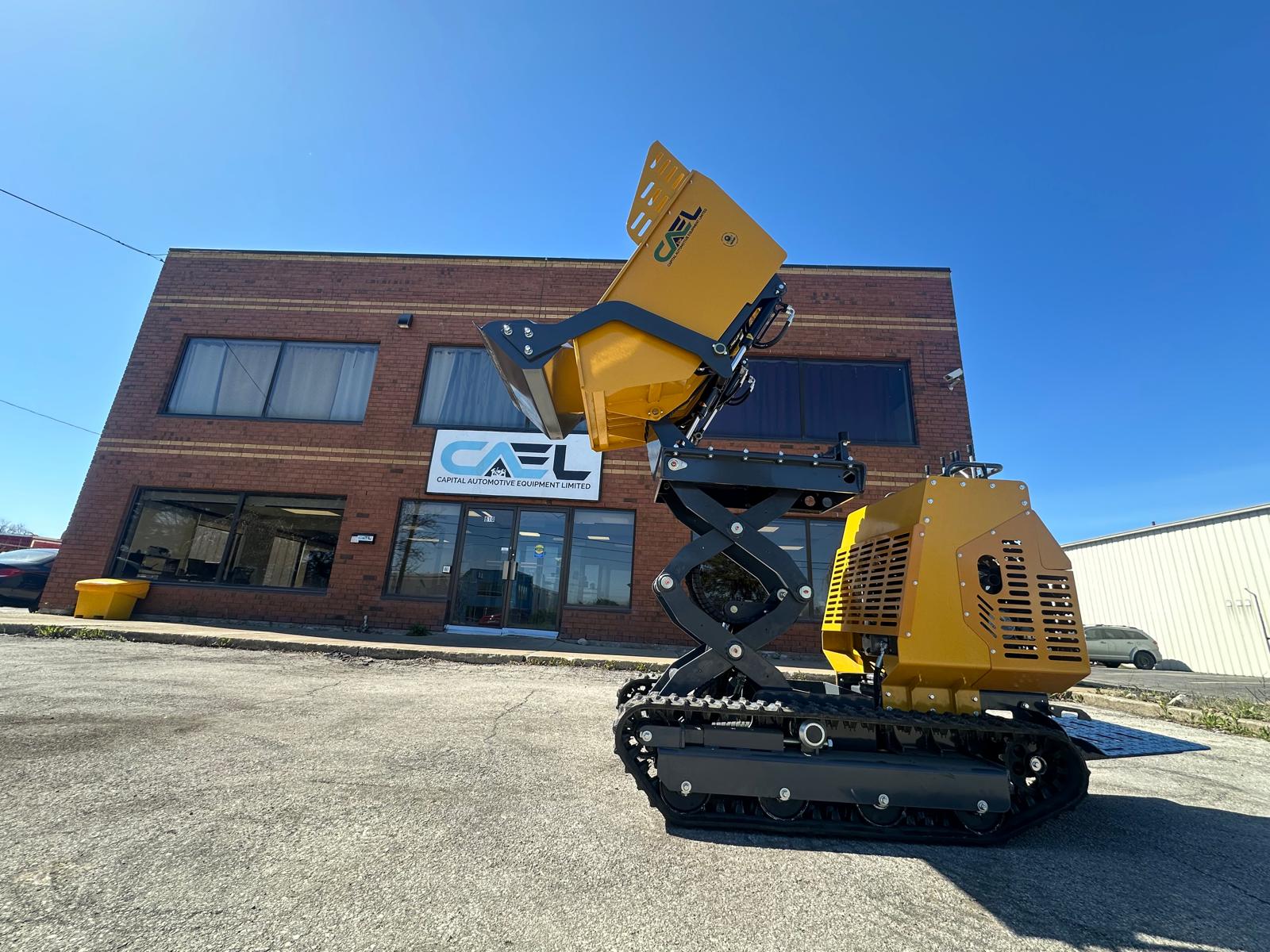

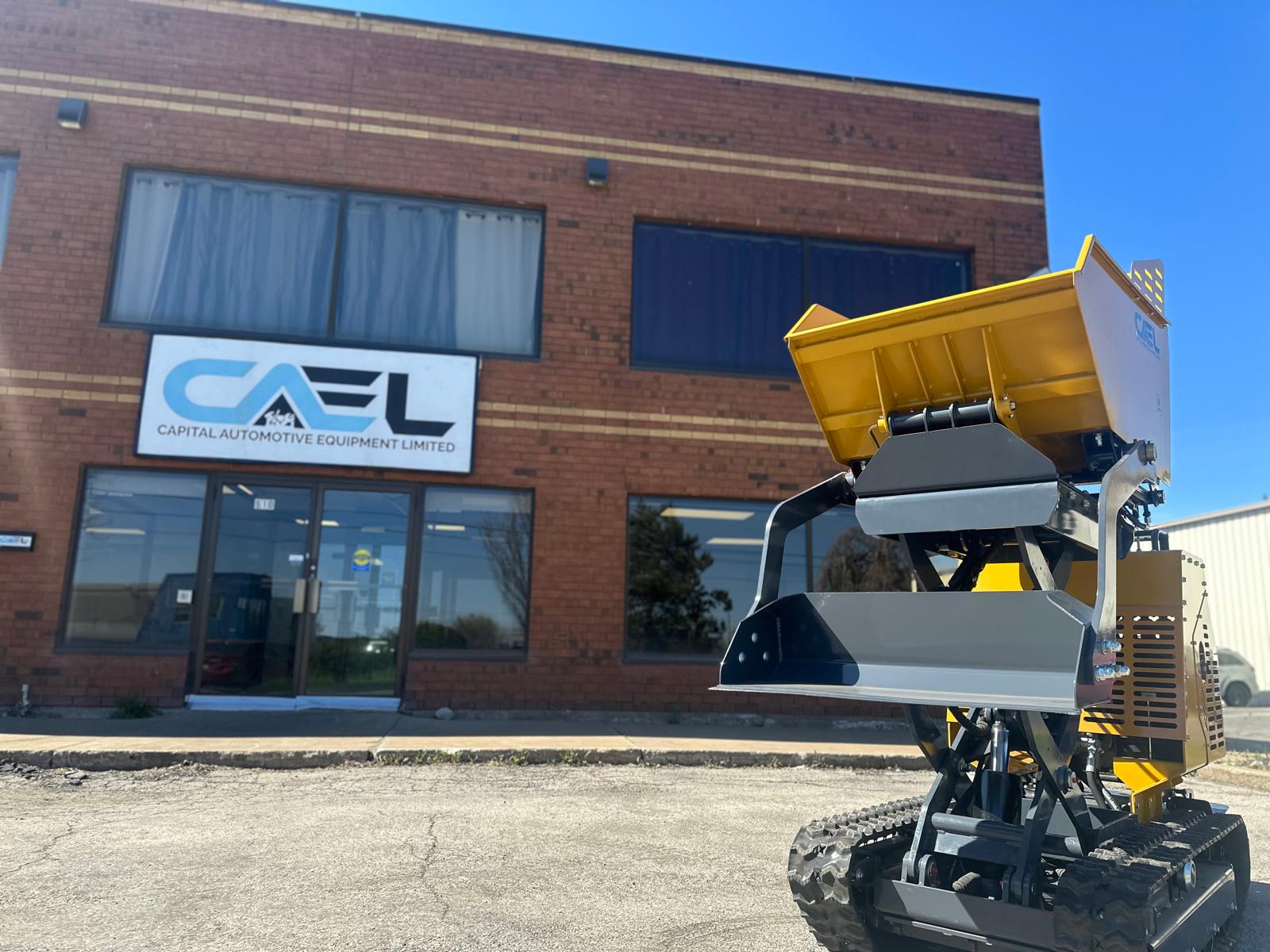

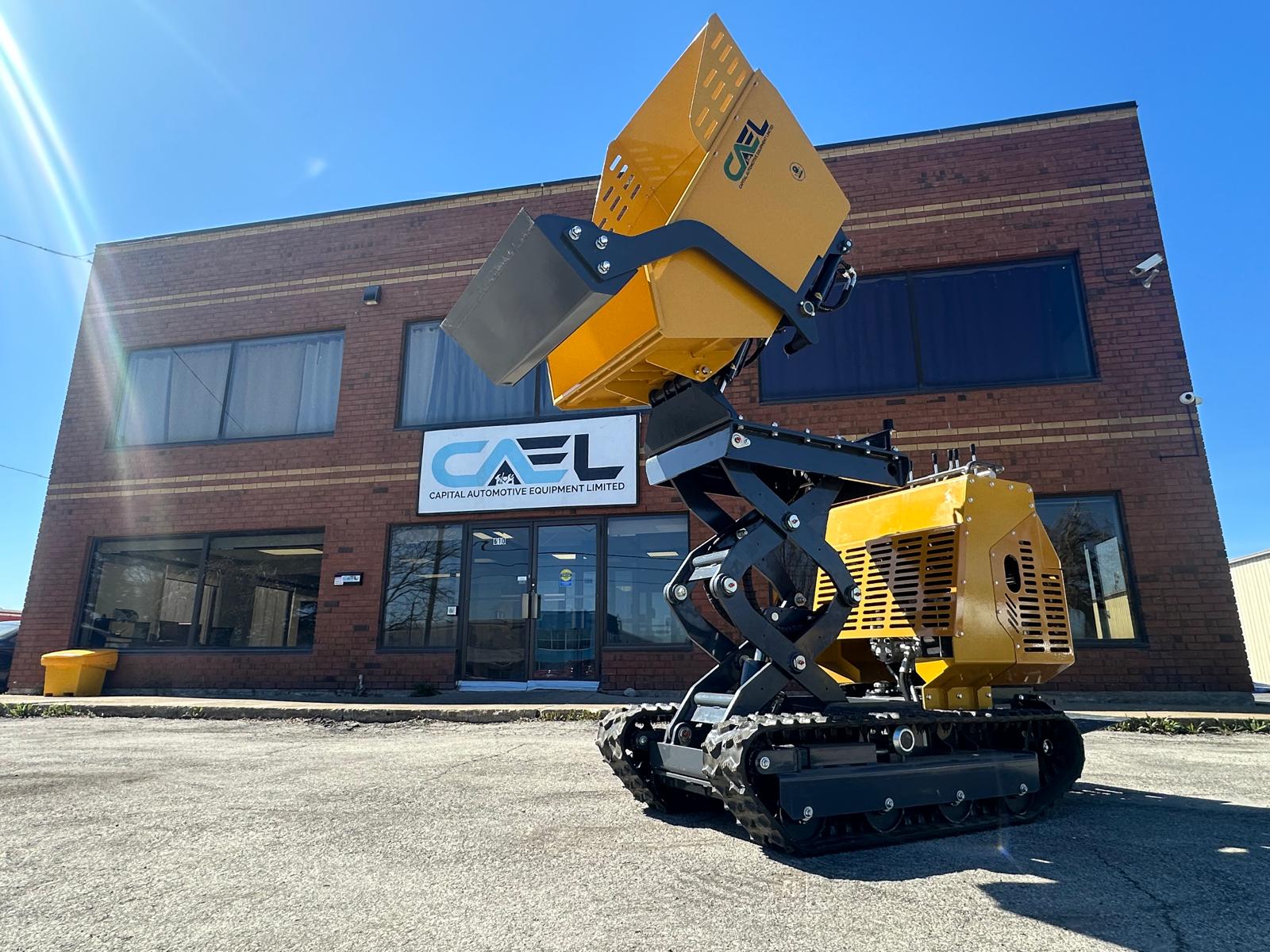

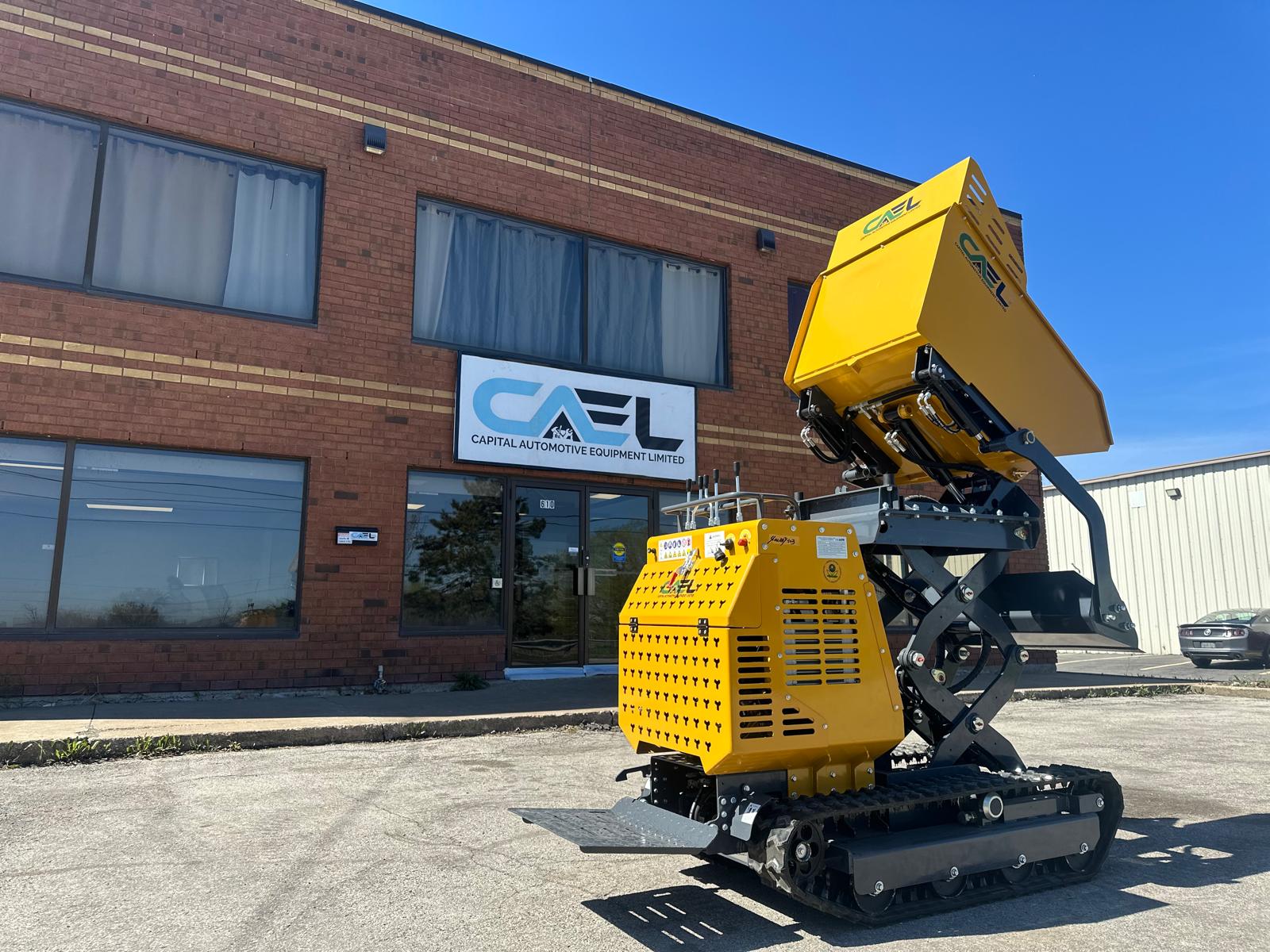

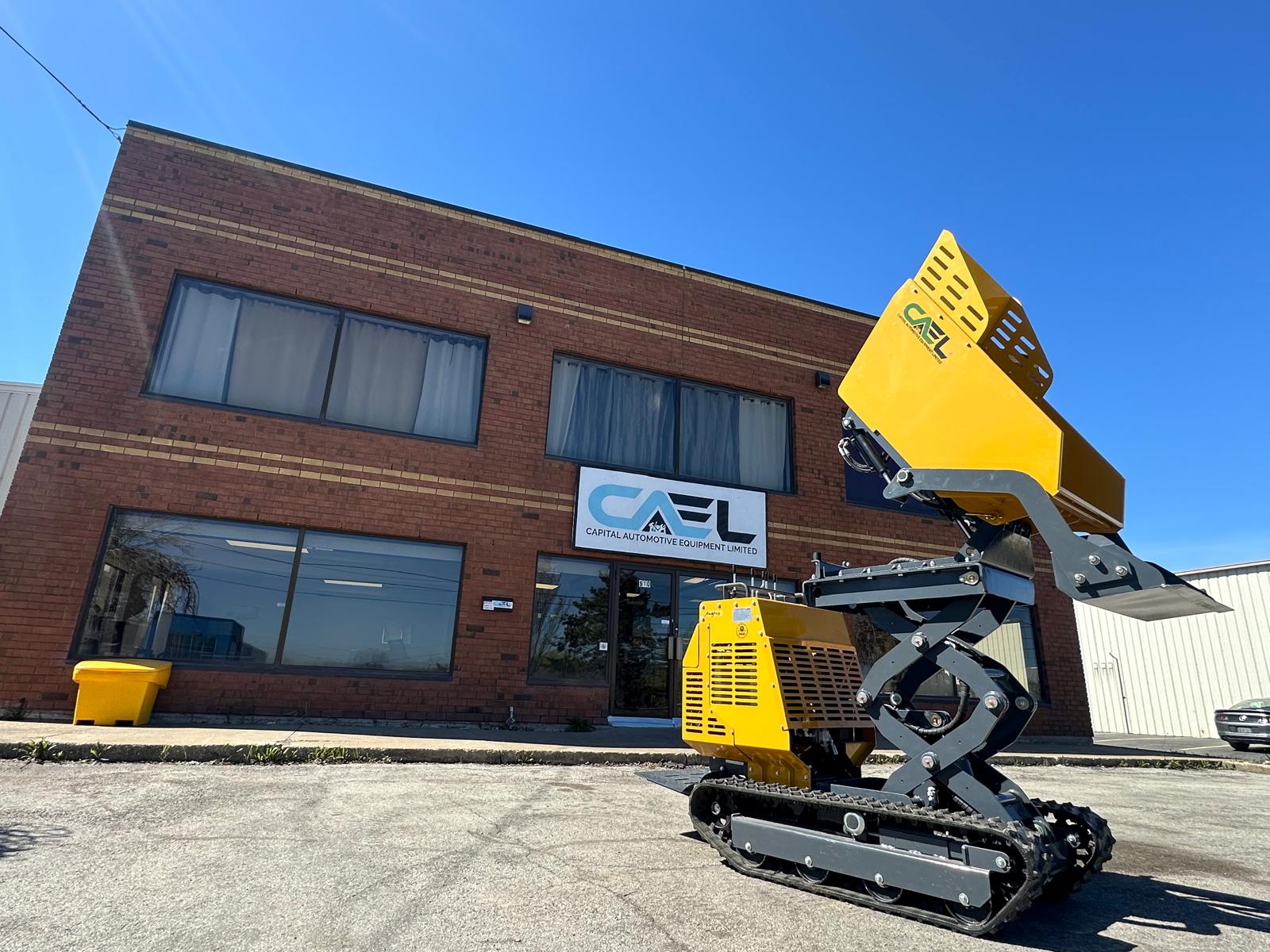

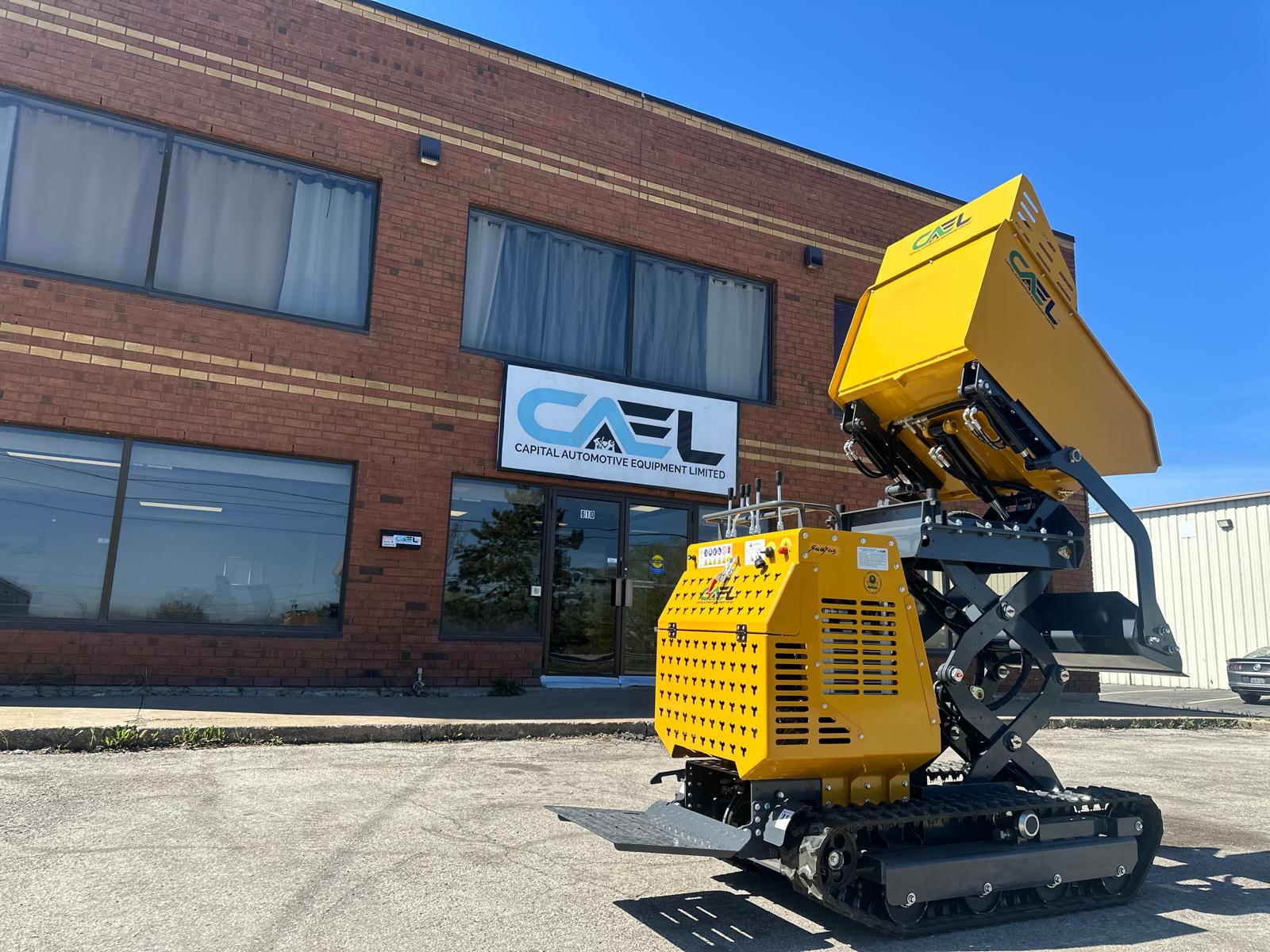

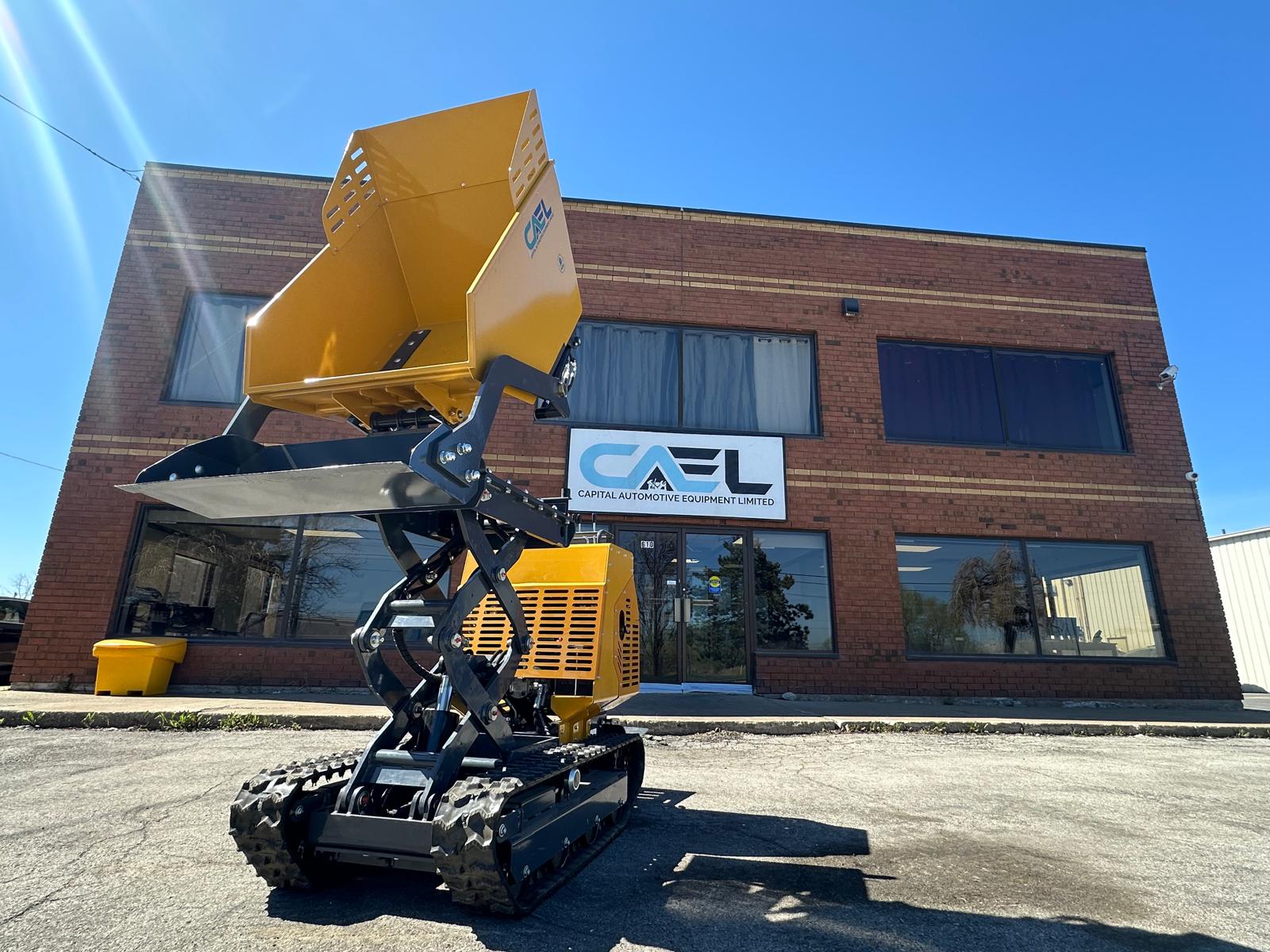

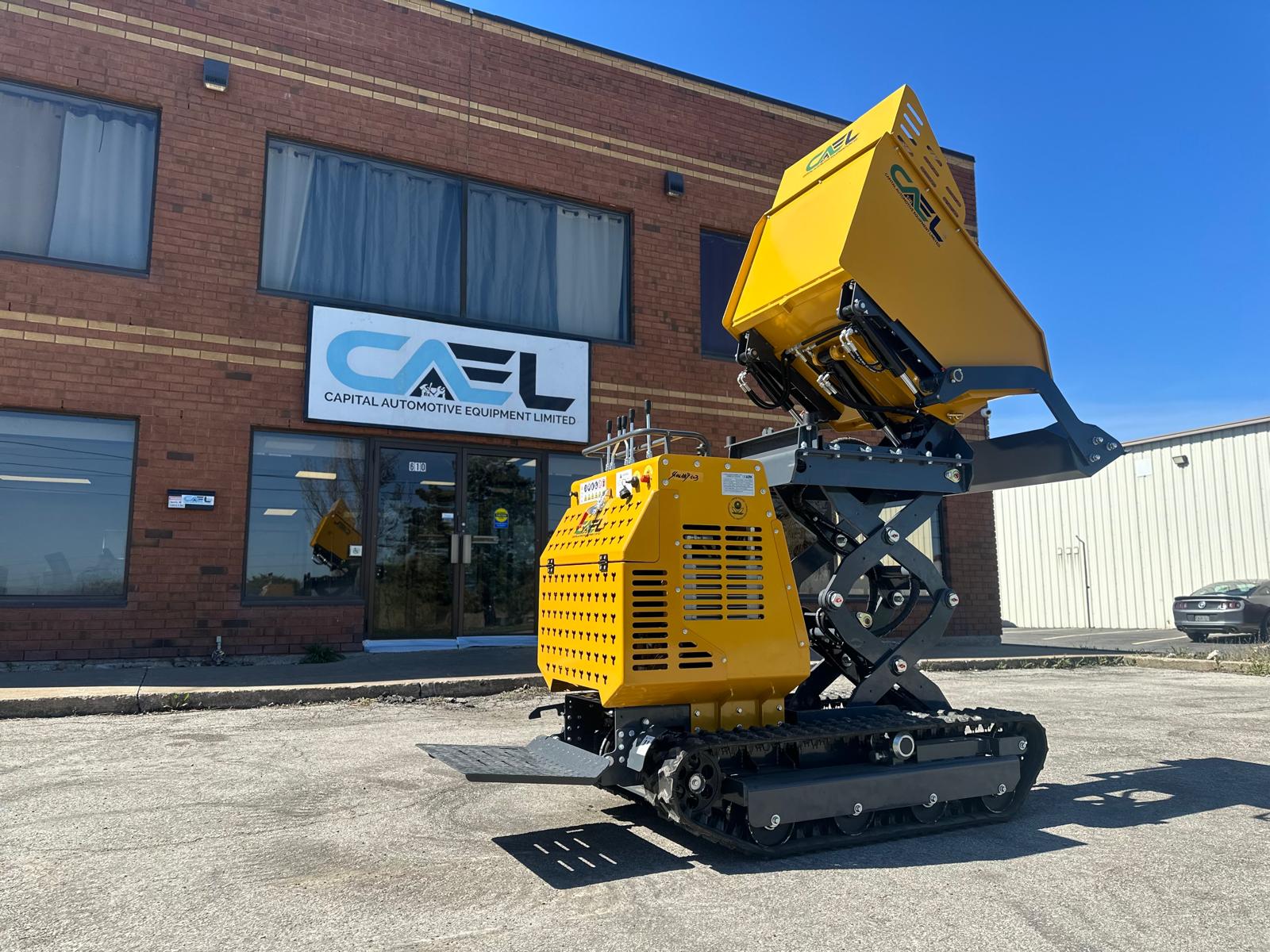

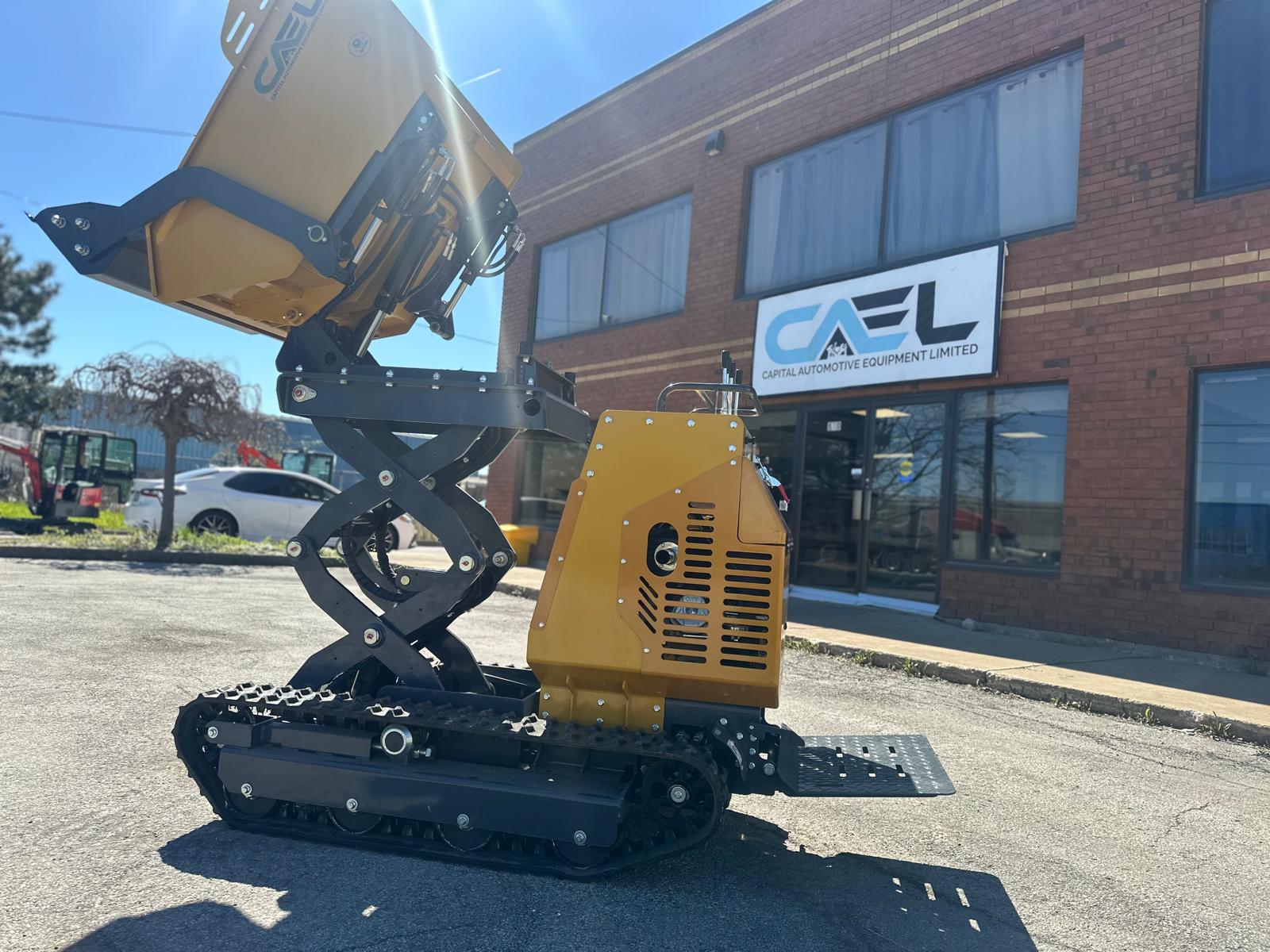

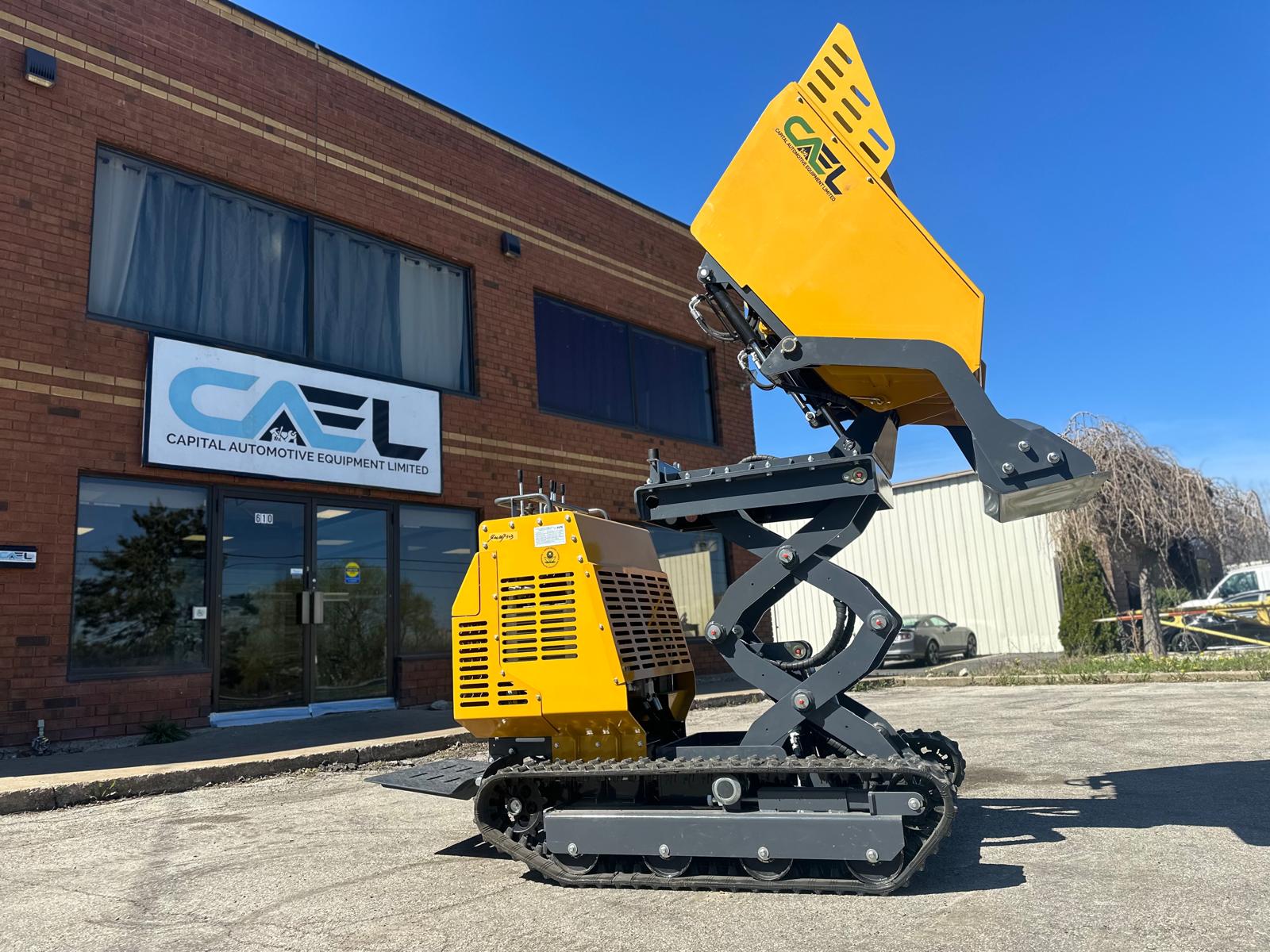

High Lift Discharge Function
Max lifting discharge height: 1500 mm
Powerful Briggs & Stratton Engine
420cc / 13.5HP
Reliable 4-stroke OHV engine
Heavy-Duty Track System
Great traction on mud, gravel, slopes, and rough terrain
Compact Commercial Design
Fits tight jobsites while carrying heavy loads
Strong Climbing Ability
Handles slopes up to 25°
Low Fuel Consumption
Efficient operation for long work periods
Technical Specifications
Engine
Feature
Details
Engine Brand
Briggs & Stratton
Model
420
Type
Single Cylinder OHV, 4-Stroke, Air Cooled
Displacement
420cc
Power Output
13.5HP / 3600 RPM
Fuel Type
92# Gasoline
Fuel Tank Capacity
6.5L
Engine Oil Capacity
1.1L
Capacity & Performance
Feature
Details
Total Weight
880 kg
Max Horizontal Load
1000 kg / 2200 lbs
Max Lifting Load
550 kg
Cargo Box Capacity
290 dm³
Walking Speed
3 km/h
Climbing Ability
25°
Hydraulic System
Feature
Details
Tipping System
Hydraulic Tipper
Tilting Angle
100°
Max Lift Discharge Height
1500 mm
Tipping Interval
350 mm
Hydraulic Tank Capacity
12L (with radiator)
Dimensions
Machine Size
(Without pedal / without bucket)
1800 × 880 × 1920 mm
Bucket Size (with foot pedal)
2700 × 880 × 1920 mm
Container Size
1220 × 800 × 600 mm
Chassis & Track System
Feature
Details
Chassis Width
850 mm
Track Width
180 mm
Track Ground Length
915 mm
Track Gauge
670 mm
Ground Clearance
100 mm
Turning Radius
1300 mm
Ideal Applications
✔ Construction materials hauling ✔ Landscaping soil & gravel transport ✔ Farm work ✔ Demolition cleanup ✔ Industrial sites ✔ Tight access jobsites ✔ Elevated dumping needs
Why Choose CAEL Dumper-BS?
The CAEL Dumper-BS 2200 lbs combines strong payload performance, hydraulic lift dumping, compact maneuverability, and dependable Briggs power to increase productivity on any jobsite.
Perfect for professionals who need more than a standard dumper.
Core Advantages
✔ 2200 lb payload ✔ Hydraulic tipper ✔ 1500 mm lift dump height ✔ Briggs 13.5HP engine ✔ Tracked traction system ✔ 25° climbing ability ✔ Canada & USA support
Request a Quote
Contact us today for pricing, stock availability, delivery options, and financing availability across Canada & USA.
