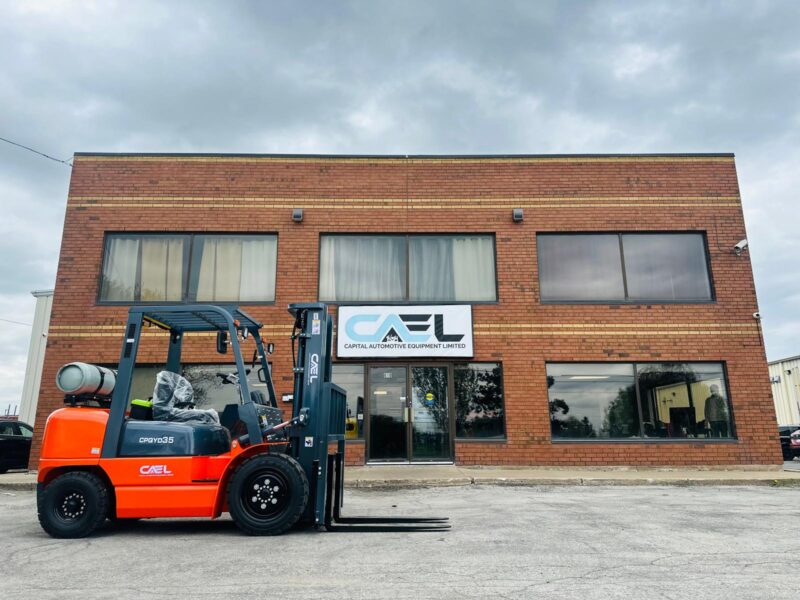

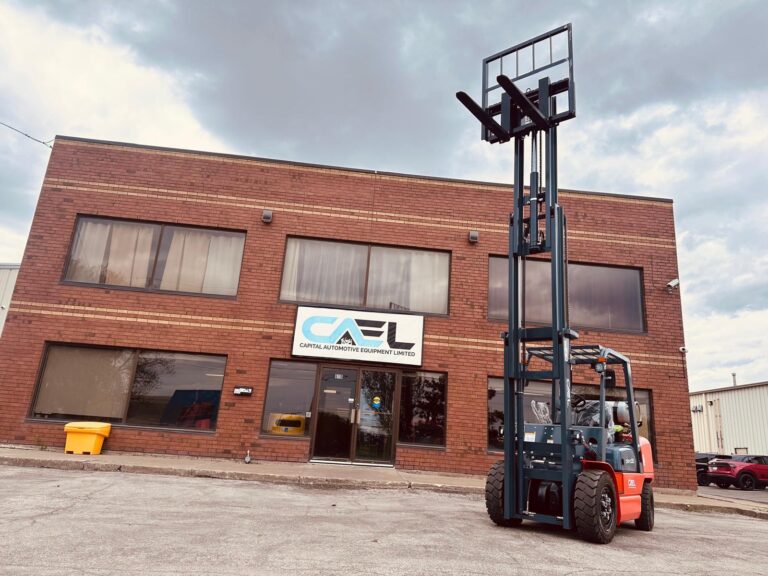

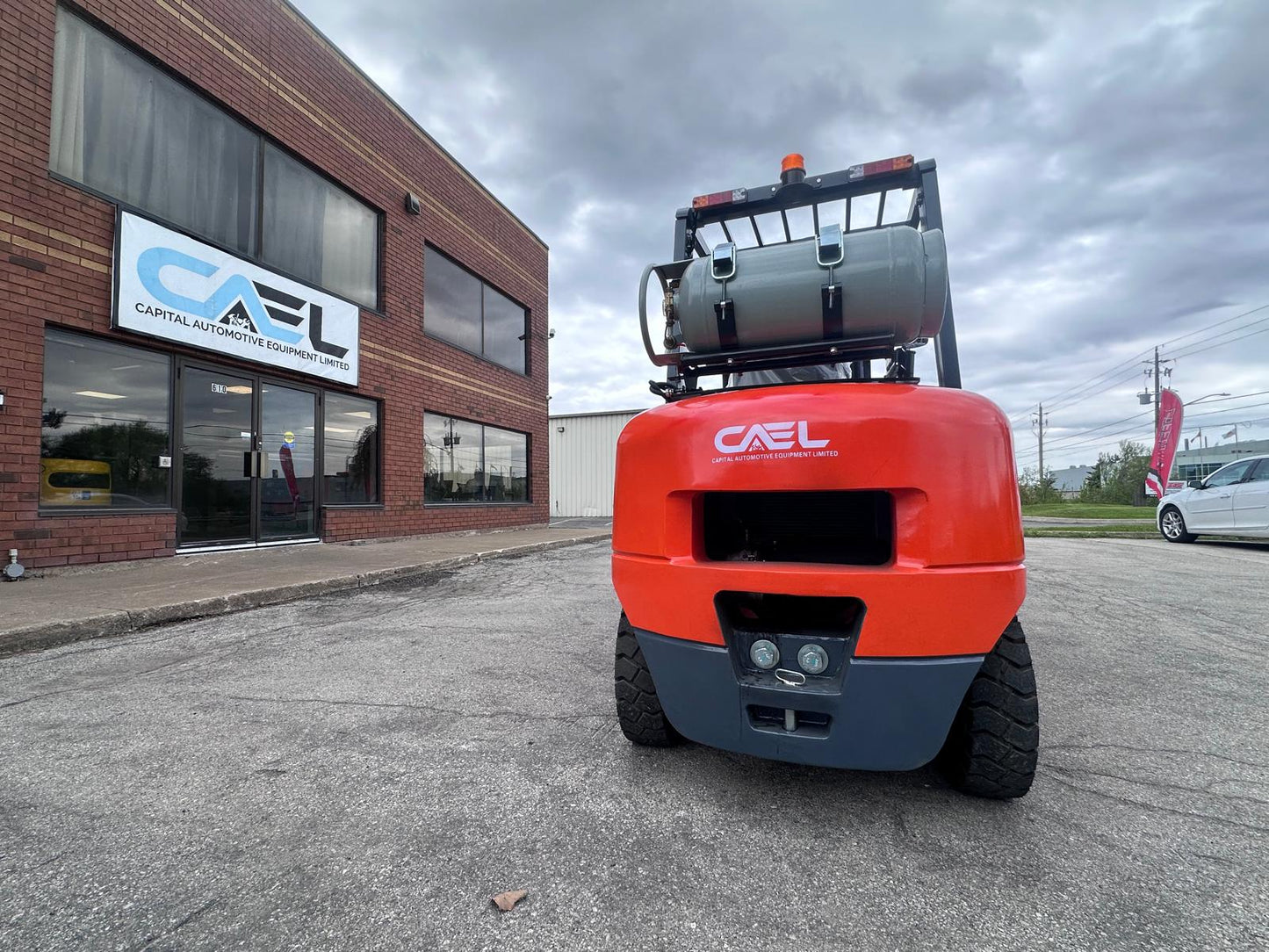

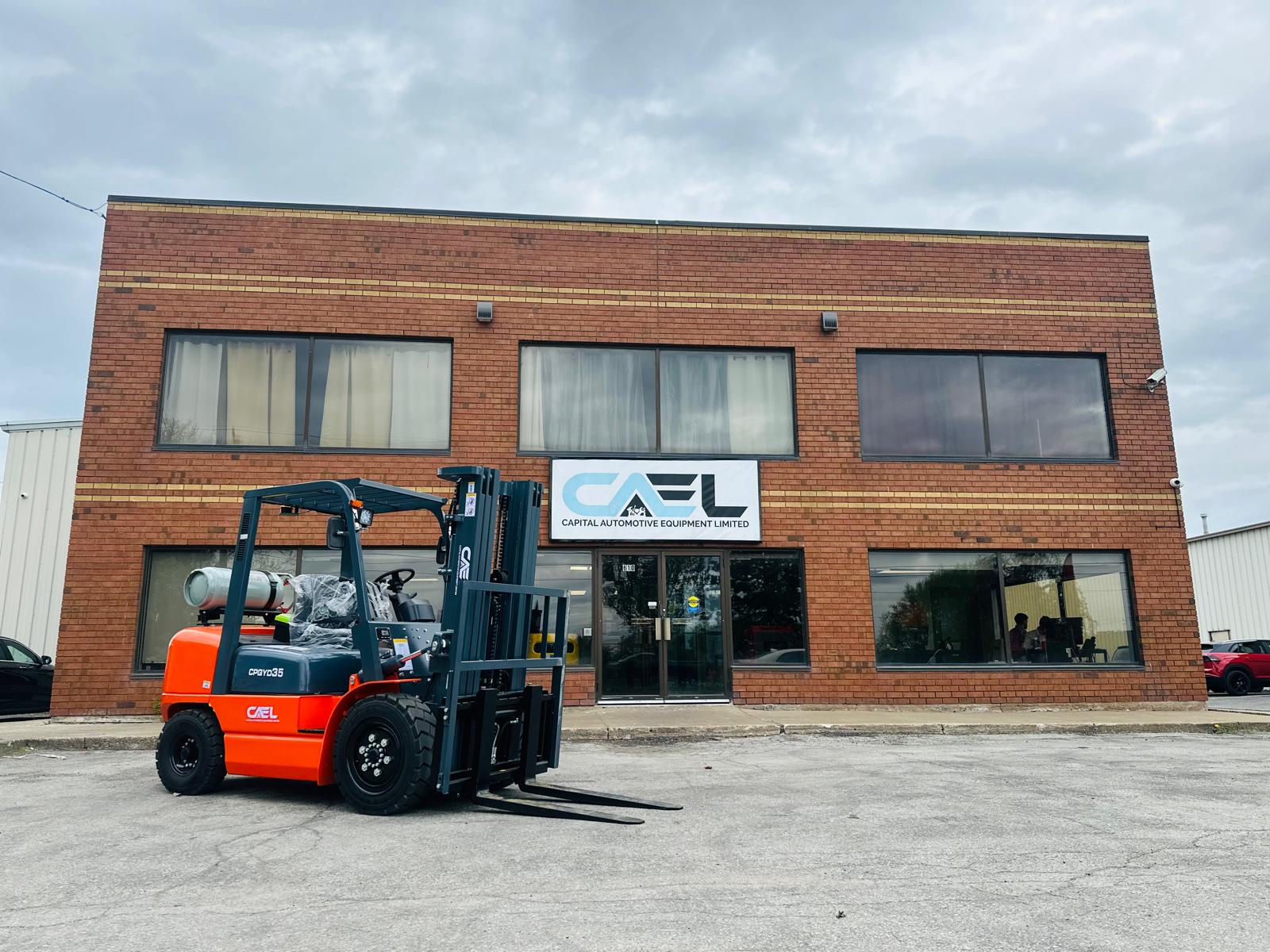

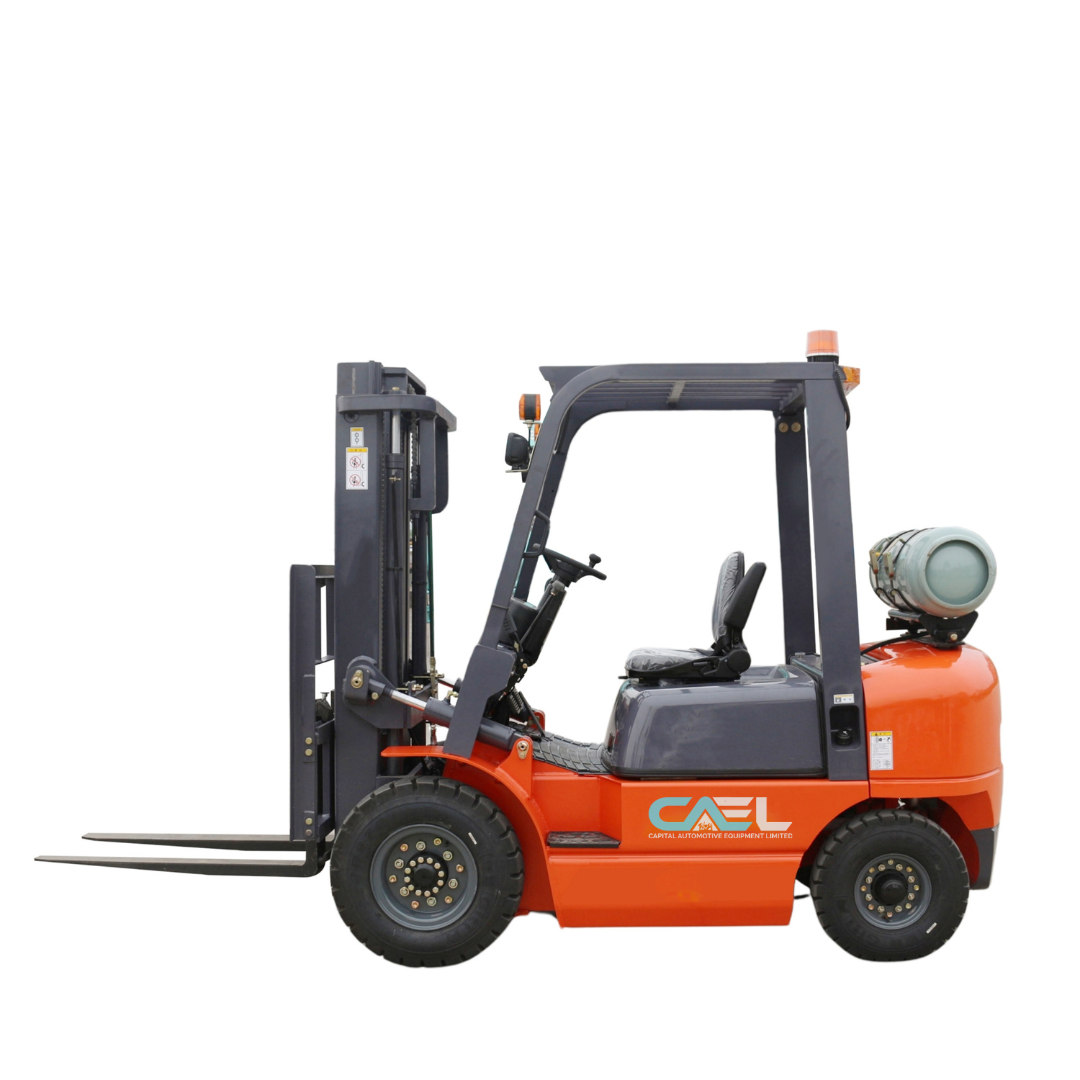

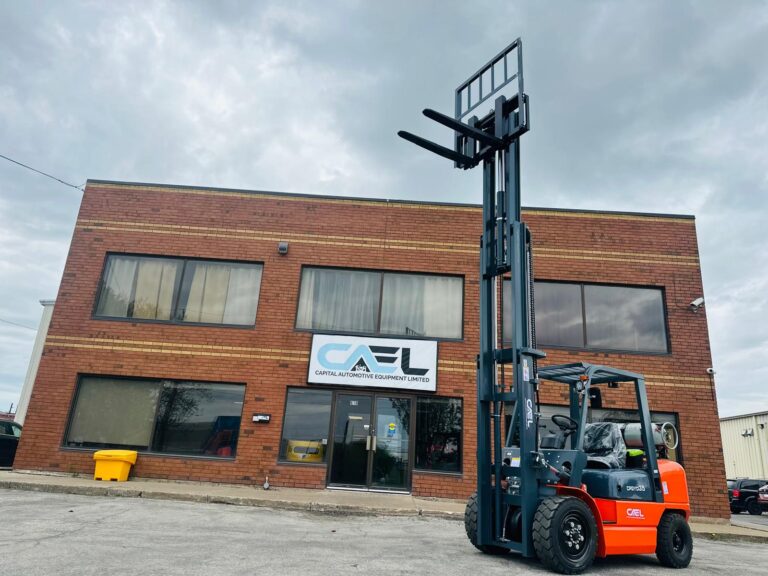

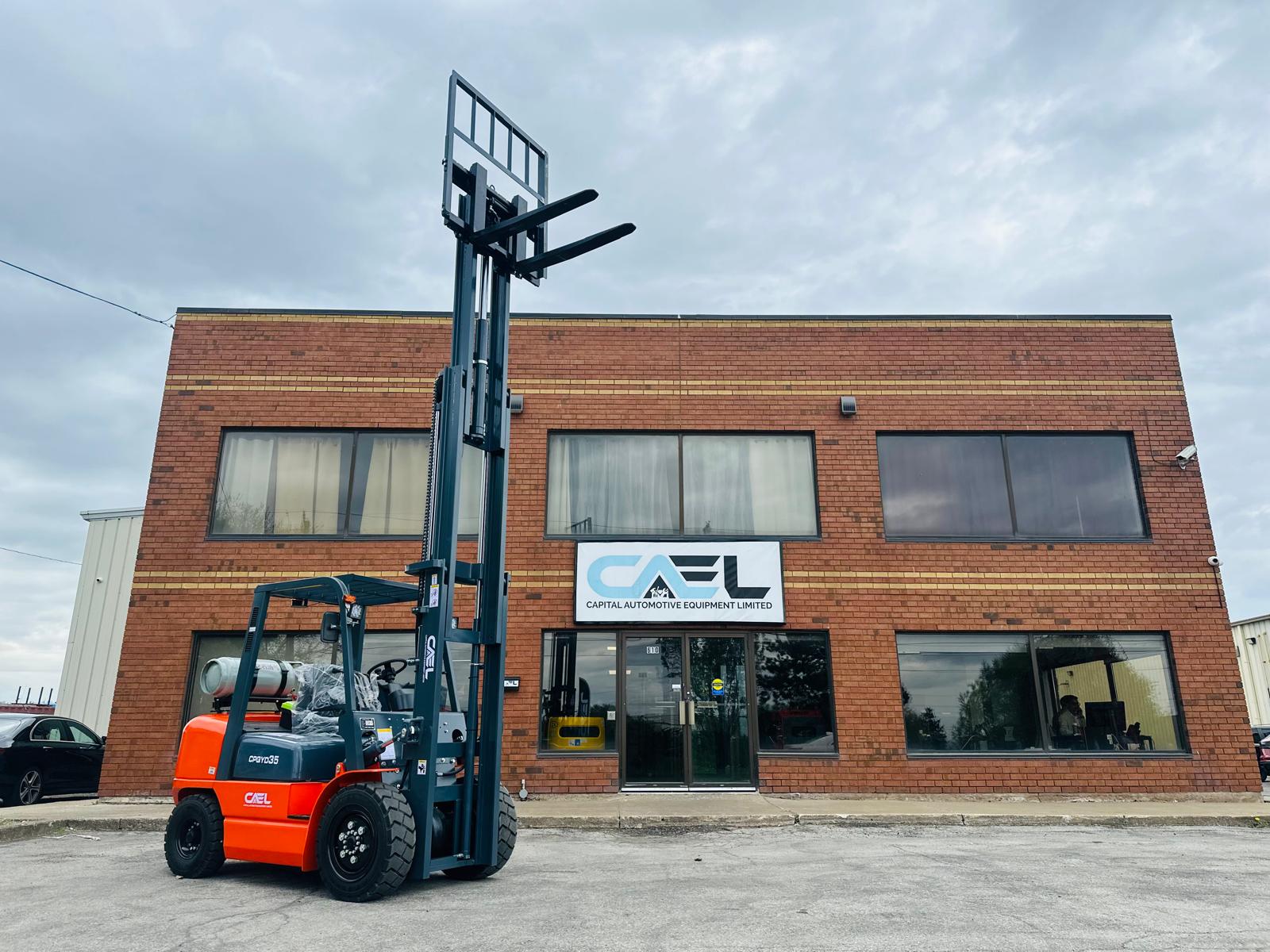

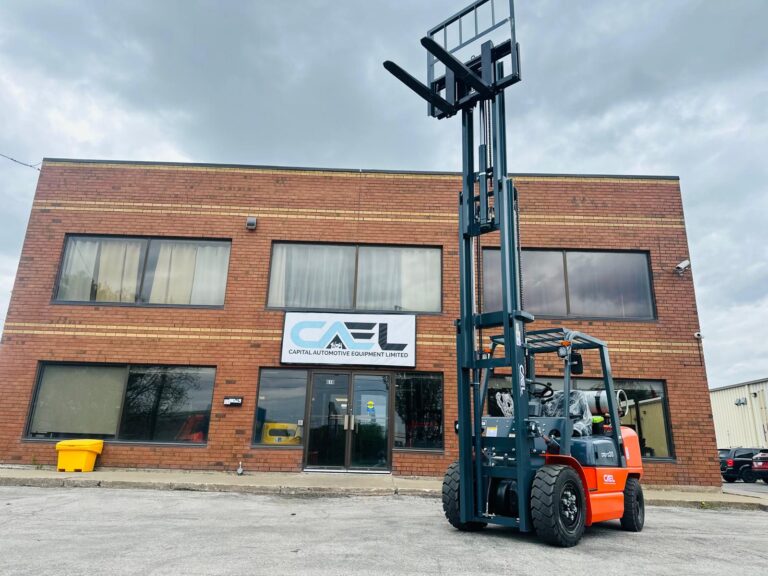

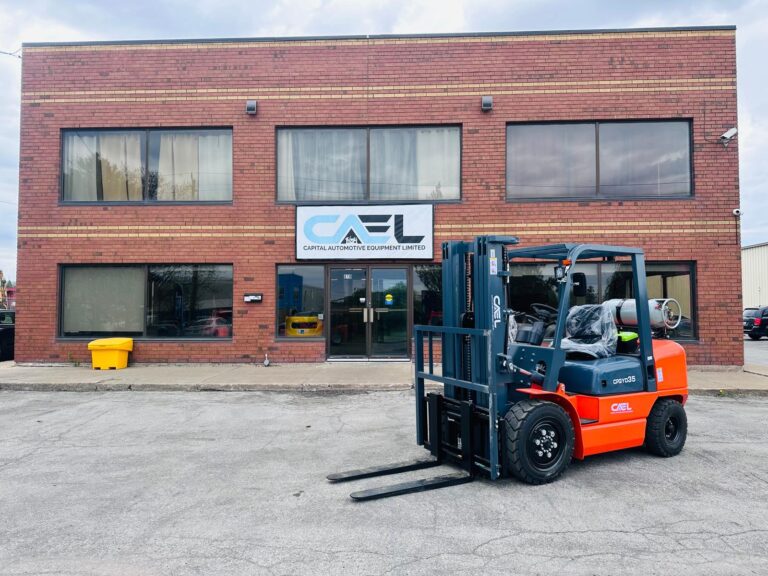

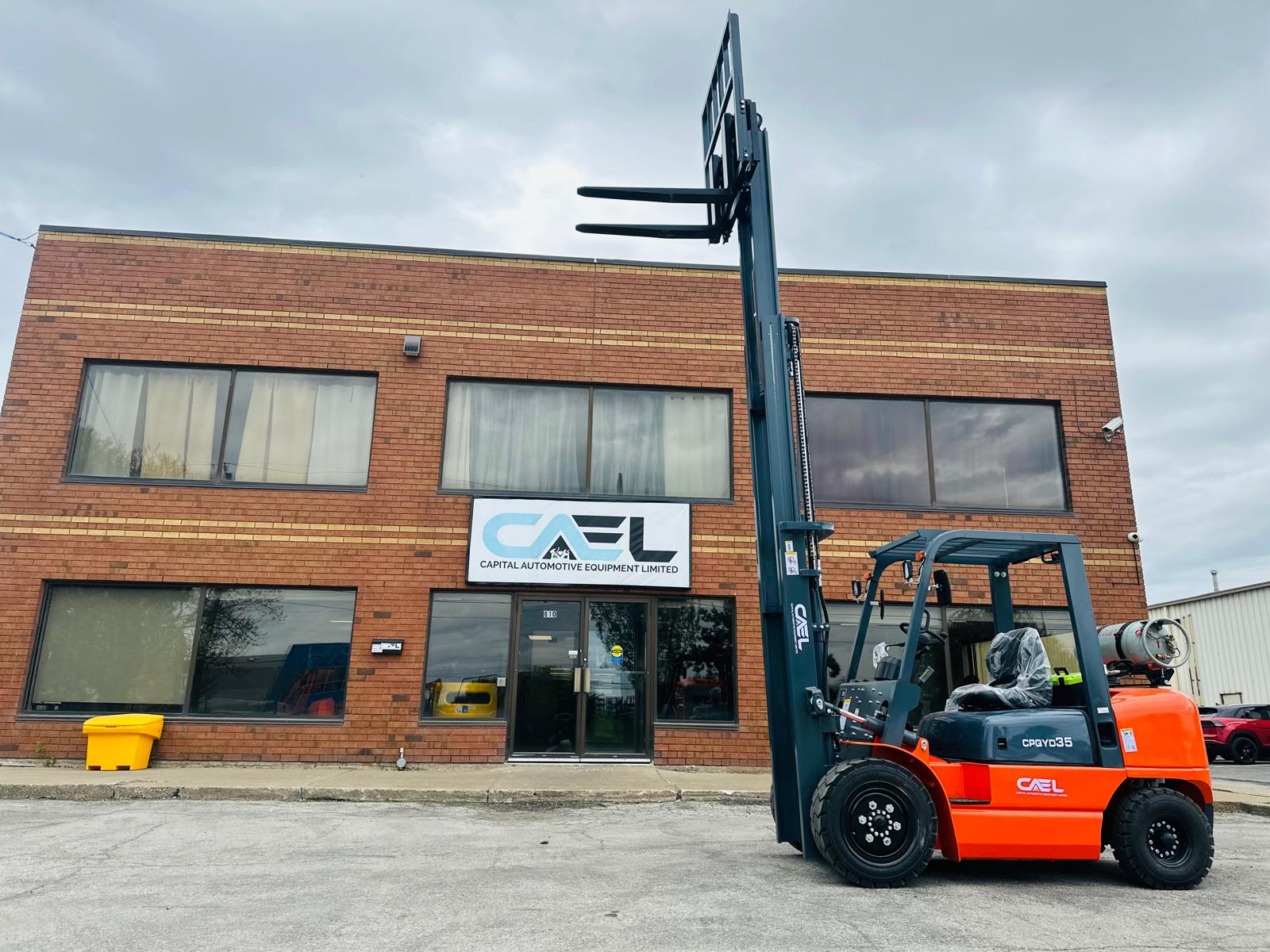

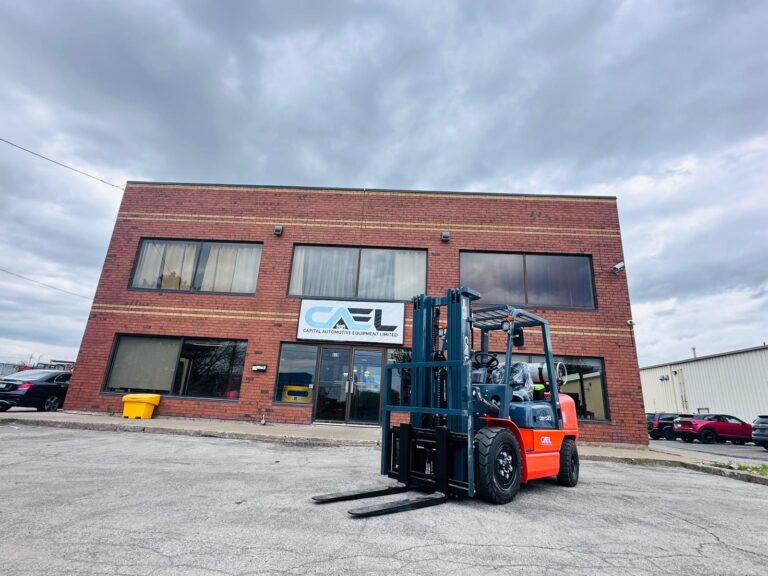

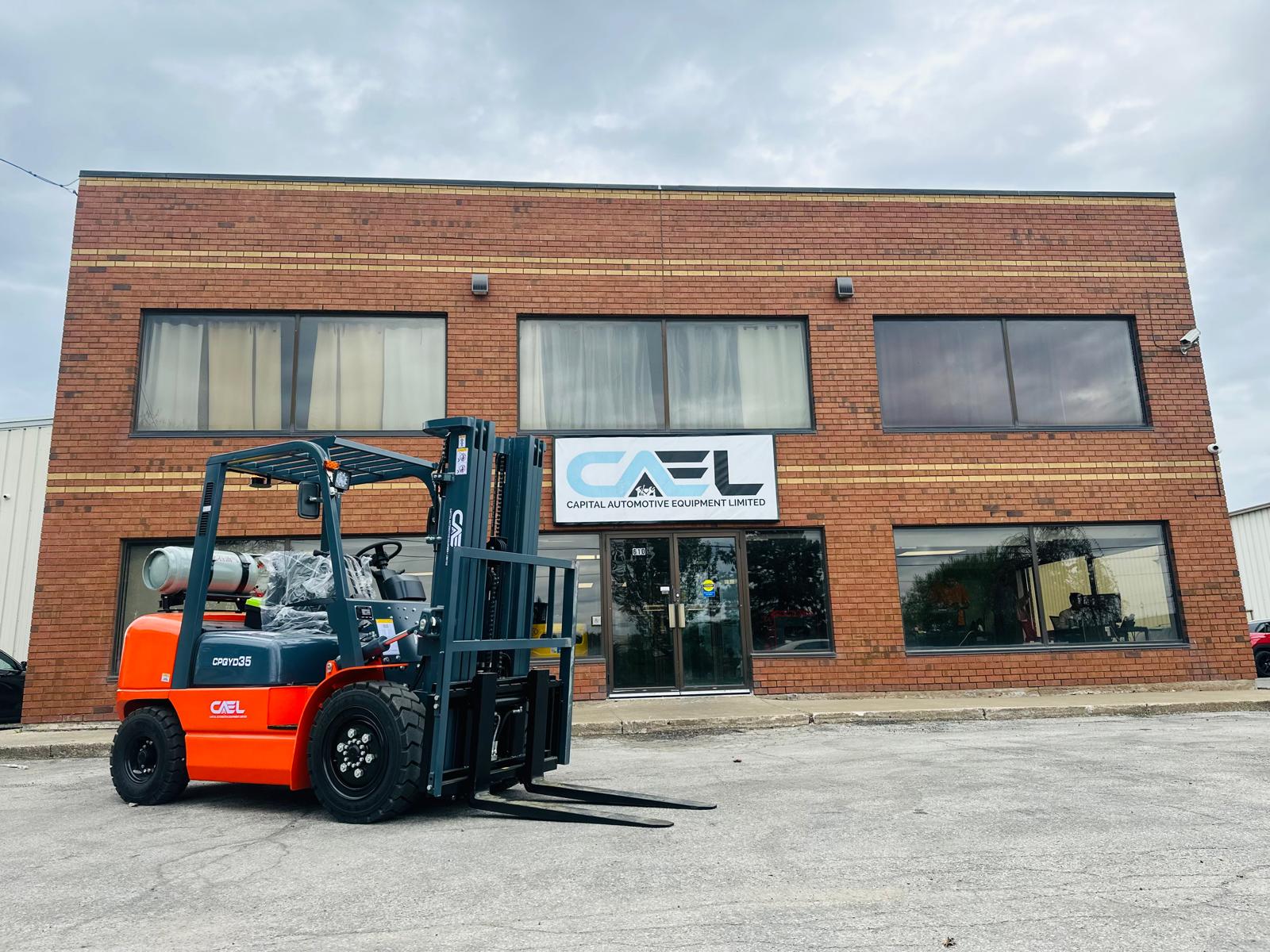

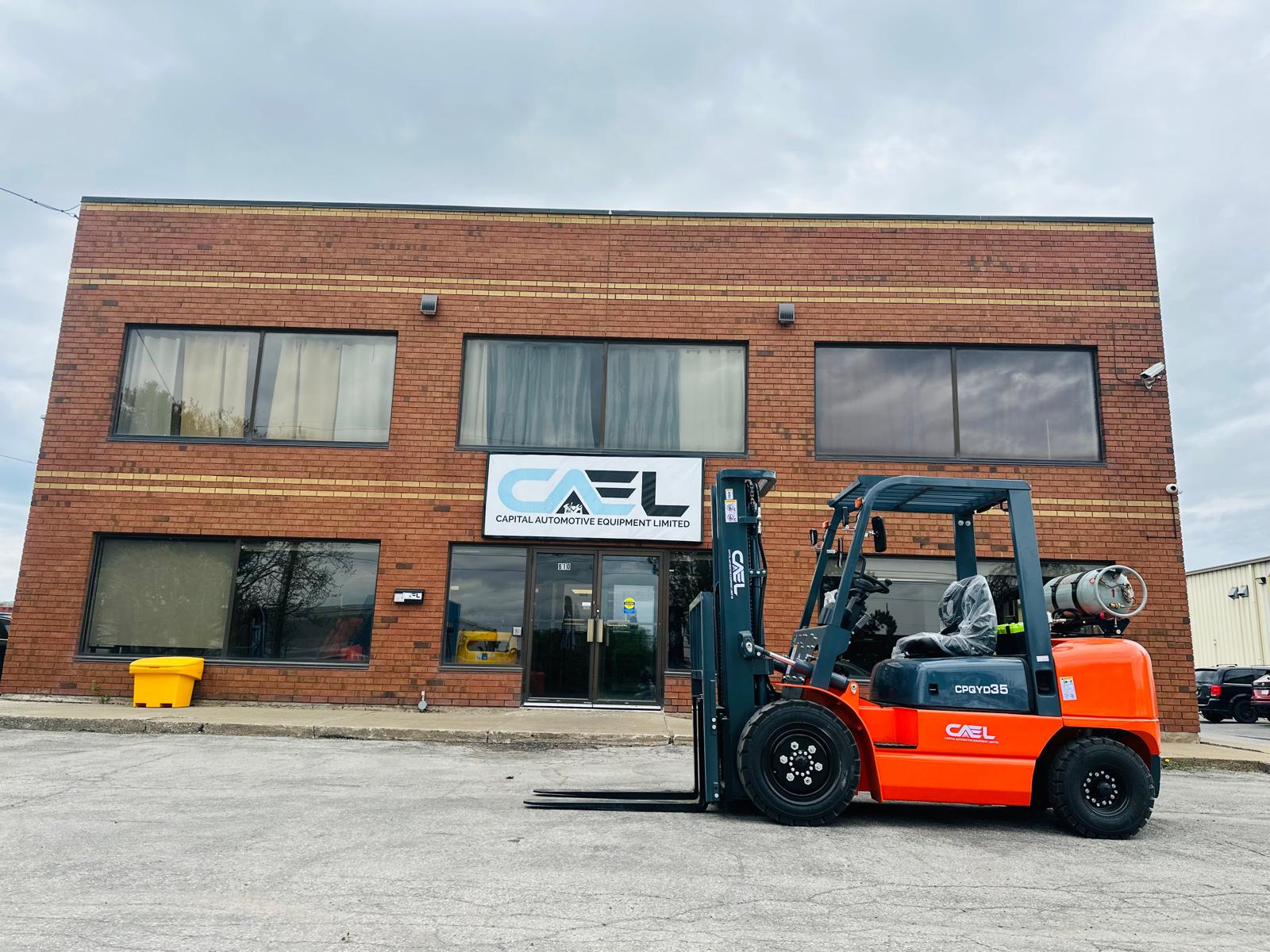

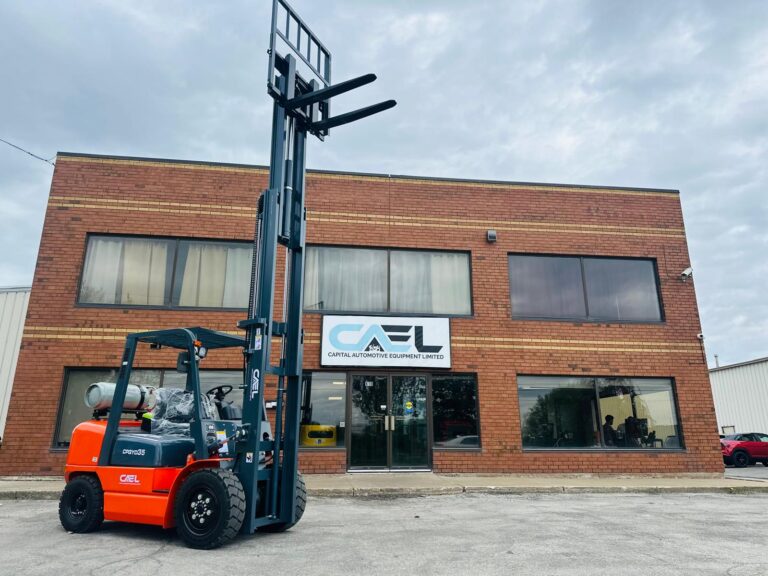

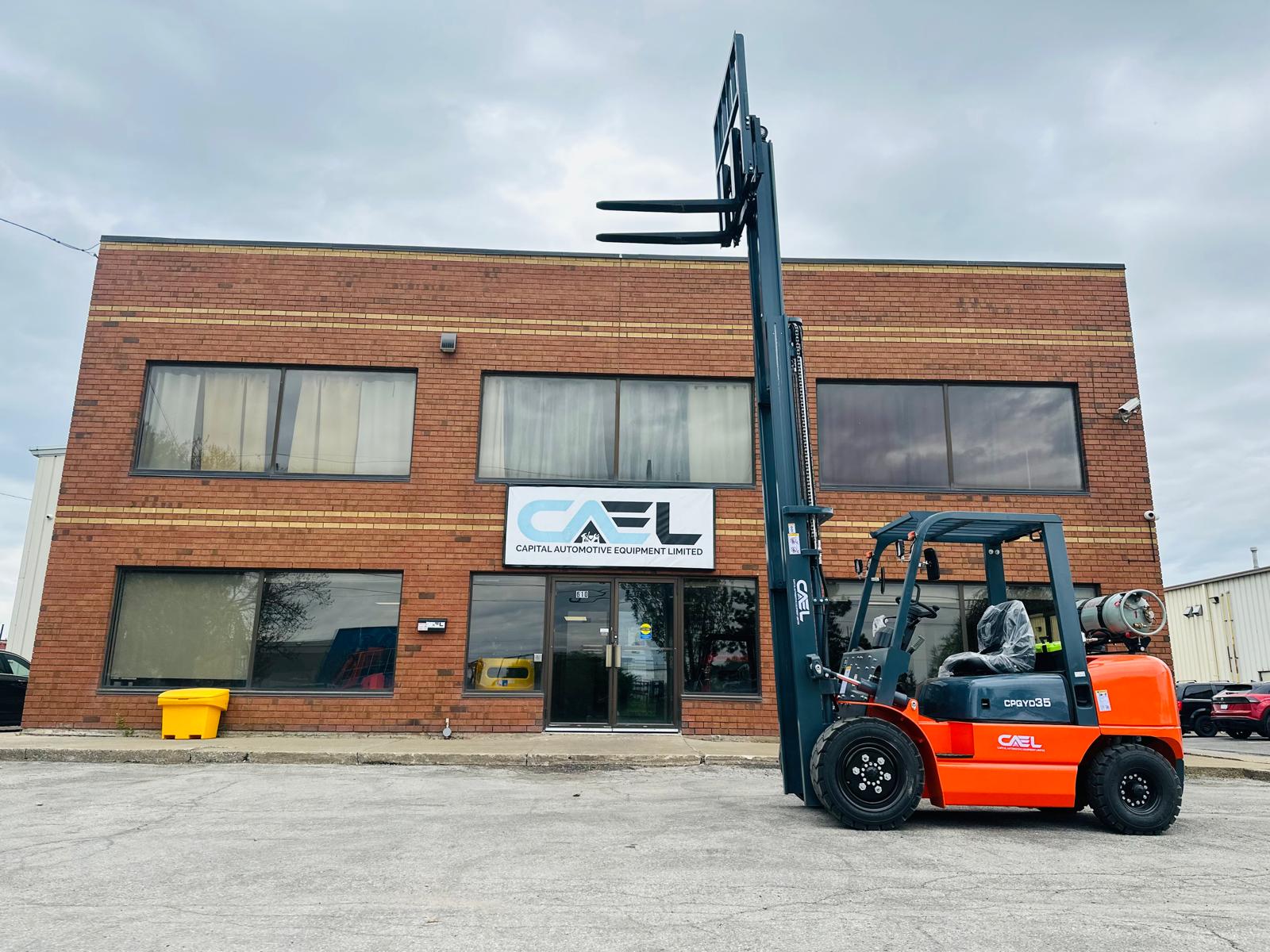

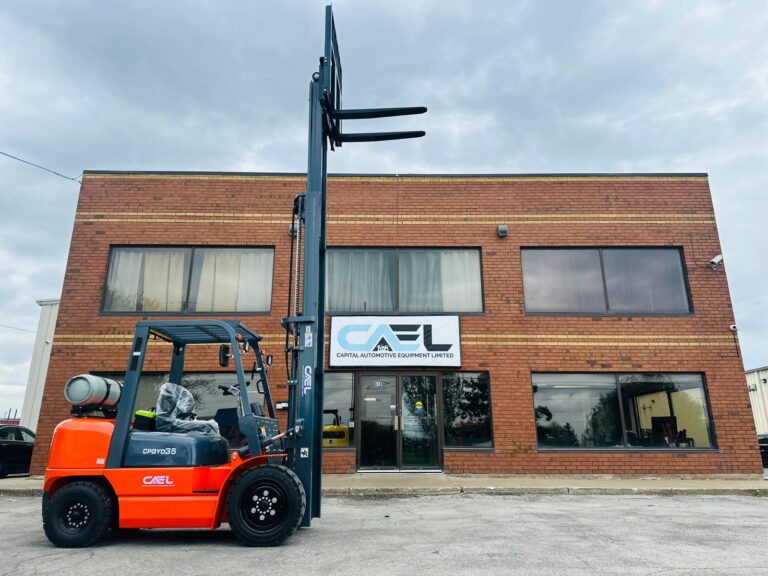

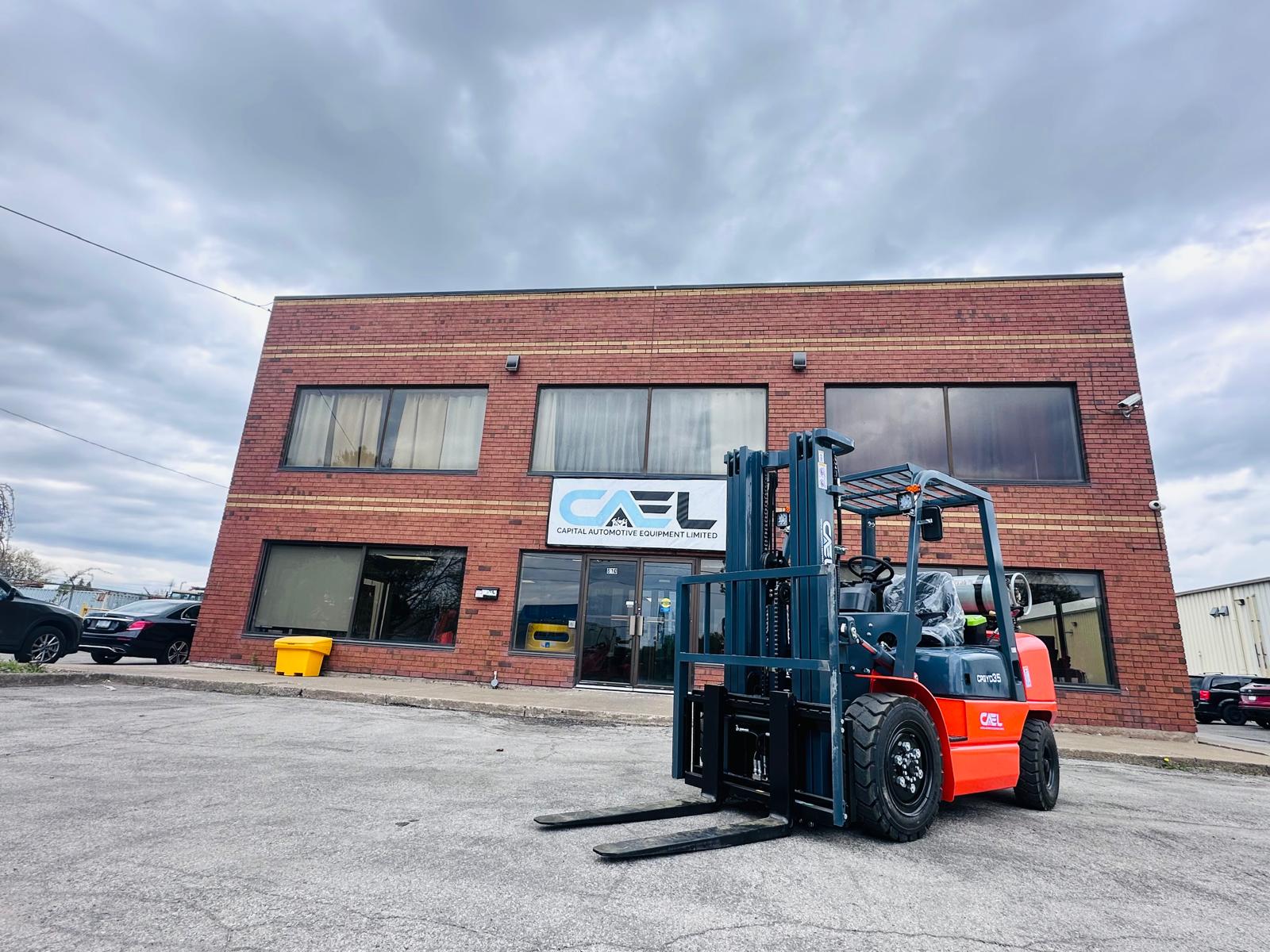

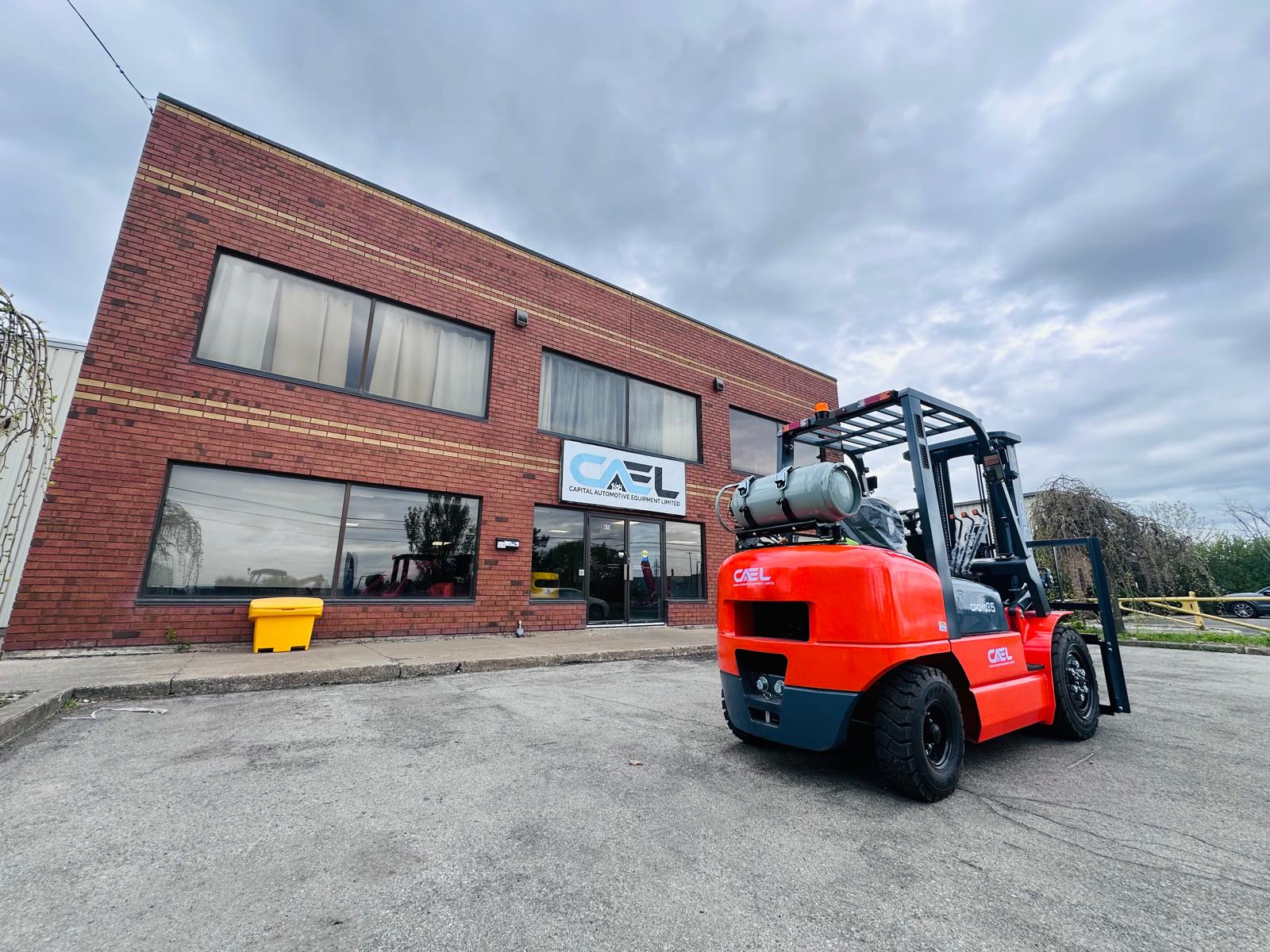

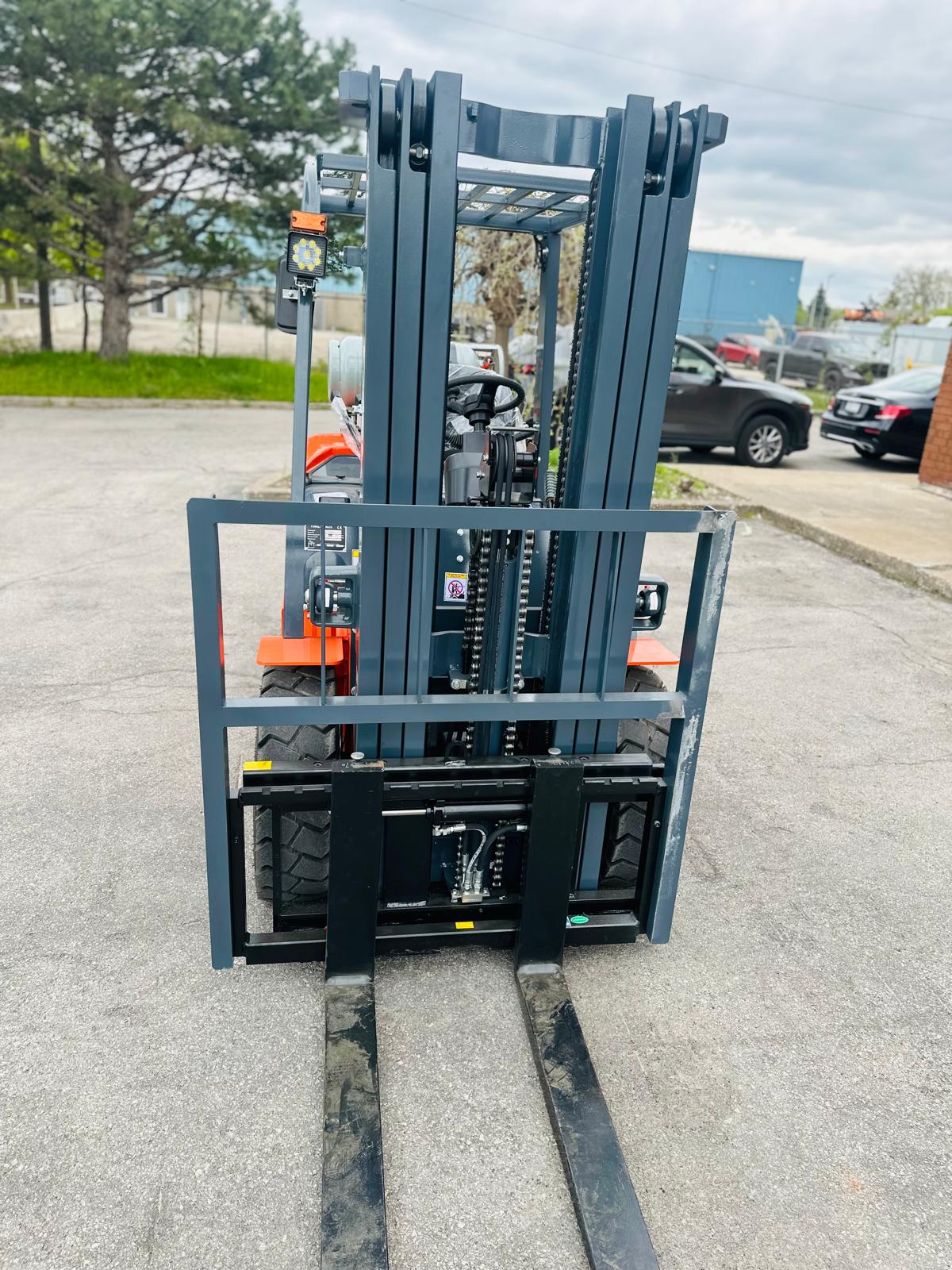

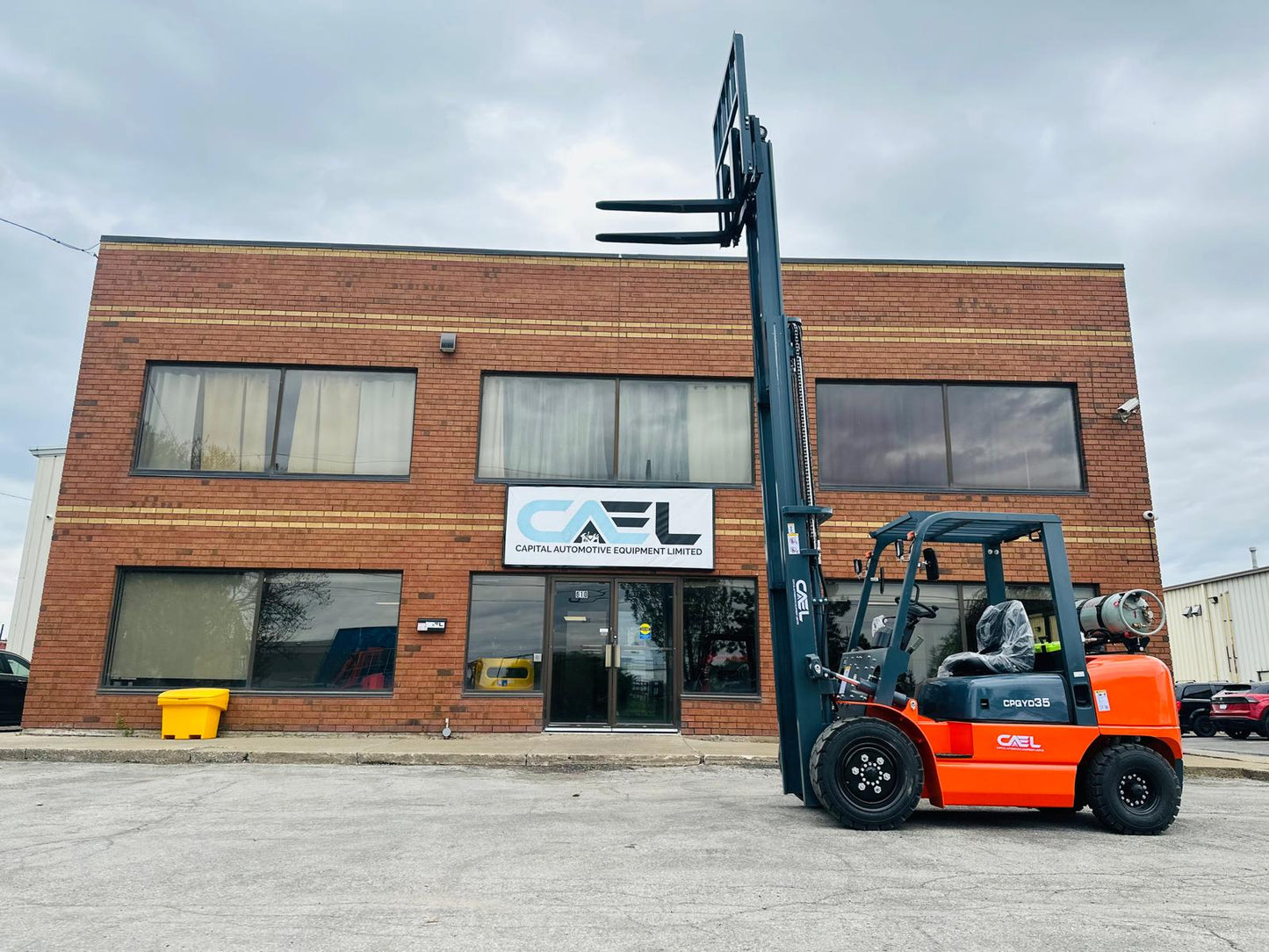

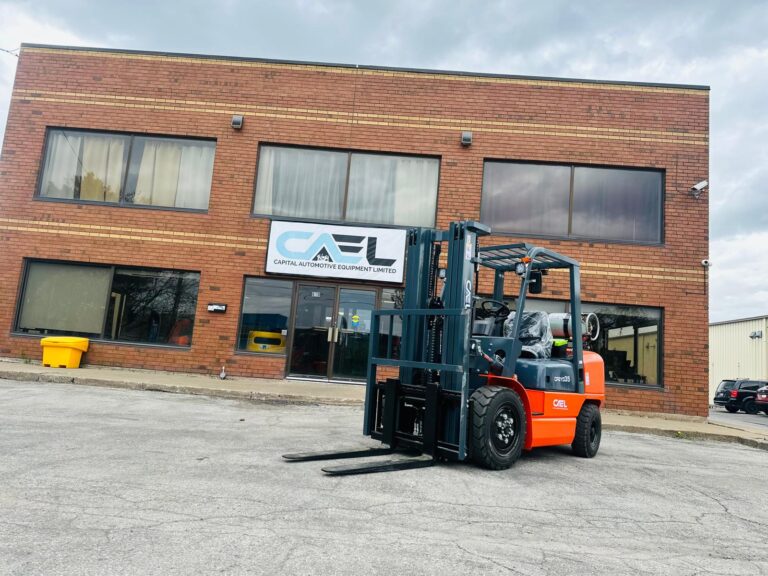

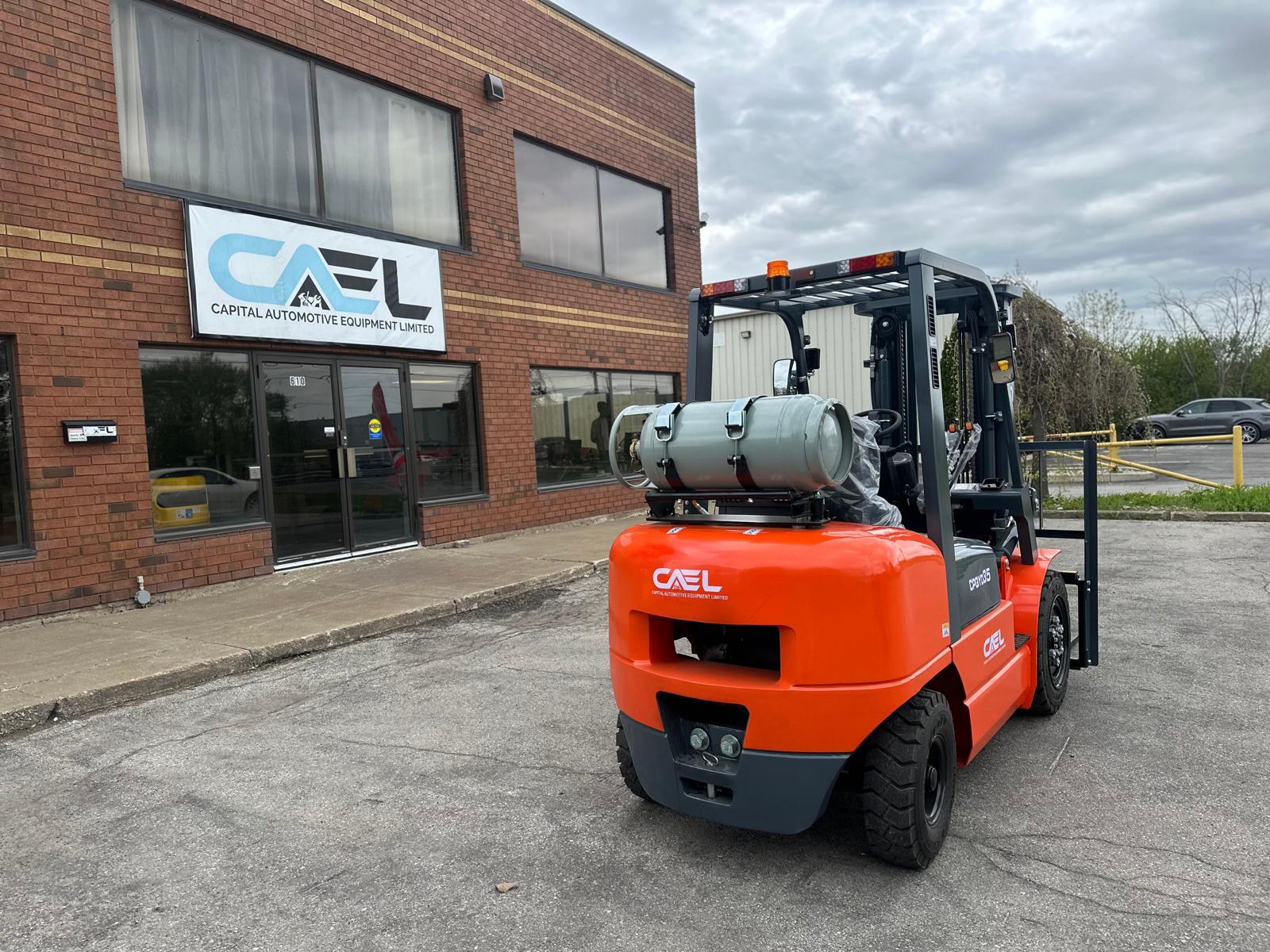

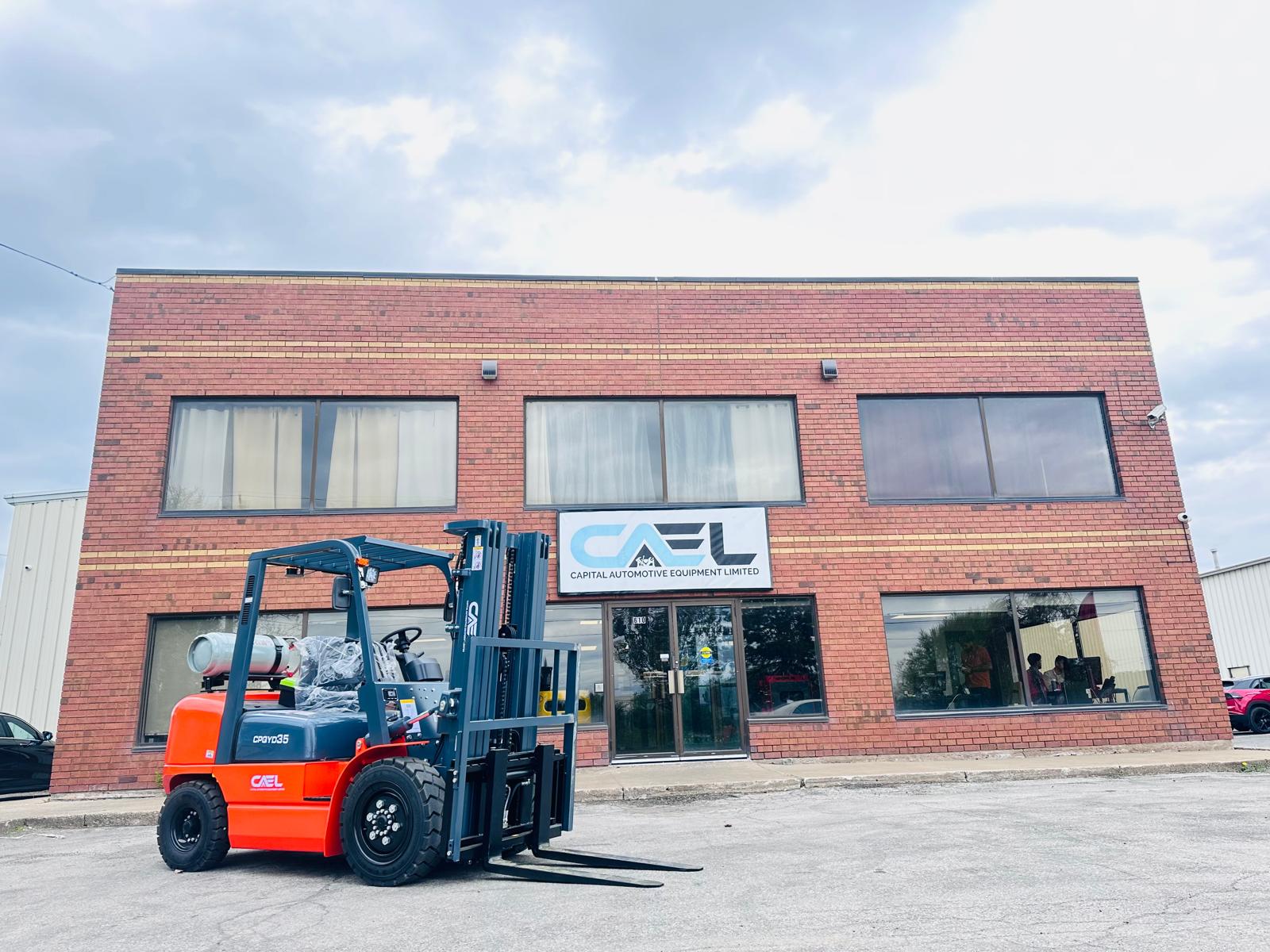

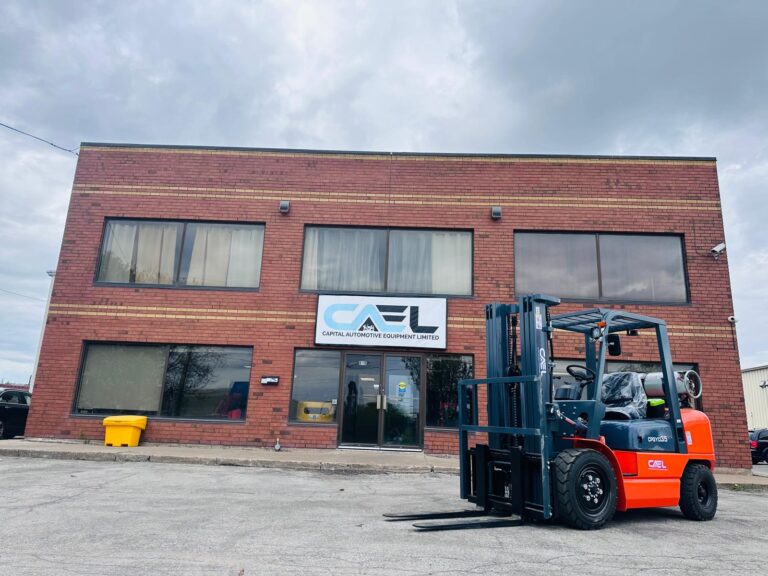

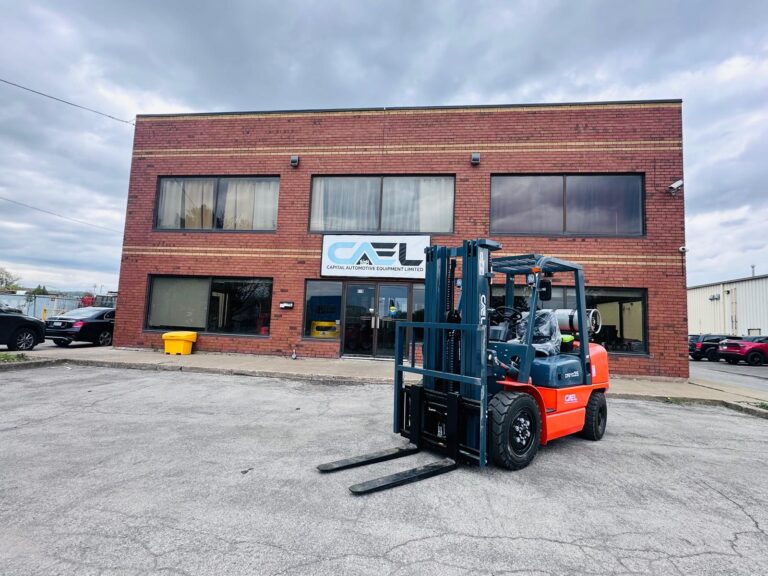

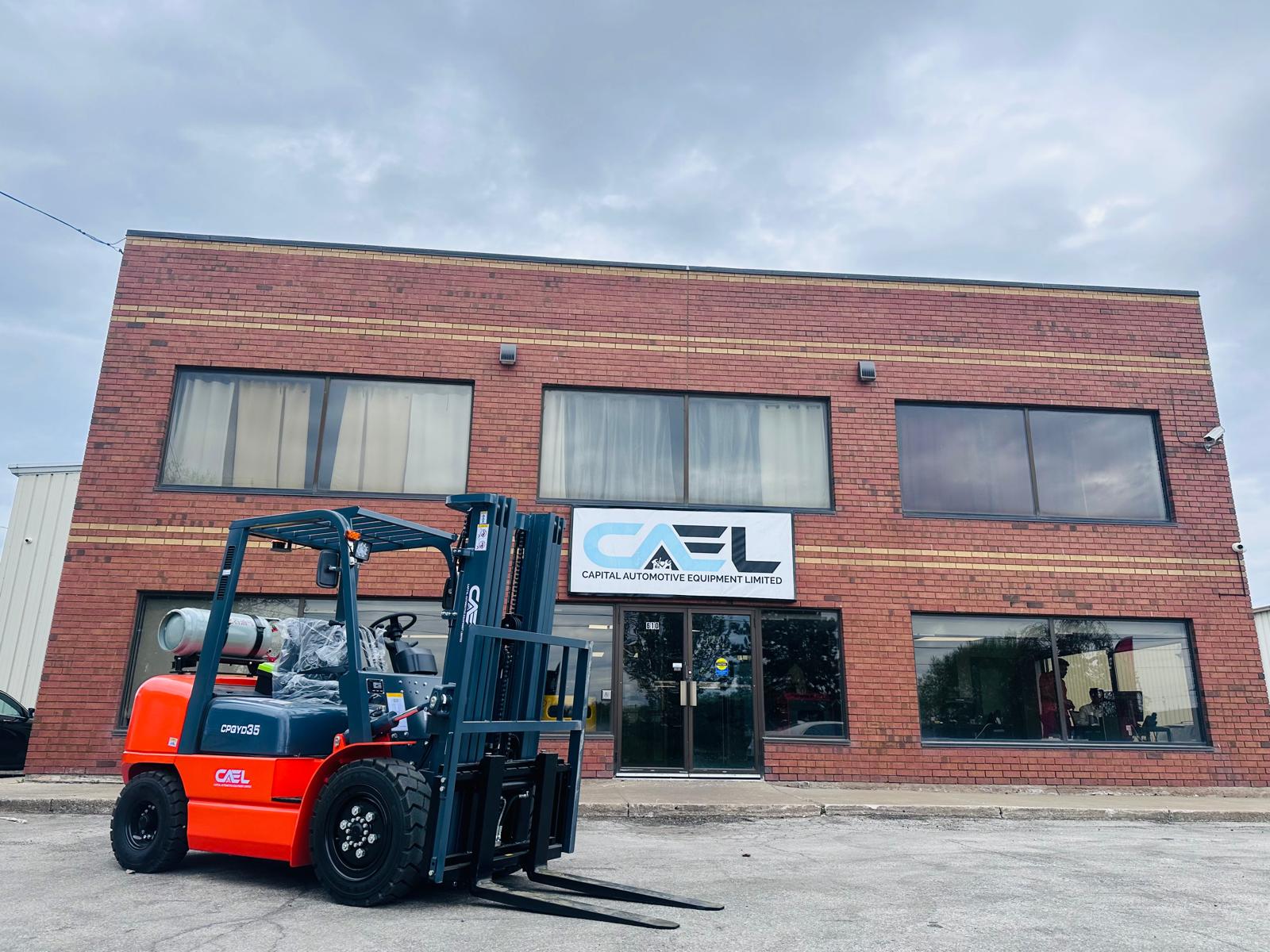

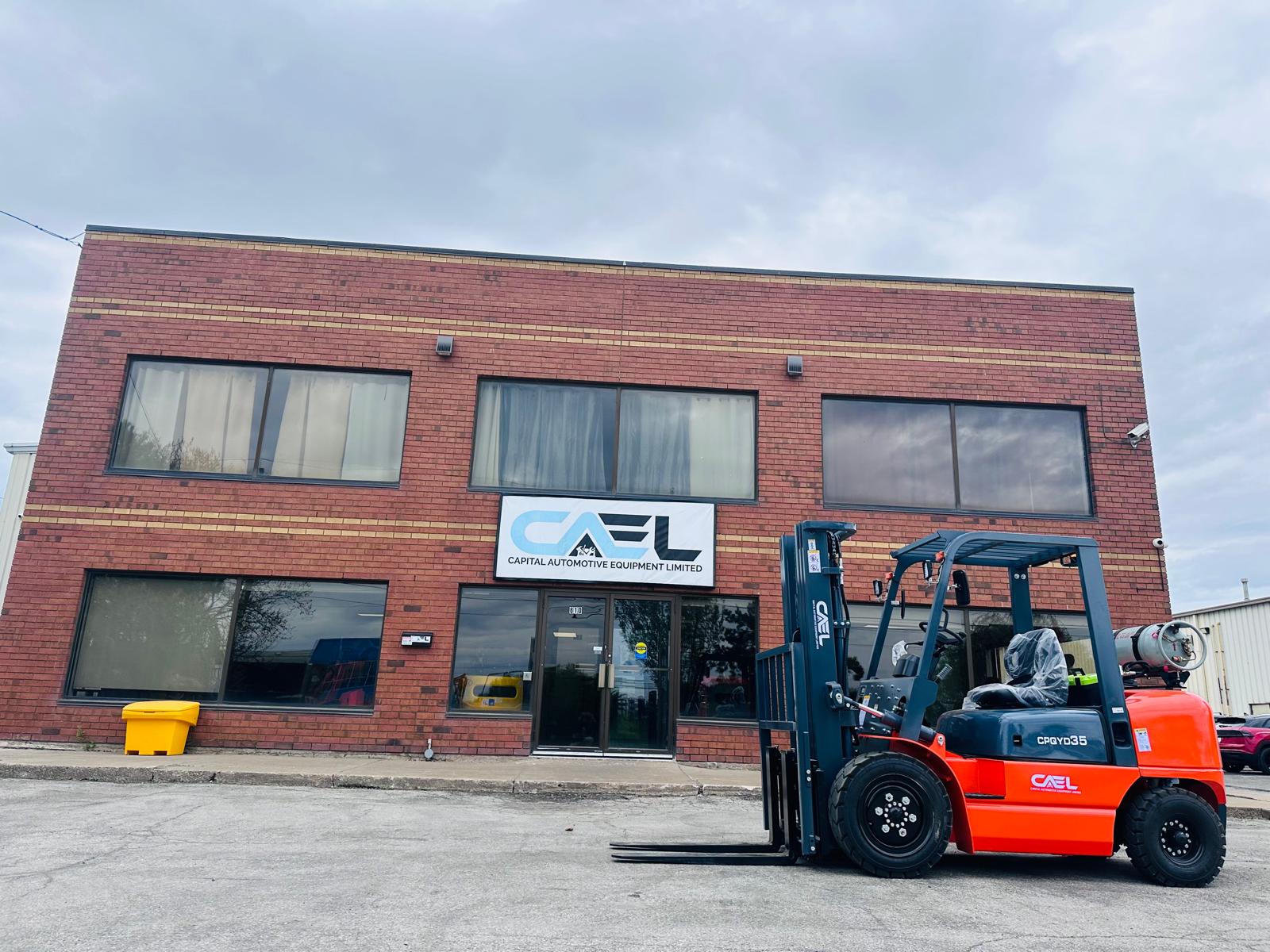

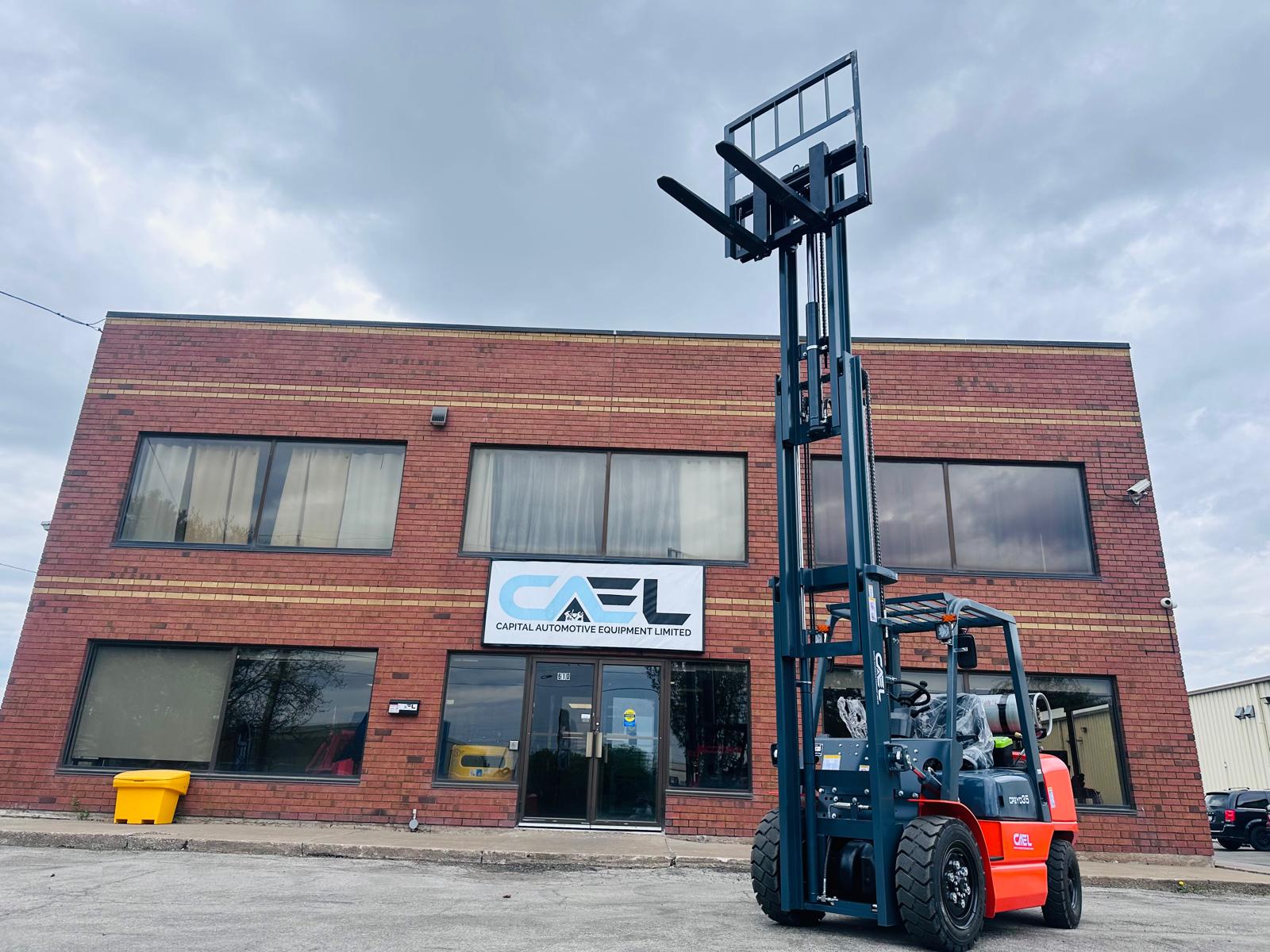

The CAEL20FL is a high-performance dual-fuel forklift designed to deliver efficiency, flexibility, and durability in a wide range of material handling applications. Powered by LPG and gasoline, this forklift ensures cleaner emissions, consistent power output, and reduced operating costs. Its robust construction and dependable Kubota engine make it an ideal solution for warehouses, manufacturing facilities, logistics centers, and distribution operations.
With a comfortable drive-in operator seat, smooth power shift transmission, and excellent maneuverability, the CAEL20FL offers superior productivity and operator convenience for both indoor and outdoor environments.
General Specifications
Specification
Details
Model
CAEL20FL
Power Type
LPG & Gasoline
Rated Capacity
2,000 kg (4,409 lbs)
Load Center
500 mm (19.6 in)
Operator Type
Drive-in Seat
Dimensions
Specification
Measurement
Height with Mast Retraction
2,000 mm (78.74 in)

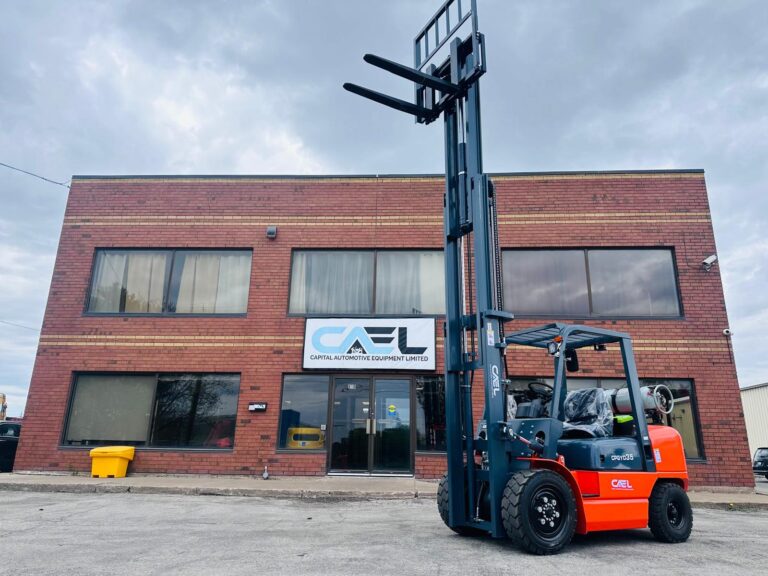

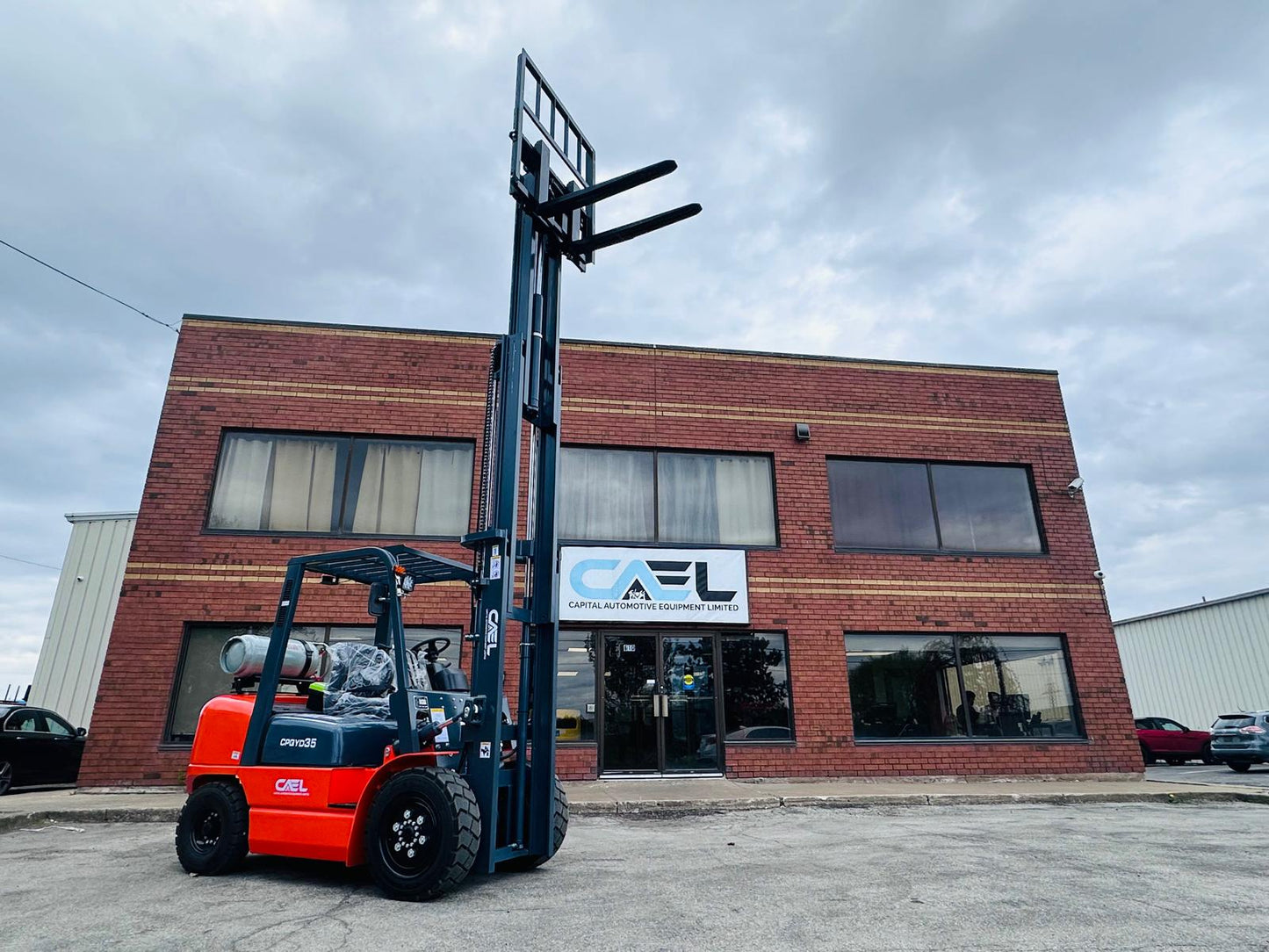

Maximum Lift Height
4,000 mm (157.48 in)

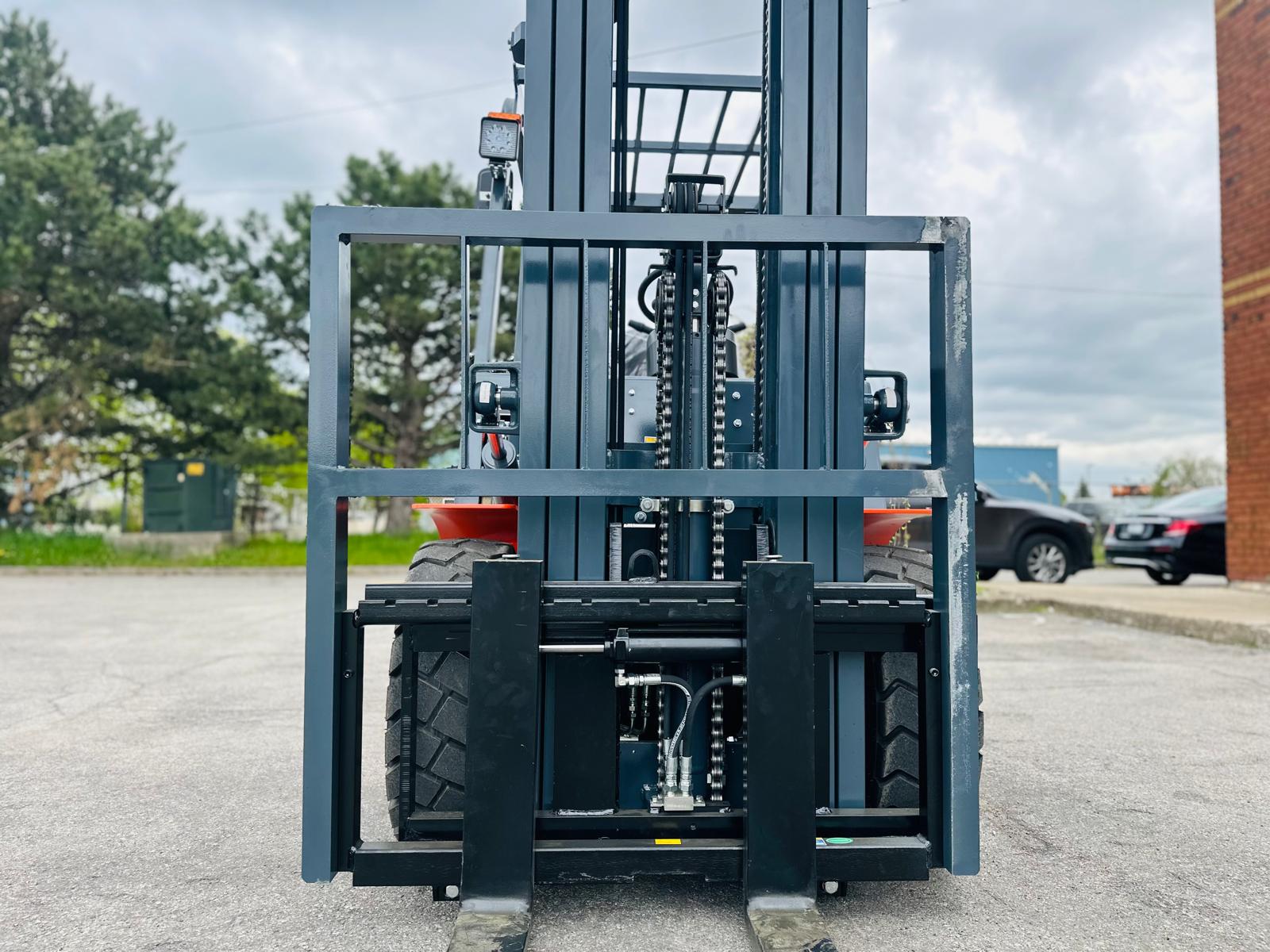

Mast Height
1,830 mm (72.05 in)
Free Lift Height
788 mm (31.02 in)
Front Overhang
477 mm (18.78 in)
Wheelbase
1,600 mm (62.99 in)
Minimum Ground Clearance
110 mm (4.33 in)
Overall Width
1,160 mm (45.67 in)
Overall Length (Without Forks)
2,490 mm (98.03 in)
Overhead Guard Height
2,070 mm (81.50 in)
Distance Between Forks
200–1,038 mm (7.87–40.87 in)
Tread (Front/Rear)
970 / 970 mm (38.19 / 38.19 in)
Turning Radius
2,070 mm (81.50 in)
Mast Tilt Angle (Forward/Backward)
6° / 6°
Fork Size (L × W × T)
920 × 100 × 40 mm (36.22 × 3.94 × 1.57 in)
Performance Specifications
Specification
Measurement
Max. Drive Speed (With/Without Load)
17 / 19 km/h
Lifting Speed (With Load)
530 / 550 mm/s
Lowering Speed (With/Without Load)
450 / 550 mm/s
Maximum Tractive Force
20 / 21 kN
Maximum Gradeability (With/Without Load)
21% / 27%
Weight
Specification
Measurement
Total Weight
3,320 kg (7,320 lbs)
Weight Distribution (Full Load – Front/Rear)
4,788 / 532 kg
Weight Distribution (No Load – Front/Rear)
1,328 / 1,992 kg
Wheels and Tyres
Specification
Details
Number of Wheels
2 Front / 2 Rear
Tyre Type
Pneumatic Tyres
Front Tyres
7.00–12–12PR
Rear Tyres
6.00–9–10PR
Braking System
Specification
Details
Service Brake
Hydraulic Pedal
Parking Brake
Mechanical Manual
Engine Specifications
Specification
Details
Engine Brand
Kubota
Rated Output
43.5 kW @ 2600 rpm
Displacement
2.5 L
Fuel Tank Capacity
60 L (15.85 gal)
Transmission
Specification
Details
Type
Power Shift Transmission
Gear Stages (Forward/Reverse)
1 Forward / 1 Reverse
Key Features & Benefits
Dual-Fuel Capability: Operates on LPG and gasoline for maximum flexibility.
Reliable Kubota Engine: Delivers powerful and fuel-efficient performance.
High Lifting Efficiency: Handles loads up to 2,000 kg with ease.
Superior Lift Height: Reaches up to 4,000 mm for efficient stacking.
Compact Turning Radius: Ensures excellent maneuverability in confined spaces.
Smooth Power Shift Transmission: Provides effortless and precise operation.

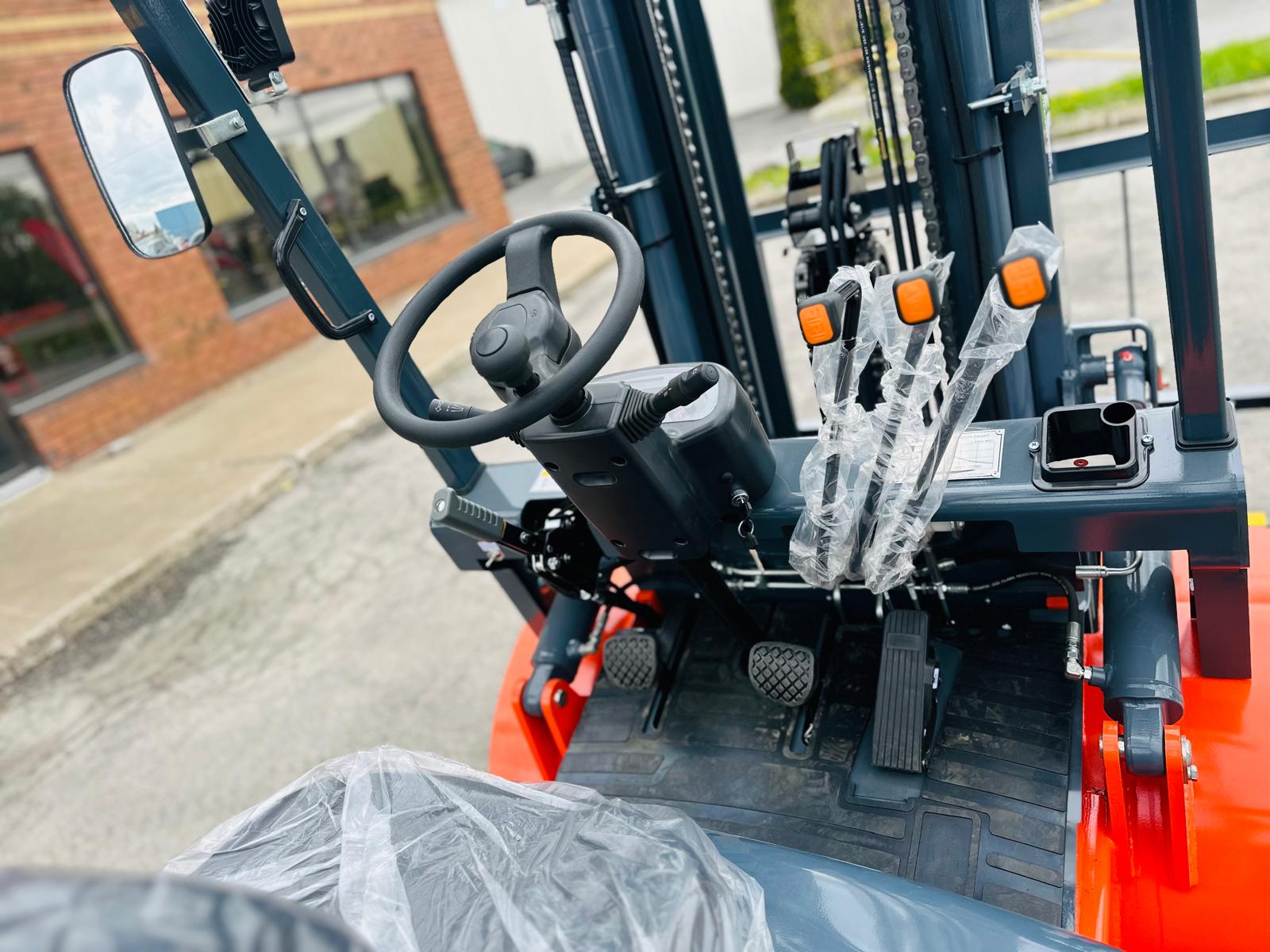

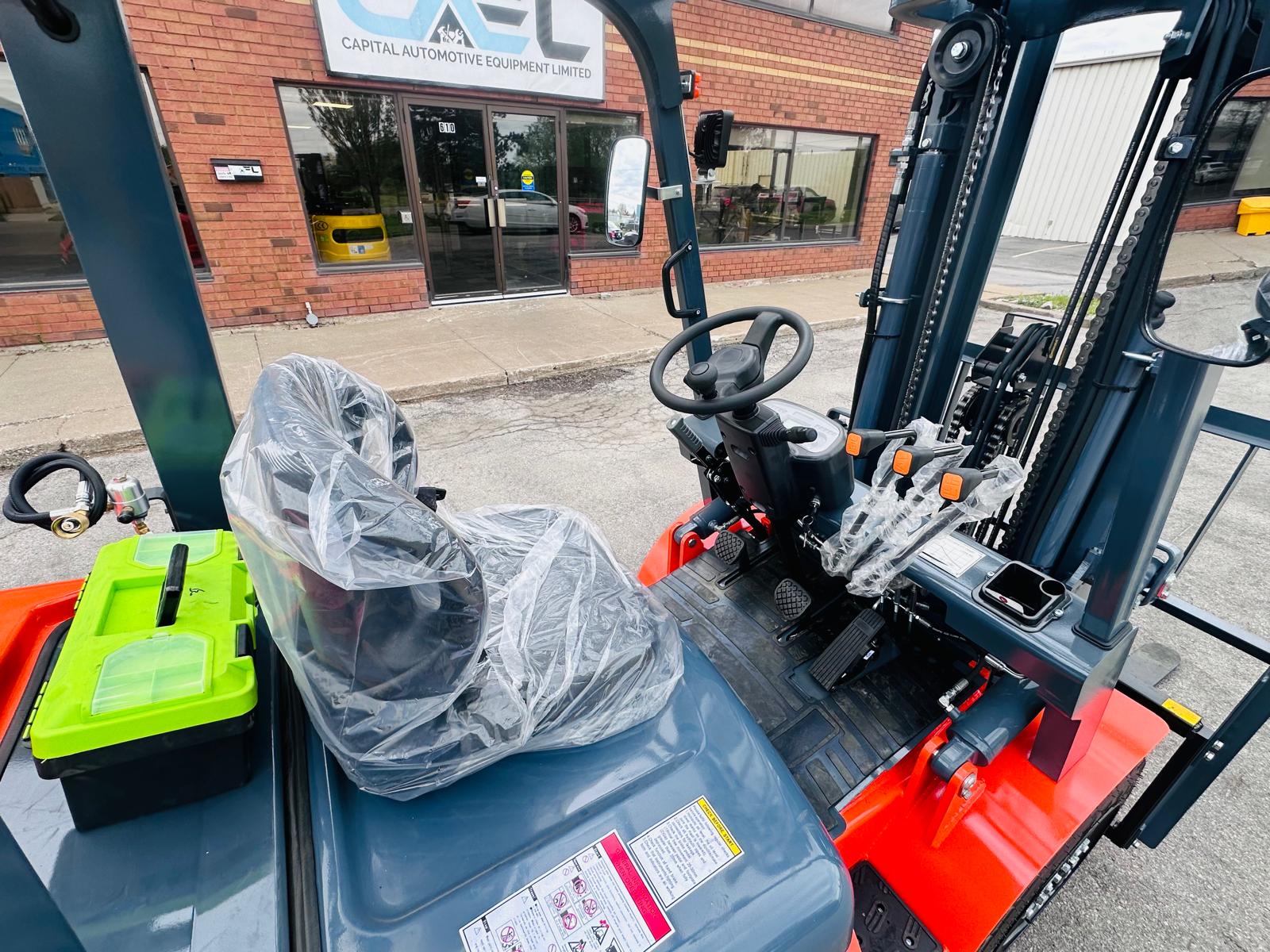

Ergonomic Operator Cabin: Enhances comfort and productivity.
Durable Pneumatic Tyres: Suitable for both indoor and outdoor applications.
Robust and Stable Design: Ensures long-term reliability and safety.
Low Maintenance Costs: Optimizes uptime and reduces operational expenses.
