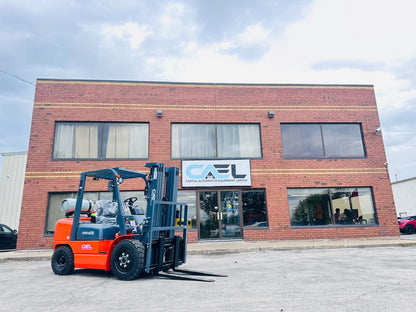

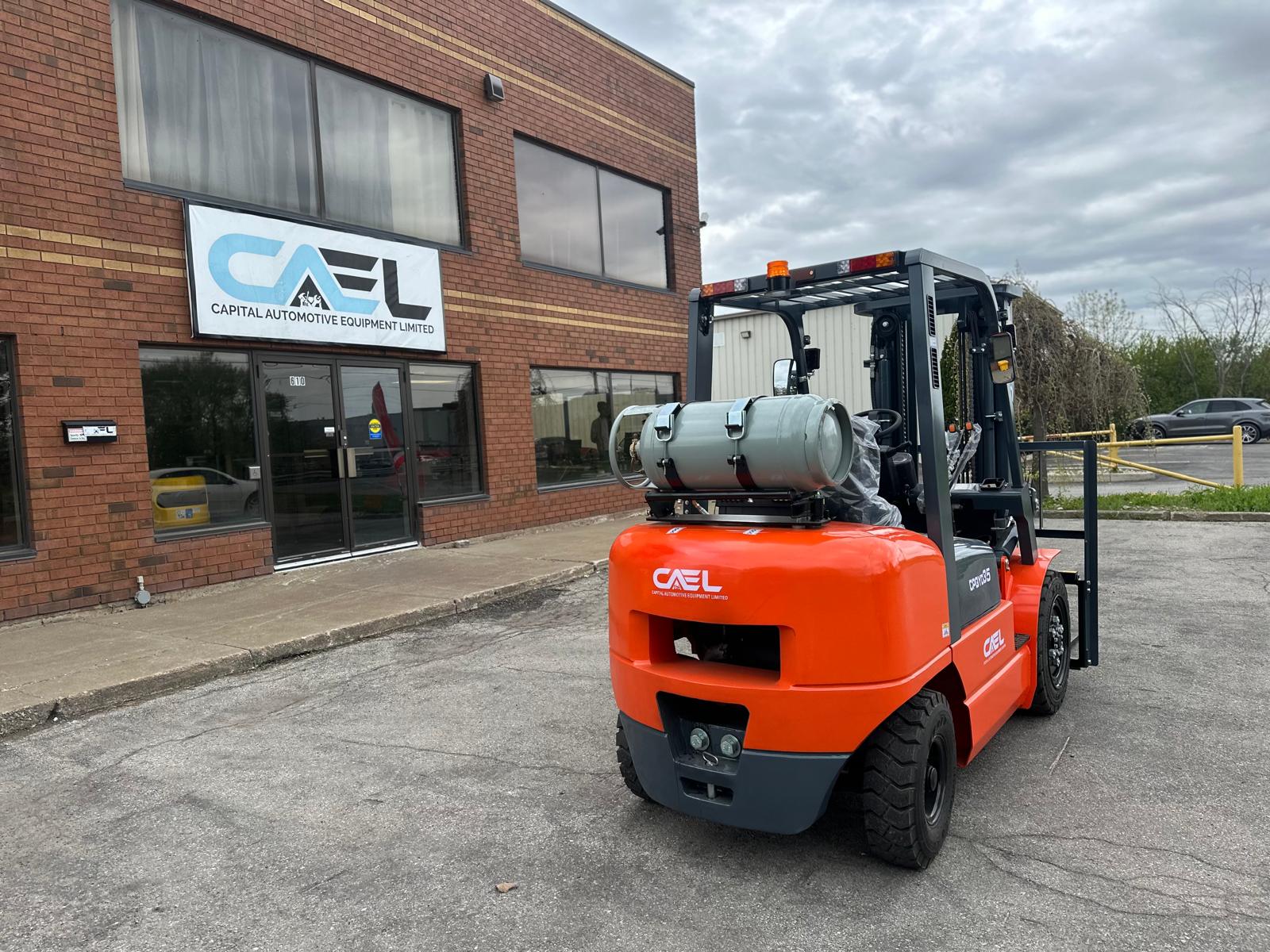

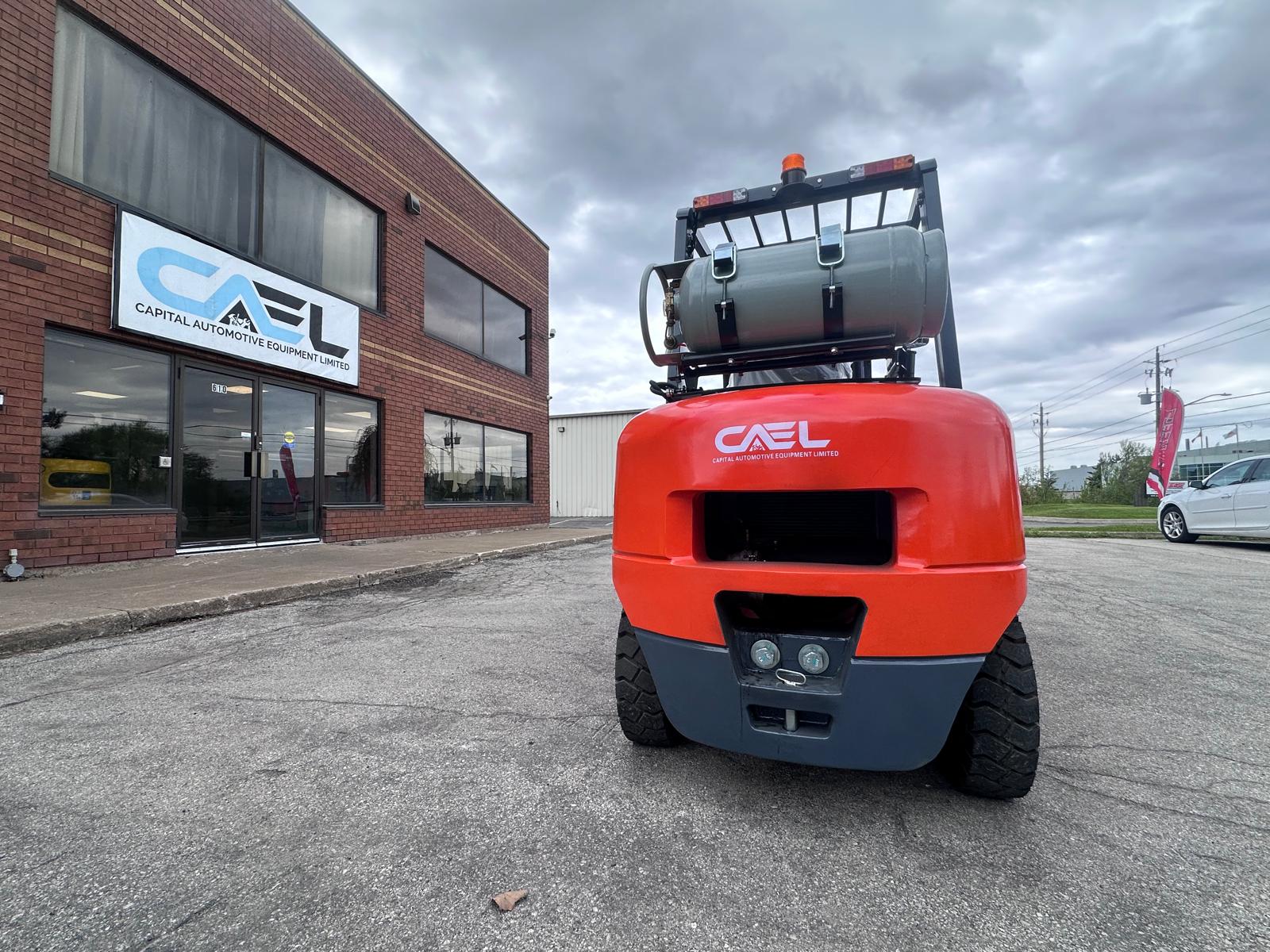

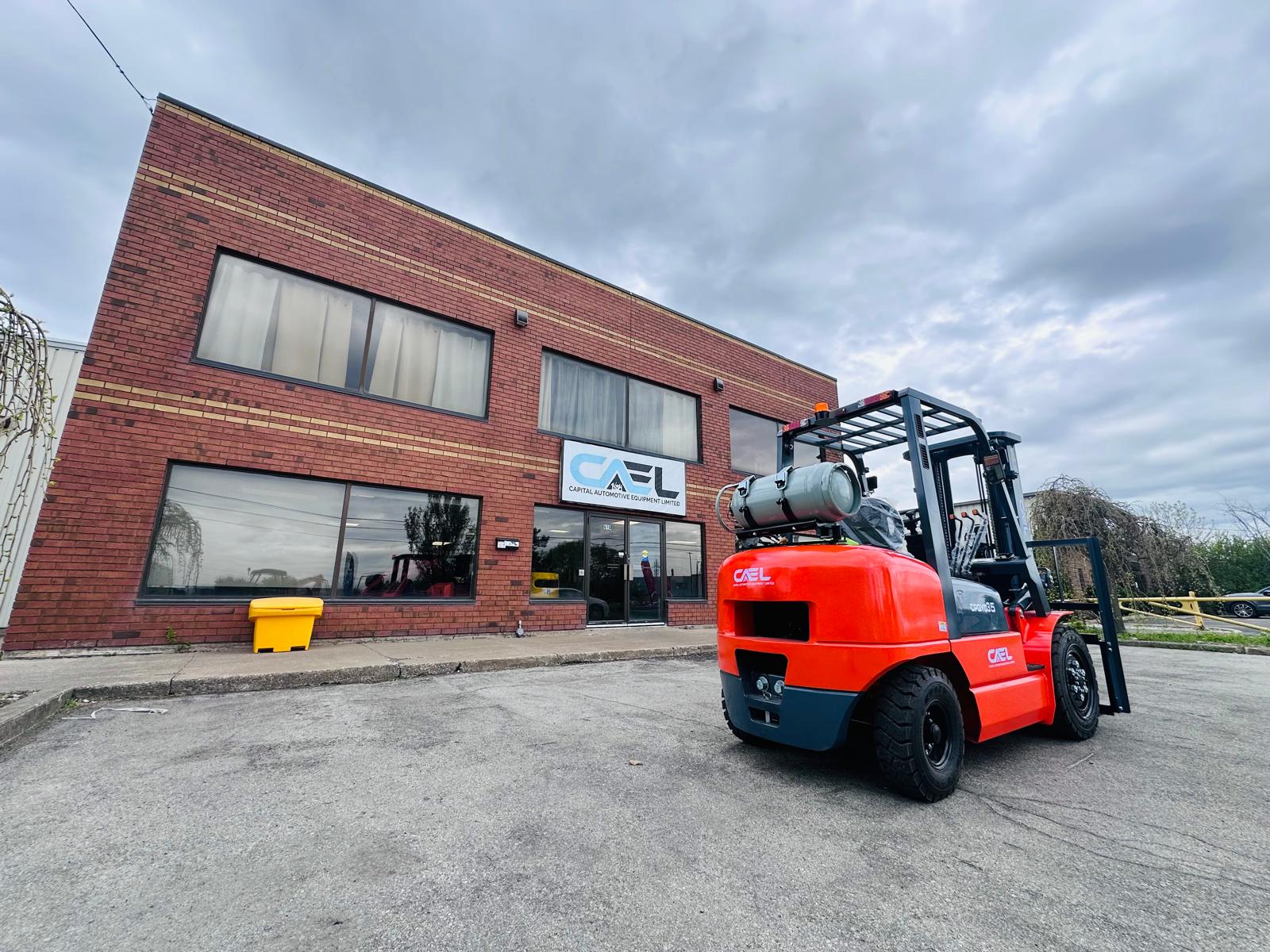

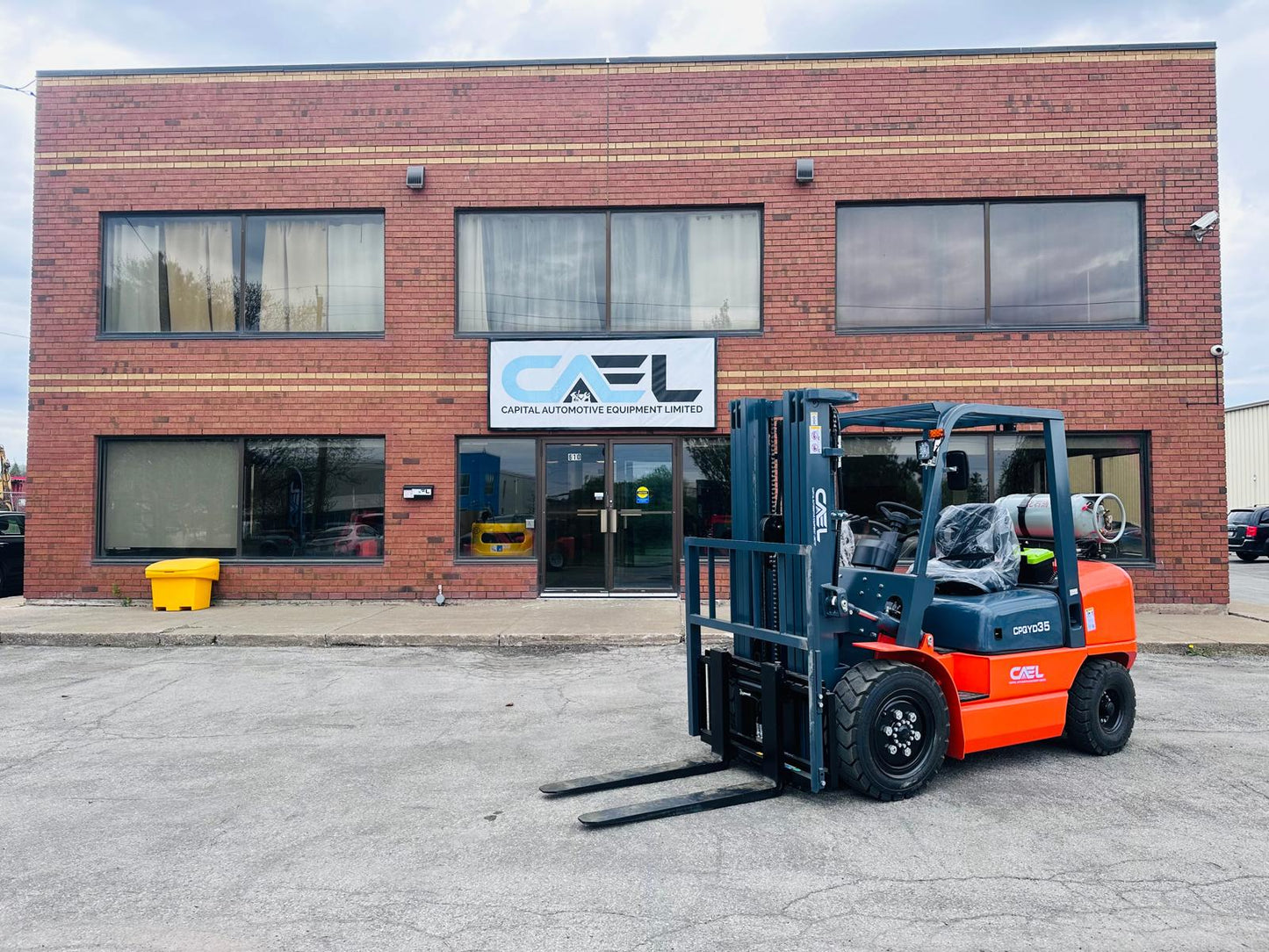

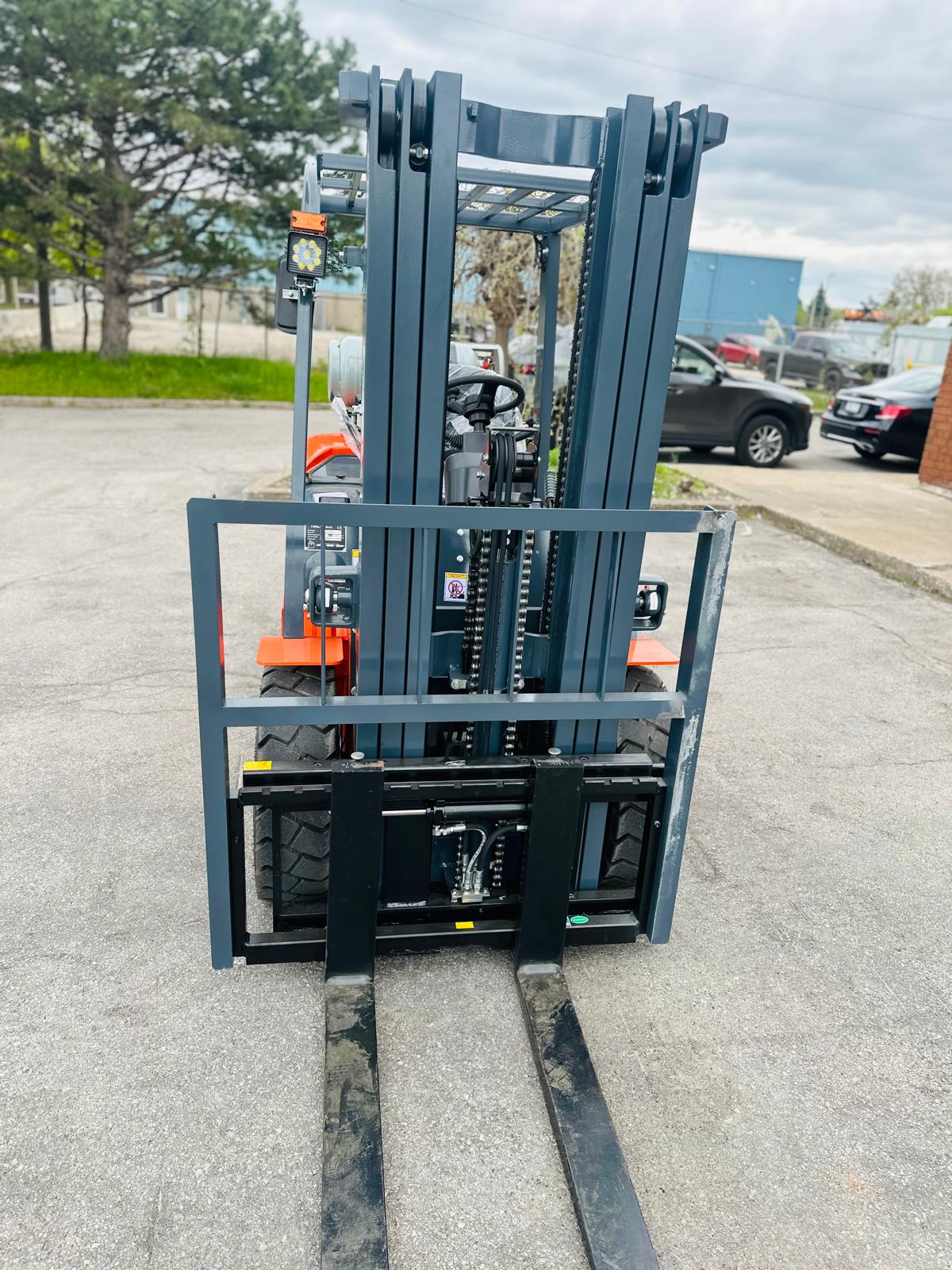

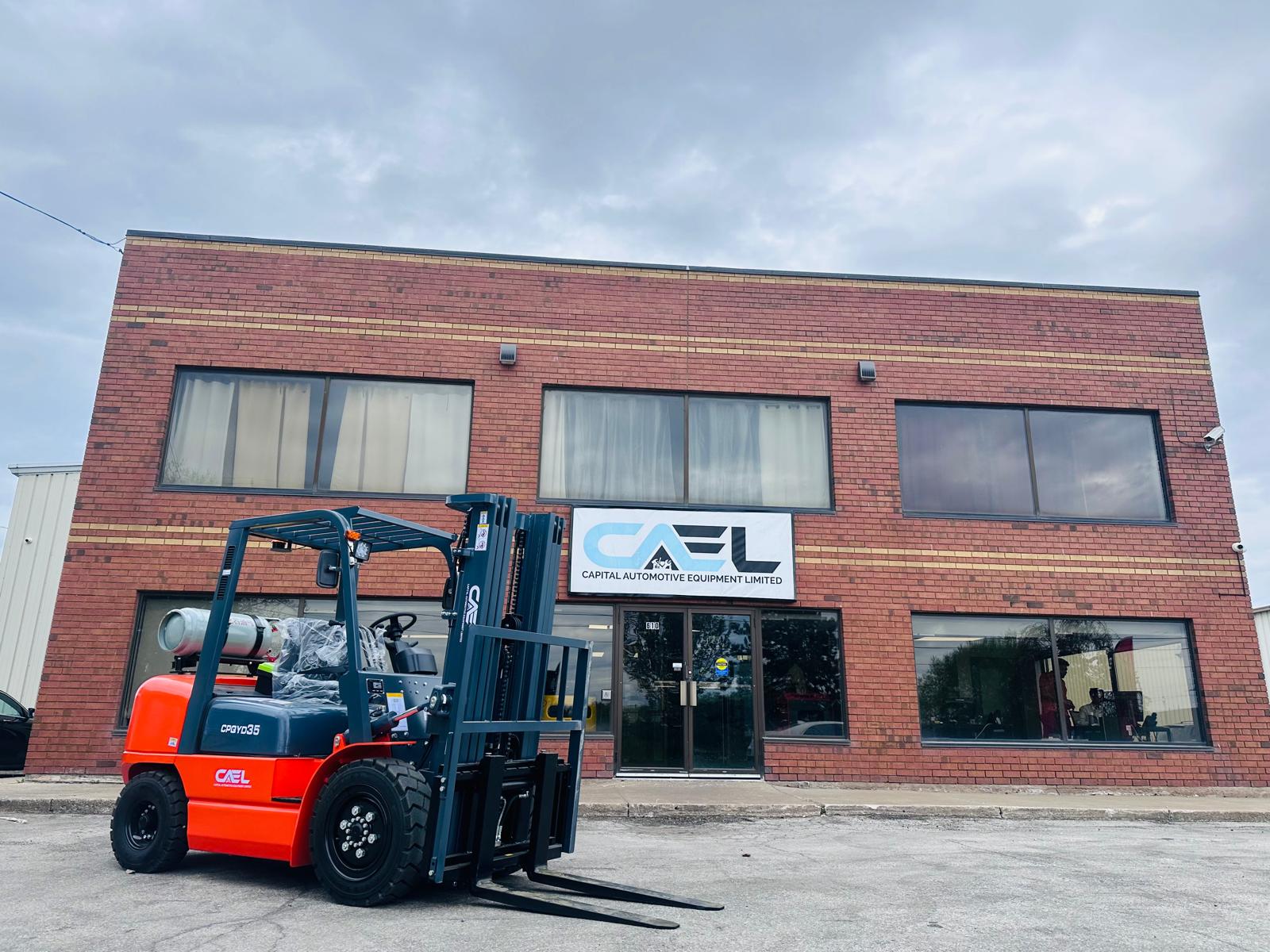

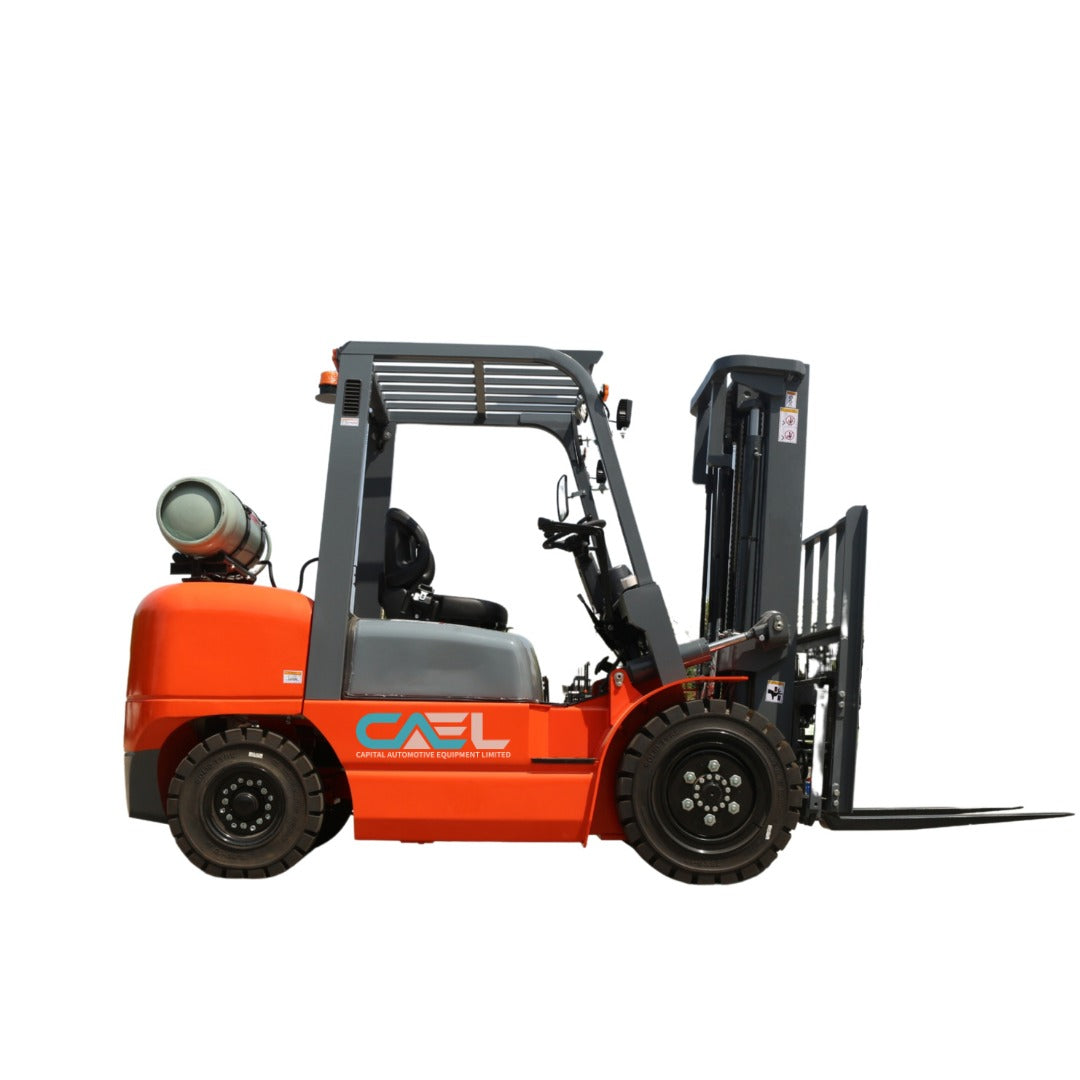

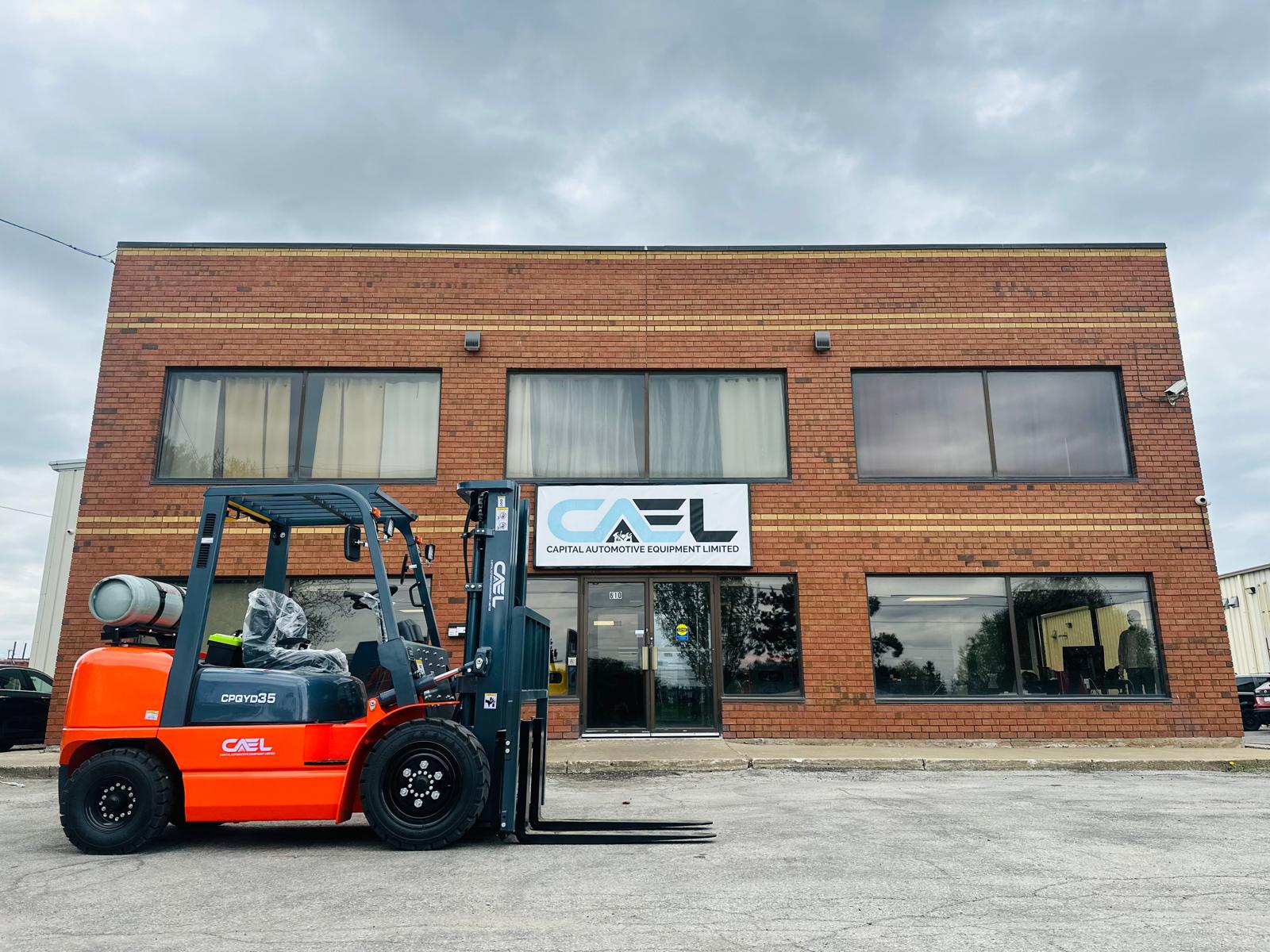

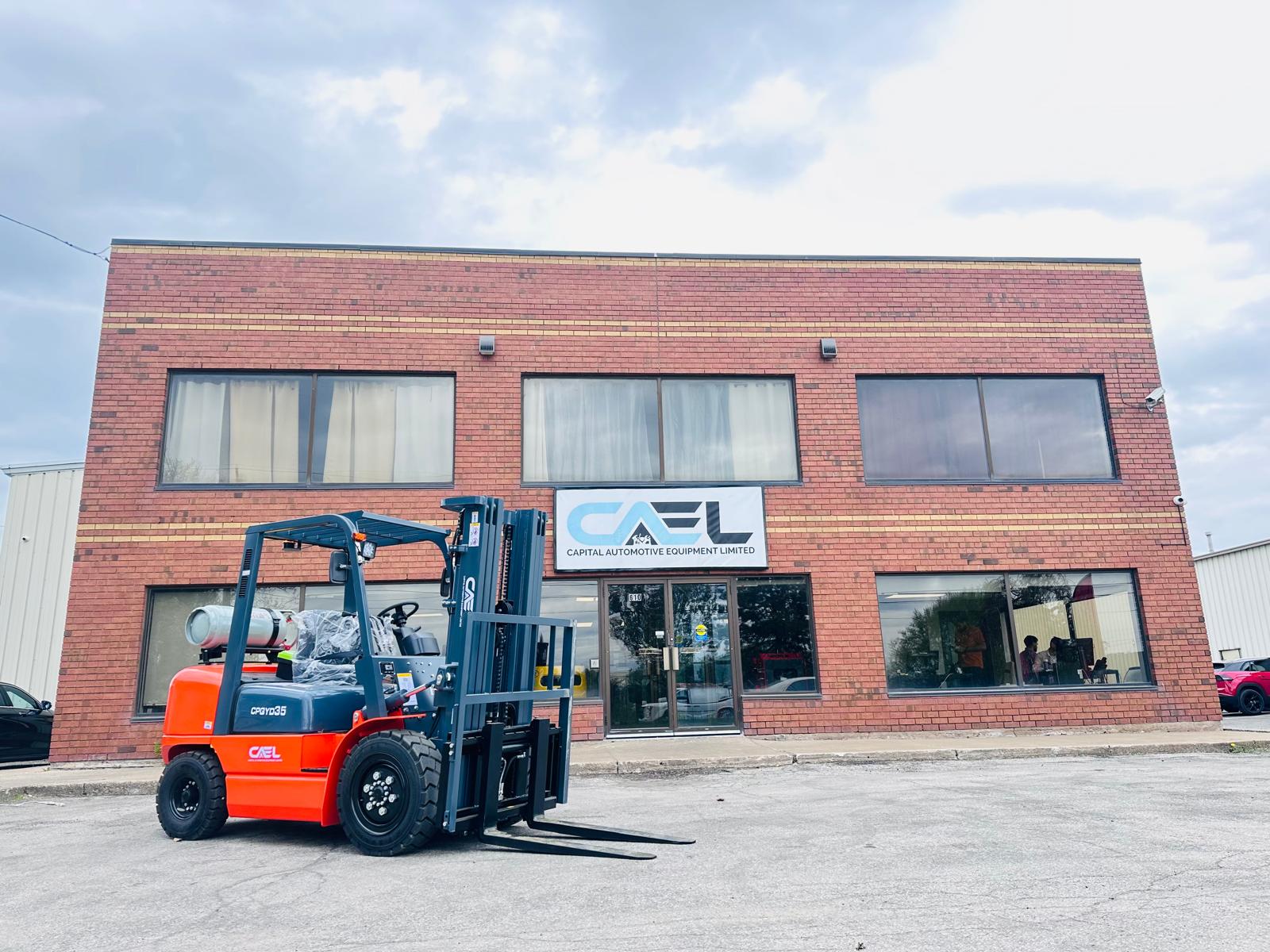

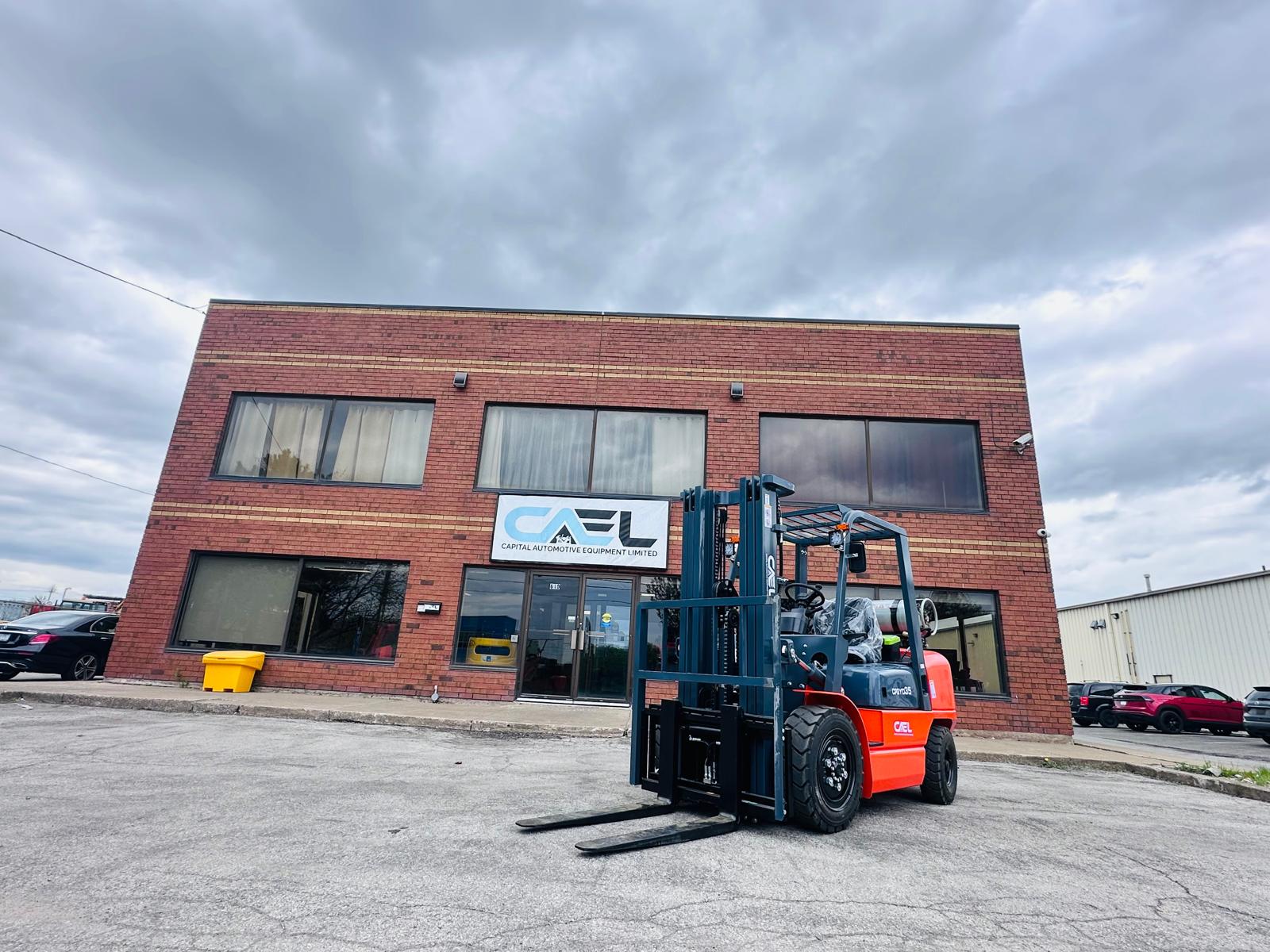

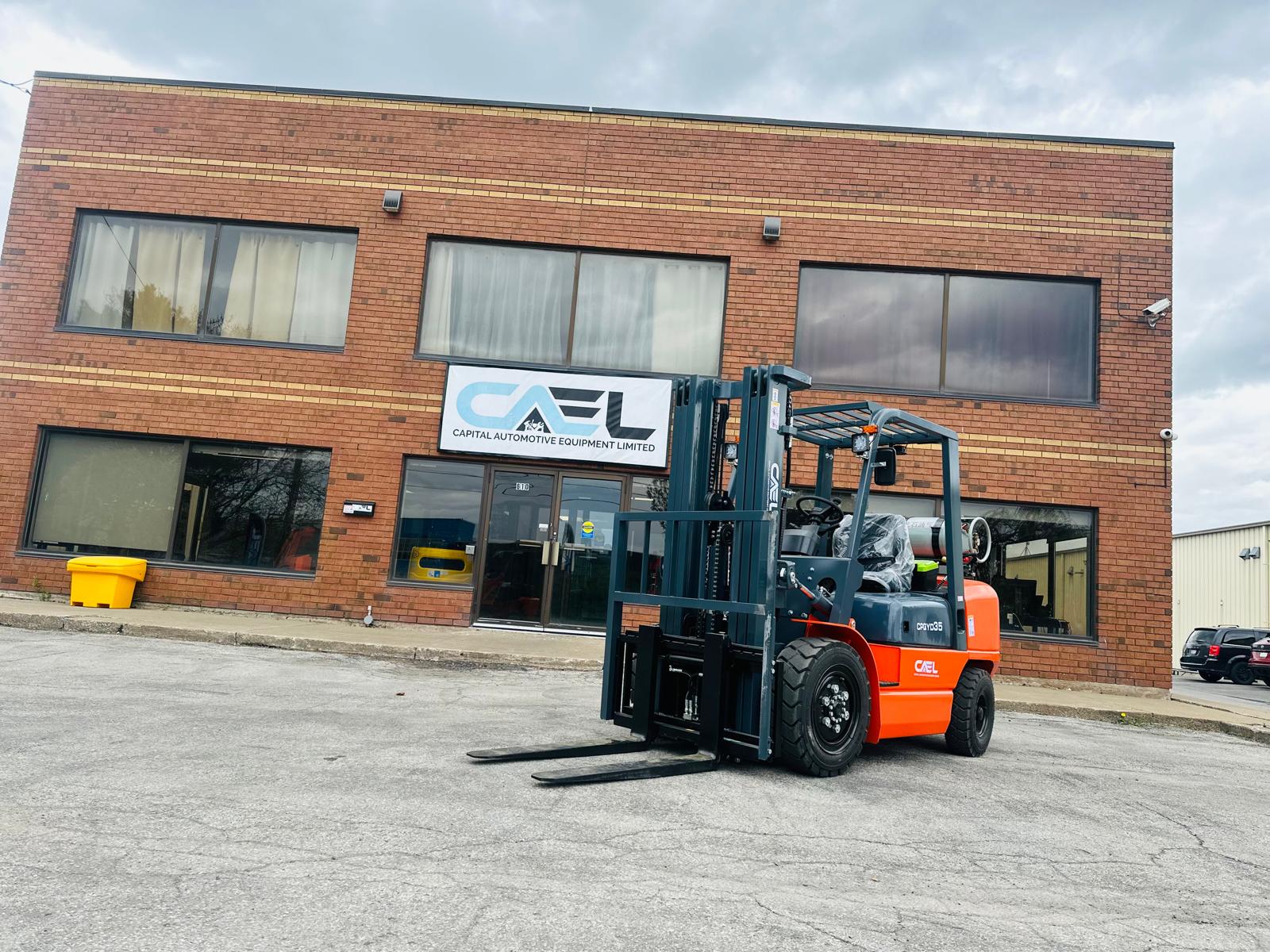

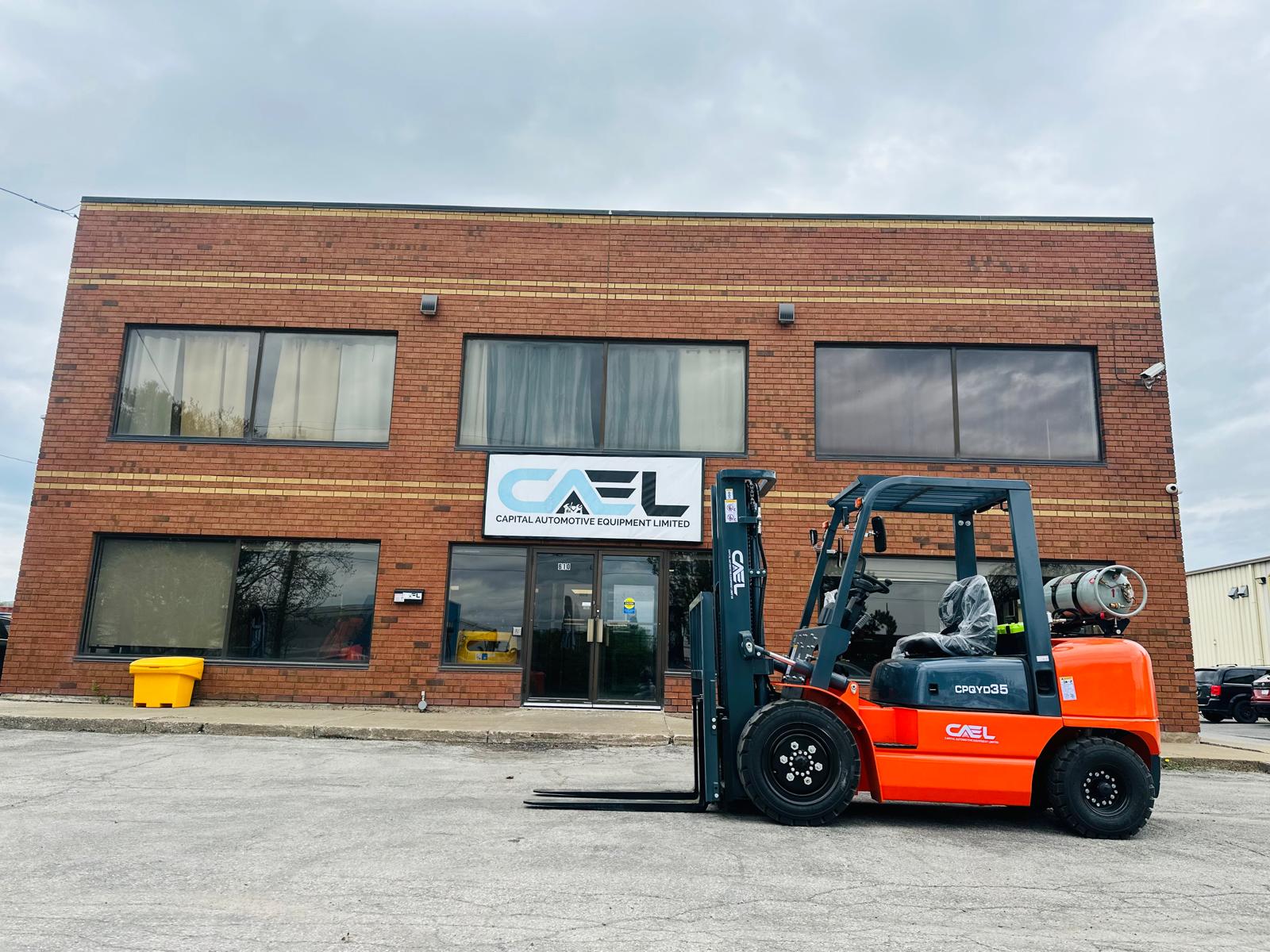

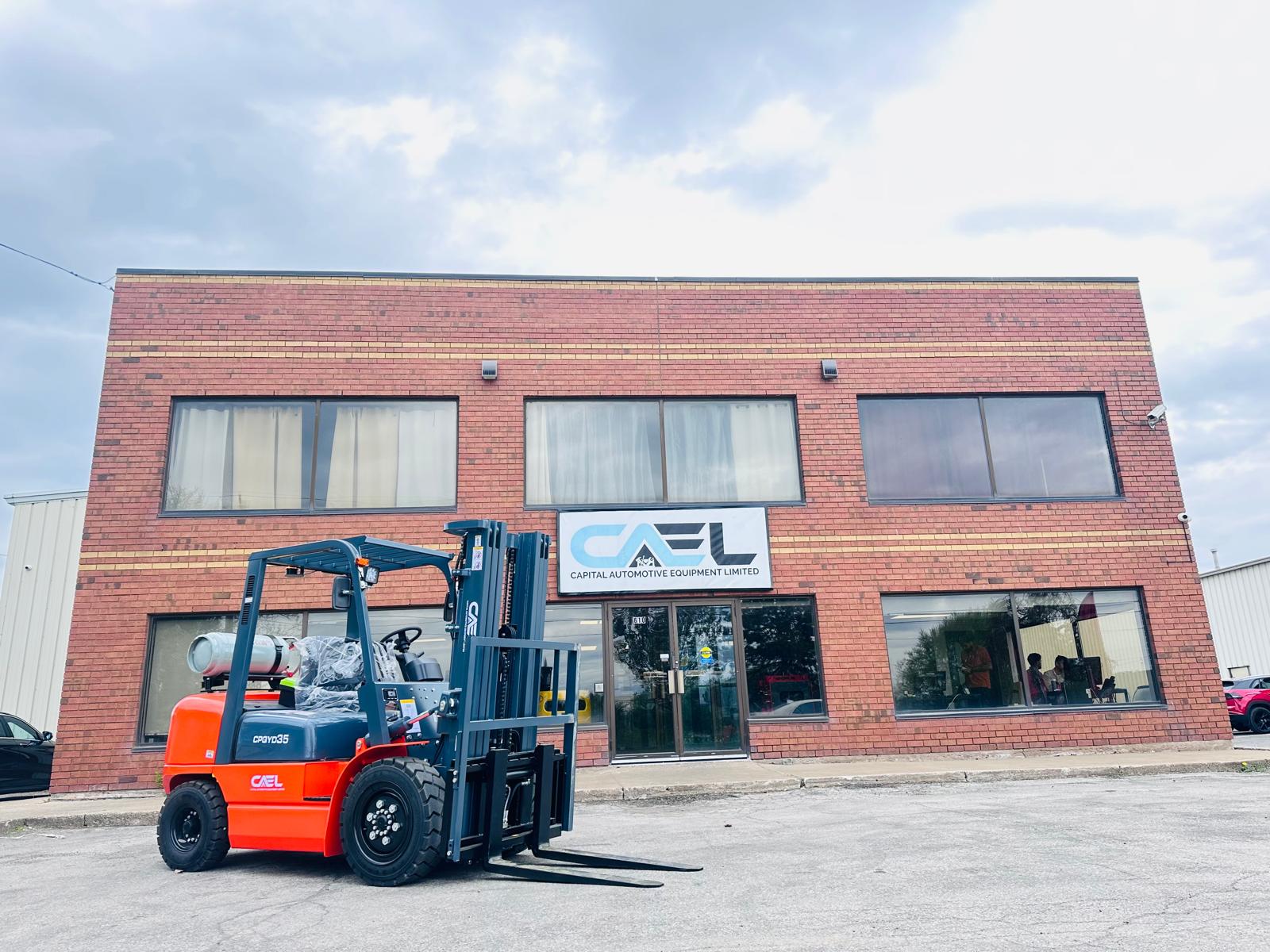

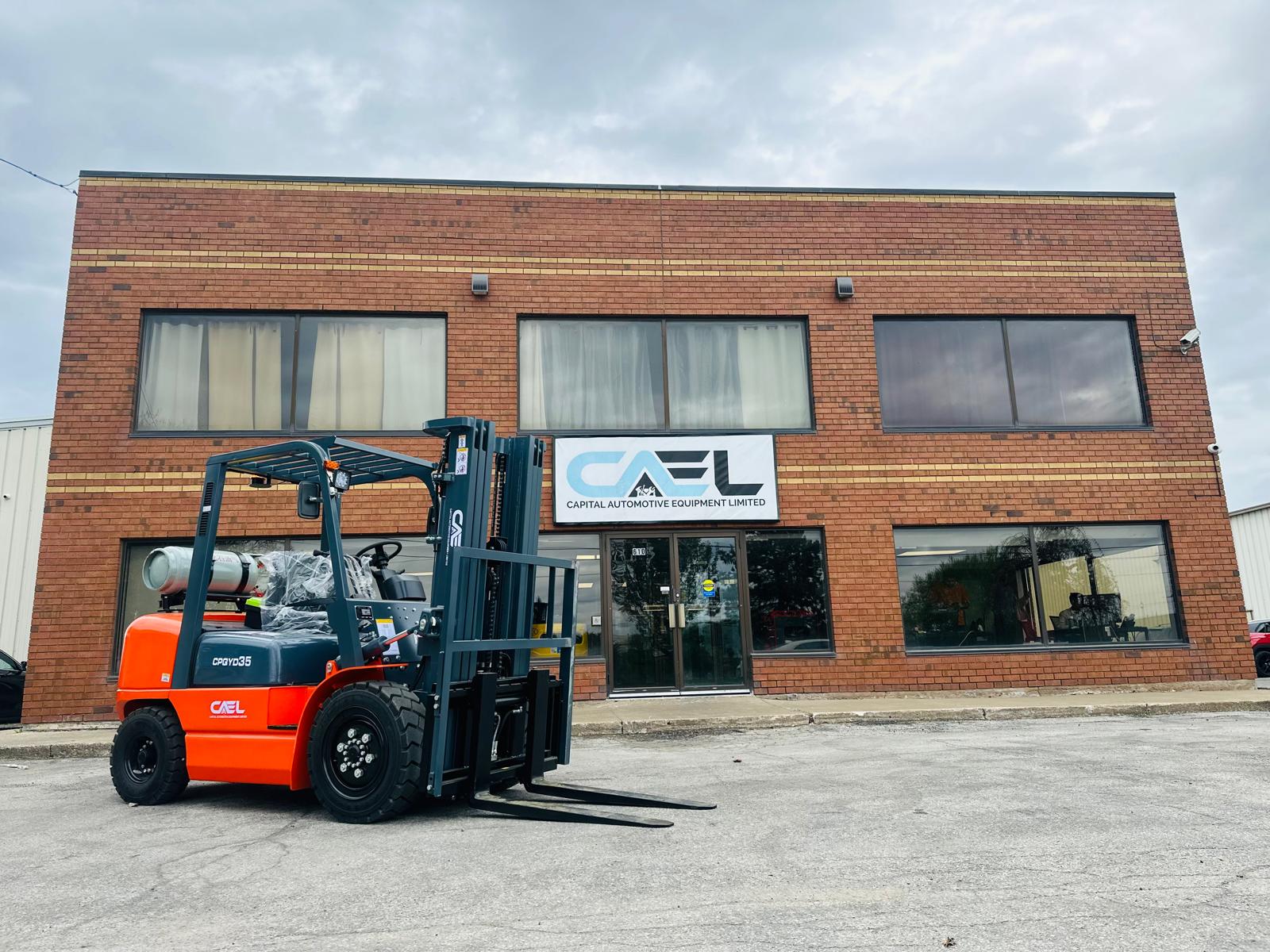

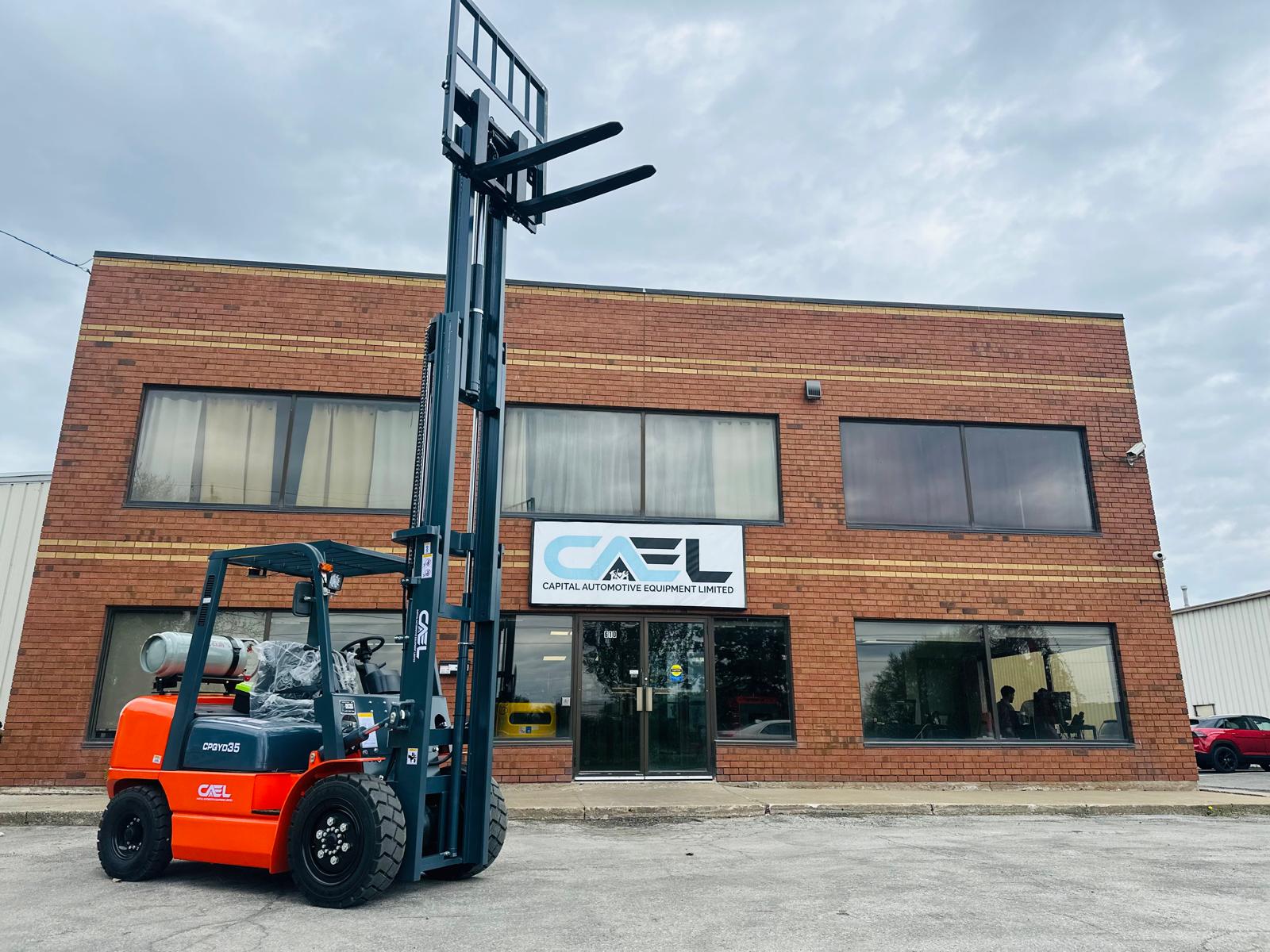

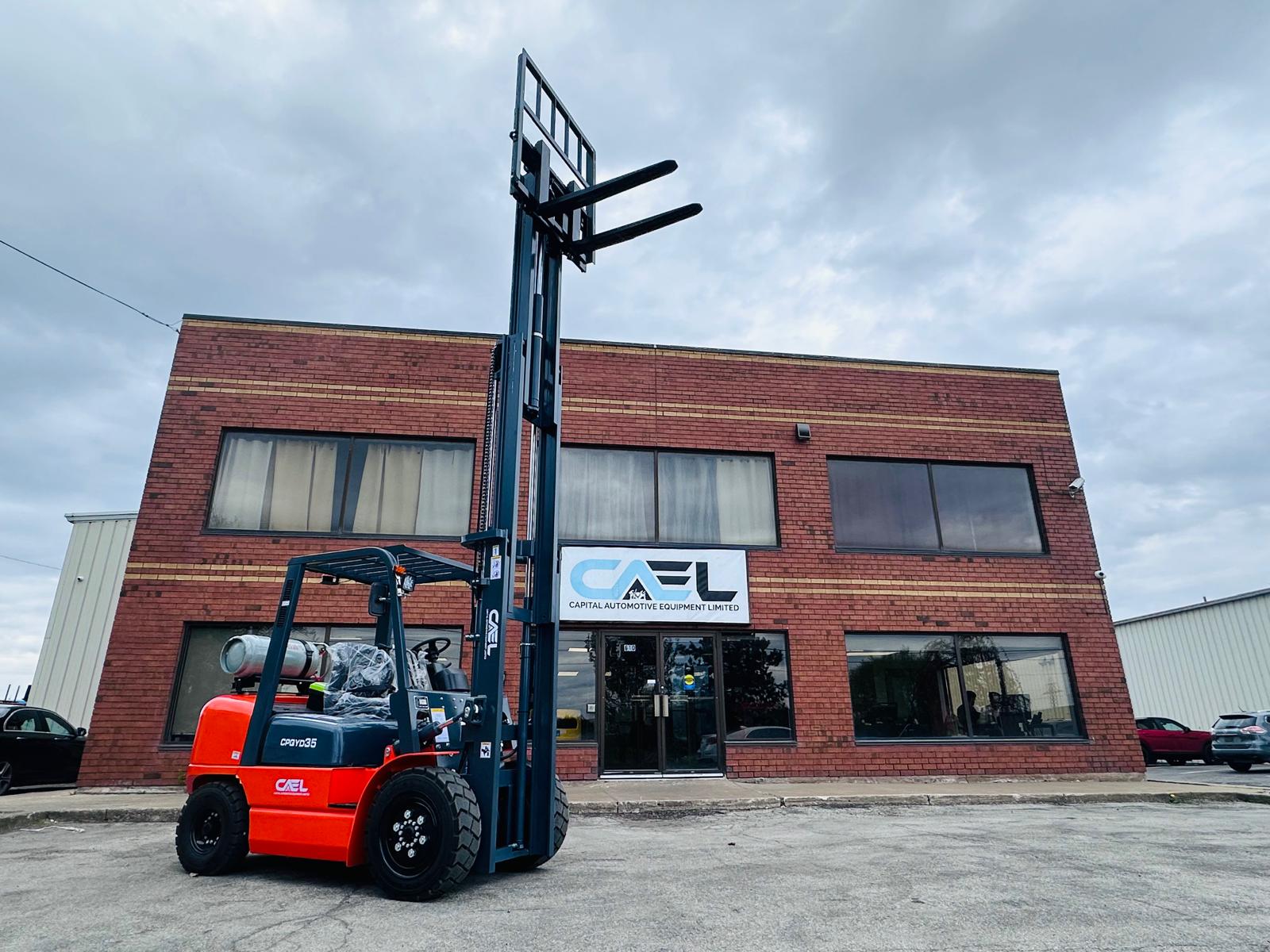

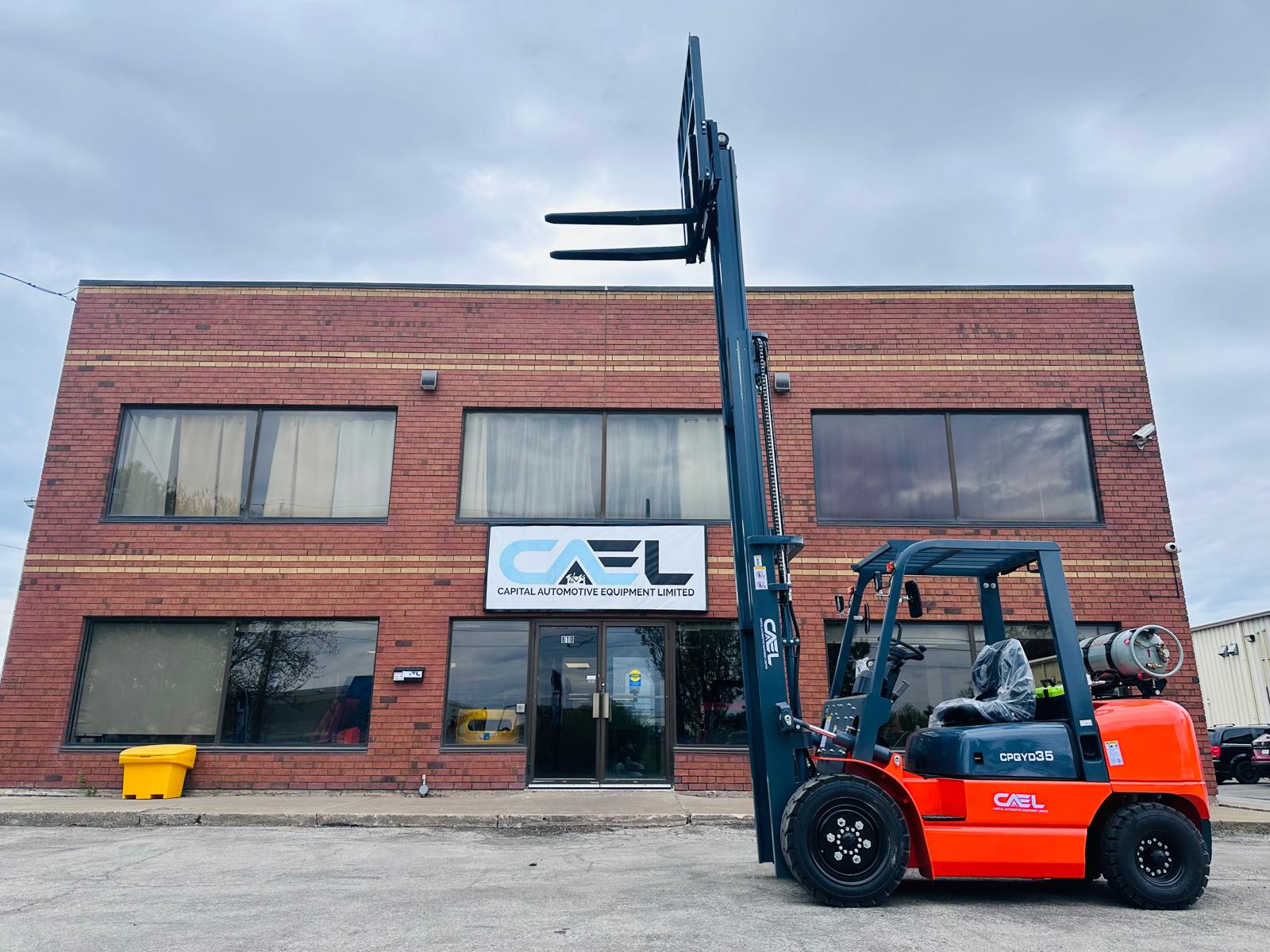

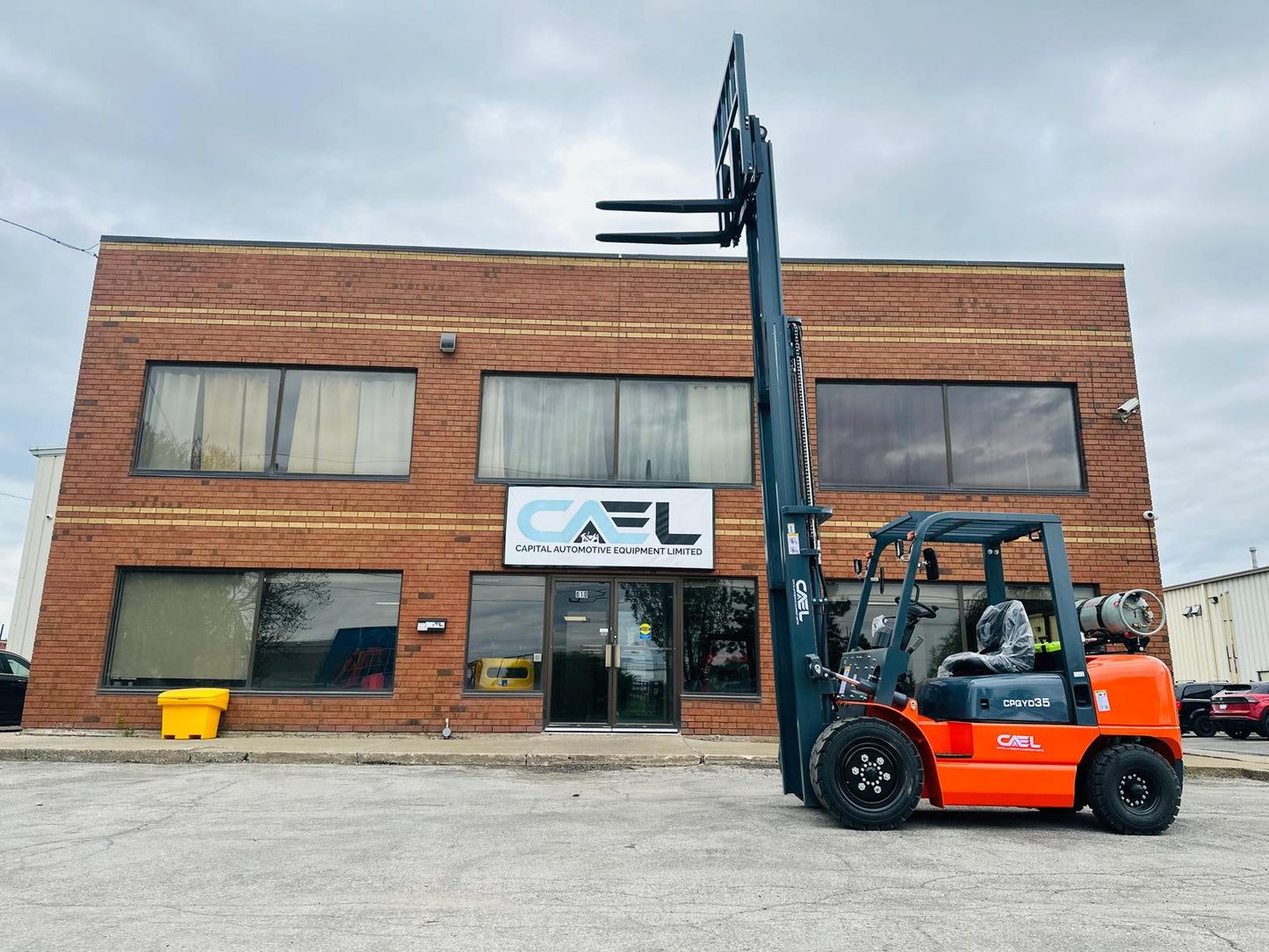

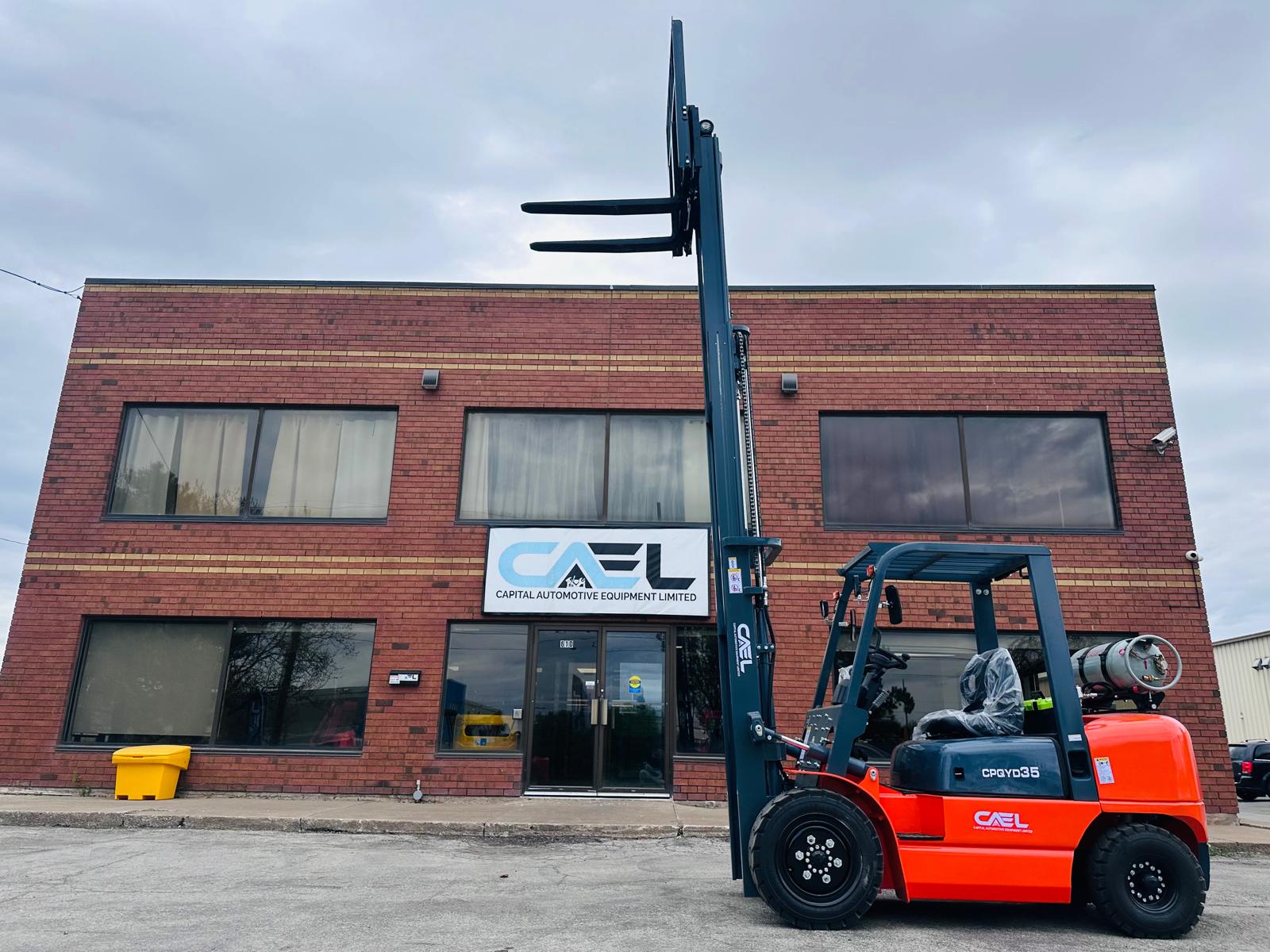

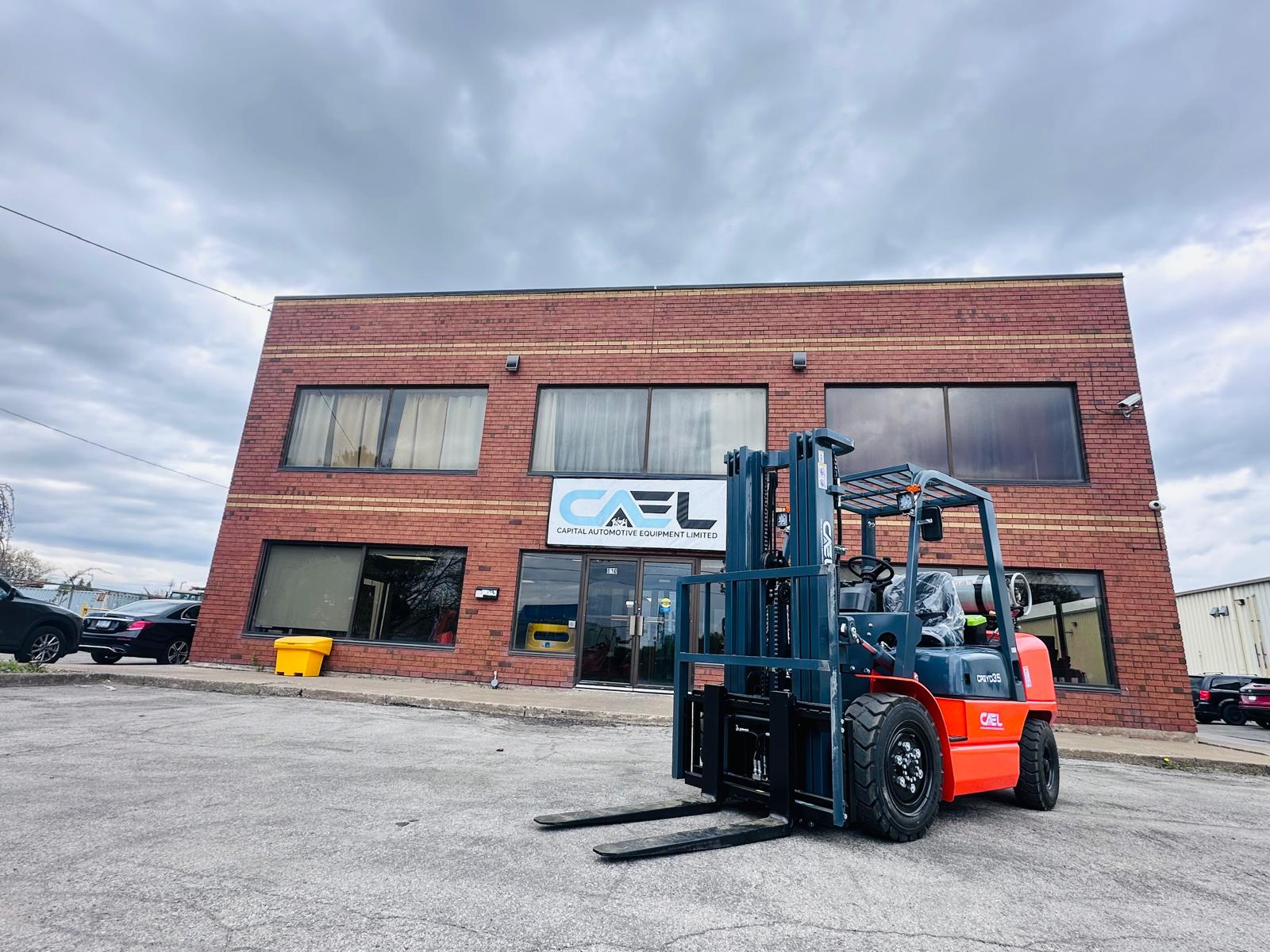

The CAEL 3.5FL is a high-performance dual-fuel forklift designed to deliver reliability, efficiency, and flexibility in demanding industrial environments. Powered by LPG and gasoline, this forklift ensures cleaner operation, reduced emissions, and consistent power output. Equipped with a dependable Kubota engine and advanced engineering, it is ideal for both indoor and outdoor applications such as warehouses, manufacturing facilities, logistics centers, and distribution hubs.
With its ergonomic design, robust construction, and precision handling, the CAEL 3.5FL offers enhanced productivity and long-term operational efficiency.
General Specifications
Specification
Details
Model
CAEL 3.5FL
Power Type
LPG & Gasoline
Rated Capacity
3,500 kg (7,716 lbs)
Load Center
500 mm (19.6 in)
Operator Type
Drive-in Seat
Dimensions
Specification
Measurement
Height with Mast Retraction
2,180 mm (85.83 in)

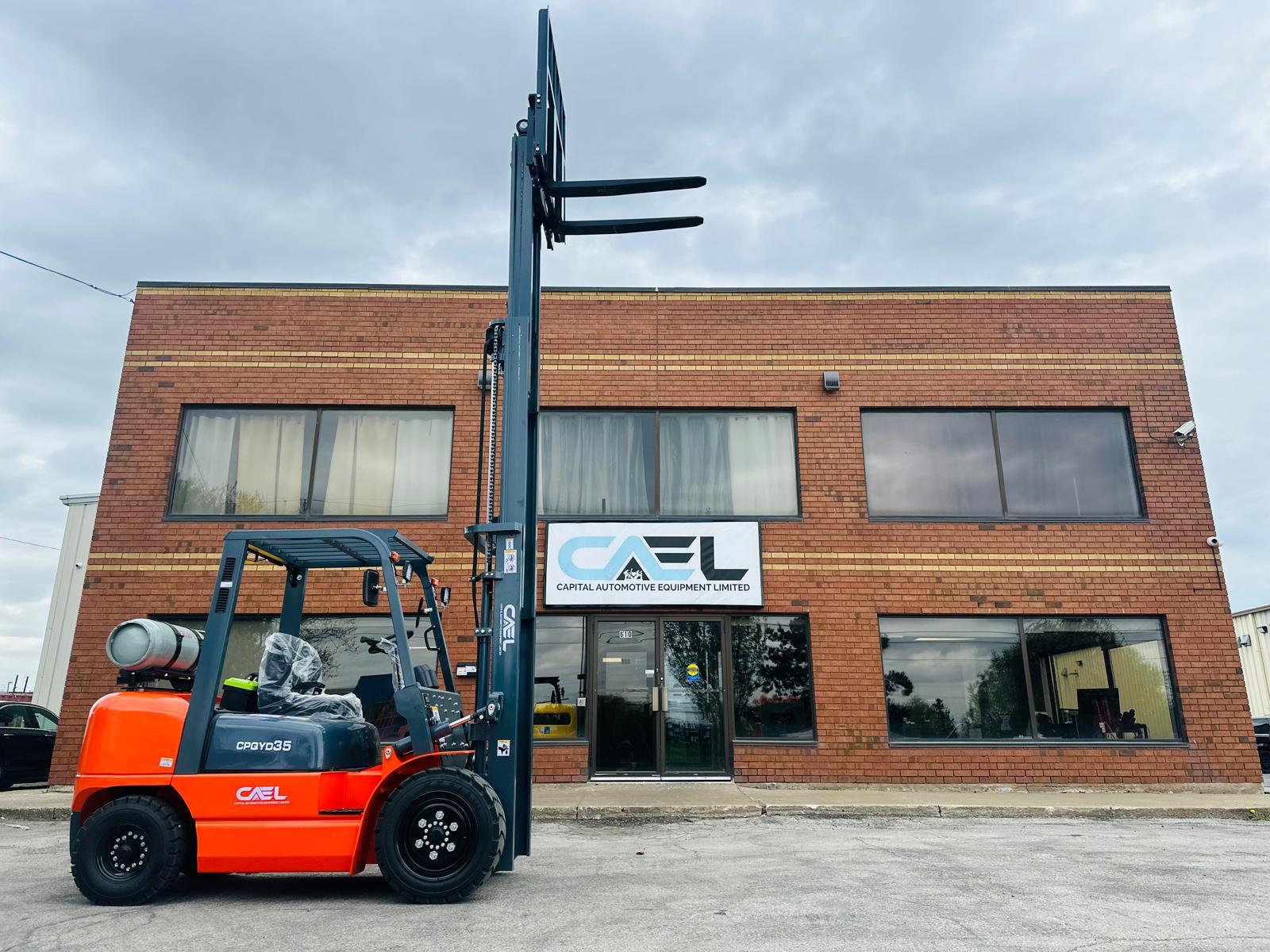

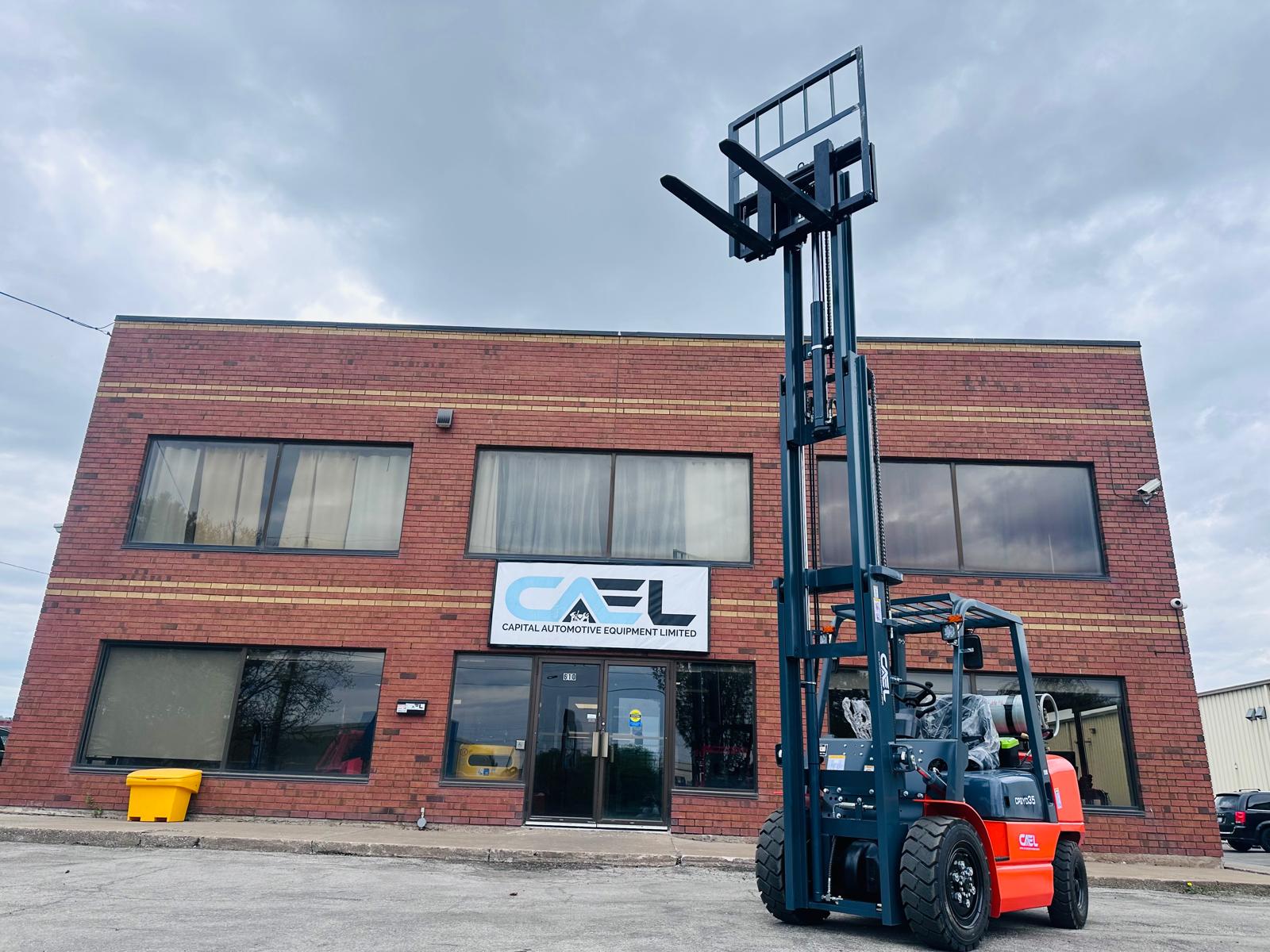

Maximum Lift Height
4,000 mm (157.48 in)
Mast Height
1,953 mm (76.89 in)
Free Lift Height
721 mm (28.39 in)
Front Overhang
498 mm (19.61 in)
Wheelbase
1,740 mm (68.50 in)
Minimum Ground Clearance
135 mm (5.31 in)
Overall Width
1,225 mm (48.23 in)
Overall Length (Without Forks)
2,700 mm (106.30 in)
Overhead Guard Height
2,090 mm (82.28 in)
Fork Spread (Adjustable)
250–1,100 mm (9.84–43.31 in)
Tread (Front/Rear)
1,000 / 970 mm (39.37 / 38.19 in)
Turning Radius
2,420 mm (95.28 in)
Mast Tilt Angle (Forward/Backward)
6° / 6°
Fork Size (L × W × T)
1,070 × 125 × 50 mm (42.13 × 4.92 × 1.97 in)
Performance
Specification
Measurement
Max Driving Speed (With/Without Load)
19 / 19 km/h
Lifting Speed (With Load)
330 / 370 mm/s
Lowering Speed (With/Without Load)
350 / 400 mm/s
Maximum Tractive Force
20 kN
Maximum Gradeability (With/Without Load)
16.5%
Weight
Specification
Measurement
Total Weight
4,700 kg (10,361 lbs)
Weight Distribution (Full Load – Front/Rear)
7,380 / 820 kg
Weight Distribution (No Load – Front/Rear)
1,880 / 2,820 kg
Wheels and Tyres
Specification
Details
Number of Wheels
2 Front / 2 Rear
Tyre Type
Pneumatic Tyres
Front Tyres
28 × 9–15–15PR
Rear Tyres
6.00–10–10PR
Braking System
Specification
Details
Service Brake
Hydraulic Pedal
Parking Brake
Mechanical Manual
Engine Specifications
Specification
Details
Engine Brand
Kubota
Rated Output
43.5 kW @ 2600 rpm
Displacement
2.5 L
Fuel Tank Capacity
60 L (15.85 gal)
Transmission
Specification
Details
Type
Power Shift Transmission
Gear Stages (Forward/Reverse)
1 / 1
Key Features & Benefits
Dual-Fuel Flexibility: Operates on LPG or gasoline for versatile performance.
Powerful Kubota Engine: Ensures reliable, efficient, and consistent output.
High Load Capacity: Lifts up to 3,500 kg with ease.
Superior Lift Height: Reaches up to 4,000 mm for efficient stacking.
Smooth Power Shift Transmission: Enhances operator comfort and productivity.
Compact Turning Radius: Ideal for confined and busy work environments.
Durable Pneumatic Tyres: Suitable for indoor and outdoor applications.

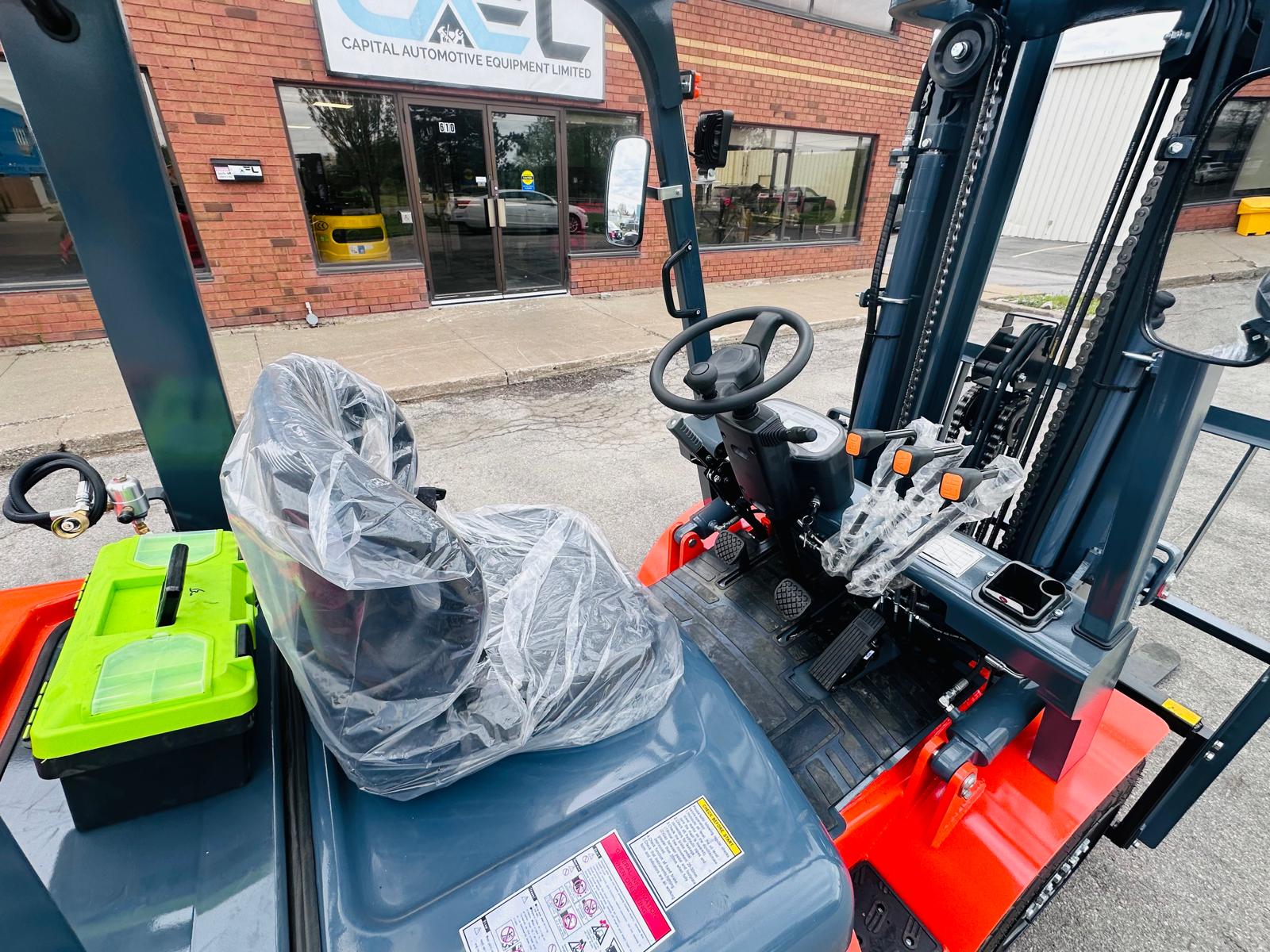

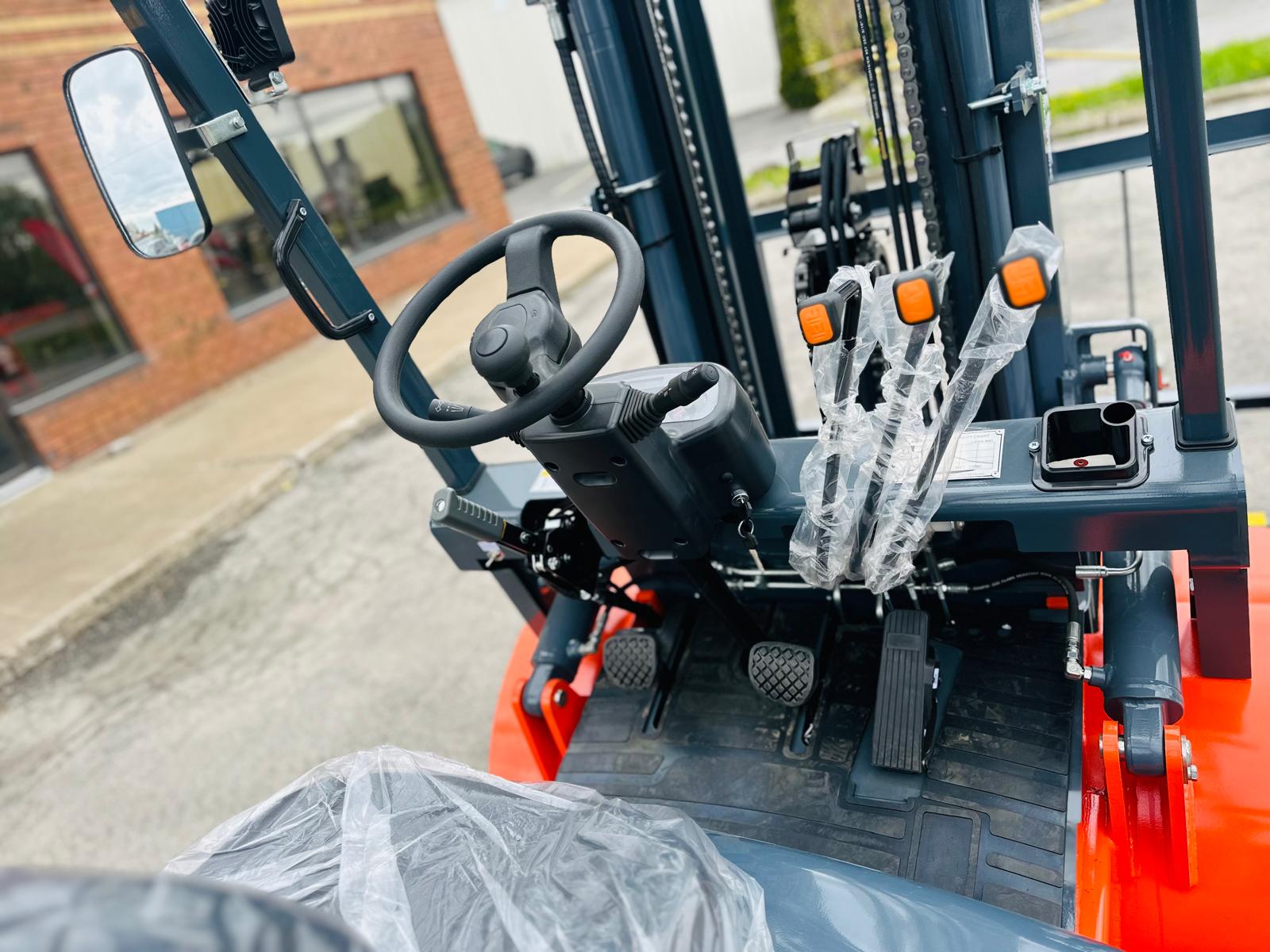

Ergonomic Operator Cabin: Improves safety and reduces fatigue.
Robust Construction: Designed for heavy-duty industrial use.
Low Maintenance and Operating Costs: Ensures long-term reliability.
