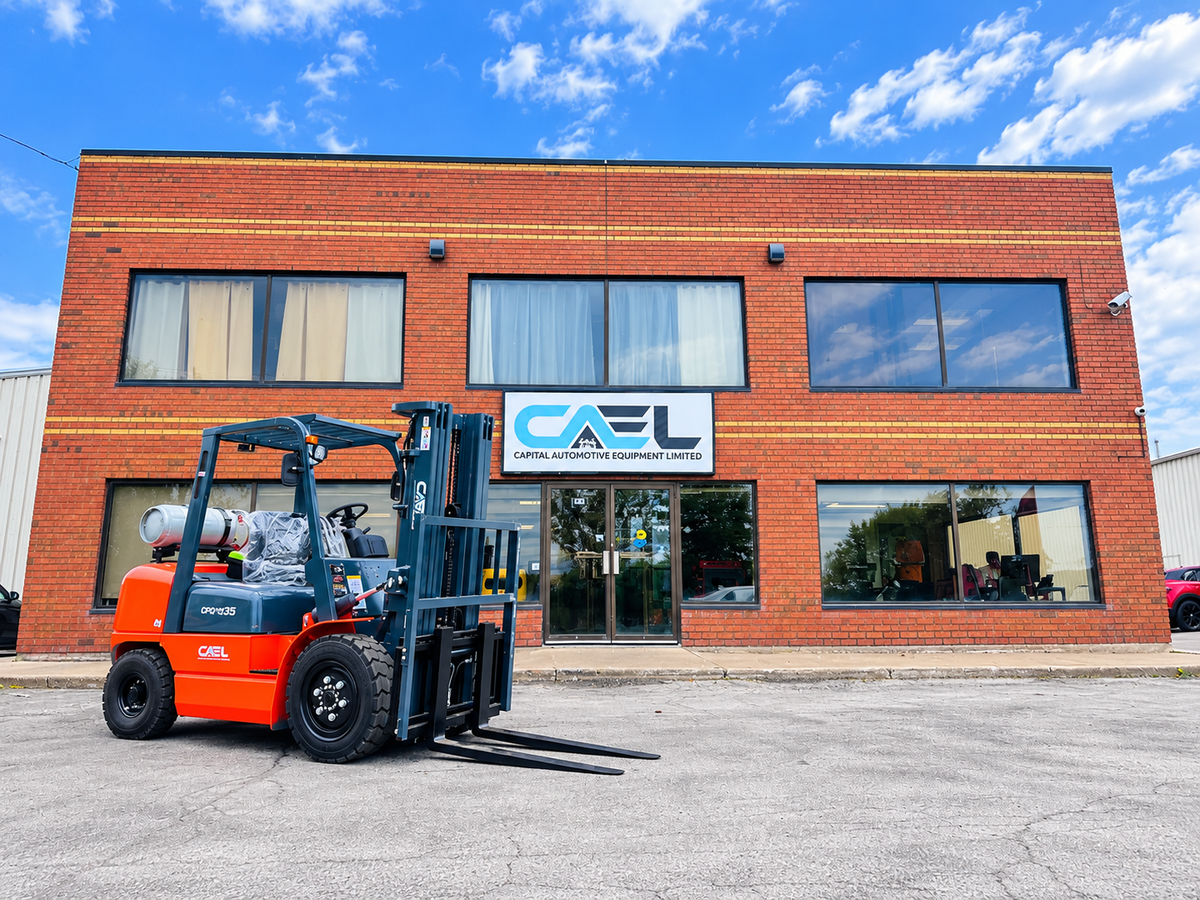

CAEL Forklift LPG 3 Ton with 3 stage side shift
CAEL Forklift LPG 3 Ton with 3 stage side shift
Share
Hurry, only 3 left in stock
Couldn't load pickup availability
We Accept
- Low Prices
- Warranty Included
- Order Tracking
CAEL 3 Ton LPG Forklift with Kubota Engine
The CAEL 3 Ton LPG Forklift (CAEL-3FL) is designed for efficient material handling in warehouses, manufacturing facilities, logistics centres, and industrial environments. With a rated lifting capacity of 3,000 kg (6,614 lbs) and a maximum lifting height of 4,000 mm (157.5 inches), this forklift supports the movement, stacking, loading, and unloading of heavy pallets and industrial materials.
Powered by a Kubota engine delivering a rated output of 43.5 kW at 2,600 rpm, the CAEL-3FL combines practical lifting performance with a power-shift transmission for convenient operation. Its specified LPG and gasoline fuel capability offers flexibility for compatible applications, while pneumatic tyres and a compact turning radius support manoeuvrability in suitable working environments.
Whether you need a forklift for warehouse operations, manufacturing, distribution, or industrial material handling, the CAEL 3 Ton Forklift offers a versatile solution for demanding day-to-day lifting tasks.
Key Features of the CAEL 3 Ton LPG Forklift
- 3,000 kg Load Capacity: Designed to handle heavy pallets and industrial materials within the manufacturer's rated load limits.
- Dual-Fuel Capability: Supports LPG and gasoline operation, subject to the supplied fuel configuration.
- Kubota Engine: Delivers a specified rated output of 43.5 kW at 2,600 rpm.
- 4,000 mm Maximum Lift Height: Supports elevated material placement and stacking operations.
- Power-Shift Transmission: Supports convenient forward and reverse operation during material handling.
- Compact Turning Radius: The specified 2,070 mm turning radius supports manoeuvring in appropriately designed workspaces.
- Pneumatic Tyres: Designed for suitable operating surfaces, depending on ground conditions and tyre configuration.
- Adjustable Fork Spacing: Provides a specified fork spacing range of 250–1,100 mm.
- Ergonomic Operator Station: Features a seated operator configuration for practical daily operation.
- Hydraulic Service Brakes: Support controlled braking during normal operation.
Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Brand | CAEL |
| Model | CAEL-3FL |
| Equipment Type | LPG Forklift |
| Power Type | LPG & Gasoline |
| Rated Load Capacity | 3,000 kg (6,614 lbs) |
| Load Centre | 500 mm (19.6 in) |
| Operator Type | Seated Operator |
Dimensions and Lifting Specifications
| Specification | Measurement |
|---|---|
| Height with Mast Retracted | 2,065 mm (81.3 in) |
| Maximum Lift Height | 4,000 mm (157.5 in) |
| Mast Height | 1,898 mm (74.7 in) |
| Free Lift Height | 661 mm (26.0 in) |
| Front Overhang | 479 mm (18.9 in) |
| Wheelbase | 1,740 mm (68.5 in) |
| Minimum Ground Clearance | 135 mm (5.3 in) |
| Overall Width | 1,225 mm (48.2 in) |
| Overall Length Without Forks | 2,695 mm (106.1 in) |
| Overhead Guard Height | 2,090 mm (82.3 in) |
| Fork Spacing | 250–1,100 mm (9.8–43.3 in) |
| Front / Rear Tread | 1,000 / 970 mm (39.4 / 38.2 in) |
| Turning Radius | 2,070 mm (81.5 in) |
| Mast Tilt Angle (Forward / Backward) | 6° / 6° |
| Fork Dimensions (L × W × T) | 1,070 × 125 × 45 mm (42.1 × 4.9 × 1.8 in) |
Performance Specifications
| Specification | Measurement |
|---|---|
| Maximum Driving Speed (With / Without Load) | 18 / 19 km/h |
| Lifting Speed | 440 / 480 mm/s |
| Lowering Speed (With / Without Load) | 450 / 550 mm/s |
| Maximum Tractive Force | 20 / 20 kN |
| Maximum Gradeability (With / Without Load) | 20% / 20% |
Weight Specifications
| Specification | Measurement |
|---|---|
| Total Weight | 4,270 kg (9,414 lbs) |
| Weight Distribution at Full Load (Front / Rear) | 6,543 / 727 kg |
| Weight Distribution Without Load (Front / Rear) | 1,708 / 2,562 kg |
Wheels and Tyres
| Specification | Details |
|---|---|
| Number of Wheels | 2 Front / 2 Rear |
| Tyre Type | Pneumatic Tyres |
| Front Tyres | 28 × 9–15–15PR |
| Rear Tyres | 6.00–10–10PR |
Braking System
| Specification | Details |
|---|---|
| Service Brake | Hydraulic Pedal |
| Parking Brake | Mechanical Manual |
Engine Specifications
| Specification | Details |
|---|---|
| Engine Brand | Kubota |
| Rated Engine Output | 43.5 kW at 2,600 rpm |
| Engine Displacement | 2.5 L |
| Fuel Tank Capacity | 60 L (15.85 US gal) |
Transmission Specifications
| Specification | Details |
|---|---|
| Transmission Type | Power-Shift Transmission |
| Forward / Reverse Gear Stages | 1 / 1 |
Benefits of the CAEL 3 Ton LPG Forklift
Efficient Material Handling
With a rated lifting capacity of 3,000 kg, the CAEL-3FL is designed to support the movement of heavy pallets, industrial components, and other suitable loads within its rated operating limits.
Flexible Fuel Configuration
The specified LPG and gasoline capability offers flexibility for compatible applications. Confirm the exact fuel system and workplace ventilation requirements before operation.
Practical Lifting Performance
The maximum specified lifting height of 4,000 mm supports stacking and material placement at elevated positions when the load and operating conditions permit.
Manoeuvrability in Confined Workspaces
The specified turning radius of 2,070 mm supports manoeuvring in appropriately designed work areas. Actual aisle clearance depends on load dimensions and operating conditions.
Convenient Transmission Operation
The power-shift transmission supports routine forward and reverse movements during loading, unloading, and internal material transportation.
Suitable Tyre Configuration
Pneumatic tyres can provide traction and cushioning on appropriate surfaces. Select the forklift according to the ground conditions and manufacturer's recommendations.
Designed for Industrial Operations
The Kubota engine, practical lifting configuration, and specified braking system make the CAEL-3FL an option for businesses seeking equipment for daily warehouse and industrial material handling.
