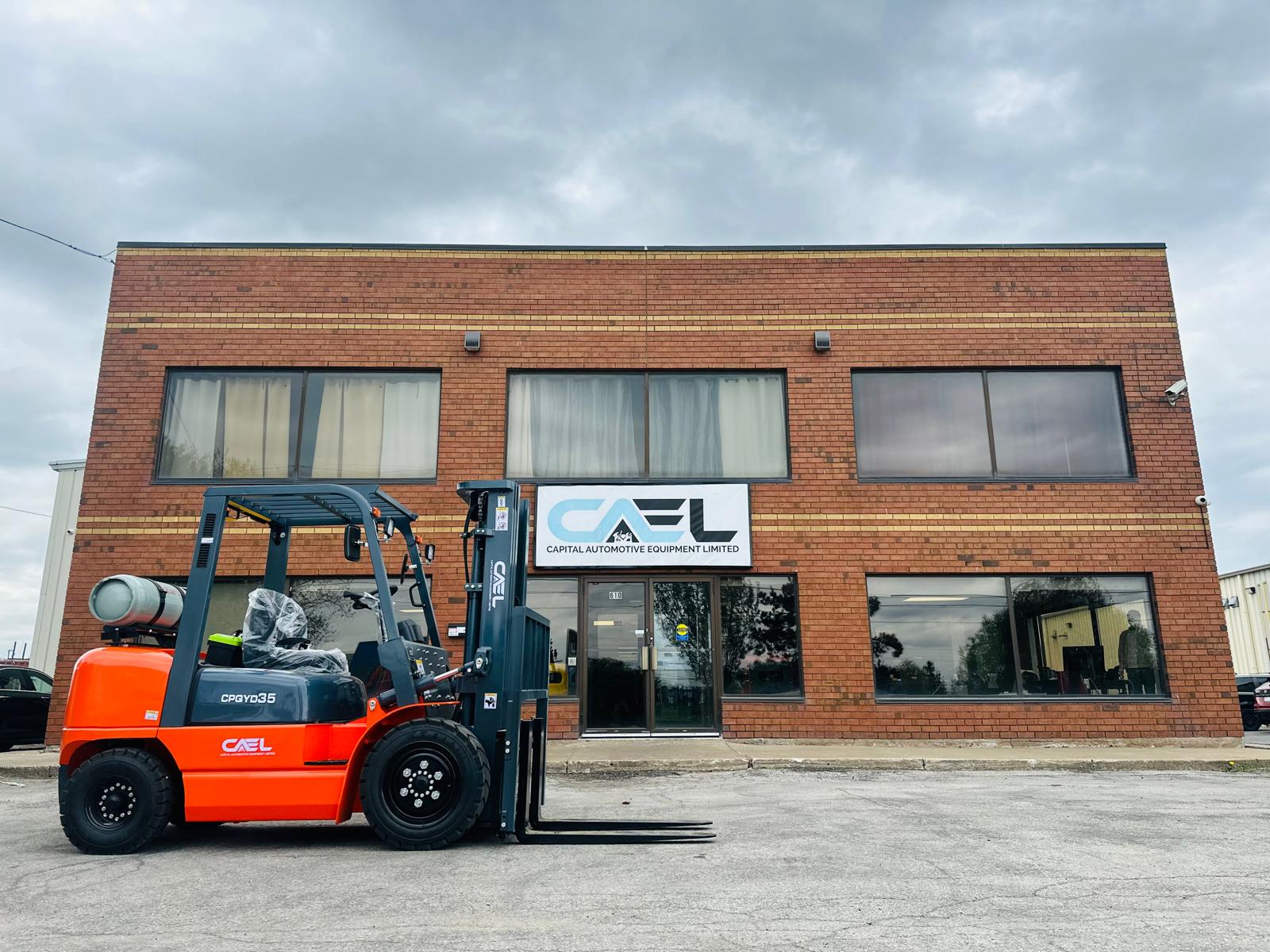

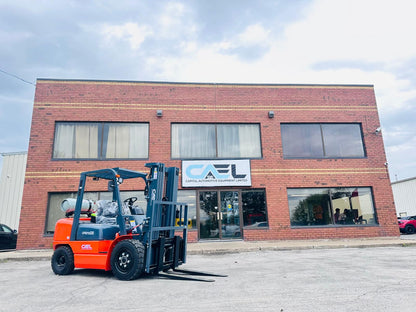

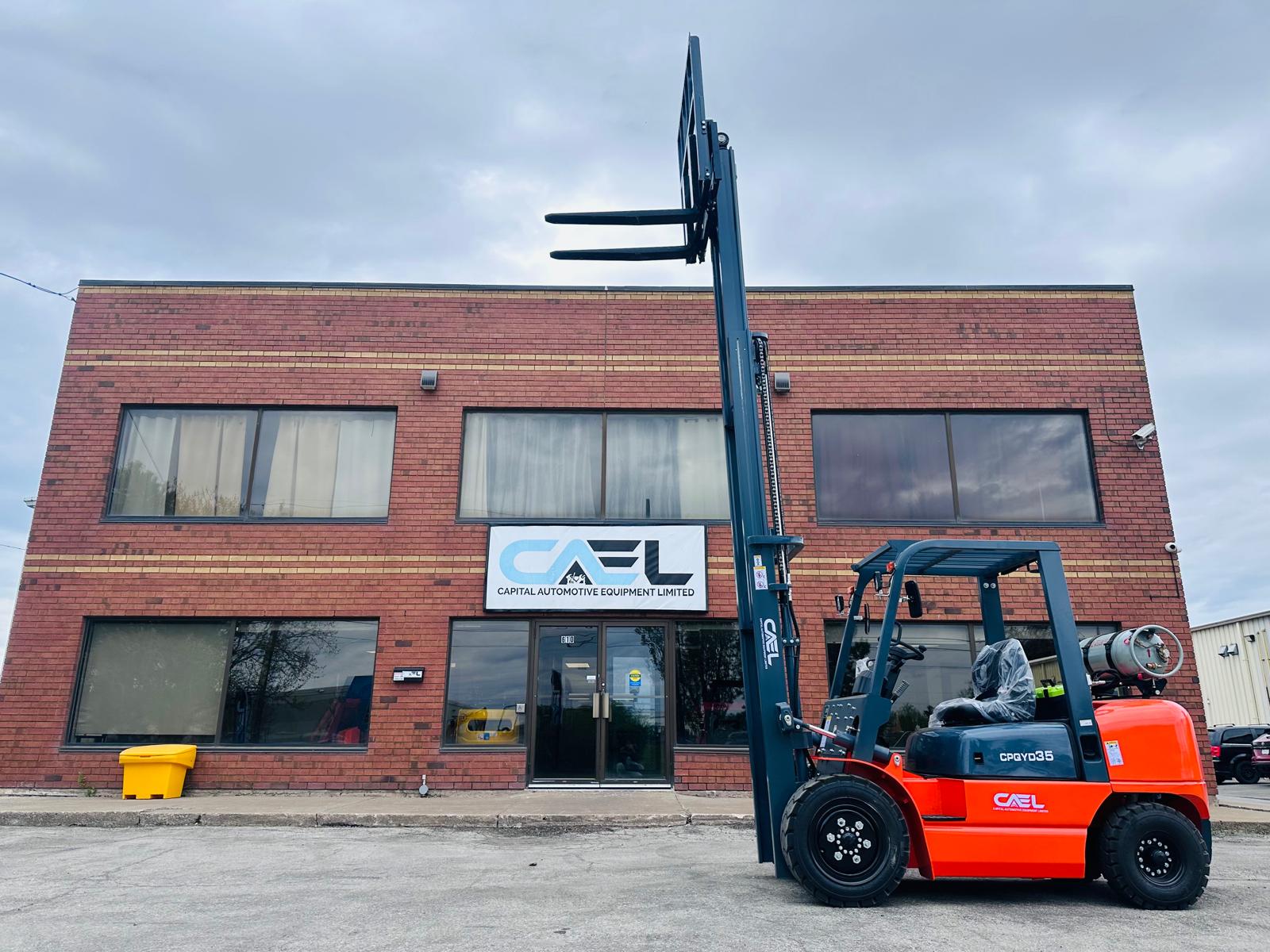

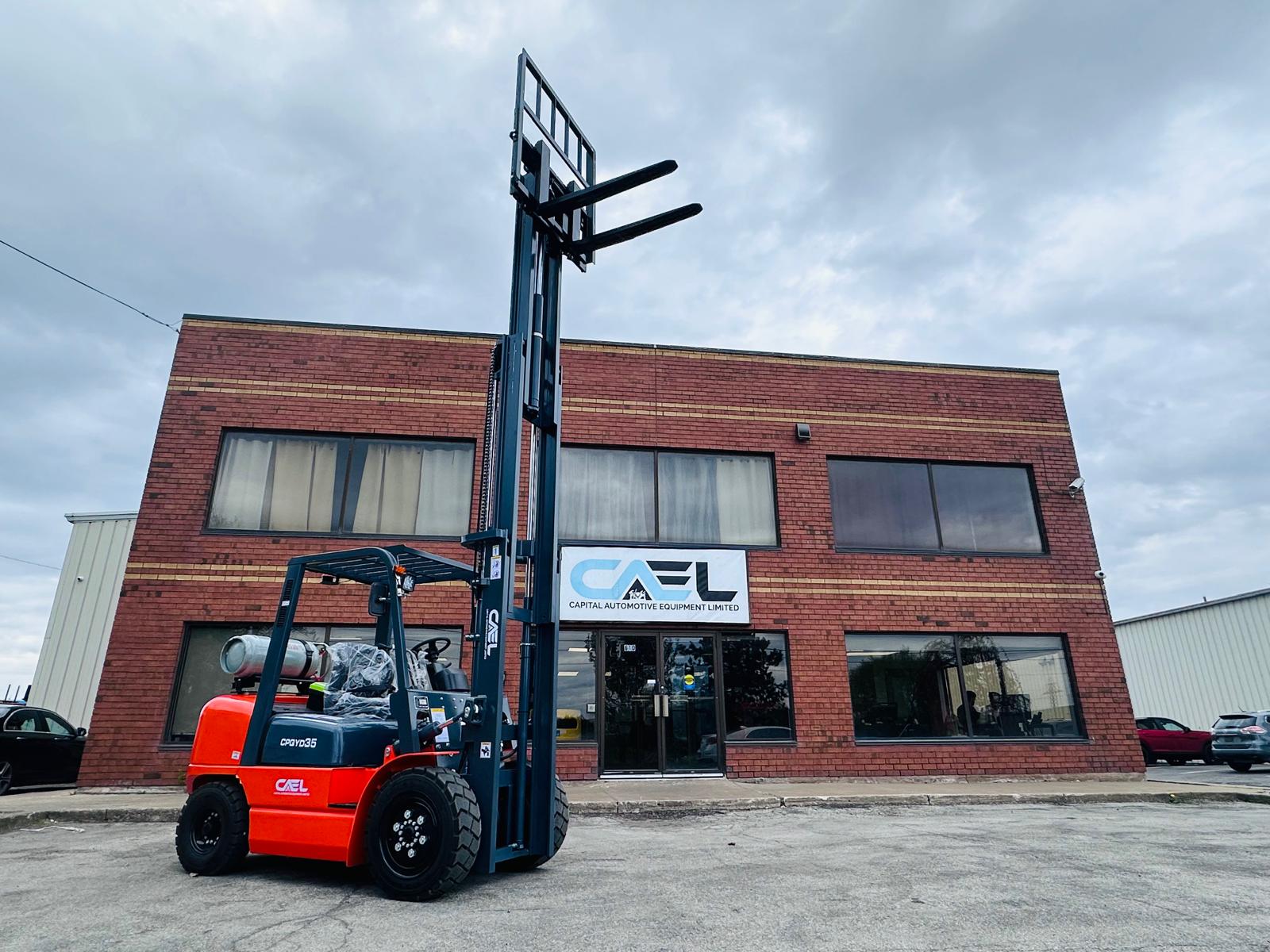

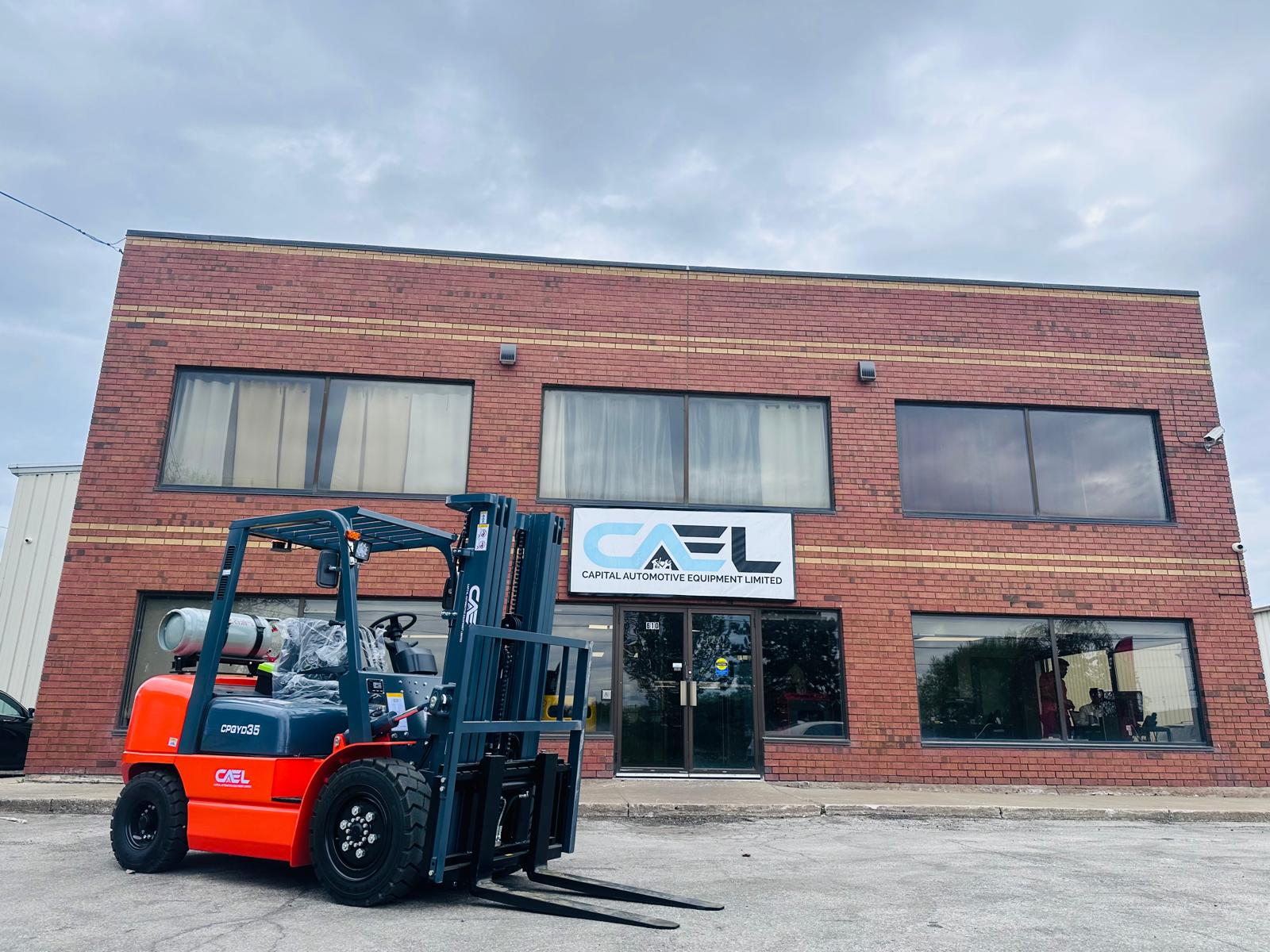

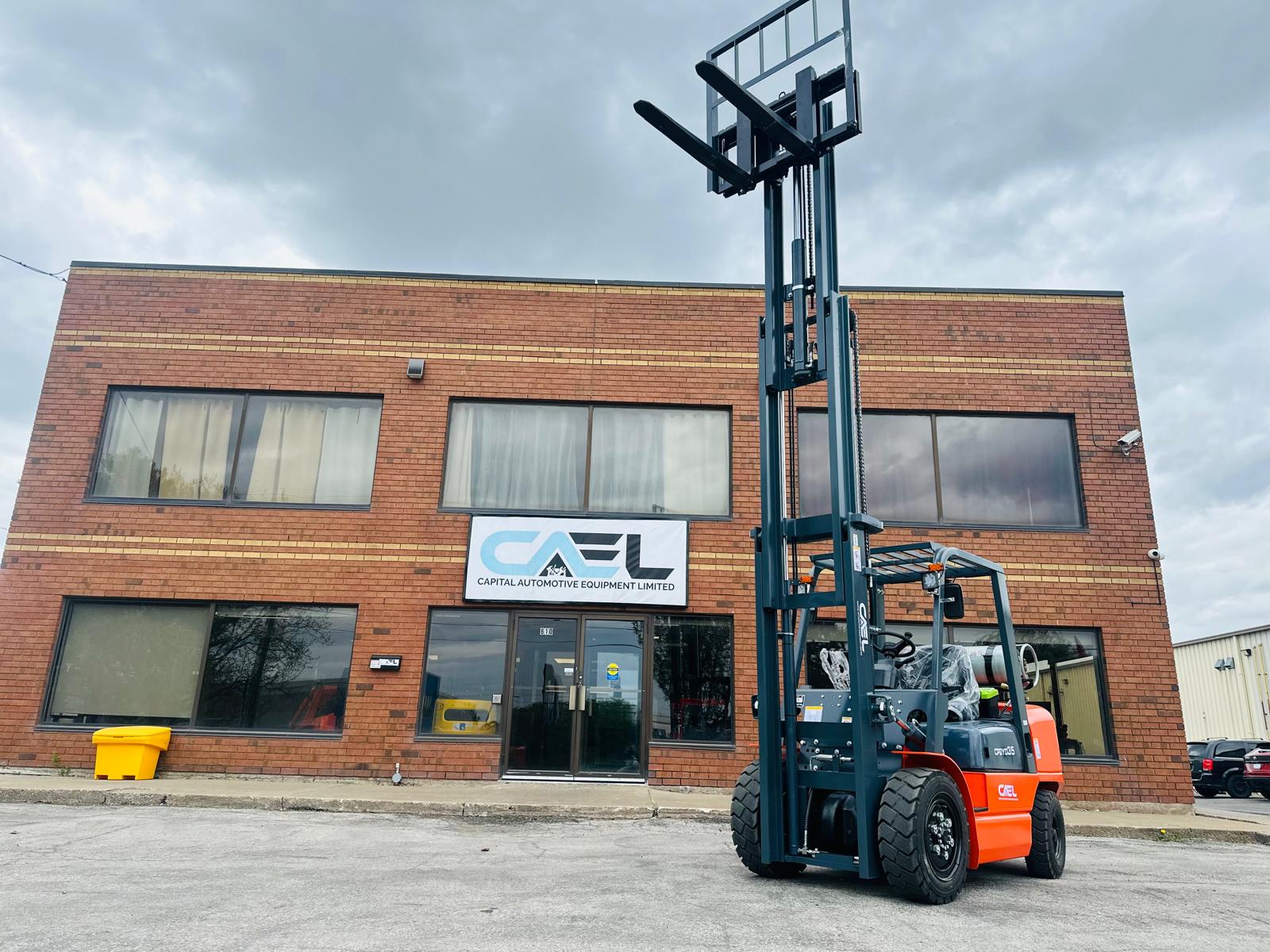

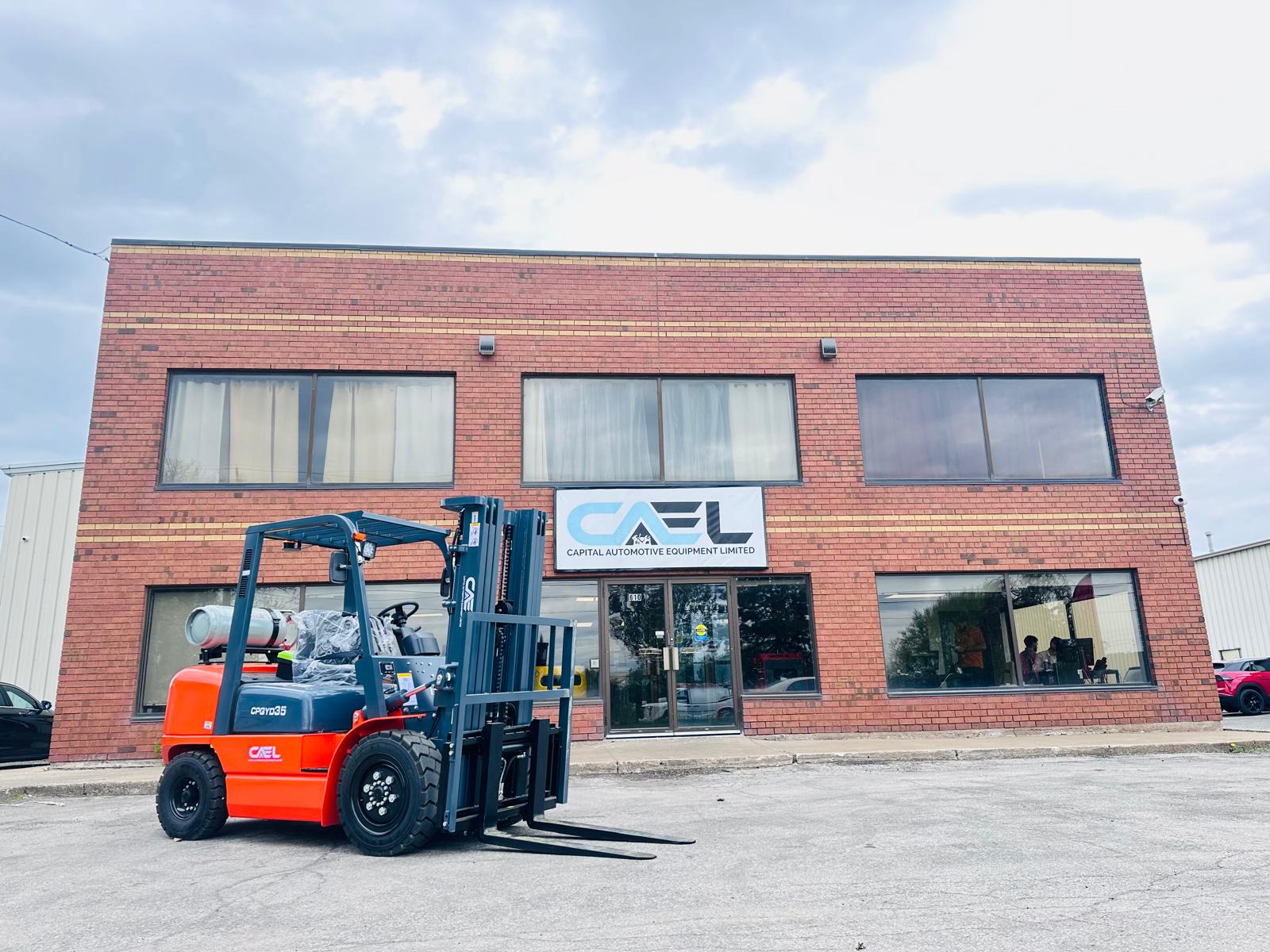

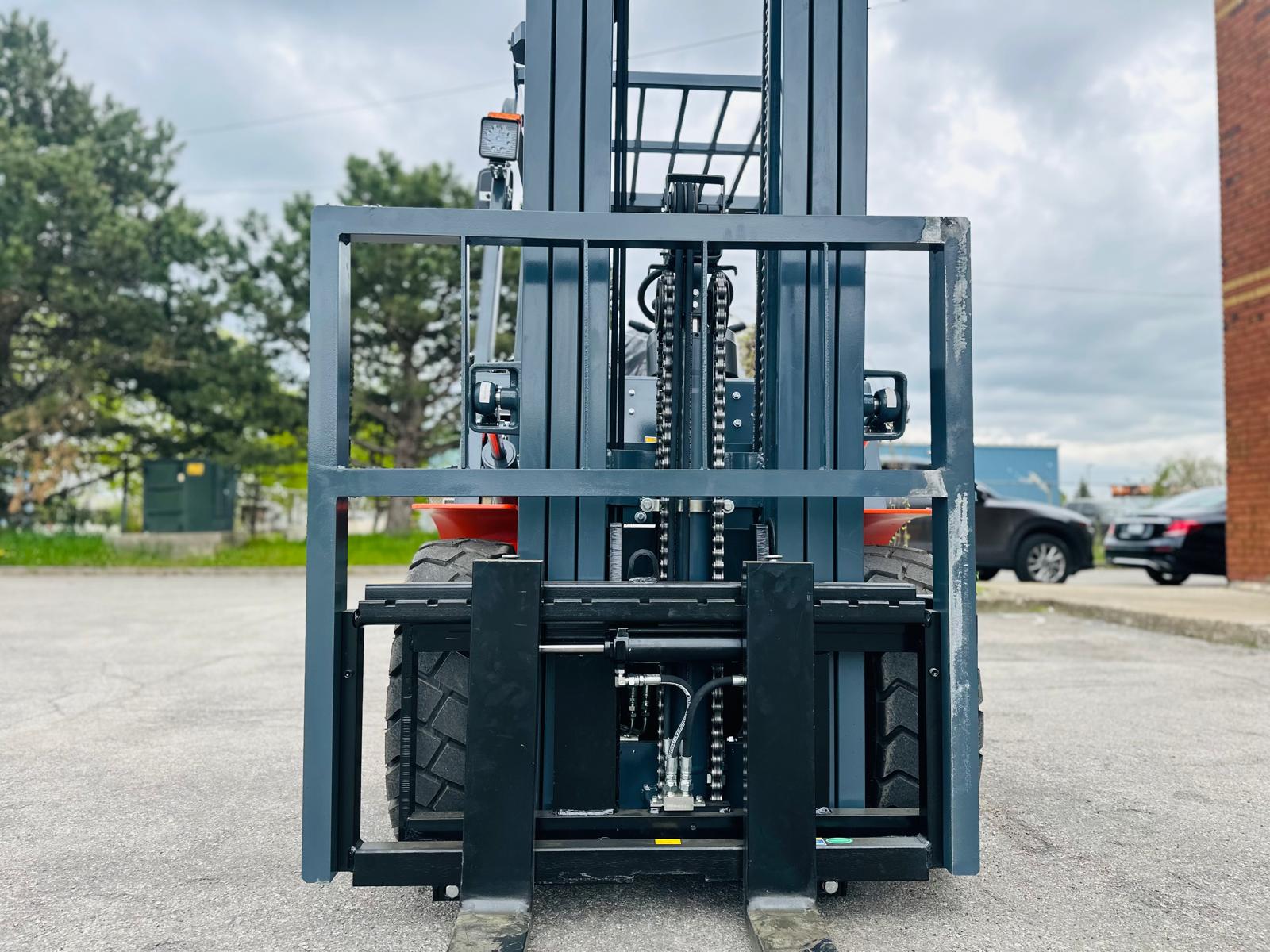

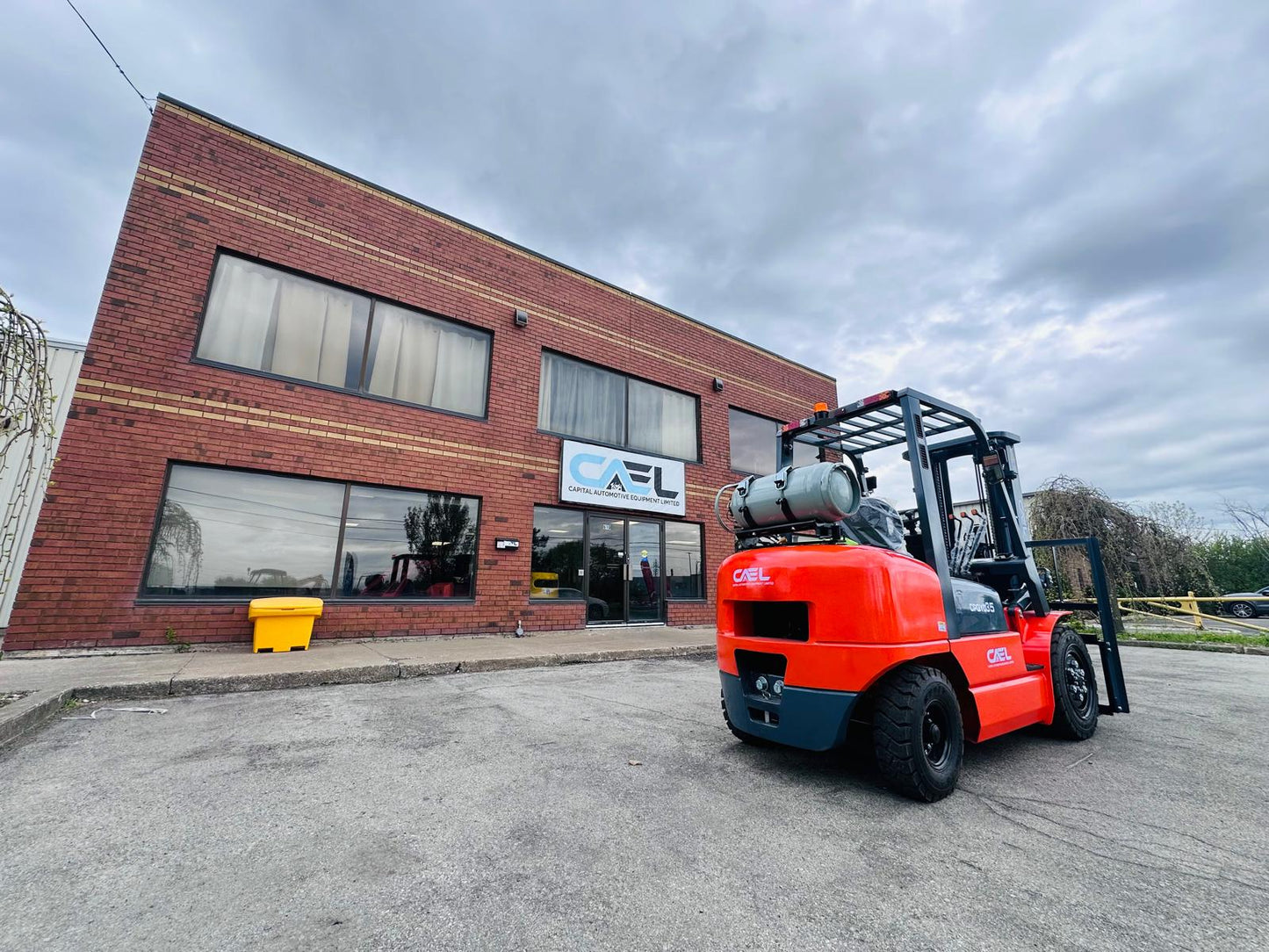

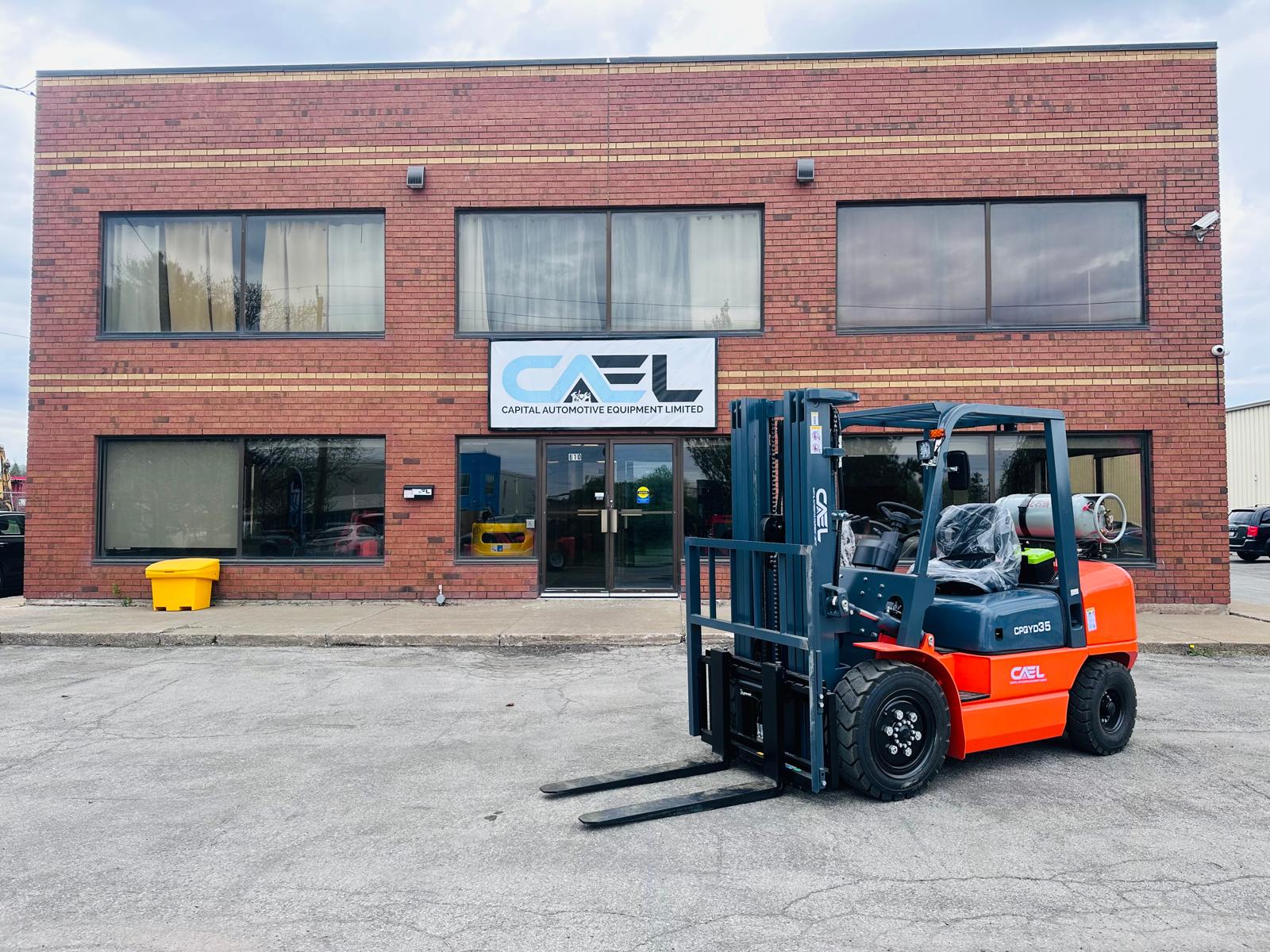

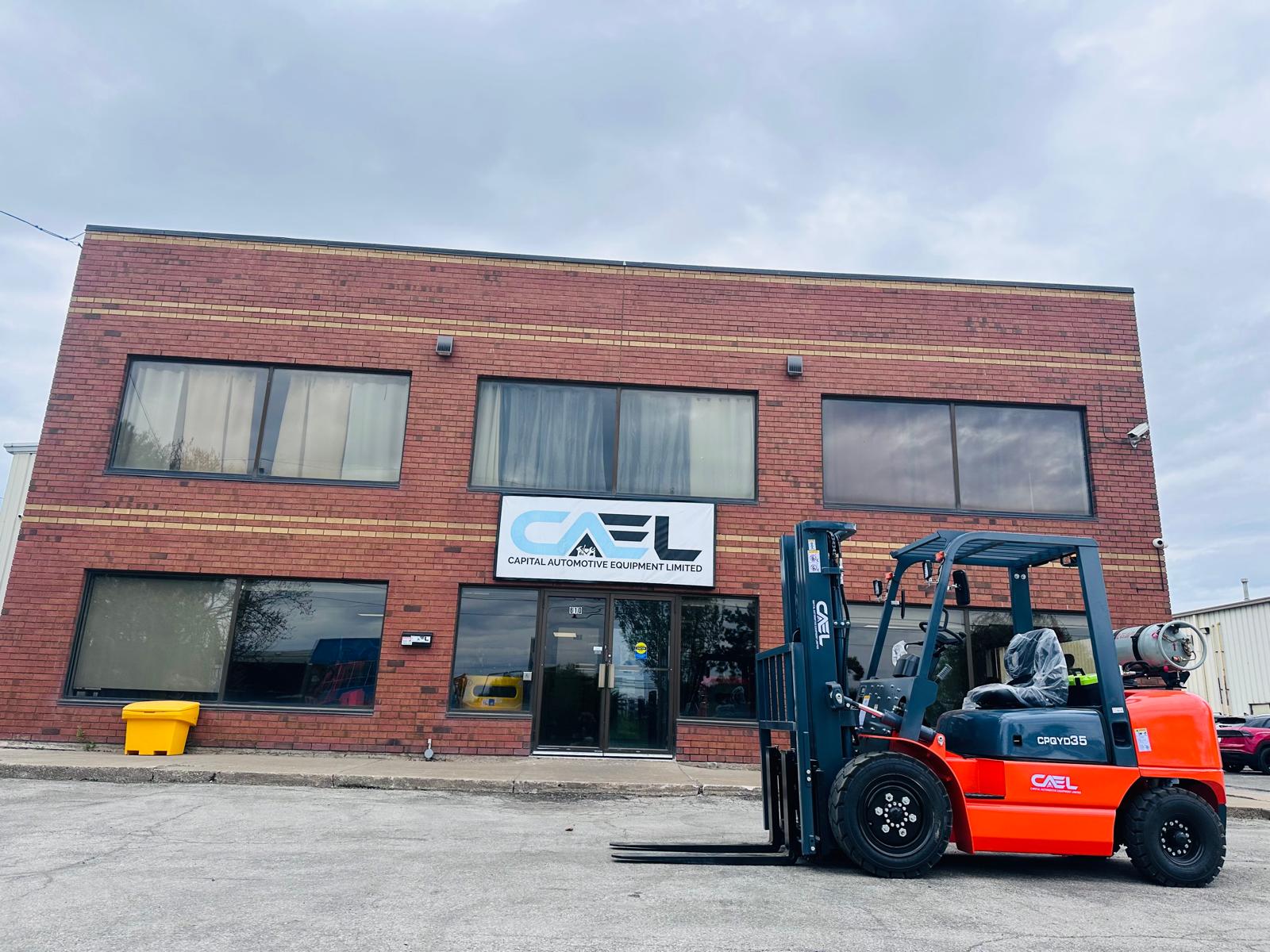

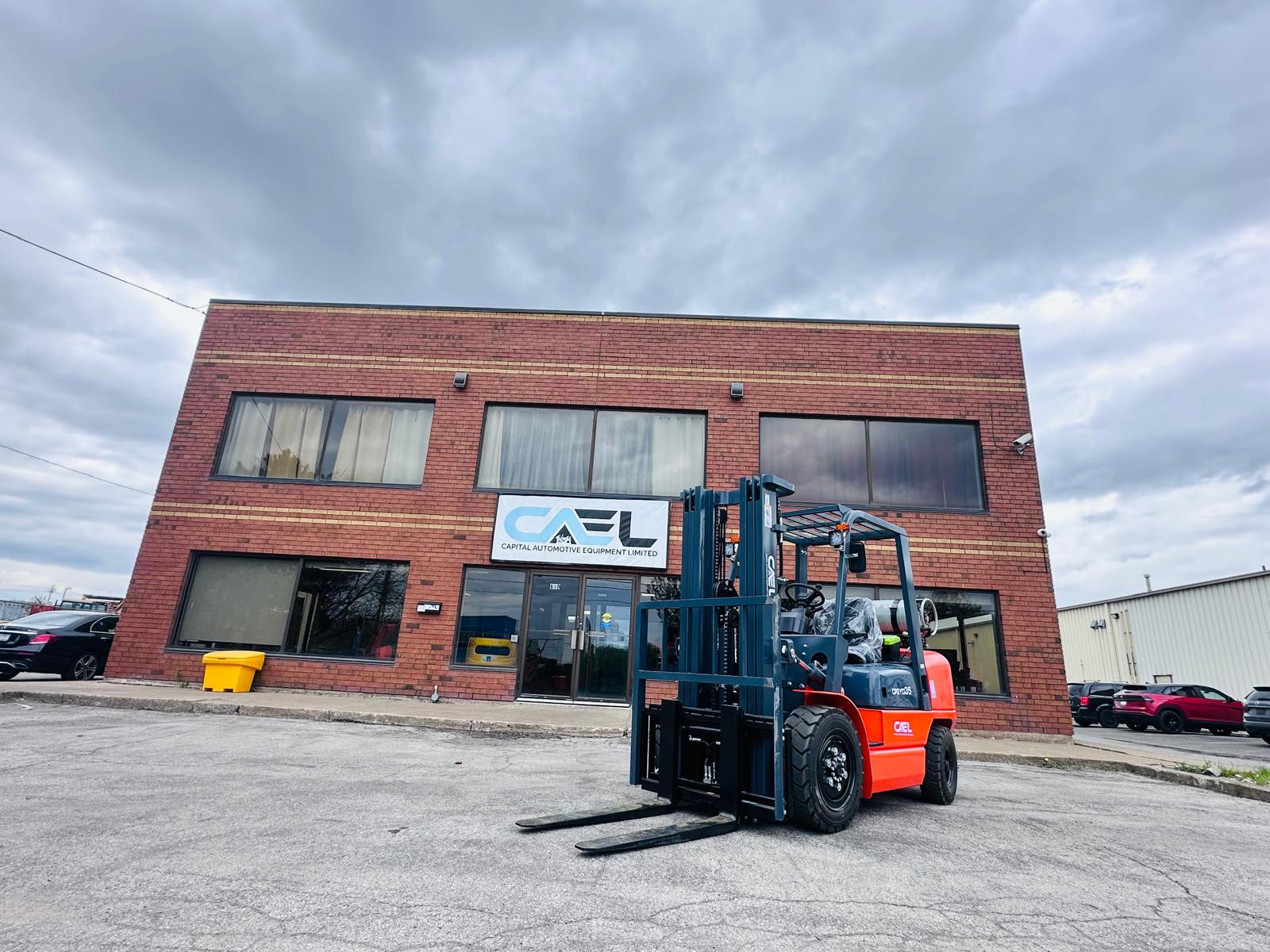

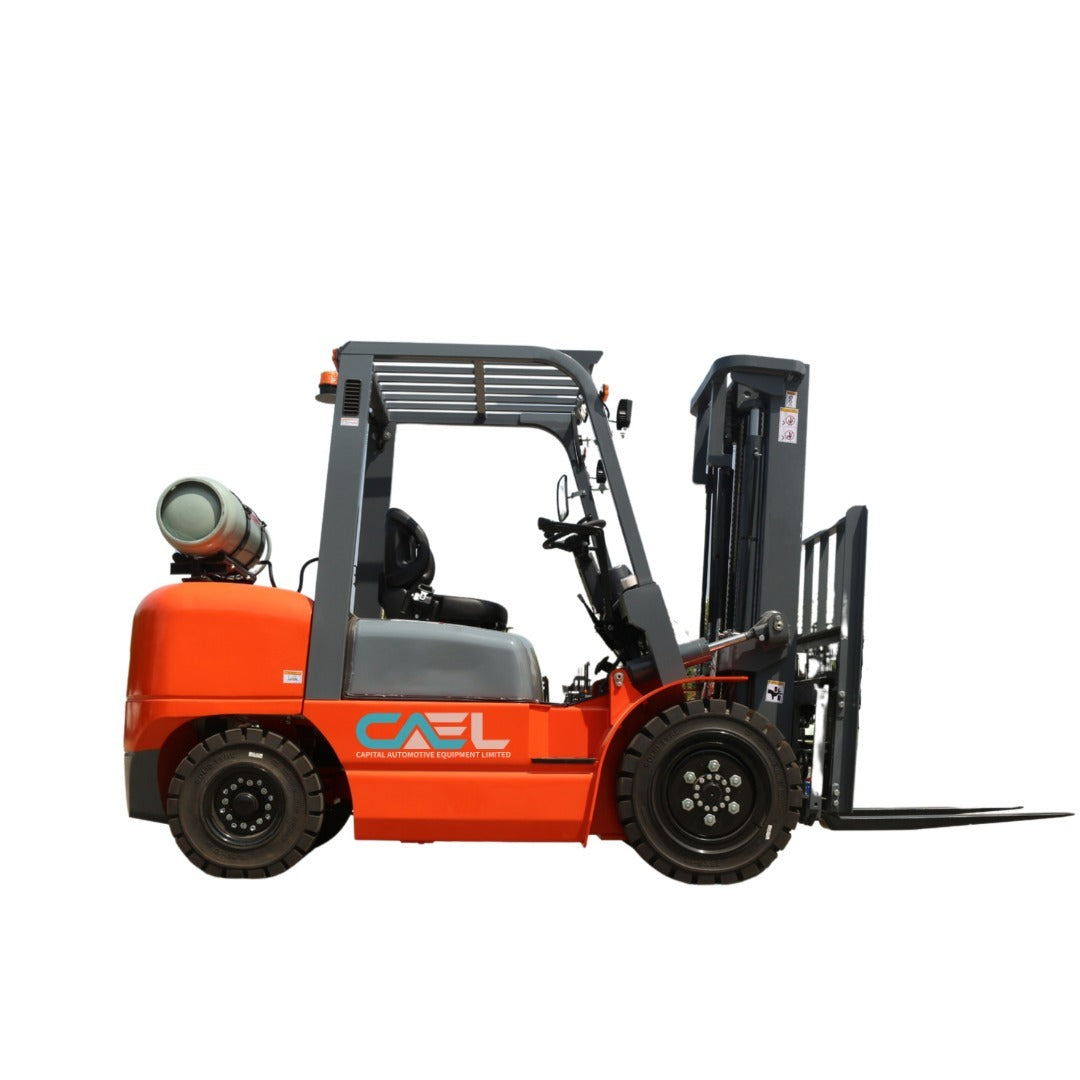

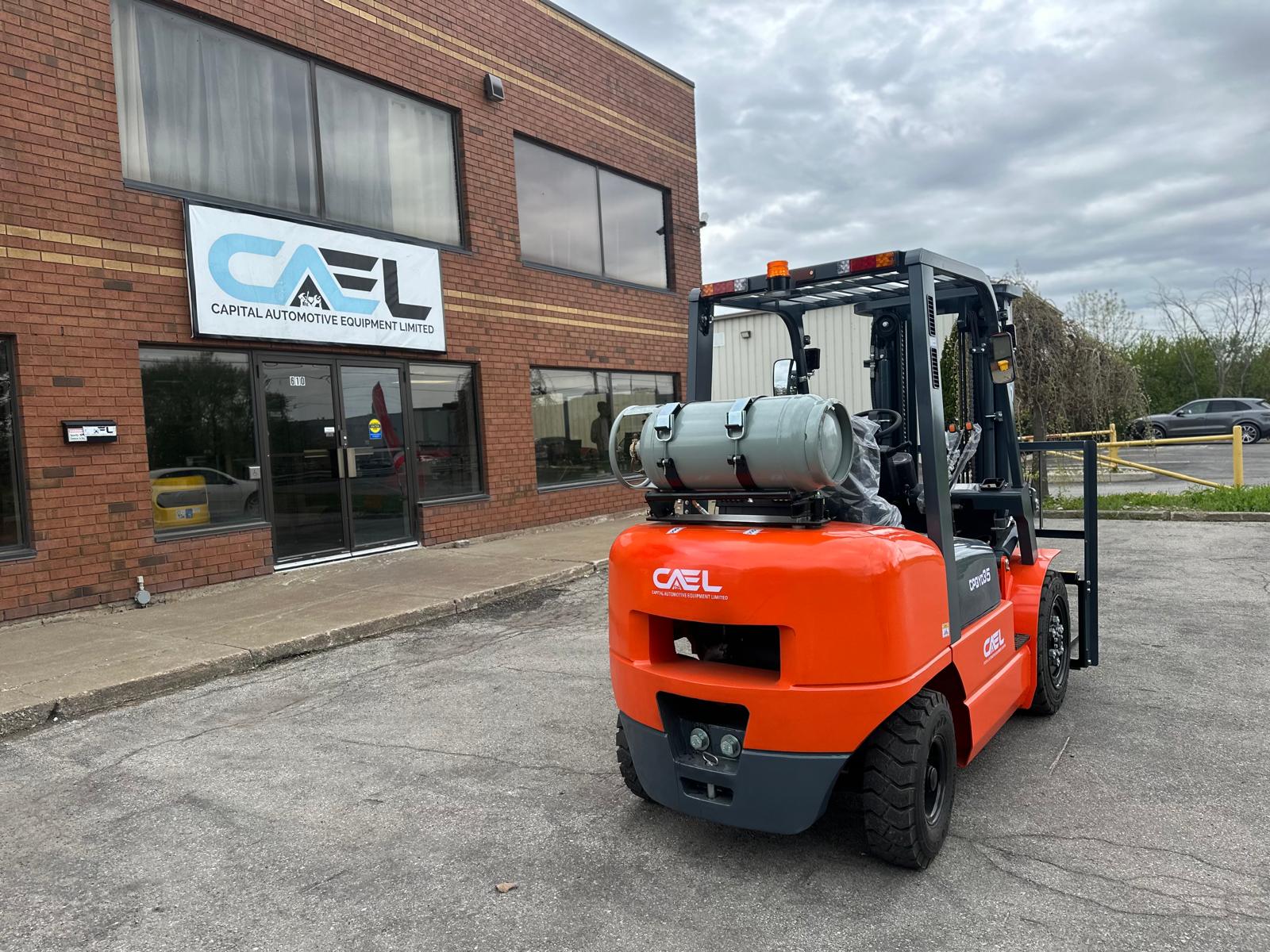

CAEL Forklift LPG 3 Ton with 3 stage side shift

Name: CAEL Forklift LPG 3 Ton with 3 stage side shift
Brand: My Store
Price: 30699.00 CAD
Availability: InStock

$30,699.00 CAD

$30,699.00 CAD ~~$30,699.00 CAD~~

Sale Sold out

Shipping calculated at checkout.

Hurry, only 3 left in stock

Quantity

Get quote now

We Accept

Low Prices
Warranty Included
Order Tracking

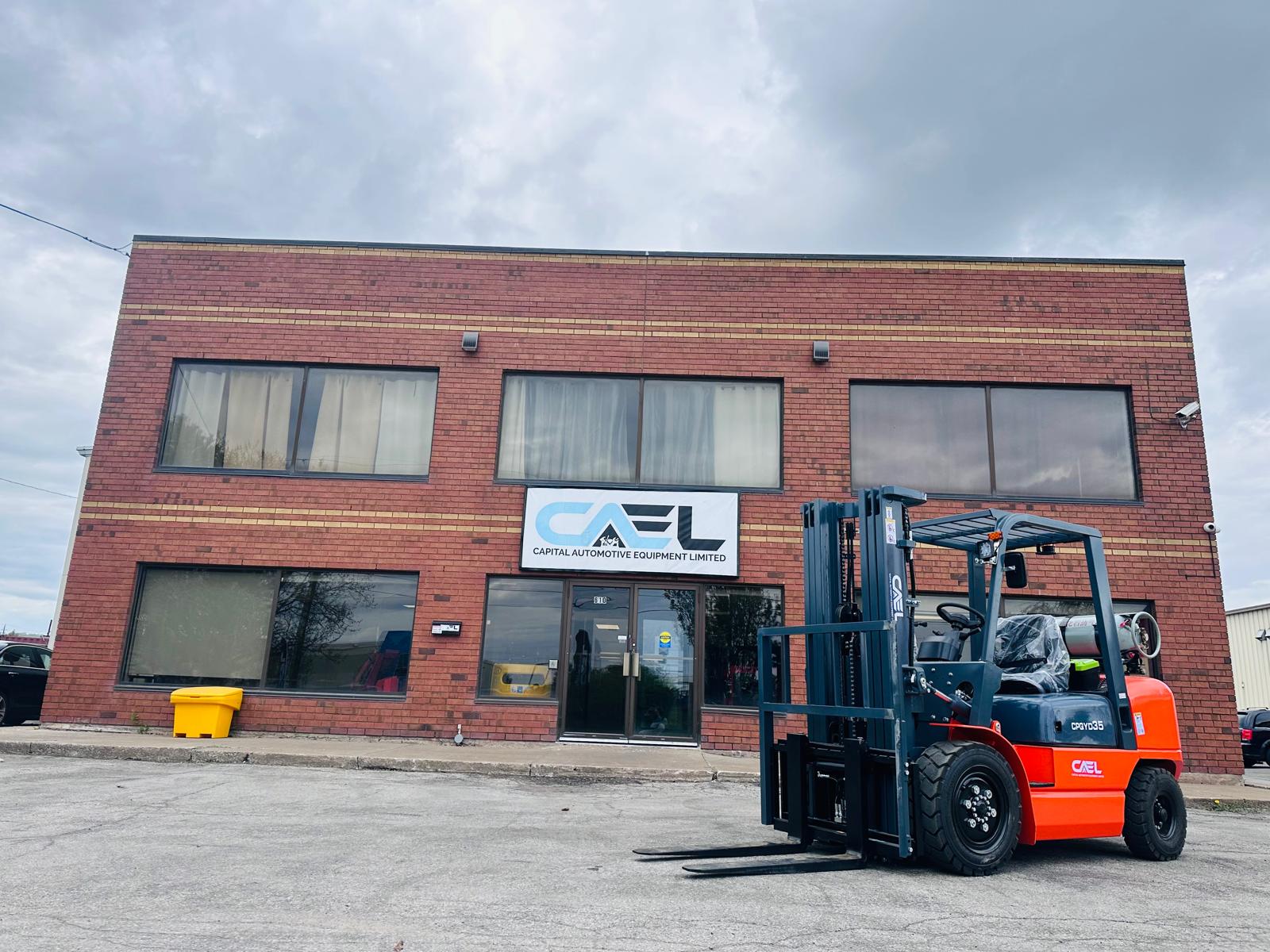

The CAEL-3FL is a robust and versatile dual-fuel forklift engineered to deliver exceptional performance in demanding industrial environments. Designed to operate on both LPG and gasoline, it offers operational flexibility, reduced emissions, and consistent power output. Powered by a dependable Kubota engine and equipped with a smooth power shift transmission, this forklift ensures reliability, efficiency, and superior productivity.

Ideal for warehouses, manufacturing facilities, logistics hubs, and distribution centers, the CAEL-3FL provides outstanding maneuverability, durability, and operator comfort for both indoor and outdoor applications.

General Specifications

Specification	Details
Model	CAEL-3FL
Power Type	LPG & Gasoline
Rated Capacity	3,000 kg (6,614 lbs)
Load Center	500 mm (19.6 in)
Operator Type	Drive-in Seat

Dimensions

Specification	Measurement
Height with Mast Retraction	2,065 mm (81.3 in)

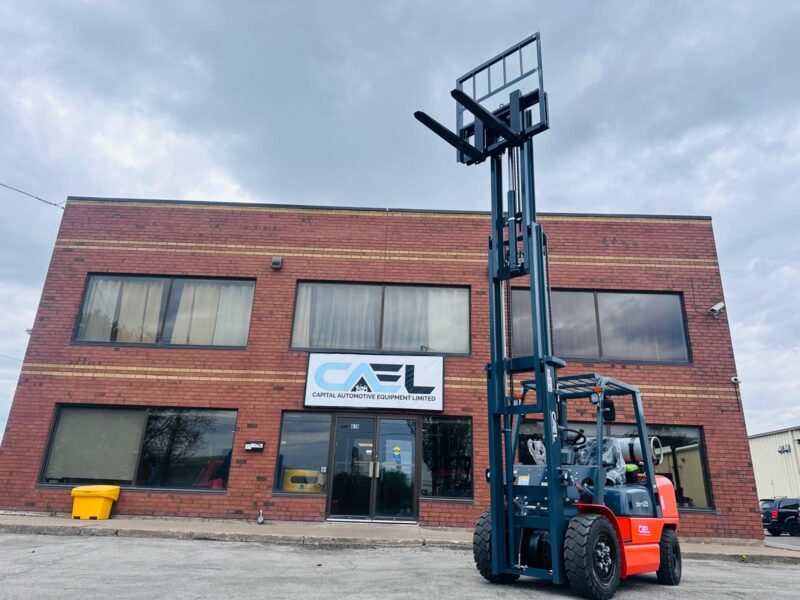

Maximum Lift Height	4,000 mm (157.5 in)
Mast Height	1,898 mm (74.7 in)
Free Lift Height	661 mm (26.0 in)
Front Overhang	479 mm (18.9 in)
Wheelbase	1,740 mm (68.5 in)
Minimum Ground Clearance	135 mm (5.3 in)
Overall Width	1,225 mm (48.2 in)
Overall Length (Without Forks)	2,695 mm (106.1 in)
Overhead Guard Height	2,090 mm (82.3 in)
Distance Between Forks	250–1,100 mm (9.8–43.3 in)
Tread (Front/Rear)	1,000 / 970 mm (39.4 / 38.2 in)
Turning Radius	2,070 mm (81.5 in)
Mast Tilt Angle (Forward/Backward)	6° / 6°
Fork Size (L × W × T)	1,070 × 125 × 45 mm (42.1 × 4.9 × 1.8 in)

Performance

Specification	Measurement
Max. Drive Speed (With/Without Load)	18 / 19 km/h
Lifting Speed (With Load)	440 / 480 mm/s
Lowering Speed (With/Without Load)	450 / 550 mm/s
Maximum Tractive Force	20 / 20 kN
Maximum Gradeability (With/Without Load)	20% / 20%

Weight

Specification	Measurement
Total Weight	4,270 kg (9,414 lbs)
Weight Distribution (Full Load – Front/Rear)	6,543 / 727 kg
Weight Distribution (No Load – Front/Rear)	1,708 / 2,562 kg

Wheels and Tyres

Specification	Details
Number of Wheels	2 Front / 2 Rear
Tyre Type	Pneumatic Tyres
Front Tyres	28 × 9–15–15PR
Rear Tyres	6.00–10–10PR

Braking System

Specification	Details
Service Brake	Hydraulic Pedal
Parking Brake	Mechanical Manual

Engine Specifications

Specification	Details
Engine Brand	Kubota
Rated Output	43.5 kW @ 2600 rpm
Displacement	2.5 L
Fuel Tank Capacity	60 L (15.85 gal)

Transmission

Specification	Details
Type	Power Shift Transmission
Gear Stages (Forward/Reverse)	1 / 1

Key Features & Benefits

Dual-Fuel Capability: Operates on LPG and gasoline for enhanced flexibility.
Reliable Kubota Engine: Ensures powerful, fuel-efficient, and consistent performance.
High Lifting Capacity: Handles loads up to 3,000 kg with ease.

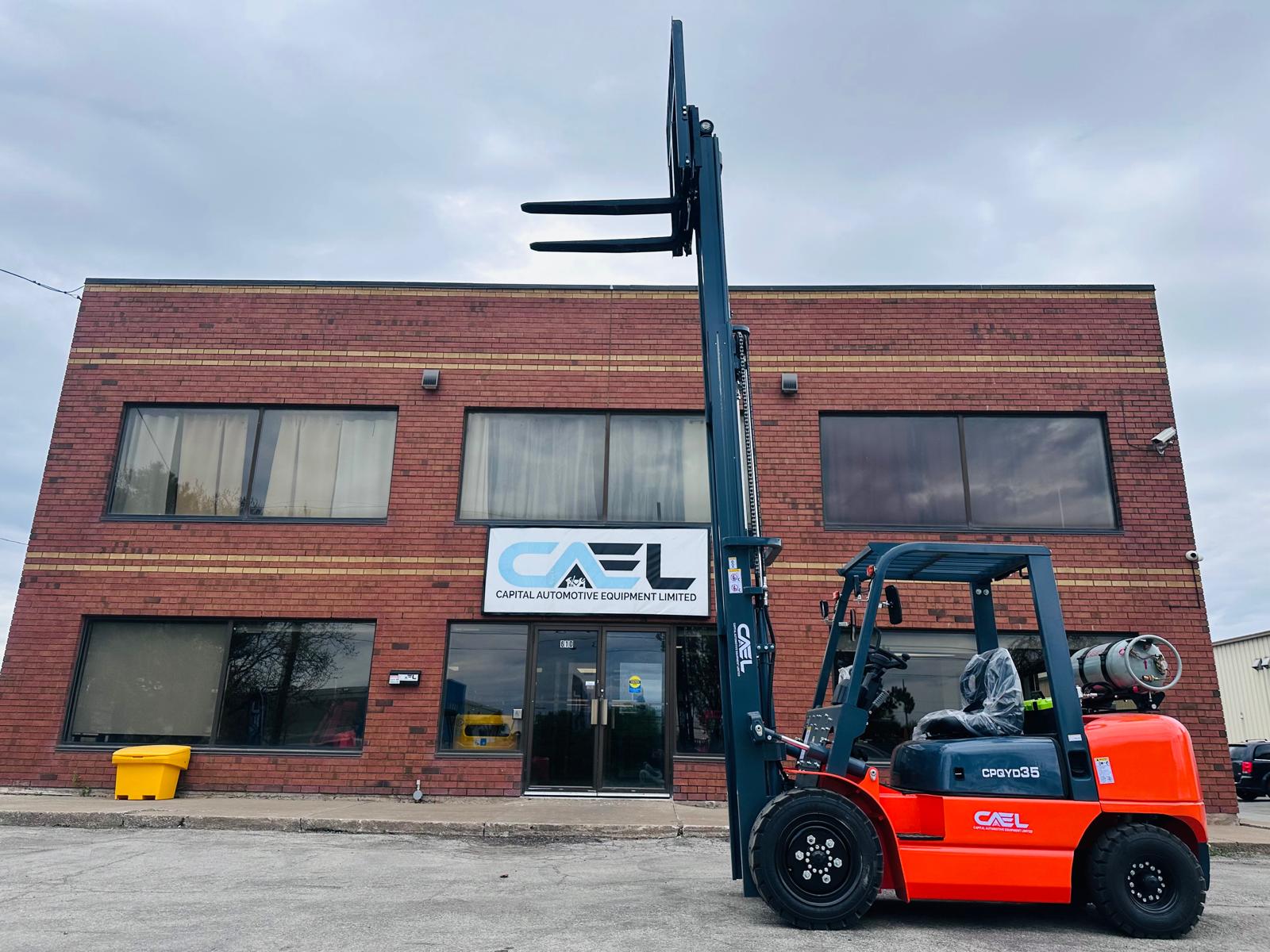

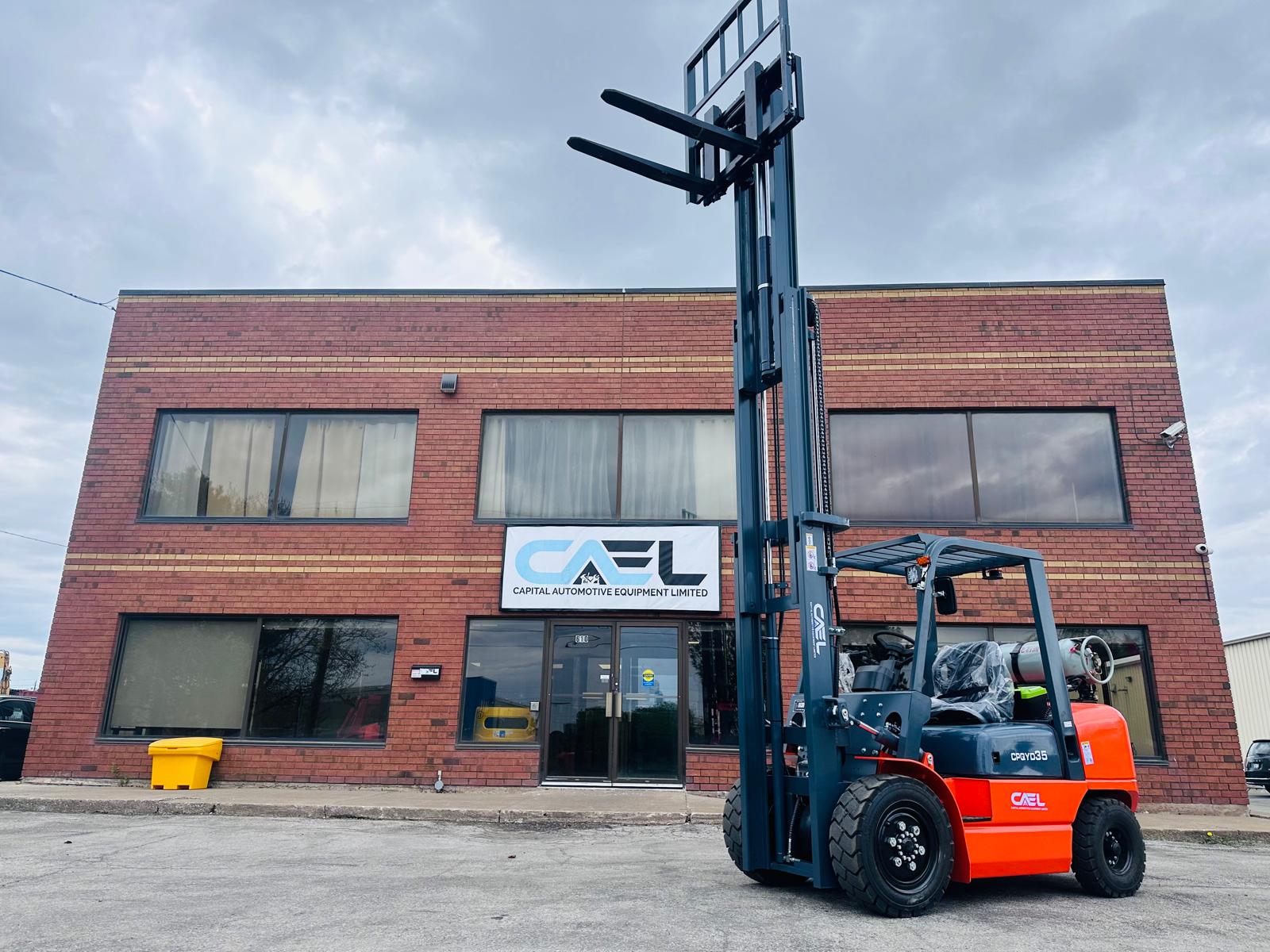

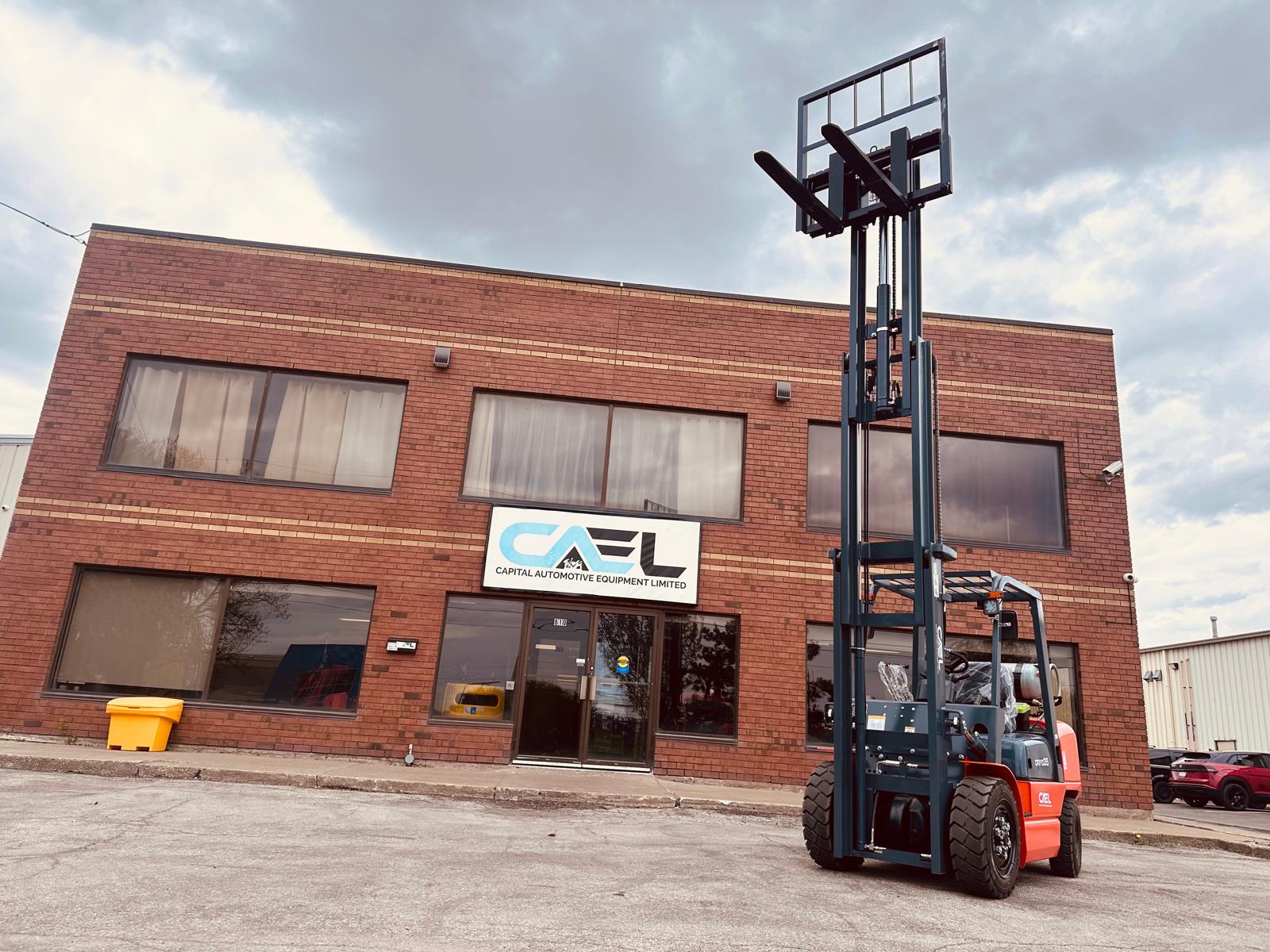

Excellent Lift Height: Reaches up to 4,000 mm for efficient stacking.
Compact Turning Radius: Ideal for confined warehouse spaces.
Smooth Power Shift Transmission: Enhances productivity and ease of operation.

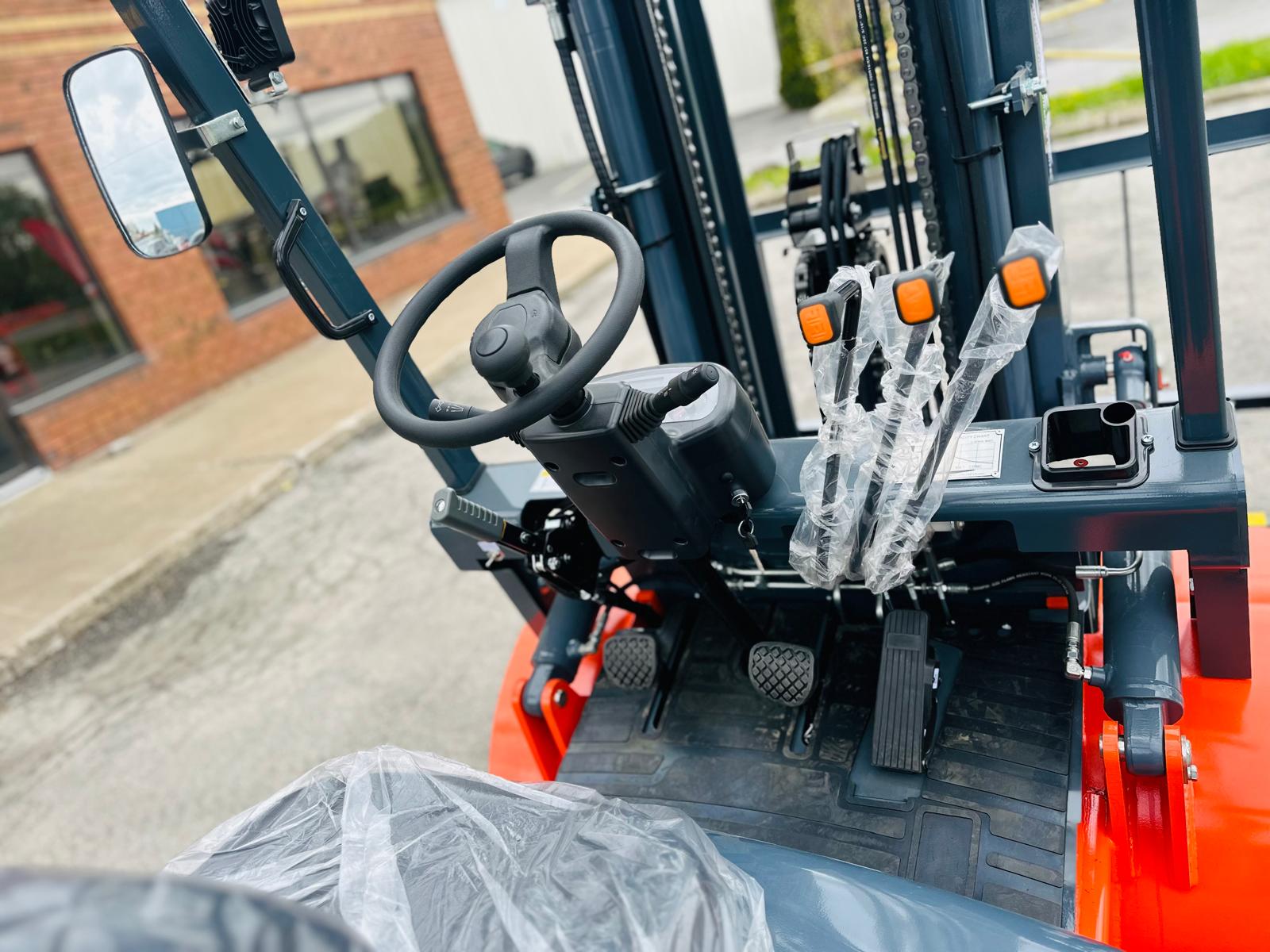

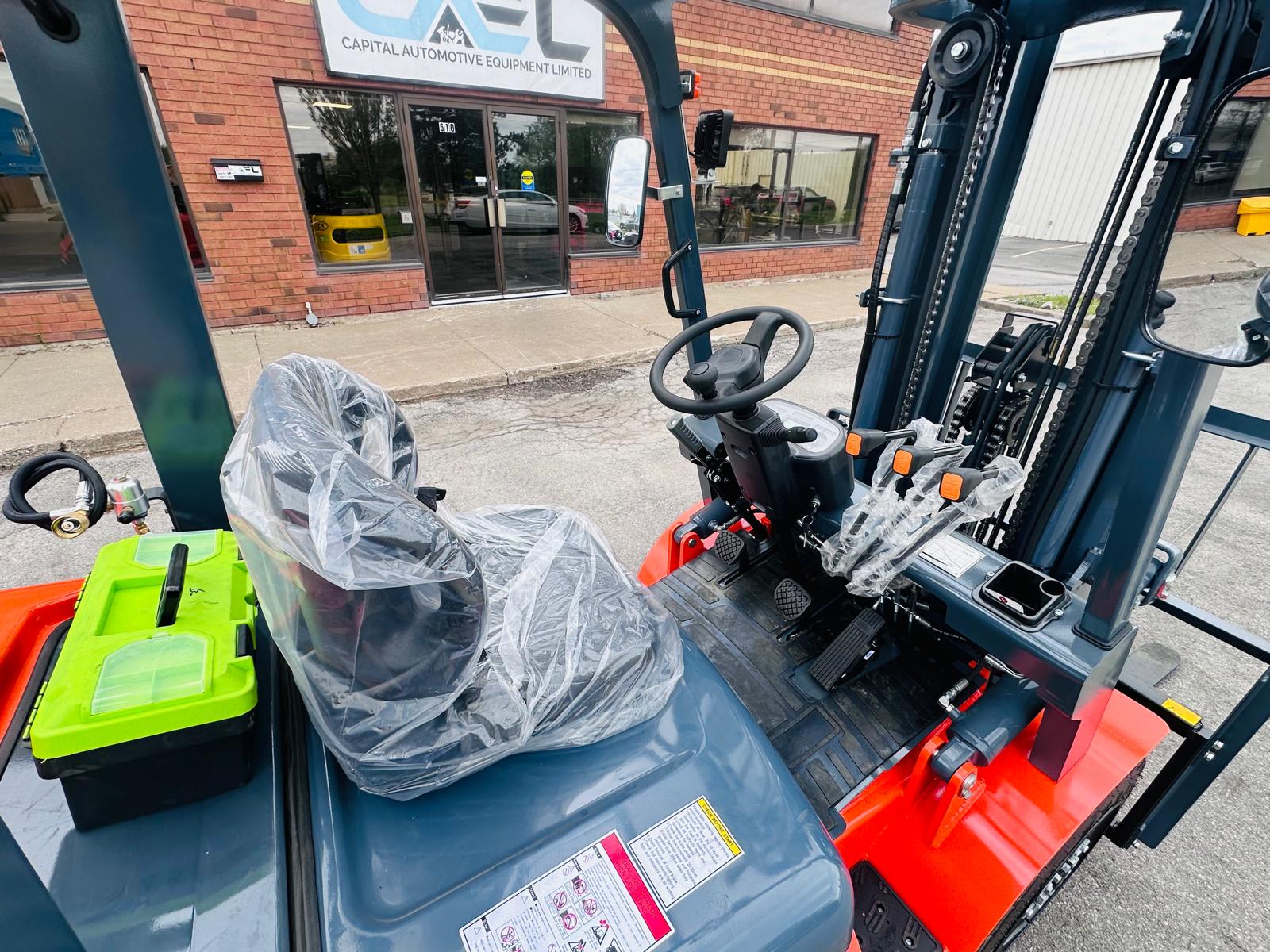

Ergonomic Operator Cabin: Provides comfort and safety during long shifts.
Durable Pneumatic Tyres: Suitable for indoor and outdoor applications.
Robust Construction: Built for long-term reliability and heavy-duty use.
Low Maintenance Costs: Ensures maximum uptime and operational efficiency.
