Description

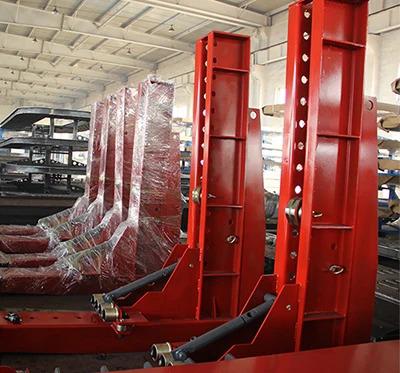

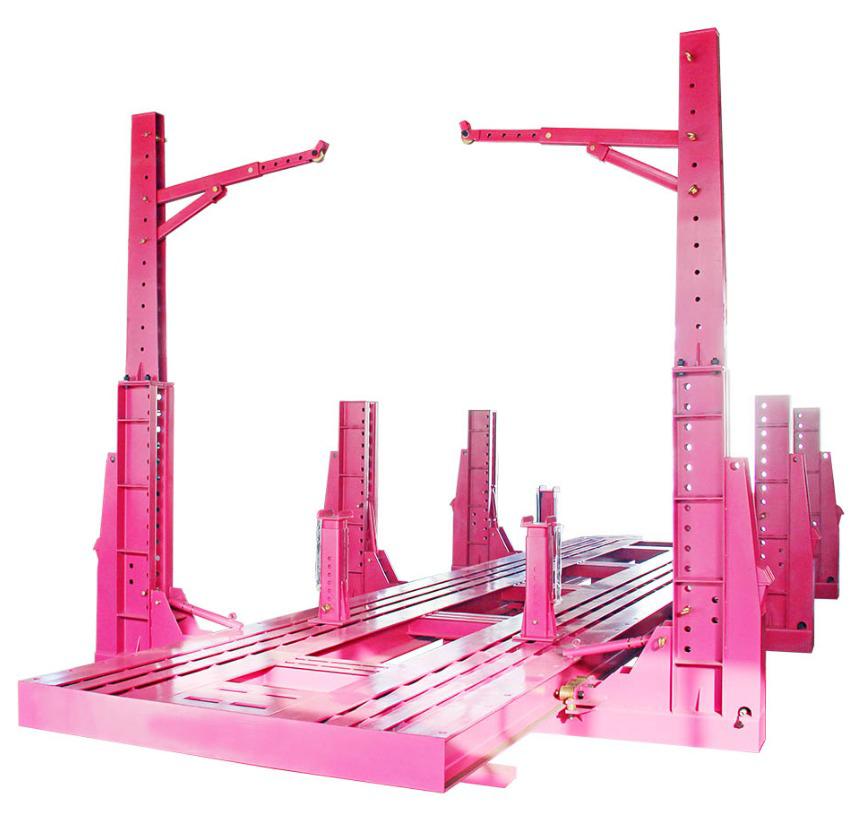

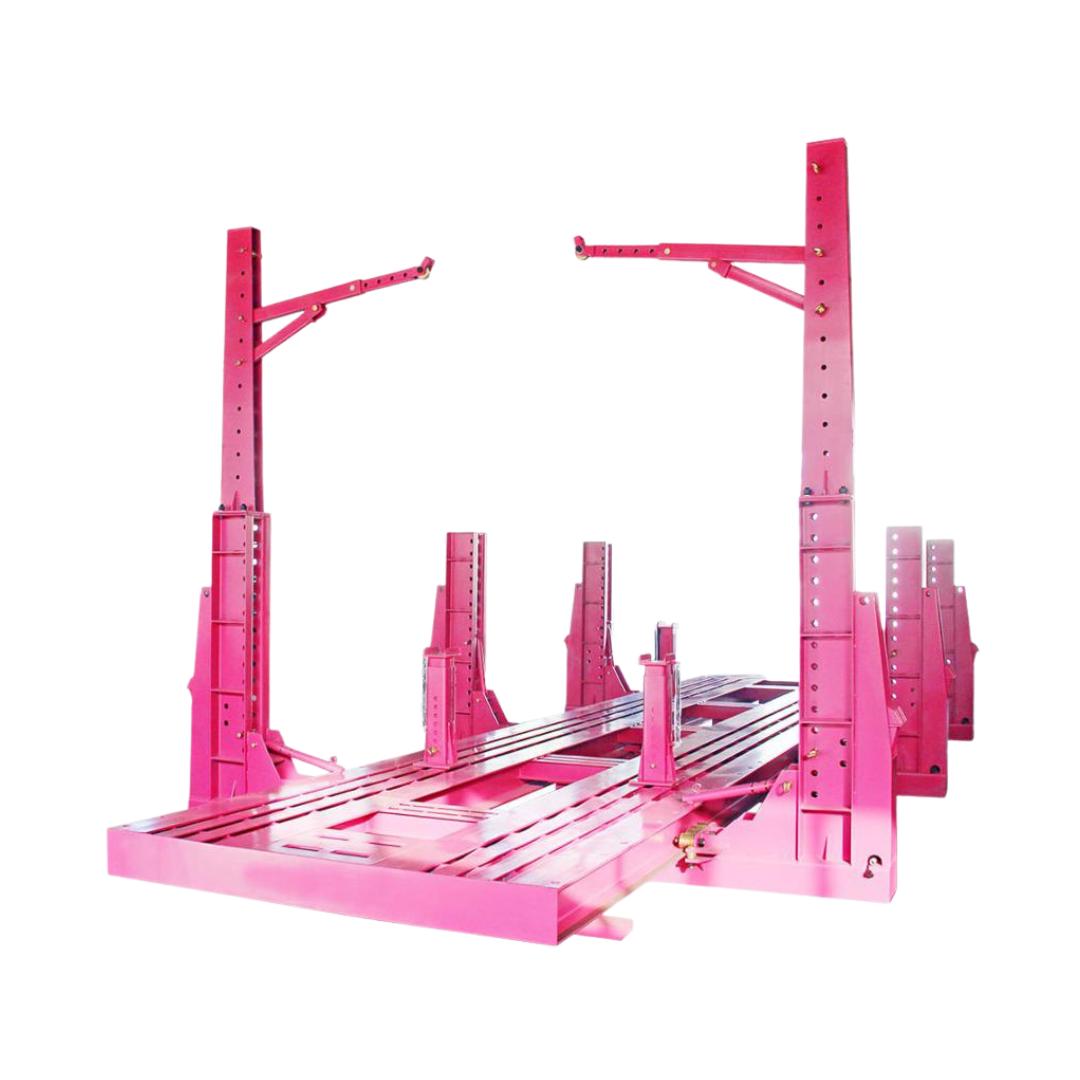

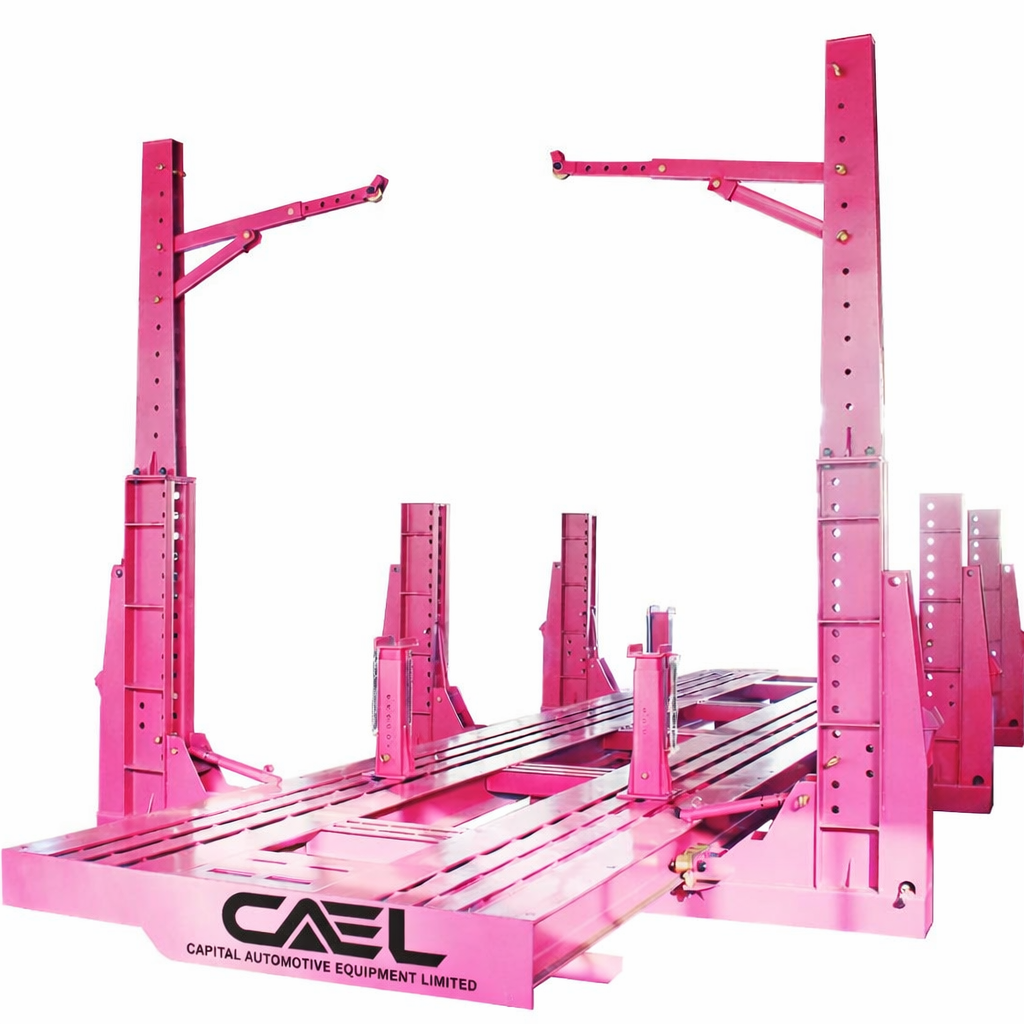

Frame Machine Heavy Duty 4-6 Pulling Towers (Model: FRM23-10)

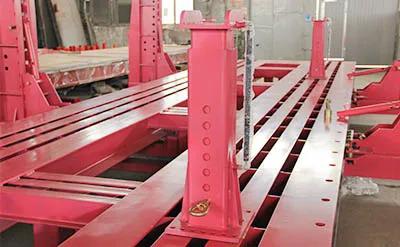

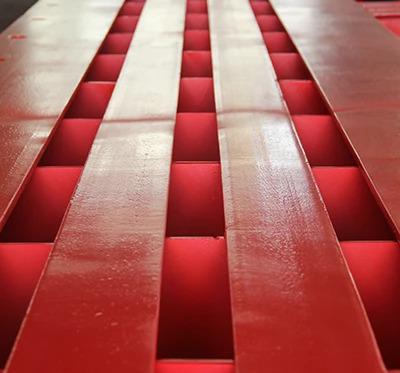

- Over length and super wide working platform can be used for repair heavy truck, passenger car, bus, trailer, and other large style vehicle
- Equipment could be installed in pit or on the ground, any accident vehicle could be moved on or up conveniently.
- Combination type of pulling tower could move around 270degrees working platform at will and fixed, maintenance without blind angle.
- The vehicle need to move, straighten the chassis and driving can by lateral stretch;

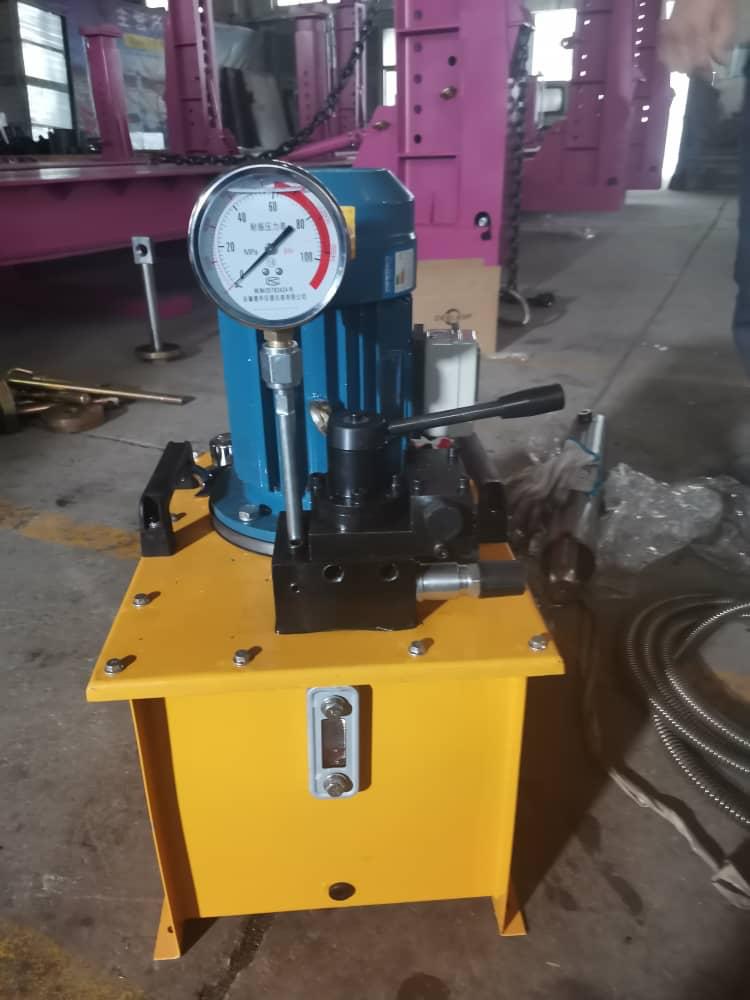

- Original imported hydraulic system, dynamic powerful, function reliable, long lifespan
-
With complete sheet metal scratch tool, consider
Specifications
Platform Length: 259.84 – 472″
Platform Width: 98.42″
Platform Height: 23.62″
Hydraulic Pressure: 70Mpa (10000 psi)
Post Max. Tension:10T
Post Working Range: 270 Degree
Tower number: 4-6 select

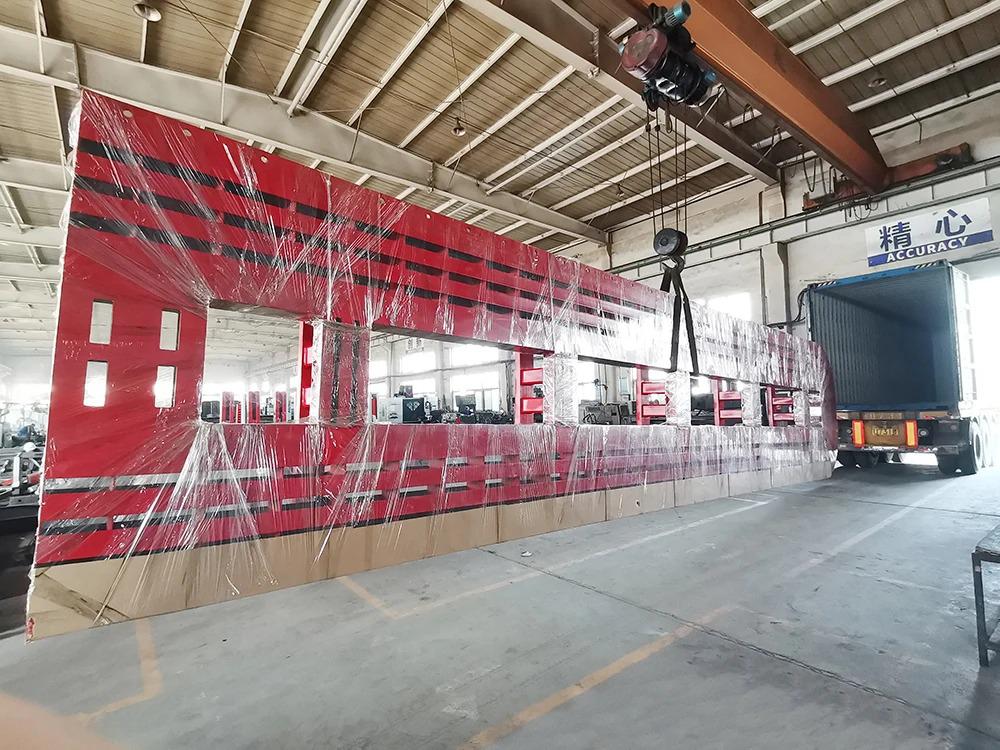

Package Wood Box and Cardboard

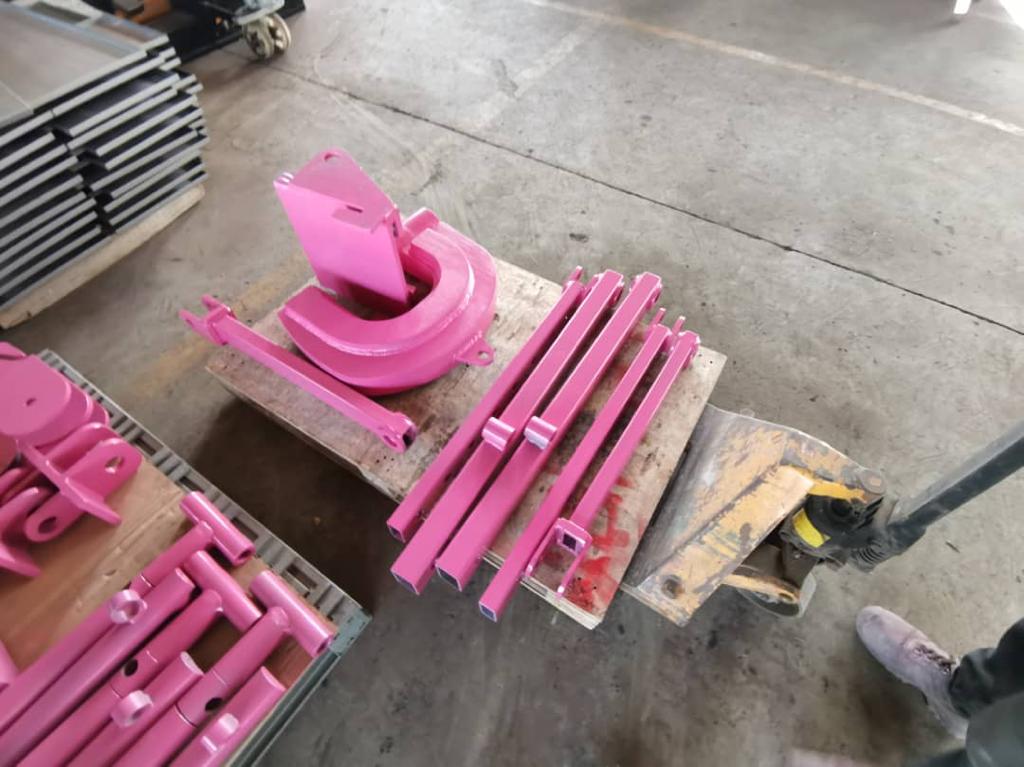

Standard Tools List
| Name |
Qty |
Name |
Qty |

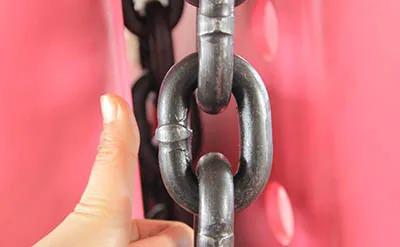

| Short Chain |
1 |
Quick Draw Bar |
1 |
| Box Clamp |
1 |
Pecial Wrench for Clamp |
1 |
| Small Clamp |
1 |
Handy Link |
1 |
| Right Angle Clamp |
1 |
Double Claw Hook |
1 |
| Over loading Pulling Clamp |
1 |
Boltless Strut Tower Puller |
1 |
| Grab Hook |
1 |
Cable Sling |
1 |
| C Type Clamp |
1 |
Nylon Sling |
1 |
| Crescent Wrench |
1 |
Safety Rope |
2 |
| Mini Clamp |
1 |
Down Pulling Assembly |
1 |
| Chain Connector |
1 |
Trolly Tool |
1 |
| Deep Hook Set |
1 |
Drive Ramp |
2 |
