Description

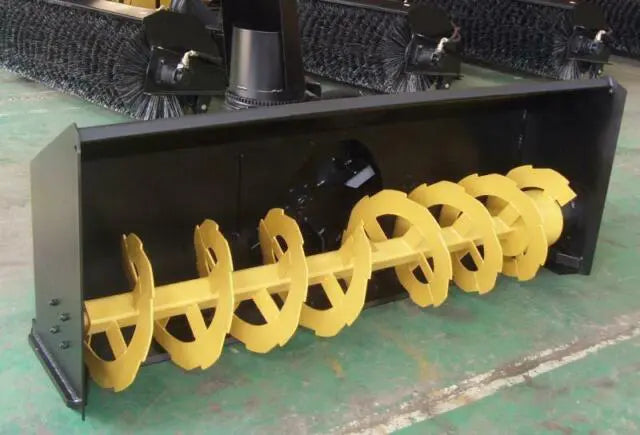

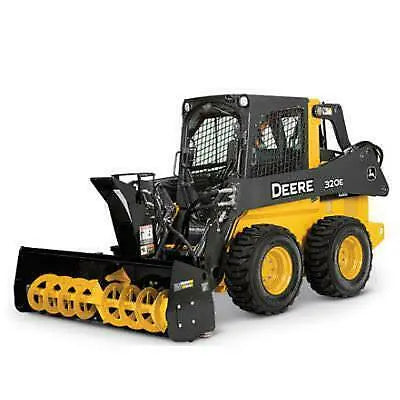

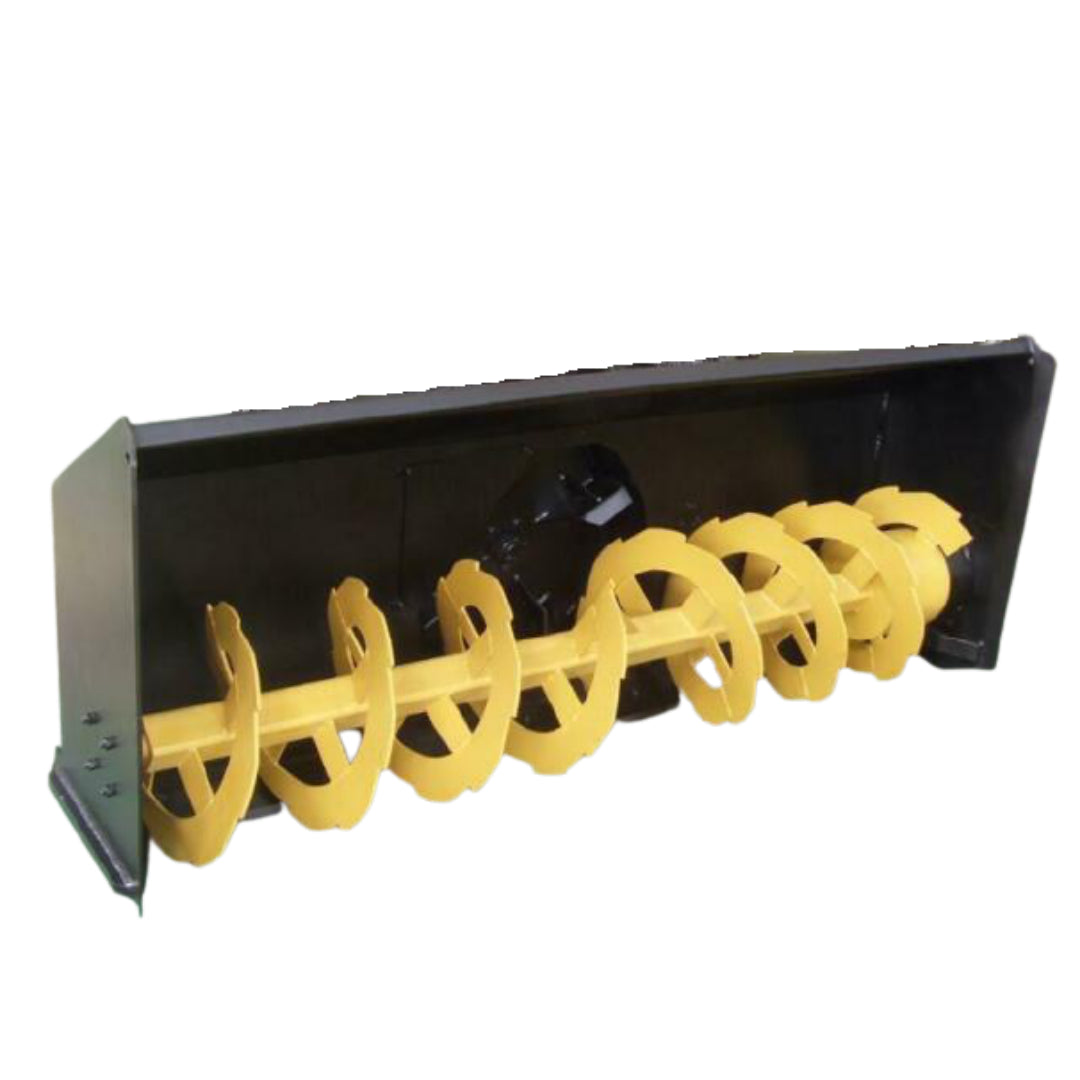

CAEL offers the highest quality heavy-duty skid steer Snow Blower
Specifications:
Working Width is 68”
The distance of the snow throw is greater than or equal to 12000mm.
Operating pressure 17- 21Mpa.
Operating flow:100-125L/min.
| Product Dimension |
1800mm*1170mm*1540mm/5.91’*3.84’*5.05′ |
| Product Weight |
520kg/1144lbs |
| Product Material |
Q345 Steel |
| Hydraulic Motor Power |
15HP~45HP |
| Hydraulic Motor Pressure |
20MPa |
| Surface Treatment Technology |
Plastic Powder Coating |
| Working Width |
1600mm/62.99″ |
| Working Rotation Speed |
560RPM~1680RPM |
| Mowing height |
465mm/18.31″ |
| Blowing Distance |
15m/49.21’ |
| Blower Machine Diameter |
615mm/24.21″ |
| Blower Auger Diameter |
465mm/18.31″ |
