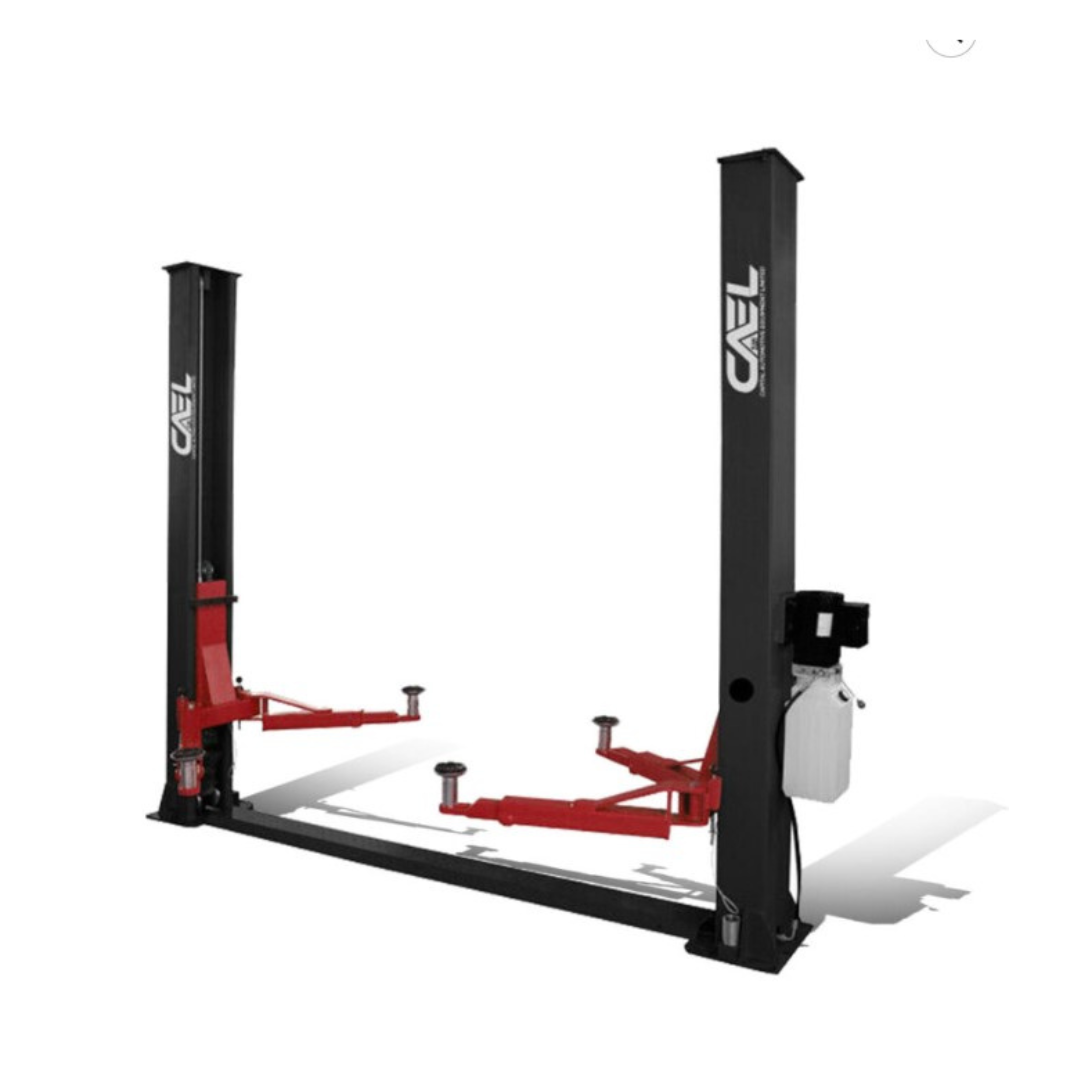

The CAEL HP9 Two-Post Clear Floor Hoist is engineered for professional automotive workshops that require dependable lifting power for today’s heavier passenger vehicles, SUVs, and light-duty trucks. With an impressive 9,000 lb (4,000 kg) lifting capacity, this lift is designed to handle demanding daily service work while maximizing under-vehicle access.
Its clear floor design eliminates floor obstructions between posts, creating a safer and more efficient workspace for technicians. Symmetrical lifting arms provide excellent reach and balanced vehicle positioning, making it ideal for maintenance, inspections, suspension work, tire service, and repairs.
Built with advanced safety systems and durable components, the HP9 offers the performance and reliability modern service facilities depend on.
Key Features
9,000 lb (4,000 kg) Lifting Capacity – Suitable for cars, SUVs, pickups, and many four-door trucks.
Clear Floor Design – Unobstructed floor space for cleaner workflow and easier movement.
ETL & CSA Certified – Meets recognized North American quality and safety standards.
Dual-Side Lock Release – Convenient manual release from either side.
Mechanical Safety Latches – Reliable locking system for added operator safety.
Door Anti-Crush Rubber Protection – Helps protect vehicle doors during service.
Synchronized Hydraulic Cylinders – Smooth and balanced lifting operation.
Cable Leveling System – Independent load distribution for stable lifting.
Swing Arms with Rubber Pads – Wear-resistant contact pads for secure lifting points.
Durable Powder-Coated Finish – Long-lasting resistance to wear and corrosion.
Standard Power Supply: 220V
Technical Specifications
Model: HP9
Lifting Capacity: 8,818 lb (4,000 kg / 9,000 lb class)
Overall Width: 131.5 in (3,340 mm / 10 ft 11.5 in)
Overall Height: 108.7 in (2,761 mm / 9 ft 0.7 in)
Minimum Lift Height: 3.9 in (99 mm)
Maximum Lift Height: 71 in (1,803 mm / 5 ft 11 in)
Voltage: 220V Standard
Finish: Industrial powder-coated steel
Built for Professional Efficiency
The CAEL HP9 is an excellent solution for busy repair shops seeking a durable and space-efficient two-post hoist with strong lifting capability and advanced safety features. Its clear floor structure and symmetrical arm design help technicians work faster and more comfortably throughout the day.
