Advanced Tire Compression & Space-Saving Solution for Transport and Storage

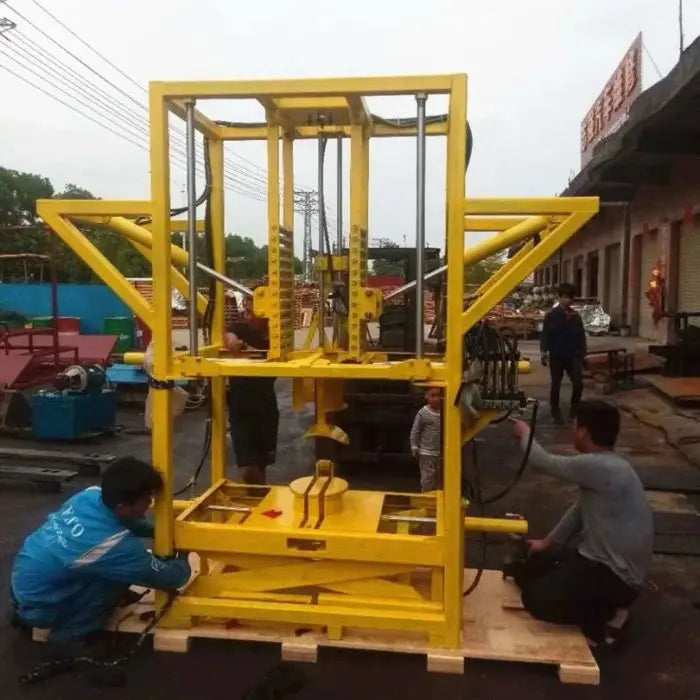

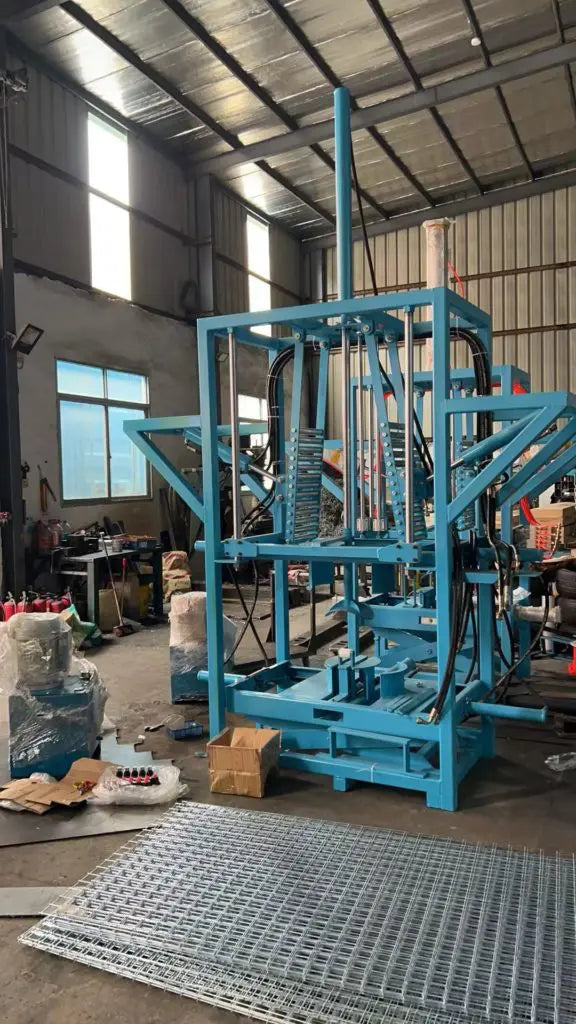

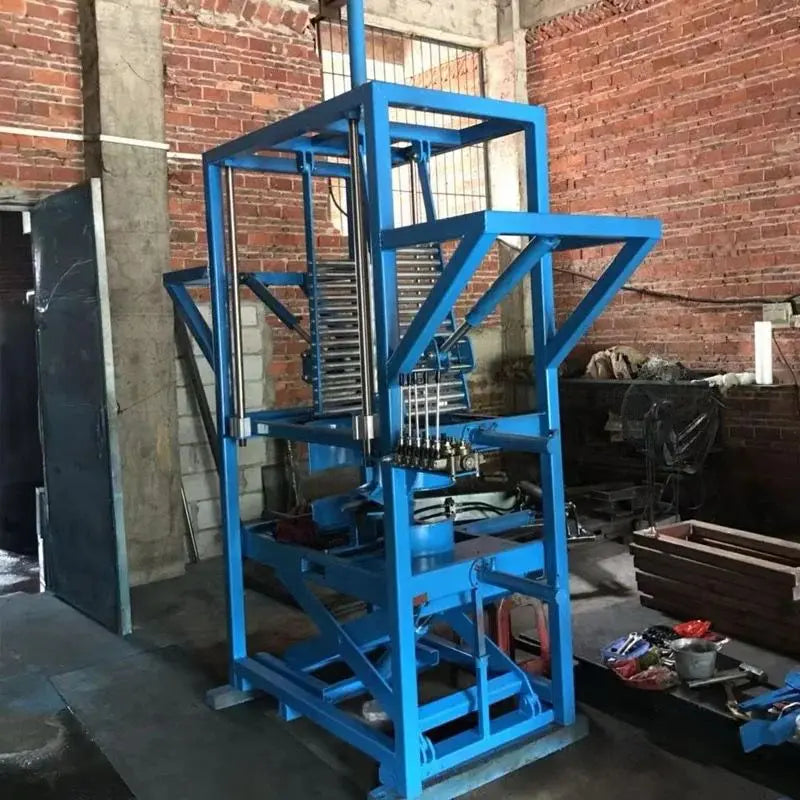

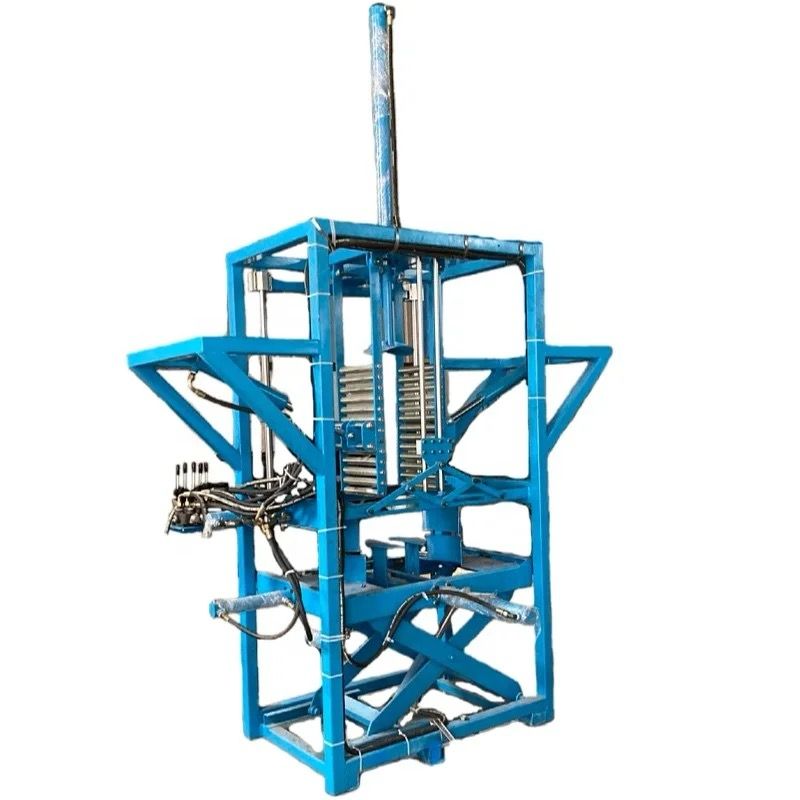

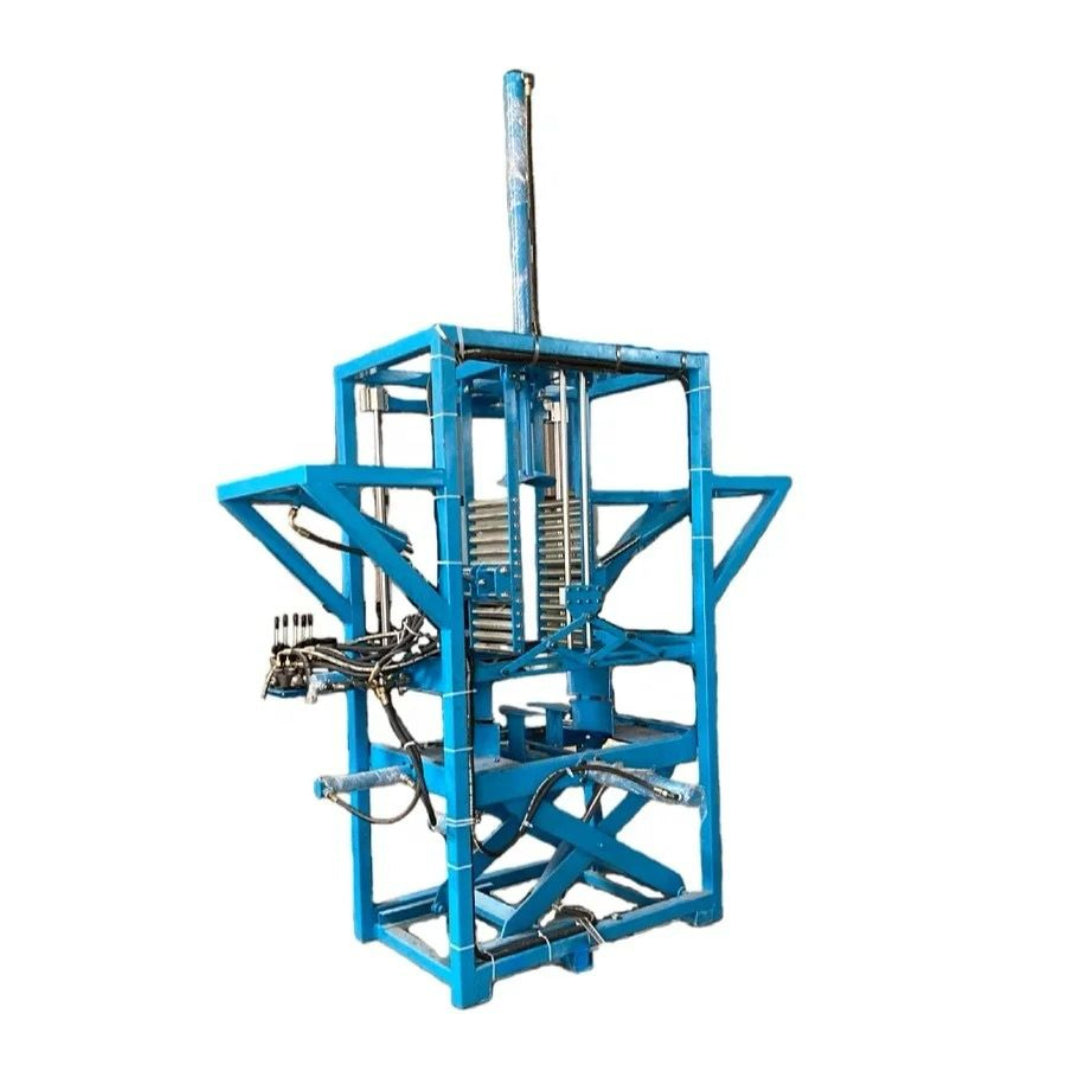

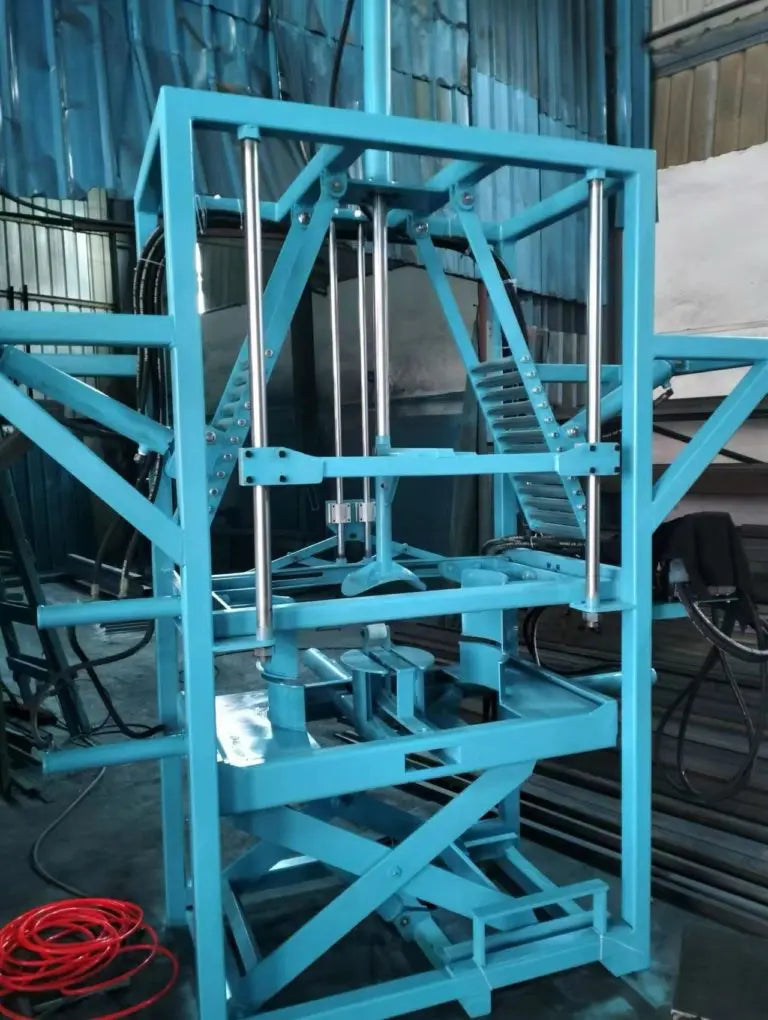

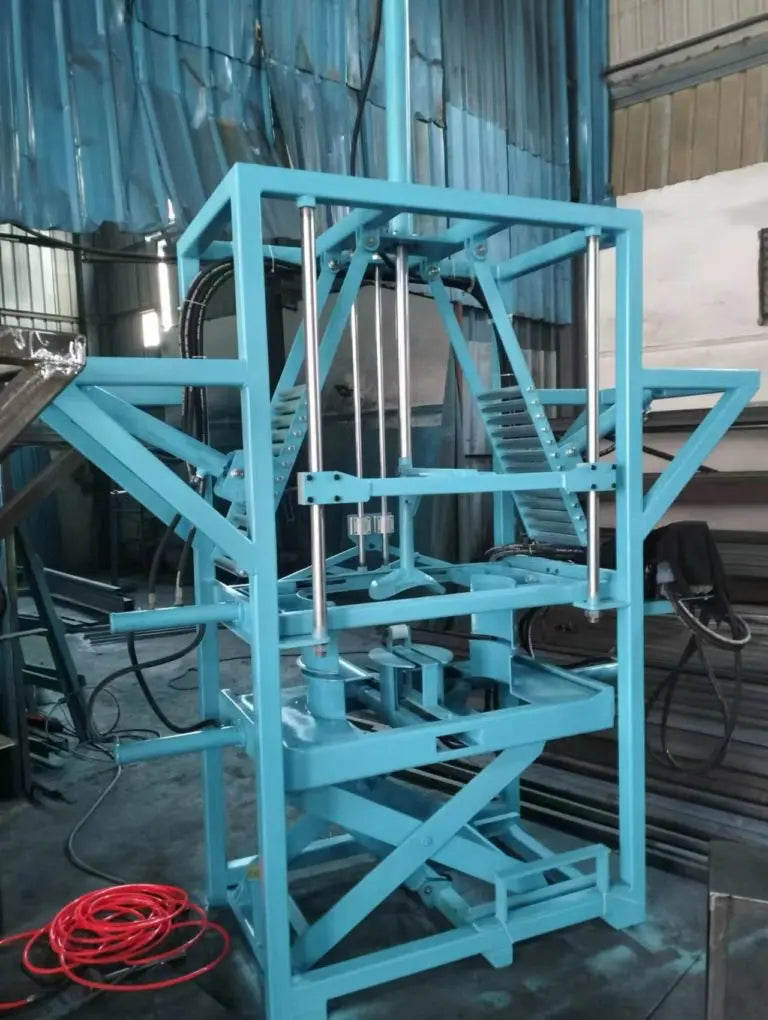

The CAEL COT-9 Hydraulic Tire Tripling Machine is an innovative industrial solution engineered to reduce tire transportation and storage costs by transforming smaller tires into larger, space-efficient stacked assemblies. Designed for tire distributors, warehouses, exporters, recycling centers, and logistics operations, the COT-9 helps maximize shipping container capacity and warehouse efficiency.

Developed through advanced independent engineering and proudly offered under the CAEL / Mactant line, this machine provides a practical and cost-effective approach to modern tire management.

By optimizing wheel space and reducing empty volume, the COT-9 can significantly lower freight expenses and improve storage density.

Key Benefits

• Reduces Transportation Costs – Maximizes container and truckload efficiency.
• Optimizes Warehouse Storage – Saves valuable floor and rack space.
• Hydraulic Powered Operation – Smooth, powerful, and efficient performance.
• Heavy-Duty Industrial Construction – Built for daily commercial use.
• Handles Multiple Tires at Once – Increased productivity and faster processing.
• Improves Logistics Efficiency – Better tire stacking and shipment organization.
• User-Friendly Control System – Easy operation with precise controls.

Main Components & Functions

Control Panel

• User-friendly interface for simple machine operation
• Precise control over transformation cycles

Clamp & Release System

• Secure tire positioning during operation
• Smooth release for fast workflow

Lift Up / Lift Down System

• Controlled platform movement for loading and positioning tires
• Enhances efficiency and operator control

Tire Expander Clamp

• Designed to expand and secure tires effectively
• Helps fit smaller tires into larger tire assemblies

Press Breaker / Press Down System

• Controlled compression and expansion force
• Efficient tire reshaping and stacking process

Technical Specifications

• Model: COT-9
• Machine Type: Hydraulic Tire Tripling Machine
• Voltage: 220V
• Maximum Tire Diameter: 95 cm (37.4 in)
• Maximum Tire Width: 30 cm (11.8 in)
• Hydraulic Motor Power: 5 kW
• Lifting Platform Capacity: 300 kg (661 lb)
• Oil Pressure: 20 MPa
• Oil Cylinders: 5 pcs
• Tire Load Capacity: 5 Wheels

Machine Dimensions (L × W × H)

• Length: 87.0 in (2210 mm / 7 ft 3 in)
• Width: 37.01 in (940 mm / 3 ft 1 in)
• Height: 127.17 in (3230 mm / 10 ft 7 in)

Packing Size (L × W × H)

• Length: 95.28 in (2420 mm / 7 ft 11 in)
• Width: 32.28 in (820 mm / 2 ft 8 in)
• Height: 96.46 in (2450 mm / 8 ft)

Weight

• 850 kg (1,873.9 lb)

Ideal Applications

✔ Tire distributors
✔ Tire exporters
✔ Warehouse operations
✔ Logistics companies
✔ Tire recycling centers
✔ Automotive parts wholesalers

Why Choose the CAEL COT-9?

The CAEL COT-9 Tire Tripling Machine offers a modern and highly effective way to reduce freight costs, improve warehouse storage, and increase tire handling efficiency. It is an ideal investment for businesses managing large tire volumes.

Request a Quote

Contact us today for pricing, stock availability, shipping options, and setup support tailored to your business operations.
