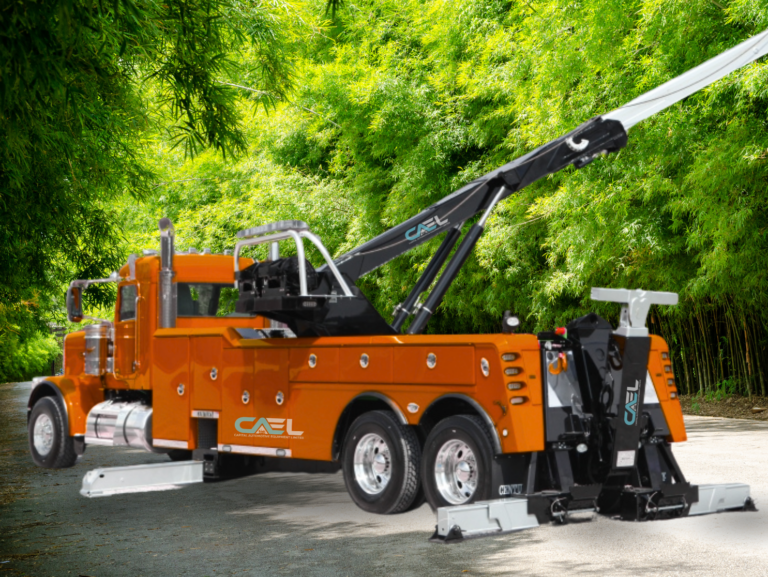

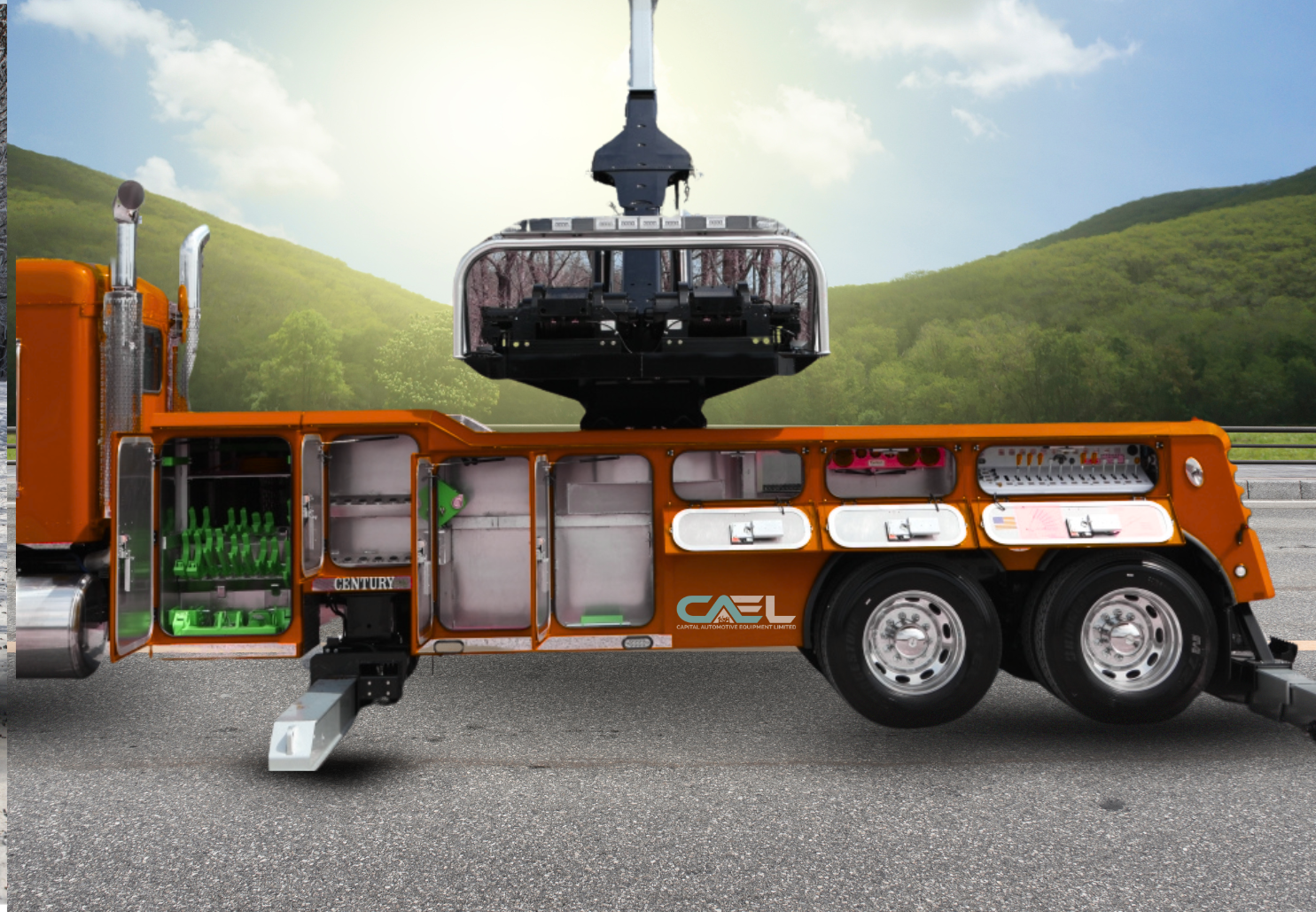

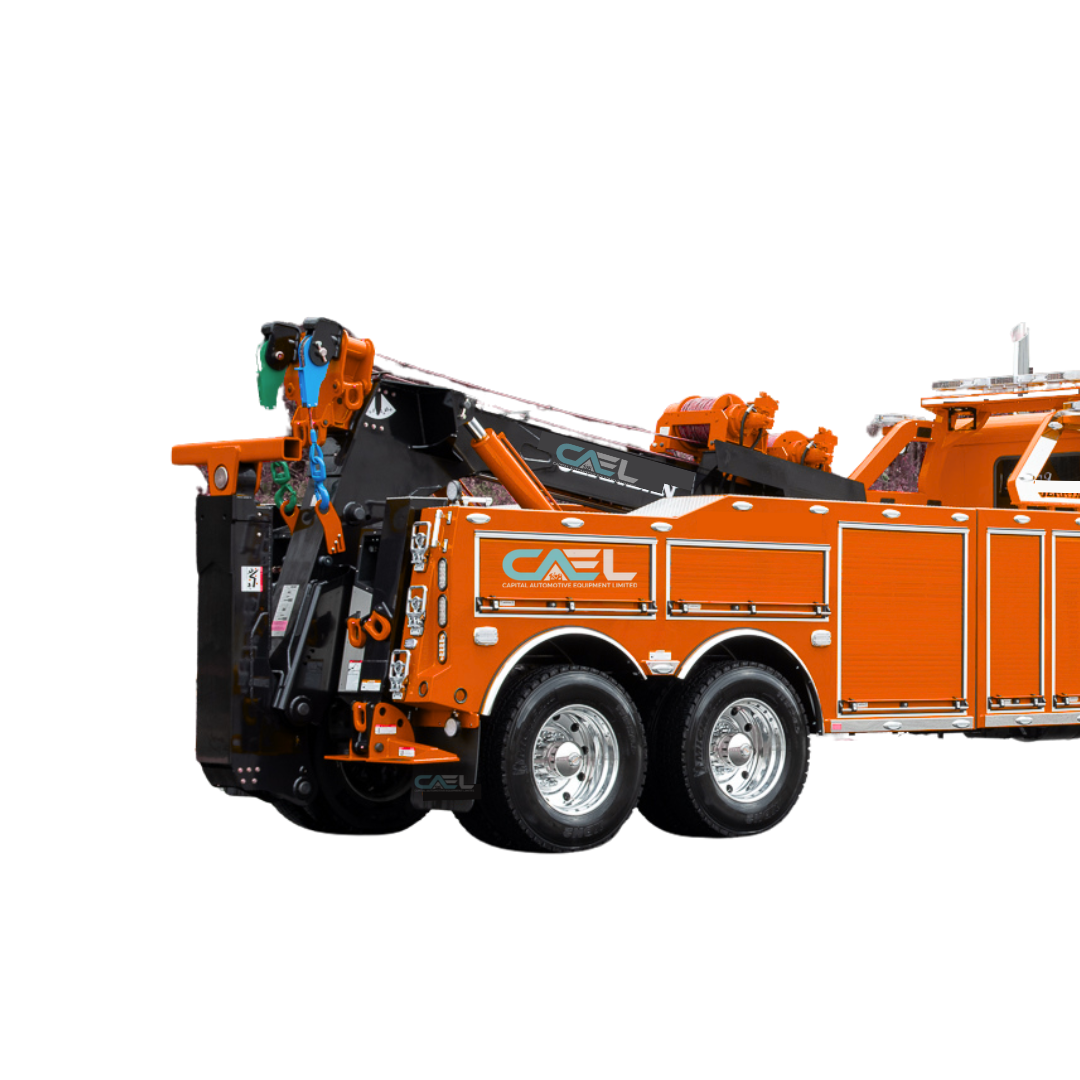

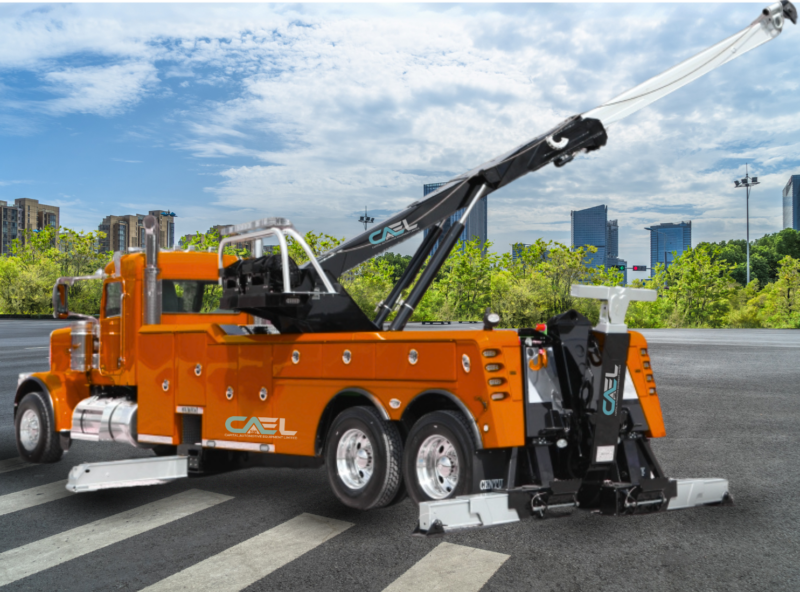

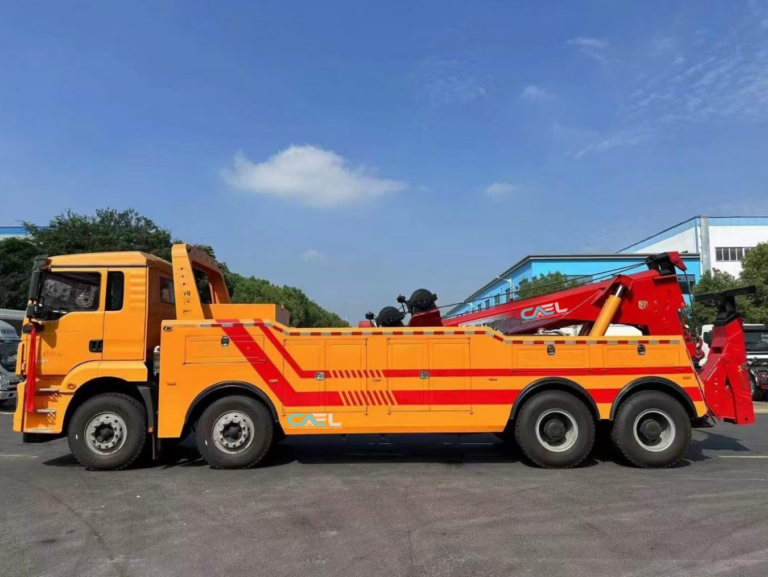

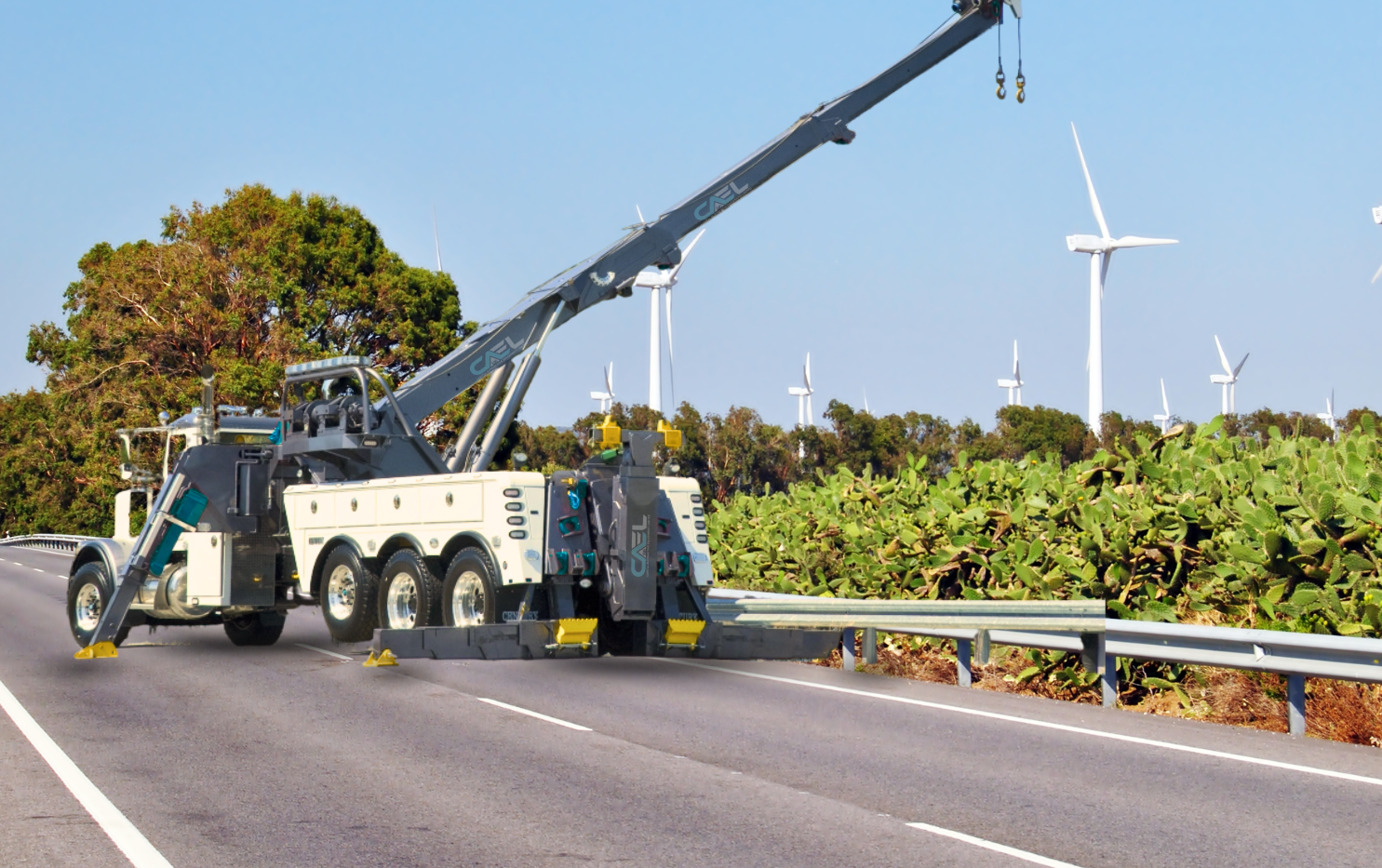

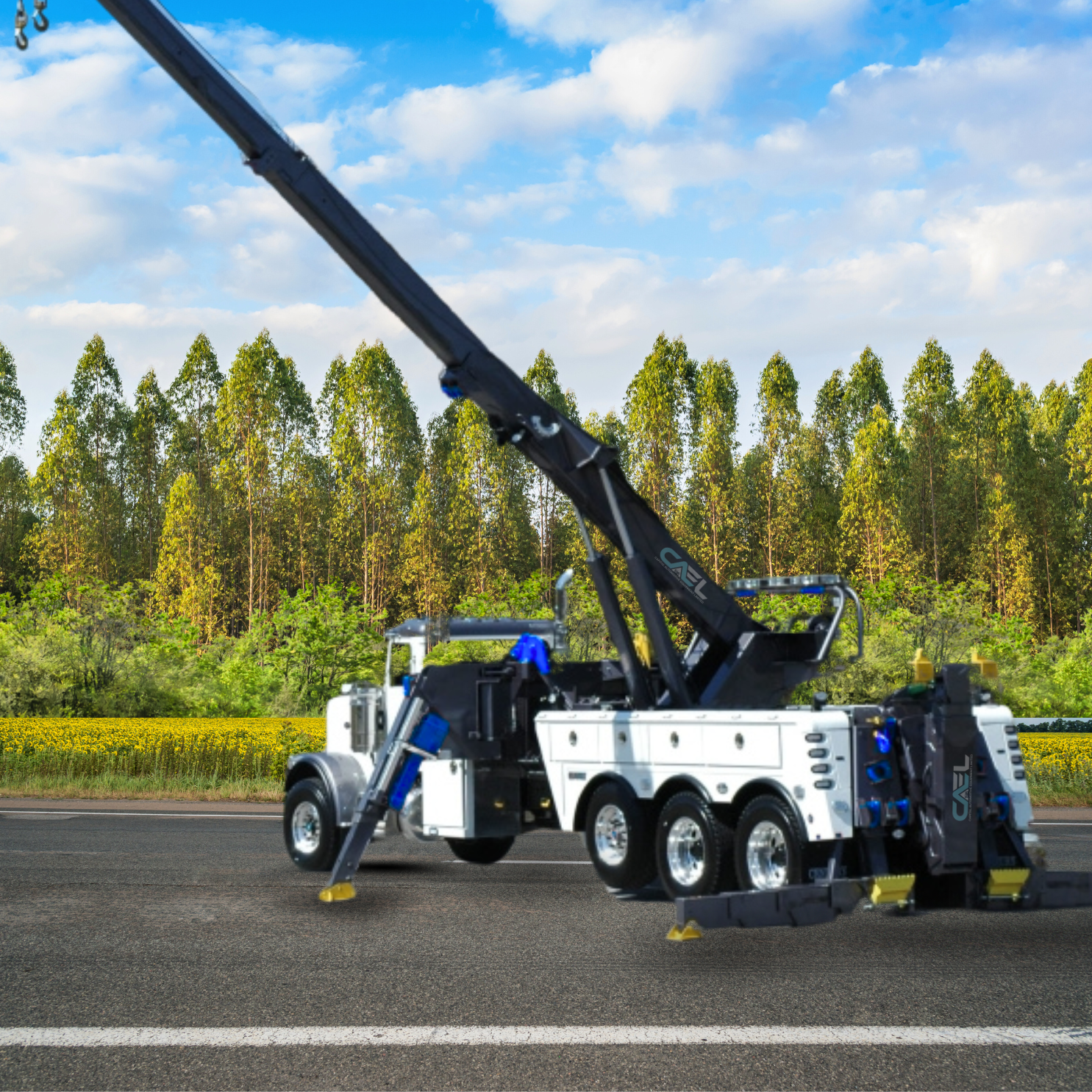

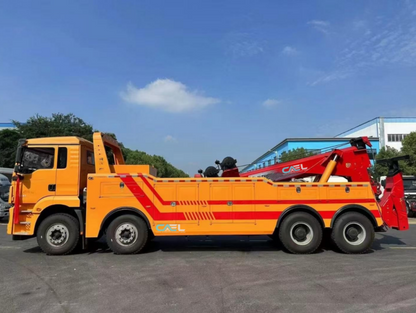

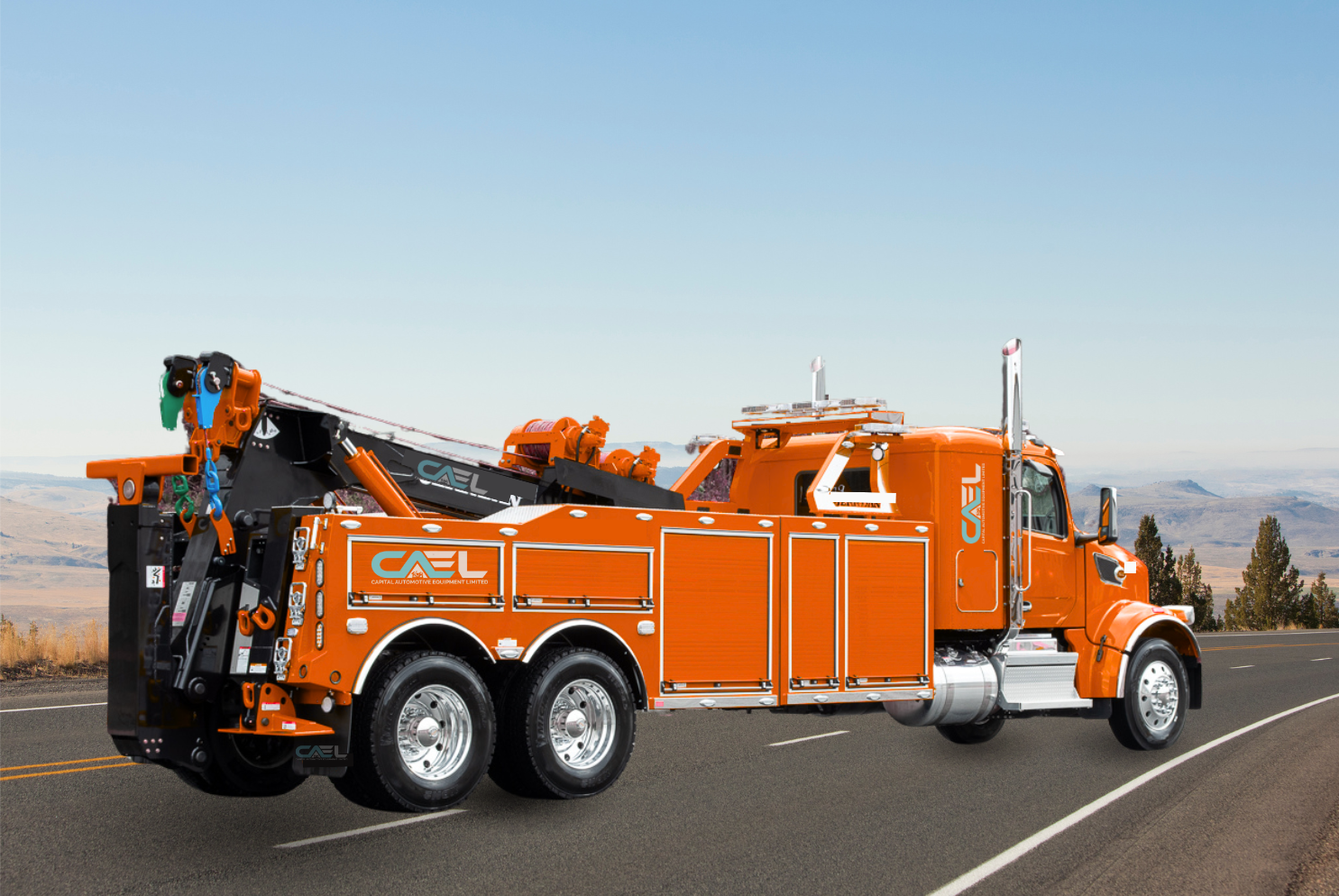

CAEL Heavy Duty 30 Ton Tow Truck Wrecker
High-Performance Recovery Power • Dual Winches • Professional Towing Solution
The CAEL Heavy Duty 30 Ton Tow Truck Wrecker is engineered for demanding commercial towing, roadside recovery, industrial lifting, fleet support, transport rescue, and municipal service operations.
Built with a rugged steel body and advanced hydraulic systems, this unit delivers dependable performance, strong lifting capability, and excellent towing versatility. Featuring a 30 ton boom capacity, 25 ton tow rating, dual 10 ton planetary winches, and professional underlift system, it is ideal for operators who need reliable medium-heavy recovery equipment.
Key Features & Benefits
Strong 30 Ton Boom Capacity
- Retracted: 30 Ton (66,100 lbs)
- Extended: 15 Ton (33,000 lbs)
Excellent lifting power for trucks, buses, trailers, and equipment.
Dual 10 Ton Planetary Winches
- 2 × 10 Ton (22,000 lbs) winches
- Strong pulling force for recovery operations

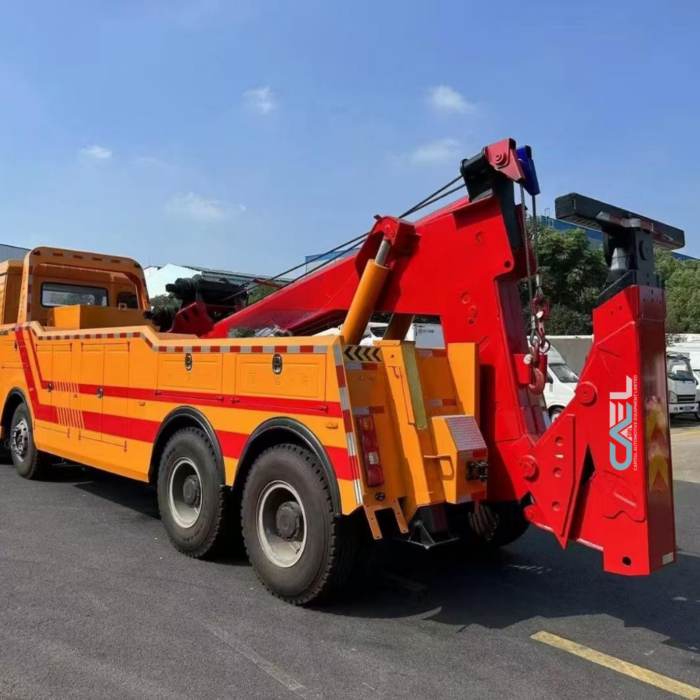

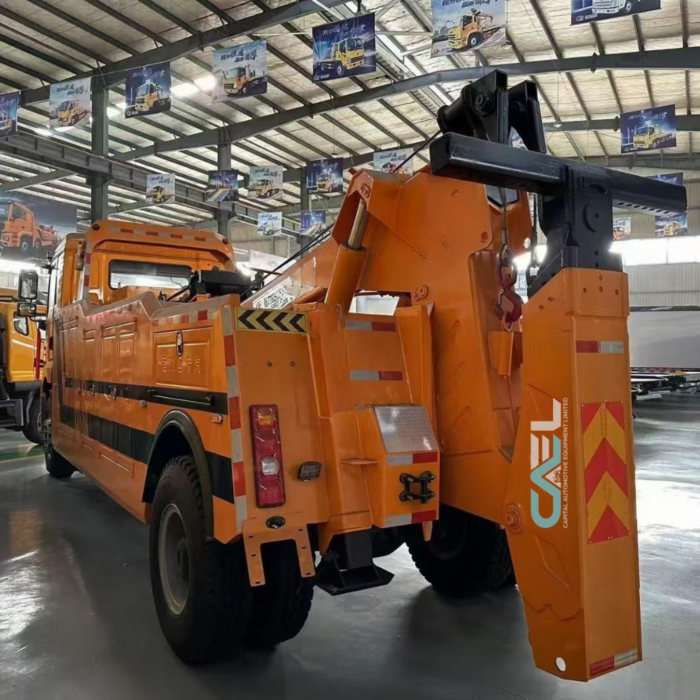

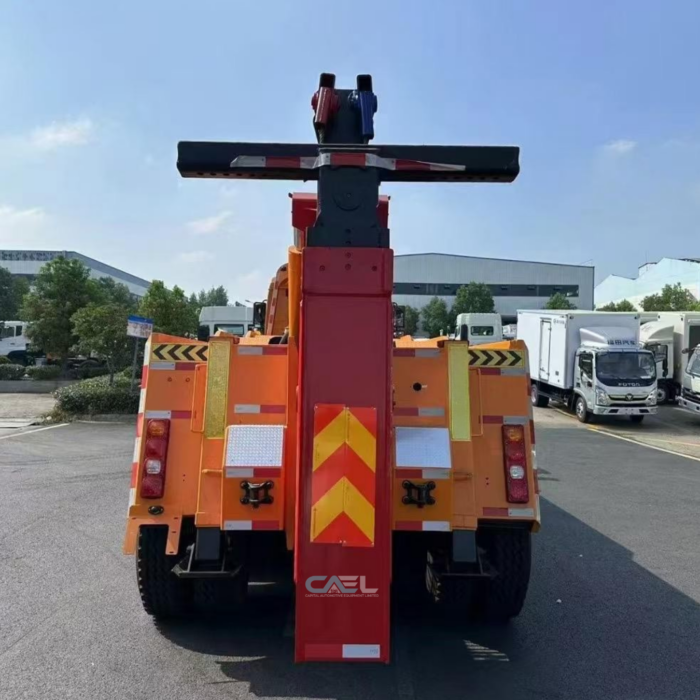

Heavy-Duty Underlift System
Designed for safe towing of commercial vehicles.
Professional Recovery Package Includes
✔ Frame fork holders
✔ Frame fork racks
✔ Chain racks
✔ 4 sets of frame forks
✔ Chrome door handle
✔ Safety chains
Rugged Steel Construction
Built for durability and long service life.
Strong Tow Rating
- 25 Ton (55,000 lbs) towing capability
Designed for Stability & Safety
Ideal for demanding recovery environments.
General Specifications
| Feature | Details |
|---|---|
| Body Length | 3489 mm (137") |
| Body Type | CA Standard Steel Body |
| Winches | 2 Units |
Boom Specifications
| Feature | Details |
|---|---|
| Retracted Capacity @ 41° | 30 Ton (66,100 lbs) |
| Extended Capacity @ 41° | 15 Ton (33,000 lbs) |
| Maximum Lift Angle | 41° |
| Maximum Hook Height | 5117 mm (201.5") |
| Reach Past Tailboard | 1853 mm (73") |
Winch Specifications
| Feature | Details |
|---|---|
| Quantity | 2 pcs |
| Pulling Force (1st Layer) | 10 Ton (22,000 lbs) each |
| Type | Planetary |
| Cable Size | 19 mm (3/4") |
| Cable Length | 60 m (200 ft) |
Underlift Specifications
Euro Option Available
| Feature | Standard | Euro Option |
|---|---|---|
| Retracted Capacity on Forks | 11.3 Ton | 9.5 Ton |
| Retracted Distance | 2135 mm (84") | 1701 mm (67") |
| Extended Capacity on Forks | 6.8 Ton | 5 Ton |
| Extended Distance | 3773 mm (149") | 3657 mm (144") |
| Additional Feature | Details |
|---|---|
| Negative Tilt Angle | -13° |
| Tow Rating | 25 Ton (55,000 lbs) |
Vehicle Recommendations
| Feature | Details |
|---|---|
| Minimum Front Axle | 5.4 Ton (12,000 lbs) |
| Rear Axle Single | 10.4 Ton (23,000 lbs) |
| Rear Axle Tandem | 2 × 9 Ton |
| Recommended GVW | 15 Ton (33,000 lbs) |
| Tire Size | R22.5 |
| Clear CA | 3489 mm (137") |
Ideal Applications
✔ Commercial truck recovery
✔ Bus & coach towing
✔ Fleet towing services
✔ Construction equipment recovery
✔ Industrial roadside assistance
✔ Municipal towing operations
✔ Medium-heavy accident recovery
Why Choose CAEL?
Trusted Canadian Brand
Built for real commercial towing work.
Durable Steel Construction
Long-lasting professional equipment.
Canada-Wide Delivery
Reliable nationwide shipping available.
Core Advantages
✔ 30 ton boom capacity
✔ 25 ton tow rating
✔ Dual 10 ton winches
✔ Heavy-duty underlift
✔ Professional recovery package
✔ Euro option available
✔ Fleet-ready performance
Request a Quote
Contact us today for pricing, custom requirements, financing options, and delivery across Canada.
