SPECIFICATION

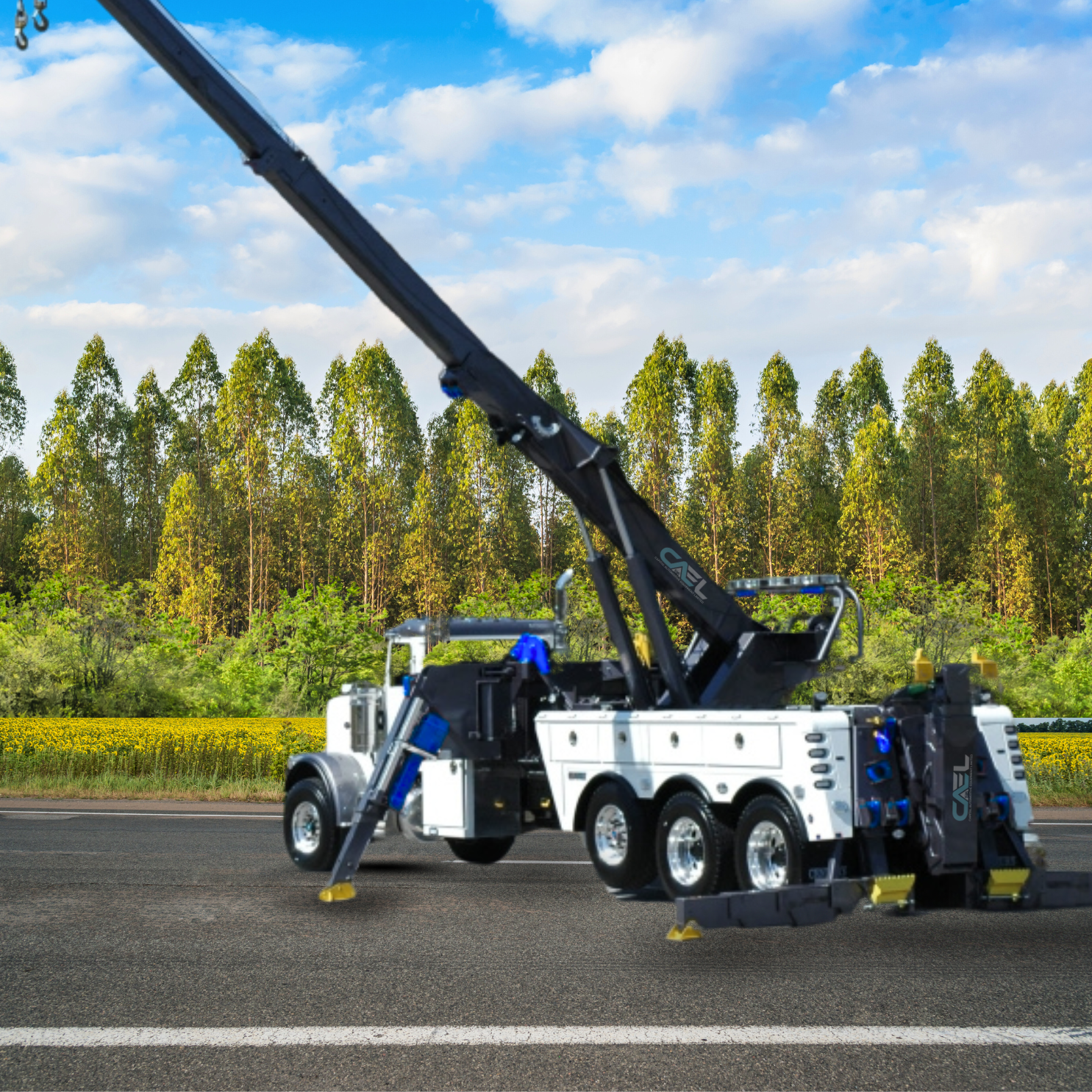

Boom Capacity:
– Retracted: 40 ton (88,000 lbs)
– Extended: 20 ton (44,000 lbs)
– Maximum Lift Angle: 41°
– Maximum Hook Height: ~5,500 mm (216”)
– Reach Past Tailboard: ~2,000 mm (79”)
Winch Specifications:
– Quantity: 2 pcs
– Pulling Force (1st Layer): 12 ton (26,400 lbs)
– Winch Type: Planetary
– Cable Length: 19 mm x 60 m (3/4″ x 200′)
Underlift Capacity:
– Retracted Capacity: 14 ton (30,800 lbs)
– Extended Capacity: 8 ton (17,600 lbs)
– Negative Tilt Angle: -13°
– Tow Rating: 30 ton (66,000 lbs)
Vehicle Recommendations:
– Front Axle: 6.5 ton (14,300 lbs)
– Rear Axle: Single 12 ton (26,400 lbs) or Tandem 2 x 11 ton (2 x 24,000 lbs)
– Recommended GVW: 18 ton (39,600 lbs)
Ratings are based on structural and design factors only. Chassis capacity and performance can vary, affecting the unit’s overall rating. The listed chassis specifications are minimum requirements, and higher specifications may be needed depending on the weight of the chassis and equipment.
The units are customisable, contact us for your requirements
