SPECIFICATION
Boom Capacity:
– Retracted: 50 ton (110,000 lbs)
– Extended: 25 ton (55,000 lbs)
– Maximum Lift Angle: 41°
– Maximum Hook Height: ~6,000 mm (236”)
– Reach Past Tailboard: ~2,200 mm (87”)
Winch Specifications:
– Quantity: 2 pcs
– Pulling Force (1st Layer): 15 ton (33,000 lbs)
– Winch Type: Planetary
– Cable Length: 19 mm x 60 m (3/4″ x 200′)

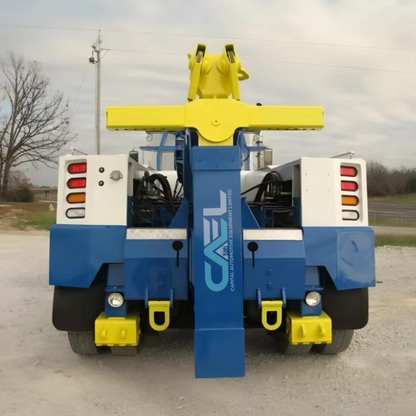

Underlift Capacity:
– Retracted Capacity: 16 ton (35,200 lbs)
– Extended Capacity: 10 ton (22,000 lbs)
– Negative Tilt Angle: -13°
– Tow Rating: 35 ton (77,000 lbs)
Vehicle Recommendations:
– Front Axle: 7 ton (15,400 lbs)
– Rear Axle: Single 13 ton (28,600 lbs) or Tandem 2 x 13 ton (2 x 28,600 lbs)
– Recommended GVW: 20 ton (44,000 lbs)
Ratings are based on structural and design factors only. Chassis capacity and performance can vary, affecting the unit’s overall rating. The listed chassis specifications are minimum requirements, and higher specifications may be needed depending on the weight of the chassis and equipment.
The units are customisable, contact us for your requirements
