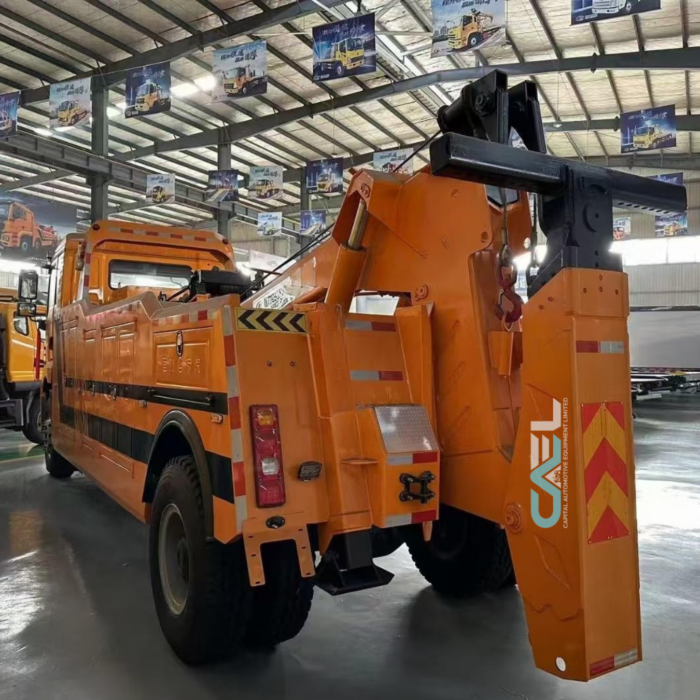

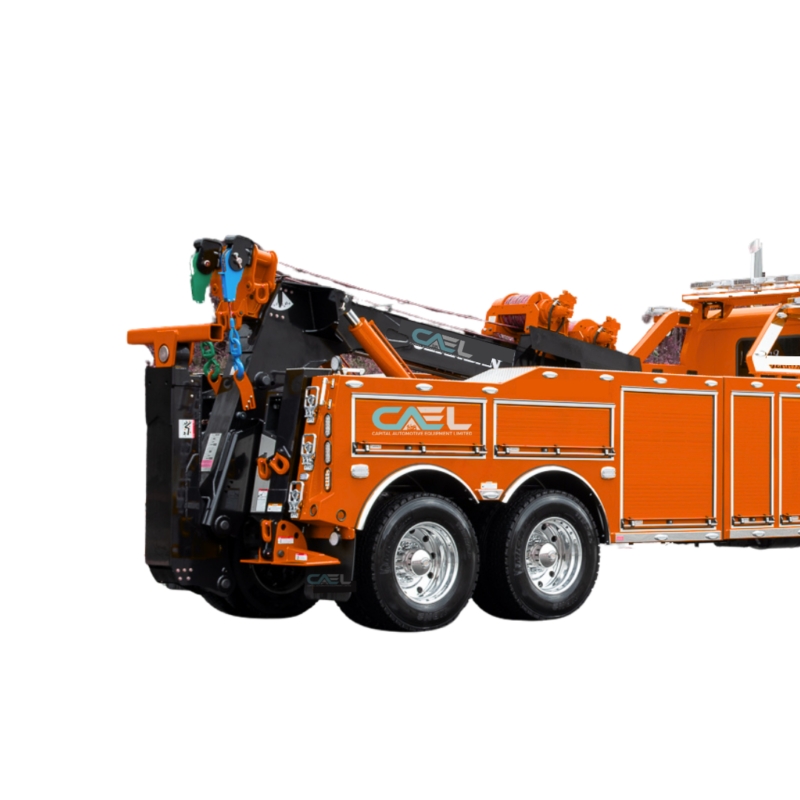

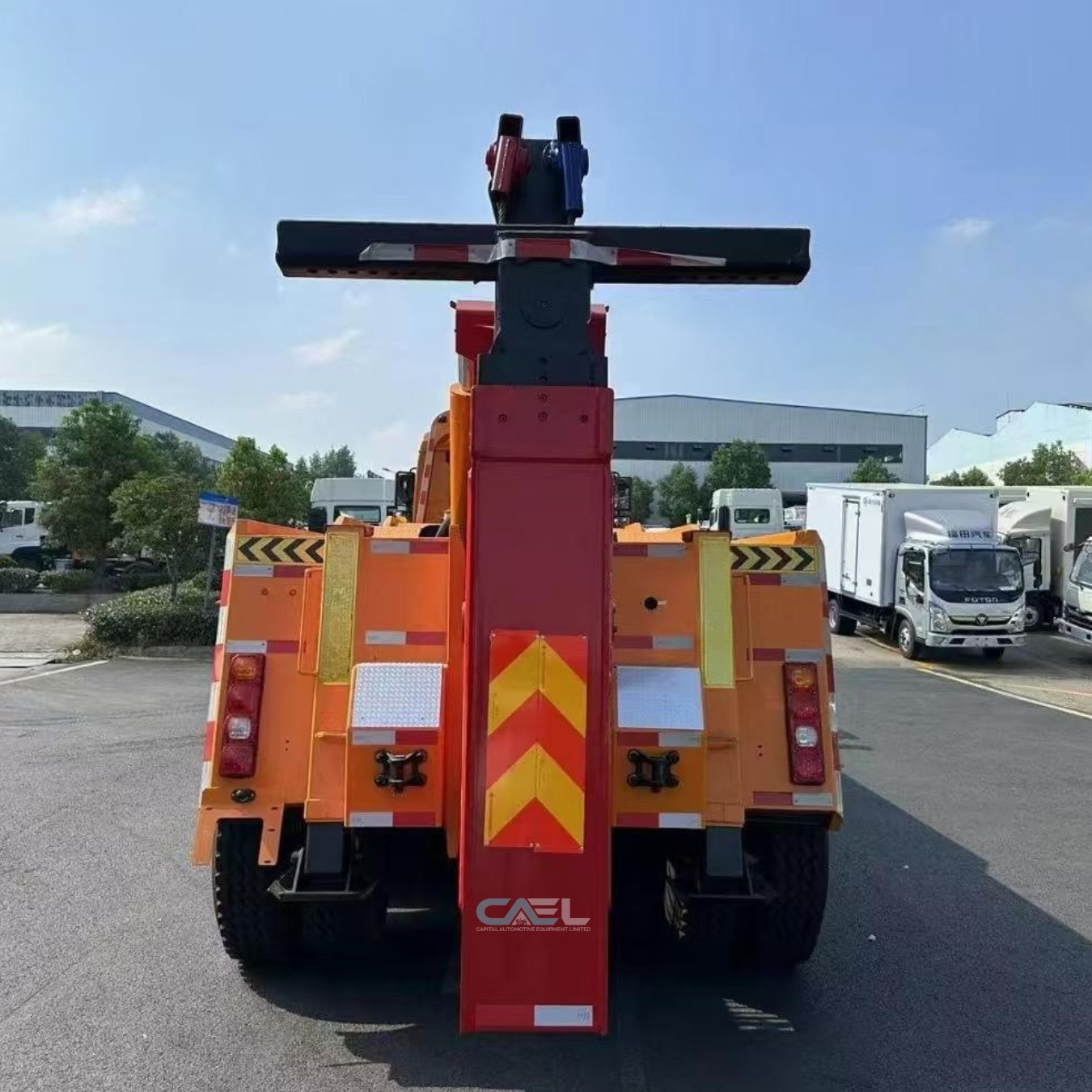

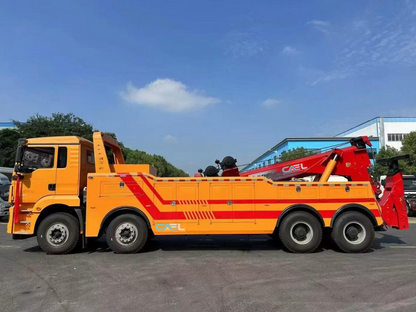

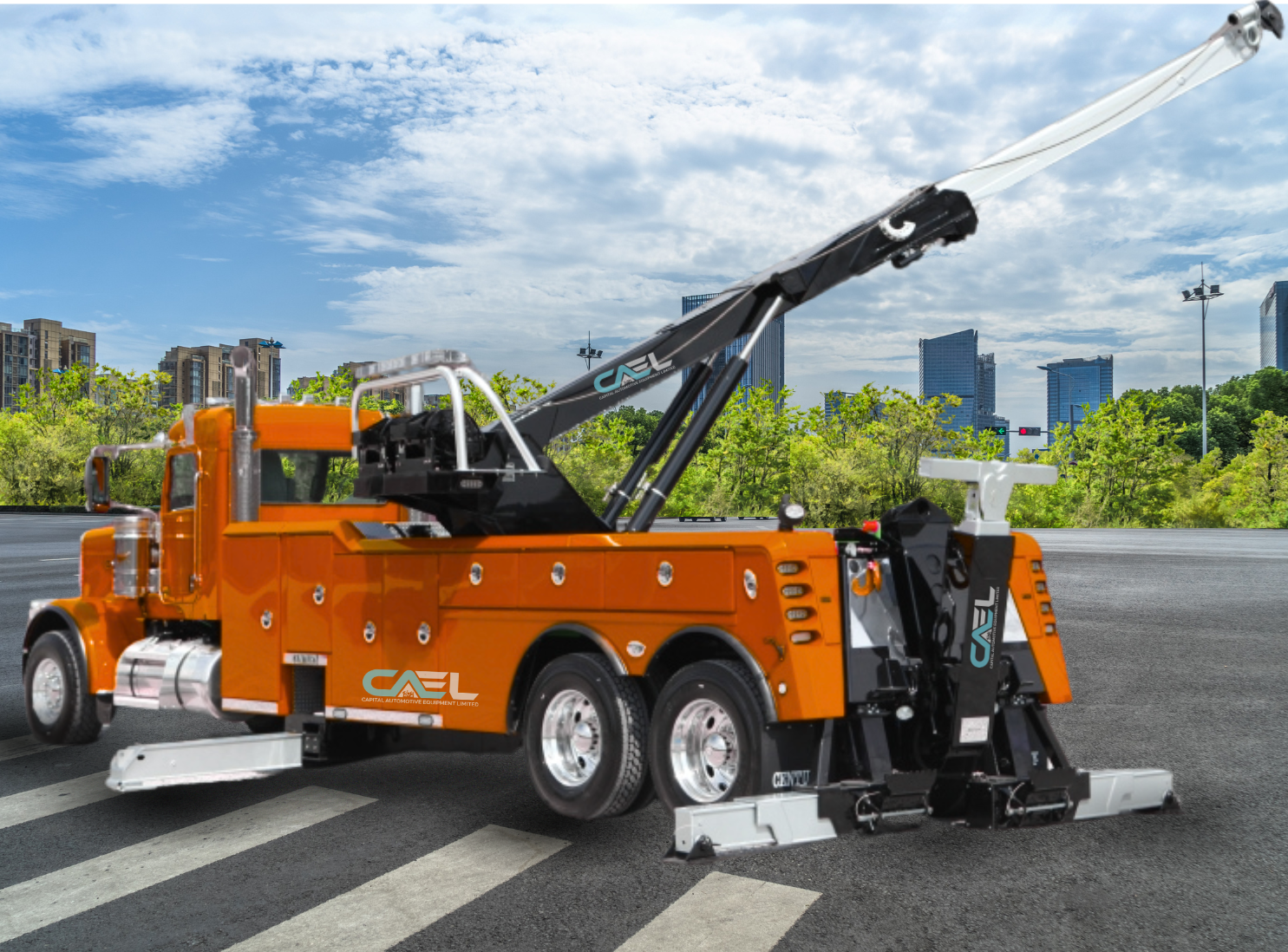

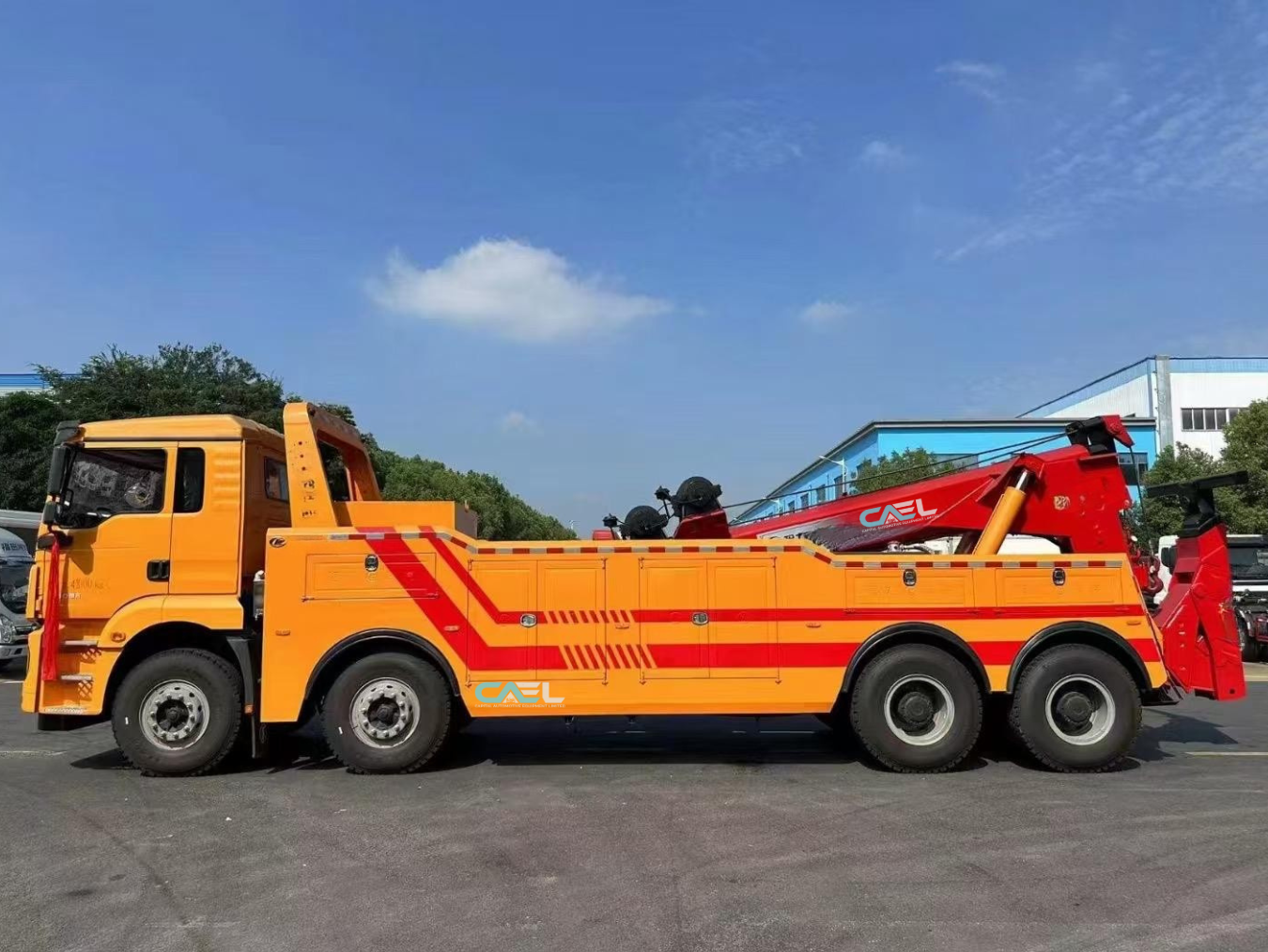

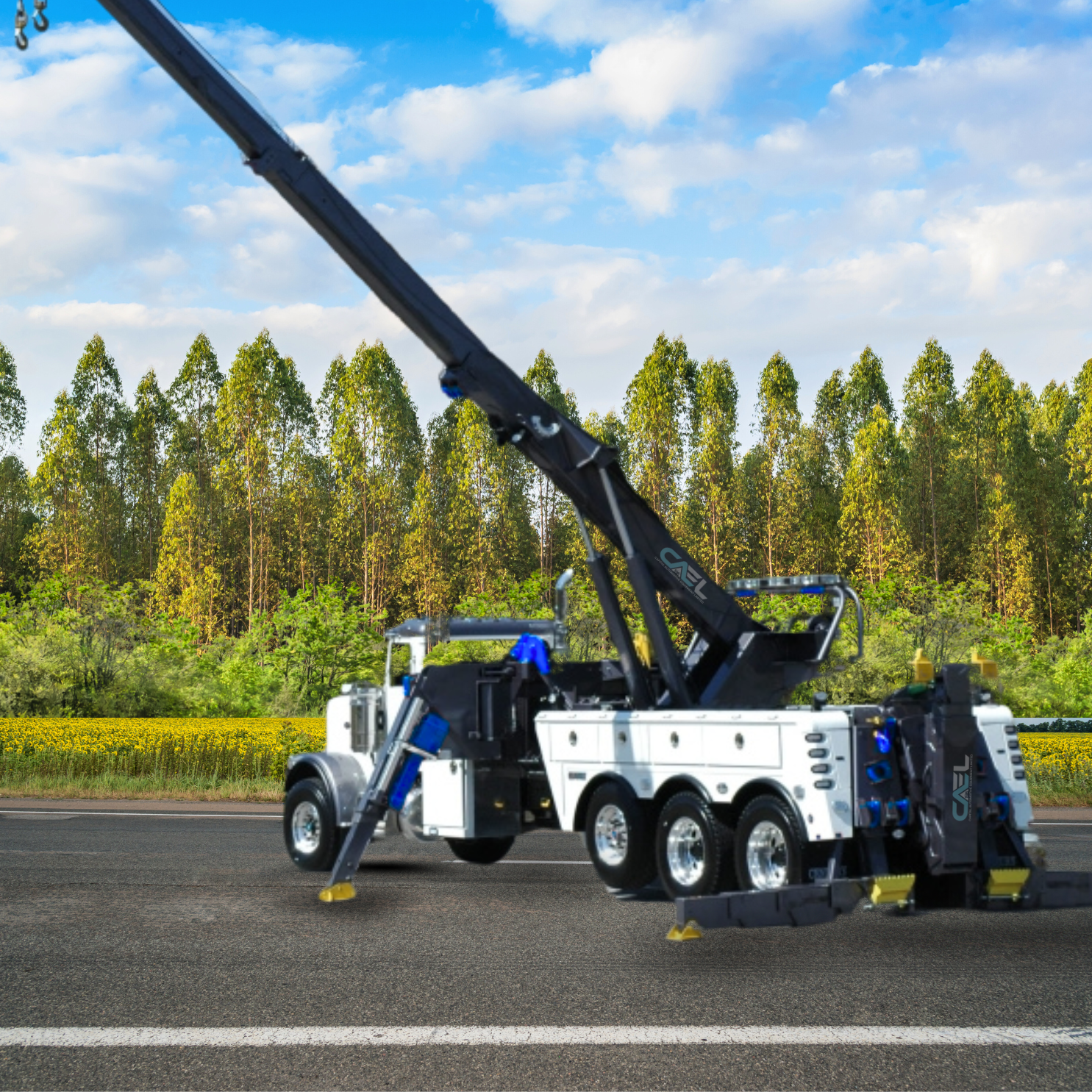

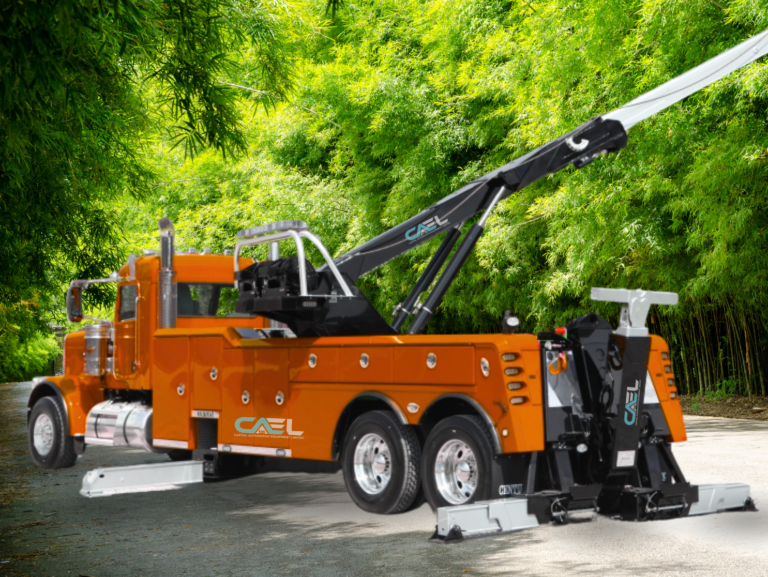

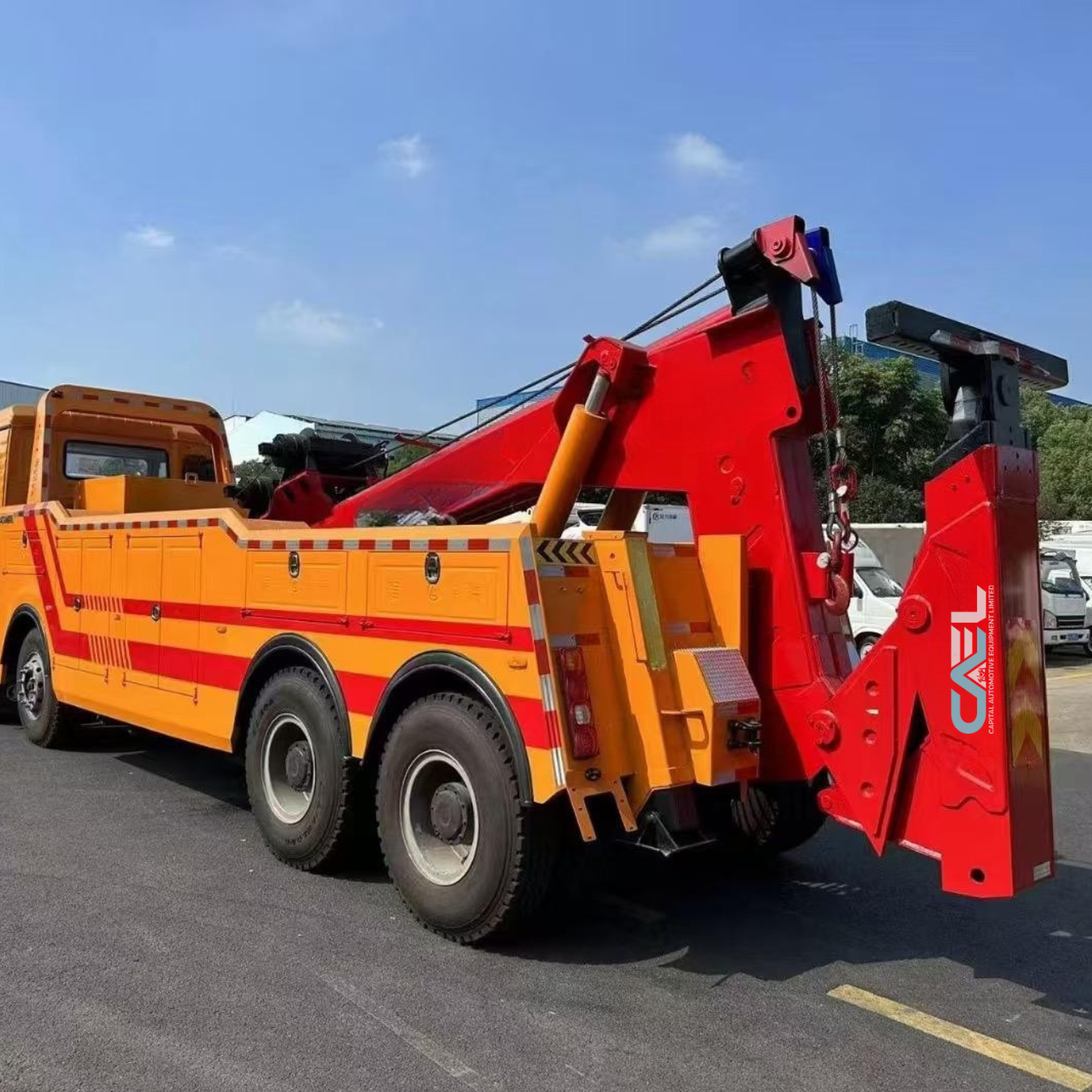

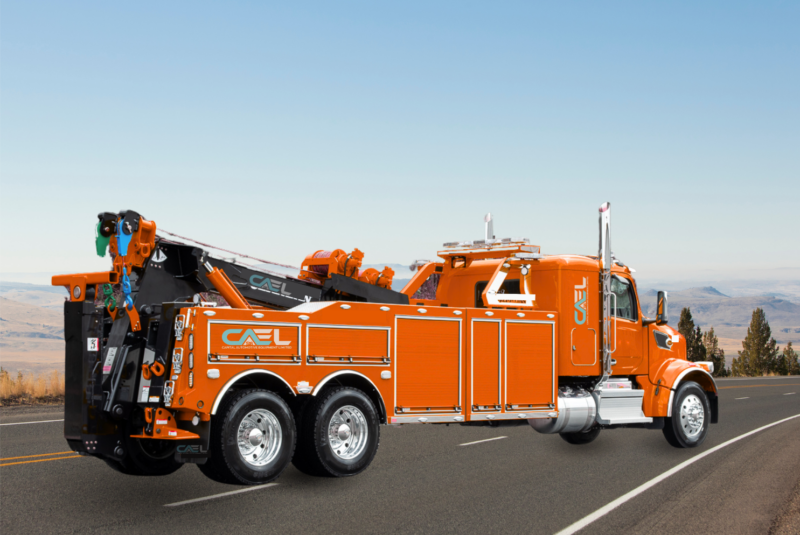

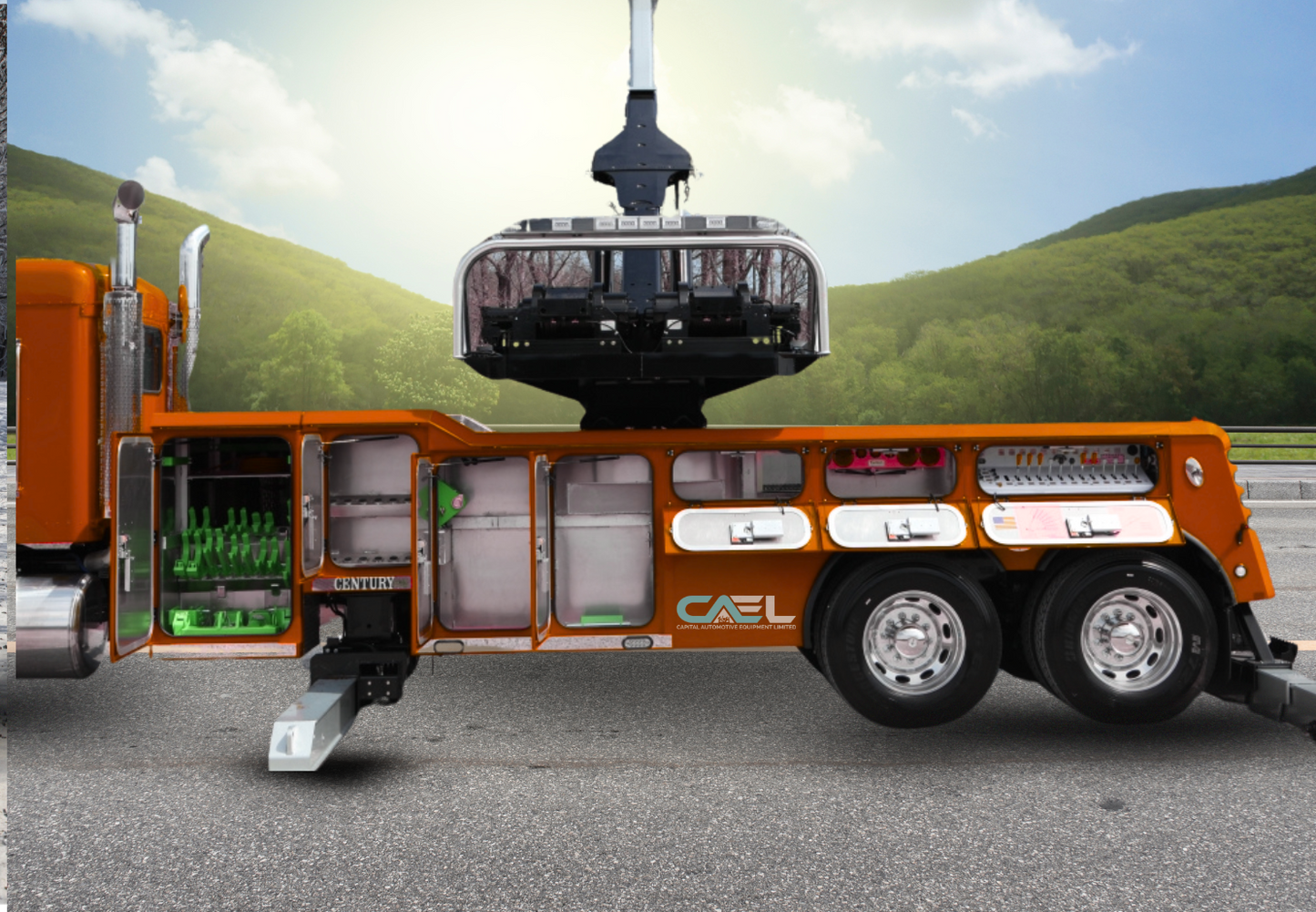

CAEL Heavy Duty 60 Ton Tow Truck Wrecker

Extreme Recovery Power • Dual Winches • Professional Heavy Duty Performance

The CAEL Heavy Duty 60 Ton Tow Truck Wrecker is engineered for demanding commercial towing, heavy recovery, industrial rescue, fleet support, transport recovery, and municipal emergency operations.

Built for operators who require serious lifting strength and towing performance, this unit features a powerful 60 ton boom capacity, 40 ton tow rating, dual 18 ton planetary winches, and a heavy-duty underlift system.

Designed for trucks, trailers, buses, construction equipment, and specialized heavy recovery jobs.

Key Features & Benefits

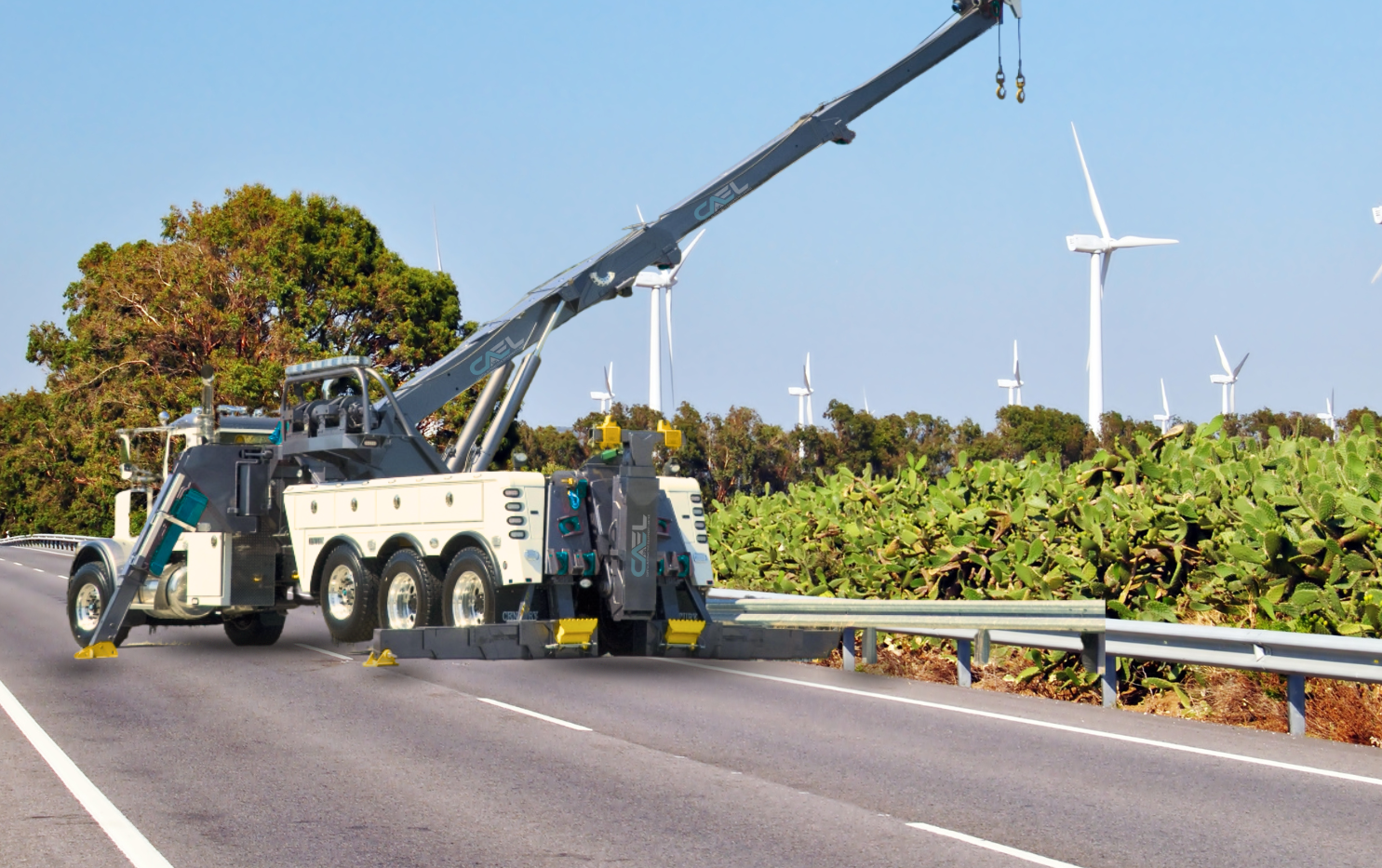

Massive 60 Ton Boom Capacity

Retracted: 60 ton (132,000 lbs)
Extended: 30 ton (66,000 lbs)

Strong lifting capability for heavy recoveries.

Dual 18 Ton Planetary Winches

2 heavy-duty winches included
Excellent pulling force for difficult recovery operations

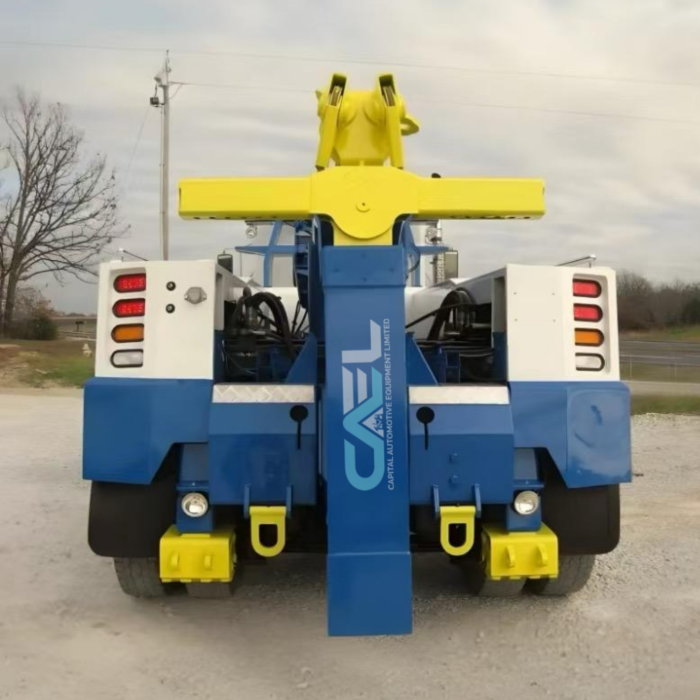

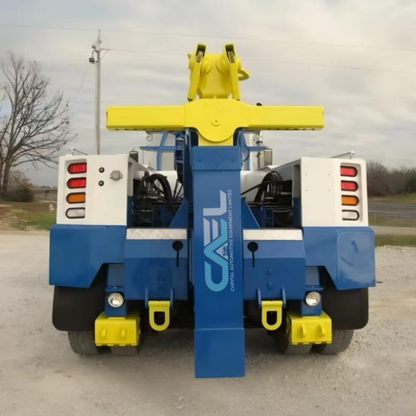

Heavy-Duty Underlift System

Tow commercial vehicles safely and efficiently.

Professional Recovery Construction

Built for durability and daily heavy-duty use.

Strong Tow Rating

40 ton (88,000 lbs) towing capability

Fully Customizable Build

Available with custom options to suit fleet requirements.

Boom Specifications

Feature	Details
Retracted Capacity	60 Ton (132,000 lbs)
Extended Capacity	30 Ton (66,000 lbs)
Maximum Lift Angle	41°
Maximum Hook Height	Approx. 6,500 mm (255")
Reach Past Tailboard	Approx. 2,400 mm (95")

Winch Specifications

Feature	Details
Quantity	2 pcs
Pulling Force (1st Layer)	18 Ton (39,600 lbs) each
Type	Planetary
Cable Size	19 mm (3/4")
Cable Length	60 m (200 ft)

Underlift Specifications

Feature	Details
Retracted Capacity	18 Ton (39,600 lbs)
Extended Capacity	12 Ton (26,400 lbs)
Negative Tilt Angle	-13°
Tow Rating	40 Ton (88,000 lbs)

Vehicle Recommendations

Feature	Details
Front Axle	8 Ton (17,600 lbs)
Rear Axle	Single 14 Ton or Tandem 2 × 14 Ton
Recommended GVW	22 Ton (48,400 lbs)

Ideal Applications

✔ Heavy truck recovery
✔ Semi trailer towing
✔ Bus & coach recovery
✔ Construction equipment rescue
✔ Fleet support operations
✔ Industrial transport recovery
✔ Municipal heavy-duty towing

Important Note

Ratings are based on structural and design factors only. Final performance depends on selected chassis, axle setup, and installed equipment.

Higher chassis specifications may be required.
