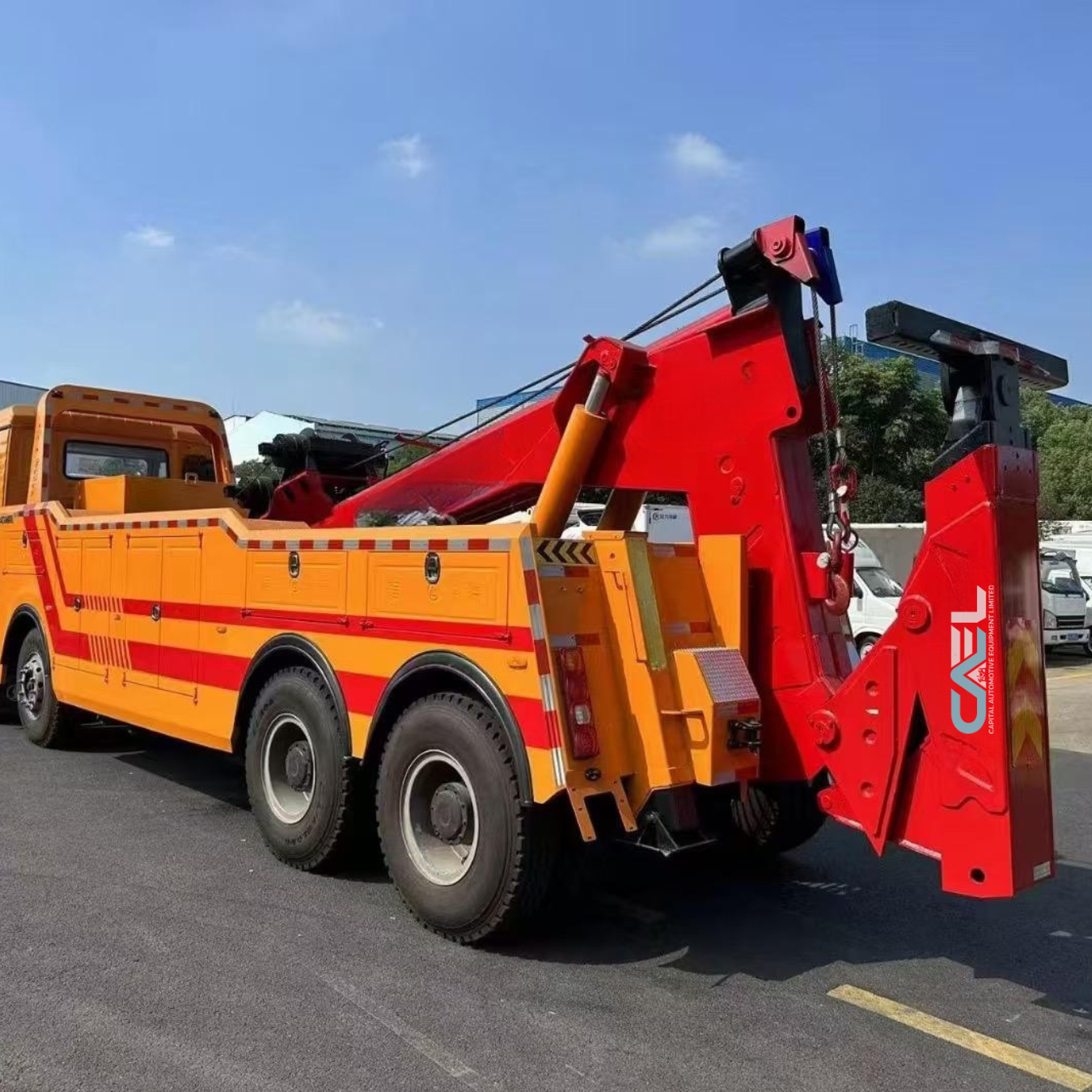

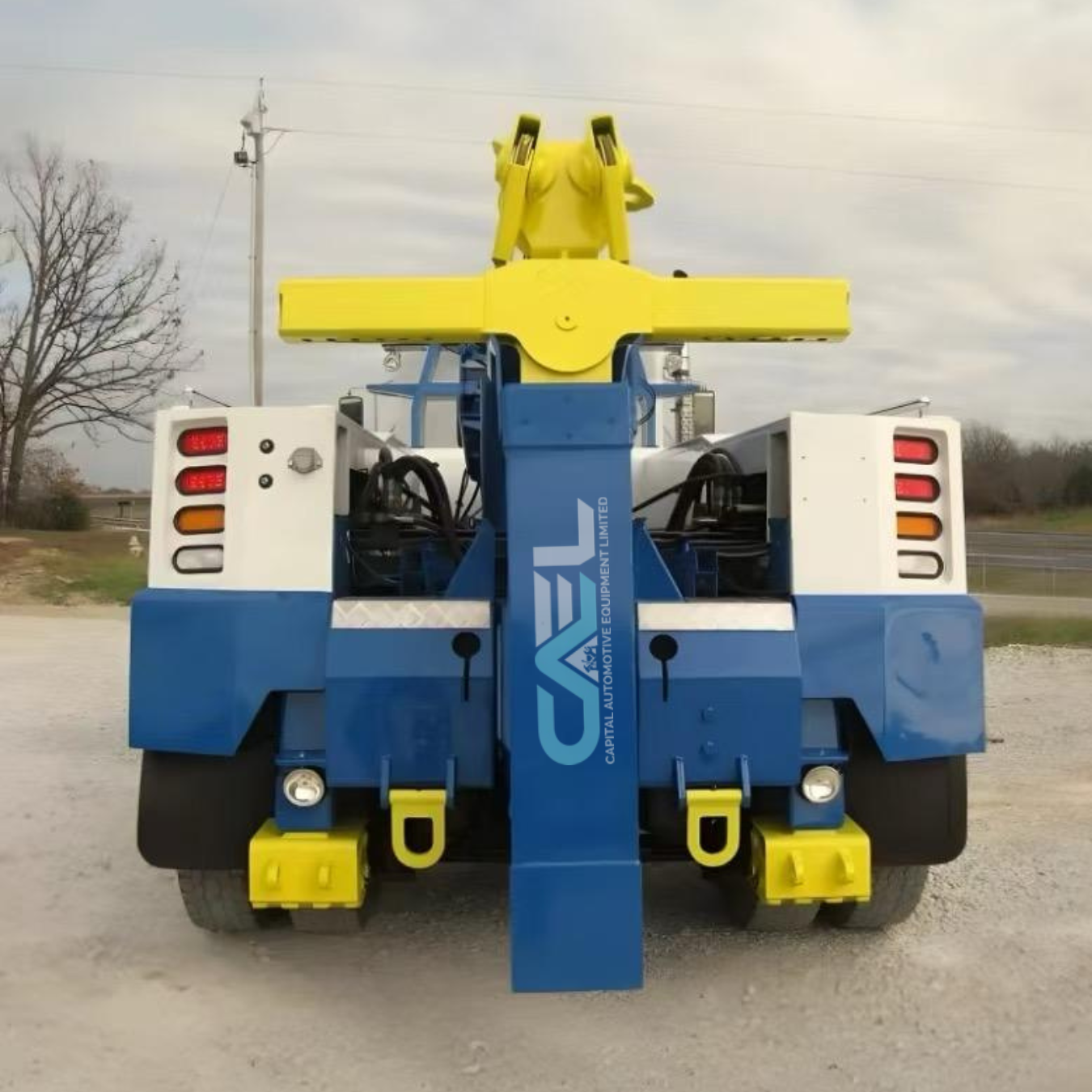

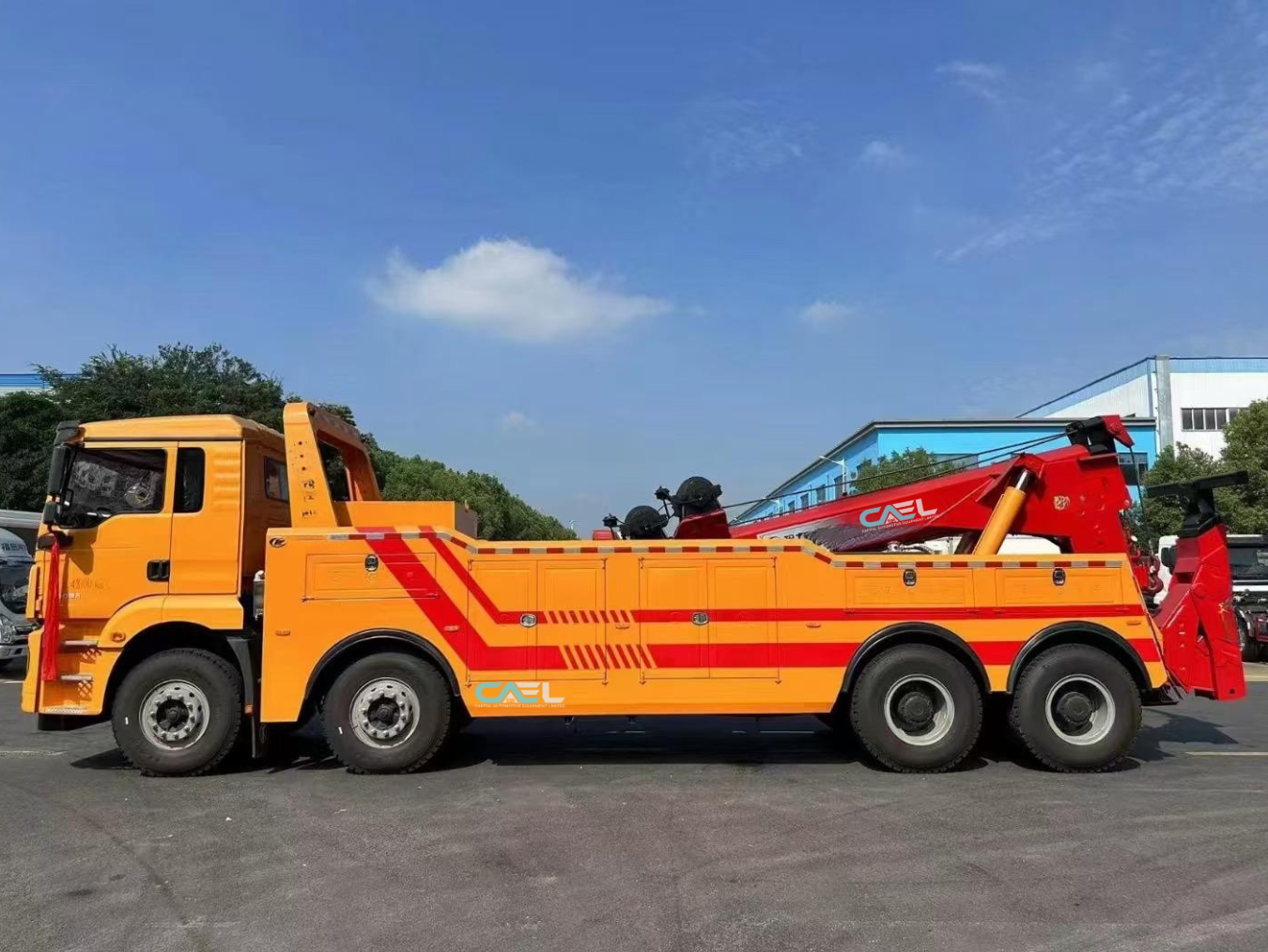

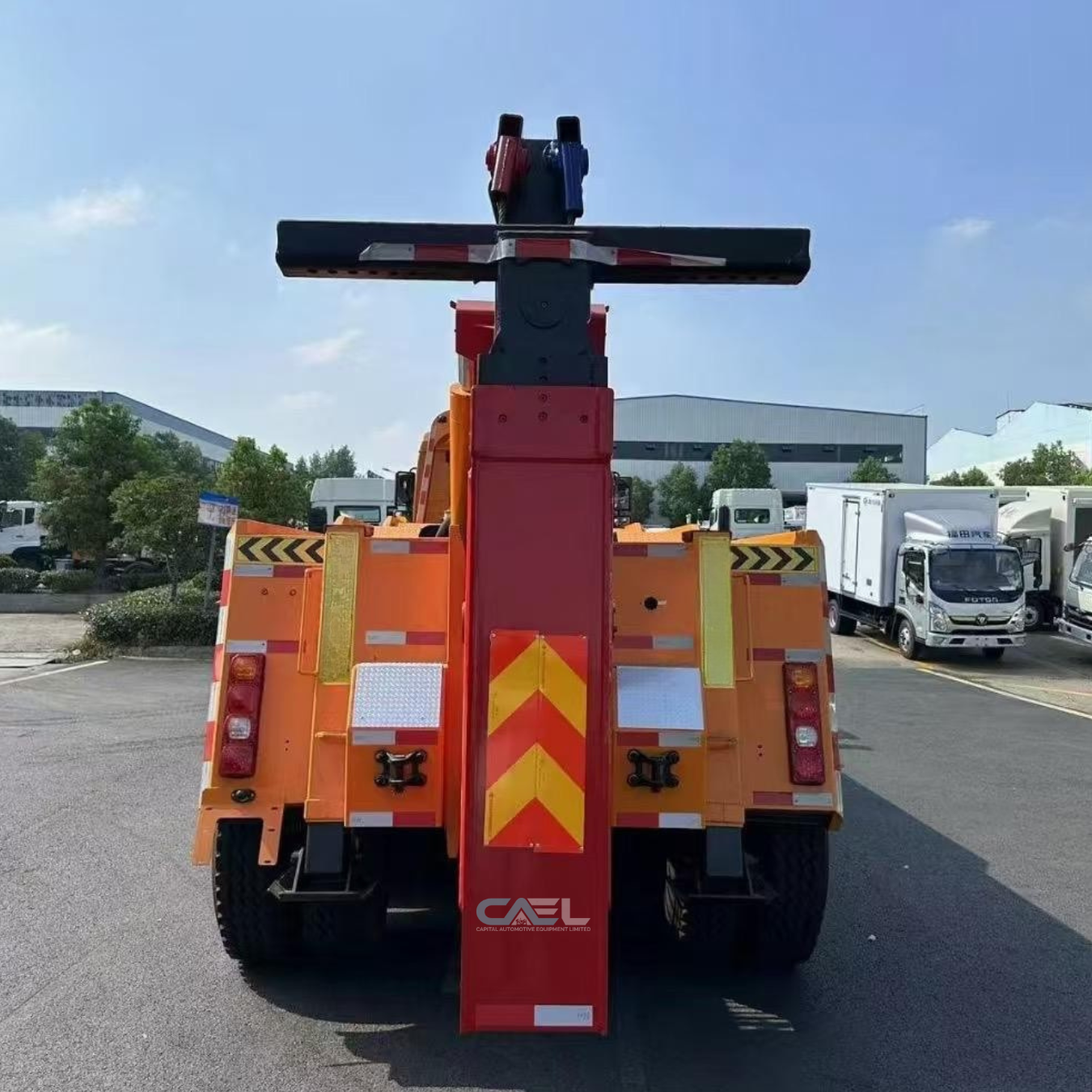

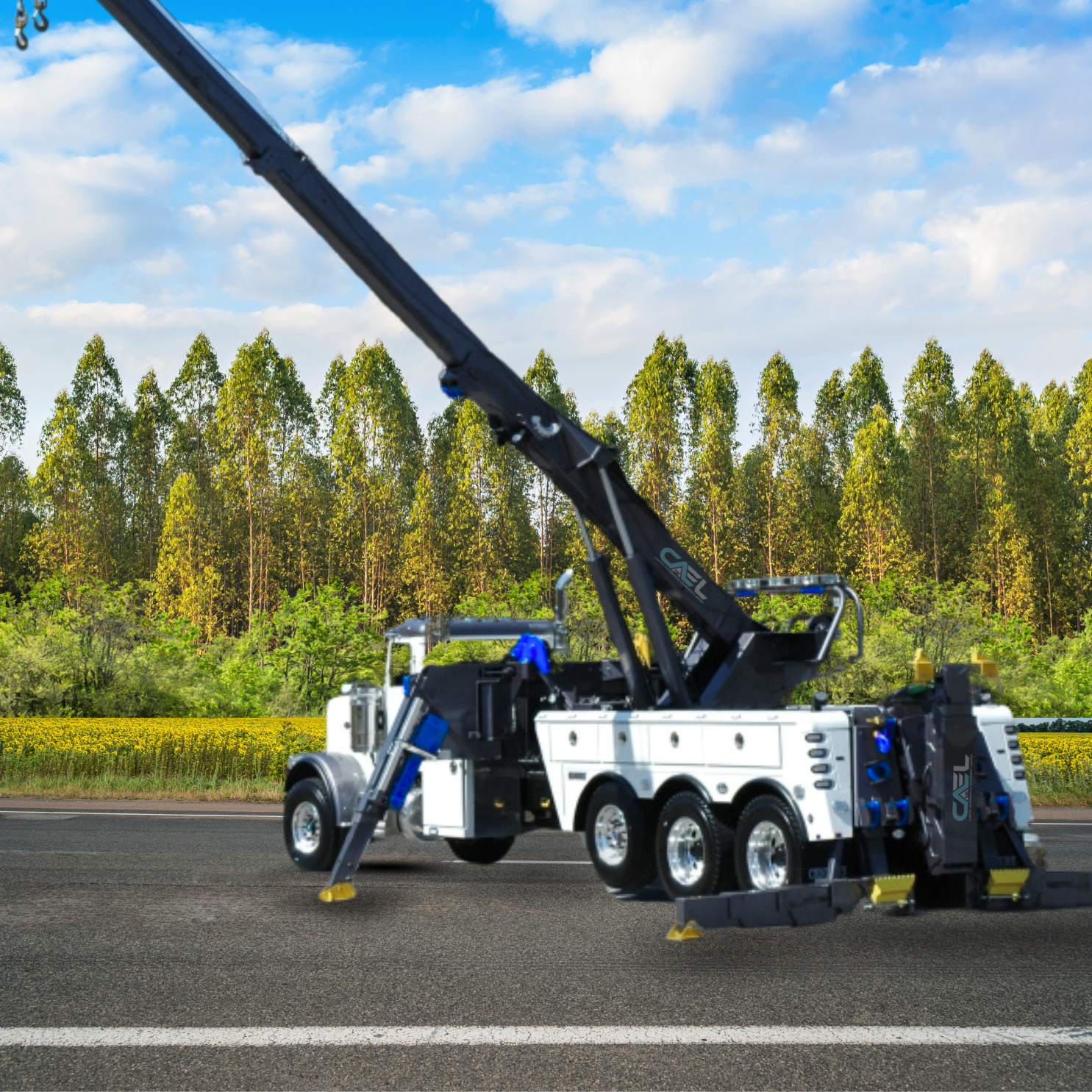

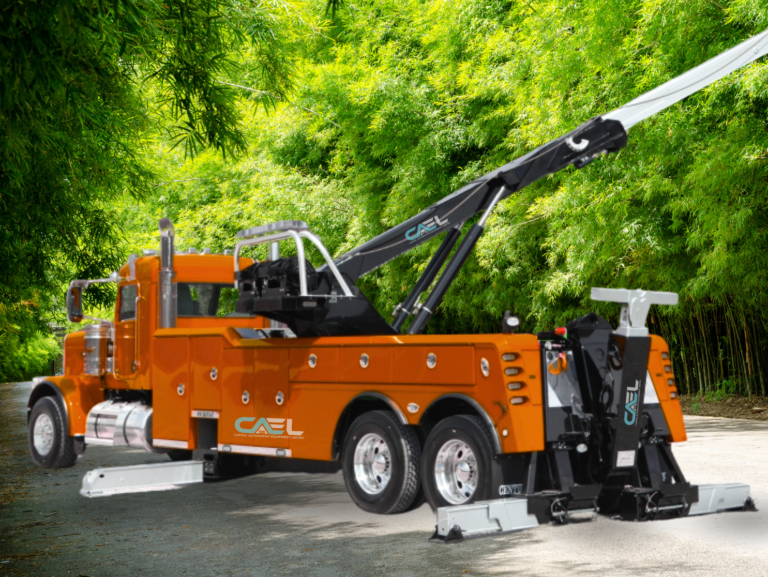

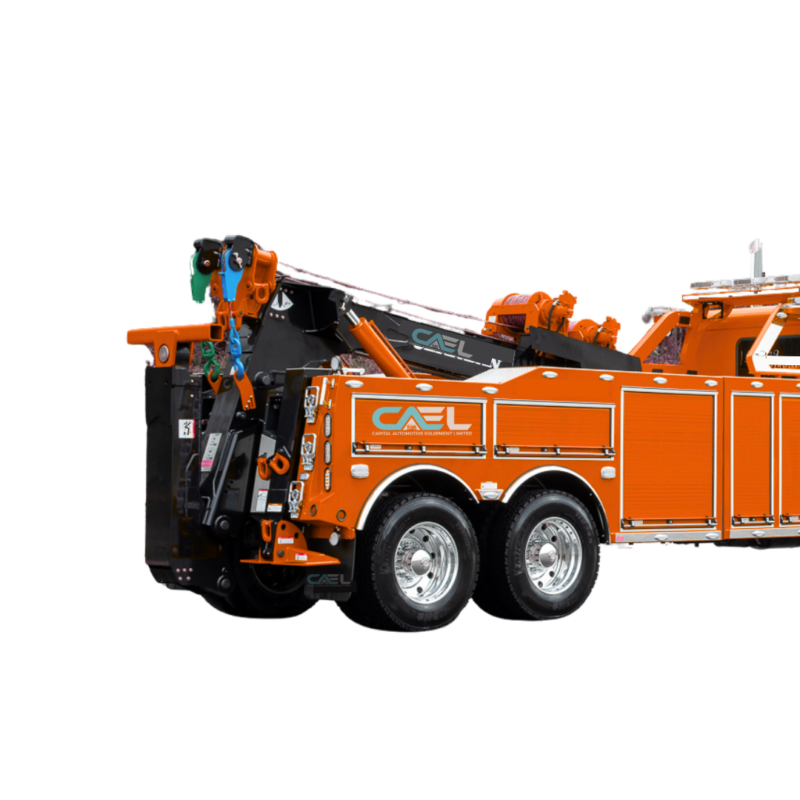

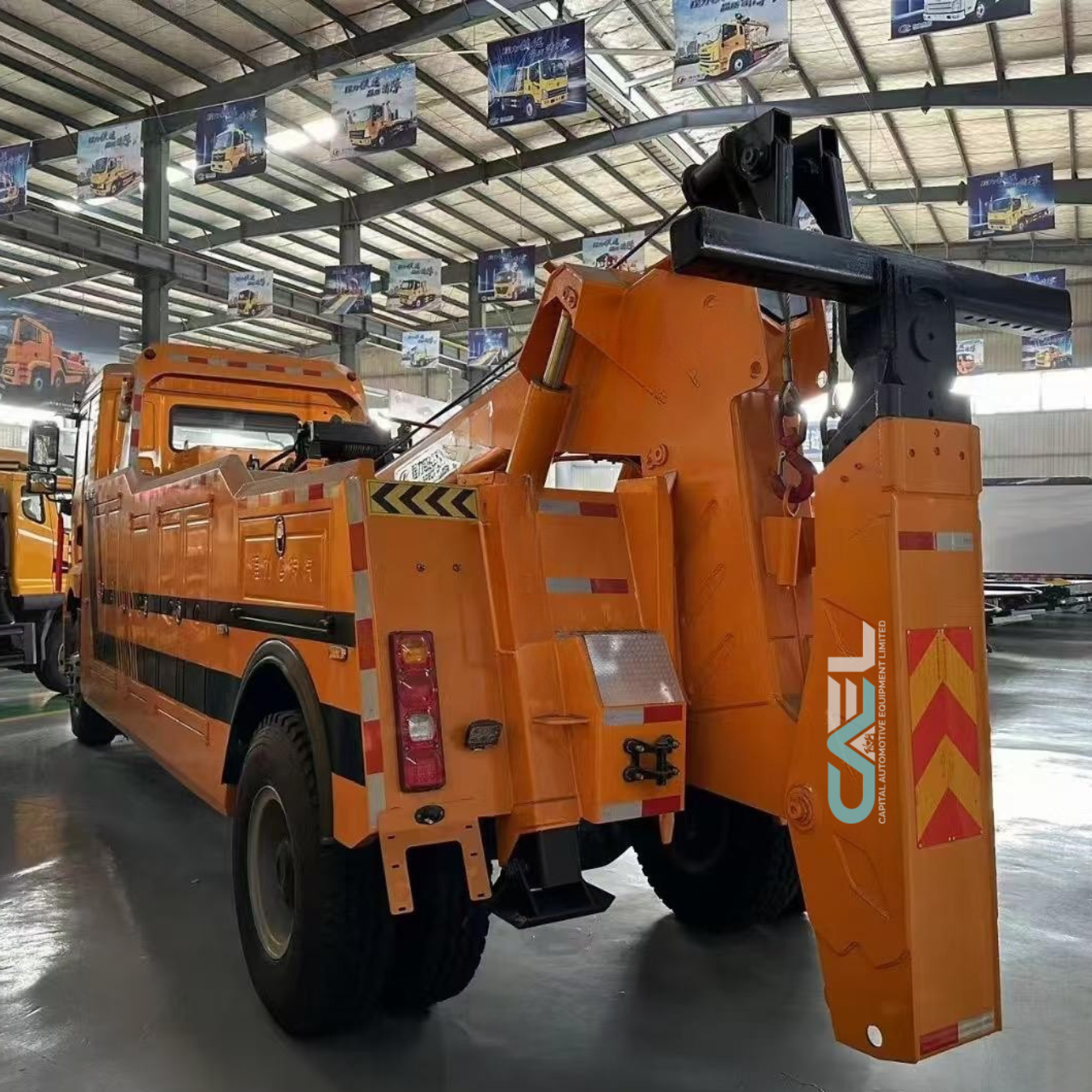

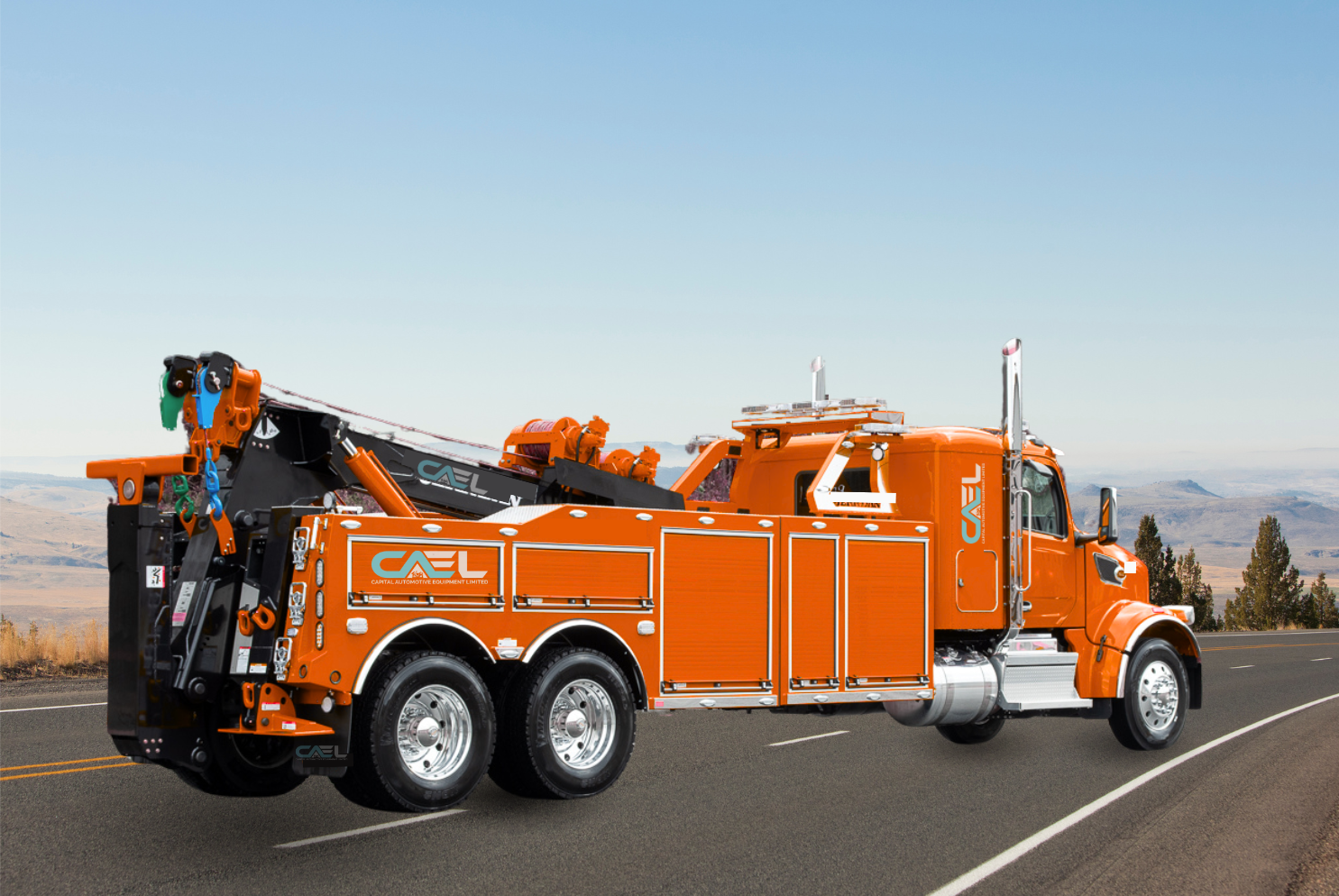

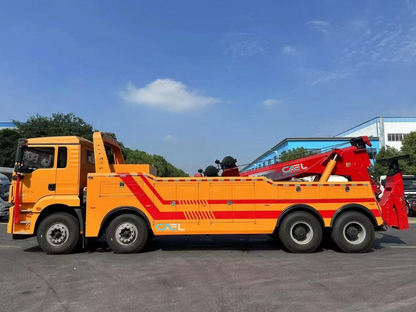

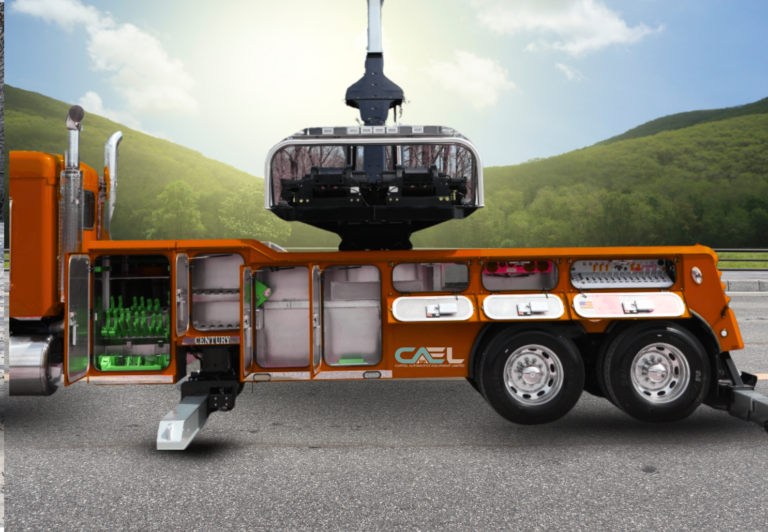

CAEL Heavy Duty 70 Ton Tow Truck Wrecker

Maximum Recovery Power • Dual Winches • Extreme Heavy Duty Performance

The CAEL Heavy Duty 70 Ton Tow Truck Wrecker is engineered for the toughest heavy recovery, commercial towing, industrial rescue, transport recovery, fleet support, and municipal emergency operations.

Built for operators who demand maximum lifting strength and towing capability, this unit features a massive 70 ton boom capacity, 50 ton tow rating, dual 20 ton planetary winches, and a powerful underlift system.

Designed for large truck recoveries, trailers, buses, construction equipment, and specialized heavy transport jobs.

Key Features & Benefits

Massive 70 Ton Boom Capacity

Retracted: 70 ton (154,000 lbs)
Extended: 35 ton (77,000 lbs)

Ideal for extreme recovery operations.

Dual 20 Ton Planetary Winches

2 heavy-duty winches included
Strong pulling force for severe recovery situations

Heavy-Duty Underlift System

Tow large commercial vehicles safely and efficiently.

Professional Recovery Design

Built for maximum reliability in demanding field conditions.

High Tow Rating

50 ton (110,000 lbs) towing capability

Customizable Build Options

Configured to your exact operational requirements.

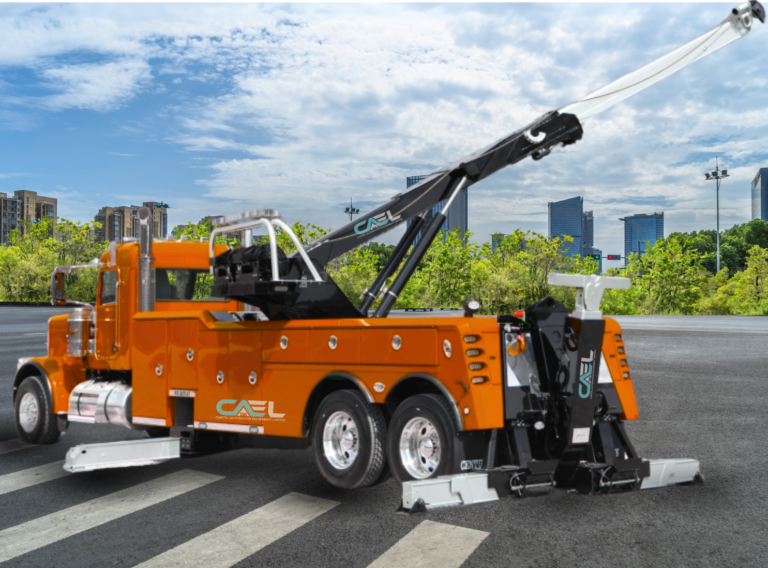

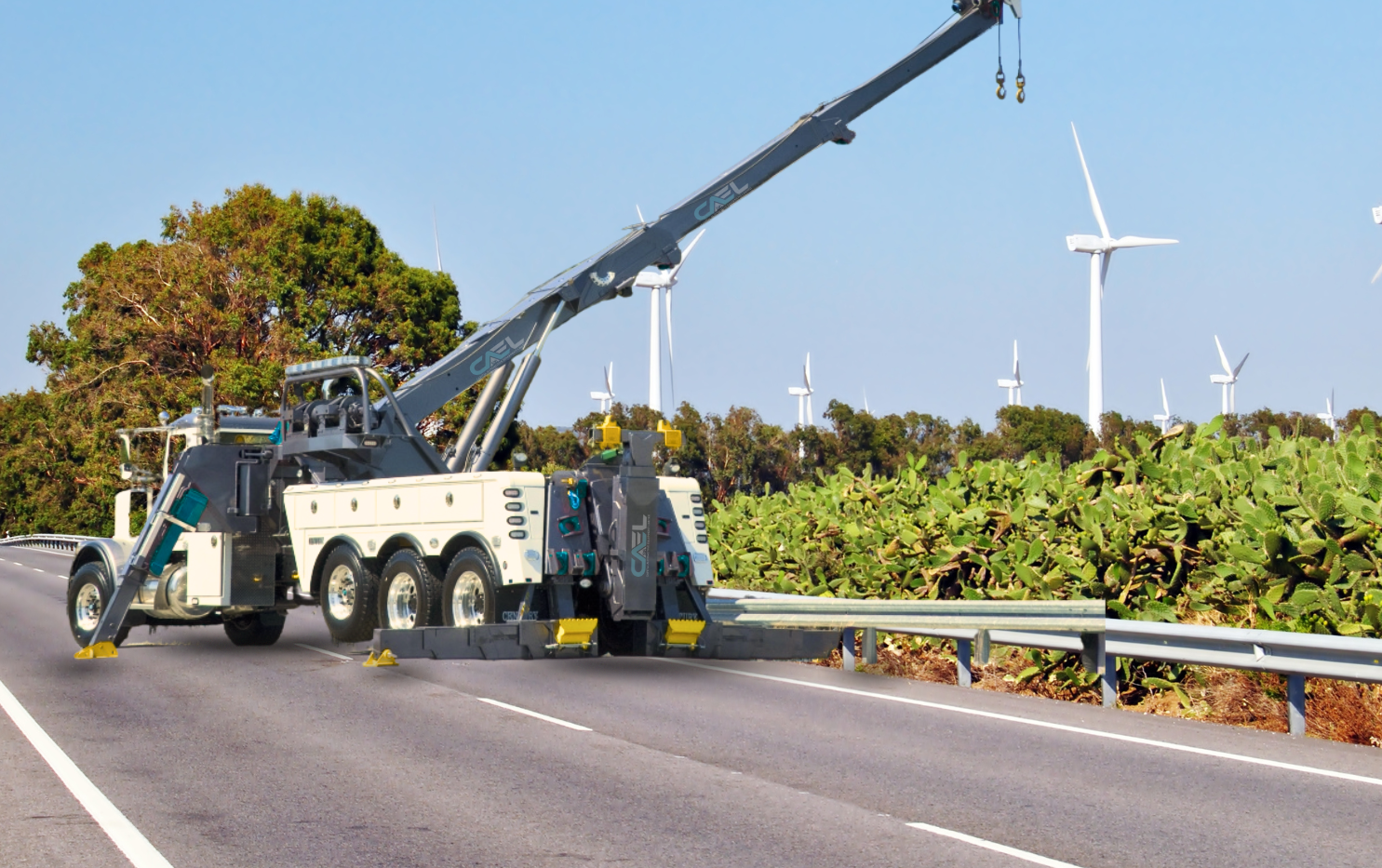

Boom Specifications

Feature	Details
Retracted Capacity	70 Ton (154,000 lbs)
Extended Capacity	35 Ton (77,000 lbs)
Maximum Lift Angle	41°
Maximum Hook Height	Approx. 7,000 mm (275")
Reach Past Tailboard	Approx. 2,600 mm (102")

Winch Specifications

Feature	Details
Quantity	2 pcs
Pulling Force (1st Layer)	20 Ton (44,000 lbs) each
Type	Planetary
Cable Size	19 mm (3/4")
Cable Length	60 m (200 ft)

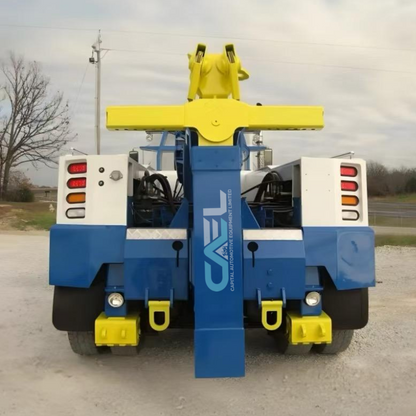

Underlift Specifications

Feature	Details
Retracted Capacity	20 Ton (44,000 lbs)
Extended Capacity	14 Ton (30,800 lbs)
Negative Tilt Angle	-13°
Tow Rating	50 Ton (110,000 lbs)

Vehicle Recommendations

Feature	Details
Front Axle	9 Ton (19,800 lbs)
Rear Axle	Single 16 Ton or Tandem 2 × 16 Ton
Recommended GVW	25 Ton (55,000 lbs)

Ideal Applications

✔ Heavy truck recovery
✔ Semi trailer towing
✔ Bus & coach recovery
✔ Construction equipment rescue
✔ Industrial transport recovery
✔ Fleet emergency support
✔ Municipal heavy-duty operations

Important Note

Ratings are based on structural and design factors only. Final performance depends on selected chassis, axle setup, and installed equipment.

Higher chassis specifications may be required.

Why Choose CAEL?

Trusted Canadian Brand

Built for real commercial heavy recovery work.

Fully Customizable

Tailored to your business needs.

Canada-Wide Delivery

Reliable nationwide shipping available.

Core Advantages

✔ 70 ton boom capacity
✔ 50 ton tow rating
✔ Dual 20 ton winches
✔ Heavy-duty underlift
✔ Extreme recovery performance
✔ Custom configurations available
✔ Fleet-ready equipment
