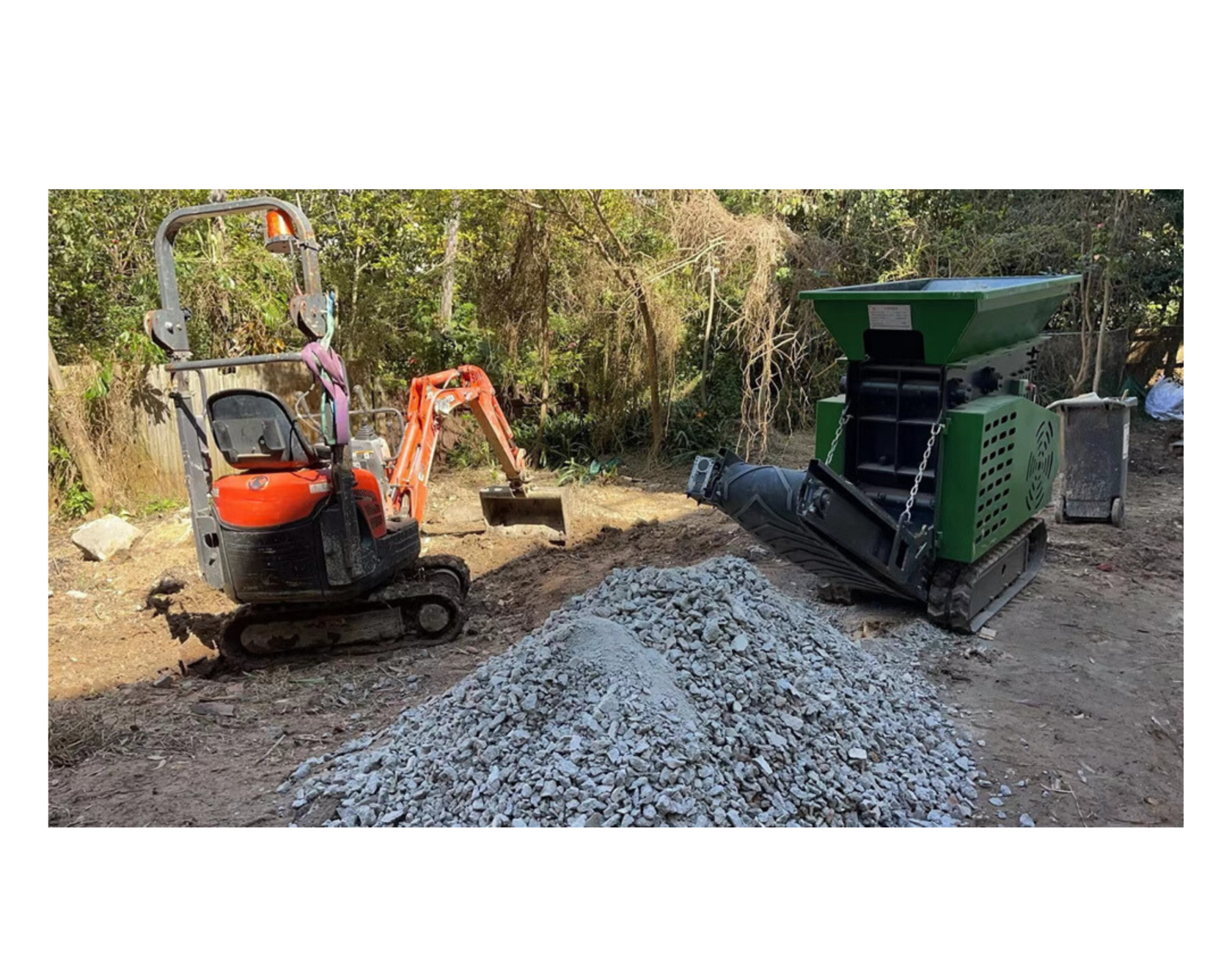

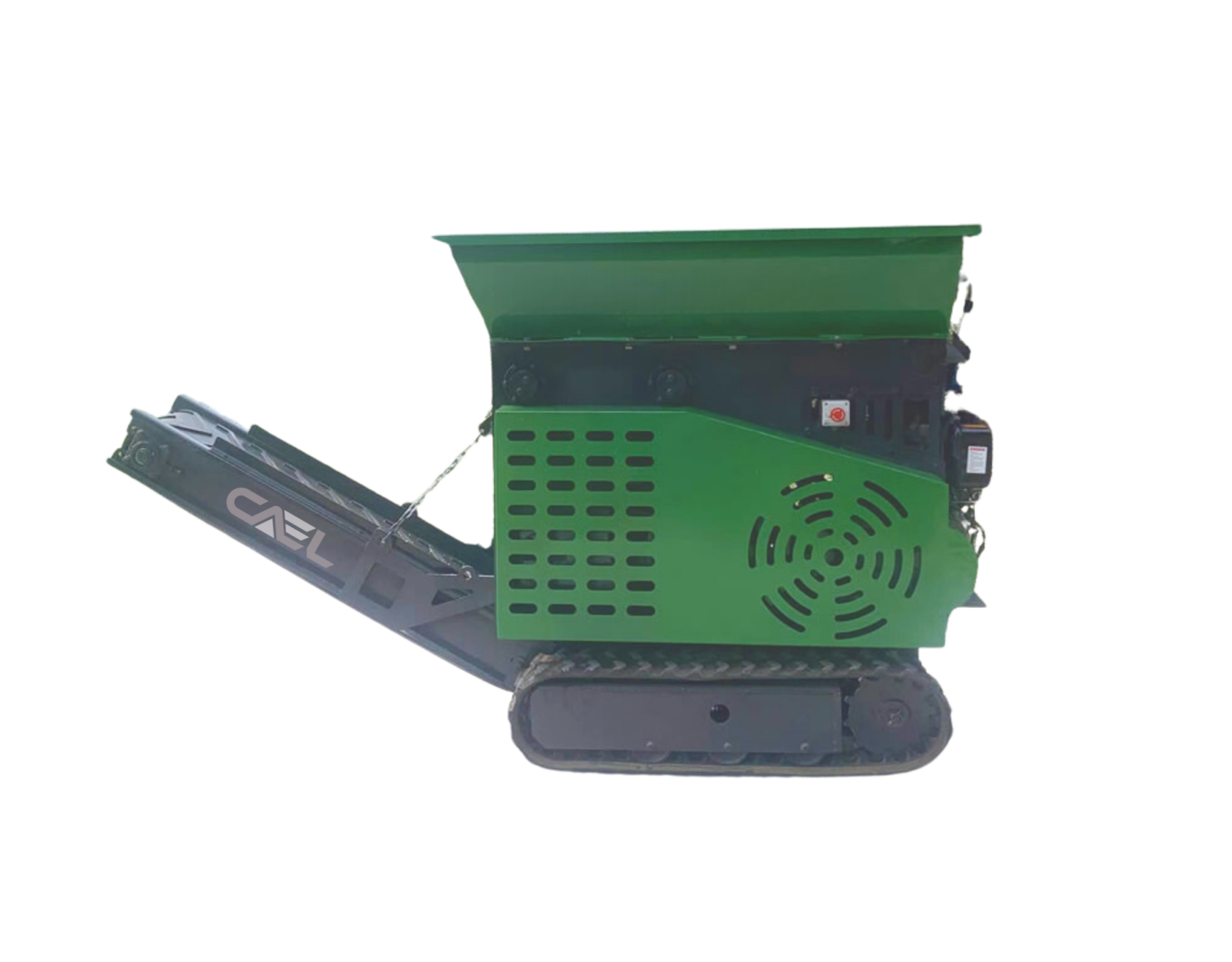

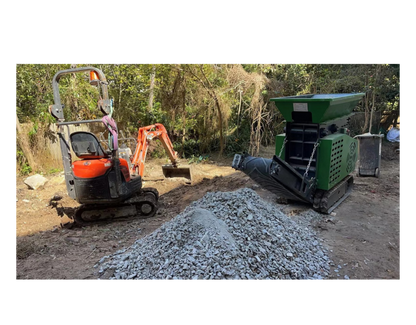

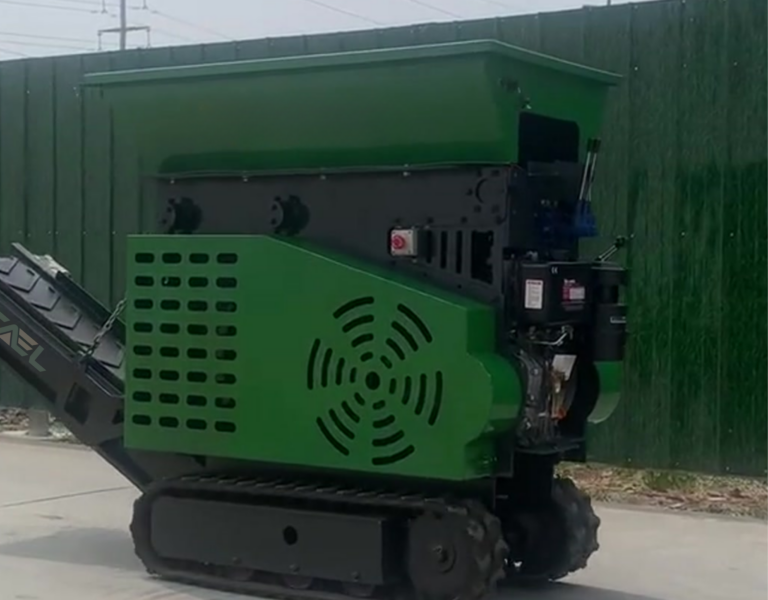

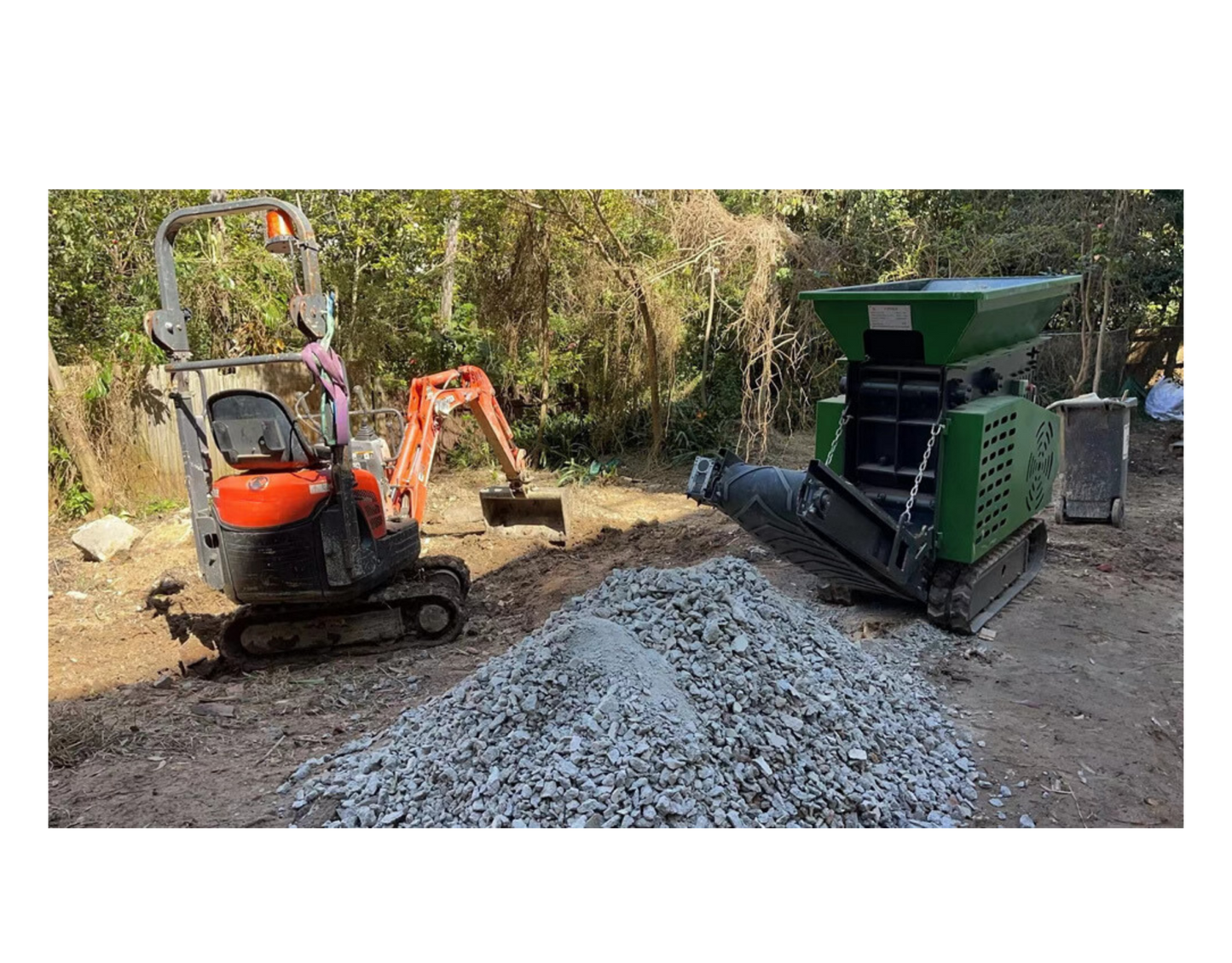

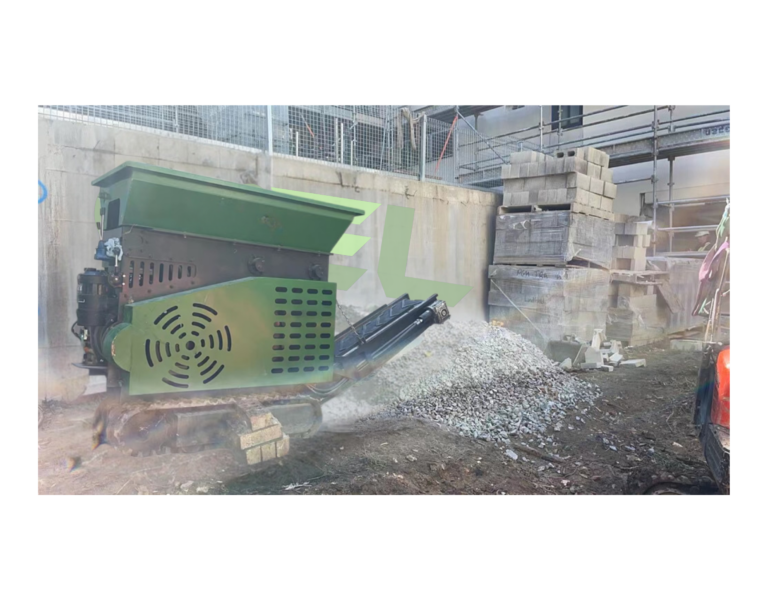

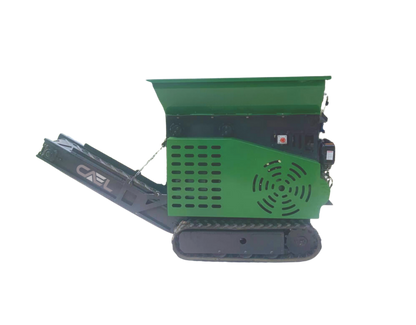

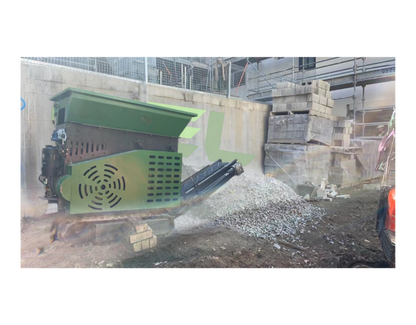

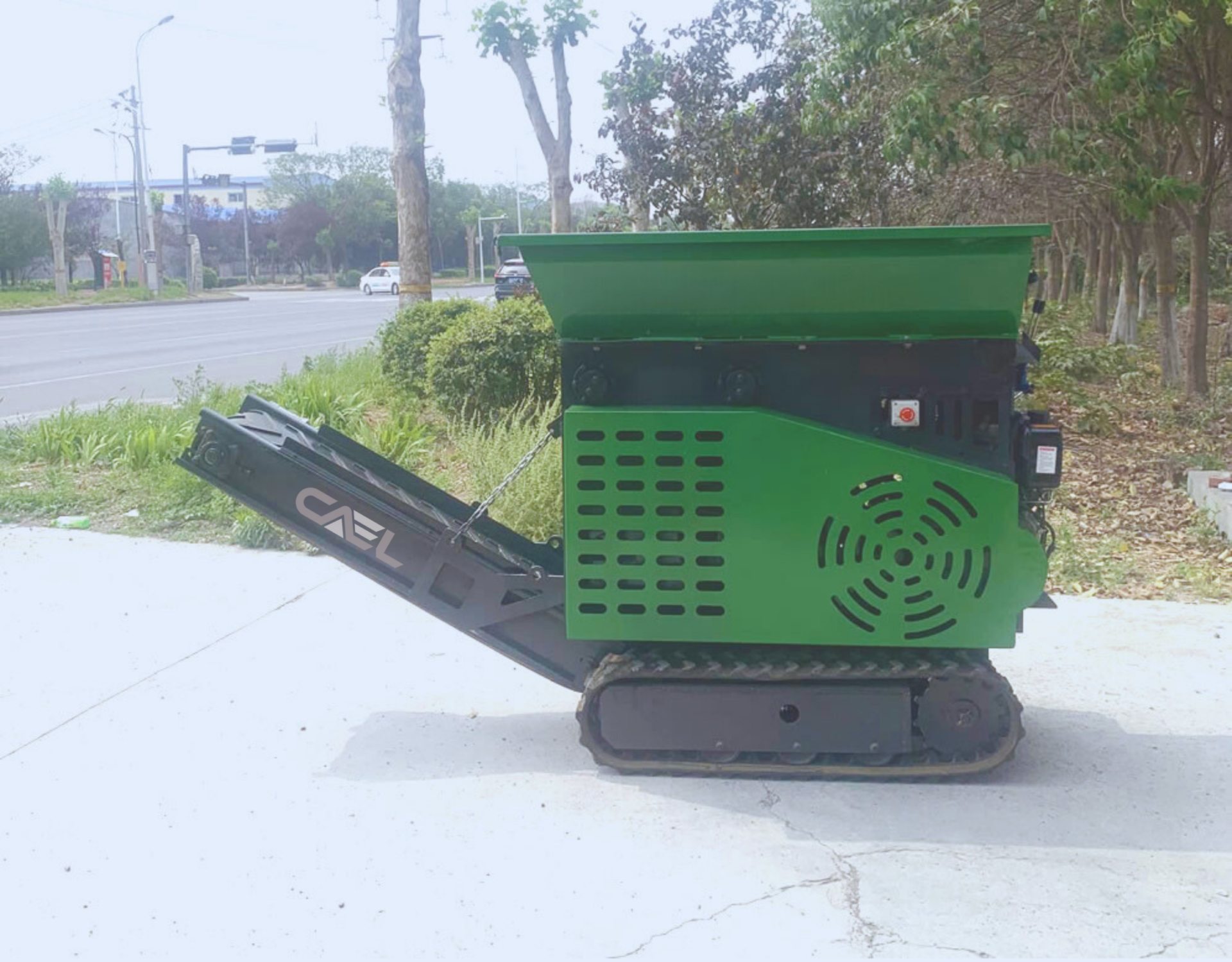

Designed for efficiency, durability, and portability, this high-performance mobile crusher delivers reliable crushing for a wide range of materials. Equipped with a powerful Stage V engine and robust construction, it is ideal for construction sites, landscaping projects, recycling operations, and small-scale mining applications.

Feeding System

• Stock Bin Volume: 0.5 m³
• Hopper Size: 1400 × 690 mm (55.12 × 27.17 in)

Crushing Equipment

• Feed Port Size: 400 × 200 mm (15.75 × 7.87 in)
• Maximum Feeding Size: 150 × 350 mm (5.91 × 13.78 in)
• Crushing Capacity: 6–8 Tons per Hour
• Crusher Min./Max. Opening: 20–80 mm (0.79–3.15 in)

Driving System

• Engine: Stage V Vanguard 400 (14 HP)
• Fuel Tank Capacity: 6.1 Liters

Auxiliary Equipment

• Belt Conveyor: 280 × 1400 mm (11.02 × 55.12 in)
• Maximum Stacking Height: 1.25 m / 1250 mm (49.21 in)

Basic Parameters

• Total Weight: 1050 kg
• Working Dimensions (L × W × H):
  2640 × 850 × 1540 mm (103.94 × 33.46 × 60.63 in)
• Transportation Size: Available upon request

Key Features

✔ High Crushing Efficiency – Suitable for a variety of materials including stone, concrete, and aggregates.
✔ Compact and Portable Design – Easy to transport and install on-site.
✔ Low Maintenance Requirements – Built with durable, high-quality components.
✔ Fuel-Efficient Stage V Engine – Environmentally friendly with superior performance.
✔ Robust and Reliable Construction – Ensures long-term operational stability.
✔ User-Friendly Operation – Designed for safe and efficient handling.
✔ One-Year Warranty – Comprehensive coverage for essential parts.
